Heat & Glo 6000TRSI-AUC User manual

1Heat & Glo • 6000TRSI-AUC • 2078-900 Rev. Q • 6/10
INSTALLATION AND OPERATION INSTRUCTIONS
THIS MANUAL MUST BE USED FOR INSTALLATION AND RETAINED
BY HOMEOWNER FOR OPERATION AND MAINTENANCE.
MODEL: 6000TRSI-AUC
AUSTRALIAN GAS ASSOCIATION CERTIFIED
CERTIFICATE NUMBER 5668
WARNING
HOT SURFACES!
Glass and other surfaces are hot during operation AND cool down.
Hot glass will cause burns.
• DO NOT touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as fireplace.
• Alert children and adults to hazards of high temperatures.
High temperatures may ignite clothing or other flammable materials.
• Keep clothing, furniture, draperies and other flammable materials away.
This appliance has been supplied with an integral barrier to prevent direct contact with the
fixed glass panel. DO NOT operate the appliance with the barrier removed.
HEAT & GLO, a brand of Hearth & Home Technologies Inc.
7571 215th Street West, Lakeville, MN 55044, USA, www.heatnglo.com
Thisproductiscoveredbyoneormoreofthefollowingpatents:(UnitedStates)5328356,5601073,5613487,5647340,5890485,5941237,
5947112,5996575,6006743,6019099,6053165,6145502,6170481,6374822,6484712, 6601579, 6769426, 6863064, 7077122,7098269,
7258116, 7470729 or other U.S. and foreign patents pending.


2Heat & Glo • 6000TRSI-AUC • 2078-900 Rev. Q • 6/10
IMPORTANT: Read all instructions carefully before starting installation.
Failure to follow these installation instructions may result in a possible fire
hazard and will void the warranty. Save this manual for future reference.
MODEL 6000TRSI-AUC
ISAUSTRALIANGASASSOCIATIONAPPROVED
FOR NATURAL GAS OR PROPANE AS A
BALANCED FLUE HEATER.
Refertothe appliancedataplates forgasconsump-
tions and pressures.
Installation of this appliance should only be carried
out by an authorized person in accordance with the
manufacturers instructions. All relevant codes and
regulations laid down by the gas fitting authorities,
municipal building regulations, electrical wiring
regulations, and the requirements of the AGA Gas
Installation Code must be observed.
This appliance and its components are tested and
safewhen installedin accordance with this Installa-
tion Manual. Report to your dealer any parts dam-
agedinshipment, specifically check glasscondition.
The gas logs and flue system components are in
separate packages.
PLEASE READ THIS MANUAL BEFORE INSTALLING AND
USING THIS APPLIANCE.
Readall instructionsbeforestarting installationand
followthese instructions carefullyduring installation
to ensure maximum benefit and safety. Failure to
follow them will void your warranty and may pres-
ent a fire hazard.
The Heat & Glo warranty will be voided by, and
Heat & Glo disclaims any responsibility for the fol-
lowing actions:
• Installation of any damaged heater or flue sys-
tem component
• Modification of the heater or balanced flue sys-
tem installation other than as instructed by Heat
& Glo.
• Improperpositioning of thegas logs orthe glass
door
• Installation and/or use of any component part
not manufactured or approved by Heat & Glo,
not withstanding any independent testing
laboratory or other party approval of such com-
ponent part or accessory.
Heat & Glo, a brand of Hearth & Home Technologies, Inc.
7571 215th Street West, Lakeville, MN 55044
Copyright 2009 • Printed in U.S.A.

3Heat & Glo • 6000TRSI-AUC • 2078-900 Rev. Q • 6/10
TABLE OF CONTENTS
1.0 INSTALLATION INSTRUCTIONS......................................................................4
A. Locating the Heater.....................................................................................5
B. Framing the Heater......................................................................................6
C. Flue System Approvals and Installations.....................................................8
D. Connecting the Gas Supply.........................................................................19
E. Ignition System Wiring.................................................................................20
F. Mantel Clearances.......................................................................................22
G. Log Placement.............................................................................................23
H. Installer Testing............................................................................................25
2.0 OPERATING INSTRUCTIONS. .........................................................................25
A. Safety and Lighting Information...................................................................27
B. Power Outage..............................................................................................28
C. Fan Operation..............................................................................................28
3.0 SERVICING AND MAINTENANCE. ..................................................................29
A. Removal of Covers for Servicing.................................................................30
B. Removal of Components for Service...........................................................30
C. Parts Replacement......................................................................................30
D. Adjustments and Replacement Parts..........................................................30
E. Troubleshooting...........................................................................................31
4.0 REPLACEMENT PARTS...................................................................................34
Limited Lifetime Warranty...................................................................................37
Vent Components Diagrams ..............................................................................39

4Heat & Glo • 6000TRSI-AUC • 2078-900 Rev. Q • 6/10
Figure 1.1 Diagram of the 6000 Series
1.0 INSTALLATION INSTRUCTIONS
When planning a heater installation, it’s necessary to
determine:
• Where the unit is to be installed.
• The flue system configuration to be used.
• Gas supply piping.
• Electrical wiring.
• Framing and finishing details.
Ifthe heater is to be installed oncarpeting ortile, or on
anycombustible materialotherthan woodflooring, the
heater should be installed on a metal or wood panel
that extends the full width and depth of the heater.
A
B
CD
E
FRONT VIEW
TOP VIEW
LEFT SIDE RIGHT SIDE
F
G
H
I
J
K
L
M
O
P
GAS LINE
ACCESS
Q
R
N
C
L
C
L
Location Inches Millimeters
J 21.5 546
K 11-11/16 297
L 28-1/2 724
M 14-1/4 362
N 8-1/2 216
O 2-7/8 73
P 8-1/2 216
Q1 25
R 36-1/8 918
Location Inches Millimeters
A 41 1041
B 36-1/8 918
C 33-1/2 851
D 34-5/8 879
E 2-1/4 57
F 9-11/16 246
G 26-7/8 683
H 6 dia 152
I 40-1/8 1019

5Heat & Glo • 6000TRSI-AUC • 2078-900 Rev. Q • 6/10
Clearance Requirements
The top, back, and sides of the heater are defined by standoffs.
The minimum clearance to a perpendicular wall extending past the face of the heater is
one inch (25 mm).
For 6000 Series Models, the back of the heater may be recessed 21-1/2 inches (546 mm)
into combustible construction.
For minimum clearances, see the direct flue termination clearance diagrams on page 7.
Minimum Clearances from the Heater to Combustible Materials
Glass
Front Floor Back of Heater Sides of Heater Top of Heater Ceiling
36 inches
914 mm 01/2 inch 13 mm 1/2 inch 13 mm 3-1/2 inches 89 mm 31 inches 787 mm
Minimum Clearances from the Flue Pipe to Combustible Materials
For Horizontal Sections For Vertical
Sections At Wall Firestops
Top Bottom Sides Top Bottom Sides
3 inches
75 mm 1 inch 25 mm 1 inch 25 mm 1 inch 25 mm 2-1/2 inches 63.7 mm 1/2 inch 13 mm 1 inch 25 mm

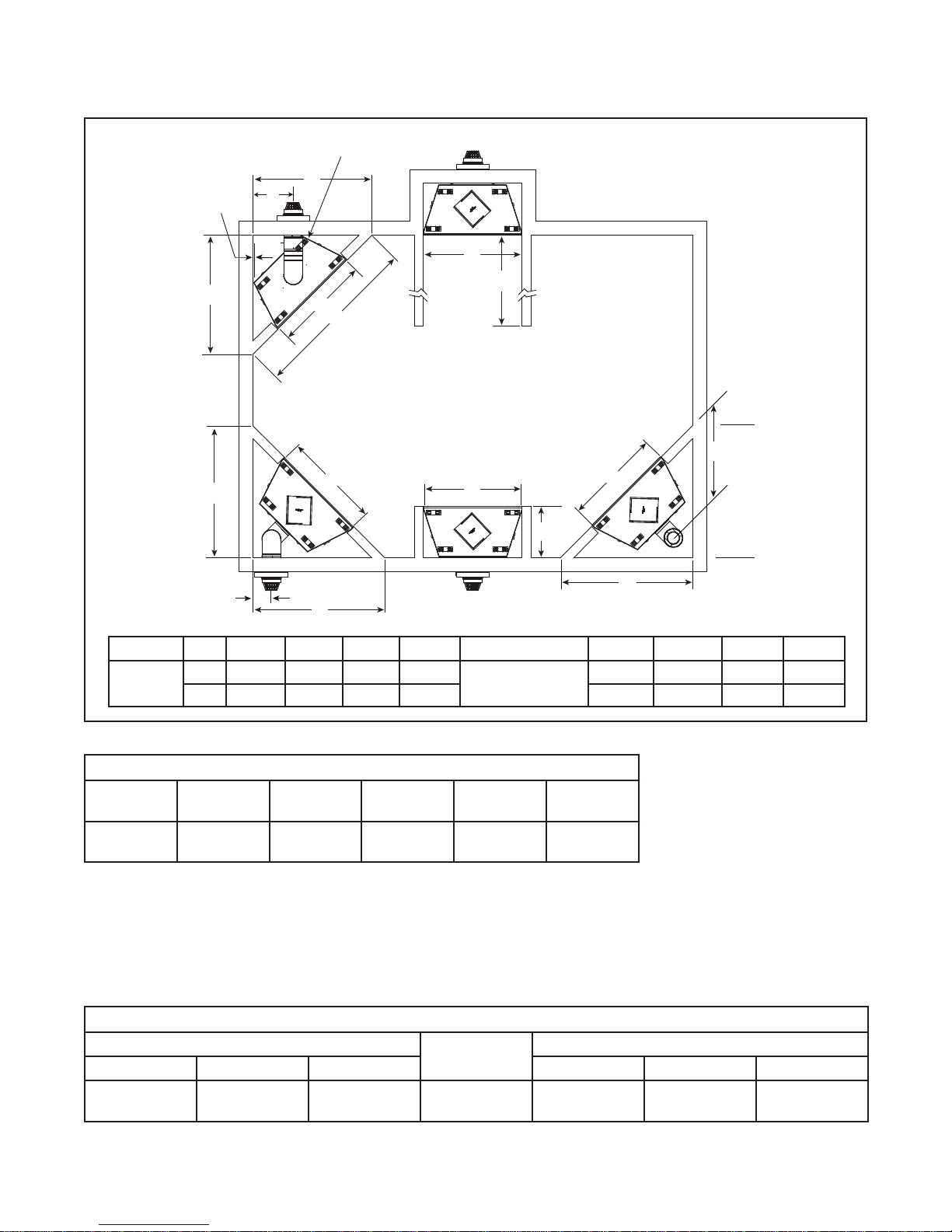

REAR FLUE,
HORIZONTAL TERMINATION
TWO 90º ELBOWS REAR FLUE
NO ELBOWS
REAR FLUE
ONE 90º ELBOW
ALCOVE
INSTALLATION
TOP FLUE
ONE 90º ELBOW
A
BC
B
E
B
B
B
D
D
F
G
HD
A
NOTE: THE REAR STANDOFF MAY NEED
TO BE REMOVED WHEN VENTING AT 45º
1,3 cm
I
C
L
ABCD E F G H I
6000 in. 51 42 72 56-5/8 See Section F.
Mantel Projections 22 17-3/4 8 28-3/4
mm 1295 1067 1829 1438 559 451 203 730
A. Locating the Heater
Figure 1.2

6Heat & Glo • 6000TRSI-AUC • 2078-900 Rev. Q • 6/10
A
B
C
Framing should be constructed
of 2 X 4 lumber or heavier.
A B C D * E *
42-1/8 in. 40-1/4 in. 22-1/16 in. 26-7/8 in. 48 in.
(1070 mm) (1022 mm) (560 mm) (684 mm) (1219 mm)
Figure 1.3 Framing Dimensions
B. Framing the Heater
Framing can be built before or after the heater is set in
place. Framing should be positioned to accommodate
wallcoveringsand heaterfacingmaterial.The diagram
below shows framing reference dimensions.
*NOTE:These dimensionsshow the center
of the horizontal flue pipe. The center of
the framing hole is one inch (25.4 mm)
above the center of the flue pipe.
140 mm
76 mm
NON-COMBUSTIBLE ZONE
IS DEFINED BY 76MM ABOVE
THE ELBOW FOR THE ENTIRE
WIDTH AND DEPTH (BEHIND
THE FRONT HEADER) OF
THE FIREBOX.
WALL
STUD
E*
D*
CAUTION: MEASURE HEATER DIMENSIONS AND
VERIFY FRAMING METHODS AND WALL COVER-
ING DETAILS, BEFOREFRAMING CONSTRUCTION
BEGINS.

7Heat & Glo • 6000TRSI-AUC • 2078-900 Rev. Q • 6/10
NOTES: 1. All distances are measured vertically or horizontally along the wall to a point
in line with the nearest part of the terminal.
2. Prohibited area below electricity meter or fuse box extends to ground level.
3. See clause 5.13.6.6 for restrictions on a flue terminal under a roofed area.
4. See Appendix J, Figure J1(a) and J2(a) for clearances required from a flue
terminal to a LP Gas cylinder. A flue terminal is considered to be a source of ignition.
MINIMUM CLEARANCES REQUIRED FOR BALANCED FLUE TERMINALS
OR THE FLUE TERMINALS OF OUTDOOR APPLIANCES
Figure 1.4
a - Below eaves, balconies or other projections: MIN. CLEARANCE (mm)
Appliances up to 50 MJ/h input..............................................................................................300
Appliances over 50 MJ/h input...............................................................................................500
b - From the ground or above a balcony.........................................................................................300
c - From a return wall or external corner.........................................................................................500
d - From a gas meter (M)..............................................................................................................1000
e - From an electricity meter or fuse box (P)...................................................................................500
f - From a drain or soil pipe............................................................................................................150
g - Horizontally from any building structure (unless appliance approved
for closer installation) or obstruction facing a terminal...............................................................500
h - From any other flue terminal, cowl, or combustion air intake ....................................................500
j - Horizontally from an openable window, door, non-mechanical air
inlet, or any other opening into a building, with the exception of
sub-floor ventilation:
Appliances up to 150 MJ/h input............................................................................................500
Appliances over 150 MJ/h input...........................................................................................1500
k - From a mechanical air inlet, including a spa blower...............................................................1500
n - Vertically below an openable window, non-mechanical air
inlet or any other opening into a building, with the exception of...................................... See table
sub-floor ventilation................................................................................................................ below
T= Flue terminal M= Gas meter Shading indicates prohibited
I= Mechanical air inlet P= Electricity meter or fuse box areas for flue terminals
f
c
n
I
openable
window
j
jj
door
h
hh
T
ee
P
T
g
k
kdb
d
M
a
c
g
See note 2
See note 3
T
CLEARANCE 'n' (mm)
Space Heaters All other appliances
Up to 50 MJ/h input Up to 50 MJ/h input Over 50 MJ/h input and
Up to 150 MJ/h input Over 50 MJ/h input
150 500 1000 1500

8Heat & Glo • 6000TRSI-AUC • 2078-900 Rev. Q • 6/10
TABLE 1

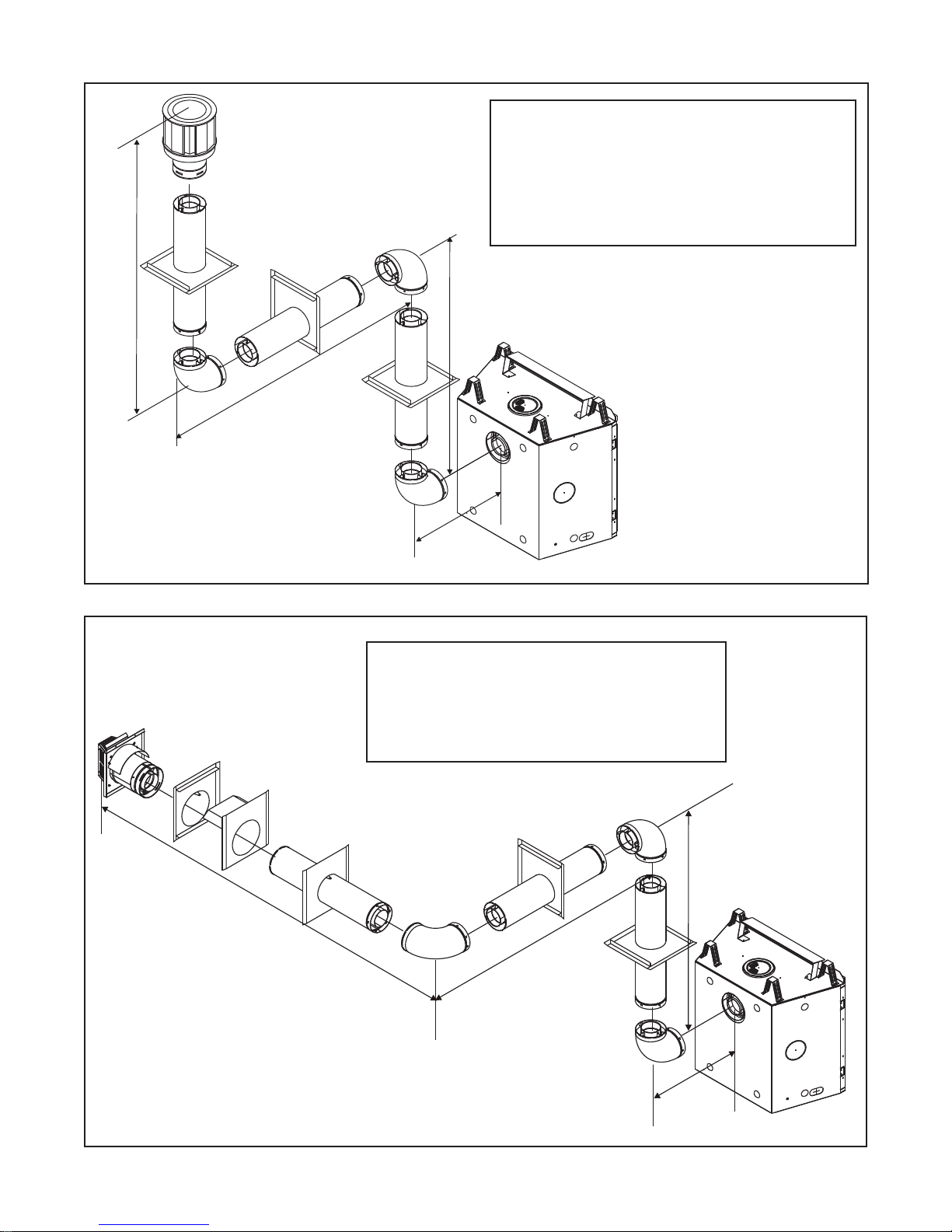

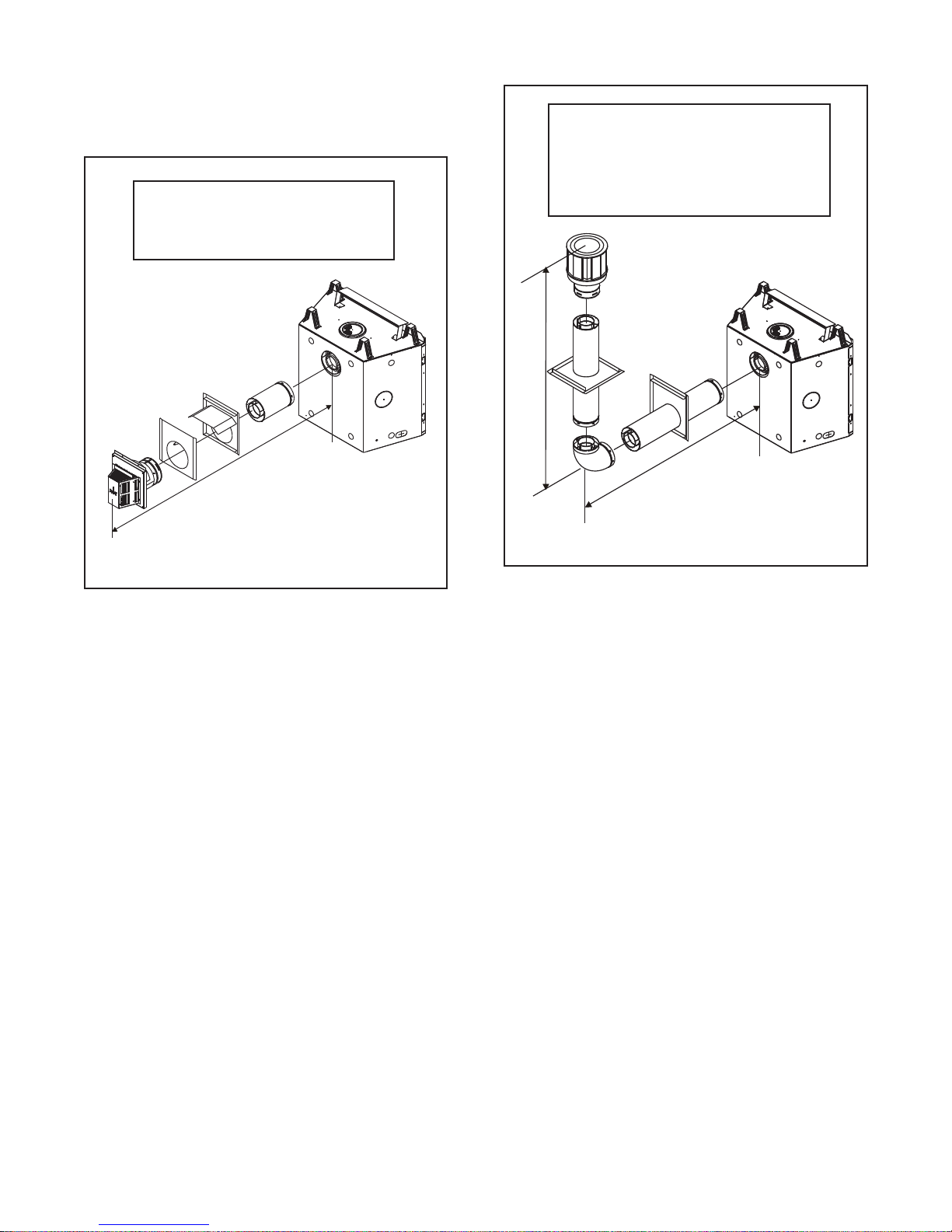

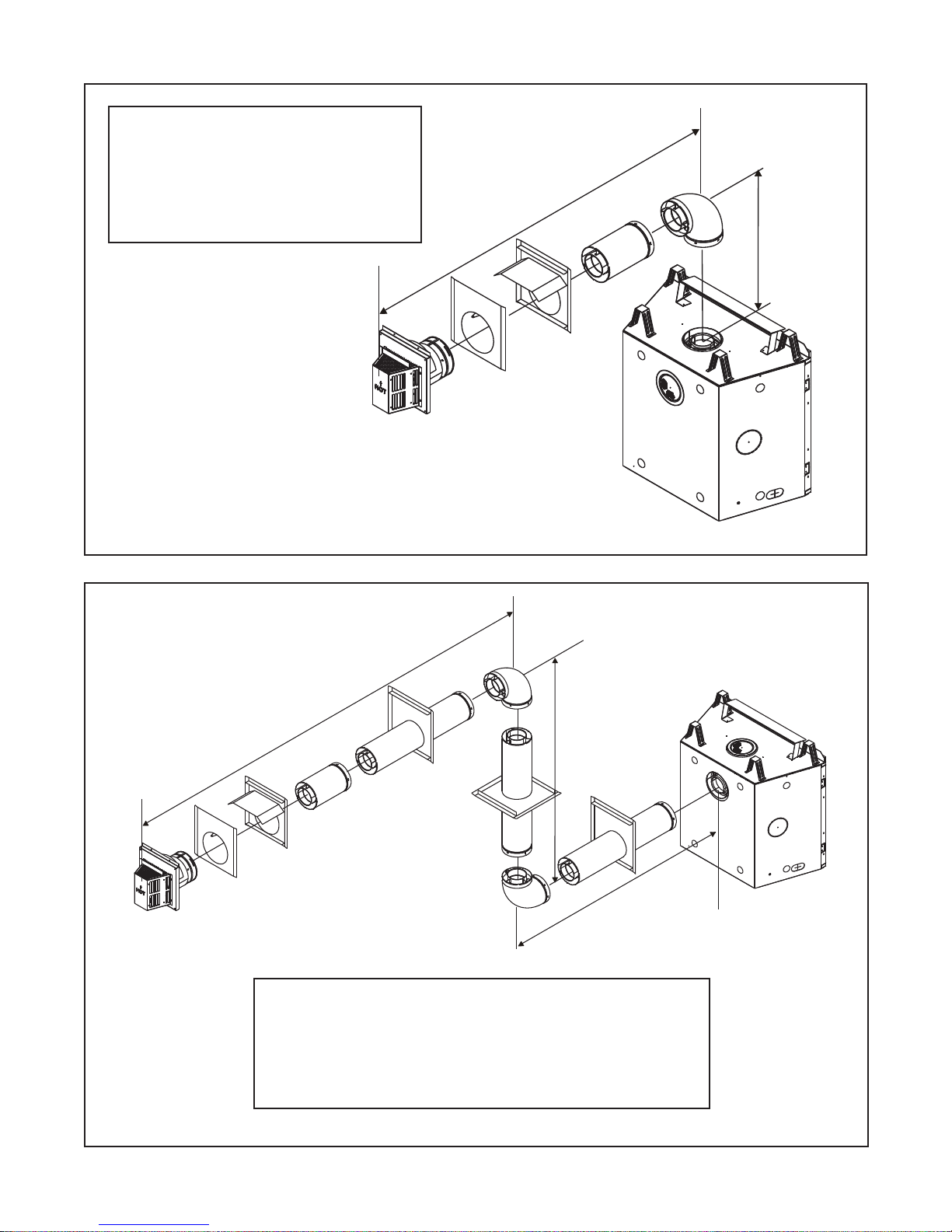

Figure 1.5. Flue Components and Terminations
MODEL
6TRSI-AUE
FLUE TERMINATION APPROVALS
DVP-TRAP2 HORIZONTAL TERMINATION CAP
DVP-TVHW VERTICALTERMINATION CAP
C. Flue System Approvals And Installations
Thesemodels havefluestarting collarsonboth thetop
and the back of the unit. Depending upon the instal-
lation, decide which ONE set of starting collars will be
usedto attachthe fluesystem.Thestarting collarseal-
ing cap must remain on the starting collar NOT used.
These models use DVP series direct flue components
whenusing theTOP fluecollars andDVP-series direct
flue components when using the REAR flue collars.
Approved flue system components are labeled for
identification. NO OTHER FLUEING SYSTEMS OR
COMPONENTS MAY BE USED. Detailed installation
instructions are included with each flue termination kit
and should be used in conjunction with this manual.
Figure 5 below shows flue system components and
terminations.
Identifying Flue Components
The flue systems installed on this gas heater may
include one, two, or three 90°elbow assemblies. The
relationships of vertical rise to horizontal run in flue
configurations using 90° elbows MUST BE strictly
adheredto.Theriseto runrelationshipsareshowninthe
flueing drawings and tables on the next few pages.
WARNING: THIS GAS APPLIANCE AND FLUE AS-
SEMBLY MUST FLUE DIRECTLY TO THE OUTSIDE
AND MUST NEVER BEATTACHED TOA CHIMNEY
SERVING A SEPARATE SOLID FUEL BURNING
APPLIANCE. EACH GAS APPLIANCE MUST USE
ASEPARATE FLUE SYSTEM-COMMON FLUE SYS-
TEMS ARE PROHIBITED.
CAUTION: UNDER NO CONDITION SHOULD COM-
BUSTIBLE MATERIALBE CLOSER THAN76 mmAT
WALL FIRE-STOPS FROM THE TOP OF THE PIPE
OR 25 mm TO THE SIDESAND THE BOTTOM FOR
HORIZONTAL SECTIONS OF THIS FLUE SYSTEM.
VERTICAL SECTIONS OF THIS SYSTEM REQUIRE
AMINIMUM OF 25 mm CLEARANCE TO COMBUS-
TIBLE MATERIALS ALL AROUND THE PIPE.
For alternative installations, other than depicted, con-
tact your dealer for further information.
Refer to Figure 1.5 for required clearances to flue
terminals.
HORIZONTAL
TERMINATION
WALL FIRESTOP
90 DEGREE
ELBOW
VERTICAL
TERMINATION STORM COLLAR
ROOF FLASHING
HORIZONTAL PIPE
SUPPORT
PIPE LENGTH
WALL BRACKET
CEILING
FIRESTOP
DVP-SERIES
DVP-TRAP2
DVP-TVHW
Flue system termination kits

9Heat & Glo • 6000TRSI-AUC • 2078-900 Rev. Q • 6/10
This model is approved to use DVP-Series flue pipe
components.ADVP-TRAP2TerminationCapmustbe
usedtoterminatefluesystemsinahorizontalposition.
A DVP-TVHW vertical Termination Cap must be used
to terminate flue systems in a vertical position.
Figures 1.8 through 1.15 show the flue systems
approved for these models. Approved flue system
componentsare labeled foridentification. NO OTHER
FLUESYSTEMSOR COMPONENTS MAY BE USED.
Detailedinstallationinstructions areincludedwith each
flue termination kit and should be used in conjunction
with this manual.
WARNING: THIS GAS APPLIANCE AND FLUE
ASSEMBLY MUST BE FLUED DIRECTLY TO THE
OUTSIDE AND MUST NEVER BE ATTACHED TO
A CHIMNEY SERVING A SEPARATE SOLID FUEL
BURNING APPLIANCE. EACH GAS APPLIANCE
MUST USE ASEPARATE FLUE SYSTEM-COMMON
FLUE SYSTEMS ARE PROHIBITED.
CAUTION: UNDER NO CONDITION SHOULD COM-
BUSTIBLEMATERIAL BECLOSERTHAN 3INCHES
(2-1/2 INCHES AT WALL FIRESTOPS) FROM THE
TOP OF THE8 INCH PIPEOR 1 INCH TOTHE SIDES
AND THE BOTTOM FOR HORIZONTAL SECTIONS
OF THIS FLUE SYSTEM. VERTICAL SECTIONS OF
THIS SYSTEM REQUIRE A MINIMUM OF 1 INCH
CLEARANCE TO COMBUSTIBLE MATERIALS ALL
AROUND THE 8 INCH PIPE.
For alternative installations, other than depicted, con-
tact your dealer for further information.
Refer to Figure 1.5 for required clearances to flue
terminals.
MODEL FLUE TERMINATION APPROVALS
6000TRSI-AUC DVP-TRAP2, DVP-TVHW
TABLE 1
Figure 1.6
VERTICAL FLUE RESTRICTOR
If the heater installation requires a vertical flue ex-
ceeding 4.5 m above the unit with no horizontal flue
or elbows a vertical flue restrictor must be installed
(see Figure 1.6).
Figure 1.7
V
CAP
V
MAX. RUN
36 FT.
(10.97m)
STRAIGHT UP VERTICAL FLUE SYSTEM
Figure 1.6 shows straight up vertical flue system ap-
proved for use on this model.
RESTRICTOR
PLATE

10 Heat & Glo • 6000TRSI-AUC • 2078-900 Rev. Q • 6/10
Figure 1.8 Straight Out Horizontal Flueing
H H
MIN. RUN MAX. RUN
13.1" (331 mm) 24" (610 mm)
H
Figure 1.9 Flueing with One 90° Elbow
V H
1´ MIN. (0.30 M) 2´ MAX. (0.61 M)
2´ MIN. (0.61 M) 4´ MAX. (1.22 M)
3´ MIN. (0.91 M) 6´ MAX. (1.83 M)
4´ MIN. (1.22 M) 8´ MAX. (2.44 M)
24´ MAX. (7.32 M) 8´ MAX. (2.44 M)
V
H
ONE (1) 90-DEGREE ELBOW
Figures1.9 and1.10show aninstallation usingone(1)
90-degree elbow. Dimension V is listed as MINIMUM
vertical dimensions and dimension H is listed as cor-
responding MAXIMUM horizontal dimensions.
TWO (2) 90-DEGREE ELBOWS
Figures 1.11 and 1.12 show examples of possible in-
stallationsusing two(2) 90-degreeelbows. Dimension
Vislisted asMINIMUM verticaldimensions, dimension
H is listed as MAXIMUM beginning horizontal dimen-
sions,and dimensionH +H1is listedas corresponding
TOTAL MAXIMUM horizontal dimensions.
THREE (3) 90-DEGREE ELBOWS
Figures 1.13 through 1.15 show examples of possible
installationsusing three(3) 90-degreeelbows. Dimen-
sions V are listed MINIMUM first vertical dimensions
and dimensions H are listed as beginning MAXIMUM
horizontal dimensions. Dimensions H + H1and H +
H1 + H2are listed as TOTAL MAXIMUM horizontal
dimensions. Dimensions V + V1are listed as TOTAL
MAXIMUM vertical dimensions.
ELBOWS
Theflue systems installedon thisgas heater mayalso
include one (1), two (2), or three (3) 90 - degree elbow
assemblies.
Figures 1.9 through 1.15 and their corresponding
tables show examples of flue configurations using
elbows. The relationships of vertical rise to horizontal
runinflueconfigurationsusingelbowsMUSTbestrictly
adhered to.
STRAIGHT OUT HORIZONTAL FLUE SYSTEM
Figure 1.8 shows straight out horizontal flue systems
approved for use on this model.

11 Heat & Glo • 6000TRSI-AUC • 2078-900 Rev. Q • 6/10
Figure 1.11 Flueing with Two 90° Elbows
V FT.) H (FT.) H+H1(FT.)
1' MIN. (0.30 M) 2' MAX. (0.61 M) 4' MAX. (1.22 M)
2' MIN. (0.61 M) 2' MAX. (0.61 M) 8' MAX. (2.44 M)
3' MIN. (0.91 M) 4' MAX. (1.22 M) 12' MAX. (3.66 M)
4' MIN. (1.22 M) 6' MAX. (1.83 M) 16' MAX. (4.88 M)
20' MAX. (6.10 M) 6' MAX. (1.83 M) 16' MAX. (4.88 M)
H1
V
H
V (FT.) H (FT.)
1' MIN. (0.30 M) 4' MAX. (1.22 M)
2' MIN. (0.61 M) 8' MAX. (2.44 M)
3' MIN. (0.91 M) 12' MAX. (3.66 M)
4' MIN. (1.22 M) 16' MAX. (4.88 M)
V+H= 24’ MAX. (7.32 M)
Figure 1.10 Flueing with One 90° Elbow
NOTE:A6 inch (152 mm) section of straight pipe must need
to be attached to the heater before a 90º elbow.
H
V

12 Heat & Glo • 6000TRSI-AUC • 2078-900 Rev. Q • 6/10
V FT. H + H1(FT.)
1' MIN. (0.30 M) 4' MAX. (1.22 M)
2' MIN. (0.61 M) 8' MAX. (2.44 M)
3' MIN. (0.91 M) 12' MAX. (3.66 M)
4' MIN. (1.22 M) 16' MAX. (4.88 M)
V+H+H1= 36' MAX.(10.97 M)
V+V1+H= 36' MAX.(10.97 M)
H
1
H
V
V
V1
H
Figure 1.12 Flueing with Two 90° Elbows

13 Heat & Glo • 6000TRSI-AUC • 2078-900 Rev. Q • 6/10
Figure 1.14 Flueing with three 90° elbows
FLUEING WITH THREE (3) 90° ELBOWS
V H H + H1
1´ MIN. (0.30 M) 2´ MAX. (0.61 M) 3´ MAX. (0.91 M)
2´ MIN. (0.61 M) 4´ MAX. (1.22 M) 6´ MAX. (1.83 M)
3´ MIN. (0.91 M) 6´ MAX. (1.83 M) 9´ MAX. (2.74 M)
4´ MIN. (1.22 M) 8´ MAX. (2.44 M) 12´ MAX. (3.66 M)
8´ MAX. (2.44 M) 12´ MAX. (3.66 M)
NOTE: V + V, MAX. 36´ (10.97 M)
FLUEING WITH THREE (3) 90° ELBOWS
Figure 1.13 Flueing with three 90° elbows
V H H + H1+ H2
1´ MIN. (0.30 M) 2´ MAX. (0.61 M) 3´ MAX. (0.91 M)
2´ MIN. (0.61 M) 2´ MAX. (0.61 M) 6´ MAX. (1.83 M)
3´ MIN. (0.91 M) 4´ MAX. (1.22 M) 9´ MAX. (2.74 M)
4´ MIN. (1.22 M) 6´ MAX. (1.83 M) 12´ MAX. (3.66 M)
20´ MAX. (6.10 M) 6´ MAX. (1.83 M) 12´ MAX. (3.66 M)
V
H1
V1
H1
H2
V

14 Heat & Glo • 6000TRSI-AUC • 2078-900 Rev. Q • 6/10
V
H
H1
V1
V
H
H1
V
1
FLUEING WITH THREE (3) 90° ELBOWS
V (FT.) H + H1(FT.)
1' MIN. (0.30 M) 3' MAX. (0.91 M)
2' MIN. (0.61 M) 6' MAX. (1.83 M)
3' MIN. (0.91 M) 9' MAX. (2.74 M)
4' MIN. (1.22 M) 12' MAX. (3.66 M)
NOTE: V + V1 + H + H1= 32' MAX. (9.75 M)
V (FT.) H + H1 (FT.)
1' MIN. (0.30 M) 3' MAX. (0.91 M)
2' MIN. (0.61 M) 6' MAX. (1.83 M)
3' MIN. (0.91 M) 9' MAX. (2.74 M)
4' MIN. (1.22 M) 12' MAX. (3.66 M)
NOTE: V + V1 + H + H1= 32' MAX. (9.75 M)
Figure 1.15 Flueing with three 90° elbows

15 Heat & Glo • 6000TRSI-AUC • 2078-900 Rev. Q • 6/10
Attach the Flue Component to the Starting Collars
To attachthe firstfluecomponent tothe startingcollars
of the heater:
• Make sure that the heater gasket supplied with the
heater seals between the first flue component and
the outer heater wrap (see Figure 1.17).
• Slide the male end of the inner flue of the pipe sec-
tion over the inner collar on the heater. At the same
time, slide the outer flue over the outer collar on the
heater.Push thefluesection into theappliance collar
until all the lances (see Figure 1.18) have snapped
in place. Tug slightly on the flueto confirm thatit has
completely locked into place.
• The first 90° elbow installed in the flue system of a
rear flueing heater MUST BE in a vertical position.
Figure 1.18
Figure 1.17 Fiberglass Gasket
OUTER
WRAP
FIBERGLASS
GASKET
FIRST VENT
COMPONENT
!
1. Installing Flue Components
After determining which set of starting collars will be
used (top or rear), follow flueing instructions accord-
ingly.
Flueing Out the Rear Flue
Remove the installed rear seal cap from the rear start-
ingcollars by cuttingthe strap ateach end. (SeeFigure
1.16). Follow the flue configuration tables accordingly.
Remove the insulation from the REAR five inch flue,
pull the heat shield out from outside of the firebox.
Figure 1.16
Flueing Out Rear Flueing Out Top
HEAT
SHIELD
SEAL
CAP
SEAL
CAP
HEAT
SHIELD
INSULATION,
DISCARD BOTH
PIECES AND
HEAT SHIELD
DISCARD
INSULATION AND
HEAT SHIELD
ATTENTION!
IF USING THIS VENT
YOU MUST REMOVE
THE INSULATION
AND RETAINER
CUT HERE
CUT SEAL CAP AND
REMOVE WHITE
GASKET MATERIAL
Flueing Out the Top Flue
Remove the two screws in the top flue collar seal cap
andremove thetop flue collarseal cap and twopieces
of insulation inside the top two starting collars (See
Figure 1.16).
Remove the heat shield from inside the TOP five inch
flue from outside of the firebox.
WARNING: THE TOPHEAT SHIELD (INSIDE
THE FIREBOX) MUST REMAIN ATTACHED
IF THE FLUE SYSTEM IS ATTACHED TO
THE REAR STARTING COLLARS. SEE
Figure 14.
!
WARNING:THE REARFLUECOLLARSEAL
CAP MUST REMAIN ATTACHED TO THE
REAR FLUE COLLARS IF THE FLUE SYS-
TEM ISATTACHED TO THE TOP STARTING
COLLARS.

16 Heat & Glo • 6000TRSI-AUC • 2078-900 Rev. Q • 6/10
WARNING: ENSURE THAT THE HEATER GASKET
SUPPLIED WITH THE HEATER SEALS BETWEEN
THE FIRST FLUE COMPONENT AND THE OUTER
HEATER WRAP.

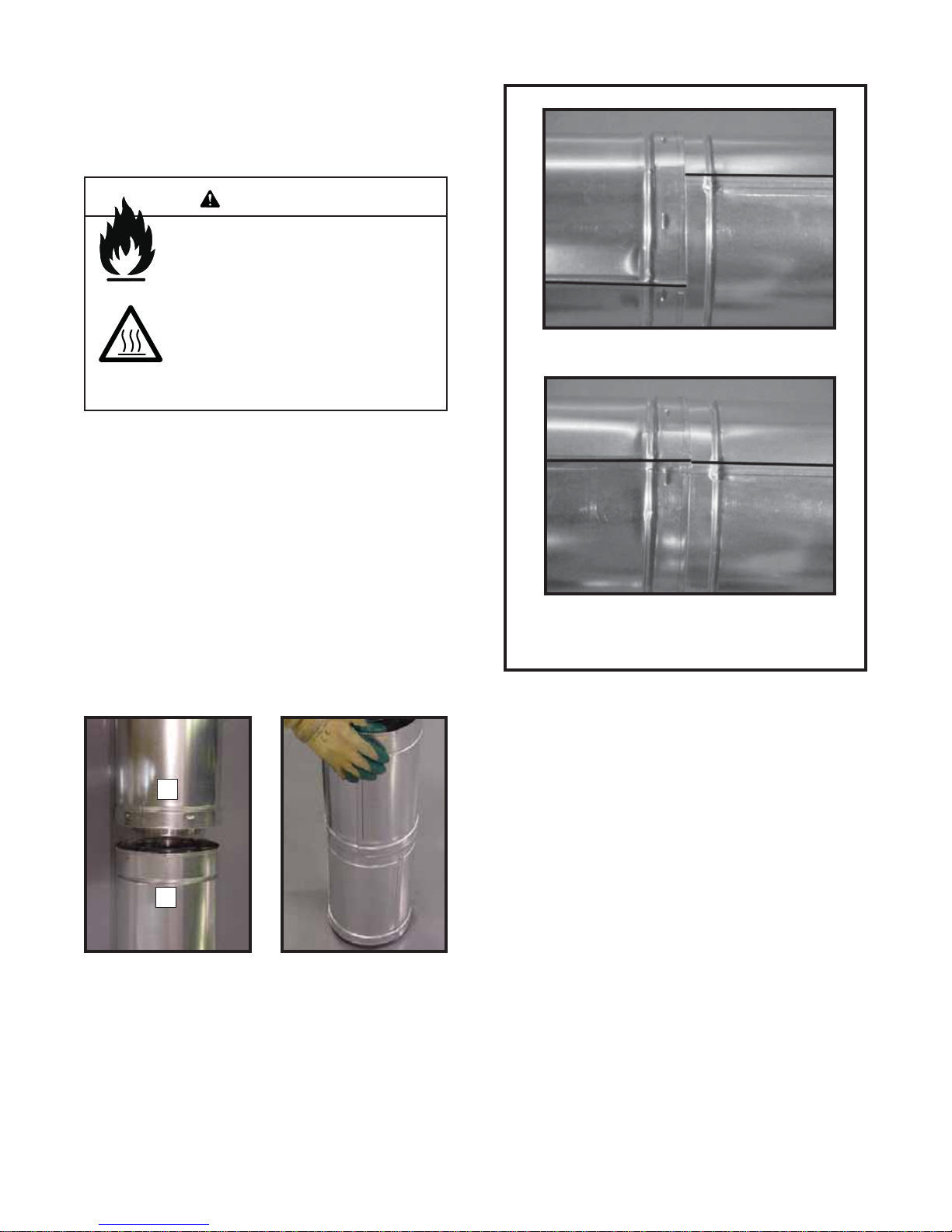

2. Assembling Flue Components
Insert the inner flue of section A into the flared inner
flue of section B.
Start the outer flue of section A over the outer flue of
sectionB (see Figure 1.19).Note: The endof the pipe
sections with the lances/tabs on it will face towards
the appliance.
Once both inner and outer flues are started, press
section A onto section B firmly until all lances have
snapped into place. Check to make sure they have
snappedtogether(see Figure 1.20) andtheseams are
notaligned (seeFigure 1.21). Tug slightlyon sectionA
to confirm it has completely locked into place.
Figure 1.19 Figure 1.20
Figure 1.21 Seams
Note: Make sure that the seams are not aligned to
prevent unintentional disconnection.
CORRECT
INCORRECT
NOTE: Make sure that seams are NOT aligned to
prevent unintentional disconnection.
For elbows that are changing the flue direction, two
screws minimum should be put in the outer flue at the
joint to prevent the elbow from rotating.
A
B
Fire Risk
Exhaust Fumes Risk
Impaired Performance of Appliance
• Overlap pipe slip sections at least 1-1/2
inches (38 mm).
• Use pilot holes for screws.
• Screws must not exceed one inch
long.
• Pipe may separate if not properly
joined.
WARNING

17 Heat & Glo • 6000TRSI-AUC • 2078-900 Rev. Q • 6/10
10" (254 mm)
12" (305 mm)
INTERIOR
WALL SHIELD
For Vertical Runs - One firestop is REQUIRED at the
hole in each ceiling through which the flue passes.
To install firestops for vertical runs that pass through
ceilings:
• Position a plumb bob directly over the center of the
vertical flue component.
• Mark the ceiling to establish the centerpoint of the
flue.
• Drill a hole or drive a nail through this center point.
• Check the floor above for any obstructions, such as
wiring or plumbing runs.
• Reposition the heater and flue system, if necessary,
to accommodate the ceiling joists and/or obstruc-
tions.
• Cut a 254 mm X 254 mm hole through the ceiling,
using the firestop pipe opening as a guide.
• Frame the hole with framing lumber the same size
as the ceiling joists.
4. Install Firestops
For Horizontal Runs - Firestops are REQUIRED on
both sides of a combustible wall through which the
flue passes.
To install firestops (heat shield) for horizontal runs that
pass through either interior or exterior walls:
• Cut a 10-inch by 12-inch (254 mm X 305 mm) hole
through the wall.
• Position the firestops on both sides of the hole
previously cut and secure the firestops with nails or
screws.
• The pipe opening of the firestops MUST BE placed
towards the bottom of the firestop.
• Continue the flue run through the firestop.

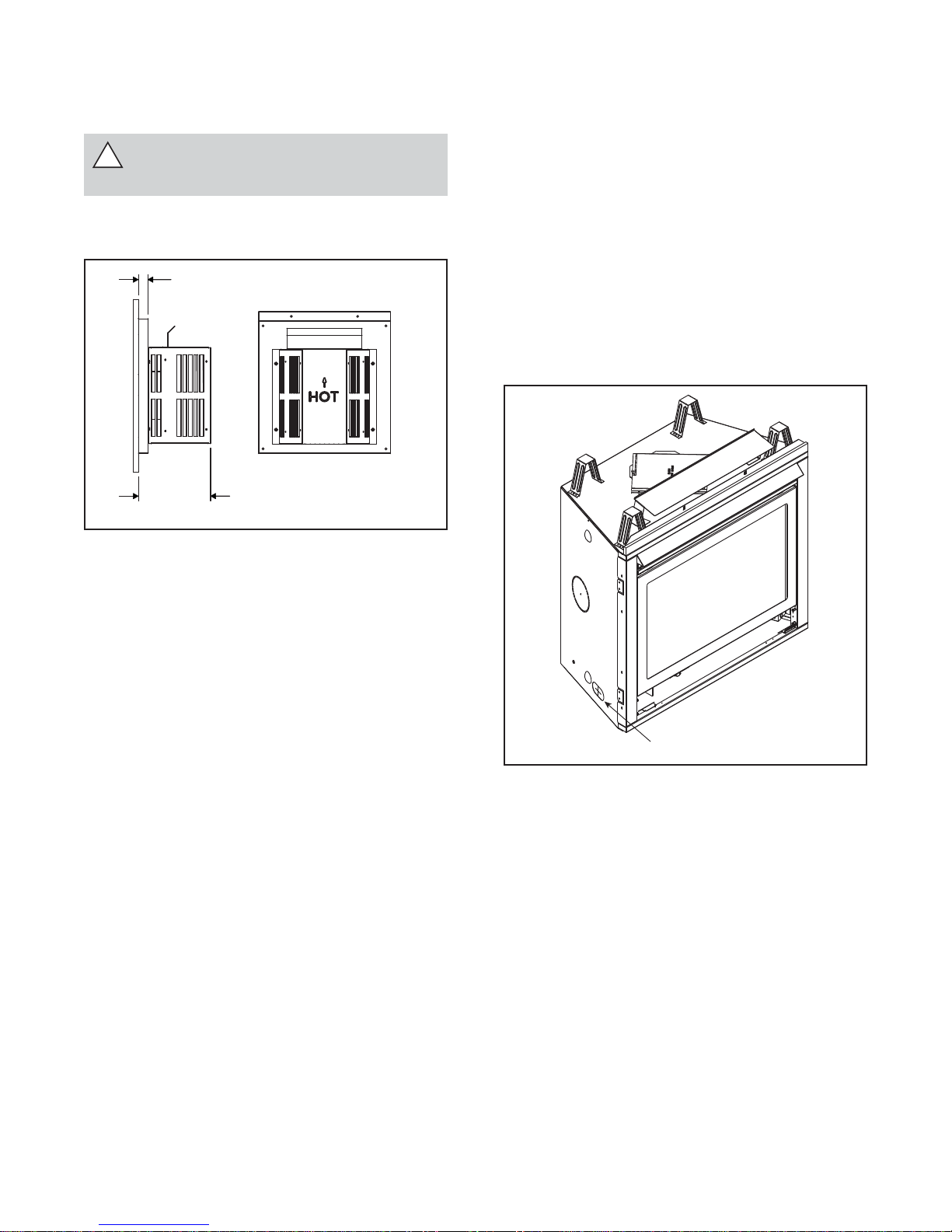

Figure 1.23 Flue Pipe & Firestop
Figure 1.22 Installing Support Brackets
WALL BRACKET
WALL STUD
FLUE
OUTLET
1 INCH MIN.
(25 mm)
8 FT.
(2.4 m)
3. Install Support Brackets
For Horizontal Runs - The flue system must be
supported every five (5) feet (1.5 m) of horizontal run
byahorizontal pipesupport.To installsupportbrackets
for horizontal runs:
• Place the pipe supports around the flue pipe.
• Nail the pipe supports to the framing members.
ForVertical Runs - Thefluesystem must besupported
every eight feet (2.4 M) above the heater flue outlet by
wall brackets. To install support brackets for vertical
runs:
• Attach wall brackets to the flue pipe and secure the
wall bracket to the framing members with nails or
screws.

18 Heat & Glo • 6000TRSI-AUC • 2078-900 Rev. Q • 6/10
Figure 1.25 Ceiling Firestop (Ceiling Side)
If the area above the ceiling IS an attic, position and
secure the firestop on top of the previously framed
hole.
CEILING
NEW
FRAMING
MEMBERS
EXISTING CEILING
JOISTS
CHIMNEY
HOLE
10" (254 mm) 10" (254 mm)
Figure 1.27 Flueing through the Wall
Figure 1.26 Attic Firestop
• The termination kit should pass through the wall
firestops from the exterior of the building.
5. Flue Termination
For Horizontal Terminations - To attach and secure
the termination to the last section of horizontal flue:
• The rear flue heat shield MUST be placed one inch
abovethe topof theflue betweenthe wallshield and
the base of the termination cap.
• One section of the heat shield is attached to the wall
shield. The other is attached to the termination cap
in the same manner.
• The heat shield sections will overlap to match the
wall thickness (depth).
• Ifthe wall thicknessdoes not allowthe required 1-1/2
inch heat shield overlap, an extended heat shield
must be used. The extended heat shield will need to
be cut to the thickness of the wall and be attached
to the wall shield.
• The small leg in the shield rests on top of the flue to
properly space it from the pipe section (see Figure
1.27).
Figure 1.24 Hole and New Framing Members
If the area above the ceiling is NOT an attic, position
and secure the ceiling firestop on the ceiling side of
the previously cut and framed hole.
CEILING
CEILING FIRESTOP
RAFTER
NAILS (4 REQUIRED)
JOIST
CEILING FIRESTOP
CEILING
NAILS (4 REQUIRED)
EXTERIOR
INTERIOR
Interior
Wall Shield
Inner Flue
Rear Vent
Heat Shield
3.8 cm min.
overlap
Outer Flue
3.8 cm min.
Overlap

19 Heat & Glo • 6000TRSI-AUC • 2078-900 Rev. Q • 6/10
Figure 1.29
D. Connecting The Gas Supply
Thegas is introducedto the appliance on the left hand
side. See Figure 1.29.
After the gas pipe installation is complete, check care-
fullyall gas connections for leakswith acommercially-
available,noncorrosive leakcheck solution.Be sure to
rinse off all leak check solution following testing. DO
NOT USEAN OPEN FLAME.
NOTE: THE GAS SUPPLY LINE SHOULD BE
PURGED OF ANY TRAPPED AIR PRIOR TO THE
FIRST FIRING OF THE UNIT.
Figure 1.28 Termination Cap
For Vertical Terminations - To locate the flue and
install the flue sections:
• Locate and mark the flue center point on the under-
side of the roof, and drive a nail through the center
point.
• Make the outline of the roof hole around the center
point nail.
• Thesize oftheroof holeframing dimensionsdepend
on the pitch of the roof. There MUST BE a 1-inch
(25 mm) clearance from the vertical flue pipe to
combustible materials.
• Mark the roof hole accordingly.
• Cover the opening of the installed flue pipes.
• Cut and frame the roof hole.
• Use framing lumber the same size as the roof rafters
and install the frame securely. Flashing anchored to
the frame must withstand heavy winds.
• Continuetoinstallconcentricfluesectionsupthrough
theroof holeand uppast theroof lineuntil youreach
the appropriate distance above the roof.
1” (25 mm)
7-1/2”
(192 mm)
MINIMUM
!
• Adjustthe termination capto itsfinalexterior position
on the building and interlock the flue sections.
GAS LINE
ACCESS
• Use a high-temperature sealant gasket to seal be-
tween the pipe and exterior firestop.
WARNING: THE TERMINATION CAP MUST
BE POSITIONED SO THAT THE ARROW IS
POINTING UP.
CAUTION: FOLLOW THE REQUIREMENTS OF THE
AGA GAS INSTALLATION CODE FOR MINIMUM
HEIGHT REQUIREMENTS ABOVE THE ROOF.
To seal the roof hole, and to divert rain and snow from
the flue system:
• Attach a flashing to the roof using nails, and use a
non-hardeningmastic aroundthe edges ofthe flash-
ing base where it meets the roof.
• Attach a storm collar over the flashing joint to form a
water-tightseal. Place non-hardeningmastic around
the joint, between the storm collar and the vertical
pipe.
• Slide the termination cap over the end of the flue
pipe and rotate the pipe clockwise 1/4 turn.

20 Heat & Glo • 6000TRSI-AUC • 2078-900 Rev. Q • 6/10
Figure 1.30

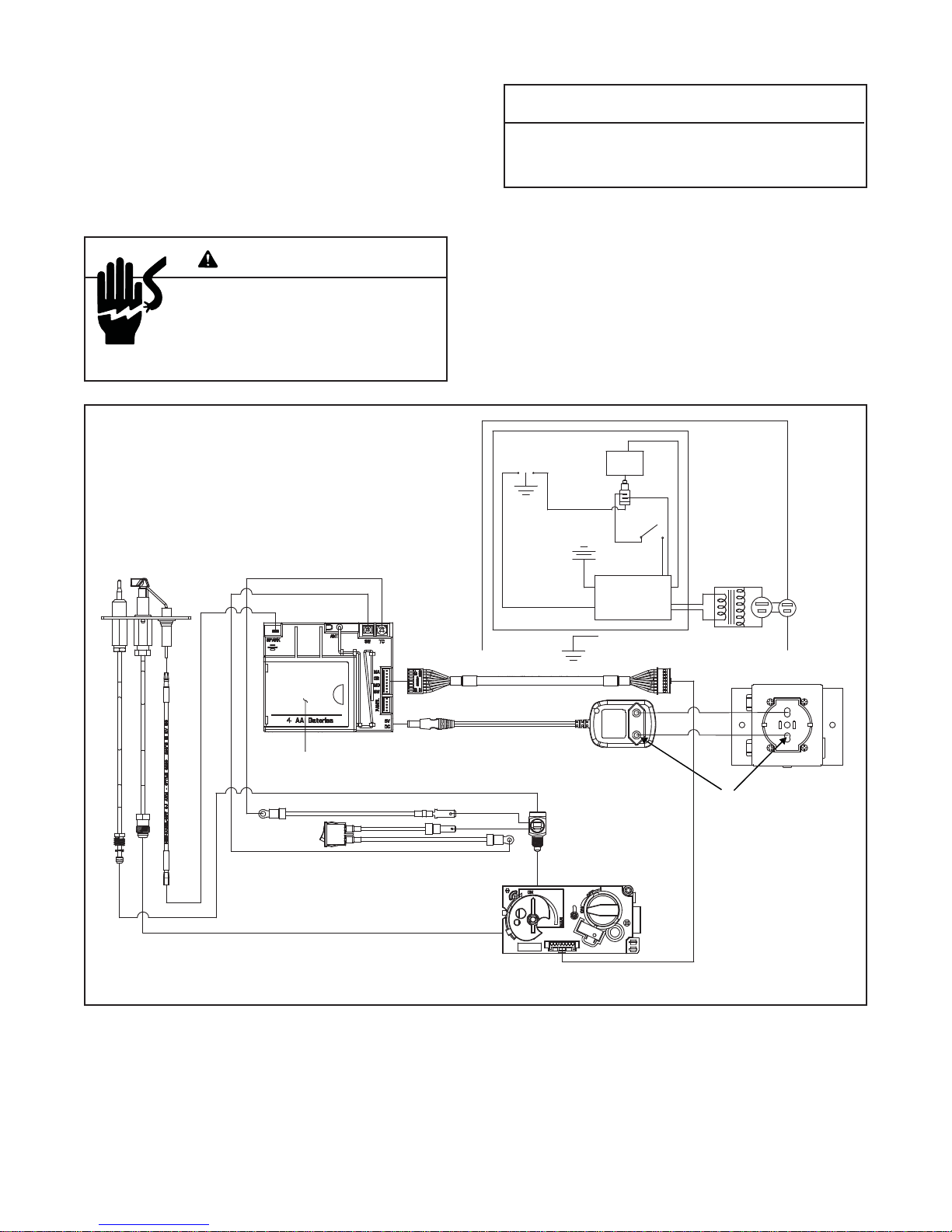

E. Ignition System Wiring
• Thisgasheateris equipped withanelectronicignition
system which operates on a 6 volt system.
• This appliance requires 240 VAC to be wired to the
factoryinstalled junctionbox. Check factoryinstalled
power cord for damage before using.
IGNITION
MODULE
(6V)
ON/OFF
WALL SWITCH
VALVE
FLAME SPARKER/
SENSOR
ANT.
REMOTE
CONTROL
HOT
NEUTRAL
GROUND
BATTERY PORT
VALVE
PILOT
IGNITION MODULE
6VDC
ON/OFF
SWITCH
THERMOCOUPLE
BLOCK
(CONNECTED TO
BACK OF VALVE)
GAS LINE
CONNECTED TO
BACK OF VALVE
PLUG IN
CAUTION
Labelall wires prior todisconnectionwhen servicing con-
trols. Wiring errors can cause improper and dangerous
operation. Verify proper operation after servicing.
Shock hazard.
• Replace damaged wire with type 105º C
rated wire.
• Wire must have high temperature
insulation.
WARNING
