Heat & Glo BAY-40 User manual

Heat & Glo • Multi-Sided Woodburning Fireplace • 34977 Rev T • 11/07 1
Owner’s Manual
Installation and Operation
Models:
BAY-40, PIER-40
Multi-sided
Woodburning Fireplace
DO NOT DISCARD THIS MANUAL
CAUTION
• Important operating
and maintenance
instructions included.
• Leave this manual with
party responsible for
use and operation.
• Read, understand
and follow these
instructions for safe
installation and
operation.
DO NOT
DISCARD
Installation and service of this fireplace should
be performed by qualified personnel. Hearth &
Home Technologies suggests NFI certified or
factory-trained professionals, or technicians
supervised by an NFI certified
professional.
If the information in these instruc-
tions is not followed exactly, a
fire may result causing property
damage, personal injury, or death.
• Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of
this or any other appliance.
• Do not overfire. Overfiring will void your
warranty.
• Comply with all minimum clearances to
combustibles as specified. Failure to
comply may cause house fire.
WARNING
Fire Risk
• For use with solid wood fuel or decorative
gas appliance only.
• Do not install unvented gas logs.
WARNING
WARNING
Hot glass will cause burns.
• Do not touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room
as fireplace.
• Alert children and adults to hazards of high
temperatures.
High temperatures may ignite clothing or other
flammable materials.
• Keep clothing, furniture, draperies and other
flammable materials away.
HOT SURFACES!
Glass and other surfaces are
hot during operation AND
cool down.
¨
¨

Heat & Glo • Multi-Sided Woodburning Fireplace • 34977 Rev T • 11/07
2
Read this manual before installing or operating this fireplace.
Please retain this owner’s manual for future reference.
Congratulations on selecting a Heat & Glo wood burning fire-
place. The Heat & Glo fireplace you have selected is designed
to provide the utmost in safety, reliability and efficiency.
As the owner of a new fireplace, you’ll want to read and care-
fully follow all of the instructions contained in this owner’s
manual. Pay special attention to all cautions and warnings.
This owner’s manual should be retained for future reference.
We suggest you keep it with your other important documents
and product manuals.
The information contained in this owner’s manual unless noted
otherwise, applies to all models and gas control systems.
Your new Heat & Glo wood burning fireplace will give you
years of durable use and trouble-free enjoyment. Welcome
to the Heat & Glo family of fireplace products!
Homeowner Reference Information
Model Name: Date purchased/installed:
Serial Number: Location on fireplace:
Dealership purchased from: Dealer phone:
Notes:
We recommend that you record the following pertinent
information about your fireplace:
Listing Label Information/Location
The model information regarding your specific fireplace can be found on the rating plate located on the smoke shield of the
fireplace.
Congratulations!
FIREPLACE NO.
MODEL NO.
MODEL NO.
MFG. DATE
WARNING: RISK OF
FIRE DAMAGE. REPLACE
GRATE WITH HEARTH & HOME
TECHNOLOGIES INC.
FIRECHAMBER INTENDED FOR USE WITH HEARTH & HOME TECHNOLOGIES INC. LISTED FIREPLACE PARTS. SEE INSTALLATION AND
OPERATING INSTRUCTIONS FOR THIS MODEL. ONLY HEARTH & HOME TECHNOLOGIES INC. GLASS DOOR KITS CAN BE INSTALLED ON THIS UNIT.
FIREPLACE ALSO FOR USE
IN MANUFACTURED HOMES
YES NO
CLEARANCE TO
COMBUSTIBLES:
CHIMNEY
2 IN. MIN.
FIREBOX
IN.
MIN.
FAN KIT
MODEL NO.
&RATED AT
115 VOLTS, 50/60 Hz., AMP.
DO NOT OVERFIRE. USE ONLY: SOLID WOOD FUEL OR
LISTED DECORATIVE GAS APPLIANCE. DO NOT USE A
FIREPLACE INSERT OR OTHER PRODUCTS NOT
SPECIFIED FOR USE WITH THIS PRODUCT. IF DOORS
ARE USED OPERATE FIREPLACE WITH DOORS FULLY
OPEN OR CLOSED ONLY. WHEN BURNING A
DECORATIVE GAS APPLIANCE IN THE FIREPLACE,
ADJUST DAMPER TO THE FULLY OPEN POSITION.
WARNING! THIS FIREPLACE HAS NOT BEEN TESTED WITH AN UNVENTED
GAS LOG SET. TO REDUCE THE RISK OF FIRE OR INJURY, DO NOT
INSTALL AN UNVENTED GAS LOG SET INTO FIREPLACE.
WARNING! THIS APPLIANCE IS NOT FOR USE AS COOKING EQUIPMENT.
IF INSTALLATION OR OPERATING INSTRUCTIONS ARE MISSING
CONTACT: HEARTH & HOME TECHNOLOGIES INC.,
1915 W. SAUNDERS ST., MT. PLEASANT, IA 52641.
Grate Fireplace
Model
Serial
Number

Heat & Glo • Multi-Sided Woodburning Fireplace • 34977 Rev T • 11/07 3
Table of Contents
1 Listing and Code Approvals 4
A. Appliance Certification . . . . . . . . . . . . . . . . . . . . . . . . . 4
2 Getting Started 5
A. Design and Installation Considerations . . . . . . . . . . . . 5
B. Negative Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

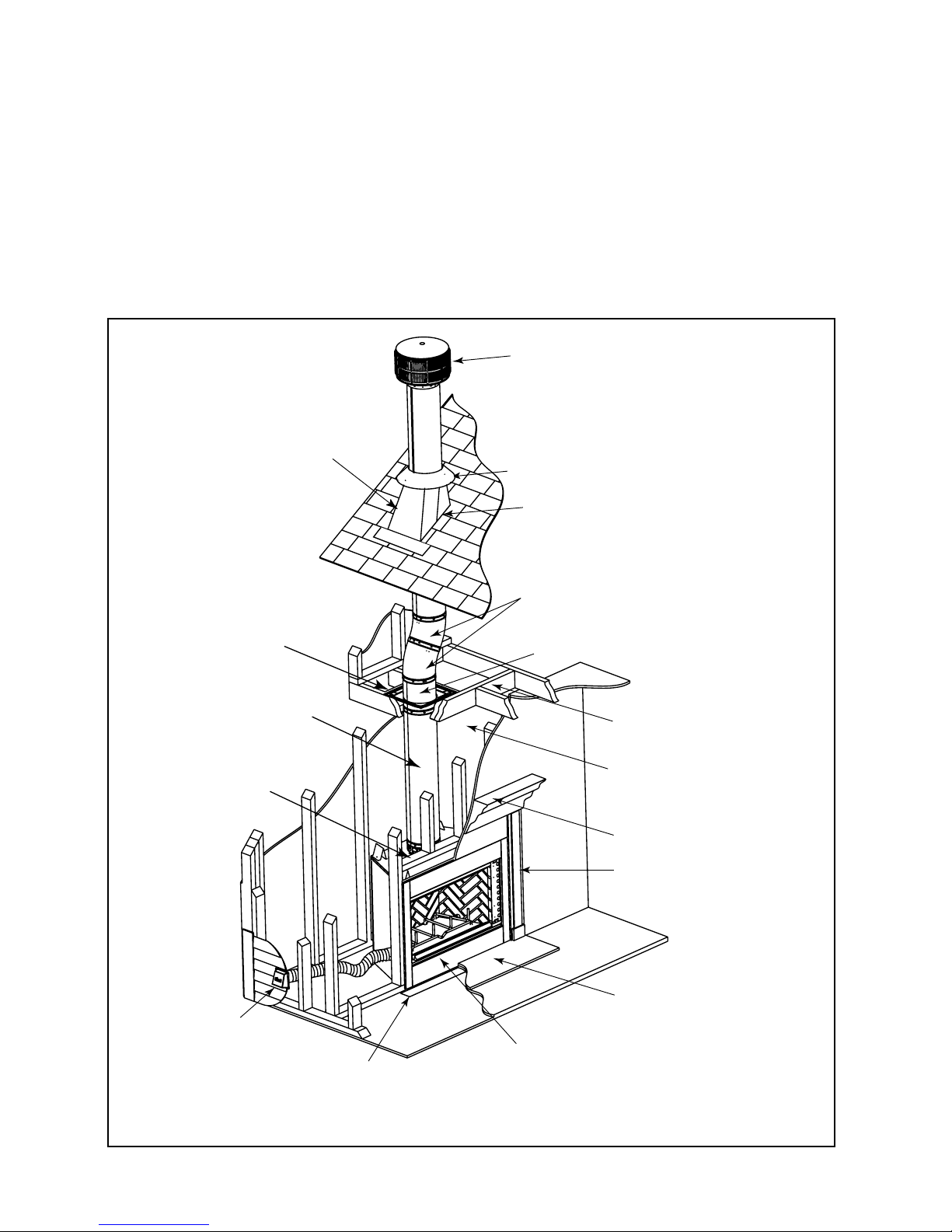

C. Typical Fireplace System. . . . . . . . . . . . . . . . . . . . . . . 7
D. Tools and Supplies Needed . . . . . . . . . . . . . . . . . . . . . 8
E. Inspect Fireplace and Components . . . . . . . . . . . . . . . 8
3 Framing and Clearances 9
A. Selecting Fireplace Location . . . . . . . . . . . . . . . . . . . . 9
B. Clearances. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
C. Sidewalls/Surrounds . . . . . . . . . . . . . . . . . . . . . . . . . 11
E. Construct the Chase . . . . . . . . . . . . . . . . . . . . . . . . . 12
F. Chimney Requirements . . . . . . . . . . . . . . . . . . . . . . . 12
4 Installation of Fireplace 13
A. Install the Outside Air Kit . . . . . . . . . . . . . . . . . . . . . . 13
5 Chimney Assembly 16
A. Chimney Requirements . . . . . . . . . . . . . . . . . . . . . . . 17
B. Using Offsets/Returns . . . . . . . . . . . . . . . . . . . . . . . . 18
C. Assemble the Chimney Sections . . . . . . . . . . . . . . . . 19
D. Install the Ceiling Firestops . . . . . . . . . . . . . . . . . . . . 19
E. Install the Attic Insulation Shield . . . . . . . . . . . . . . . . 20
F. Double-check the Chimney Assembly . . . . . . . . . . . . 21
G. Secure the Chimney . . . . . . . . . . . . . . . . . . . . . . . . . 21
6 Complete the Enclosure 22
A. Chimney Termination . . . . . . . . . . . . . . . . . . . . . . . . . 22
B. Chase Top . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
C. Install the Termination Cap . . . . . . . . . . . . . . . . . . . . 24
7 Accessories 26
A. Gas Log/Lighter Provisions . . . . . . . . . . . . . . . . . . . . 26
8 Finishing 27
A. Hearth Extension . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
B. Finishing Material. . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
C. Mantel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
D. Sidewalls/Surrounds . . . . . . . . . . . . . . . . . . . . . . . . . 29
E. Glass Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
9 Operating Instructions 30
A. General Information . . . . . . . . . . . . . . . . . . . . . . . . . . 30
B. Outside Air . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
C. Clear Space Near the Fireplace. . . . . . . . . . . . . . . . . 31
D. Flue Damper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
E. Firescreen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
F. Glass Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
G. Grate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
H. Wood Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
I. Starting a Fire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
10 Troubleshooting 34
A. Understanding Vent Problems . . . . . . . . . . . . . . . . . . 34
B. Diagnostics and Problem Solving . . . . . . . . . . . . . . . 35
11 Maintenance and Servicing the Fireplace 37
A. Disposal of Ashes . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
B. Chimney Inspection/Cleaning . . . . . . . . . . . . . . . . . . 37
C. Firebox Refractory . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
D. Maintenance Task List . . . . . . . . . . . . . . . . . . . . . . . . 38
E. Chimney Fire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
12 Reference Materials 39
A. Fireplace Dimensions . . . . . . . . . . . . . . . . . . . . . . . . 39
B. Fireplace Components. . . . . . . . . . . . . . . . . . . . . . . . 40
C. Chimney Components . . . . . . . . . . . . . . . . . . . . . . . . 41
D. Service Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
E. Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
F. Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Note: An arrow (¨) found in the text signifies change in content.

Heat & Glo • Multi-Sided Woodburning Fireplace • 34977 Rev T • 11/07
4
1
1 Listing and Code Approvals
A. Appliance Certification
This fireplace system has been tested and listed in accor-
dance with UL 127 standards by Underwriters Laboratories
Inc. for installation and operation in the United States.
This fireplace has been tested and listed for use with the
optional components specified in this manual. Glass doors
are required. Optional components may be purchased sep-
arately and installed at a later date. Installation of an outside
air kit will require significant reconstruction and is best if in-
stalled at the time of fireplace installation.
Heat & Glo is a registered trademark of Hearth & Home
Technologies Inc. Not intended for use as a primary heat source.
This fireplace is tested and approved as a decorative fire-
place. It should not be factored as a primary heat source
in residential heating calculations.
Improper installation, adjustment, alteration, service
or maintenance can cause injury or property damage.
Refer to the owner’s information manual provided with
this fireplace. For assistance or additional information
consult a qualified installer, service agency or your
dealer.
WARNING
Fire Risk
• Do not install or operate damaged fireplace.
• Do not modify fireplace.
• Installation other than as instructed by Hearth & Home
Technologies Inc. is strictly prohibited.
• Do not operate the fireplace without fully assembling
all components.
• Do not overfire.
•Do not install an unvented gas log set. This fireplace
has not been tested for use with unvented gas log
sets.
• Installation and/or use of any component part not
approved by Hearth & Home Technologies.
Hearth & Home Technologies disclaims any responsibility
for, and the warranty and agency listing will be voided by
the above actions.
WARNING

Heat & Glo • Multi-Sided Woodburning Fireplace • 34977 Rev T • 11/07 5
2
2 Getting Started

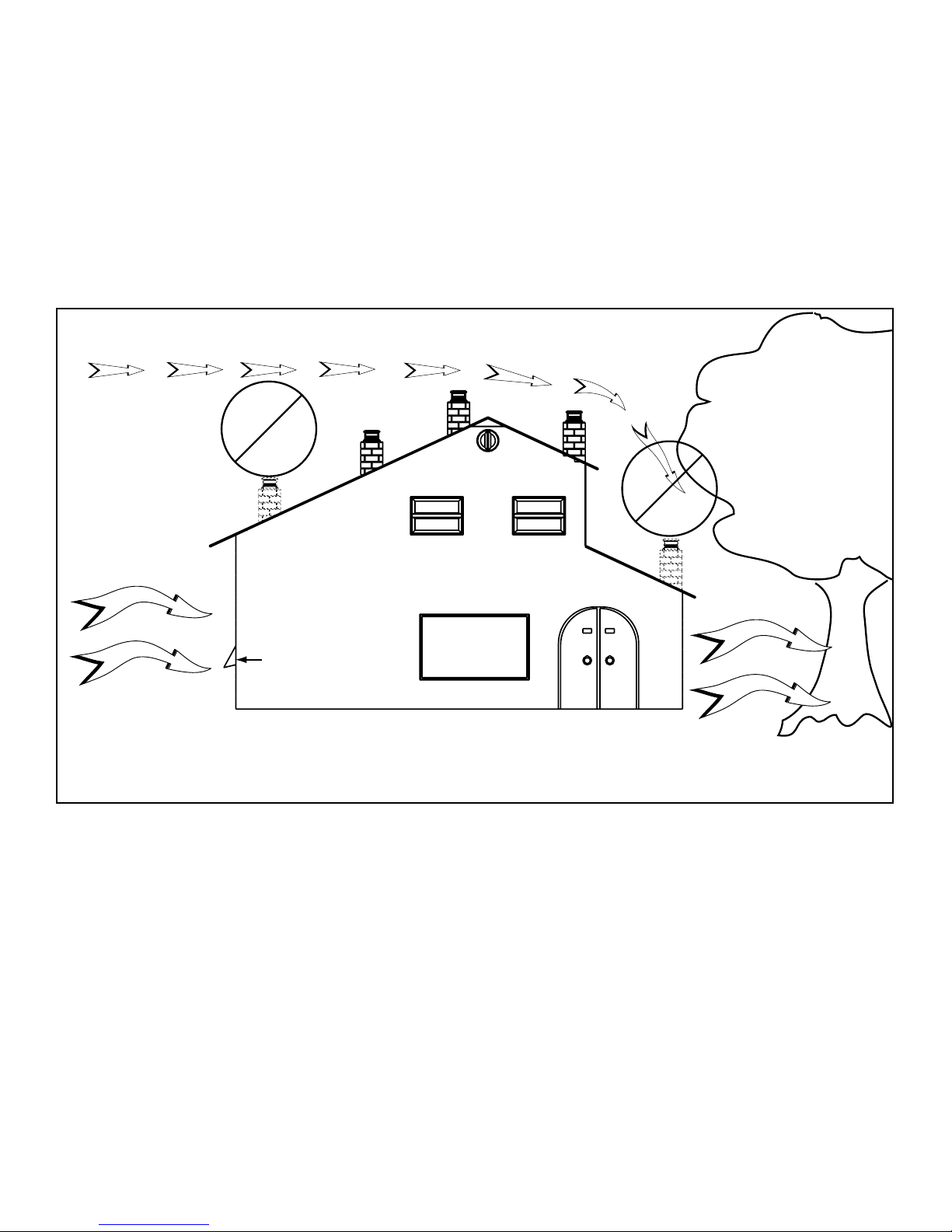

A. Design and Installation Considerations
Draft is the pressure difference needed to vent fireplaces
successfully. Considerations for successful draft include:
• Preventing negative pressure
• Location of fireplace and chimney

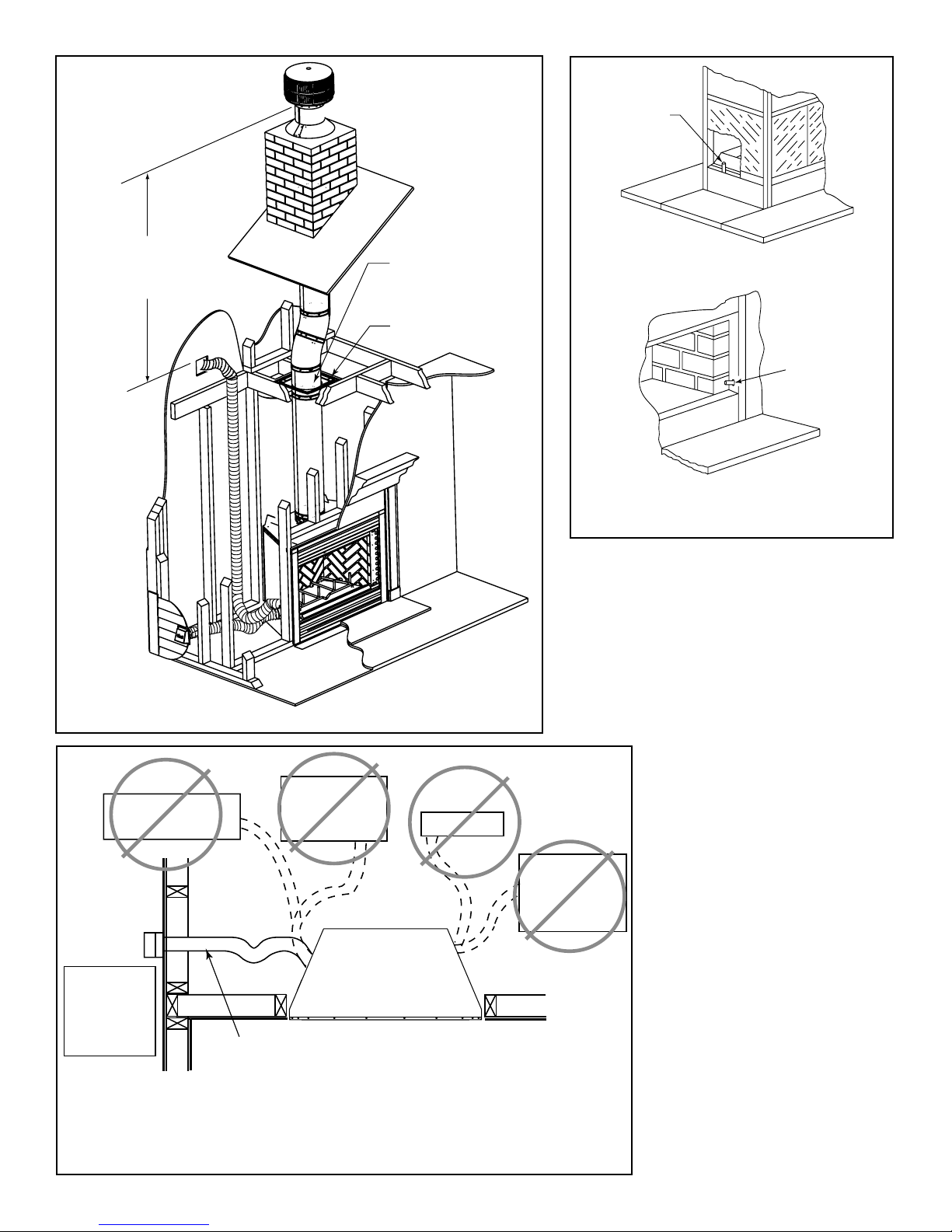

B. Negative Pressure
Negative pressure results from the imbalance of air avail-
able for the fireplace to operate properly. Causes for this
imbalance include:
• Exhaust fans (kitchen, bath, etc.).
• Range hoods.
• Combustion air requirements for furnaces, water heaters
and other combustion appliances.
• Clothes dryers.
• Location of return-air vents to furnace or air
conditioning.
• Imbalances of the HVAC air handling system.
• Upper level air leaks: recessed lighting, attic hatch
opening, duct leaks.
To minimize the effects of negative air pressure, the follow-
ing must be considered:
• Install the outside air kit. Install the intake on the side of
the house towards prevailing winds during the heating
season.
• Ensure adequate outdoor air is supplied for combustion
appliances and exhaust equipment.
• Ensure furnace and air conditioning return vents are not
located in the immediate vicinity of the fireplace.
• Avoid installing the fireplace near doors, walkways or small
isolated spaces.
• Recessed lighting should be a “sealed can” design; attic
hatches weather stripped or sealed; attic mounted duct
work and air handler joints and seams taped or sealed.
• Basement installations should be avoided due to stack
effect. Stack effect creates negative pressure in lower
levels. Hearth & Home Technologies recommends the
use of direct vent fireplaces in basements.
Asphyxiation Risk
Negative pressure can cause spillage of
combustion fumes and soot. Fire needs to draft
properly for safe operation.
WARNING
Check building codes prior to installation.
• Installation MUST comply with local, regional,
state and national codes and regulations.
• Consult insurance carrier, local building inspector,
fire officials or authorities having jurisdiction about
restrictions, installation inspection and permits.
CAUTION
When planning a fireplace installation, it is necessary to de-
termine the following information before installing:
• Where the fireplace is to be installed. See Sections
3 and 4.
• The vent system configuration to be used. See Sections
5 and 6.
• Gas supply piping. See Section 7.
• Electrical wiring. See Section 7.
• Framing and finishing details. See Sections 3, 6 and 8.
• Whether optional accessories—devices such as a fan, wall
switch or remote control—are desired. See Section 12.
