Heat & Glo • Primo Clean Face Finish Instructions • 2310-925 Rev. D • 8/15
PRIMO CLEAN FACE FINISH
PRIMO48-CF, PRIMO48ST-CF, PRIMO60-CF, PRIMO60ST-CF, PRIMO72-CF, PRIMO72ST-CF
MODELS: PRIMO48, PRIMO48ST, PRIMO60, PRIMO60ST, PRIMO72, PRIMO72ST
Installation Instructions
Leave this manual with party responsible for use
and operation.
CAUTION! Risk of Cuts, Abrasions or Flying Debris.
Wear protective gloves and safety glasses during instal-
lation. Sheet metal edges are sharp.
CAUTION! Do not install damaged components.
WARNING! Risk of Fire! Combustible materials MUST
NOT overlap or be placed behind a decorative front.
WARNING! Risk of Fire! DO NOT apply combustible
materials beyond the minimum clearances. Comply with
all minimum clearances to combustibles as specified in
appliance installation manual.
Note: To avoid potential damage to hearth pad or flooring,
protect area in front of fireplace by laying cardboard or
blanket down.
DANGER
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
A barrier designed to reduce the risk of
burns from the hot viewing glass is provided
with this appliance and shall be installed for
the protection of children and other at-risk
individuals.
Clean Face Finish (Black Glass Interior)
PRIMO48-CF PRIMO48ST-CF
PRIMO60-CF PRIMO60ST-CF
PRIMO72-CF PRIMO72ST-CF
The PRIMO appliance can be finished with 1/2 inch
sheetrock. Non-combustible finishing is not required.
During operation, the sheetrock will remain cool to the
touch.
Facing and Finishing - General Information
WARNING! Risk of Fire! Comply with all minimum clear-
ances to combustibles as specified. Framing closer than the
minimums listed must be constructed entirely of noncom-
bustible materials (i.e., steel studs, concrete board, etc.).
Splatter Guard
The splatter guard is a piece of corrugated material
used to protect the appliance during the installation
process before finishing work on the whole hearth is
complete. A splatter guard is factory-installed on PRI-
MO models. Splatter guards must be removed before
appliance is fired.
WARNING! Risk of Fire! Remove the splatter guard be-
fore lighting the appliance. Shut off gas to the appliance
when the splatter guard is in place to prevent accidental
operation.
Finishing Instructions
It is important to follow the framing and finishing instruc-
tions to ensure proper placement of fireplace into the sur-
rounding framing/finishing materials.
Wall sheathing materials 1/2 in. thick are specified
in this installation manual to properly align with the op-
tional finishing methods offered with this appliance. The
PRIMO may be finished to the appliance opening with 1/2
inch thick sheetrock.
• Ensure that the one inch back clearance and one inch
side clearances are maintained.
WARNING! Risk of Fire! Maintain specified air space
clearances to combustibles. Inadequate air space could
cause overheating and fire.
This appliance comes standard with patented
SafeSurfaceTM Glass which keeps the surface temperature
of the barrier glass at a safe level and will still be hot to
the touch when operated for long periods of time.
If the barrier glass is removed, the inner glass temperature
will be very hot and cause burns.

2 Heat & Glo • Primo Clean Face Finish Instructions • 2310-925 Rev. D • 8/15
= NO FASTENERS IN THIS AREA
= 3/4 INCH MAX. LENGTH FASTENERS IN THIS AREA
2 IN.
1/2 IN.
WARNING! Risk of Fire, Explosion or Asphyxiation!
DO NOT use screws more than 3/4 inch long on lower
access cover panel. Longer screws may penetrate gas
line or damage valve or electrical components.
Figure 1. Screw Length Requirements
Note: It is acceptable to use a high temperature silicone
sealant to adhere drywall to lower access cover panel.
Finish and Sealing Joints
All joints between the finished wall sheathing and the ap-
pliance must be sealed with non-combustible materials.
Sealants, such as caulk or mastic used to seal the gap
between the wall and the fireplace, should be rated at a
minimum continuous exposure to 300ºF.
Facing Material
• Facing and/or finishing materials must never overhang
into the glass opening. See Figure 2.
• Facing materials may be combustible or non-combustible.
The appliance is designed to be used with 1/2 in. wall
sheathing materials such as drywall, plywood, wood
composites, or non-combustible materials.
WARNING! Risk of Fire! DO NOT apply combustible
materials beyond the minimum clearances. Comply with
all minimum clearances to combustibles as specified in
this manual. Overlapping materials could ignite and will
interfere with proper operation.
WARNING! Risk of Injury! Risk of Explosion! Install fasteners as instructed.
• Gas train could be damaged causing a gas leak.
• Electrical components could be damaged causing electrical shock.
• LED’S could be damaged.
• Glass installation could be obstructed.
Painting
If desired finishing includes a painted wall, 100% acrylic
latex, oil-based or standard acrylic paints may be used.
Follow paint manufacturer’s instructions for paint and
primer application.
Note: It is acceptable to use a high temperature silicone
sealant to adhere drywall to lower access cover panel.

3
Heat & Glo • Primo Clean Face Finish Instructions • 2310-925 Rev. D • 8/15
SHEET ROCK WALL
= 1/2 IN. SHEETROCK
SHEETROCK STOPS AT RETURN BEND
= APPLIANCE OPENING
Figure 2. Sheetrock Detail for Both Finishing Methods

4 Heat & Glo • Primo Clean Face Finish Instructions • 2310-925 Rev. D • 8/15
Figure 3.
1/2 INCH SHEETROCK WALL
The PRIMO appliance can be finished with 1/2 inch
sheetrock. Non-combustible finishing is not required.
8 INCHES ALL SIDES
Figure 5. Feather Mud Evenly
Preparation

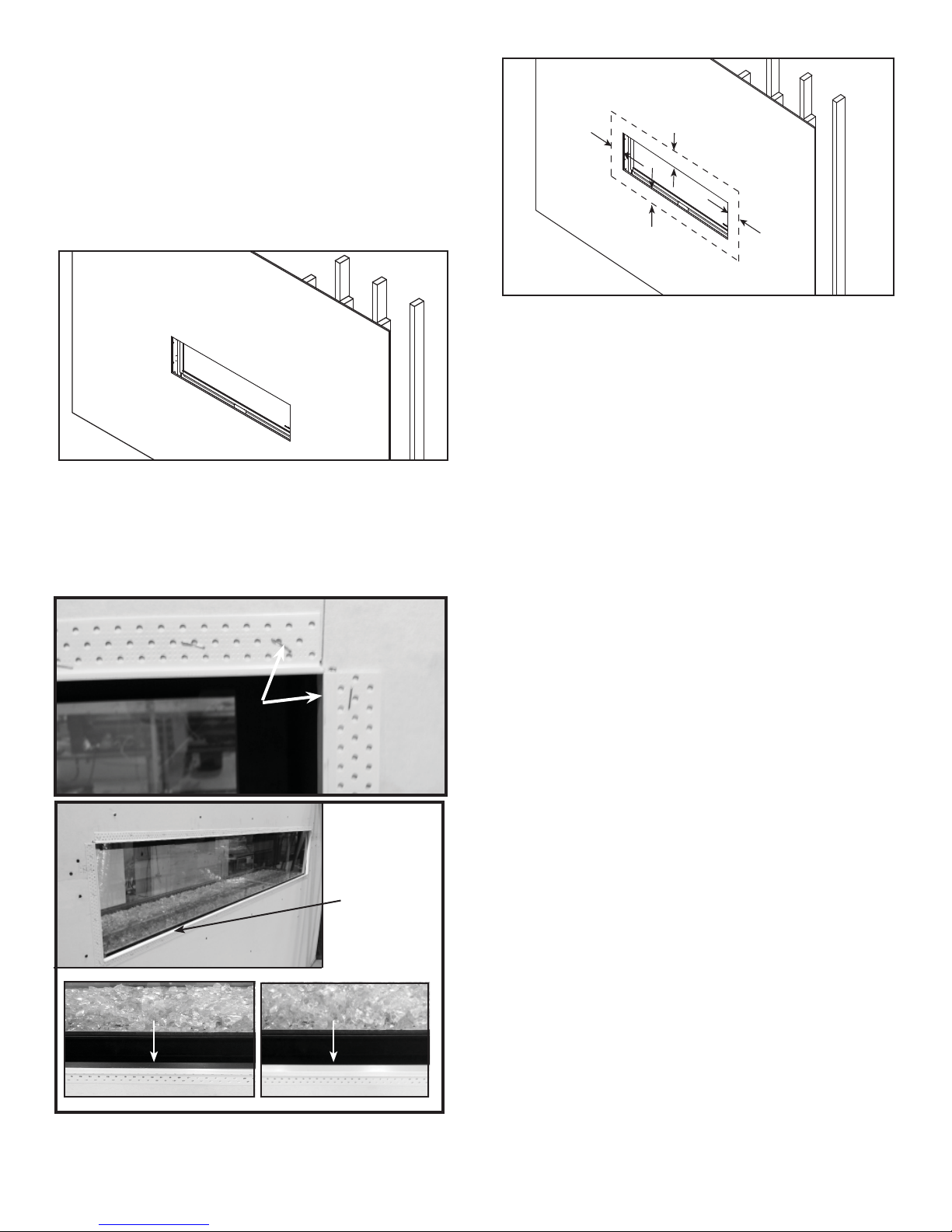

1. Install 1/2 inch sheetrock on wall. Figure 3 shows
the PRIMO installed. Sheetrock (1/2 inch) has been
installed up to the top, bottom and sides of appliance
opening as shown in Figure 2 and 3. See the appliance
installation manual for more details regarding facing
material.
KIT COMPONENTS
(1) Left Glass Panel
(1) Right Glass Panel
(1) Back Glass Panel (Single-sided models only)
(3) Glass Retaining Brackets
(2) Glass Clips
(1) Barrier Glass* (Qty 2 on See-Through models)
*See appliance installation manual for barrier glass instal-
lation instructions.

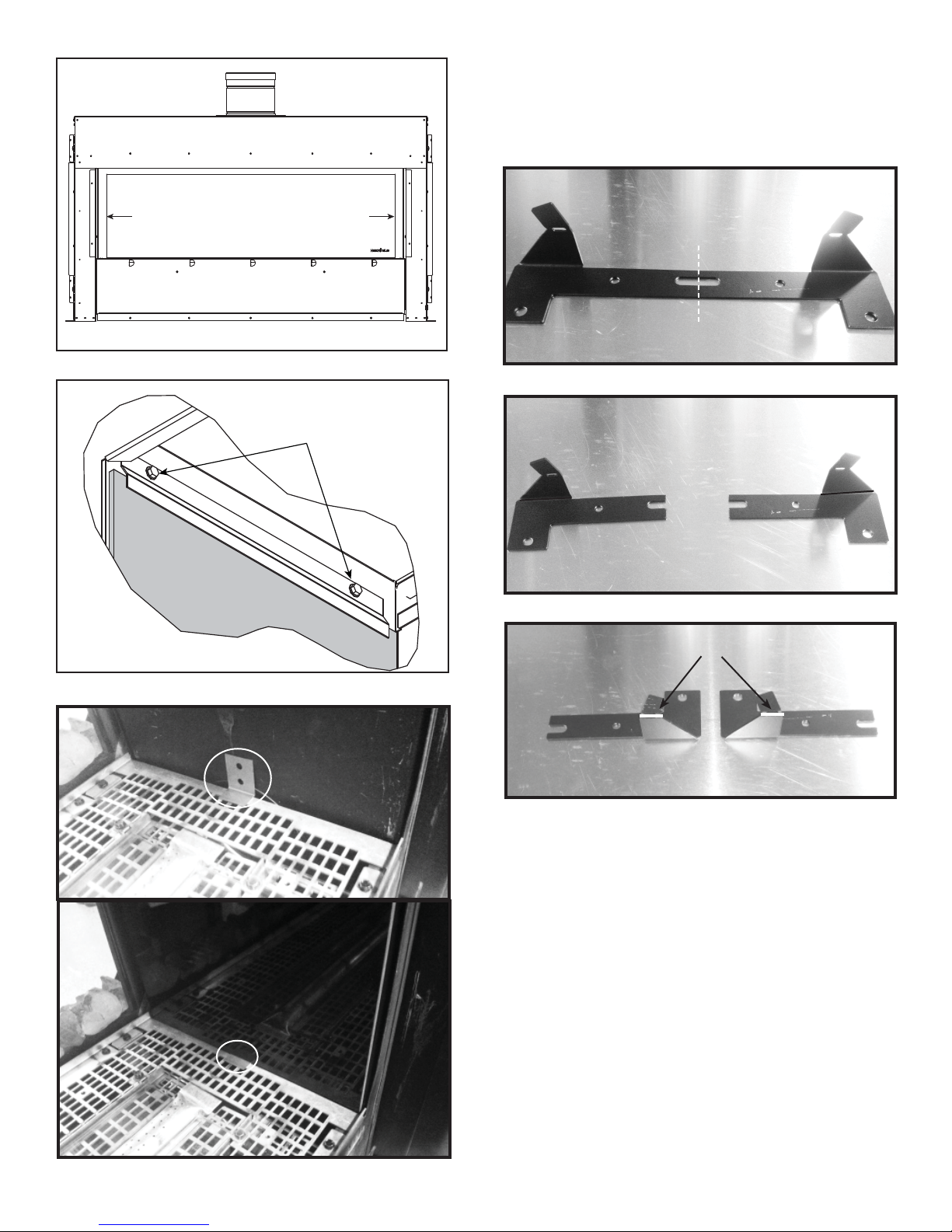

4. Glass Panel Instructions
Single-Sided Models:
Set back glass panel, in location A in Figure 6 into firebox.
Back panel will sit on the heads of the screws holding
the media tray in place. Set back glass panel against
the back wall of the firebox with the smooth side of the
glass facing outward. Place retaining bracket over panel
so holes in the bracket are against the firebox back. Use
two self-drilling screws to secure to the firebox back. En-
sure glass panel is stationary. See Figure 7.
Position the glass clip as shown in Figure 8.
NOTICE: Fasteners are not used with glass clip.
Set left side glass panel, in location B in Figure 6, into fire-
box with the smooth side facing outward. Place retaining
bracket over panel so holes in the bracket are against
the firebox side. Use two self-drilling screws to secure
to the firebox side. See Figure 7. Ensure glass panel is
stationary.
Repeat for right side panel.
See-Through Models:
Position the glass clip as shown in Figure 8.
NOTICE: Fasteners are not used with glass clip.
Set left side glass panel, labeled B in Figure 6, into fire-
box with the smooth side facing outward. Place retain-
ing bracket over glass panel so holes in the bracket are
against the firebox side. Use two self-drilling screws to
secure the bracket to the firebox side. See Figure 7. Re-
peat for right side panel.
2. Install sheetrock trim strips as shown in Figure 4 on all
sides of appliance. Sheetrock trim strips are included
with the appliance. Cut the strips to the required
length and install them using staples. See Figure 4 for
placement of trim strips.
Figure 4. Install Sheetrock Trim Strips
SHEETROCK TRIM STRIPS
SHEETROCK TRIM STRIPS
(INSTALLED ON ALL 4 SIDES)
(INSTALLED ON ALL 4 SIDES)
SHEETROCK
SHEETROCK
TRIM STRIPS
TRIM STRIPS
(INSTALLED
(INSTALLED
ON ALL 4
ON ALL 4
SIDES)
SIDES)
CORRECT
Installed OVER painted stop
INCORRECT
Installed UNDER painted stop

5
Heat & Glo • Primo Clean Face Finish Instructions • 2310-925 Rev. D • 8/15
RETAINING BRACKET
DETAIL
Figure 7. Retaining Bracket Installation
Figure 6. Placement of Panels
A*
BC
*Back panel used in single-sided models only.
Figure 8. Position Glass Clip and Install Glass Panel
NOTICE: Fasteners are not used with glass clip.
Figure 9. Barrier Glass Support
Figure 10. Break Barrier Glass Support
Figure 11. Form Barrier Glass Support
BREAK LINE
BREAK LINE
HAND BEND AT 90 DEGREES
HAND BEND AT 90 DEGREES
5. Break the barrier glass support into two pieces as shown
in Figures 9 and 10. Make the hand bends as shown
in Figure 11 to form the glass supports

6 Heat & Glo • Primo Clean Face Finish Instructions • 2310-925 Rev. D • 8/15
6. Install barrier glass supports on bottom left and right
sides using an existing screw, a self-tapping screw, and
shoulder bolt. See Figure 12 and 13. Install rubber
bumpers as shown in Figure 12 to protect the barrier
glass.
BARRIER
GLASS SUPPORT
Figure 12. Install Barrier Glass Supports
SELF-TAPPING SCREW LOCATION
SELF-TAPPING SCREW LOCATION
ATTACH RUBBER BUMPERS
ATTACH RUBBER BUMPERS
BARRIER GLASS SUPPORT
BARRIER GLASS SUPPORT
EXISTING SCREW LOCATION
EXISTING SCREW LOCATION
LOWER ACCESS
COVER PANEL
APPLIANCE OUTER
WRAP
A. REMOVE EXISTING
SCREW
D. DRIVE SELF TAPPING SCREW
C. REINSTALL EXISTING
SCREW
B. POSITION BARRIER GLASS SUPPORT
INSTALLED SHOULDER BOLT
Figure 13. Install Barrier Glass Supports
RUBBER BUMPER
RUBBER BUMPER
INSTALLED BARRIER GLASS SUPPORT
(Install between appliance outer wrap and
lower access cover panel)
SHOULDER BOLT SLOT
SHOULDER BOLT SLOT

7
Heat & Glo • Primo Clean Face Finish Instructions • 2310-925 Rev. D • 8/15

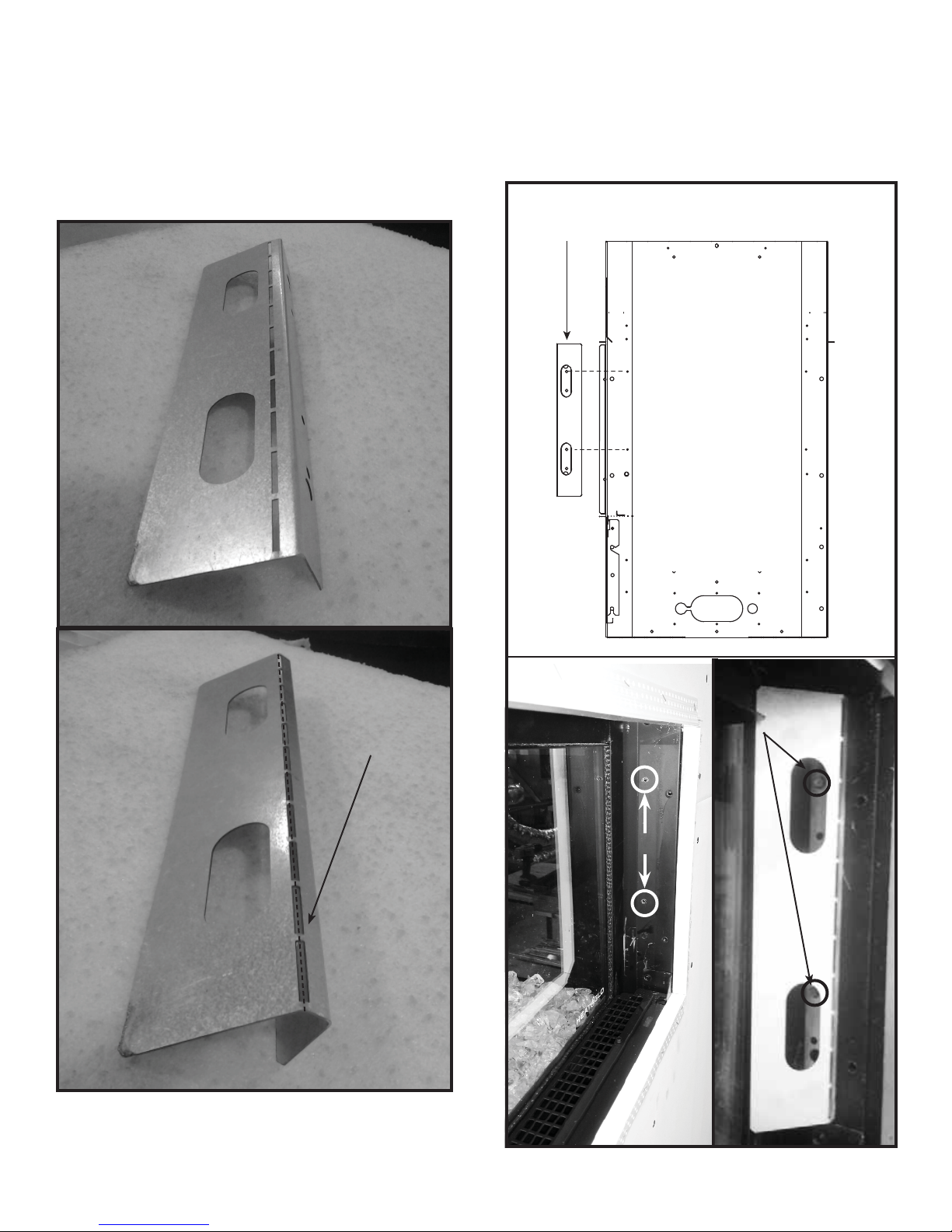

7. Set transition media tray into position as shown in Figure
16. The return bends are at the bottom of the tray. The
rear return bend should be positioned in between the
glass frame and the glass frame bracket. Ensure tray
is positioned flush with appliance opening.
Figure 15. Install Transition Glass Panel Bracket
EXISTING HOLES
EXISTING HOLES
8. Install glass transition panel bracket on left and right
sides of appliance opening using two self-tapping
screws. See Figures 14, 15 and 16 for details.
9. Install transition glass panels by securing with tabs on
left and right sides of appliance. See Figures 16 and
17.
Figure 14. Form Transition Glass Panel Bracket
SELF-TAPPING SCREWS GO
SELF-TAPPING SCREWS GO
THROUGH EXISTING HOLES
THROUGH EXISTING HOLES
FORM
FORM
HAND BEND
HAND BEND
INSIDE VIEW OF OUTER WRAP
TRANSITION GLASS PANEL BRACKET

8 Heat & Glo • Primo Clean Face Finish Instructions • 2310-925 Rev. D • 8/15
Figure 16. Install Transition Glass Panel
TRANSITION GLASS
TRANSITION GLASS
PANEL BRACKET
PANEL BRACKET
TRANSITION GLASS
TRANSITION GLASS
TAB
TAB
TRANSITION
TRANSITION
GLASS PANEL
GLASS PANEL
TRANSITION GLASS TAB
TRANSITION GLASS TAB ATTACHMENT HOLES
SELF-TAPPING
SCREWS
TRANSITION
MEDIA TRAY
TRANSITION GLASS
PANEL BRACKET
INSTALLED
TRANSITION GLASS
PANEL INSTALLED

9
Heat & Glo • Primo Clean Face Finish Instructions • 2310-925 Rev. D • 8/15
1/2 IN. SHEETROCK
Figure 17. Transition Glass Tab Installation and Finished Wall
TRANSITION
GLASS TAB
TRANSITION GLASS
TAB INSTALLED
4-1/2 IN. MAX.
INCLUDES SHEETROCK
X
Y
Figure 18. Clean Face Finishing Option - Combustible or
Non-Combustible (Recessed Wall)
Clean Face Finishing Option
Combustible or Non-Combustible
NOTICE: Dimensions must be same as dimensions
in Figure 3.3. If dimensions vary, barrier glass can
not be removed.
MODEL X Min. Y Min.
PRIMO48/48ST 51 13-3/8
PRIMO60/60ST 63 13-3/8
PRIMO72/72ST 75 13-3/8
NOTICE: Dimensions must be same as dimensions in
Clean Face Finish Dimensions diagram (Section 3 of
appliance Installation Manual) for Clean Face Finish.
If dimensions vary, barrier glass cannot be removed.
UNLIMITED
4-1/2 IN.
MINIMUM
FIREPLACE
OPENING
4-1/2 IN. MAXIMUM
MANTEL LEG OR
PERPENDICULAR WALL
1/2 IN.
SHEETROCK/COMBUSTIBLE
FACING MATERIAL

10 Heat & Glo • Primo Clean Face Finish Instructions • 2310-925 Rev. D • 8/15
Please contact your Heat & Glo dealer with any
questions or concerns.
For the location of your nearest Heat & Glo dealer,
please visit www.heatnglo.com.
Heat & Glo, a brand of Hearth & Home Technologies
7571 215th Street West, Lakeville, MN 55044
www.heatnglo.com
SERVICE PARTS
DESCRIPTION PRIMO48 PRIMO48ST
KIT PRIMO48-CF PRIMO48ST-CF
Firebox Panel Glass
Assembly 2300-060 2301-060
Transition Panel
Glass Assembly 2310-032 2310-032
Glass Retaining
Bracket 2300-133 2300-133
Barrier Glass Support 2310-134 2310-134
Rubber Bumper 2310-140 2310-140
Transition Glass Tab 2310-145 2310-145
Clean Face
Barrier Glass GLA2310-106 GLA2310-106
Transition Glass
Panel Bracket 2310-120 2310-120
DESCRIPTION PRIMO60 PRIMO60ST
KIT PRIMO60-CF PRIMO60ST-CF
Firebox Panel Glass
Assembly 2321-060 2301-060
Transition Panel
Glass Assembly 2310-032 2310-032
Glass Retaining
Bracket 2300-133 2300-133
Barrier Glass Support 2310-134 2310-134
Rubber Bumper 2310-140 2310-140
Transition Glass Tab 2310-145 2310-145
Clean Face
Barrier Glass GLA2329-106 GLA2329-106
Transition Glass
Panel Bracket 2310-120 2310-120
DESCRIPTION PRIMO72 PRIMO72ST
KIT PRIMO72-CF PRIMO72ST-CF
Firebox Panel Glass
Assembly 2331-060 2301-060
Transition Panel
Glass Assembly 2310-032 2310-032
Glass Retaining
Bracket 2300-133 2300-133
Barrier Glass Sup-
port 2310-134 2310-134
Rubber Bumper 2310-140 2310-140
Transition Glass Tab 2310-145 2310-145
Clean Face
Barrier Glass GLA2336-106 GLA2336-106
Transition Glass
Panel Bracket 2310-120 2310-120
