Heat & Glo SL-550TRSI-AUE User manual

1
Heat & Glo • SL-550TRSI-AUE • 2079-902 Rev. K • 10/08
INSTALLATION AND OPERATION INSTRUCTIONS
THIS PRODUCT MAY BE COVERED BY ONE OR MORE OF THE FOLLOWING PATENTS:
(United States) 4593510, 4686807, 4766876, 4793322, 4811534, 5000162, 5016609, 5076254, 5113843, 5191877, 5218953, 5263471, 5328356, 5341794, 5347983, 5429495,
5452708, 5542407, 5601073, 5613487, 5647340, 5688568, 5762062, 5775408, 5890485, 5931661, 5941237, 5947112, 5996575, 6006743, 6019099, 6048195, 6053165, 6145502,
6170481,6237588,6296474,6374822, 6413079,6439226, 6484712,6543698, 6550687,6601579, 6672860,6688302B2, 6715724B2,6729551,6736133, 6748940,6748942, D320652,
D445174, D462436; (Canada) 1297749, 2195264, 2225408; (Australia) 543790;586383; (Mexico) 97-0457; (New Zealand) 200265; or other U.S. and foreign patents pending.
HEAT & GLO, a brand of Hearth & Home Technologies Inc.
20802 Kensington Boulevard, Lakeville, MN 55044, USA, www.heatnglo.com
THIS MANUAL MUST BE USED FOR INSTALLATION AND RETAINED
BY HOMEOWNER FOR OPERATION AND MAINTENANCE.
MODEL: SL-550TRSI-AUE
AUSTRALIAN GAS ASSOCIATION CERTIFIED
CERTIFICATE NUMBER 5666

2Heat & Glo • SL-550TRSI-AUE • 2079-902 Rev. K • 10/08
MODEL SL-550TRSI-AUE
IS AUSTRALIAN GAS ASSOCIATION
APPROVED FOR NATURAL GAS OR
PROPANE AS A BALANCED FLUE
HEATER.
Refer to the appliance data plates for gas
consumptions and pressures.
Installationof thisapplianceshould only be
carried out by an authorized person in ac-
cordance with the manufacturer's instruc-
tions. Appliance is to be installed in full
compliance with the National Gas Installa-
tion StandardAS5601, the manufacturer's
instructions, and any local authorities' re-
quirements for gas, electrical and building
regulations.
This appliance and its components are
tested and safe when installed in accor-
dancewith this Installation Manual. Report
to your dealer any parts damaged in ship-
ment, specifically check glass condition.
Thegaslogsandfluesystemcomponents
are in separate packages. Read all in-
structions before starting installation and
follow these instructions carefully during
installationto ensure maximumbenefitand
safety. Failure to follow them will void your
warranty and may present a fire hazard.
TheHeat& Glo, a brand of Hearth & Home
Technologies Inc. warranty will be voided
by, and Heat & Glo, a brand of Hearth &
Home Technologies Inc. disclaims any re-
sponsibility for the following actions:
• Installation of any damaged heater or
flue system component
• Modification of the heater or balanced
flue system installation other than as
instructed by Heat & Glo, a brand of
Hearth & Home Technologies Inc.
• Improper positioning of the gas logs or
the glass door
• Installationand/oruse ofanycomponent
part not manufactured or approved by
Heat & Glo, brand of Hearth & Home
Technologies Inc.,not withstanding any
independent testinglaboratory or other
party approval of such componentpart
or accessory.
PLEASE READ THIS MANUAL BEFORE INSTALLING
AND USING THIS APPLIANCE.
IMPORTANT: Read all instructions carefully before starting installation.
Failure to follow these installation instructions may result in a possible fire
hazard and will void the warranty. Save this manual for future reference.
Heat & Glo, a brand of Hearth & Home Technologies, Inc.
20802 Kensington Blvd., Lakeville, MN 55044, USA
Copyright 2008 • Printed in U.S.A.

3
Heat & Glo • SL-550TRSI-AUE • 2079-902 Rev. K • 10/08
Î= Contains updated information.
TABLE OF CONTENTS
1.0 Installation Instructions .......................................................................................5
1.1 Introduction...................................................................................................6
1.2 Flue System Approvals and Installation........................................................8
1.3 Connecting the Gas Supply........................................................................23
1.4 Ignition System Wiring................................................................................24
1.5 Blower ........................................................................................................25
1.6 Finishing.....................................................................................................26
1.7 Installer Testing...........................................................................................27
1.8 Log Placement............................................................................................28
2.0 Operating Instructions.......................................................................................31
2.1 Safety and Lighting Information..................................................................32
2.2 Power Outage.............................................................................................33
2.3 Fan Operation.............................................................................................33
3.0 Servicing and Maintenance...............................................................................33
3.1 Removal of Covers for Servicing................................................................34
3.2 Removal of Components for Service..........................................................34
3.3 Parts Replacement.....................................................................................34
3.4 Adjustments and Replacement Parts .........................................................34
3.5 Maintenance Tasks.....................................................................................35
3.6 Troubleshooting..........................................................................................36
4.0 Replacement Parts ...........................................................................................37
Limited Warranty...............................................................................................40

4Heat & Glo • SL-550TRSI-AUE • 2079-902 Rev. K • 10/08
Figure 1. Diagram of SL-550TRSI-AUE
408 mm
593 mm
671mm
913 mm
402 mm
327 mm
653 mm
93 mm
178 mm
58 mm
153 mm
790 mm
414 mm 223 mm
168 mm
816 mm
877 mm
1035 mm
GAS LINE
ACCESS ELECTRICAL
ACCESS
203 mm
TOP STANDOFFS
DRESS GUARD
ACCESS DOOR
GAS LINE ACCESS
GAS CONTROLS
ELECTRIC ACCESS
DATA BADGE & LABELS
HOOD
FLUE COLLAR COVER PLATE

5
Heat & Glo • SL-550TRSI-AUE • 2079-902 Rev. K • 10/08
Figure 2. Heater Dimensions, Locations, and Space
Requirements
1.0 INSTALLATION INSTRUCTIONS
In planning the installation for the heater it is neces-
sary to determine where the unit is to be installed, the
type of flue system to be used (straight out, corner,
or elevated), and whether optional accessories (wall
switch or remote control) are desired. Gas supply
piping should also be planned. Refer to the appliance
data plate on the base pan of the heater for all gas
pressures and input rate information.
The heater can be mounted on any of the following
surface:
1. A flat surface (minimum 6 mm base).
2. Four (4) corner supports.
(Example: Four (4) concrete masonry blocks). These
supports must be positioned so they contact all four
(4) perimeter edges on the bottom of the unit.
Heaterframingcanbebuilt beforeor aftertheheater is
set in place. Framing should be positioned to accom-
modate wall covering and heater facing material. The
heater framing should be constructed of 2" X 4" (51 x
102 mm) lumber or heavier. The framing headers may
restonthe heaterstandoffs.Refer to Figure2 and Fig-
ure 4 for heater and framing reference dimensions.
NOTE: Not intended for heater insert.
Top Flue
Rear Flue
76 mm MIN.
A
76 mm MIN.
C
E
D
B
AB C D E
Millimeter 940 413 749 1070 1511
AB C D E
Millimeter 940 413 889 1219 1803
A
B
C
D
E
12.5 mm MIN.
25 mm MIN.
Minimum Clearances
from the Heater to Combustible Materials
Glass Front ........................................914 mm
Floor .......................................................0 mm
Rear......................................................13 mm
Sides.....................................................13 mm
Top .......................................................86 mm
Ceiling*...............................................787 mm
*Theclearance toceiling ismeasured fromthe topof
the unit, excluding the standoffs (see Figure 30).
For minimum clearances, see the balanced flue termi-
nation clearance in Figure 23 and 28.
Minimum Clearances
from the Vent Pipe to Combustible Materials
Vertical Sections.................................25 mm
Horizontal Sections
Top........................................................75 mm
Bottom..................................................25 mm
Sides.....................................................25 mm
At Wall Firestops
Top........................................................75 mm
Bottom..................................................25 mm
Sides.....................................................25 mm

6Heat & Glo • SL-550TRSI-AUE • 2079-902 Rev. K • 10/08
Figure 3. Framing Dimensions
Framing should be constructed
of 2 X 4 lumber or heavier.
The framing headers
may rest on the heater
stand-offs.
A B C D* E*
940 mm 883 mm 420 mm 1035 mm 593 mm
*NOTE: This dimension is to the center of the flue pipe. The
center of the framing hole MUST BE 25.4 mm above
the center of the horizontal flue pipe.
CAUTION: Measure heater dimensions, and verify
framingmethods andwall coveringdetails beforefram-
ing construction begins.
1.1 INTRODUCTION
This model is designed to operate with all combustion
air being siphoned from the outside of the building
and all exhaust gases expelled to the outside of the
building.
WARNING: THIS UNIT IS NOT FOR USE WITH
SOLID FUEL.
These units MUST use the flue termination described
in the flueing section of the manual.
The control system for this model is an electronic ig-
nition type. It consists of a gas control valve/variable
regulator, a pilot/sensor/electrode and an ON/OFF
switch. The controls are located behind the access
door. Rotate the door down to open. See Figure 1.
Minimum inlet gas supply pressure for purpose of
input adjustment is 1.13 kPa for natural gas and 2.75
kPa for propane. Manifold (outlet) pressures should
be set at .8 kPa for natural gas models and 2.36 kPa
for propane models.
B
A
C
D
FLUE
FRAMING
HOLE
E
WALL STUD
86 mm
76 mm

7
Heat & Glo • SL-550TRSI-AUE • 2079-902 Rev. K • 10/08

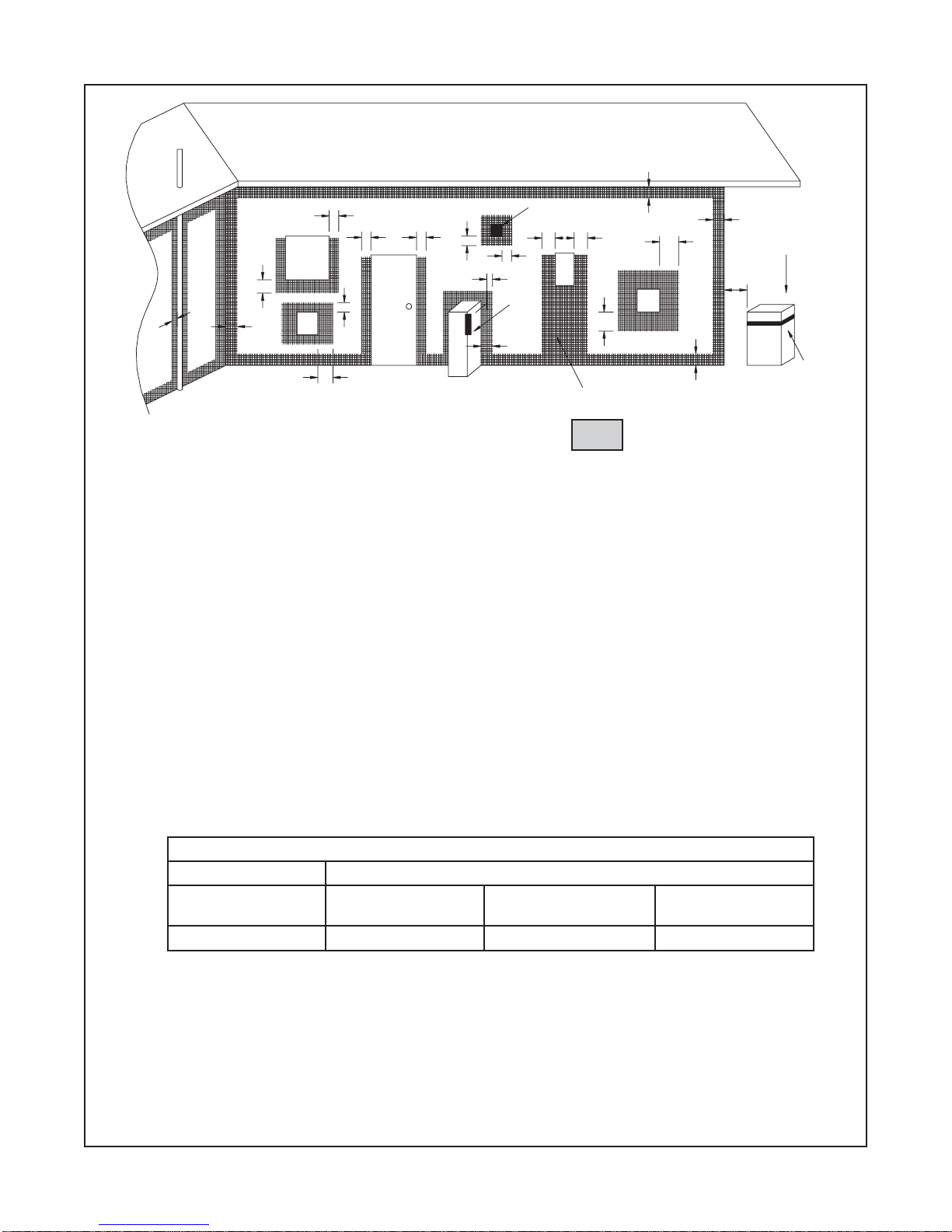

NOTES: 1. All distances are measured vertically or horizontally along the wall to a point
in line with the nearest part of the terminal.
2. Prohibited area below electricity meter or fuse box extends to ground level.
3. See clause 5.13.6.6 for restrictions on a flue terminal under a roofed area.
4. See Appendix J, Figure J1(a) and J2(a) for clearances required from a flue
terminal to a LP Gas cylinder. A flue terminal is considered to be a source of ignition.
MINIMUM CLEARANCES REQUIRED FOR BALANCED FLUE TERMINALS
OR THE FLUE TERMINALS OF OUTDOOR APPLIANCES
Figure 4.
a - Below eaves, balconies or other projections: MIN. CLEARANCE (mm)
Appliances to 50 MJ/h input...................................................................................................300
Appliances over 50 MJ/h input...............................................................................................500
b - From the ground or above a balcony.........................................................................................300
c - From a return wall or external corner.........................................................................................500
d - From a gas meter (M)..............................................................................................................1000
e - From an electricity meter or fuse box (P)...................................................................................500
f - From a drain or soil pipe............................................................................................................150
g - Horizontally from any building structure (unless appliance approved
for closer installation) or obstruction facing a terminal...............................................................500
h - From any other flue terminal, cowl, or combustion air intake ....................................................500
j - Horizontally from an openable window, door, non-mechanical air
inlet, or any other opening into a building, with the exception of
sub-floor ventilation:
Appliances up to 150 MJ/h input............................................................................................500
Appliances over 150 MJ/h input...........................................................................................1500
k - From a mechanical air inlet, including a spa blower...............................................................1500
n - Vertically below an openable window, non-mechanical air
inlet or any other opening into a building, with the exception of...................................... See table
sub-floor ventilation................................................................................................................ below
T= Flue terminal M= Gas meter Shading indicates prohibited
I= Mechanical air inlet P= Electricity meter or fuse box areas for flue terminals
f
c
n
I
openable
window
j
jj
door
h
hh
T
ee
P
T
g
k
kdb
d
M
a
c
g
See note 2
See note 3
T
CLEARANCE 'n' (mm)
Space Heaters All other appliances
Up to 50 MJ/h input Up to 50 MJ/h input Over 50 MJ/h input and
Up to 150 MJ/h input Over 50 MJ/h input
150 500 1000 1500

8Heat & Glo • SL-550TRSI-AUE • 2079-902 Rev. K • 10/08
TABLE 1
1.2 FLUE SYSTEM APPROVALS
Thesemodelshavefluestartingcollarson boththe top
and the back of the unit. Depending upon the instal-
lation, decide which ONE set of starting collars will be
usedtoattach theflue system.The startingcollar seal-
ing cap must remain on the starting collar NOT used.
These models use SLP series direct flue components
whenusingthe TOP flue collars andDVP seriesdirect
flue components when using the REAR flue collars.
WARNING: YOU MUST NOT MIX DVP-SERIESAND
SLPSERIES COMPONENTS INANY FLUESYSTEM
CONFIGURATION.
Approved flue system components are labeled for
identification. NO OTHER FLUEING SYSTEMS OR
COMPONENTS MAY BE USED. Detailed installation
instructions are included with each flue termination kit
and should be used in conjunction with this manual.
Figure 5 below shows flue system components and
terminations.
Identifying Flue Components
The flue systems installed on this gas heater may
include one, two, or three 90° elbow assemblies. The
relationships of vertical rise to horizontal run in flue
configurations using 90° elbows MUST BE strictly
adhered to. The rise to run relationships are shown
in the flueing drawings and tables on the next few
pages.
WARNING: THIS GAS APPLIANCE AND FLUE AS-
SEMBLY MUST FLUE DIRECTLY TO THE OUTSIDE
AND MUST NEVER BEATTACHED TOA CHIMNEY
SERVING A SEPARATE SOLID FUEL BURNING
APPLIANCE. EACH GAS APPLIANCE MUST USE
ASEPARATE FLUE SYSTEM-COMMON FLUE SYS-
TEMS ARE PROHIBITED.
CAUTION: UNDER NO CONDITION SHOULD COM-
BUSTIBLE MATERIALBE CLOSER THAN76 MMAT
WALL FIRE-STOPS FROM THE TOP OF THE PIPE
OR 25 MM TO THE SIDESAND THE BOTTOM FOR
HORIZONTAL SECTIONS OF THIS FLUE SYSTEM.
VERTICAL SECTIONS OF THIS SYSTEM REQUIRE
AMINIMUM OF 25 MM CLEARANCE TO COMBUS-
TIBLE MATERIALS ALL AROUND THE PIPE.
For alternative installations, other than depicted, con-
tact your dealer for further information.
RefertoFigure4forrequiredclearancestoflueterminals.
Figure 5. Flue Components and Terminations
MODEL
SL-550TRSI-AUE
FLUE TERMINATION APPROVALS
DVP-TRAP2 & SLP-TRAP2 HORIZONTAL TERMINATION CAP
DVP-TVHW & SLP-TVHW VERTICAL TERMINATION CAP
HORIZONTAL
TERMINATION
WALL FIRESTOP
90 DEGREE
ELBOW
VERTICAL
TERMINATION STORM COLLAR
ROOF FLASHING
HORIZONTAL PIPE
SUPPORT
PIPE LENGTH
WALL BRACKET
CEILING
FIRESTOP
DVP SERIES
SLP-TVHW
SLP-TRAP2
SLP SERIES
DVP-TRAP2
DVP-TVHW
Flue system termination kits

9
Heat & Glo • SL-550TRSI-AUE • 2079-902 Rev. K • 10/08
NOTE: PIPES OVERLAP32 mm AT EACH JOINT
319 mm
286 mm
184 mm
32 mm TYP
13 mm TYP
217 mm
DVP36
DVP48
1219 mm
610 mm
914 mm
102 mm
152 mm
DVP4
DVP6
305 mm
DVP12
51 mm
MIN
DVP12A
310 mm
MAX
DVP24
251 mm
45.0º
260 mm
DVP45
362 mm
DVP90ST

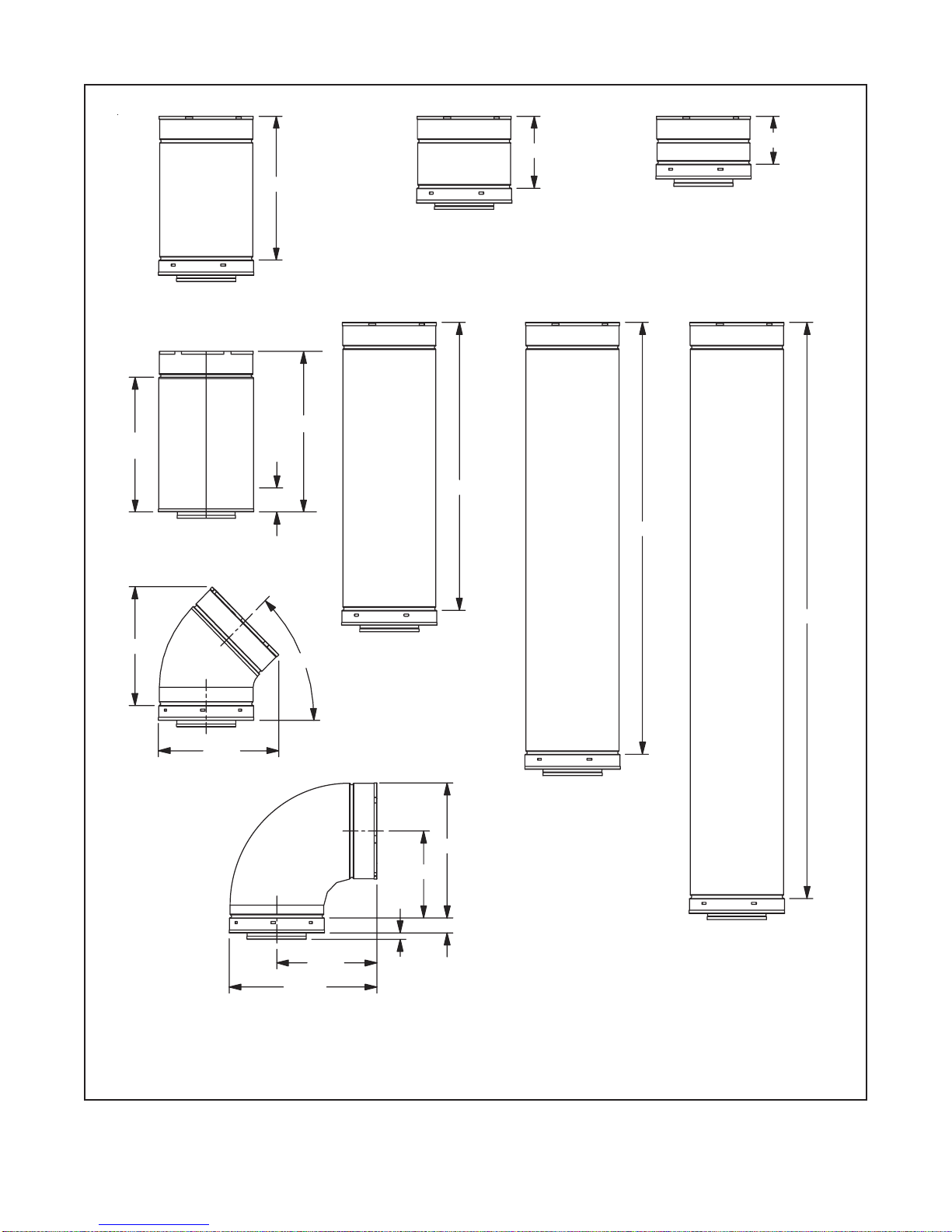

Figure 6. DVP-Series Balanced Flue Component Specifications (127 mm inner pipe / 203 mm outer pipe)

10 Heat & Glo • SL-550TRSI-AUE • 2079-902 Rev. K • 10/08

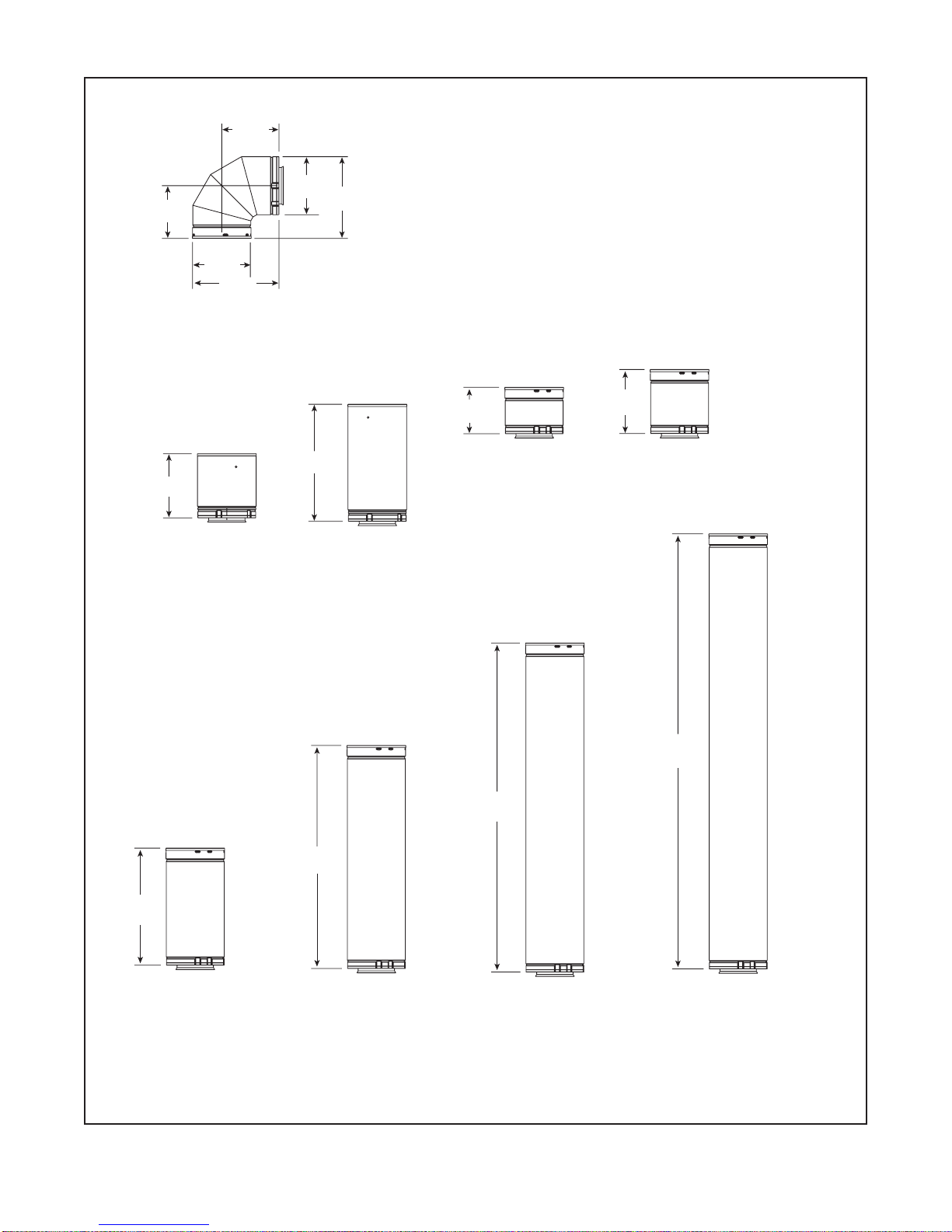

Figure 7. SLP Series Balanced Flue Component Specifications (102 mm inner pipe / 168 mm outer pipe)
167 mm
152 mm
165 mm
248 mm
235 mm
184 mm
184 mm
133 mm
641 mm
946 mm
1251 mm
337 mm
337 mm
168 mm
SLP90
SLP12
SLP6
SLP4
SLP24 SLP36 SLP48
SLP12A
SLP6A
Note: Pipes overlap 34.93 mm at each joint.

11
Heat & Glo • SL-550TRSI-AUE • 2079-902 Rev. K • 10/08

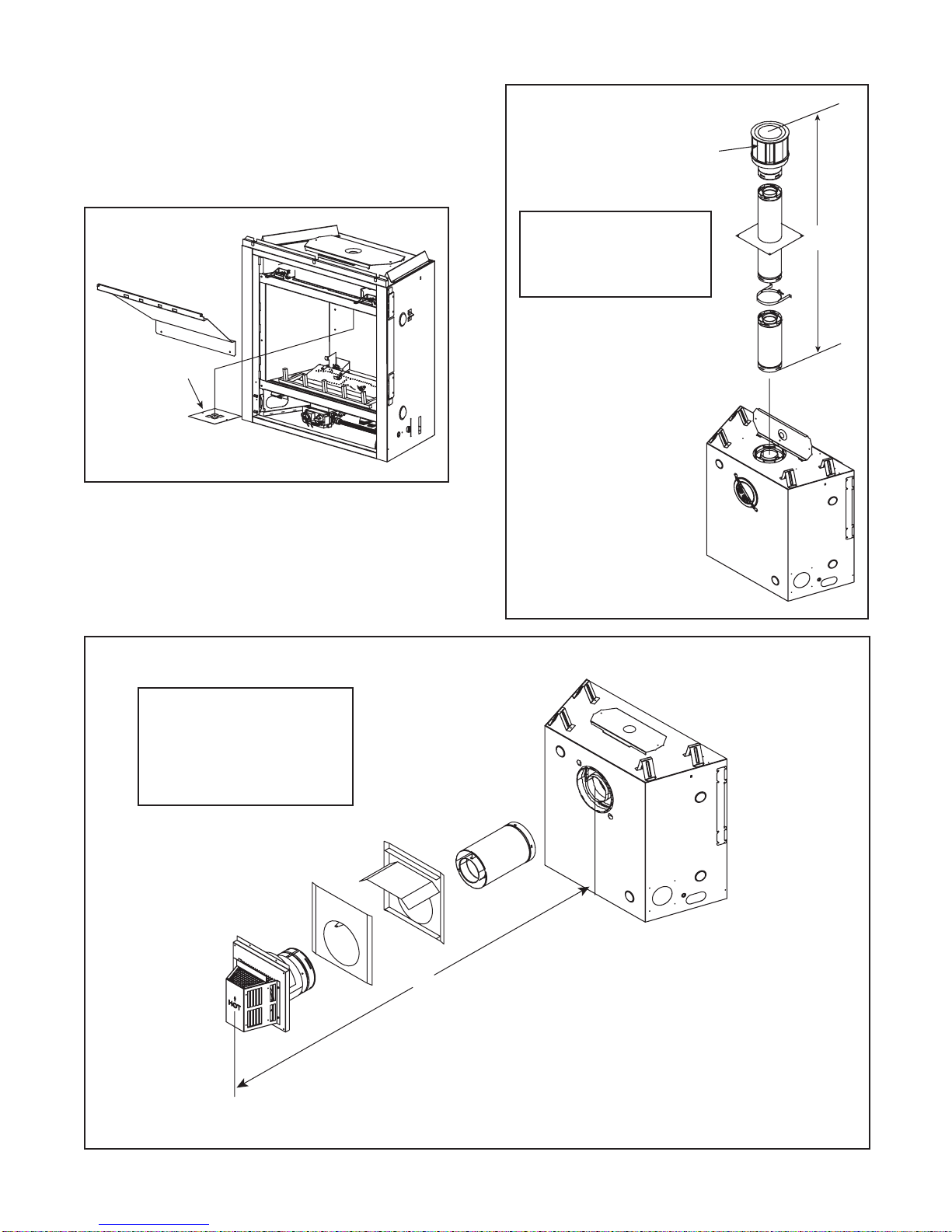

VERTICAL FLUEING
V
10.97 M MAXIMUM
Figure 9.
USE SLP SERIES
COMPONENTS ONLY.
Figure 10.
USE DVP-SERIES COMPONENTS ONLY.
STRAIGHT OUT HORIZONTAL
FLUEING
H
Max. Run
610 mm
Vertical Flue Restrictor
If the heater installation requires a vertical flue
exceeding4.5mabovetheunitwith no horizontal
flue or elbows, a vertical flue restrictor must be
installed (see Figure 8).
Figure 8.
RESTRICTOR
PLATE
H
CAP
V

12 Heat & Glo • SL-550TRSI-AUE • 2079-902 Rev. K • 10/08
Figure 11.
V H
FT. (M) FT. (M)
1' MIN. (0.30 M) 2' MAX. (0.61 M)
2' MIN. (0.61 M) 4' MAX. (1.22 M)
3' MIN. (0.91 M) 8' MAX. (2.44 M)
4' MIN. (1.22 M) 10' MAX. (3.05 M)
V + H = 30' (9.14 M)

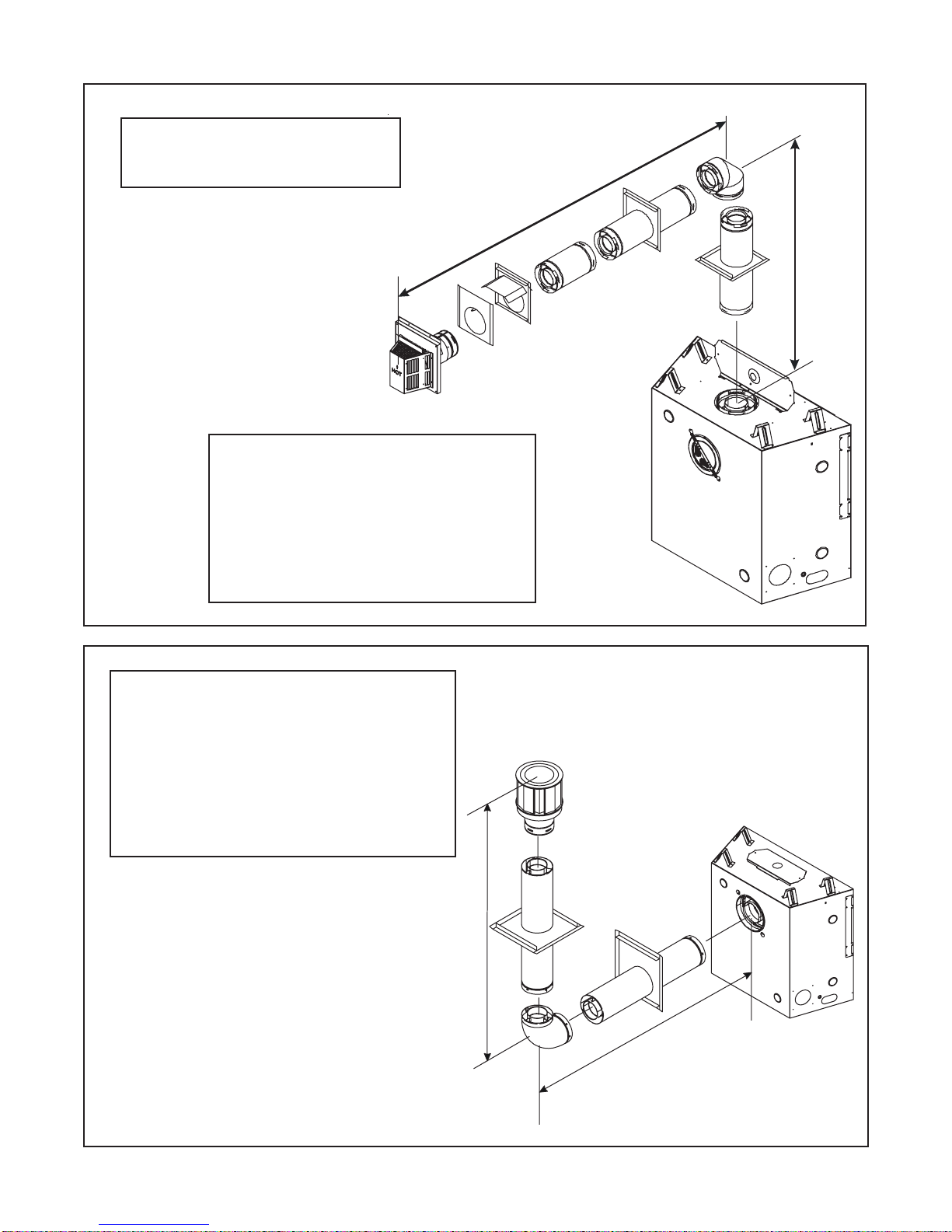

FLUEING WITH ONE (1) 90° ELBOW
USE SLP SERIES
COMPONENTS
ONLY.
Figure 12.
USE DVP-SERIES
COMPONENTS
ONLY.
FLUEING WITH ONE (1) 90º ELBOW
V (FT.) H (FT.)
1' MIN. (0.30 M) 3' MAX. (0.91 M)
2' MIN. (0.61 M) 6' MAX. (1.83 M)
3' MIN. (0.91 M) 9' MAX. (2.74 M)
4' MIN. (1.22 M) 12' MAX. (3.66 M)
V+H =36' MAX.(10.97 M) H= 12' MAX. (3.66 M)
NOTE:A184mmsectionof verticalflue
must be attached to the heater before
a 90º elbow.
V
H
H
V

13
Heat & Glo • SL-550TRSI-AUE • 2079-902 Rev. K • 10/08
H
V
V
11
Figure 13.
V H
FT. (M) FT. (M)
1' MIN.(0.30 M) 2' MAX.(0.61 M)
2' MIN.(0.61 M) 4' MAX. (1.22 M)
3' MIN.(0.91 M) 6' MAX. (1.83 M)
4' MIN.(1.22 M) 8' MAX. (2.44 M)
5' MIN.(1.52 M) 12' MAX. (3.66 M)
NOTE: V + V1MAX 33' (10.06 M)

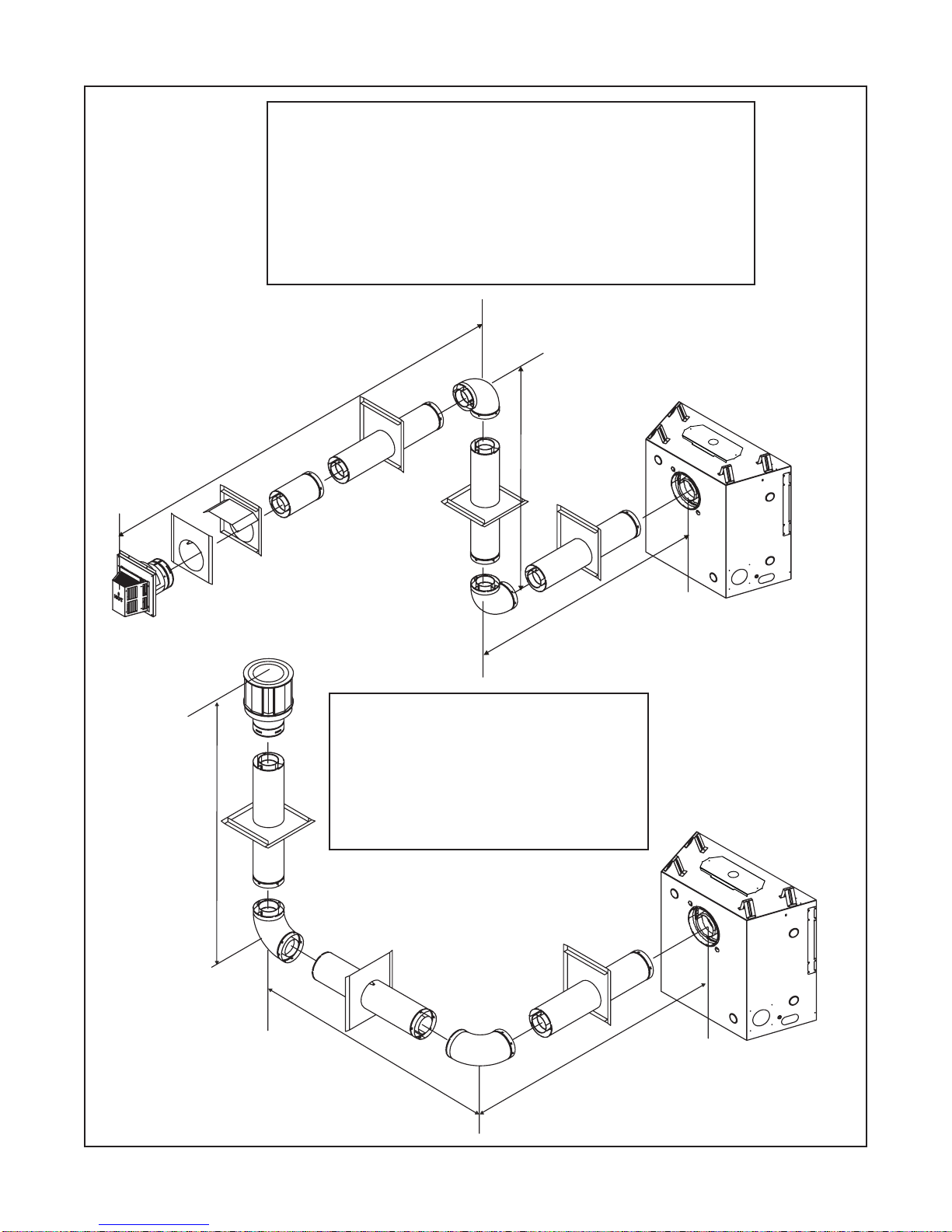

FLUEING WITH TWO (2) 90° ELBOWS
V H + H1
FT. (M) FT. (M)
1' MIN.(0.30 M) 2' MAX.(0.61 M)
2' MIN.(0.61 M) 4' MAX.(1.22 M)
3' MIN.(0.91 M) 6' MAX.(1.83 M)
4' MIN.(1.22 M) 8' MAX.(2.44 M)
5' MIN.(1.52 M) 10' MAX. (3.05 M)
30' MAX.(9.14 M) 10' MAX. (3.05 M)
FLUEING WITH TWO (2) 90° ELBOWS
USE SLP SERIES COMPONENTS ONLY.
H1
H
V

14 Heat & Glo • SL-550TRSI-AUE • 2079-902 Rev. K • 10/08
V
HH
1
Figure 14.
USE DVP-SERIES
COMPONENTS ONLY.
FLUEING WITH TWO (2) 90° ELBOWS
V H H + H1
1´ MIN. (0.30 M) 1´ MAX. (0.30 M) 2´ MAX. (0.61 M)
2´ MIN. (0.61 M) 2´ MAX. (0.61 M) 4´ MAX. (1.22 M)
3´ MIN. (0.91 M) 3´ MAX. (0.91 M) 8´ MAX. (2.44 M)
4´ MIN. (1.22 M) 4´ MAX. (1.22 M) 10´ MAX. (3.05 M)
H = 8´ MAX. (2.44 M) H + H1= 10´ MAX. (3.05 M)
V + H + H1= 30’ (9.14 M) MAX.
V (FT) H + H1(FT)
1' MIN. (0.30 M) 3' MAX. (0.91 M)
2' MIN. (0.61 M) 5' MAX. (1.52 M)
3' MIN. (0.91 M) 8' MAX. (2.44 M)
4' MIN. (1.22 M) 12' MAX. (3.66 M)
H + H1= 12' MAX. (3.66 M)
V + H + H1= 33' (10.06 M) MAX.
H1
V
H

15
Heat & Glo • SL-550TRSI-AUE • 2079-902 Rev. K • 10/08
H1
H
V1
V
V 1
H
1
H
V

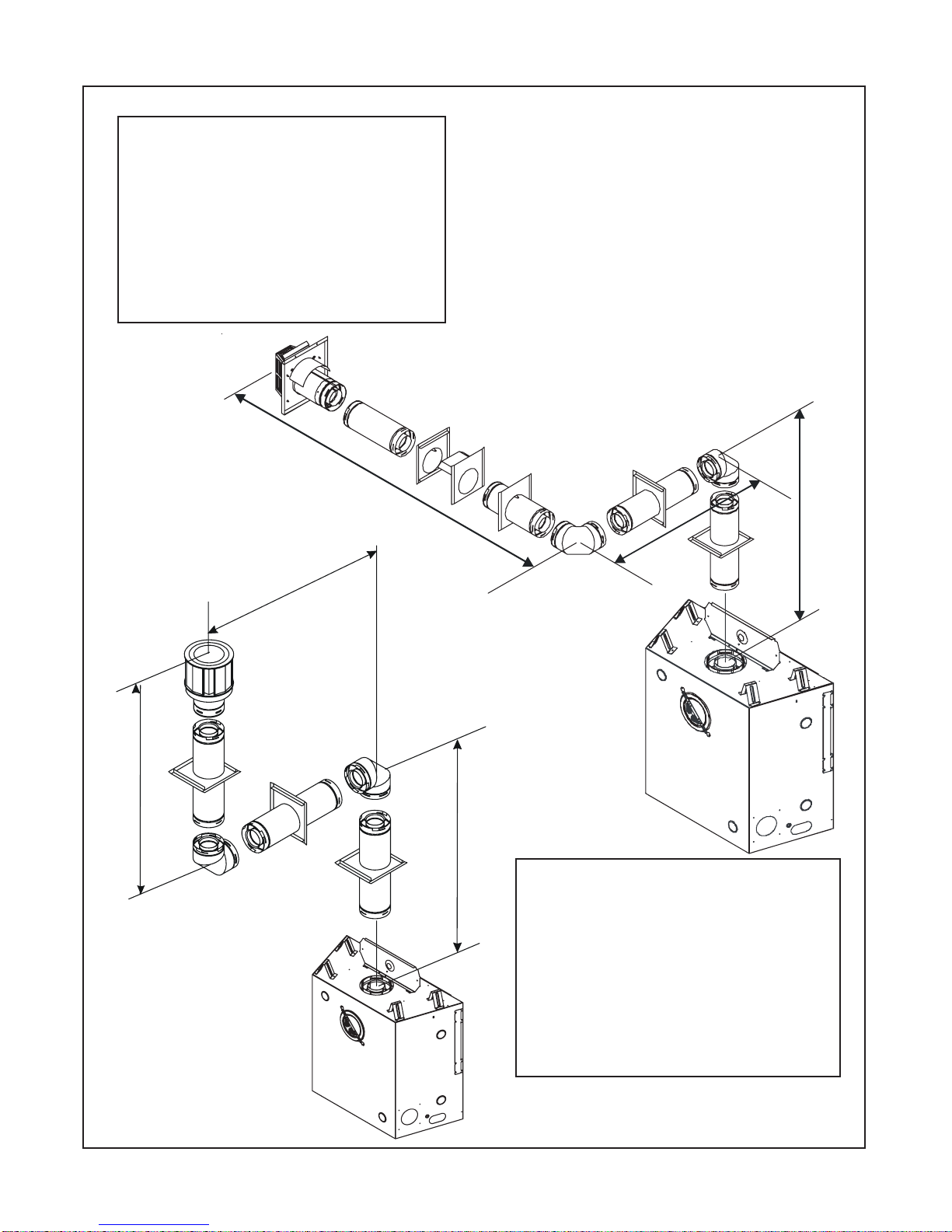

FLUEING WITH THREE (3) 90° ELBOWS
V H H + H1
FT. (M) FT. (M) FT. (M)
2' MIN.(0.61M) 2' MAX.(0.61M) 4' MAX.(1.22M)
3' MIN.(0.91M) 3' MAX.(0.91M) 6' MAX (1.83M)
4' MIN.(1.22M) 4' MAX.(1.22M) 8' MAX.(2.44M)
V+V1 = 30' MAX (9.14M) 6' MAX (1.83M) 8' MAX.(2.44M)
FLUEING WITH THREE (3) 90° ELBOWS
Figure 15.
V H + H1
FT. (M) FT. (M)
1'MIN.(0.30 M) 2' MAX.(0.61 M)
2'MIN.(0.61 M) 4' MAX.(1.22 M)
3'MIN.(0.91 M) 6' MAX.(1.83 M)
4'MIN.(1.22 M) 8' MAX.(2.44 M)
5'MIN.(1.52 M) 12' MAX.(3.66 M)
12' MAX.(3.66 M)
NOTE: V + V1MAX. 33' (10.06 M)
USE SLP SERIES COMPONENTS ONLY.

16 Heat & Glo • SL-550TRSI-AUE • 2079-902 Rev. K • 10/08
H
V
H
2
H
1
Figure 16.
FLUEING WITH THREE (3) 90° ELBOWS
1´ MIN. (0.30 M) 1´ MAX. (0.30 M) 3´ MAX. (0.91 M)
2´ MIN. (0.61 M) 2´ MAX. (0.61 M) 5´ MAX. (1.52 M)
3´ MIN. (0.91 M) 4´ MAX. (1.22 M) 8´ MAX. (2.44 M)
4´ MIN. (1.22 M) 6´ MAX. (1.83 M) 12´ MAX. (3.66 M)
H = 6´ MAX. (1.83 M) H+H1= 12´ MAX. (3.66 M)
NOTE: V + V, + H + H1= 33’ (10.06 M) MAX.
V (FT.) H (FT.) H + H1(FT.)
V (FT.) H (FT.) H + H1+ H2 (FT.)
1´ MIN. (0.30 M) 1´ MAX. (0.30 M) 2´ MAX. (0.61 M)
2´ MIN. (0.61 M) 2´ MAX. (0.61 M) 4´ MAX. (1.22 M)
3´ MIN. (0.91 M) 3´ MAX. (0.91 M) 8´ MAX. (2.44 M)
4´ MIN. (1.22 M) 4´ MAX. (1.22 M) 10´ MAX. (3.05 M)
V+H+H1+H2=30´ MAX.(9.14 M) H = 4´MAX.(1.22 M) H+H1+H2= 10´MAX.(3.05 M)
FLUEING WITH THREE (3) 90° ELBOWS
USE DVP-SERIES
COMPONENTS ONLY.
V1
H
V
H1

17
Heat & Glo • SL-550TRSI-AUE • 2079-902 Rev. K • 10/08
!WARNING: FAILURE TO REMOVE IN-
SULATION IN THE SET OF COLLARS
YOU ARE USING COULD CAUSE A
FIRE.
Appliance Preparation
After determining which set of starting collars will
be used (top or rear), follow flueing instructions
accordingly.
WARNING: FIRE RISK ONCE APPLI-
ANCE IS SETUP FOR TOP OR REAR
FLUEING, IT CANNOT BE CHANGED
AT A LATER TIME. IF FLUE CAP
AND COMPONENTS PREVIOUSLY
REMOVED ARE IMPROPERLY REIN-
STALLED, A FIRE MAY RESULT.
!
CAUTION
2 SCREWS
Top Flue
Figure 18. Rotate the top heat shield to the vertical
positionas shownabove. Theheatshieldmustremain
in the vertical position.
Figure 20. Remove the flue cap.
Figure 21. Remove the insulation basket and white
insulation from the center flue pipe.
Figure 17. For top flue, remove the two screws hold-
ing the top heat shield in place. For rear flue, see
next page.
Figure 19. Replace the two screws as shown.
Sharpedges-Wearprotectivegloves and safety glasses
during installation.
WARNING: YOU MUST LEAVE THE
INSULATION AND FLUE CAP IN
PLACE IN THE SET OF COLLARS
YOU ARE NOT USING.
!
WARNING: FIRE RISK DO NOT RE-
MOVE HEAT SHIELD. ELEVATED
HEADER TEMPERATURES MAY
CAUSE A FIRE.
!
2 SCREWS

18 Heat & Glo • SL-550TRSI-AUE • 2079-902 Rev. K • 10/08
Figure 22. Remove the insulation from the outer flue
pipe.
Figure 23. To attachthefirstsectionoffluepipe,make
sure to use the fiberglass gasket to seal between the
first vent component and the outer heater wrap. Use
2 self tapping screws to secure the gasket to the outer
wrap.
Figure 24. Remove the insulation from the outer flue
pipe.
2 SCREWS
Figure 25. Cut the metal retaining band and fold the
sides out.
Figure 26. Fold the center parts of the retaining band
out and us to remove the flue cap.
Figure 27. Discard the flue cap, remove and discard
the insulation basket. Note: Once the flue cap has
been removed it CANNOT be reattached.
Figure 28. Attach the first flue section (it will snap into
place). Slidethe insulationgasketontothefluesection,
up against the appliance and over the tabs. Use two
self-tapping screws to secure gasket to outer wrap.
Rear Flue
Note: Once the flue cap has been removed, it cannot
be reattached.

19
Heat & Glo • SL-550TRSI-AUE • 2079-902 Rev. K • 10/08
Installing Flue Components
A. On the REAR of the heater
1. Attaching the First Flue Component to the Start-
ing Collars:
To attachthe firstflue componenttothe startingcollars
on the rear of the heater:
• Make sure that the flue gasket supplied with the
heater seals between the first flue component and
the outer heater wrap.
• Slide the male end of the inner flue of the pipe sec-
tion over the inner collar on the heater. At the same
time, slide the outer flue over the outer collar on the
heater.Pushthefluesectionintotheappliancecollar
until all the lances (see Figure 29) have snapped in
place. Tug slightly on the flue to confirm that it has
completely locked into place.
Figure 29.
• Any 90º elbow installed directly onto the rear flue of
the heater MUST BE in a vertical position.
2. Assembling Flue Components
Insert the inner flue of section A into the flared inner
flue of section B.
Start the outer flue of section A over the outer flue of
section B (see Figure 30). Note: The end of the pipe
sections with the lances/tabs on it will face towards
the appliance.
Once both inner and outer flues are started, press
section A onto section B firmly until all lances have
snapped into place. Check to make sure they have
snapped together (see Figure 31) and the seams are
not aligned. Tug slightly on section A to confirm it has
completely locked into place.
!
WARNING: ENSURE THAT THE HEATER
GASKET SUPPLIED WITH THE HEATER
SEALS BETWEEN THE FIRST FLUE
COMPONENT AND THE OUTER HEATER
WRAP. Figure 30. Figure 31.
A
B
Fire Risk
Exhaust Fumes Risk
Impaired Performance of Appliance
• Overlap pipe slip sections at least 38
mm.
• Screws must not exceed one inch
long.
• Pipe may separate if not properly
joined.
WARNING
NOTE: Make sure that seams are NOT aligned to
prevent unintentional disconnection.
For elbows that are changing the flue direction, two
screws minimum should be put in the outer flue at the
joint to prevent the elbow from rotating.
PROCEED TO STEP 4
(Install Support Brackets)

20 Heat & Glo • SL-550TRSI-AUE • 2079-902 Rev. K • 10/08
4. Install Support Brackets
For Horizontal Runs - The flue system must be
supportedevery1.5 mof horizontalrunby ahorizontal
pipe support.
To install support brackets for horizontal runs:
• Place the pipe supports around the flue pipe.
• Nail the pipe supports to the framing members.
• Align the seam of the pipe and seam of the collar to
allow engagement. Rotat the flue to lock into place.
Use this procedure for all the components. See
Figure 32.
• Slide the gasket over the first flue section and place
itflushto theheater.Thiswill prevent coldair infiltra-
tion. High temperature caulk may be used to hold
the gasket in platce.
Figure 32. Adding Flue Components
B. On the TOP of the heater
1. Attaching the First Flue Component to the Start-
ing Collars:
To attachthe firstflue componenttothe startingcollars
on the top of the heater:
• Lock the flue components into place by sliding the
concentric pipe sections into the heater collar or
previously installed component end.
2. Continue Adding Flue Components
Tocontinue addingfluecomponents inaccordancewith
the pre-planned flue system configuration:
• Ensure that each succeeding flue component is se-
curelyfittedand lockedintotheprecedingcomponent
in the flue system.
For elbows that are changing the flue direction, two
screws minimum should be put in the outer flue at the
joint to prevent the elbow from rotating.
3. Assemble Slip Sections
• Slide the inner flue of the slip section into the inner
flue of the pipe section and the outer flue of the slip
section over the outer flue of the pipe section. See
Figure 33.
• Slide together to the desired length.
Figure 33. Slip Section Pilot Holes
Figure 34. Screws into Slip Section
Pilot hole
Pilot hole
• Continue adding pipe as necessary following
instructions in “Assembling Pipe Sections.”
NOTICE: If slip section is too long, the inner and
outer flues of the slip section can be cut to the desired
length.
• Maintain a 1-1/2 in. (38 mm) overlap between the
slip section and the pipe section.
• Secure the pipe and slip section with two screws no
longer than 1/2 in. (13 mm), using the pilot holes in
the slip section. See Figure 34.
