Heat Controller, Inc. • 1900 Wellworth Ave. • Jackson, MI 49203 • [phone] • www.heatcontroller.com
OWNER’S MANUAL
VMH 09/12/18/24
Version C
Inverter Single Zone
Ductless Mini-Split Heat Pump

VMH Inverter Mini-Split OWNER’S MANUAL Heat Controller, Inc.
1
Table of Contents
Safety Precautions
Warning and Cautions .............................................................................2
Operating Instructions
Identication of Parts ...............................................................................3
Display and Remote Controller Features.................................................3
Operating Conditions and Manual Operation...........................................5
Airow Direction Control ..........................................................................6
Operation Modes .....................................................................................7
Care and Maintenance
Care and Maintenance.............................................................................8
Operation Tips
Typical Operational Occurrences ...........................................................10
Troubleshooting Tips
Troubleshooting Tips..............................................................................12
Caution
• Contact an authorized service technician for repair or maintenance of this unit.
• Contact the installer for installation of this unit.
• Installation work must be performed in accordance with local and national electrical
codes and standards by authorized personnel only.
!

Heat Controller, Inc. OWNER’S MANUAL VMH Inverter Mini-Split
2
• Do not attempt to install this air conditioner by yourself.
• This unit contains no user-serviceable parts. Always consult authorized service personnel for repairs.
• Do not insert ngers or objects into the outlet or intake grilles.
• Do not start and stop air conditioner operation by disconnecting the power supply.
• Take care not to damage the power supply wiring.
• In the event of a malfunction (burning smell, etc.), immediately stop operation, disconnect the
power supply, and consult authorized service personnel.
• Provide occasional ventilation during use.
• Do not direct air ow at replaces or heating apparatus.
• Avoid installing the air conditioner near a replace or other heating apparatus.
• Do not climb on, or place objects on, the air conditioner.
• Do not hang objects from the indoor unit.
• Do not set ower vases or water containers on top of the air conditioner.
• Do not expose the air conditioner directly to water.
• Do not operate the air conditioner with wet hands.
• Turn off power source when not using the unit for extended periods.
• Do not drink the water drained from the air conditioner.
• Connection valves become hot during Heating; handle with care.
• Do not apply any heavy pressure to evaporator ns.
• Operate only with air lters installed.
• Do not block or cover the intake or outlet grille.
• Ensure that any electronic equipment is at least 3 feet (1m) away from either the indoor or outdoor
units.
• Do not use inammable gases near the air conditioner.
CAUTION!
!
WARNING!
!
To prevent injury to the user, other people and/or to property, the following instructions must be followed. Incorrect operation
due to ignoring these instructions may cause harm or damage. The seriousness is classied by the following indications:
WARNING!
!
CAUTION!
!
This symbol indicates the possibility of death or serious injury.
This symbol indicates the possibility of injury or damage to property.
Never do this.
Always do this.
Meanings of symbols used in this manual are as shown below:
!

VMH Inverter Mini-Split OWNER’S MANUAL Heat Controller, Inc.
3

( C )
Identication of Parts
Base valve
(Heat Pump
mode.

Heat Controller, Inc. OWNER’S MANUAL VMH Inverter Mini-Split
4
Remote Controller Features
The remote controller comes with a FOLLOW ME feature which allows the remote controller to act as a
thermostat. This allows the unit to sense the temperature at the location of the remote controller, rather
than sensing the temperature at the indoor unit. The indoor unit is installed high on a wall, thus the ther-
mostat on the remote controller will provide a more accurate temperature reading for the room. Consult
the remote controller manual for more information.
Displayed when TURBO function is selected in
cooling or in heating modes. This air conditioner
is equipped with an ionizer, which generates
ions to remove microscopic particles from the air.
Rooms become healthier for those suffering from
asthma or allergies with the use of this feature.
DIGITAL DISPLAY
Displays the current set temperature when the air
conditioner is in operation. When SELF CLEAN
feature is activated, its displays “SC”.
TURBO operation display
Illuminated when TURBO function is selected in
cooling or heating operation.
This display is separated into ve zones.
The zones illuminate base on the com-
pressor’s current frequency. For ex-
ample, a higher frequency will illuminate
more zones.

VMH Inverter Mini-Split OWNER’S MANUAL Heat Controller, Inc.
5
Mode Temp Ambient Operating Conditions
Fahrenheit Celsius
Cooling Outdoor 5 to 122 -15 to 50
Indoor =62.6 =17
Heating Outdoor 5 to 93.2 -15 to 34
Indoor =86 =30
Dehumidication Outdoor 5 to 122 -5 to 50
Indoor >50 >10
See chart below for operating conditions:
Operating Conditions:
When cooling is needed year round, including when outdoor temperatures are apt to fall below freezing, our
V Series inverter driven ductless mini-split systems will continue to work, as they come with factory installed
low ambient controls. The low ambient feature works by regulating the head pressure by varying the amount of
air ow through the condenser, which helps to prevent evaporator freeze ups and low pressure problems due to
low ambient outdoor temperatures. Low ambient operation is a great feature for temperature/humidity sensitive
environments or applications such as server/computer rooms, supermarkets, restaurants, or cooling tower fans.
Additionally, a crank case heater is required and factory installed, as it is needed for use with the low ambient
controls. The crank case heater minimizes liquid refrigerant migration to the compressor when the compressor
is not operating and helps to keep the compressor oil warm enough so that it remains uid to prevent slugging.
Crank case heaters also assist to greatly reduce heat loss to ambient air. Together, the lower ambient feature
combined with the factory installed crank case heater, will not only allow the air conditioner to cool year round,
but will also prevent compressor failure in low ambient conditions.
Manual Operation:
Manual operation can be used temporarily to run the unit without using the remote controller. This feature can
also be used to test the unit during installation and troubleshooting by an authorized service technician.
NOTE: This manual does not include Remote Controller Operations, see the <<Remote Controller Manual>>
packaged with the unit for details.

( C )
NOTE: The unit must be turned off before operating the
manual control button. If the unit operational, continue press-
ing the manual control button until the unit is off.
1. Grasp both sides of the panel and pull it down. The panel
opens upward to an angle of 15°. Push the panel upward
and then lift it up.
2. One press of the manual control button will lead to the
forced AUTO operation. If the button is pressed twice
within ve seconds, the unit will operate under forced
COOL operation. Press the button a third time to stop the
manual operation.
3. Close the panel rmly to its original position.
CAUTION:
• This button is used for testing purposes only.
• To restore the remote controller to control the unit, siply
begin to operate the unit with the remote controller.

Heat Controller, Inc. OWNER’S MANUAL VMH Inverter Mini-Split
6
 
( C)
NOTE: The remote controller provided with your unit
may differ in appearance. Please refer to the <<Remote
Controller Manual>> supplied with the unit to operate the
unit properly.

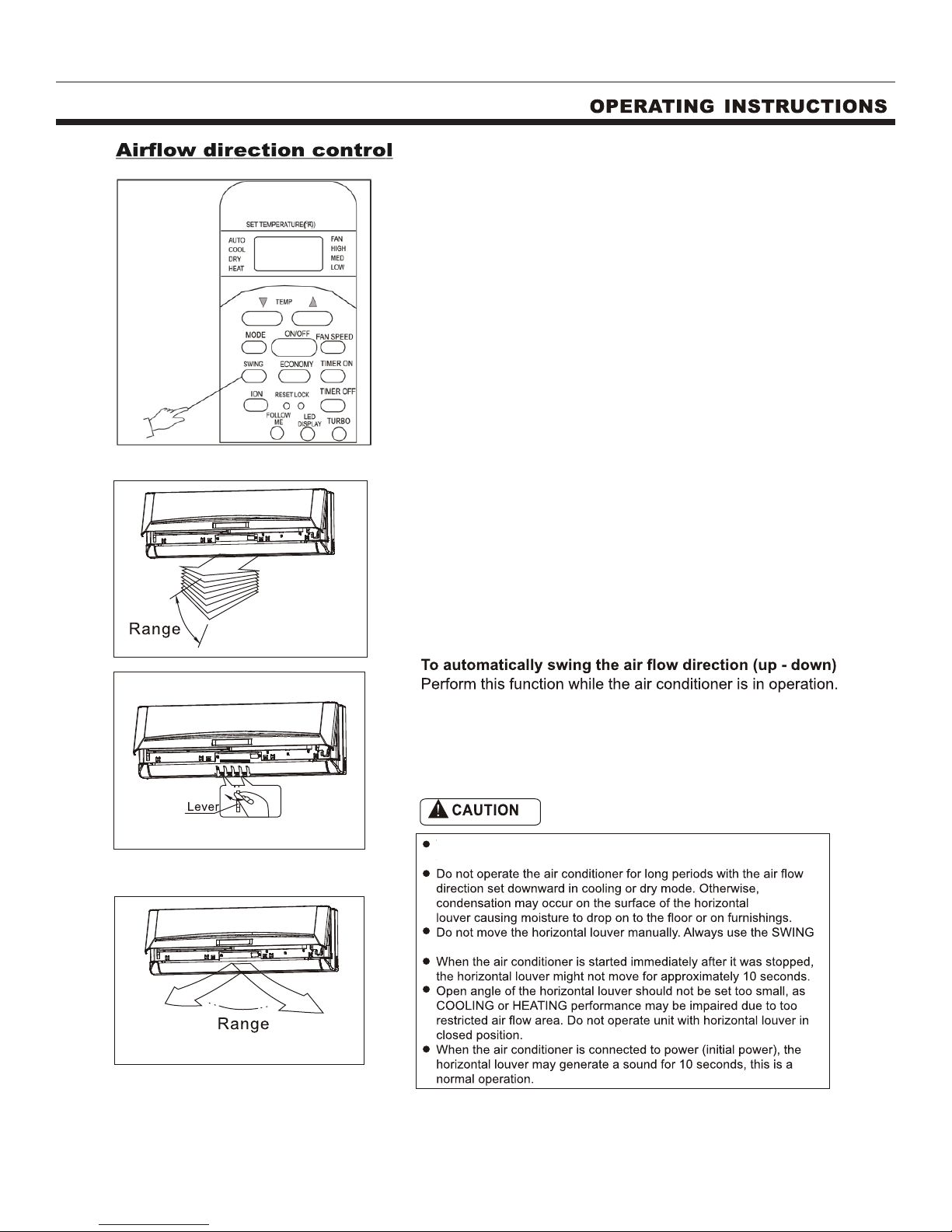

• Adjust the air ow direction properly otherwise it might
cause discomfort or uneven room temperatures.
• Adjust the horizontal louver using the remote controller.
• Adjust the vertical louver manually.
To set the vertical (up-down) air ow direction
Perform this function while the unit is in operation. Press
the SWING button on the remote controller to move the
louver to the desired direction. The angle of the horizon-
tal louver moves 6° for each press of the button.
To set the horizontal (left-right) air ow direction
Adjust the vertical louver manually using the lever on
the left or right side of the vertical louver arm (depending
on model). Take care not to catch ngers on the fan,
horizontal louver or to damage vertical louvers. Move the
lever to the desired position to direct air ow.
• Hold the SWING button without releasing it for more than
2 seconds. The horizontal louver will swing up and down
automatically.
• To stop the function, press the SWING button again.
The swing function will be disabled when the air conditioner is not in
operation (including when the TIMER ON is set).
button

VMH Inverter Mini-Split OWNER’S MANUAL Heat Controller, Inc.
7
OPERATING MODES
AUTO operation
• When you set the air conditioner to AUTO mode, it will automatically select
cooling, heating (heat pump models only), or fan only operation depending
on what temperature you have selected and the actual room temperature.
• The air conditioner will control room temperature automatically around
the temperature set point you select.
• If the AUTO mode is uncomfortable, you can change desired tempera-
ture settings manually.
ECONOMY/SLEEP operation
• When you push ECONOMY button on remote controller it activates
SLEEP mode. During cooling, heating (heat pump only), or AUTO op-
eration, the air conditioner will automatically increase (cooling) or de-
crease (heating) 2°F (1°C) per hour.
• The set temperature will become steady 2 hours later.
• The SLEEP mode will turn off after 7 hours and revert back to the previ-
ous settings.
• The fan speed will be automatically controlled.
• This feature can maintain the most comfortable temperature and save
more energy during use.
DRY MODE/DEHUMIDIFYING operation:
• The temperature is regulated while dehumidifying by repeatedly turning
on and off of the cooling operation or fan only. The fan speed will be au-
tomatically controlled. In this mode, if the room temperature is lower than
50°F (10°C) the compressor will stop. The compressor will restart when
the room temperature is above 54°F (12.2°C).
Optimal Usage Tips:
To achieve optimal performance, please note the following:
• Adjust the air ow direction correctly so that it is not directed directly
blowing on people/animals.
• Adjust the temperature to achieve the highest comfort level. Do not ad-
just the unit to excessive temperature levels.
• When in COOL or HEAT modes close any open doors and windows within
the room that the unit is operating in to increase performance.
• Use TIMER ON button on the remote controller to select a time you want
to start your air conditioner.
• Do not put any objects near air inlet or air outlet, as the efciency of the
air conditioner may be reduced and the air conditioner may stop running
due to air ow blockages.
• Clean the air lter periodically, otherwise performance may be reduced.
• Do not operate unit with louvers in a closed position
• SUGGESTION: For units with an electric heater, when the outside
ambient temperature is below 32°F (0°C), we strongly recommend that
you keep the unit powered on in order to guarantee it runs smoothly.
2°F
2°F
2°F
2°F

Heat Controller, Inc. OWNER’S MANUAL VMH Inverter Mini-Split
8

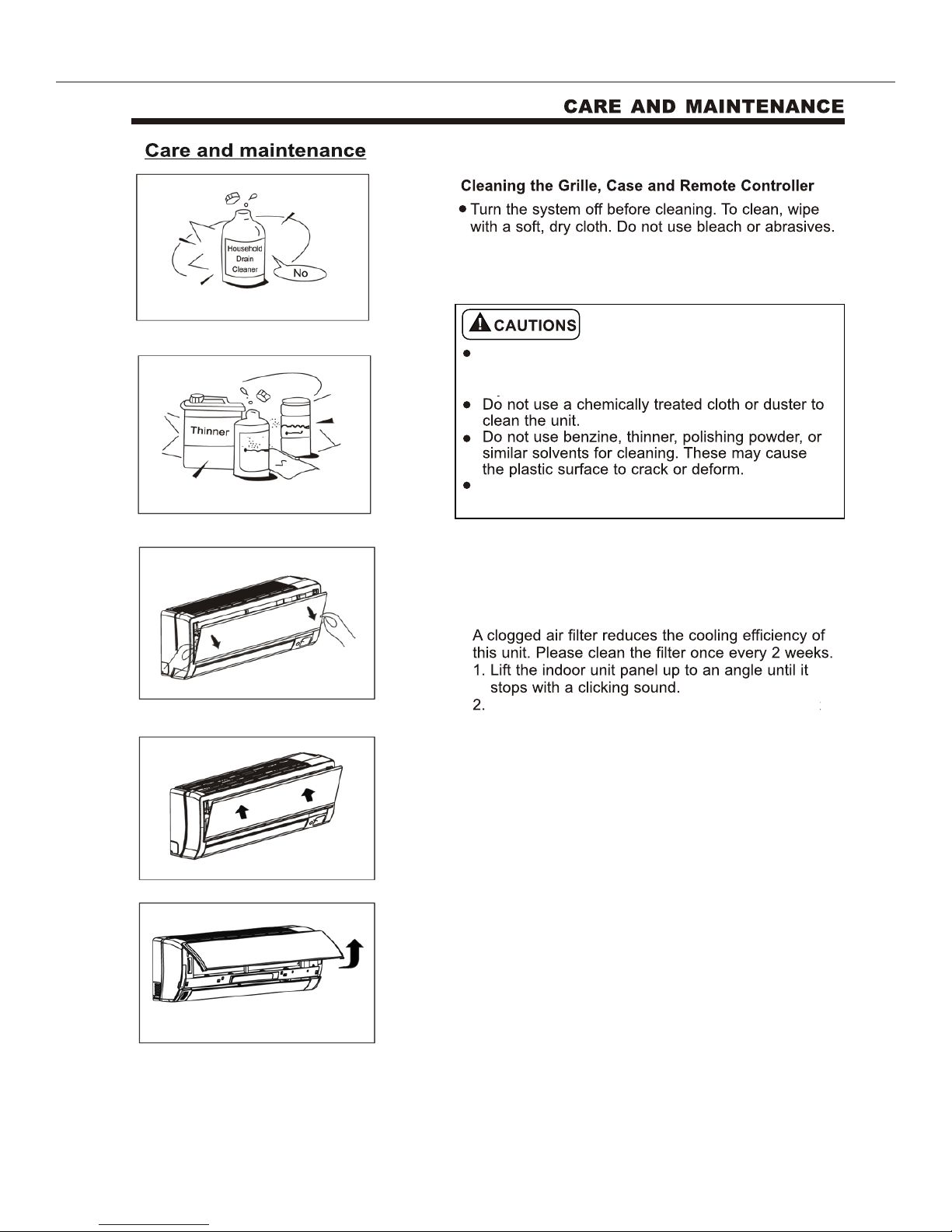

NOTE: Supply power must be disconnected before
cleaning the indoor unit.
Do not use an overly wet cloth to clean the unit as
it may damage the electronic components. A damp
cloth can be used if needed.
Never use water hotter than 104°F (40°C) to clean the
front panel. It could cause deformation or discoloration.
Hold the handle of the air lter and lift it up slightly
to take it out from the lter holder, then pull it
downwards.
Cleaning the air lter
NOTE: Supply power must be disconnected before
cleaning the indoor unit.

VMH Inverter Mini-Split OWNER’S MANUAL Heat Controller, Inc.
9
CARE AND MAINTENANCE
3. Remove the AIR FILTER from the indoor unit.
• Clean the AIR FILTER once every two weeks.
• Clean the AIR FILTER with a vacuum cleaner or with water,
then dry it in a cool place
4. Remove the Air Freshening Filter (optional lters: plasma dust col-
lector/silver ion lter/bio lter/vitamin C lter) from it support frame.
The installation and removing method of the air freshening lter is
different depending on the models. See the pictures marked 1 and
2 on the left.
• Clean the air freshening lter at least once a month, and re-
place it every 4-5 months.
• Clean it with a vacuum cleaner, then dry it in a cool place.
5. Install the air freshening lter back into position.
6. Insert the upper portion of the air lter back into the unit taking care
that the left and right edges line up correctly when placing lter into
position.
Maintenance
If you do not plan on use the unit for a long period of time:
1. Clean the indoor unit and air lter.
2. Select FAN only mode, let the indoor fan run for a while to dry the
inside of the unit.
3. Disconnect the power supply and remove the batteries from the remote
controller.
4. Check components of the outdoor unit periodically. Contact a local
dealer or an authorized servicer if the unit requires servicing.
NOTE: Before you clean the air conditioner, be sure to switch the unit
off and disconnect the power supply.
When the air conditioner is to be used again:
• Use a dry cloth to wipe off the dust accumulated on rear air intake grille
in order to avoid the dust blowing out from the outdoor unit.
• Check that the wiring is not broken off or disconnected.
• Check that the air lter is installed.
• Check if the air outlet or inlet is blocked after the air conditioner has not
been used for a long time.

Heat Controller, Inc. OWNER’S MANUAL VMH Inverter Mini-Split
10
The following events may occur during normal operation.
1. Protection of the air conditioner.
Compressor protection
• If the unit is stopped and then immediately restarted again, the compressor will not operate for
about 3 minutes in order to protect the compressor.
Anti-cold air (heat pump models only)
• The unit is designed not to blow cold air in HEAT mode, when the indoor heat exchanger is in one
of the following three situations and the set temperature has not been reached.
A) When heating has just starting.
B) Defrosting is occurring
C) Low temperature heating is occurring
Defrosting (Cooling and heating models only)
• The indoor or outdoor fan stop running when defrosting (heat pump models only).
• Frost may accumulate on the outdoor unit during heat cycle when outdoor temperature is low and
humidity is high, resulting in lower heating efciency of the air conditioner.
• During this condition, air conditioner will stop the heating operation and start defrosting automatically.
• Defrost time may vary from 4 to 10 minutes according to the outdoor temperature and the amount of
frost buildup on the outdoor unit.
2. Mist or steam are being emitted
• A white mist may emit from the indoor unit due to a large temperature difference between air inlet
and air outlet in COOL mode in an indoor environment that has a high relative humidity.
• A white mist may emit due to moisture generated from the defrosting process when the air condi-
tioner restarts in HEAT mode operation after defrosting.
3. Typical sounds
• You may hear a low hissing sound when the compressor is running or has just stopped running. This
sound is the sound of the refrigerant owing or coming to a stop.
• You can also hear a low “squeak” sound when the compressor is running or has just stopped run-
ning. This is caused by heat expansion and cold contraction of the plastic parts in the unit when the
temperature is changing.
• A noise may be heard due to louver restoring its original position when power is rst turned on.
• A sizzling sound may be heard occasionally when the unit is defrosting.
4. Dust is blown out from the indoor unit
• This is a normal condition when the air conditioner has not been used for a long time or during rst
use of the unit and an accumulation of dust has formed on the unit’s outlet. Cleaning dust off of the
unit before operation will prevent this.
5. A peculiar smell comes out from the indoor unit
• This is caused by the indoor unit giving off smells permeated from building material, from furniture,
or smoke. A burning smell could mean there is something wrong with the unit. Power off the unit and
call an authorized servicer.
6. Operating mode changes to FAN ONLY mode
• When the indoor temperature reaches the temperature set point on air conditioner, the compressor
will stop automatically, and the air conditioner mode changes to FAN only mode. The compressor
will start again when the indoor temperature rises above the set point in the COOL mode or falls
below the set point in the HEAT mode (heat pump only models).
7. Condensation
• Dripping water may generate on the surface of the indoor unit when cooling in relatively high humid-
ity. Adjust the vertical louver to the maximum air outlet position and select HIGH fan speed. NOTE:
Water could drop onto the oor or objects below the indoor unit.
Typical Operational Occurrences

VMH Inverter Mini-Split OWNER’S MANUAL Heat Controller, Inc.
11
8. Heating mode (heat pump models only)
• The air conditioner draws in heat from the outdoor unit and releases it via the indoor unit dur-
ing heating operation. When the outdoor temperature falls, heat drawn in by the air conditioner
decreases accordingly. At the same time, the heat load of the air conditioner increases due to
larger difference between indoor and outdoor temperature. If a comfortable temperature can’t be
achieved by the air conditioner, we suggest you use a supplementary heating device.
9. Auto-restart function
• Power failure during operation will stop the unit completely.
• For units with the Auto-restart feature, when the power restores, the unit restarts automatically us-
ing the previous settings preserved by the memory function of the unit. Timer settings may need
to be adjusted after a power failure.
10. Electrical interference
• Electronic equipment which uses wireless radio transmitters within 3 ft (1m) of the air condition-
ing unit may cause the unit to malfunction. Disconnect the unit with power and then re-connect
the unit with power again. Push the ON/OFF button on the remote controller to restart operation.
Ensure that the air conditioner unit is as far away from any electronic interference sources as pos-
sible, otherwise wireless interference can occur.

Heat Controller, Inc. OWNER’S MANUAL VMH Inverter Mini-Split
12
Troubleshooting Tips
Stop the air conditioner immediately if one of the following errors occurs. Disconnect the power and contact
an authorized servicer.
Call for
service if
If any of the following error codes appear on the LED window, disconnect the power and contact
an authorized servicer: E0, E1, E2, E3, E4, E5, E6, E7, E8, P0, P1, P2, P3, P4.
Fuse blows or circuit breaker trips frequently
Other abnormal situations (such as burning smells) that can’t be resolved using the steps outlined
below.
Symptoms Possible Cause/Things to Check What should be done?
Unit does
no start or
operate at
all
Is there power supplied to the unit? Wait for the power to be restored or call an
electrician to address any power supply problem.
Fuse may have blown out or a circuit
breaker has been tripped. Replace the fuse or ip the circuit breaker.
Batteries in remote controller may be dead
or installed incorrectly.
Replace the batteries and ensure the polarities
are correct.
Is the unit’s timer set? Wait or cancel timer setting.
Poor cooling
or heating
(heat pump
models only)
performance
Inappropriate temperature setting. Set temperature correctly.
Air lter may be blocked Clean the air lter to prevent air ow blockages.
Doors or windows are open.
Close the doors or windows within the area
being cooled/heated to increase efciency and
performance.
Air inlet or outlet of indoor or outdoor unit
are blocked. Clear obstructions away, then restart the unit.
Compressor time delay has been activated Wait approximately 3 minutes for the compressor
to turn on and the unit to begin cooling/heating.
If the problem persists after performing these checks, or if you notice burning smells, or the operation
indicator light ashes repeatedly, immediately stop operation, disconnect the power, and call an authorized
service center.

04/2009
09/2010
