Heatilator GCBC36LE User manual

Heatilator 1915 W. Saunders Street Mt. Pleasant, IA 52641 a HON INDUSTRIES company
CALIBER SERIES B-VENT SERIES
DECORATIVE GAS APPLIANCE
WARNING
Improper installation,
adjustment, alteration,
service or mainte-
nance can cause
injury or property
damage. Refer to this
manual. For assis-
tance or additional
information, consult a
qualified installer, ser-
vice agency or the gas
supplier.
FOR YOUR SAFETY
What to do if you smell gas:
• Do not try to light any
appliance.
•Do not touch any electrical
switch.
• Do not use any phone in
your building.
•Immediately call your gas
supplier from a neighbor’s
phone. Follow the gas
supplier’s instructions.
• If you cannot reach your
gas supplier, call the fire
department.
FOR YOUR SAFETY
Do not store or use
gasoline or other
flammable vapors
and liquids in the
vicinity of this or any
other appliance.
I. INSTALLATION
Preparation..............................................................
Location and Clearances.........................................
Framing....................................................................
Set The Unit.............................................................
Venting.....................................................................
Utilities.....................................................................
Finishing...................................................................
Firebox Preparation.................................................
36” and 42” Series
3
4
5
5
6
12
14
14
A.
B.
C.
D.
E.
F.
G.
H.
Read these installation instructions completely
before beginning installation. Failure to follow
them could cause an appliance malfunction result-
ing in serious injury and/or property damage.
INSTALLATION INSTRUCTIONS
Flip manual over for “Operating and Maintenance Instructions.”
U.S. Patent 5,613,487
TABLE OF CONTENTS

A. PREPARATION
U.S. and Canada Certification
The CALIBER Series Gas Appliance has been tested
in accordance with the ANSI standard Z21.50-1996
(Decorative). In Canada, the current CAN/CGA 2.22-
M96, IR41, P4, and IR55 and have been LISTED by
Underwriters Laboratories Inc. for installation as
described in this manual. All components are UL,
AGA, CGA or CSA safety certified.
Local Codes
This installation must conform with local codes. In the
absence of local codes comply with the National Fuel
Gas Code, ANSI Z223.1-latest edition, in the U.S.A.
and the CAN/CGA B149, Installation Codes, in
Canada.
For assistance during installation contact your local
dealer or contact Heatilator Customer Relations
Department, 1915 W. Saunders Street, Mt. Pleasant,
Iowa 52641.
HEATILATOR®is a registered trademark of Hearth
Technologies, Inc., a HON INDUSTRIES company.
12-97 2i 28887A

12-97 3i 28887A
Note: Minimum and maximum clearances must
be maintained at all times. Illustrations
throughout these instructions reflect typical
installations and are for design purposes only.
Actual installation may vary slightly due to indi-
vidual design preferences.
The illustrations and diagrams used throughout
these installation instructions are not drawn to
scale.
Tools and building supplies normally
required for installation:
Saw Wall-finishing materials
Pliers Framing material
Hammer Fireplace surround
Phillips screwdriver Caulking material
Tape measure Gloves
Plumb line Square
Level Electrical drills/bits
Catalog Number Description
GCBC36LE Appliance Order Code Number
GC Gas Caliber
B B-Vent
C Circulating
36 36 - 36” Unit
42 - 42” Unit
LE No suffix - Standing Pilot, Natural Gas
L - Standing Pilot, Propane Gas
E - Electronic Ignition, Natural Gas
LE - Electronic Ignition, Propane Gas
GCBC36LERF Appliance Order Code Number with Upgrade Code Number
R Refractory Upgrade
F Fan Kit Upgrade
EXAMPLE
GCBC36LERF Gas CALIBER, B-Vent, Heat Circulating, 36”, Propane Gas, Electronic Ignition
unit with Refractory and Fan Kit Upgrades.
CALIBER Nomenclature

1. APPLIANCE LOCATIONS AND SPACE
REQUIREMENTS
Figure 1 illustrates a variety of ways the appliance
may be located in a room. The CALIBER Series may
be installed directly on the floor or raised on a hearth.
These appliances are certified for installation in a bed-
room or a bed/sitting room in the U.S. and Canada
provided that the bedroom or bathroom have a volume
of at least 1500 cubic feet.
Common venting of this gas appliance with other gas
appliances is NOT allowed in multi-family dwellings.
12-97 4i 28887A
DUE TO HIGH TEMPERATURES, THE APPLIANCE SHOULD BE LOCATED OUT OF TRAFFIC AND
AWAY FROM FURNITURE AND DRAPERIES.
B. LOCATION AND CLEARANCES
Figure 1
Appliance Locations
A hearth extension is not required for this appliance.
2. CLEARANCES
Figure 2 shows all clearances that must be main-
tained around the appliance. See page 9 for ter-
mination cap clearances. See Figures 4 and 15
for vent clearances.
Unit Dimensions
Figure 2
Appliance Clearances to Combustible Materials
Right Hand
Side
Left Hand
Side
Model A B C
36" Series 36" 41" 241/2"
42" Series 42" 47" 301/2"
Model A B C
36" Series 505/8" 715/8"42"
42" Series 551/4" 775/8"48"

12-97 5i 28887A
C. FRAMING
Figure 3
Framing
Figure 3 shows a typical framing of this appliance
using combustible materials. All required clearances
to combustibles must be adhered to.
CAUTION
WEAR GLOVES AND SAFETY GLASSES
FOR PROTECTION.
CAUTION
PROVIDE ADEQUATE CLEARANCES
AROUND THE AIR OPENINGS INTO THE
COMBUSTION CHAMBER AND ADEQUATE
ACCESSIBILITY CLEARANCES FOR SER-
VICING AND PROPER OPERATION.
D. SETTING THE UNIT
1. Positioning the firebox
This appliance may be placed on a smooth
combustible or noncombustible continuous, flat
surface. When the appliance is installed direct-
ly on carpeting, tile or other combustible material
other than wood flooring, the appliance shall be
installed on a metal or wood panel extending the
full width and depth of the appliance. Slide the
unit into position and level the appliance from
side-to-side and front-to-back. Shim with noncom-
bustible material as necessary.
Secure the appliance by bending out the nailing
flanges on each side of the appliance and nail to
framing. The nailing flanges have been positioned
5/8" back from the front of the unit to allow the addi-
tion of drywall.
Model 36" Series 42" Series
A421/4" 481/4"
*** from base of appliance

12-97 6i 28887A
E. VENTING
a. Clearances. See Figure 4 for clearance information.
Figure 5
Vertical Termination Vent Lengths
Figure 4
Vertical Termination Clearances
WARNING
THE HORIZONTAL RUN OF VENT MUST HAVE
A 1/4" RISE FOR EVERY 1 FT. OF RUN
TOWARDS THE TERMINATION. NEVER
ALLOW THE VENT TO RUN DOWNWARD.
THIS COULD CAUSE HIGH TEMPERATURES
AND MAY CREATE A FIRE HAZARD.
WARNING - RISK OF FIRE
ALWAYS MAINTAIN MINIMUM CLEAR-
ANCES OR GREATER AROUND THE
VENT SYSTEM. DO NOT PACK AIR
SPACES WITH INSULATION OR OTHER
MATERIAL.
b. Vent Lengths. Various venting configurations are
shown in Figures 5 and 6 from which maximum vent
runs can be determined.
NOTE: THIS APPLIANCE REQUIRES A 5 INCH B-VENT FOR OPERATION. NEVER DOWNSIZE PIPE.

12-97 7i 28887A
Figure 7
Vent Height for Vertical Termination
Table 1
Vent Height
Roof Pitch H (Min.) Ft.
Flat to 6/12 ...........................................1.0
6/12 to 7/12 ..........................................1.25
Over 7/12 to 8/12..................................1.5
Over 8/12 to 9/12..................................2.0
Over 9/12 to 10/12................................2.5
Over 10/12 to 11/12..............................3.25
Over 11/12 to 12/12..............................4.0
Over 12/12 to 14/12..............................5.0
Over 14/12 to 16/12..............................6.0
Over 16/12 to 18/12..............................7.0
Over 18/12 to 20/12..............................7.5
Over 20/12 to 21/12..............................8.0
d. Chase/Termination Installation. Figure 7 and
Table 1 specify minimum vent heights for various
pitched roofs. Vent sections may have to be cut to a
certain length.
These vent heights are necessary for safety and do
not ensure draft-free operation. Trees, buildings,
adjoining roof lines, adverse conditions, etc., may
create a need for a taller vent should down drafting
occur.
Figure 6
Installing the firestop spacer
c. Firestop Spacer/Vent Installation.
Frame an opening and install a firestop spacer when-
ever the vent penetrates a ceiling/floor area, as
shown in Figure 6. Frame the opening with the same
sized lumber as used in the ceiling/floor joists. Unless
the flue is offset, the hole should be directly above the
appliance. DO NOT pack insulation around the vent.
Assemble vent sections with three screws per joint.
Note: To ensure proper operation, verify all
venting and the termination is unobstructed.

12-97 8i 28887A
e. Check Venting System. Check the venting system
to assure proper operation. This can be done with a
match while the unit is operating.
Hold a lighted match at the bottom edge of the drafthood
opening. If the flames and smoke remain upright, venti-
lation is acceptable. If the flames and smoke are drawn
into the drafthood, this means ventilation is good. If the
flames and smoke are forced away from the drafthood,
this may indicate a ventilation blockage or down draft
resulting in gas spillage into the home. if this occurs,
turn off the fireplace and do not burn it until it has been
inspected by a qualified service person. See Figure 8.
f. Outside Air Kit Installation. An outside air kit is
available as an optional feature with this fireplace. An
outside air kit helps to decrease the amount of room
air taken, by utilizing outside air for combustion. It is
strongly recommended that it be installed.
The outside air kit can only be installed on the left
side.
To install the outside air kit, refer to the installation
instructions provided with the kit.
Figure 8
Testing Ventilation
Note: The outside air kit can termination at any
level with the exception that it must terminate at
least one foot below the vent terminal cap.
Flame Up
Acceptable
Flame In
Good
Flame Out
Unacceptable

12-97 9i 28887A
2. Gas Line Connection
Remove the lower grille panel as shown in Figures 9
and 10. See Figure 11 to connect gas line. All connec-
tions must be checked for leaks with a soap and water
solution or a leak detector. Bleed the gas line to extract
any air that may have been trapped inside the pipe.
Figure 9
Lower Grille Panel Removal
Figure 10
Lower Grille Panel Removal
F. UTILITIES
1. High Altitude Installation
For U.S. installation, units are tested and approved for
elevations from 0-2000 feet. When installing this unit at
an elevation above 2000 feet, National Fuel Gas Codes
require a decrease of the input rating by changing the
existing burner orifice to a smaller size. Input should
be reduced 4% for each 1000 feet above sea level.
Check with the local gas utility for proper orifice size
identification. The correct orifice is available from your
Heatilator distributor.
For Canada, units are certified for elevations from 0-
4500 feet. When installing this unit at an elevation
between 0-4500 feet in Canada, the input rating does
not need to be reduced. When installing this unit at an
elevation above 4500 feet in Canada, check with local
authorities.
Note: The appliance and its individual shutoff
valve must be disconnected from the gas supply
piping system during any pressure testing of that
system at test pressures in excess of 1/2 psi (3.5
kPa). The appliance must be isolated from the
gas supply piping system by closing its individ-
ual manual shutoff valve during any pressure
testing of the gas supply piping system at test
pressures equal to or less than 1/2 psi (3.5 kPa).
Figure 11
Gas Line
OPTIONAL: SEAL AROUND GAS
LINE TO PREVENT COLD AIR LEAKAGE.

12-97 10i 28887A
3. Gas Pressure
On the standing pilot Gas Control Valve, a pressure tap is
included on the front face of the Valve. The electronic Valve
includes an 1/8” NPT plugged tap on the top and bottom of the
Valve near the outlet to the main burner. Pressure taps are
immediately upstream of the gas supply connection and acces-
sible for test gauge connection.
Table 2 shows optimum gas pressure information.
Consult your local gas company for assistance in determining
the proper orifice for your altitude or refer to ANSI Z223.1-latest
edition, Appendix F.
4. Gas Conversions
Natural or propane gas conversions necessary to meet the
application need to be made by a qualified technician using
Heatilator specified and approved parts.
In the event your appliance must be converted to use propane,
you must use a CKVP Conversion Kit. To convert to use natur-
al, you must use a CKVN Conversion Kit.
CALIBER 36” and 42”
Inlet gas supply pressure (natural gas) 4.5 (min.)-7.0 (max.) in w.c.
Optimum manifold pressure (natural gas) 3.5 in. w.c.
Inlet gas supply pressure (LP gas) 11.0 (min.)-14.0 (max.) in w.c.
Optimum manifold pressure (LP gas) 10.5 in. w.c.
Input rate (natural gas) 30,000 BTU/hr
Input rate (propane gas) 28,000 BTU/hr
Decorative - Natural Gas Orifice size .110 in/ 2.79 mm
Decorative - Propane Gas Orifice Size .063 in/ 1.60 mm
Table 2
Gas Information for Electronic and Standing Pilot Units

12-97 11i 28887A
Figure 12
Electronic Ignition Wiring Diagram
STEP 8 - Wiring
Detailed Picture of Junction Box
A. ELECTRONIC IGNITION
1. Appliance Requirements. This appliance requires a
110VAC supply from a wall switch to the appliance junction
box for operation. A wiring diagram is shown in Figure 12.
2. Optional Accessories Requirements. Wiring for optional
accessories should be done now to avoid reconstruction.
Warning: This appliance DOES NOT require
a 110VAC supply for operation. Connecting
the appliance/wall switch to a 110V AC supply
will cause the unit to malfunction and destroy
the valve and thermopile.
B. STANDING PILOT IGNITION
1. Appliance requirements. A wiring diagram is shown in
Figure 13.
2. Optional Accessories Requirements. Wiring for optional
accessories should be done now to avoid reconstruction.
Note: This appliance must be electrically
wired and grounded in accordance with local
codes or, in the absence of local codes, with
National Electric Code ANSI/NFPA 70-latest
edition or the Canadian Electric Code, CSA
C22.1.
Detailed Picture of Junction Box
Figure 13
Standing Pilot Wiring Diagram

12-97 12i 28887A
G. FINISHING
Combustible Finishing Material. Material made of
or surfaced with wood, compressed paper, plant
fibers, plastics, or any material capable of igniting and
burning, whether flame proofed or not, plastered or
unplastered (this includes drywall).
Noncombustible Finishing Material. Material which
will not ignite and burn. Such materials are those con-
sisting entirely of steel, iron, brick, tile, concrete, slate,
glass or plasters, or combination thereof, or have a UL
Fire rating of Zero (0).
High Temperature Sealant Material. Sealants that
will withstand high temperatures; General Electric
RTV103 (Black), or equivalent. Rutland, Inc.
Appliance Mortar #63, or equivalent.
A high temperature sealant, 1/8" inch wide minimum,
must be used to close off gaps between the appliance
and facing to prevent cold air leaks. See Figure 14.
A combustible mantel may be installed at a minimum
of 48 inches above the base of the appliance. WARNING
GRILLES ON THIS APPLIANCE CANNOT,
IN ANY WAY, BE COVERED AS IT MAY
CREATE A FIRE HAZARD.

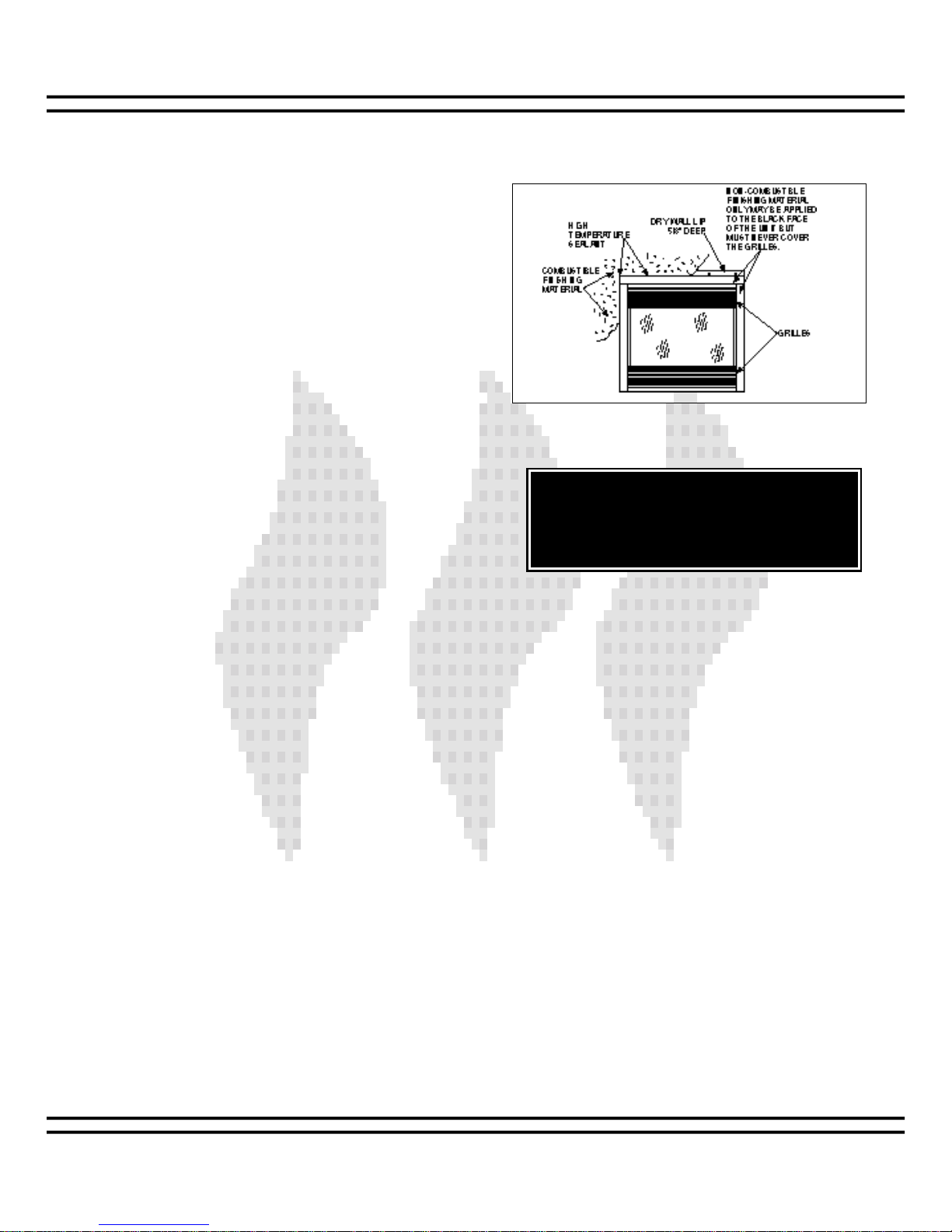

Figure 14
Finishing Materials

12-97 13i 28887A
1. Upper Panel Removal
Lift upward on the upper panel and pull out.

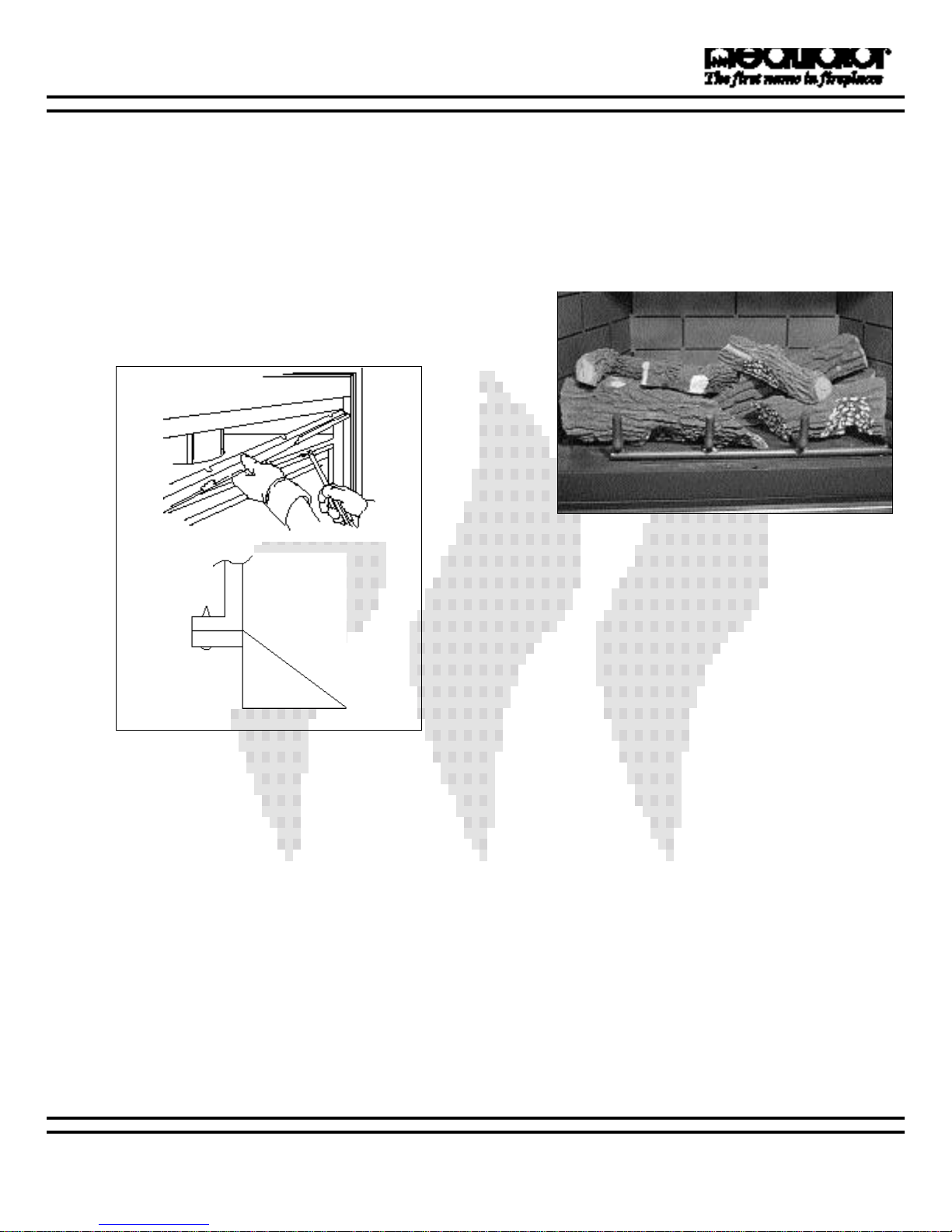

2. Attaching the Hood
Hood must be attached or a fire hazard may result.
The hood is to be located above the upper grille
panel. Locate the four screws just inside the upper
section of the fireplace. Loosen these screws, posi-
tion the hood and tighten the screws. See Figure 15.
Figure 15
Hood Placement
H. FIREBOX PREPARATION
Remove the straps from the screws on the hearth
pan. Remove the foam material. The log set should
look similar to that in Figure 16.
Figure 16
Log Set for 36” CALIBER
(Shown with optional refractory)
4. Firebox Preparation
3. Glass and Screen Removal
See page 7 of the “Operating and Maintenance
Instructions.”

12-97 14i 28887A
5. Placing the Vermiculite and Lava Rock
See Figure 17.
Figure 17
Placing the Vermiculite and Lava Rock -
top log removed for clarity
6. Placing the Rock Wool
Place a small amount of 1/2” diameter pieces (dime-
size) of rock wool on the burner pan so that the rock
wool touches but does not cover the holes in the
burner pan. This will provide the “glowing embers”
look. See Figure 17.
7. Glass and Screen Replacement
See page 7 of the “Operating and Maintenance
Instructions.”
WARNING - RISK OF CARBON MONOXIDE
NEVER OPERATE THIS APPLIANCE WITH
THE GLASS REMOVED OR NOT SEALED.
WARNING - RISK OF CARBON MONOXIDE
DO NOT HIT OR STRIKE GLASS. DO NOT
OPERATE THIS APPLIANCE IF THE GLASS
IS BROKEN OR CRACKED.

12-97 15i 28887A
INSTALLATION IS NOW COMPLETE.
FLIP MANUAL OVER FOR OPERATING AND
MAINTENANCE INSTRUCTIONS.

Heatilator 1915 W. Saunders Street Mt. Pleasant, IA 52641 a HON INDUSTRIES company
WARNING
Improper installation,
adjustment, alteration,
service or mainte-
nance can cause
injury or property
damage. Refer to this
manual. For assis-
tance or additional
information, consult a
qualified installer, ser-
vice agency or the gas
supplier.
FOR YOUR SAFETY
What to do if you smell gas:
• Do not try to light any
appliance.
•Do not touch any electrical
switch.
• Do not use any phone in
your building.
•Immediately call your gas
supplier from a neighbor’s
phone. Follow the gas
supplier’s instructions.
• If you cannot reach your
gas supplier, call the fire
department.
FOR YOUR SAFETY
Do not store or use
gasoline or other
flammable vapors
and liquids in the
vicinity of this or any
other appliance.
II. OPERATION
Lighting Instructions for Electronic.........................................
Lighting Instructions for Standing Pilot...................................
Seasonal Checklist.................................................................
Start-Up Issues.......................................................................
III. MAINTENANCE
Maintenance Instructions.......................................................
Cleaning the Glass.................................................................
Optional Components.............................................................
Replacement Parts.................................................................
2
3
4
5
6
7
8
9
U.S. Patent 5,613,487
Read these installation instructions completely
before beginning installation. Failure to follow
them could cause an appliance malfunction result-
ing in serious injury and/or property damage.
OPERATION INSTRUCTIONS
Flip manual over for “Installation Instructions.”
CALIBER SERIES B-VENT SERIES
DECORATIVE GAS APPLIANCE
A.
B.
C.
D.
E.
F.
G.
H.
36” and 42” Series
TABLE OF CONTENTS

ELECTRONIC UNITS
12-97 2 28887A
FOR YOUR SAFETY
READ BEFORE OPERATING
WARNING: If you do not follow these instructions exactly, a fire or explosion may result
causing property damage, personal injury or loss of life.
A. This appliance does not have a pilot. It is equipped with an ignition device which automatically lights the burner.
Do not try to light the burner by hand.
B. BEFORE OPERATING smell all around the appliance area for gas. Be sure to smell next to the floor because
some gas is heavier than air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS
oDo not try to light any appliance.
oDo not touch any electric switch; do not use any phone in your building.
oImmediately call your gas supplier from a neighbor’s phone. Follow the supplier’s instructions.
oIf you can not reach your gas supplier, call the fire department.
C. Use only your hand to push in and move the gas control lever or turn the gas control knob.
Never use tools. If the lever or knob will not move by hand, don’t try to repair it - call a qualified service technician.
Force or attempted repair may result in a fire or explosion.
D. Do not use this appliance if any part has been under water. Immediately call a qualified service technician to
inspect the appliance and to replace any part of the control system and any gas control which has been under
LIGHTING INSTRUCTIONS
1. Turn off the wall switch.
2. Push gas control lever in and move to the “OFF” position or
push gas control lever to the “OFF” position. Do not force.
TO TURN OFF GAS TO APPLIANCE
3. Replace control access panel.
1. STOP! Read the safety information above on this label.
2. Turn wall switch to the “OFF” position.
3. This appliance is equipped with an ignition device which automatically lights the burner. Do not try to light burner by hand.
4. Wait five (5) minutes to clear out any gas. If you then smell gas, STOP! Follow “B” in the safety information above on this label.
If you don’t smell gas, go on to the next step.
5. To turn on burner, turn on all electric power to this appliance.
6. If the appliance will not operate, follow the instructions “TO TURN OFF GAS TO APPLIANCE” and call your service technician
or gas supplier.
Determine the Ignition
To determine whether your appliance is an electronic
ignition or a standing pilot ignition, remove the lower
panel to examine the wiring system. If your system has a
red ignitor button (as shown in Figure 1), you own a
standing pilot ignition fireplace. If no red ignitor button is
present, you own an electronic ignition appliance.
You may also check the rating label located on the inside
of the lower panel to determine ignition type.
Figure 1
Standing Pilot Ignition
A. LIGHTING INSTRUCTIONS FOR ELECTRONIC

12-97 3 28887A
A. This appliance has a pilot which must be lighted by hand.
When lighting the pilot, follow these instructions exactly.
B. BEFORE LIGHTING smell all around the appliance area for
gas. Be sure to smell next to the floor because some gas is
heavier than air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do not use any phone in
your building.
• Immediately call your gas supplier from a neighbor's
FOR YOUR SAFETY READ BEFORE LIGHTING
phone. Follow the supplier's instructions.
• If you cannot reach your gas supplier, call the fire depart-
ment.
C. Use only your hand to push in or turn knob. Never use tools. If
the knob will not push in or turn by hand, don't try to repair it;
call a qualified service technician. Forced or attempted repair
may result in a fire or explosion.
D. Do not use this appliance if any part has been under water.
Immediately call a qualified service technician to inspect the
appliance and to replace any part of the control system and
any gas control which has been under water.
LIGHTING INSTRUCTIONS
TO TURN OFF GAS TO APPLIANCE
1. Turn off the wall switch or set thermostat
to the lowest setting.
2. Lower control access panel.
3. Turn gas line to CLOSED position. Do not force.
4. Close control access panel.
STANDING PILOT
1. Turn off all wall switches to the appliance.
2. Lower control access panel. Turn wall switch to
the “OFF” position or set thermostat to lowest
setting.
3. Turn gas line to CLOSED. Wait 5 minutes to
clear out any gas. Then smell for gas, includ-
ing near the floor. If you smell gas, STOP!
Follow “B” in the safety information above on
this label. If you don’t smell gas, go to the next
step.
4. Turn gas line to OPEN.
5. Turn pilot knob clockwise to “OFF”. (Knob may
have to be depressed to pass “PILOT” posi-
tion.)
6. Locate pilot assembly inside unit.
7. Locate red ignitor button.
8. Turn pilot knob to “PILOT” and push in.
9. Continue to hold in pilot knob and push the red
ignitor button 12-15 times until small blue pilot
flame appears.
10. Continue to hold in pilot knob for approximately
one minute. Pilot should remain lit. If pilot
goes out, wait 5 minutes and repeat Steps 4-9.
11. Release and turn knob counterclockwise to
“ON”.
12. If the appliance will not operate, follow the
instructions “To Turn Off Gas To Appliance”
and call your service technician or gas supplier.
NOTE: To light main burner, turn wall switch to
“ON”. Do not light by hand.
STOP! Read the safety information above on this label!
WARNING: If you do not follow these instructions exactly, a fire or exposion may result causing
property damage, personal injury or loss of life.
3
4
5
6
7
8
11
2
4
5
6
7
811
3
2
B. LIGHTING INSTRUCTIONS FOR STANDING PILOT

12-97 4 28887A
WARNING
CHILDREN AND ADULTS SHOULD BE ALERTED TO THE HAZARDS OF HIGH SURFACE TEMPERA-
TURES AND SHOULD STAY AWAY TO AVOID BURNS OR CLOTHING IGNITION. YOUNG CHILDREN
SHOULD BE CAREFULLY SUPERVISED WHEN THEY ARE IN THE SAME ROOM AS THE APPLIANCE.
CAUTION
ANY SAFETY SCREEN OR GUARD REMOVED FOR SERVICING AN APPLIANCE MUST BE REPLACED
PRIOR TO OPERATING THIS APPLIANCE. CLOTHING OR OTHER FLAMMABLE MATERIAL SHOULD
NOT BE PLACED ON OR NEAR THE APPLIANCE.
Before operating this appliance, have a qualified tech-
nician:
1. Review proper placement of logs, rock wool and
vermiculite.
2. Check wiring.
3. Ensure there are no gas leaks.
4. Ensure the glass is sealed and in proper position.
5. Ensure the flow of combustion and ventilation air
is not obstructed.
WARNING
KEEP THE AREA NEAR THE APPLIANCE
CLEAR AND FREE FROM COMBUSTIBLE
MATERIALS, GASOLINE AND OTHER FLAM-
MABLE VAPORS AND LIQUIDS.
INSTALLATION AND REPAIR SHOULD BE DONE BY A QUALIFIED SERVICE PERSON. THE APPLIANCE
SHOULD BE INSPECTED BEFORE USE AND AT LEAST ANNUALLY BY A QUALIFIED SERVICE PERSON.
MORE FREQUENT CLEANING MAY BE REQUIRED DUE TO EXCESSIVE LINT FROM CARPETING, BED-
DING MATERIAL, ETC. IT IS IMPERATIVE THAT CONTROL COMPARTMENTS, BURNERS AND CIRCU-
LATING AIR PASSAGEWAYS OF THE APPLIANCE BE KEPT CLEAN.
OPERATING THE OUTSIDE AIR KIT
The Outside Air Kit is supplied as an optional feature with this
fireplace. The outside air kit helps to decrease the amount of
room air taken, by utilizing outside air for combustion. It is
strongly recommended that it be installed.
To operate the outside air kit, before starting the fireplace,
open the valve area of the fireplace by rotating down the bot-
tom grille or panel. Grasp the small, black handle located on
the left side of the fireplace, just below the glass channel.
See Figure 2. Lift the handle out of its slot and pull towards
the front. The outside air door should open. Replace the
handle back in the slot on the bracket from which it was
removed (so the outside air door remains open) and close the
lower grille or panel. When through burning the fireplace,
lower the panel, grasp the handle and push the outside air
door closed.
Figure 2
Operating the Outside Air Kit
C. SEASONAL CHECK LIST

12-97 5 28887A
A. STANDING PILOT OPERATION
Heatilator recommends you leave the pilot on year
round.
If you decide to shut down the appliance for a long
period of time:
1. Turn all wall switches to OFF.
2. Turn pilot knob on valve to OFF.
3. Turn the gas line to CLOSED.
Lighting the Fireplace During Regular Use. Turn the
wall switch to ON.
Shutdown During Regular Use. Turn the wall switch
to OFF.
B. ELECTRONIC IGNITION OPERATION
To shut down the appliance for a long period of time:
1. Turn all wall switches to OFF.
2. Turn the gas line to CLOSED.
Lighting the Fireplace During Regular Use. Turn the
wall switch to ON.
Shutdown During Regular Use. Turn the wall switch
to OFF.
C. FUEL
Do not burn wood or other material in this appliance.
Natural or propane gas conversions necessary to meet
the application need to be made by a qualified technician
using Heatilator specified and approved parts.
In the event your appliance must be converted to use
propane, you must use a CKVP Conversion Kit. To con-
vert to use natural, you must use a CKVN Conversion Kit.
WARNING
DO NOT USE THIS APPLIANCE IF ANY PART
HAS BEEN UNDER WATER. IMMEDIATELY
CALL A QUALIFIED SERVICE TECHNICIAN TO
INSPECT THE APPLIANCE AND TO REPLACE
ANY PART OF THE CONTROL SYSTEM AND
ANY GAS CONTROL WHICH HAS BEEN
UNDER WATER.
START-UP ISSUES
Issue Why....Possible Solutions
1. Condensation on glass
2. Blue flames
3. Odor from unit
4. Film on the glass
1. This is a result of gas combustion and temperature varia-
tions. As the unit warms, this condensation should disap-
pear.
2. This is a result of normal operation and the flames will
begin to yellow as the unit is allowed to burn.
3. When first operated, this unit may release an odor for the
first several hours. This is caused by the curing of the paint
and the burning off of any oils remaining from manufactur-
ing.
4. This is a normal result of the curing process of the paint
and logs. Glass should be cleaned within 4-6 hours of initial
burning to remove deposits left by oils from the manufactur-
ing process. A nonabrasive cleaner, such as
may be necessary.
WARNING
NEVER USE GASOLINE , GASOLINE-TYPE LANTERN FUEL, KEROSENE, CHARCOAL
LIGHTER FLUID OR SIMILAR LIQUIDS IN THIS APPLIANCE. KEEP ANY FLAMMABLE LIQUIDS
A SAFE DISTANCE FROM THE APPLIANCE.
Brasso®
D. START-UP ISSUES
