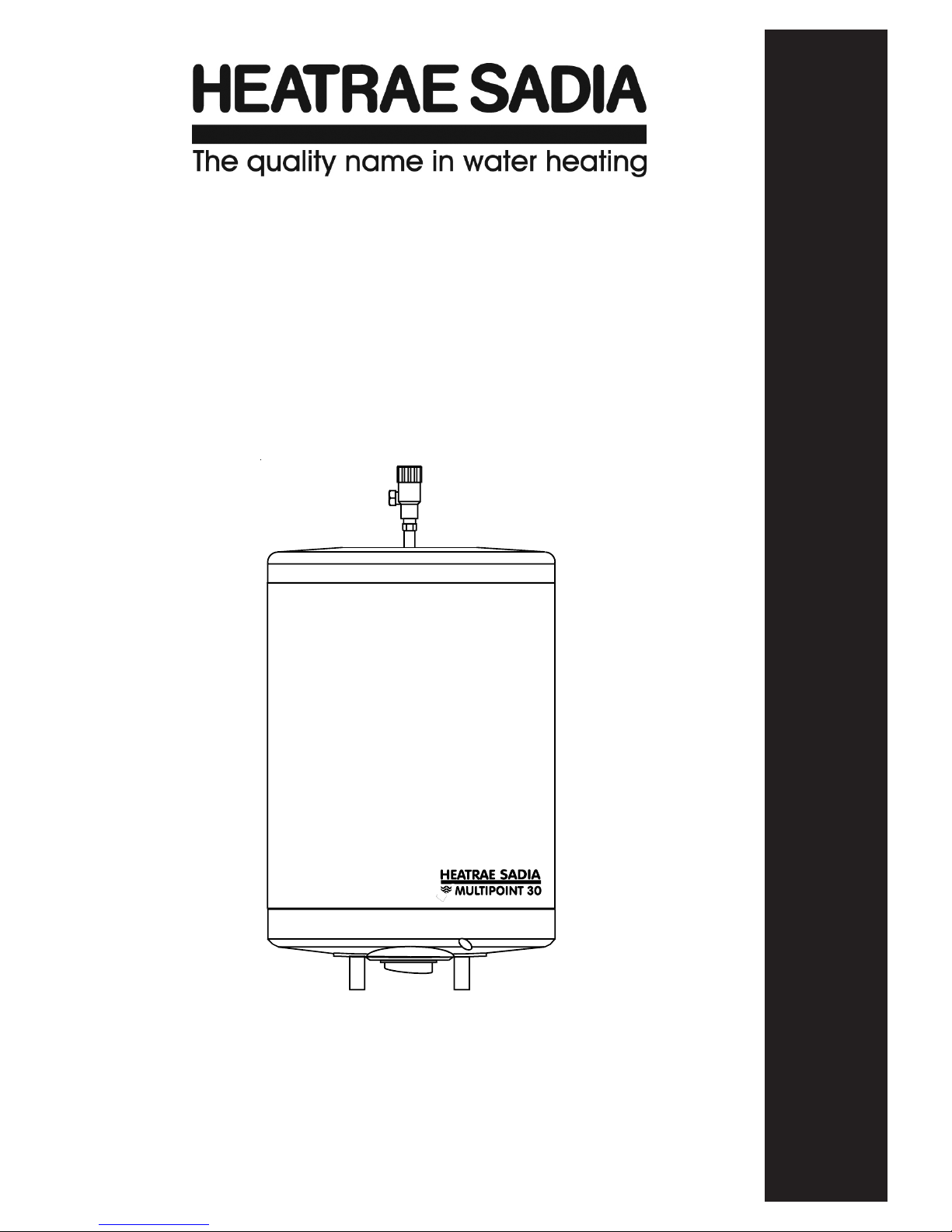

Heatrae Sadia Multipoint 30 Guide

MULTIPOINT 30/50
1
Installation and User Instructions
for the
MULTIPOINT
30 and 50 litre Unvented Water
Heaters
Please read and understand these instructions before starting
work.
Please leave this leaflet with the user following installation
36 00 5720 Issue 03

2
Please read and understand these instructions prior to installing your Multipoint
unvented water heater. Particular attention should be paid to the section headed
IMPORTANT INSTALLATION POINTS. Following installation and commissioning
the operation of the heater should be explained to the customer and these instructions
left with them for future reference.
TECHNICAL SPECIFICATIONS
Electrical rating .................................................... 2.75/3kW 230/240V ~
or ..................................................................... 0.9/1kW 230/240V ~
Capacities ............................................................. 30 or 50 litres
Weight (full) ......................................................... 30 litre - 42.5kg
............................................................................. 50 litre - 69.3kg
Rated pressure ..................................................... 6 bar
Minimum recommended supply pressure ............ 0.8 bar
Temperature/Pressure Relief Valve ....................... 90oC/7 bar
COMPONENT CHECK LIST
Before commencing installation check that all the following components have
been supplied in the Installation Kit.
•Expansion Vessel 3/4”BSP male, precharge pressure 3.5 bar c/w wall mounting
bracket
•Combined Pressure Reducing Valve/Strainer 1/2”BSP female, factory set at 3.5
bar
•Single Check Valve 15mm x 15mm compression
•Pressure (expansion) Relief Valve 1/2”BSP male inlet, 1/2”BSP female discharge,
factory set at 6 bar
•Tundish 1/2”BSP male inlet, 3/4”BSP female outlet
•Wall mounting bracket set
•Self adhesive Levelling Feet (2 off)
•Moulded plastic Spacer
1.0 IMPORTANT INSTALLATION POINTS
1.1 The Multipoint unvented water heater is factory fitted with a Temperature/Pressure
Relief Valve. The factory fitted Temperature/Pressure Relief Valve must not be
removed, blocked or restricted in any way. FAILURE TO PROVIDE ADEQUATE
TEMPERATUREAND PRESSURE RELIEFWILLINVALIDATEANYGUARAN-
TEEAND LEAD TOADANGEROUS INSTALLATION
1.2 Expansion must be accommodated within the system. Use of the Expansion Vessel
and Check Valve provided in the Installation Kit will fulfill this function.
1.3 The installation of this water heater is covered by Building Regulation G3. In order
to fulfill the requirements of this Regulation the heater should be installed in

MULTIPOINT 30/50
3

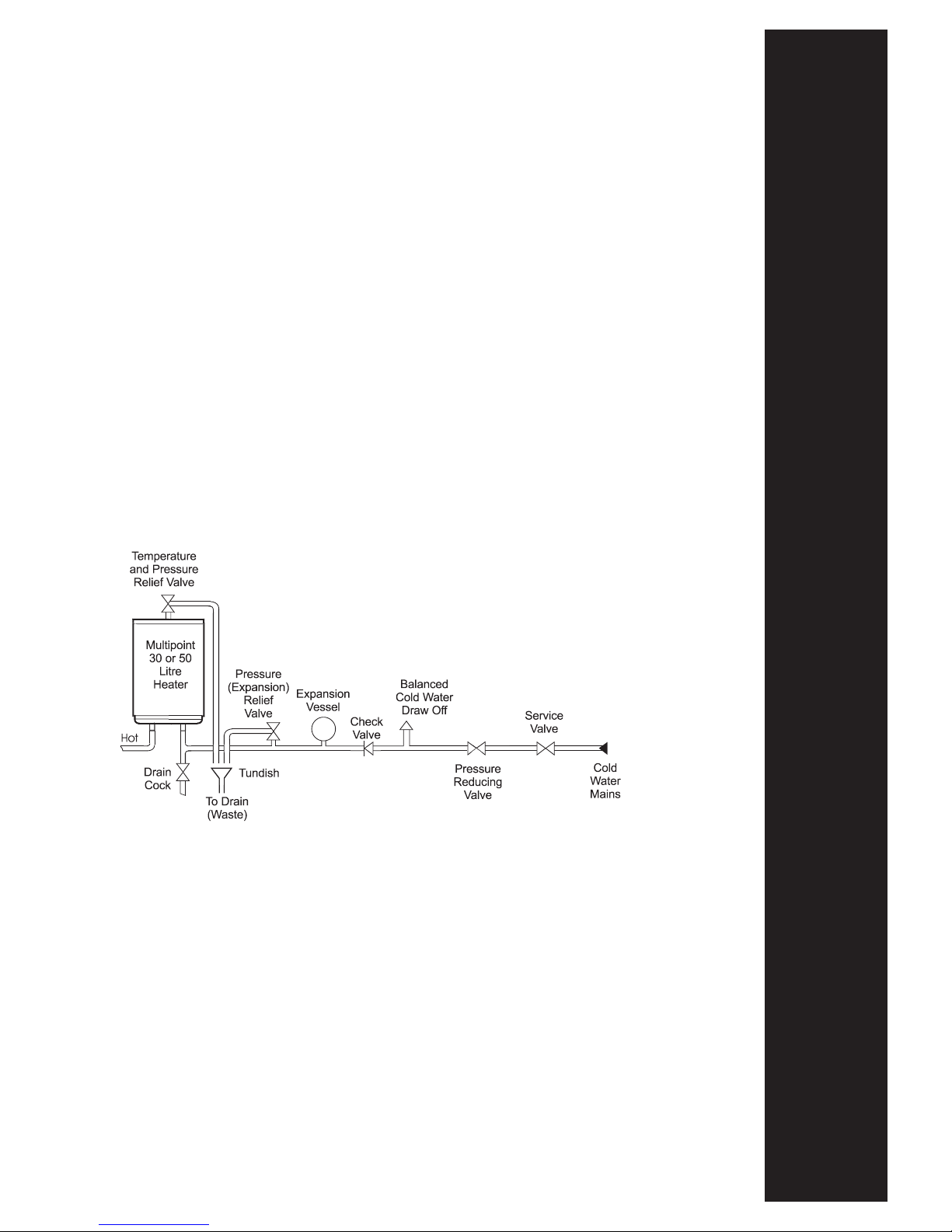

Diagram 1 Schematic Installation Diagram
WARNING: IFWATER FLOWS FROM THE PRESSURE RELIEF
VALVE OR TEMPERATURE/PRESSURE RELIEFVALVE THE ELEC-
TRICITYSUPPLYMUSTBE SWITCHED OFF IMMEDIATELY. CON-
TACT THE HEATRAE SADIA SERVICE TEAM (Tel: [phone]) OR
ANAPPROVED INSTALLER.
to fulfill the requirements of this Regulation the heater should be
installed in accordance with these instructions by a competent
installer (i.e. an installer trained in the installation of unvented water
heating systems). All the control and safety valves provided in the
Installation Kit must be used and plumbed in accordance with
Diagram 1.
1.4 The installation must be carried out in accordance with the relevant
requirements of:
•The appropriate Building Regulations either The Building
Regulations, The Building Regulations (Scotland) or Building
Regulations (Northern Ireland).
•The Water Fittings Regulations or Water Byelaws in Scotland.
2.0 INSTALLATION - GENERAL REQUIREMENTS:
2.1 The Multipoint must be installed by a competent installer in accord-
ance with Building Regulation G3.
2.2 National Wiring rules may contain restrictions concerning the
installation of these units in bathrooms.
2.3 The unit should be vertically wall mounted using the wall bracket and
levelling feet supplied. The water connections must always be on the
bottom of the unit.
2.4 Enough space should be left below the unit for pipe connections and
above the unit for access to the Temperature/Pressure Relief Valve.
Refer to Diagram 2 and the Dimensions Table to determine a suitable
position for the heater.

4
3.0 INSTALLATION - WALL MOUNTING
3.1 Using Diagram 2 and the Dimensions Table as a guide mark the position of the
wall mounting bracket and lower location point. Drill and plug the wall with
suitable fixings, fix the wall bracket to the wall.
3.2 Fit the heater wall bracket to the rear of the unit using the screws provided
ensuring the central location bolt is pointing towards the bottom of the unit.
3.3 Remove the backing paper from the self adhesive pads of the Levelling Feet and
affix them to the lower back of the unit in the approximate positions shown on
Diagram 3.
3.4 Hang the unit on the wall mounting bracket ensuring the location bolt locates in
the hole in the wall bracket. Position the moulded spacer block between the tab
on the bottom cover moulding and the wall. Insert a No. 10 x 2 1/2”long screw
through the tab and spacer block and tighten into wall plug.

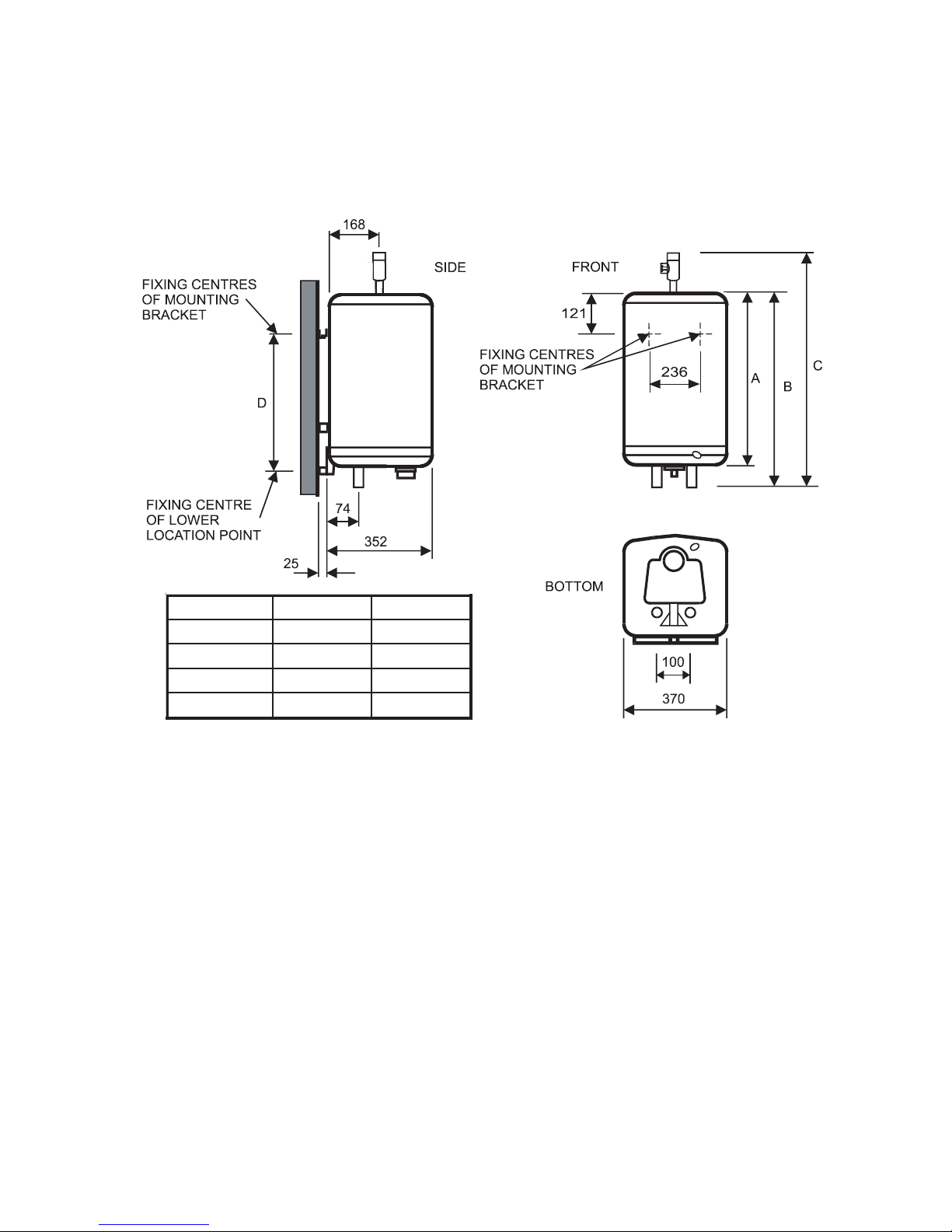

Diagram 2 Dimensions
50 Litre30 LitreDim e n s io n
888616A
937665B
1060788C
778506D
2.5 NOTE: Ensure that the wall can support the full weight of the unit (see TECHNI-
CAL SPECIFICATIONS) and that there are no hidden services (electricity, gas, or
water) below the surface of the wall.
2.6 DO NOT install where the unit may freeze.

MULTIPOINT 30/50
5
4.0 INSTALLATION - PLUMBING
4.1 Refer to the section IMPORTANT INSTALLATION POINTS. Plumb
in the valves in the sequence shown in Diagram 1. Ensure the valves
are installed in the correct orientation by reference to the direction of
flow arrows marked on them. The Expansion Vessel should be
supported by its own wall bracket (supplied), do not rely on the
pipework alone to support it.
4.2 The water connections to the unit are 15mm diameter copper tubes
suitable for compression fittings. Do not use solder joints as this will
damage the heater and may prevent servicing under warranty.
4.3 The INLET is marked BLUE, the OUTLET is marked RED. Several hot
outlets via conventional taps can be served, however, individual site
demands should be considered when choosing capacity and the
number of outlets to be served.
4.4 It is recommended that a WRAS Listed isolating valve is fitted on the
cold water supply to the heater.
4.5 A drain cock must be fitted below the heater in the inlet pipework. It
must be sited between the heater and the Check Valve (see Diagram
1).
4.6 Plumbers Paste must not be used as it can impair the operation of the
valves.

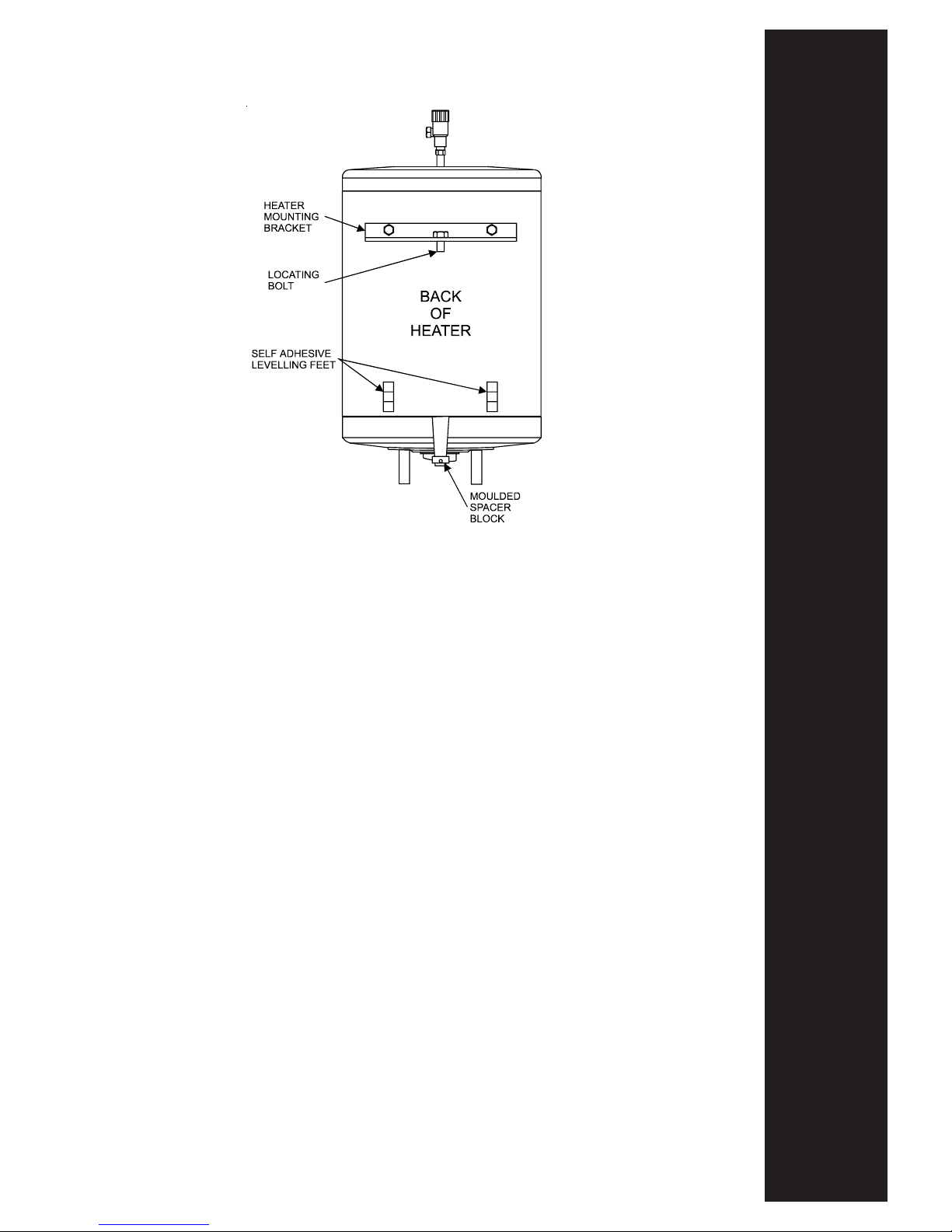

Diagram 3 Bracket and Levelling Feet Positions

6
5.0 INSTALLATION -
ELECTRICAL REQUIREMENTS
WARNING: This appliance must be earthed. It is suitable for a.c. supply only. Discon-
nect the electrical supply before removing the terminal cover. Installation must be in
accordance with the current I.E.E. Wiring Regulations.
5.1 The unit is supplied fitted with a 1.0m 3 core 1.5mm2flexible cable. The electicity
supply should be fused 13 Amp for a 3kW model and 5 Amp for a 1kW model and
be via a double pole isolating switch with a contact separation of at least 3mm in
both poles. Refer to the schematic wiring diagram below.
5.2 The wires are colour coded as follows:
Green and Yellow EARTH
Brown LIVE (L)
Blue NEUTRAL (N)
6.0 INSTALLATION -
DISCHARGE PIPE REQUIREMENTS
It is a requirement of Building Regulation G3 that any discharge from an
unvented system is safely conveyed to where it is visible but will not cause danger
to persons in or about the building.
The Tundish supplied and the discharge pipes should be fitted in accordance with the
Requirements and Guidance Notes of Building Regulation G3. These are essentially
as follows:
G3 Requirement
6.1 Discharge pipe MUST terminate in a SAFE, VISIBLE position.
G3 Guidance
6.2 Tundish should be within 500mm of the Temperature/Pressure Relief Valve and,
wherever possible, be in a visible position.
6.3 Discharge pipe should have a vertical fall of at least 300mm from the Tundish.
6.4 Minimum discharge pipe size should be one pipe size larger (22mm) than the
Temperature/Pressure Relief Valve discharge port.

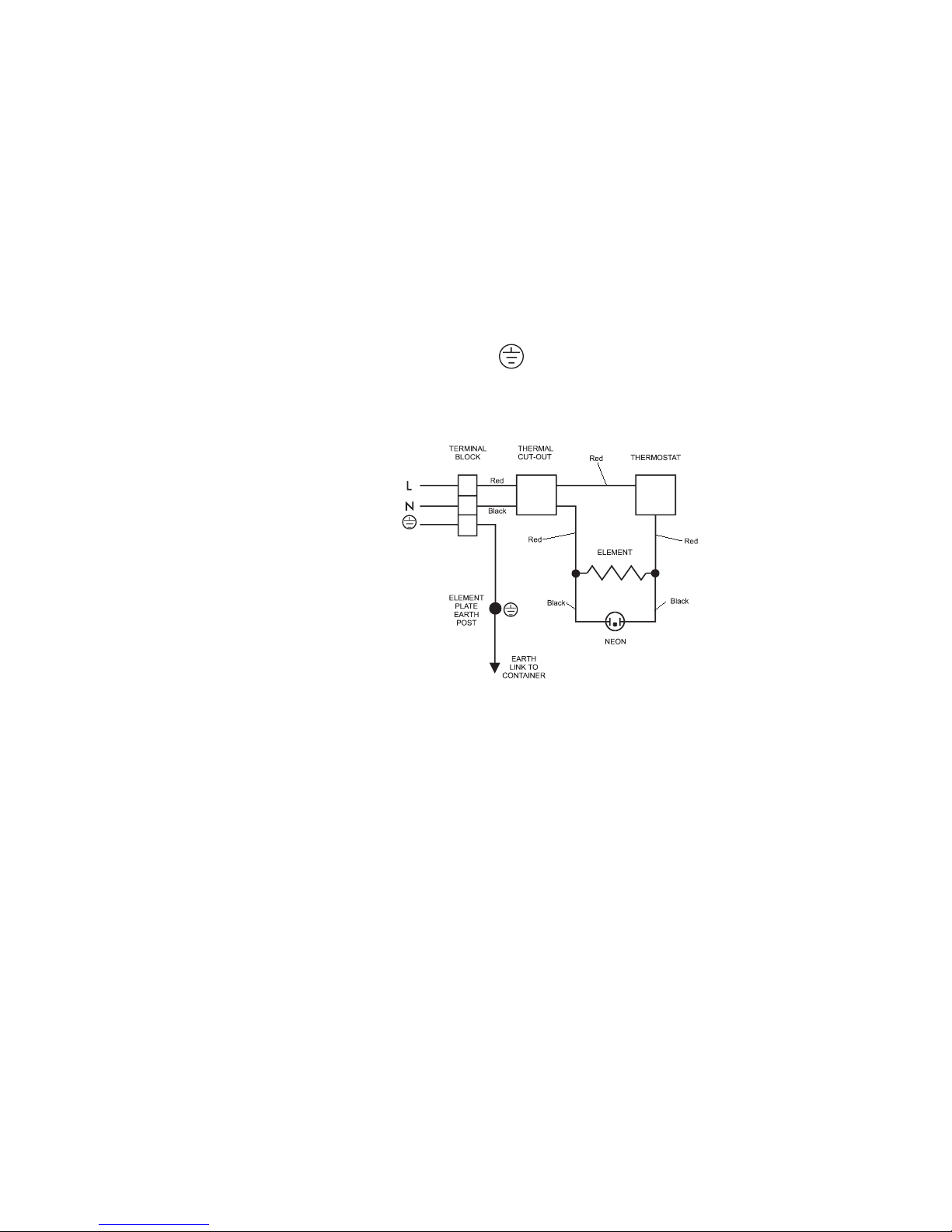

Wiring Diagram

MULTIPOINT 30/50
7
7.0 COMMISSIONING
7.1 Do not switch on the electrical supply until the unit has been filled
with water and checked for leaks.
7.2 Check that all installation, electrical and discharge pipe require-
ments have been met.
7.3 Check that all water and electrical connections are tight.
7.4 Open a hot water tap, turn on mains water supply to the heater.
7.5 Allow unit to fill and leave hot tap running for a short while to
purge any air and flush out the pipework. Close the hot tap and
check the system for leaks.
7.6 Manually test the operation of the Temperature/Pressure Relief
Valve and, if fitted, the Pressure (expansion) Relief Valve. Ensure
water flows freely from the valve(s) and through the discharge
pipes.
7.7 Switch on the electrical supply. The indicator light will illuminate
during heating. When the set temperature is reached the indicator
light will go out.
7.8 The set temperature can be adjusted by rotating the knob located in
the terminal cover. It is possible to lock the thermostat knob in
either the mid-range or a “hot” position by following the procedures
in 7.9 or 7.10 below. Always switch off the electrical supply before
removing the terminal cover.
7.9 Setting the “mid-range” position:
Rotate the thermosatat knob to the mid postion. Remove the termi-
nal cover by using a large flat bladed screwdriver to depress the four
snap lugs located in the four rectangular depressions on the bottom
cover. Holding the thermostat knob in position turn the terminal
cover over and remove the backing disc from the underside of the
cover. Turn the backing disc over and refit to the knob ensuring the
notch locates with the boss on the underside of the cover. Refit the
terminal cover, the thermostat will now be locked in the “mid-
range” position.
6.5 Maximum total hydraulic resistance of the discharge pipe should
not exceed that of 9m of straight pipe.
6.6 Discharge pipe should have a continuous fall (minimum 1:200).
6.7 The discharge pipe should not be blocked or used for any other
purpose.
Information Sheet No. 33 available from the British Board of
Agrement gives further advice on discharge pipe installation.

8
7.10 Setting the “hot” position:
Rotate the thermostat knob to mid way through the hot graduated range (red
graphic). Follow the procedure detailed above, however in this case the knob
should be held in the “hot” position previously set. When the terminal cover has
been refitted the thermostat will be locked in the “hot” position. This position is
recommended when using the heater in conjunction with a thermostatic blending
valve.
8.0 MAINTENANCE - DESCALING
Little maintenance is required, however in hard water areas the unit will require
periodic descaling to ensure efficient operation. To descale the unit:
8.1 Switch off and disconnect the electrical supply. Turn off the water supply to the
unit.
8.2 Open a hot tap to relieve any system pressure. Empty unit by opening the drain
cock in the inlet pipework.
8.3 Remove the terminal cover by using a large flat bladed screwdriver to depress the
4 snap lugs located in the 4 rectangular depressions on the bottom cover.
8.4 Disconnect the electrical terminations to the element. Disconnect earth links to
the earthing stud. Withdraw the thermostat and thermal cut-out capillary tubes
from the pocket on the element plate.
8.5 Remove the element plate assembly by unscrewing the five securing screws,
tapped jacking holes are provided (NOTE: a quantity of water may still be
present in the container, it is recommended that a container be placed under the
unit to collect any spillage). Remove any loose scale from the container. Carefully
clean off any scale from the element and thermostat pocket. DO NOT clean scale
from interior container walls.
8.6 Re-assemble the element plate assembly fitting a new sealing gasket. Rewire the
unit with reference to the Wiring Diagrams.
8.7 Re-commission the unit following the INSTALLATION and COMMISSIONING
instructions.
9.0 MAINTENANCE - SAFETY VALVES
9.1 The Temperature/Pressure Relief Valve and the Pressure (expansion) Relief
Valve should be regularly checked. Manually operate the valves by either
twisting the cap or lifting the lever. Ensure water flows freely from the valve(s)
and through the discharge pipes (NOTE: the water discharged may be very hot).
Ensure the valve(s) reseat correctly when released.
9.2 Clean the strainer incorporated in the Pressure Reducing Valve. To inspect and
clean the strainer turn off the mains water supply to the heater and open a hot
tap to relieve the system pressure. Unscrew the black cap from the Pressure

MULTIPOINT 30/50
9
Reducing Valve and remove. The strainer will be removed with the
cap. Wash any particulate matter from the strainer under clean
running water. Replace the cap assembly ensuring the sealing ring
is correctly fitted. Do not use any other type of sealant. Close hot
tap, open mains stop cock and check for leaks.
10.0 MAINTENANCE -
EXPANSION VESSEL PRECHARGE PRESSURE
The Expansion Vessel should have a precharge pressure of 3.5 bar (51
p.s.i.). This can reduce over time and eventually require re-charging. To
do this:
10.1 Turn off water supply to the unit; open a hot tap to relieve system
pressure.
10.2 Remove dust cap from top of Expansion Vessel
10.3 Check pre-charge pressure using a tyre pressure gauge. If the
pressure is lower than 3.5 bar (51 p.s.i.) it should be recharged
using a tyre pump (Schraeder Valve type). DO NOT OVER
CHARGE.
10.4 Re-check pressure and when correct replace dust cap.
10.5 Turn on mains water supply and close hot tap.
11.0 SPARE PARTS
The following comprehensive list of spare parts is available for your
Multipoint water heater. Please refer to the Rating Label on the side of
your heater before ordering to ensure the correct spare part is obtained.
DO NOT REPLACEWITH PARTS NOT RECOMMENDED BY
HEATRAE SADIA- THIS WILLINVALIDATEYOUR GUARANTEEAND
MAY RENDERTHE INSTALLATION DANGEROUS.
DESCRIPTION CODE NO.
Element plate assembly - 30/50 litre 3kW ............. 95 606 926
Element plate assembly - 30/50 litre 1kW ............. 95 606 925
Thermostat ........................................................... 95 612 667
Thermal cut-out .................................................... 95 612 666
Indicator light ....................................................... 95 607 995
Element plate gasket ............................................ 95 611 811
Pressure (expansion) Relief Valve ........................ 95 607 986
Temperature/Pressure Relief Valve ....................... 95 905 045
Check Valve .......................................................... 95 607 987
Expansion Vessel ................................................. 95 607 988
Pressure Reducing Valve ..................................... 95 607 989
Terminal cover c/w thermostat knob .................... 95 614 184

10
12.0 FAULT FINDING
Disconnect the electrical supply before removing the terminal cover. It is recom-
mended that any service operations on the Multipoint heater are carried out by a
competent person.
NOTE: Use only Heatrae Sadia approved spare parts. Replacement of any parts with
components not recommended by Heatrae Sadia will invalidate the guarantee and
may render the installation dangerous.
ACTIONPOSSIBLE CAUSESFAULT
1. Check electrical supply1. Electrical supply faultWater not heating
WiringDiagram)
replace thermostat/thermal cut-out (see
check thermostat operation. If necessary
2. Check cut-out, if operated reset and
2. Thermal cut-out tripped
necessary
3. Check thermostat operation, replace if
3. Thermostat fault
replace.
Valve. If greater than 3.5 bar (51 p.s.i.)
1. Check pres sure from Pressure Reducing
p
ressure
1. Excessive mains water
(continuously)
Pressure Relief Valve
Discharge of water fro
m
2. Replace Pressure Relief Valve2. Pressure Relief Valve fault
(see Section 10)
Expansion Vessel pre-charge pressure
5. Check and, if neces sary, re-charge
Expansion Vessel
Loss of pressure from
(intermittently)
Presure Relief Valve
Discharge of water fro
m
Replace thermostat and thermal cut-out
cut-out fault
Thermostat and thermal
Pressure Relief Valve
water/s team from
Relief Valve and/or
Temperature/Pressure
Discharge of water fro
m
in accordance with flow direction arrows
1. Check all valves are correctly installed
fitted
1. Inlet valves incorrectly
N
o water flow
2. Check mains water supply is on
turned on
2. Mains water supply not
not blocked.
strainer in the Pressure Reducing Valve is
3. Check for obstructions. Check the
supply
3. Blockage in mains water
while.
milkines s will dis ap pear after a s ho rt
oxygen bubbles when flowing. The
Water from a press urised s ystem releases
Oxygenated water"Milky" water

MULTIPOINT 30/50
11
13.0 ACCESSORIES
The heater can be used to supply several hot water outlets via conven-
tional taps. It is not recommended for supplying a shower. Individual site
demands should be considered when choosing capacity and the number
of outlets to be served.
A Thermostatic Blending Valve can be used in conjunction with this unit.
Accessory Pack U3 (code no. 95 970 354) is recommended. Follow the
installation instructions supplied with the valve for connection to the
system.
14.0 USER INSTRUCTIONS
14.1 The Multipoint unvented heater stores water at the temperature set
on the adjustable thermostat. This can be set to give temperatures
in the range of 10 to 75oC. To avoid any risk of freezing when the
heater is not in use for long periods during the winter months, do
not switch off the electrical supply and set the thermostat to its
minimum position. N.B. This will not protect other system pipework.
14.2 The thermostat can also be locked in either the mid range or a “hot”
(recommended when using in conjunction with a Thermostatic
Blending Valve) position. To lock the thermostat position the
instructions given under Sections 7.9 or 7.10 should be followed.
We recommend that this procedure is carried out by a qualified
electrician.
14.3 The indicator light will be illuminated when the unit is heating.
14.4 To ensure the heater continues to operate at its optimum perform-
ance it should be periodically maintained in accordance with the
instructions given under the Sections headed MAINTENANCE.
14.5 IMPORTANT NOTES TO USER
Do not block or restrict the discharge from any safety valve fitted.
Do not tamper with any safety valve fitted.
If water discharges from any safety valve fitted, switch off the
electrical supply to the unit immediately. Contact the Heatrae
Sadia Servive Team (Tel: [phone]) or an approved installer.
Do not turn the electrical supply on again until the unit has been
checked and approved by a qualified installer.

12
Guarantee
This water heater is guaranteed for a period of five years from the date of purchase
with the exception of the element and thermal controls which are guaranteed for a
period of two years provided:
1. The unit has been installed in accordance with these instructions and all necessary
inlet controls and safety valves have been fitted correctly.
2. Any valves or controls are of Heatrae Sadia recommended type.
3. The unit has not been tampered with and has been regularly maintained as detailed
in these instructions.
4. The unit has been used only for heating potable water.
5. Within 60 days of installation, the user completes and return certificate
supplied along with proof of purchase to register the product.
The unit is not guaranteed against damage by frost and the immersion heater is not
guaranteed against excessive scale build up.
This guarantee does not affect the statutory rights of the consumer.
Environmental Information
This product is manufactured from many recyclable materials. At the end of its useful
life it should be disposed of at a Local Authority Recycling Centre to realise the full
environmental benefits.
Insulation is by means of CFC-free polyurethane foam.
Heatrae Sadia Heating
Hurricane Way Norwich NR6 6EA
www.heatraesadia.com
Main No: 01603 420100
Main Fax: [phone]
Sales: 01603 420110
Sales Fax: [phone]
Service: 08701 600125
Service Fax: [phone]
