Heatrae Sadia Aquatap Boil and Chill User manual

Aquatap (Boil and Chill / Boil and Ambient)
Installation and user manual

CONTENTS
SECTION PAGE
1.0 INTRODUCTION 3
2.0 TECHNICAL SPECIFICATION 4
3.0 INSTALLATION - IMPORTANT INSTALLATION POINTS 7
4.0 INSTALLATION - MOUNTING THE WATER HEATING UNIT 8
5.0 INSTALLATION - WATER SUPPLY 9
6.0 INSTALLATION - VENT PIPE 10
7.0 INSTALLATION - DISPENSING TAP MOUNTING 10
8.0 INSTALLATION - DISPENSING TAP CONNECTION 12
9.0 INSTALLATION - ELECTRICAL REQUIREMENTS 14
10.0 COMMISSIONING 15
11.0 USER INSTRUCTIONS 19
12.0 MAINTENANCE 20
13.0 FAULT FINDING 22
14.0 SPARE PARTS 24
15.0 WARRANTY 30
16.0 ENVIRONMENTAL INFORMATION 30
17.0 COMMISSIONING RECORD 31
18.0 SERVICE RECORD 32
19.0 SPARES STOCKISTS 36
2

BOIL AND CHILL MODEL (INCLUDING BOIL AND AMBIENT)
1.0 INTRODUCTION
Thank you for purchasing a Heatrae Sadia Aquatap unit. This unit is manufactured to the highest
standards and has been designed to meet all the latest relevant constructional and safety specications.
The Aquatap unit must be installed (see sections 3.0, page 7 to 9.0, page 14), commissioned (see
section 10.0, page 15) and maintained (see section 12.0, page 20) by a competent person. Please
read and understand these instructions prior to installing your Aquatap unit. Following installation
and commissioning of the unit, the operation of the Aquatap should be explained and demonstrated
to the user. Instructions for use are explained in section 11.0, page 19. These instructions should
be left with the user for future reference.
This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children shall not play
with the appliance. Cleaning and user maintenance shall not be made by children
without supervision.
IntelliboilTMPlus is a patented control system for managing the efciency of the Aquatap’s boiling cycle.
It regularly brings the contents of the water container to boil in response to ongoing user demand.
However, when there has been no draw off for a period of one hour, IntelliboilTMPlus steps back the
stored water temperature. This avoids unnecessary boiling - possibly for a number of hours or even
days - until there is renewed user demand. When this occurs, the boiling cycle resumes.
The appliance is intended to be used in commercial applications such as (but not limited to):
• Hotel conference suites
• Waiting rooms
• Staff room kitchens/rest rooms
COMPONENT CHECKLIST
Before commencing installation, please check that all the following components have been supplied
in the packaging:
• Aquatap dispensing tap (Boil and Chill/Ambient Model)
• Aquatap water heating unit
• Heatrae Sadia Superchill 30B (Boil and Chill Model)
• Water Filter Kit
• 3 x 0.5m hose
• 6 x hose clamps
• 10mm to 8mm elbow push t adaptor (Boil & Chill only)
• 10mm to 6mm elbow push t adaptor (Boil & Chill only)
• 6mm to 6mm stem elbow push t adaptor (Boil & Chill only)
• Tap C clamp box spanner
3

2.0 TECHNICAL SPECIFICATION
AQUATAP HEATER
Model reference 95200262 Boil and Chill
95200263 Boil and Ambient
Electrical rating 2.3kW @ 230 V ~
2.5kW @ 240 V ~
Nominal capacity 5.0 litres
Weight (full) 17.5kg
Rated pressure 0 MPa ( 0 bar )
Minimum supply pressure 0.05 MPa ( 0.5 bar )
Maximum supply pressure 1.0 MPa ( 10 bar )
Enclosure rating IPX2
Nominal commissioning 24
time (minutes) to temperature
ready

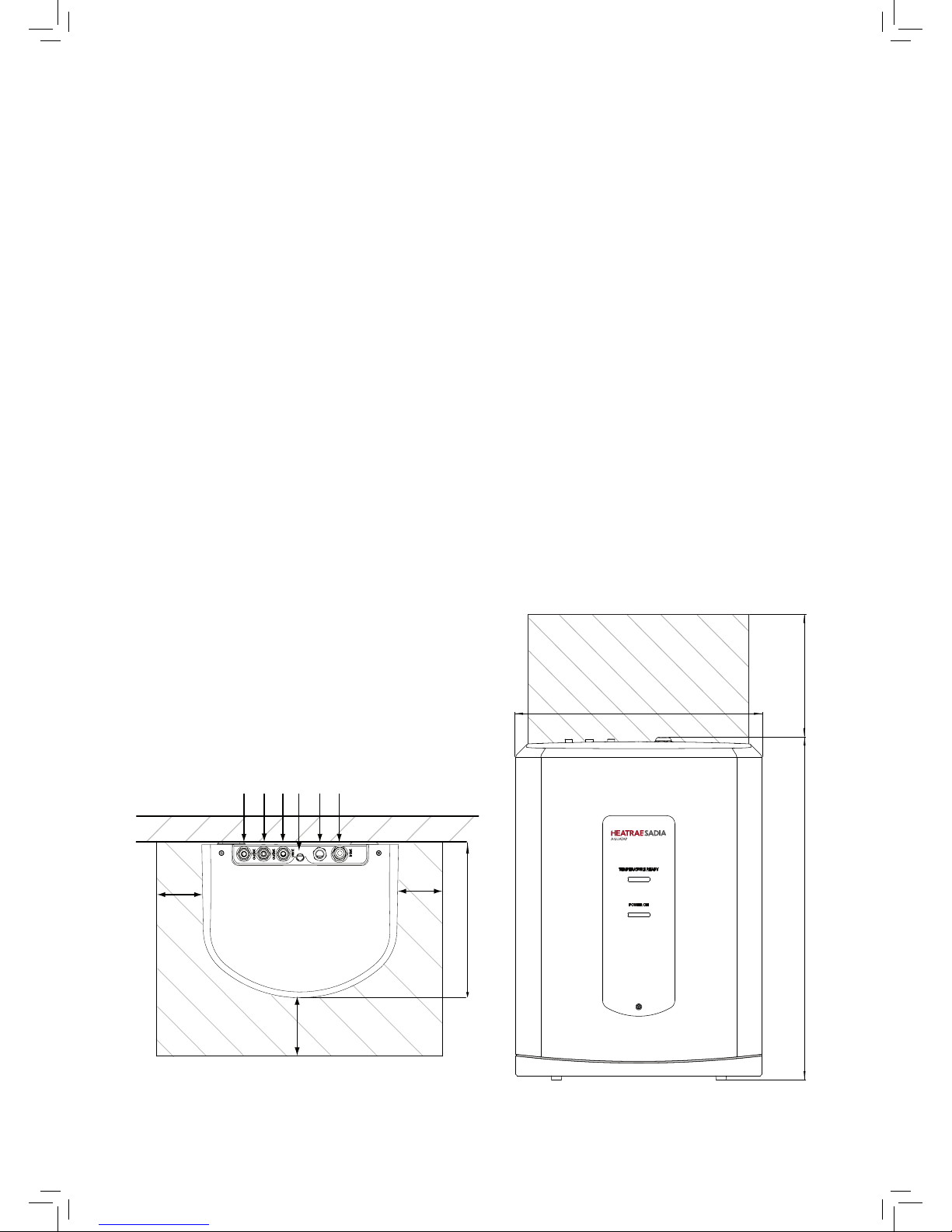

FIGURE 1: AQUATAP HEATER
INLET
MAINS (ELECTRICAL SUPPLY)
TAP ELECTRICAL CONNECTION
VENT
COLD OUTLET
480mm
269mm
150mm 150mm
150mm
Minimum clearance needed around the heater unit
150mm
Minimum clearance needed around the heater unit
350mm
HOT OUTLET
4

HEATING ELEMENT
TRANSFORMER
MAIN PCB
STEAM
CONDENSING TRAP
PUMP
INLET SOLENOID
FIGURE 2: AQUATAP HEATER - IMPORTANT FEATURES
LEVEL SENSOR ASSEMBLY
THERMAL CUT-OUT
DRAIN
AMBIENT / COLD
WATER PCB
AMBIENT / COLD
WATER SOLENOID
5

6
FIGURE 3: AQUATAP WATER HEATER SCHEMATIC
INLET HOT OUTLET
VENT
STEAM CONDENSING TRAP
HEATING ELEMENT
HOT WATER STORE
PUMP
OVER
TEMPERATURE
SENSOR
TOP
LEVEL
SENSOR
SOLENOID
VALVE
BTM
LEVEL
SENSOR
SOLENOID
VALVE
COLD OUTLET

3.0 IMPORTANT INSTALLATION POINTS
3.1 The Aquatap unit must be installed in accordance with the relevant requirements of:
• The appropriate building regulations by application of either The Building
Regulations (England and Wales), The Building Regulations (Scotland) or
The Building Regulations (Northern Ireland). In territories other than those listed
the local regulations in force must be complied with.
• The Water Supply (Water Fittings) Regulations (England, Wales and Northern
Ireland) or The Water Byelaws in Scotland.
3.2 The Aquatap stores and dispenses water at or close to boiling point whilst
switched on. Due caution must be taken when choosing a location for the product to
minimise any possible misuse. The dispenser tap should be located so that it
discharges over a sink or mounted on its own purpose designed drip tray (available as
an accessory, product code 95970138).
3.3 The Aquatap is a vented water heater. The vent pipe must never be blocked,
obstructed or removed. Warning: In the event of a unit malfunction, steam may vent
from the vent pipe for a short period of time (see g. 5, page 11 for position of vent
pipe).
3.4 Wherever possible the Aquatap should be supplied directly from the cold mains
supply. If fed from a cold water feed cistern, the cistern must comply with the
Water Regulations Guide (Clause R27.2). It should be noted that water quality may
be reduced when supplied from a cistern and additional pre-treatment of the water
supply to the Aquatap (eg, ltration) may be necessary.
Note: In order to meet the minimum supply pressure requirements of the Aquatap,
any cold feed cistern must be a minimum of 5 metres above the unit.
3.5 In hard water areas, heated water will produce limescale which will be deposited in
the heater. If this is not regularly removed it will impair the operation of the Aquatap
unit. Where rapid and excessive scale build up is likely to occur, the use of a
proprietary scale reducing device on the water supply to the unit may be benecial.
3.6 The unit must not be installed where it is liable to freeze. If the unit is thought to be frozen
it must not be switched on. It should be allowed to thaw and must then be thoroughly
inspected to ensure it is undamaged.
3.7 The unit is not suitable for installation in an area where a water jet could be used.
3.8 The water chiller must be installed and commissioned in accordance with
SuperChill 30B Fitting Instructions and User Guide 36006126.
7

4.0 INSTALLATION – MOUNTING THE WATER HEATING UNIT
4.1 The Aquatap water heating unit is free standing and must be positioned on a level
surface. If being mounted in a cupboard, shelf unit or false base, ensure that the
supporting surface can carry the full weight of the unit (see TECHNICAL
SPECIFICATIONS section 2.0, page 4)
4.2 Refer to g. 1, page 4 for dimension details of the Aquatap water heating unit and the
relative positions of the water and electrical connections.
4.3 The Aquatap heater unit must be located beneath the dispensing tap.
It must be possible to connect the exible hoses and electrical connection cable from the
dispensing tap to the OUTLET and VENT connections on the Aquatap unit. The pipes
must not be lengthened. The dispenser tap can be positioned so it discharges into a sink
or mounted on its own purposed designed drip tray (available as an accessory, product
code 95970138).
4.4 Sufcient room should be left around the unit to allow access for maintenance and
servicing (see g. 1, page 4). Two of the case xing screws are located on the top
rear edge of the unit; it must be ensured that these can be accessed in order to facilitate
removal of the front cover for maintenance and servicing. An ambient temperature
between 5ºC and 35ºC is required in the cupboard housing the Aquatap water heating
unit. Air circulation must be provided so air can ow through the cupboard (see diagram

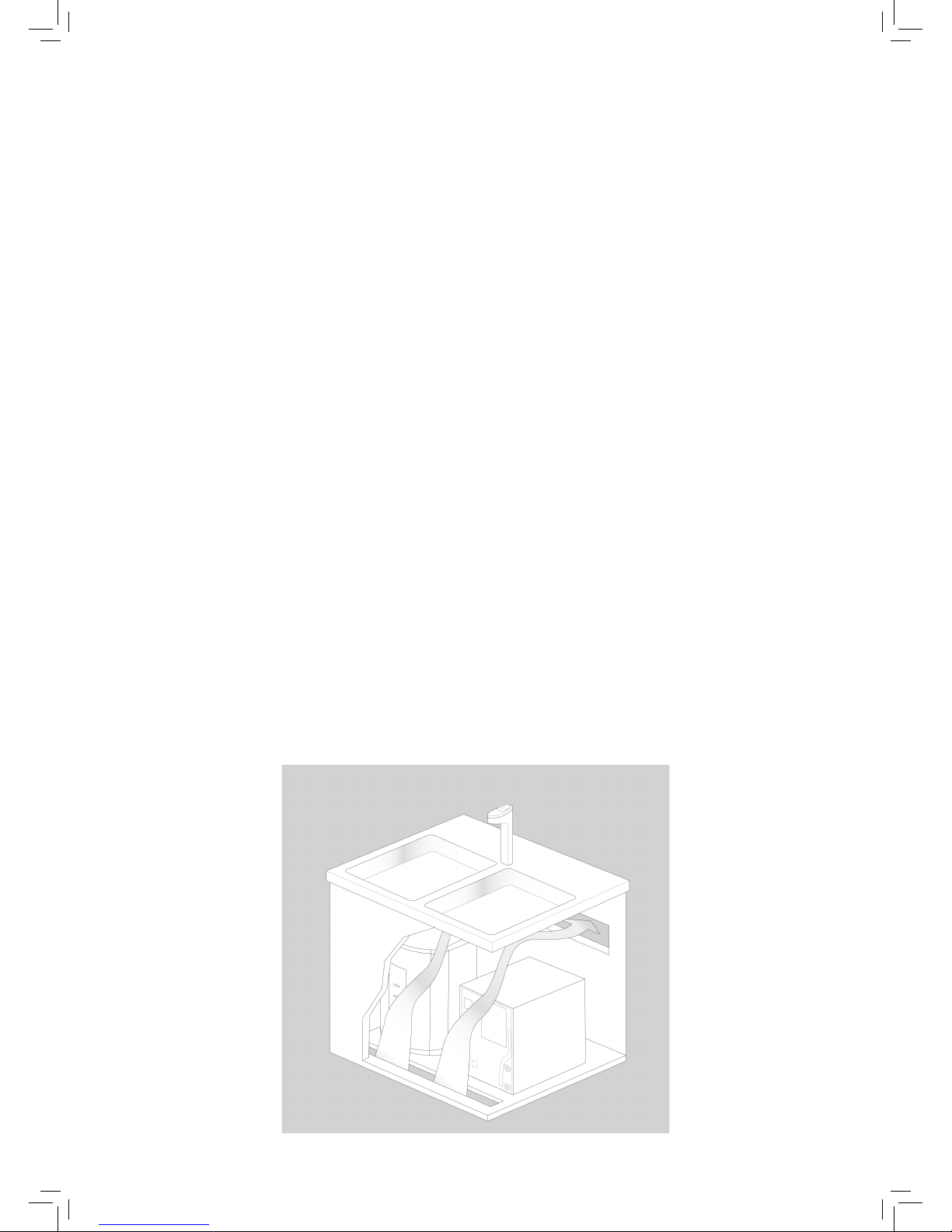

below). If adequate air circulation is not provided this will cause calibration problems
and the Aquatap water heating unit will not function correctly.
4.5 The Aquatap water heating unit is supplied with a moulded plug tted to a 1.2 metre
electrical supply cable. If the cable needs to be lengthened this must be completed by a
qualied electrician. Refer to section 9.0, page 14 - INSTALLATION – ELECTRICAL
REQUIREMENTS for full details of the electrical installation.
8

5.0 INSTALLATION - WATER SUPPLY
5.1 The INLET connection to the Aquatap water heating unit is located on the top rear
of the unit (see g. 1, page 4). It is threaded ½” BSP male parallel at faced tting.
Any connection must use a suitable WRAS listed sealing washer. It is not possible
to make a compression connection directly to the INLET connection.
5.2 A WRAS listed isolating valve must be tted in the cold water supply to the unit to
facilitate servicing the heater.
5.3 Install Filter kit as per lter instructions 36005847
5.4 If using hard piping, ensure this is not routed where it may impair access to the case
xing screws or prevent access and/or removal of parts for servicing or maintenance.
5.5 The use of a WRAS listed exible braided hose assembly is recommended for the nal
connection to the heater to allow for easy access/removal should it be required.
5.6 The hot OUTLET connection from the Aquatap water heating unit is located on the top
rear of the unit (see g. 1, page 4). It is a hose spigot to which the exible hot
supply hose to the dispensing tap is attached. Refer to section 8.0 INSTALLATION –
DISPENSING TAP MOUNTING, page 12 for full details of how to mount and connect
the dispensing tap to the water heating unit.
9

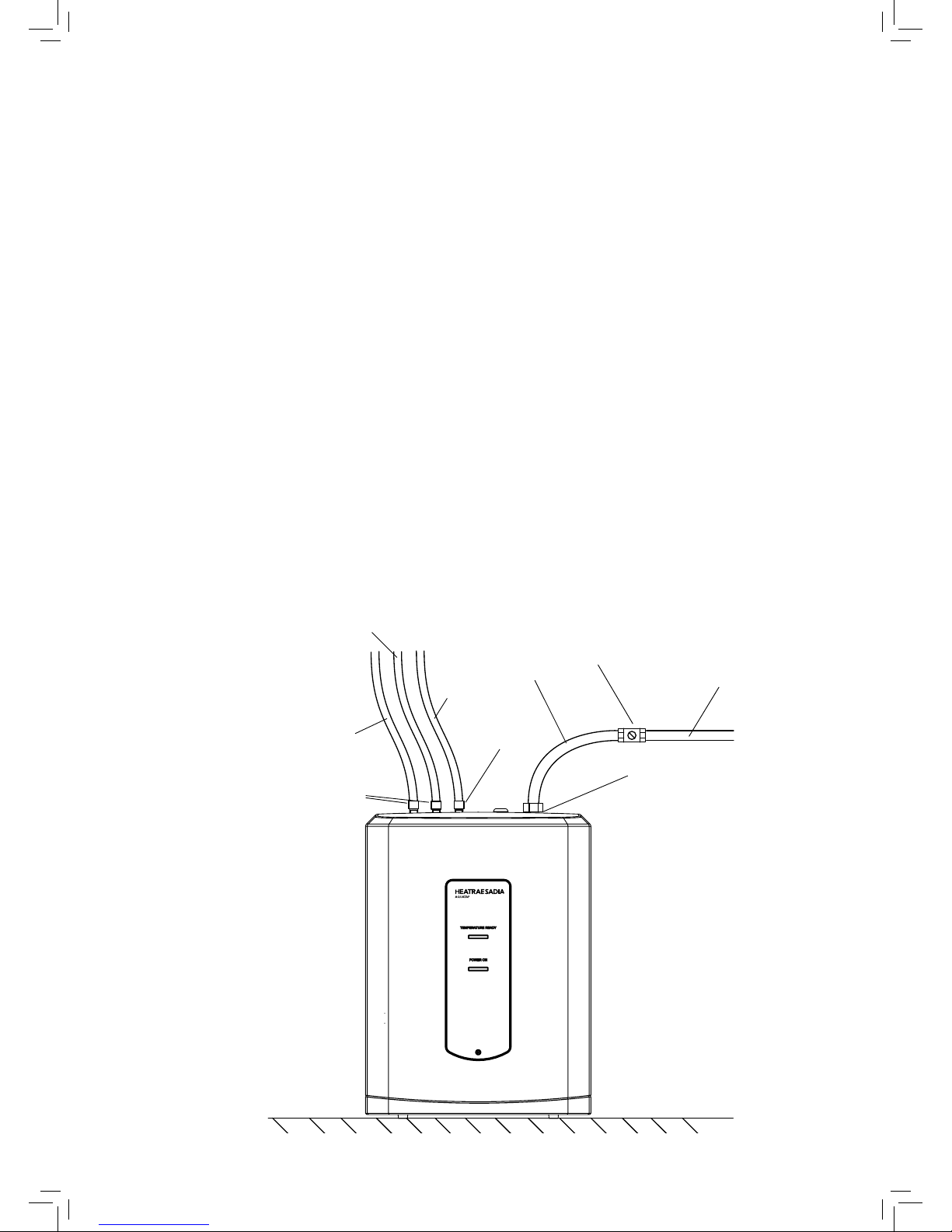

FIGURE 4: PLUMBING DIAGRAM
ISOLATING
VALVE
CLAMP
COLD /
AMBIENT
TAP
OUTLET
HOSE
FLEXIBLE
HOSE
MAINS
WATER
SUPPLY
CLAMP
TAP
VENT
HOSE
SCREEN VENT
FILTER WITHIN
INLET HOSE
CONNECTION
HOT TAP
OUTLET
HOSE

6.0 INSTALLATION – VENT PIPE
6.1 The VENT connection from the Aquatap water heating unit is located on the top rear
of the unit (see g. 1, page 4). It is a hose spigot to which the exible VENT
hose of the dispensing tap is attached. Refer to section 7.0 INSTALLATION –
DISPENSING TAP MOUNTING below & section 8.0 INSTALLATION - DISPENSING TAP
CONNECTION, page 12 for full details of how to mount and connect the dispensing tap
to the water heating unit.
6.2 The VENT will ensure that any excess steam or pressure is safely vented to
atmosphere in the event of a fault with the unit. IT MUST NOT BE BLOCKED,
OBSTRUCTED, DISCONNECTED OR REMOVED AND MUST BE VERTICAL WITH A
CONTINUOUS RISE.

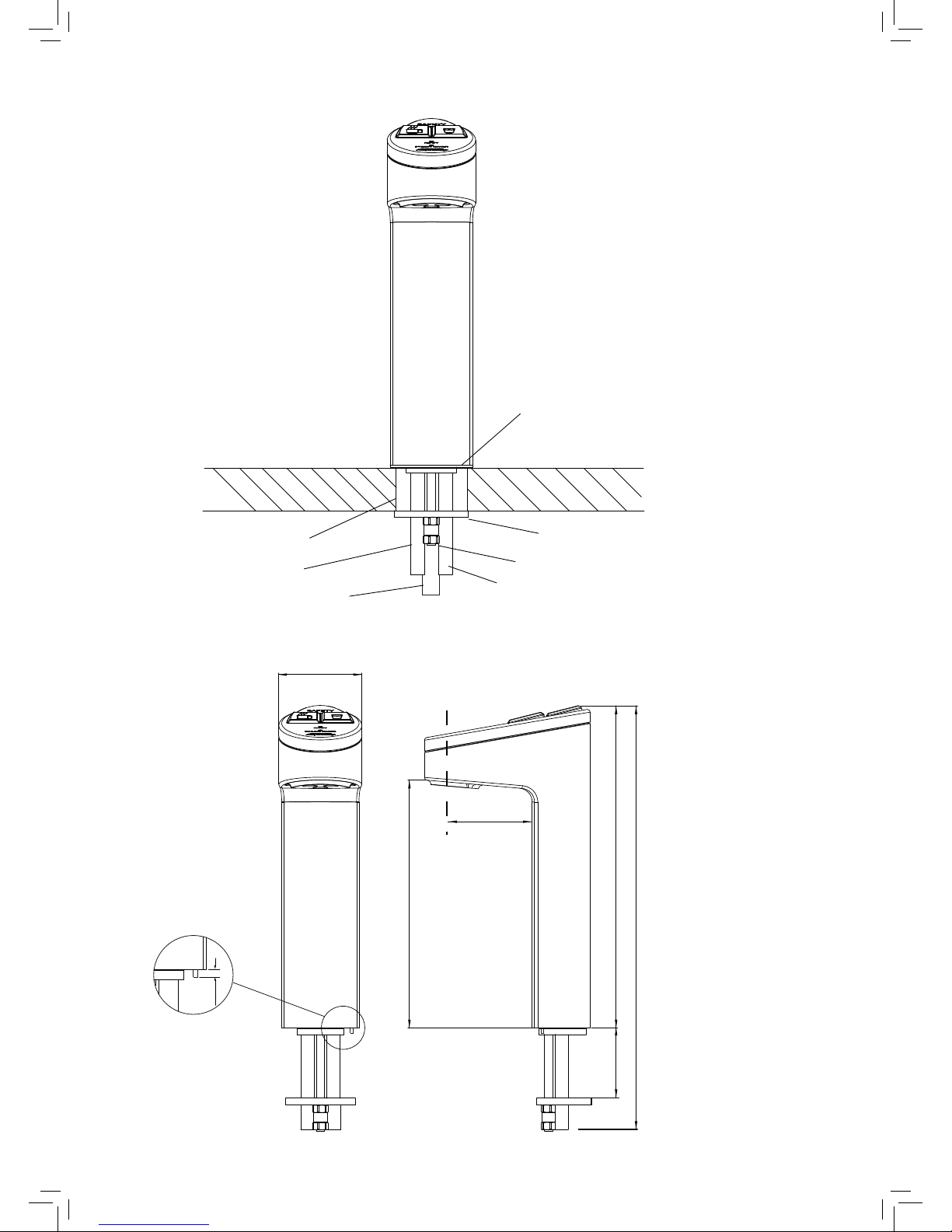

7.0 INSTALLATION – DISPENSING TAP MOUNTING
7.1 The dispensing tap supplied is suitable for mounting onto a worktop or counter surface.
It should be positioned such that it discharges into a sink or drip tray (see g. 6, page 11
for tap dimensions). A purpose designed drip tray is available as an accessory (order
product code 95970138). If this is used, then the instructions supplied with the drip tray
accessory should be followed.
7.2 Cut a 35mm diameter hole in the position selected through the worktop or counter
surface or use the template provided if using the drip tray. Note: Do not mount the
dispenser directly onto a stainless steel sink.
7.3 Screw the 6mm x 60mm stud into the base of the dispensing tap and connect the exible
hoses to the dispenser tap with the clips provided.
7.4 Ensure the sealing washer provided is correctly located on the base of the tap. A light
application of clear silicon sealant on the base of the tap and the sealing washer will
help ensure a watertight t between the tap base and the worktop.
7.5 Feed the exible hoses and the dispenser control cable through the hole in the worktop
from the top and position the tap base onto the worktop.
7.6 From the underside of the worktop t the “C” clamp over the threaded securing post
and slide up so it sits against the underside of the worktop. The “arms” of the “C” clamp
should enclose the exible hoses and dispenser tap cable.
7.7 Thread the securing nut onto the securing post and nger tighten onto the “C” clamp.
If necessary adjust the position of the dispenser tap and then tighten the securing nut
using the box spanner provided.
7.8 Make sure all pipe work is bonded and the earthing clamps conform to BS 951 and
contain a label which states “SAFETY ELECTRICAL CONNECTION - DO NOT
REMOVE”.
7.9 If required because of space issues cut the pipes (at the base of the tap) to an apropriate
length making sure that they are free from burrs and clean.
10

11
WORK TOP
35mm HOLE35mm HOLE “C” CLAMP
SECURING NUT
SEALING WASHER
FIGURE 5 : TAP MOUNTING
HOT PIPE
VENT PIPE COLD/AMBIENT PIPE
309
235
181
60.0
FIGURE 6 : DISPENSER DIMENSIONS
61.0
55 MAX
3mm

12
8.0 INSTALLATION – DISPENSING TAP CONNECTION
8.1 The hot supply hose should be connected to the OUTLET hose spigot of the Aquatap
water heating unit. The hose should rise continuously from the heater to the tap
without kinks or twists. If necessary it can be cut to a shorter length, but it should
never be lengthened. The hose should be secured in place on the spigot using the clamp
provided.
Warning: Only use the hose supplied with the unit or a WRAS approved hose.
Spare hose and clips can be ordered, product code 95607364.
8.2 The VENT hose should be connected to the VENT hose spigot of the Aquatap water
heating unit. The hose should rise continuously (vertical) from the heater to the tap
without kinks or twists. If necessary it can be cut to a shorter length, but it should
never be lengthened.The hose should be secured in place on the spigot using the clamp
provided.
8.3 The Ambient hose should be connected to the cold hose spigot of the Aquatap water
heating unit. The hose should rise continuously from the heater to the tap without
kinks or twists. If necessary it can be cut to a shorter length, but it should never
be lengthened. The hose should be secured in place on the spigot using the clamp
provided.
CLAMP
HOT TAP
OUTLET
HOSE
FLEXIBLE
HOSE
TAP
VENT
HOSE
FIGURE 7: TAP MOUNTING (BOIL & AMBIENT)
CLAMP
1.5mm² 3 CORE HO5 VV-F
SHEATHED CABLE
COLD WATER
SUPPLY
DISPENSER CABLE
CONNECTOR
WHITE HOSE
(NOTE: DRIP TRAY/SINK NOT SHOWN FOR CLARITY)
AMBIENT
OUTLET
HOSE
DISTANCE BETWEEN TAP AND HEATER
AS SHORT AS POSSIBLE TO ENSURE
CONNECTING PIPES RISE CONTINUOUSLY

13
8.4 Plug the dispensing tap cable connector into the Aquatap heater.
8.5 Plug the Aquatap into a 13A socket.
8.6 If a chiller unit is tted to the dispenser, site the chiller near to the Aquatap heater, make
sure that the chiller level tube is facing outwards to allow servicing.
8.7 Connect the water supply to the chiller as per g 8. The chilled water supply via a
6mm pipe from the chiller should be connected to the “cold outlet” side of the Aquatap, a
6mm to 10mm tting is supplied for ease of use.
8.8 The dispenser tap chilled hose should be connected to the “outlet” pipe of the chiller unit
The dispenser tap ambient hose should be connected to the “outlet” of the Aquatap and
secured in place with the pipe clamps supplied.
ISOLATING
VALVE
CLAMP
HOT TAP
OUTLET
HOSE
FLEXIBLE
HOSE
MAINS
WATER
SUPPLY
TAP
VENT
HOSE
FIGURE 8: TAP MOUNTING (BOIL & CHILL)
CLAMP
DISPENSER CABLE
CHILLED WATER
SUPPLY
CHILLER
UNIT
1.5mm² 3 CORE HO5 VV-F
SHEATHED CABLE
TAP
CONNECTOR
WHITE HOSE
(NOTE: DRIP TRAY/SINK NOT SHOWN FOR CLARITY)
COLD TAP
OUTLET
HOSE 6mm
+ INSULATION
DISTANCE BETWEEN TAP AND HEATER
AS SHORT AS POSSIBLE TO ENSURE
CONNECTING PIPES RISE CONTIUOUSLY
3 BAR
PRESSURE REGULATOR
SUPPLIED
TEMP
SET
POWER
SWITCH ICE BANK
LEVEL
INDICATOR
8mm PIPE WATER IN
MINIMUM DISTANCE
BETWEEN UNITS
150mm

14
9.0 INSTALLATION – ELECTRICAL REQUIREMENTS
9.1 WARNING: This appliance must be earthed. It is suitable for a 230 / 240 V ~
SUPPLY ONLY.
9.2 Installation must be carried out by a competent electrician in accordance with the latest
edition of BS 7671 (the IEE Wiring Regulations).
9.3 The Aquatap heater is supplied with a 1.2 metre mains cable tted with a 3-pin UK
moulded mains plug. The electrical supply must be via a double pole isolating switch with
a contact separation of at least 3mm in both poles. The electrical supply should be fused
13A.
If a chiller is also being used this should be plugged into an adjacent 13A socket as g. 8,
page 13. Note: The chiller is supplied with a power cable tted with a 3 pin plug.
9.4 The Aquatap dispensing tap must be connected to the Aquatap unit by means of
the black sheathed control cable. The cables from each unit are terminated in a mating
plug and socket rotate and align the plug correctly. This connects the plug and socket
which should be pushed rmly together for connection.
9.5 Schematic wiring diagrams of the Aquatap variant installation are shown in g. 7,
page 12, g. 8, page 13 and g.10, page 16.
9.6 If the Aquatap is not used for signicant periods of time, running costs can be
reduced by switching the unit off. It is recommended that this is done automatically by
incorporating a suitable time switch in the electrical supply to the unit. A suitable time
switch is available as an accessory (product code 95970124) which can be set to switch
the unit on, a period of time should be allowed (approximatly 1/2 hour) for the Aquatap to
reheat before it is next used.
Note: If selecting an alternative time switch, it must be capable of switching a
13 amp resistive load.

10.0 COMMISSIONING
10.1 The Aquatap heater incorporates an electronic controls system which has a self-
commissioning and calibration function. No installer or user adjustment is necessary
before use.
10.2 Check that all electrical, water and vent pipe connections have been correctly made and
are secure (ensure the pipes between the heater and the dispense tap rise continuously).
10.3 To remove the main cover, unscrew the fascia securing screw and remove the fascia.
Remove the two top cover securing screws and four cover securing screws. The cover
can now be pulled back from the heater assembly. Caution should be taken here as the
two LED’s are attached to the main cover. Pull the cover back to allow enough access to
the LED wires and slide the LED’s from the slots in the cover to allow main cover
removal. Ret the cover in reverse sequence. When replacing the two LED wires
make sure the LED with the orange wire is at the top and the LED with the blue wire is at
the bottom.
10.4 If the cover has been removed, this should be replaced and secured with the supplied
xing screws (see g. 11, page 17). Turn on the water and electrical supplies to the
Aquatap heater.
10.5 Once commissioned, it is advisable to insulate both hot and cold hoses.
DO NOT USE THE AQUATAP UNTIL COMMISSIONING IS COMPLETE
15

16
FIGURE 10: WIRING DIAGRAM
PUMP
TRANSFORMER
SOLENOID VALVE
LEVEL
SENSOR
(TOP)
LEVEL
SENSOR
(BOTTOM)
LEVEL
SENSOR
(EARTH)
TERMINAL
BLOCK
CONTROL PCB
P2
P3
J13
J5
P1
J
10 6 4 3 12 9 2 1
J5 - PIN 1
J5 - PIN 2 09V
THERMAL
CUT-OUT
L N
230V
10
9
87
65
4
3
21
- LEVEL SENSOR (TOP)
- LEVEL SENSOR (BTM)
- SPARE
- SPARE
- THERMISTOR (TOP)
- THERMISTOR (BTM)
- ANTI-SCALE LOOP
- THERMISTOR (TOP)
- THERMISTOR (BTM)
}
J5
8
7
6
5
4
3
2
1
TOP
P2
65
43
21
TOP
LINK BETWEEN PINS 1 & 6
J13
4
3
2
1
TOP - POWER LED ORANGE
- POWER LED BLACK
- READY LED BLACK
- READY LED BLUE
P3
ELEMENT
NOTE: SOME INTERNAL EARTH LINKS
NOT SHOWN FOR CLARITY. ALL EARTH
LINKS MUST BE SECURELY FASTENED
TO AN EARTHING POINT
230 - 240V~
P1 - TRANSFORMER 9v CONNECTION
P2 - PCB LINK CONNECTIONS (P2 - J4 )
P3 - LED WIRING CONNECTOR
J5 - TEMPERATURE & LEVEL CONTROL
CONNECTOR
J13 - LINK CONNECTOR
J3 - TAP DISPENSER CONNECTOR
J4 - PCB LINK CONNECTOR (J4 - P2)
PCB PLUG FUNCTIONS
- BLACK
1 A
J3
J4
10 9 8 7 6 5 4 3 2 110 9 8 7 6 5 4 3 2 1
- RED
- PURPLE
- BLACK
- BROWN
- WHITE
- YELLOW
- BLUE
- GREEN
8
7
6
5
4
3
2
1
- BLACK
J3
J4
- ORANGE
- GREY
COLD / AMBIENT
CONTROL PCB
COLD / AMBIENT
SOLENOID VALVE
Red
Black

17
10.6 The “TEMPERATURE READY” indicator light on the Aquatap heater unit and the
“READY” LED on the dispenser tap will ash. This indicates that the unit is in the self-
commissioning mode. Whilst in this mode, the water will not be hot enough for use. Do
not draw any water off during the self - commissioning mode.

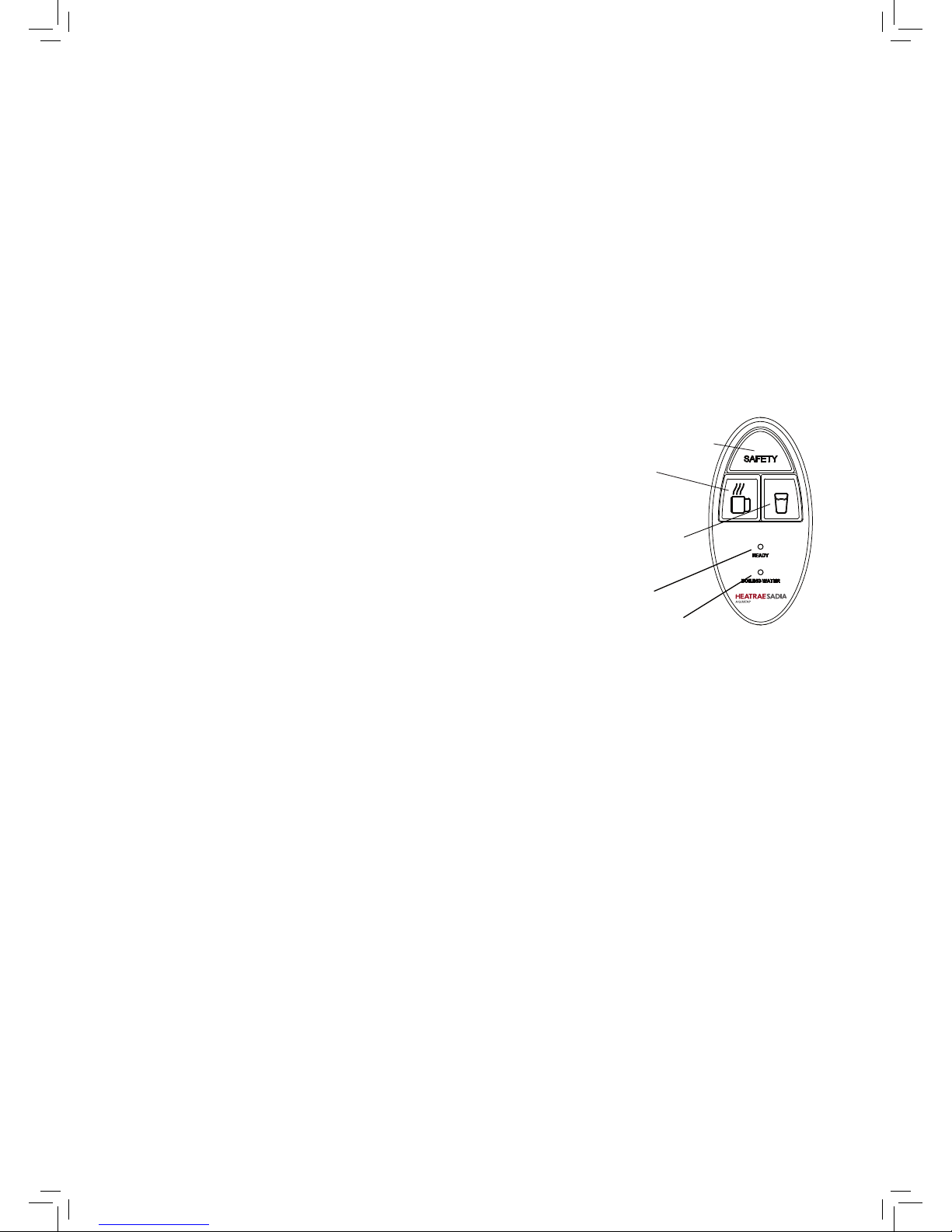

READY LED
BOILING WATER
LED
FIGURE 12 : LED POSITIONS (DISPENSER)

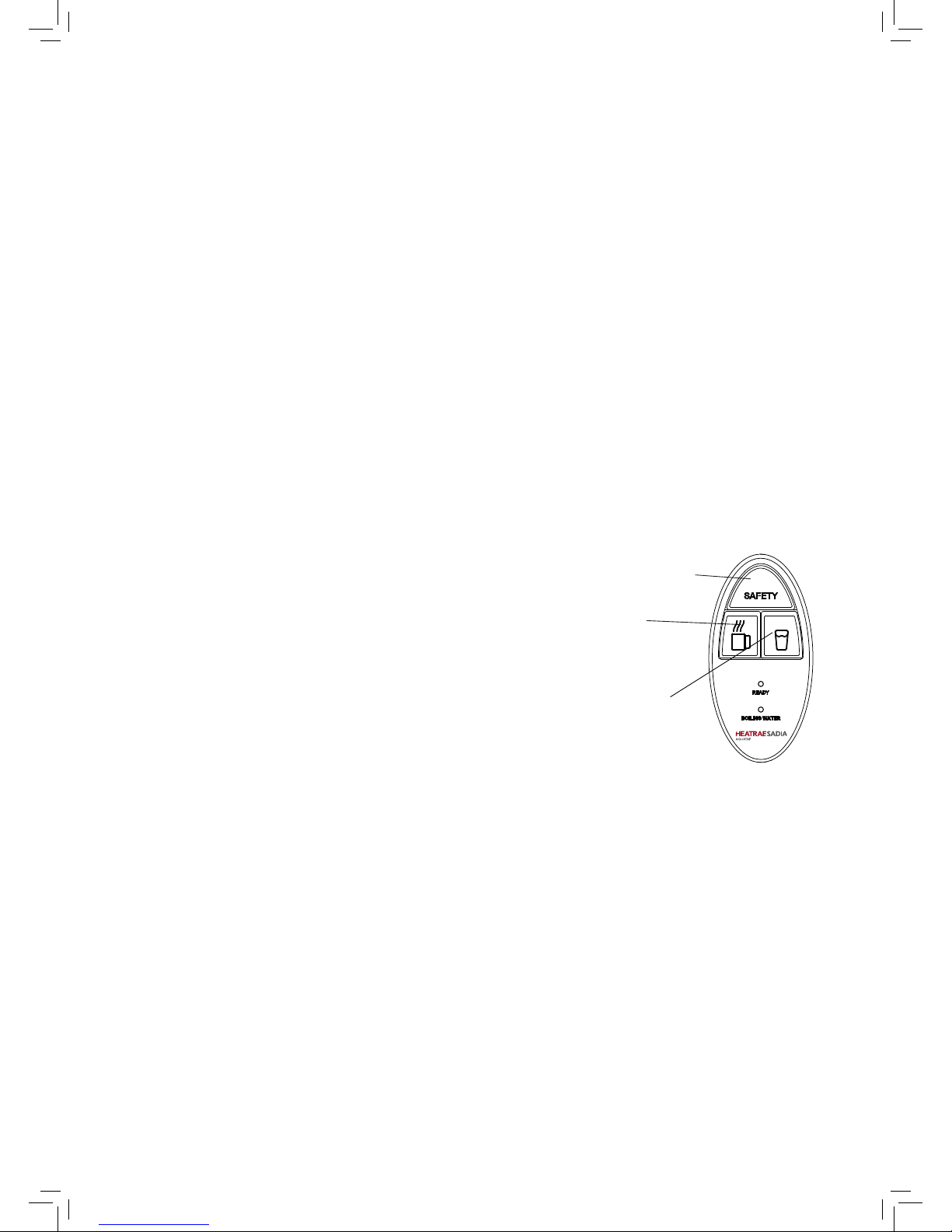

SAFETY BUTTON
HOT WATER
BUTTON
CHILLED/AMBIENT
WATER BUTTON
FIGURE 11 : FRONT COVER REMOVAL
FASCIA
SECURING
SCREW
COVER
SECURING SCREWS
HOOK TOP EDGE
OF FASCIA INTO
COVER
APERTURE
TOP COVER
SECURING
SCREWS
MAIN COVER
BLUE LED (BOTTOM)
ORANGE LED (TOP)

10.7 The “READY” indicators will continue to ash until the heater unit is full and has self -
calibrated to the correct boiling temperature. At this point, the “READY” indicators will
stop ashing and remain illuminated. If the calibration procedure is interrupted the light
will continue to ash until the unit has calibrated. Wait until the ready indicators remain
illuminated before use.
Do not draw any water off during the self - commissioning mode.
10.8 The Aquatap heater unit and dispenser tap should now be ushed to remove any
installation residues and pasteurise the surfaces in contact with the water.
10.9 To dispense hot water press the button marked “SAFETY” on the dispenser tap (the
safety button must be released before the dispense button can be activated. You have a
5 second window in which to start dispensing) followed by the HOT water button (red).
The hot water dispensing button must remain pressed for the water to ow. If released,
it will be necessary to press the “SAFETY” button again before more water can be dis
pensed. To dispense chilled/ambient water, press the CHILLED/AMBIENT button (blue).
The safety button does not have to be pressed for chilled/ambient water. If both the
CHILLED/AMBIENT and HOT water buttons are
pressed simultaneously the CHILLED/
AMBIENT button will always take preference.
10.10 Following ushing, it is recommended that the
power is switched off and the Aquatap casing
removed to check for any internal leaks.
Always disconnect the electrical supply
before removing the cover.
If there are no leaks evident, replace and secure
the front casing. Switch on the electrical supply.
The “READY” indicator will illuminate on the Aquatap unit and
dispenser tap. The “READY” indicators will ash for a short time as the unit re-calibrates
and checks the correct ll level. When the “READY” indicators stop ashing and remain
solid, the Aquatap unit will be ready for use.
10.11 After commissioning, the following should be explained to the user:
• Correct operation of the Aquatap water heater and dispensing tap.
• Advise the position of the water and electrical isolation points.
• How to identify if there is a malfunction of the unit. Explain that in the event of a
malfunction of the unit or dispenser tap, any maintenance or servicing must only
be carried out by a competent installer.
• Explain the necessity for regular maintenance of the system to ensure continued
safe and efcient operation.
• Draw the users attention to section 11.0, page 19 of these instructions which
detail the correct use of the system.
SAFETY BUTTON
HOT WATER
DISPENSING BUTTON
FIGURE 13 : OPERATING BUTTONS
CHILLED/AMBIENT
WATER DISPENSING
BUTTON
18

19
11.0 USER INSTRUCTIONS
11.1 Once installed and commissioned, the lling and heating cycles of the Aquatap are
completely automatic.The indicator lights on the dispensing tap will indicate the status
of the system. If the “READY” light is ashing this indicates that the unit is
self-calibrating. The Aquatap will enter this mode after any period of the electrical
supply being switched off. DO NOT draw off water whilst the “READY” light is
ashing. When the “READY” light stops ashing and remains illuminated, the unit will be
ready to dispense boiling water.
11.2 Hot water drawn from the dispensing tap will at all
times be close to boiling point so due caution must
be taken when using the product, especially if it is
likely to be used by children, aged or inrm persons.
11.3 Hot water cannot be dispensed unless the safety
lock is turned off. The button marked “SAFETY”
should be pressed before the hot water dispensing
button.The dispensing button must be held in the
pressed position to continue dispensing. If it is
released, the “SAFETY” button must be pressed
again before more hot water can be dispensed.
If either the HOT button or CHILLED/AMBIENT button is pressed, the other button will
not activate.
11.4 Ambient/chilled water is dispensed by pressing the CHILLED/AMBIENT water
dispensing button. The safety button does not need to be pressed for dispensing
chilled/ambient drinking water.
11.5 In the unlikely event that the full store of hot water is completely drawn off from the
Aquatap, the pump will stop and ow from the dispenser will be interrupted. Should
this happen, the “READY” indicator will ash. After a few minutes, the unit will have
re-lled to a level where hot water can again be drawn off. This will be indicated by the
“READY” indicator remaining lit. If air becomes captive in the pump, operate the dispense
sequence to remove the air trapped in the pump. It does not indicate a fault with the
heater.
11.6 If the Aquatap is not used for a few days, the stored water may become “stale”. In
these instances it is advisable to draw off and discard the entire contents to ush
through the “stale” water. This will ensure that freshly boiled water is available for
dispensing.
11.7 Occasionally some scale residue may be drawn from the unit with the dispensed water
which could cause the water to appear “milky” for a short while. This is completely
harmless and will quickly clear if left to stand. Alternatively a few cups of water can be
dispensed and discarded until the water ows clearly.
BOILING WATER
LED
READY LED
FIGURE 14 : LED POSITIONS
SAFETY BUTTON
HOT WATER
DISPENSING BUTTON
CHILLED/AMBIENT
WATER DISPENSING
BUTTON
10.12 The commisioning record should be completed (see section 15.0, page 31).
10.13 These instructions should be left with the user for future reference.

12.0 MAINTENANCE
Note: Any maintenance on the Aquatap water heater, dispensing tap or SuperChill 30B
must be carried out by competent persons. A competent person will be trained, experi-
enced and qualied to work with this type of appliance.
Always disconnect the electrical supply before removing the cover.
Any water contained in the water heater may be very hot. Exercise caution when
removing.
Warning: The electronics control by switching the neutral (N). In some
instances, neutral terminations will be at 230 - 240V~ with respect to earth.
12.1 The Aquatap incorporates an electronic scale conditioning function which will reduce the
rate of scale deposition in hard water areas. However, some deposits may still occur in
the storage tank; these should be periodically removed.
12.2 The amount of usage of the unit will also determine the quantity of scale build up. A
regular inspection of the tank every 6 to 12 months will provide longer life of the product
and optimum performance (removal of the steam plate assembly will give access to the
storage tank).
12.3 Periodic cleaning of the screen vent lter within the inlet pipe will prevent debris
collecting which could result in reduced performance.
20
Indication Description
Boiling water light (dispenser) Steady - when dispensing water
Ready light (dispenser) Flashing - unit commissioning wait
Steady - normal operation use
Off - unit too cold wait
Power light (heater) Steady - normal operation use
Ready light (heater) Flashing - unit commissioning wait
Steady - normal operation use
Off - unit too cold wait
PCB LED’s
Operating
Indication
LED 1 - Water level - Off indicates empty / below L0
Flashing indicates level between L1 and L2
On steady indicates full / level L2
LED 2 - Solenoid operating
LED 3 - Heating elements operating
LED 4 - Thermistor fault
Normal Operation
