Heatrae Sadia B3 M Guide

B3/C3 M RANGE
1
Installation and User Instructions
for the
B3/C3 M Range
Wall Mounted Vented Water
Heaters
HEAHEA
HEAHEA
HEATRAE SADIATRAE SADIA
TRAE SADIATRAE SADIA
TRAE SADIA
The quality name in water heating
Please read and understand these instructions before starting
work.
Please leave this leaflet with the user following installation
36 00 5722 Issue 1

2
Please read and understand these instructions prior to installing your B3M or C3M
vented water heater. Particular attention should be paid to the section headed
IMPORTANT INSTALLATION POINTS. Following installation and commission-
ing the operation of the heater should be explained to the customer and these instruc-
tions left with them for future reference.
TECHNICAL SPECIFICATIONS
Electrical rating ................................................... 2.75/3.0kW 230/240V
Capacities ............................................................ B3M - 30 litres
............................................................................. C3M - 50 litres
Weight (full) ........................................................ B3M - 42.5kg
............................................................................. C3M - 69.3kg
Rated pressure (Open Outlet) .............................. 0 bar
Rated pressure (Max. head pressure Cistern Fed)
............................................................................. 2 bar (20 metres)
Minimum recommended supply pressure ........... 0.4 bar (4 metres)
COMPONENT CHECK LIST
Before commencing installation check that all the following components have
been supplied in the Installation Kit.
zOpen Outlet Spout
zInlet Valve
zWhite 1/2” x 15mm Push Fit Spout Adaptor
zWhite 15mm Push Fit Cap
zWhite 15mm x 22mm Push Fit Straight Connector
zWall mounting bracket set
zSelf adhesive Levelling Feet (2 off)
zMoulded plastic Spacer
1.0 IMPORTANT INSTALLATION POINTS
1.1 The B3M and C3M vented water heaters are designed to be wall mounted.
Ideally they should be mounted close to where hot water is required most fre-
quently. Pipe runs should be kept to a minimum.
1.2 The B3M or C3M can be installed either as an Open Outlet or Cistern Fed type
unit when used with the appropriate fittings.
1.3 Install only as an OPEN OUTLET or CISTERN FED unit, failure to do so
will invalidate any guarantee and may lead to a dangerous installation.

B3/C3 M RANGE
3
2.0 INSTALLATION - GENERAL REQUIREMENTS:
2.1 National Wiring rules may contain restrictions concerning the
installation of these units in bathrooms.
2.2 The unit should be vertically wall mounted using the wall bracket
and levelling feet provided (see Section 3.0 INSTALLATION -
WALL MOUNTING). The inlet and outlet water connections must
always be to the bottom of the unit.
Diagram 1 Dimensions
1.4 OPEN OUTLET INSTALLATION
When installed as an Open Outlet water heater the outlet acts as
a vent and must not be connected to any form of tap or fitting
not recommended by Heatrae Sadia.
Only one outlet can be served via an Open Outlet type tapset.
1.5 CISTERN FED INSTALLATION
When installed as a Cistern Fed water heater the cold water
supply must be from a feed cistern complying with Water
Byelaw 30.
A vent pipe must be connected to the outlet of the heater. The
vent pipe must rise continuously and be arranged to discharge
into the cold water feed cistern.
The vent pipe must have a minimum bore of 19mm.
More than one conventional tap can be supplied.
C3 MB3 MDim e n s io n
888616A
937665B
977705C
778506D

4
3.0 INSTALLATION - WALL MOUNTING
3.1 Using Diagram 1 and the Dimensions Table as a guide mark the position of the
wall mounting bracket and lower location point. Drill and plug the wall with
suitable fixings, fix the wall bracket to the wall.
3.2 Fit the heater wall bracket to the rear of the unit using the screws provided
ensuring the central location bolt is pointing towards the bottom of the unit.
3.3 Remove the backing paper from the self adhesive pads of the Levelling Feet and
affix them to the lower back of the unit in the approximate positions shown on
Diagram 2.

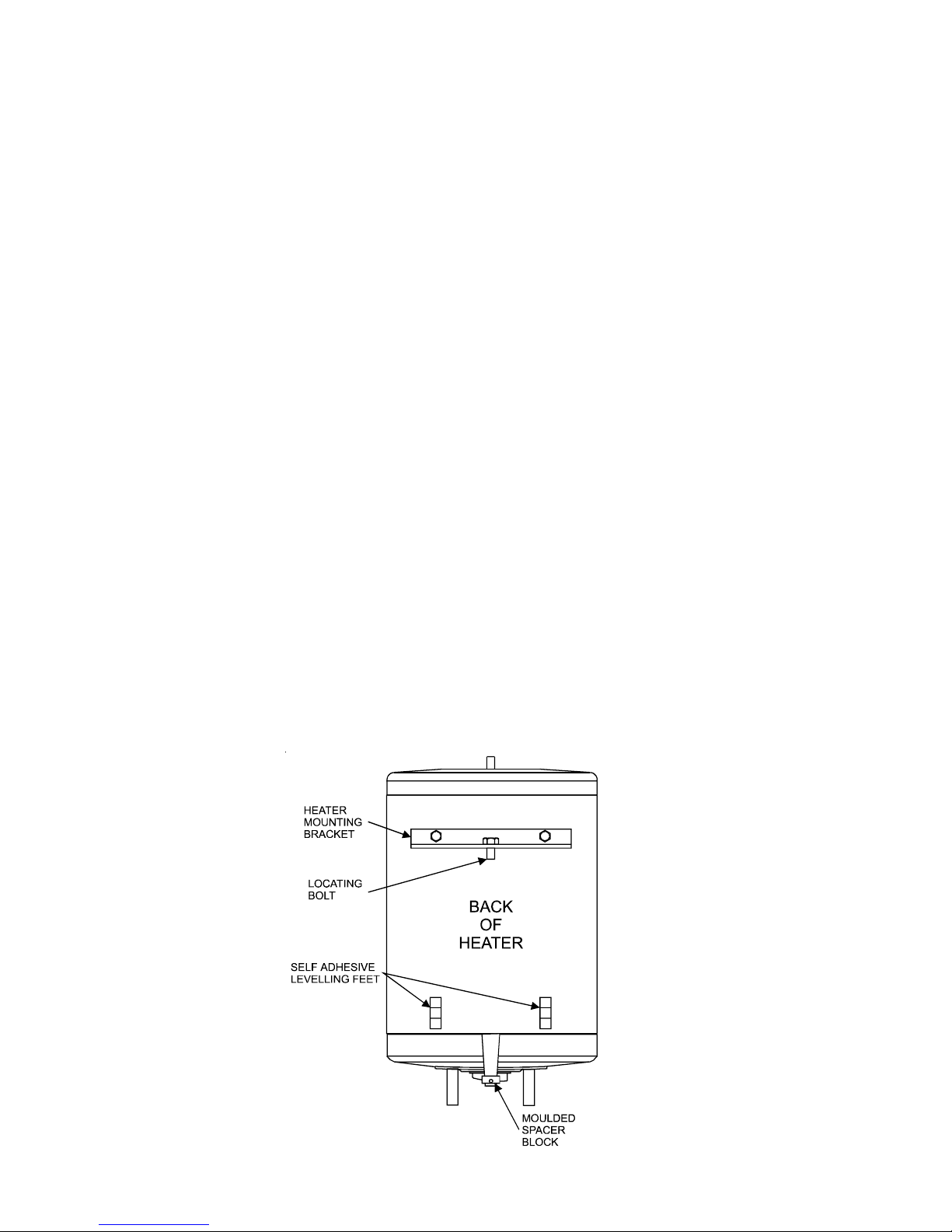

Diagram 2 Bracket and Levelling Feet
Positions
2.3 Enough space should be left below and at the top above the unit for pipe connec-
tions. Refer to Diagram 1 and the Dimensions Table to determine a suitable
position for the heater.
2.4 NOTE: Ensure that the wall can support the full weight of the unit (see TECHNI-
CAL SPECIFICATIONS) and that there are no hidden services (electricity, gas,
or water) below the surface of the wall.
2.5 DO NOT install where the unit may freeze.
2.6 Refer to the section IMPORTANT INSTALLATION POINTS to determine which
valves and accessories are required.
2.7 The water connections are 15mm diameter copper tubes suitable for compression
fittings. Do not use solder joints as this will damage the heater.
2.8 The INLET is marked BLUE, the OUTLET is marked RED. It is recommended
that a WBS Listed isolating valve be fitted on the cold water supply to the heater.
2.9 Plumbers Paste must not be used as it can impair the operation of components.

B3/C3 M RANGE
5

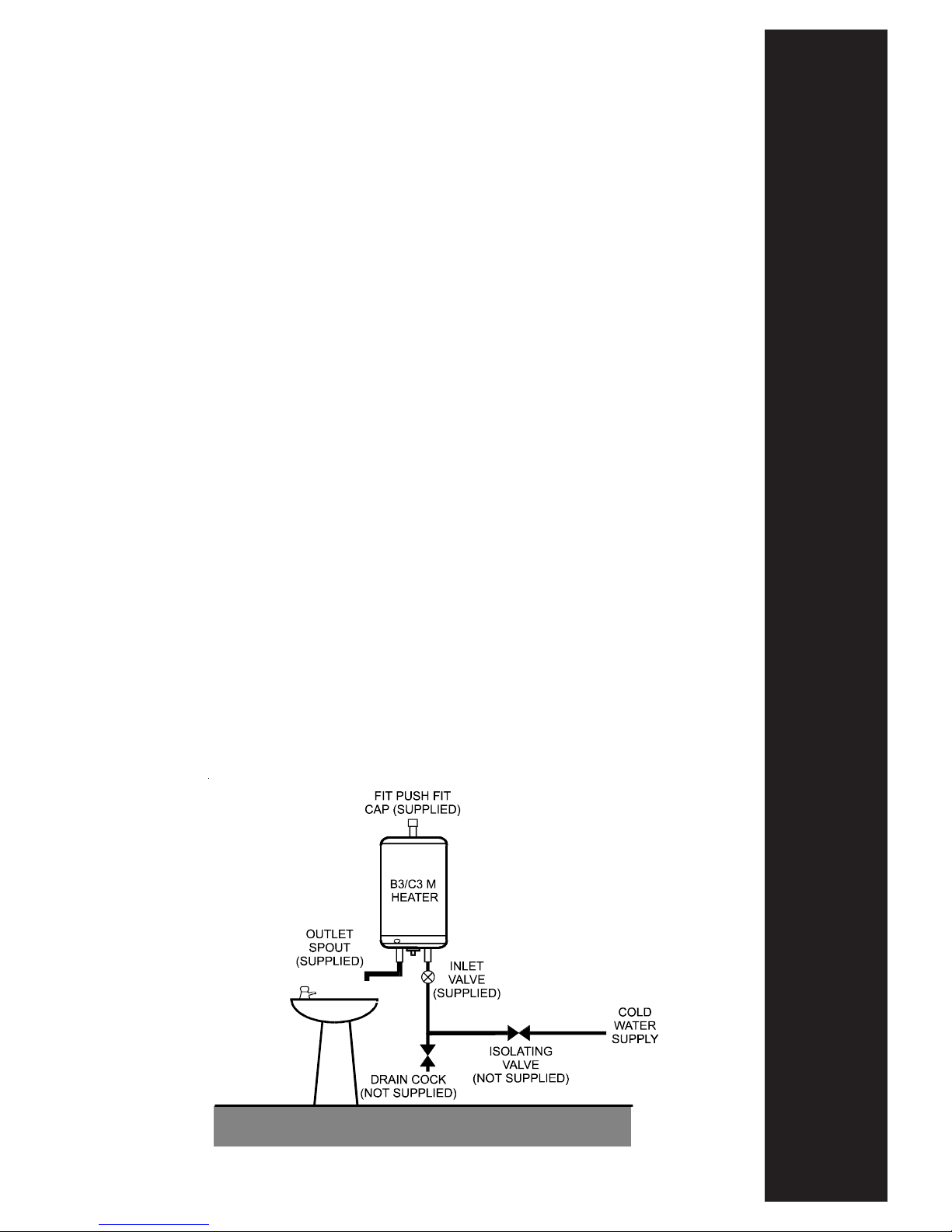

Diagram 3 Typical Open
Outlet installation
4.0 INSTALLATION - OPEN OUTLET
4.1 When installed as an Open Outlet water heater the outlet acts as
a vent and must not be connected to any form of tap or fitting
not recommended by Heatrae Sadia.
4.2 Only one outlet can be served. The fittings supplied include an Inlet
Tap, 300mm Open Outlet Spout, a 15mm x 1/2” straight Push Fit
connector and a 15mm Push Fit cap. The heater should be sited so
that the spout can discharge into a suitable sink or basin.
4.3 Streamline option packs J, K, M, P, Q, R or S can be used in place
of the spout to provide a single tap outlet. Flow rates will be at a
reduced rate. Note: item 4.7
4.4 The cold water supply may be taken from the cold water mains or
from a cold water feed cistern complying with Water Byelaw 30
with a minimum recommended pressure of 0.4 bar (4 metres head).
A drain cock should be incorporated in the supply to facilitate
draining the heater for maintenance.
4.5 The inlet tap should be fitted to the INLET pipe of the heater. The
inlet must not be connected directly to the cold water mains
supply. The Outlet Spout should be fitted to the OUTLET pipe
using the 15mm x 1/2” straight push fit connector supplied in the
fittings kit.
3.4 Hang the unit on the wall mounting bracket ensuring the location
bolt locates in the hole in the wall bracket. Position the moulded
spacer block between the tab on the bottom cover moulding and the
wall. Insert a No. 10 x 2 1/2”long screw through the tab and spacer
block and tighten into wall plug.

6
Diagram 4 Typical Cistern Fed installation
5.0 INSTALLATION - CISTERN FED (LOW PRESSURE)
5.1 This method of installation must be used if the outlet is to be connected to one or
more conventional taps. It is not recommended for supplying a shower. Indi-
vidual site demands should be considered when choosing the number of outlets to
be served.
5.2 A vent pipe must be connected to the outlet connection of the heater.
The vent pipe must have a minimum internal diameter of 19mm.
The vent pipe must be unobstructed, rise continuously and be arranged to
discharge over the cold water feed cistern.
DO NOT connect any pressure relief device to the vent pipe of this water
heater.
4.6 The 15mm Push Fit Cap, with tamperproof collet, must be fitted to the Vent Pipe
on the top of the heater.
4.7 In an Open Outlet installation it is normal for the spout to drip during heating.
This is due to expansion of water as it is heated within the unit, it does not
indicate a fault. DO NOT attempt to stop this dripping by over-tightening the
inlet tap as damage to the sealing washers or internal operating mechanism will
occur.

B3/C3 M RANGE
7
Wiring Diagram
5.3 The cold water supply must be from a cold water feed cistern
complying with Water Byelaw 30. The maximum head pressure
must not exceed 20 metres.
5.4 It is recommended that a WBS Listed isolating valve is fitted on the
cold water supply to the heater. A drain cock should be fitted on the
inlet pipe to the heater at a level lower than the unit to allow
draining for maintenance.
5.5 The inlet must not be connected directly to the cold water mains
supply.
5.6 The Vent Pipe should be connected to the top of the heater using the
15 x 22mm Push Fit Straight Connector supplied.
6.0 INSTALLATION -
ELECTRICAL REQUIREMENTS
WARNING: This appliance must be earthed. It is suitable for a.c.
supply only. Disconnect the electrical supply before removing the
terminal cover. Installation must be in accordance with the current
I.E.E. Wiring Regulations.
6.1 The unit is supplied fitted with a 1.0m 3 core 1.5mm2flexible cable.
The electricity supply should be fused 13 Amp for a 3kW model
and be via a double pole isolating switch with a contact separation
of at least 3mm in both poles. Refer to the schematic wiring dia-
gram below.
6.2 The wires are colour coded as follows:
Green and Yellow EARTH ( )
Brown LIVE (L)
Blue NEUTRAL (N)

8
7.0 COMMISSIONING
7.1 Do not switch on the electrical supply until the unit has been filled with water
and checked for leaks.
7.2 Check that all installation and electrical requirements have been met.
7.3 Check that all water and electrical connections are tight.
7.4 Open a hot water tap, if fitted, and turn on cold water supply to the heater.
7.5 Allow unit to fill and leave hot outlet to run for a short while to purge any air and
flush out the pipework. Close the hot tap and check the system for leaks.
7.6 Switch on the electrical supply. The indicator light will illuminate during
heating. When the set temperature is reached the indicator light will go out.
7.7 The set temperature can be adjusted by rotating the knob located in the terminal
cover. It is possible to lock the thermostat knob in either the mid-range or a “hot”
position by following the procedures in 7.9 or 7.10 below. Always switch off the
electrical supply before removing the terminal cover.
7.8 Setting the “mid-range” position:
Rotate the thermostat knob to the mid position. Remove the terminal cover by
using a large flat bladed screwdriver to depress the four snap lugs located in the
four rectangular depressions around the cover. Holding the thermostat knob in
position turn the terminal cover over and remove the backing disc from the
underside of the cover. Turn the backing disc over and refit to the knob ensuring
the notch locates with the boss on the underside of the cover. Refit the terminal
cover, the thermostat will now be locked in the “mid-range” position.
7.9 Setting the “hot” position:
Rotate the thermostat knob to mid way through the hot graduated range (red
graphic). Follow the procedure detailed above, however in this case the knob
should be held in the “hot” position previously set. When the terminal cover has
been refitted the thermostat will be locked in the “hot” position.
8.0 MAINTENANCE - DESCALING
Little maintenance is required, however in hard water areas the unit will require
periodic descaling to ensure efficient operation. To descale the unit:
8.1 Switch off and disconnect the electrical supply. Turn off the water supply to the
unit.
8.2 Open a hot tap, if fitted, to relieve any system pressure. Empty unit by opening
the drain cock in the inlet pipework.
8.3 Remove the terminal cover by using a large flat bladed screwdriver to depress the
4 snap lugs located in the 4 rectangular depressions on the bottom cover.

B3/C3 M RANGE
9
9.0 SPARE PARTS
The following comprehensive list of spare parts is available for your
B3M or C3M water heater. Please refer to the Rating Label on the side
of your heater before ordering to ensure the correct spare part is ob-
tained.
DO NOT REPLACE WITH PARTS NOT RECOMMENDED BY
HEATRAE SADIA - THIS WILL INVALIDATE YOUR GUARAN-
TEE AND MAY RENDER THE INSTALLATION DANGEROUS.
DESCRIPTION CODE NO.
Element plate assembly - 30/50 litre 3kW .......... 95 606 926
Thermostat........................................................... 95 612 667
Thermal cut-out ................................................... 95 612 666
Indicator light ...................................................... 95 607 995
Element plate gasket ........................................... 95 611 811
Terminal cover c/w thermostat knob .................. 95 614 184
15mm Push Fit Cap Nut...................................... 95 607 996
Spout and adaptor ............................................... 95 604 212
8.4 Disconnect the electrical terminations to the element. Disconnect
earth links to the earthing stud. Withdraw the thermostat and
thermal cut-out capillary tubes from the pocket on the element plate.
8.5 Remove the element plate assembly by unscrewing the five securing
screws, a tapped jacking hole is provided (NOTE: a quantity of
water may still be present in the container, it is recommended that a
container be placed under the unit to collect any spillage). Remove
any loose scale from the container. Carefully clean off any scale
from the element and thermostat pocket. DO NOT clean scale from
interior container walls.
8.6 Re-assemble the element plate assembly fitting a new sealing
gasket. Rewire the unit with reference to the Wiring Diagram.
8.7 Re-commission the unit following the INSTALLATION and
COMMISSIONING instructions.

10
ACTIONPOSSIBLE CAUSESFAULT
1. Check electrical supply1. Electrical supply faultWater not heating
h/hl
necessary replace
thermostat operation. If
operated reset and check
2. Check cut-out, if2. Thermal cut-out tripped
necessary
operation, replace if
3. Check thermostat3. Thermostat fault
replace.
resistance. If faulty
con tinuity and ins ulation
4. Check element for circuit4. Element fault
supply is on.
1. Check mains water
turned on
1. Cold water supply not
N
o water flow - General
2. Check for obstructions.
supply
2. Blockage in cold water
connections to tapset
1. Check water
correctly installed
1. Open Outlet tapset not
Outlet installations
N
o water flow - Open
2. Check for obstructions.2. Blockage in tapset
1. Check for obstructions.1. Blockage in tapset
Fed ins tallations
N
o water flow - Cis tern
float valve.
Check operation of cistern
cistern tank is turned on.
2. Check water supply to2. Cistern tank empty
float valve.
Check operation of cistern
equal to outlet flow rate.
and that inlet flow rate is
cistern tank is turned on
1. Check water supply to
as outlet flow rate
1. Cistern not filling as fast
ins tallation s
reduces - Cistern Fed
Water flow gradually
necessary.
obstructions, clear as
2. Check vent pipe for2. Vent pipe blockage
NOTE: Use only Heatrae Sadia approved spare parts. Replacement of any parts with
components not recommended by Heatrae Sadia will invalidate the guarantee and
may render the installation dangerous.
10.0 FAULT FINDING
Disconnect the electrical supply before removing the terminal cover. It is recom-
mended that any service operations on the B3M or C3M heaters are carried out by a
competent person.

B3/C3 M RANGE
11
11.0 USER INSTRUCTIONS
11.1 The B3M and C3M vented water heaters store water at the tem-
perature set on the adjustable thermostat. This can be set to give
temperatures in the range of 10 to 75oC. To avoid any risk of
freezing when the heater is not in use for long periods during the
winter months, do not switch off the electrical supply and set the
thermostat to its minimum position. N.B. This will not protect
other system pipework.
11.2 The thermostat can also be locked in either the mid range or a
“hot” position. To lock the thermostat position the instructions
given under Sections 7.8 and 7.9 should be followed. We recom-
mend that this procedure is carried out by a qualified electrician.
11.3 The indicator light will be illuminated when the unit is heating.
11.4 To ensure the heater continues to operate at its optimum perform-
ance it should be periodically maintained in accordance with the
instructions given under the Section headed MAINTENANCE.
11.5 IMPORTANT NOTES TO USER
OPEN OUTLET INSTALLATIONS
When installed as an Open Outlet water heater the outlet acts
as a vent and must not be connected to any form of tap or
fitting not recommended by Heatrae Sadia. The outlet of the
tap must not be restricted or blocked in any way.
In an Open Outlet installation it is normal for the hot outlet to
drip during heating. This is due to the expansion of water as it
is heated within the unit, it does not indicate a fault with the
unit. DO NOT attempt to stop this dripping by over-tightening
the inlet tap as damage to the sealing washers or the operating
mechanism will occur.

12
HEATRAE SADIA HEATING LIMITED
Hurricane Way
Norwich
NR6 6EA
Tel: [phone] General
[phone] Service
Fax: [phone]
HEAHEA
HEAHEA
HEATRAE SADIATRAE SADIA
TRAE SADIATRAE SADIA
TRAE SADIA
The quality name in water heating
GUARANTEE
This water heater is guaranteed for a period of two years from the date of purchase
provided:
1. The unit has been installed in accordance with these instructions and all neces-
sary controls and valves have been fitted correctly.
2. Any valves or controls are of Heatrae Sadia recommended type.
3. The unit has not been tampered with and has been regularly maintained as
detailed in these instructions.
4. The unit has been used only for heating potable water.
The unit is not guaranteed against damage by frost or due to the build up of scale.
This guarantee does not affect the statutory rights of the consumer.
ENVIRONMENTAL INFORMATION
This product is manufactured from many recyclable materials. At the end of its useful
life it should be disposed of at a Local Authority Recycling Centre to realise the full
environmental benefits.
