HECKLER H730 User manual

H730 - Heckler AV Cart for
Logitech Rally Bar
Supports displays with a VESA 400 horizontal
mounting pattern, and up to 300 pounds of total
display weight. Recommended for use with
50-inch to 75-inch displays.
Designed & made in Arizona
Patented

If you have any questions, please contact Heckler.
[e-mail]
844-432-5930
To reduce the risk of severe injury or death to persons,
or damage to equipment, review these installation safety
steps before proceeding:
A minimum of two people should install the display to the cart.
Caster brakes should be applied during the installation of the display.
Do not over-tighten the wingnuts when mounting the display.
Do not exceed 300 pounds of total display weight.
Whenever rolling the cart with a large display installed, two people
should guide the cart to prevent wall and doorframe collisions, and
tripping on sidewalk expansion joints.
1.
2.
3.
4.
5.

QUICK START
1. In the box 2. Assemble the cart base
5. Install Tap 6. Organize cables
3. Install the display
4. Install Rally Bar/Rally Bar Mini
or

ABC
D E F G H I J K L M N O
1
Front Base
1 x
Rear Leg
2 x
Display Rail
2 x
Socket Head Screw, 1/2"-13, 2.75" Long
4 x
Assembly Key, Hex, 3/8”
1 x
Set Screw, M8, 70mm Long
4 x
Wingnut, M8
4 x
Caster
4 x
Set Screw, M6, 70mm Long
4 x
Wingnut , M6
4 x
Rubber Spacer
4 x
Screw-in Cable Mount
8 x
Push-in Cable Mount
4 x
Pan Head Screw, 10-32, 0.25” Long
8 x
Cable Tie
8 x
Heckler AV Cart Base
Assemble the cart base
Install the display
Install above the display
Install below the display
Install Rally Bar/Rally
Bar Mini
Install Tap
Organize the cables
In the box

AB
J
J
2
Device Panel for Heckler AV Cart
1 x
Camera Adapter
1 x
Cart-mounting screws
2 x
Device-mounting thumb nuts
4 x
Camera-mounting screw
1 x
Camera-mounting key
1 x
Cart-mounting assembly key1 x
Device-mounting thumb screws
4 x
Cart-mounting thumb screws
2 x
Velcro for strapping devices. Two feet.
1 x
H702 Device Panel
Assemble the cart base
Install the display
Install above the display
Install below the display
Install Rally Bar/Rally
Bar Mini
Install Tap
Organize the cables
In the box

Control Shelf for Heckler AV Cart
1 x
Cart-mounting wingnuts
2 x
Cart-mounting screws
4 x
Velcro for strapping devices. 12 inches
1 x
Cart-mounting assembly key
1 x
H709 Control Shelf
3
Assemble the cart base
Install the display
Install above the display
Install below the display
Install Rally Bar/Rally
Bar Mini
Install Tap
Organize the cables
In the box

4
A
Cart Mount for Logitech Rally Bar
1 x
A
Bracket-mounting thumb screws
2 x
B
Bracket-mounting thumb nuts
2 x
C
H711 Cart Mount for Logitech Rally Bar
B
Assemble the cart base
Install the display
Install above the display
Install below the display
Install Rally Bar/Rally
Bar Mini
Install Tap
Organize the cables
In the box

STEP 1
Remove the wheels from all four casters.
5
Assemble the cart base
Install the display
Install above the display
Install below the display
Install Rally Bar/Rally
Bar Mini
Install Tap
Organize the cables
In the box

STEP 2
Install all casters.
6
Assemble the cart base
Install the display
Install above the display
Install below the display
Install Rally Bar/Rally
Bar Mini
Install Tap
Organize the cables
In the box

STEP 3
Reinstall caster wheels.
7
Assemble the cart base
Install the display
Install above the display
Install below the display
Install Rally Bar/Rally
Bar Mini
Install Tap
Organize the cables
In the box

STEP 4
Engage all caster brakes.
8
Assemble the cart base
Install the display
Install above the display
Install below the display
Install Rally Bar/Rally
Bar Mini
Install Tap
Organize the cables
In the box

STEP 5
Fasten Rear Legs to Front Base.
9
x2 x1
Assemble the cart base
Install the display
Install above the display
Install below the display
Install Rally Bar/Rally
Bar Mini
Install Tap
Organize the cables
In the box

STEP 6
Fasten Display Rails to Front Base.
x2 x1
10
Assemble the cart base
Install the display
Install above the display
Install below the display
Install Rally Bar/Rally
Bar Mini
Install Tap
Organize the cables
In the box

STEP 7

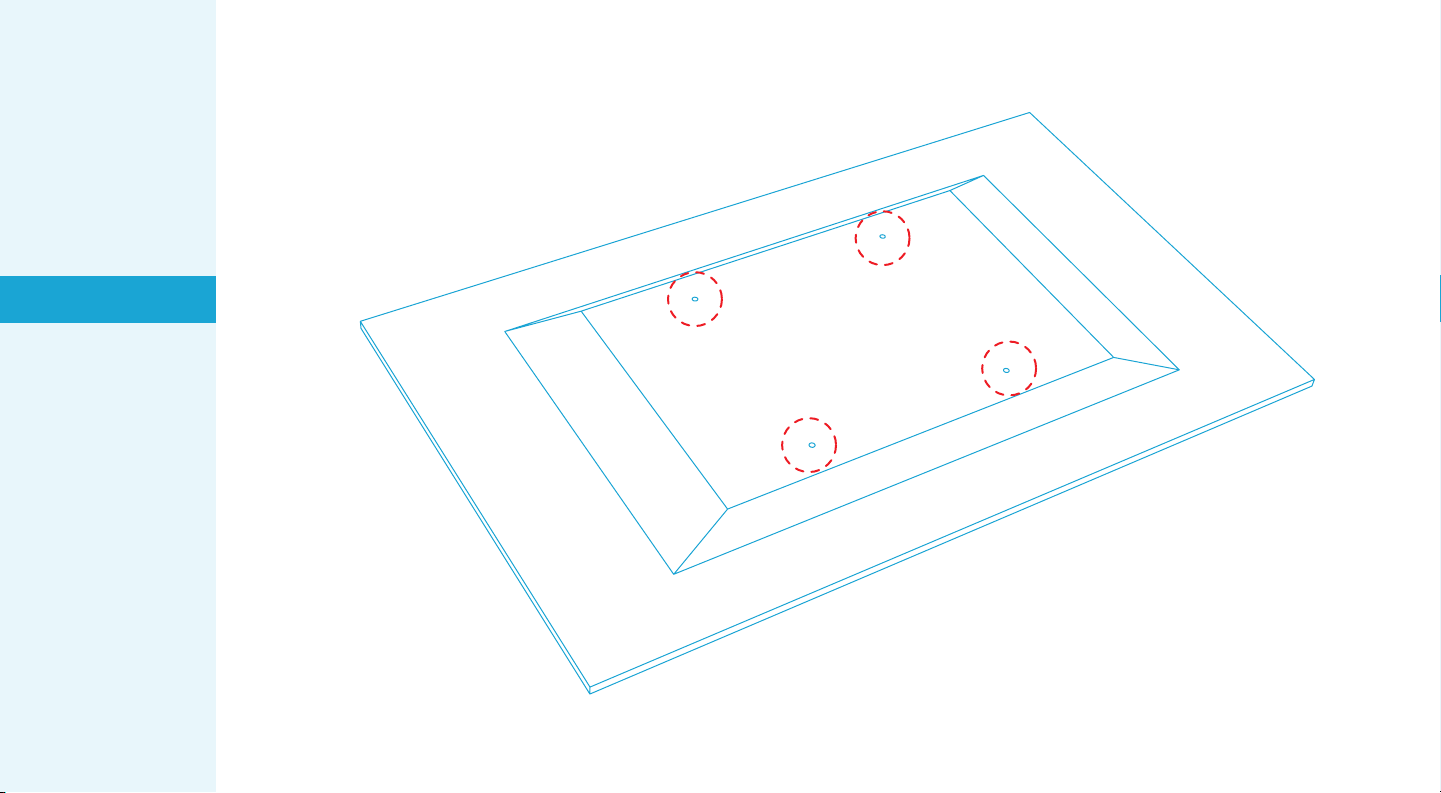

Determine whether your display has M8 or M6 mounting holes.
11
Assemble the cart base
Install the display
Install above the display
Install below the display
Install Rally Bar/Rally
Bar Mini
Install Tap
Organize the cables
In the box

Prepare the display-mounting hardware.
Insert the M6 or M8 set screws through the rubber spacers.
Position the set screw relative to the spacer as shown.
x4 x4 x4
M6 M8
Important Notes:
The set screws are a tight fit.
To push the set screw into the
spacer, place cardboard on a solid
surface then slowly and carefully
push the spacer onto the set screw.
1 inch(25mm)
STEP 8
12
Assemble the cart base
Install the display
Install above the display
Install below the display
Install Rally Bar/Rally
Bar Mini
Install Tap
Organize the cables
In the box

Fasten the mounting hardware to the display.
x4
Important notes:
Fasten the set screw into
the display at the depth
recommended by the
display manufacturer. Do
not over-tighten these
mounting screws.
Ensure the spacers rest
snuggly against the rear
surface of the display.
The hex drive of each set
screw should face away
from the display.
1.
2.
3.
STEP 9
13
Assemble the cart base
Install the display
Install above the display
Install below the display
Install Rally Bar/Rally
Bar Mini
Install Tap
Organize the cables
In the box

Note
x2x2 x4
M6
x4
M8
If your display feature a curved rear surface,
the display likely shipped with special mounting
spacers. If so, use the display manufacturer's
mounting spacers rather than the spacers
included with Heckler AV Cart Prime.
14
Assemble the cart base
Install the display
Install above the display
Install below the display
Install Rally Bar/Rally
Bar Mini
Install Tap
Organize the cables
In the box

Ensure all caster brakes are engaged.
STEP 10
15
Assemble the cart base
Install the display
Install above the display
Install below the display
Install Rally Bar/Rally
Bar Mini
Install Tap
Organize the cables
In the box

Install the display to
Display Rails by
fastening wingnuts.
STEP 11
x4
M8
x4
M6
16
Assemble the cart base
Install the display
Install above the display
Install below the display
Install Rally Bar/Rally
Bar Mini
Install Tap
Organize the cables
In the box

Install Tripp-lite power strip (not included).
OPTIONAL
17
T498
Assemble the cart base
Install the display
Install above the display
Install below the display
Install Rally Bar/Rally
Bar Mini
Install Tap
Organize the cables
In the box
