Heiman HM-622PS User manual

M212-1EVer1.0

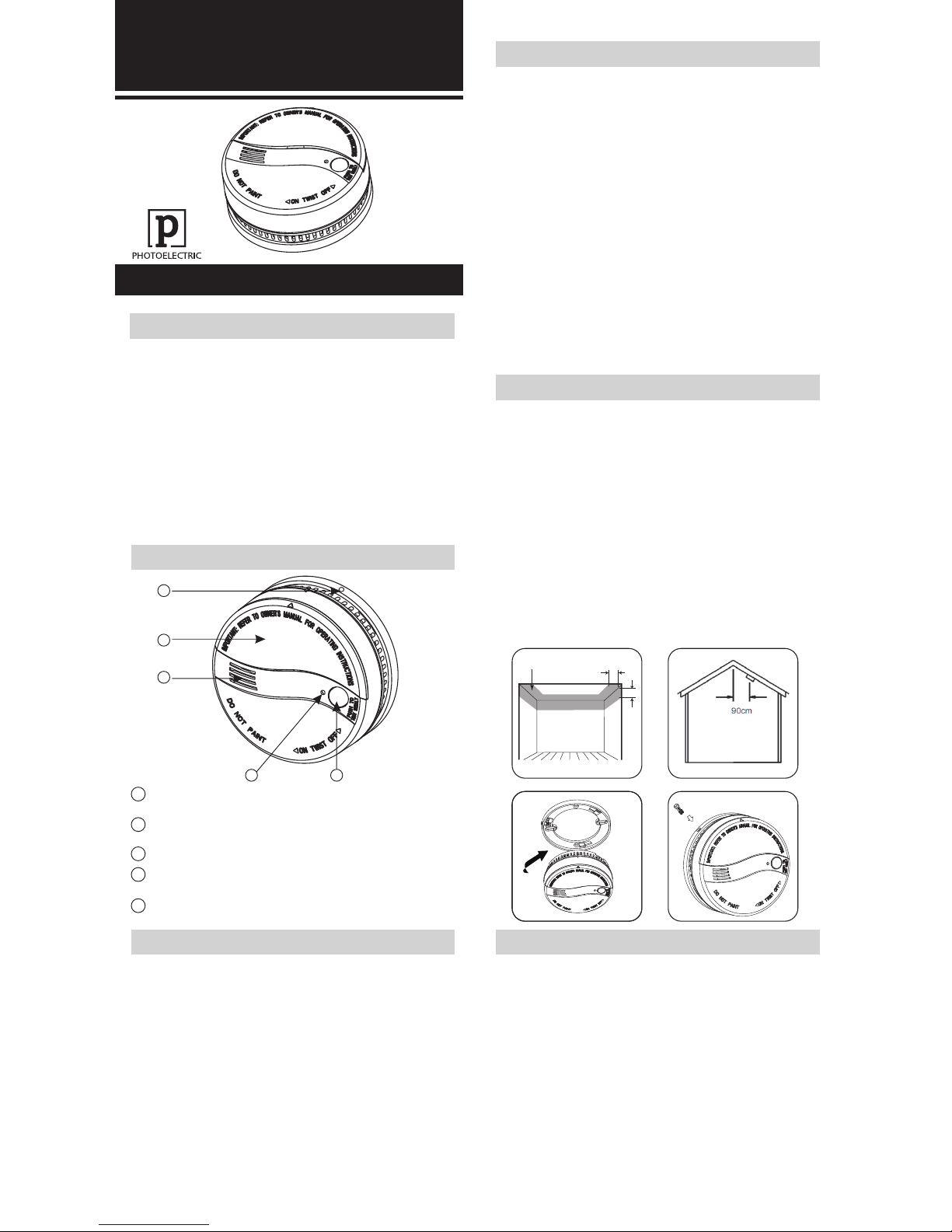

Battery Powered Photoelectric
Smoke Alarm User Manual
1 2
This product is a battery operated photoelectric smoke alarm,
adopting unique structure design and advanced photoelectric
sensor technology, able to monitor and detect smoke particles in
real time. Especially detects visible particles (associated with
smouldering fire) sooner than ionization alarms. Once smoke
particles or a fire danger is detected, this alarm will chirp and the
red LED will flash rapidly to alert you and your family timely.
Furthermore, this alarm has dustproof, mothproof and anti-light
interference etc. functions, ensuring stability from design basis
and suitable for early warning and protection of fires in houses,
factories, shopping malls, hotels, office buildings, school
buildings, banks, libraries and warehouses etc. indoor places.
2
1
3
4
5
Tamper R esist Locking P in - c ould b e installed in motor homes,
ships etc . quavering places.
Battery Compartment C over - o n t op surface. Battery
replacement i s v ery c onvenient
Buzzer - loud alarm sound > 85 decibel.
Test B utton verifies i f the smoke a larm i s o perating properly.-
RedL ED standby status, flashes once every 40s; alarm status,
flashes rapidly.
-
● Advanced photoelectric sensing technology; detects visible
particles (associated with smouldering fire) sooner than
ionization alarms.
● Convenient to install and maintain.
● Battery compartment on alarm top surface; battery
replacement is more convenient and has protection function
for reverse battery loading.
● Auto check malfunction.
● Low battery warning; smoke alarm will chirp once every 40s
to remind user of replacing a new battery.
● Auto reset.
● Sound and flash alarm; alarm sound louder than 85 decibel
with red LED flashing .
● Test button; tests unit’s electronic circuitry, buzzer and
battery function.
● SMT manufacture technology; high stability.
● Dustproof, mothproof and anti-white light interference design.
● Anti-RFI (20V/m-1GHz).
Power supply: DC 9V battery
Standby current: <12µA
Alarm current: <10mA
Alarm sound: >85dB (3m)
Sensor type: Photoelectric
Battery life after low battery warning: >30days
Temperature range: 0°C ~ 49°C (32°F ~ 120°F)
Humidity: 10%~90%RH (No icing or condensation)
Dimension: Φ95x41mm
Executive criteria: EN14604:2005; GB4715-2005; Ul217
Detecting area: 80m at 6-12m installation height;
60m at installation height <6m.
INSTALLATION
1.Avoid installations in places with stagnating smoke, heavy
dust, heavy water mist, heavy oil mist, great humidity (>95%)
and high wind speed (>5m/s).
2. Insert the battery correctly into the battery compartment
according to the marked positive and negative polarity.
3. Choose a proper position. Normally the center of the detection
area ceiling is recommended. If impractical, do not install the
detector in area without air flow (as Figure 1). For roof with
oblique beam, the ceiling is also oblique where the detector
should be installed at a position with 0.9m horizontal distance
to spire (as Figure 2). Fix the detector base into a chosen
position with screws. Then put the detector head into the
base and twist clockwise to fasten it (as Figure 3). At last,
plug in the tamper resist locking pin (as Figure 4).
Figure 3
Figure 2
Figure 4
15cm
15cm
Area without
air flow
Figure 1
1. Battery is equipped on delivery. Unpack the battery insulation
cement to active the battery before using.
2. After activating the battery, the smoke alarm enters into
normal monitoring status. The LED blinks once every 40s.
3. Sensitivity Test
To ensure normal operation, periodic tests should be
performed. Once a month is recommended. For testing, press
and hold the Test Button more than 3s to enter into sensitivity
test status. The alarm indicator will flash rapidly and buzzer
will give out alarm sound, which indicates the smoke alarm
works properly. During testing, keep ears away from the
smoke alarm to avoid hearing damage.
PRODUCT PROFILE
PRODUCT INTRODUCTION
TECHNICAL SPECIFICATION
FEATURES
OPERATING INSTRUCTION
2
1
3
45

4. Malfunction Check
When buzzer beeps once every 40s along with alarm indicator
flashing once rapidly, the battery voltage is lower than normal
operating voltage for the smoke alarm. Replace a new battery
in time for this situation. For battery replacement, pls refer to
Battery Replacement Instruction.
When buzzer beeps once every 40s without alarm indicator
flashing, the infrared photoelectric sensor has malfunction.
For this situation, contact with vendor on time. Do not
dismount or repair alarms privately to avoid accidents.

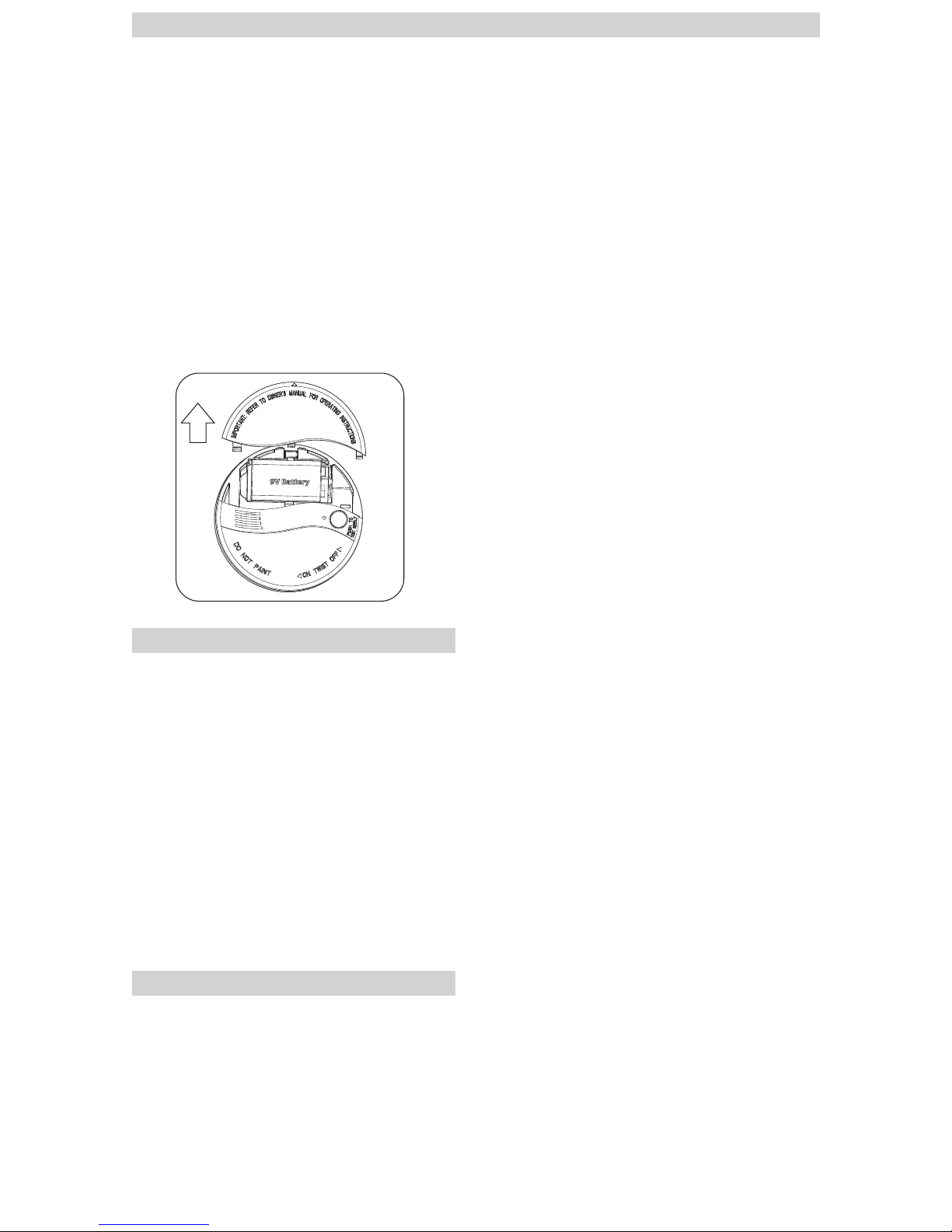

5. Battery Replacement
When smoke alarms have low battery warning, pls replace
the battery immediately (as Figure 5). During replacement,
mind the positive and negative polarity markings and use
below recommended 9V batteries. Using improper battery
will cause the alarms do not work or damage.
GOLITE: 6F22 EVEREADY: 522.216.1222
ULTRALIFE:U9VL DURACELL: MN1604.MX1604
GOLD PEAK: 1604P.1604S.1604A
Figure 5
NOTICE
1. The malfunction auto check function of this smoke alarm only
provides infrared photoelectric sensor malfunction check and
low battery power check. The sensor sensitivity should be
tested periodically as required.
2. To ensure the sensitivity to smoke, clean the smoke alarm
surface with soft brush or cleaner every 6 months. Do not use
solvent, liquid or detergent to clean the smoke alarm.
3. For malfunction problems, pls contact with vendor on time. Do
not dismantle and try to repair alarms privately.
4. If smoke alarms are not used for a long time, dismount them,
remove batteries, put them in packing box and store in cool
place.
5. Photoelectric smoke alarms could reduce disaster happening.
But they can not guarantee a hundred percent safety. For your
safety concern, pls use this smoke alarm correctly and know
the fire safety tips. In daily life, pay attention to build up
safety consciousness and take preventive measures.
FIRE SAFETY TIPS
Follow fire safety rules and prevent hazardous situations:
1. Store combustible liquids such as gasoline in proper containers.
2. Never smoke in bed. After smoking a cigarette, put it out and
place in a correct container.
3. Check if power sockets, plugs or switches are broken . If
cables are frayed or cracked , replace them on time.
4. Using power electric appliances such as heaters or heating
equipments, do not make the circuit overload and check
periodically if these appliances work properly.
5. Keep portable heaters and open flames, like candles, away
from flammable materials.
6. Keep matches or lighters away from children.
7. Keep at least one working fire extinguisher on every floor and
an additional one in the kitchen. Have fire escape ladders or
other reliable means of escape from an upper floor in case
stairs are blocked.
8. Make sure all the family members know what to do after
hearing an alarm signal.
9. Install smoke alarms correctly according to manual. Keep
alarms clean and do not let dust accumulate and test them
monthly. Replace them immediately if they are not working
properly.
