Heiman HM-628PS/B User manual

M219-1EVer1.0
This product is a battery operated photoelectric smoke alarm,
adopting unique structure design and advanced photoelectric
sensor technology, able to monitor and detect smoke particles
in real time. Especially detects visible particles (associated
with smouldering fire) sooner than ionization alarms. Once
smoke particles or a fire danger is detected, this alarm will
chirp and the red LED will flash rapidly to alert you and your
family timely. Furthermore, this alarm has dustproof,
mothproof and anti-light interference etc. functions, ensuring
stability from design basis and suitable for early warning and
protection of fires in houses, factories, shopping malls, hotels,
office buildings, school buildings, banks, libraries and
warehouses etc. indoor places.
2
1
3
4
5

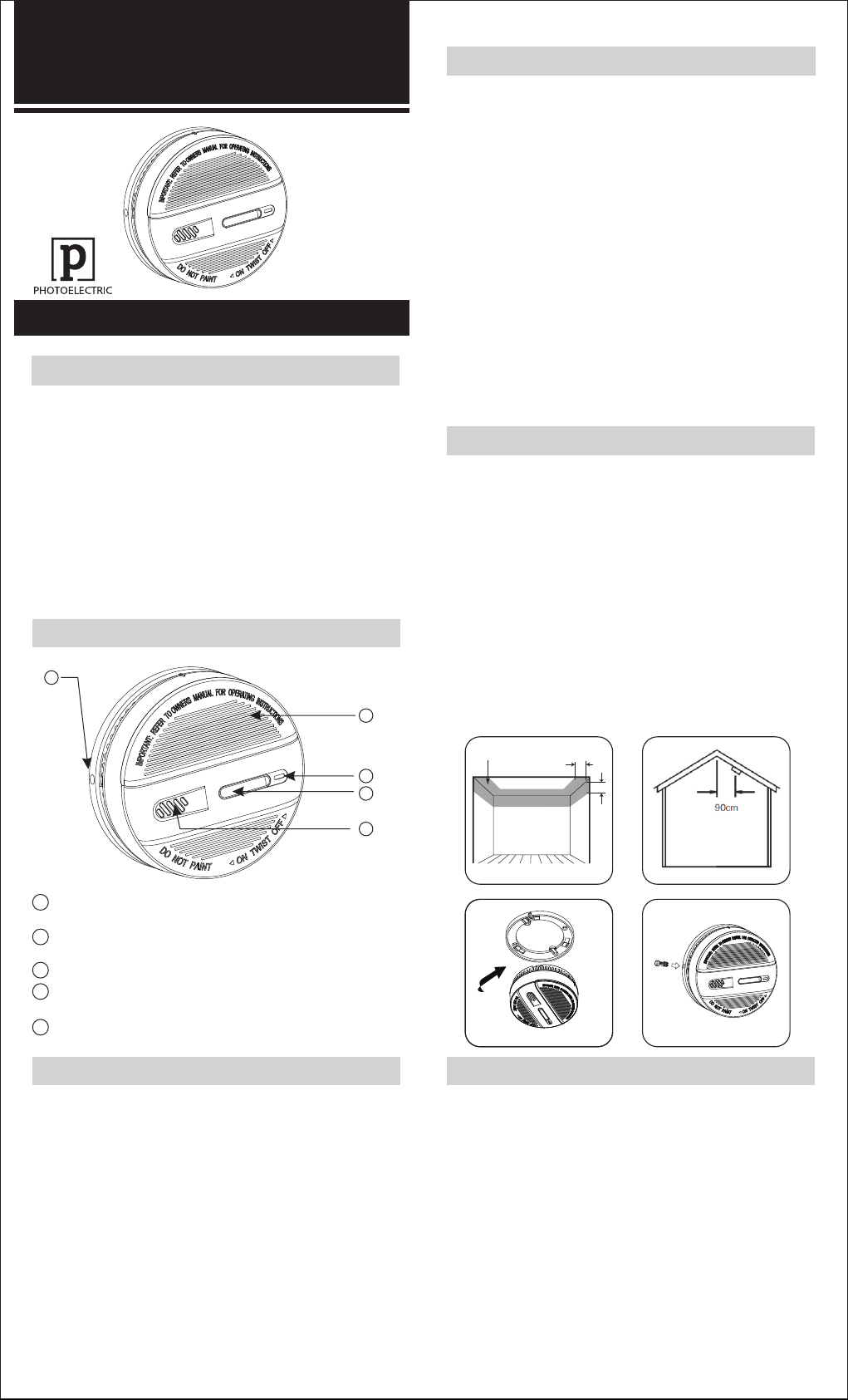

Tamper Resist Locking Pin - could be installed in motor
homes, ships etc . quavering places.
Battery Compartment Cover - on top surface. Battery
replacement i s v ery c onvenient
Buzzer - loud alarm sound > 85 decibel.
Test Button verifies if the smoke alarm is operating
properly.
-
Red LED standby status, flashes once every 40s; alarm
status, flashes rapidly.
-
● Advanced photoelectric sensing technology; detects visible
particles (associated with smouldering fire) sooner than
ionization alarms.
● Convenient to install and maintain.
● Battery compartment on alarm top surface; battery
replacement is more convenient and has protection
function for reverse battery loading.
● Auto check malfunction.
● Low battery warning; smoke alarm will chirp once every
40s to remind user of replacing a new battery.
● Auto reset.
● Sound and flash alarm; alarm sound louder tha n 85
decibel with red LED flashing .
● Test button; tests unit’s electronic circuitry, buzzer and
battery function.
● SMT manufacture technology; high stability.
●Dustproof, mothproof and anti-white light interference
design.
● Anti-RFI (20V/m-1GHz).
Power Supply: DC 9V battery
Standby Current: <12µA
Alarm Current: <15mA
Alarm Sound: >85dB (3m)
Sensor Type: Photoelectric
Battery Life After Low Battery Warning: >30days
Temperature Range: -10°C ~ 50°C (32°F ~ 120°F)
Humidity: 10%~90%RH (no icing or condensation)
Dimension: Φ95.5×41mm (include bracket)
Detecting A rea: 80m at 6-12m installation height;
60m at installation height <6m.
INSTALLATION
1 Avoid installations in places with stagnating smoke, heavy
dust, heavy water mist, heavy oil mist, great humidity
(>95%) and high wind speed (>5m/s).
2.Insert the battery correctly into the battery compartment
according to the marked positive and negative polarity.
3.Choose a proper position. Normally the center of the
detection area ceiling is recommended. If impractical, do not
install the detector in area without air flow (as Figure 1). For
roof with oblique beam, the ceiling is also oblique where the
detector should be installed at a position with 0.9m
horizontal distance to spire (as Figure 2). Fix the detector
base into a chosen position with screws. Then put the
detector head into the base and twist clockwise to fasten it
(as Figure 3). At last, plug in the tamper resist locking pin
(as Figure 4).
.
Figure 3
Figure 2
Figure 4
15cm
15cm
Area without
air flow
Figure 1
1.Battery is equipped on delivery. Unpack the battery
insulation cement to active the battery before using.
2.After activating the battery, the smoke alarm enters into
normal monitoring status. The LED blinks once every 40s.
3.Sensitivity Test
To ensure normal operation, periodic tests should be
performed. Once a month is recommended. For testing,
press and hold the Test Button more than 3s to enter into
sensitivity test status. The alarm indicator will flash rapidly
and buzzer will give out alarm sound, which indicates the
smoke alarm works properly. During testing, keep ears away
from the smoke alarm to avoid hearing damage.
PRODUCT PROFILE
PRODUCT INTRODUCTION
TECHNICAL SPECIFICATION OPERATING INSTRUCTION
2
5
1
3
4
Battery Powered Photoelectric
Smoke Alarm User Manual
1 2
FEATURES

4.Malfunction Check
When buzzer beeps once every 40s along with alarm
indicator flashing once rapidly, the battery voltage is lower
than normal operating voltage for the smoke alarm. Replace
a new battery in time for this situation. For battery
replacement, pls refer to Battery Replacement Instruction.
When buzzer beeps once every 40s without alarm indicator
flashing, the infrared photoelectric sensor has malfunction.
For this situation, contact with vendor on time. Do not
dismount or repair alarms privately to avoid accidents.
5.Battery Replacement
When smoke alarms have low battery warning, pls replace
the battery immediately (as Figure 5). During replacement,
mind the positive and negative polarity markings and use
below recommended 9V batteries. Using improper battery
will cause the alarms do not work or damage.
GOLITE: 6F22 EVEREADY: 522.216.1222
ULTRALIFE:U9VL DURACELL: MN1604.MX1604
GOLD PEAK: 1604P.1604S.1604A
Figure 5
NOTICE
1.The malfunction auto check function of this smoke alarm
only provides infrared photoelectric sensor malfunction
check and low battery power check. The sensor sensitivity
should be tested periodically as required.
2.To ensure the sensitivity to smoke, clean the smoke alarm
surface with soft brush or cleaner every 6 months. Do not
use solvent, liquid or detergent to clean the smoke alarm.
3.For malfunction problems, pls contact with vendor on time.
Do not dismantle and try to repair alarms privately.
4.If smoke alarms are not used for a long time, dismount
them, remove batteries, put them in packing box and store
in cool place.
5.Photoelectric smoke alarms could reduce disaster
happening. But they can not guarantee a hundred percent
safety. For your safety concern, pls use this smoke alarm
correctly and know the fire safety tips. In daily life, pay
attention to build up safety consciousness and take
preventive measures.
FIRE SAFETY TIPS
Follow fire safety rules and prevent hazardous situations:
1.Store combustible liquids such as gasoline in proper
containers.
2.Never smoke in bed. After smoking a cigarette, put it out
and place in a correct container.
3.Check if power sockets, plugs or switches are broken . If
cables are frayed or cracked , replace them on time.
4.Using power electric appliances such as heaters or heating
equipments, do not make the circuit overload and check
periodically if these appliances work properly.
5.Keep portable heaters and open flames, like candles,
away from flammable materials.
6.Keep matches or lighters away from children.
7.Keep at least one working fire extinguisher on every floor
and an additional one in the kitchen. Have fire escape
ladders or other reliable means of escape from an upper
floor in case stairs are blocked.
8.Make sure all the family members know what to do after
hearing an alarm signal.
9.Install smoke alarms correctly according to manual. Keep
alarms clean and do not let dust accumulate and test them
monthly. Replace them immediately if they are not working
properly.
3 4
