Heinner VGEN002 User manual

www.heinner.com VGEN002
Instructions - GB
Instrucțiuni de utilizare -RO

1
GASOLINE GENERATOR
BEFORE OPERATING THIS MACHINE,
PLEASE READ THESE INSTRUCTIONS CAREFULLY.
Thank you for choosing Heinner!
WARNINGS:
1. Read the operator’s instruction manual.
2. Attention! Exhaust gases are toxic. Do not operate the generator in a room
without ventilation system!
3. Children should be protected by keeping them at a safe distance from the
generator set!
4. Refilling of the generating sets are not allowed during the operation!
5. If the generator will be mounted in a closed room, relevant safety regulations
against fire and explosion should be followed!
6. Do not connect to household circuit!
7. Do not use in wet condition!
8. Keep away from flammable materials!
9. This electrical equipment including lines and plug connections should not be
defective.
10. When refueling:
-stop the engine;
-do not smoke;
-do not spill.
Take appropriate measures to protect your hearing.
Beware of hot parts.

2
GASOLINE GENERATOR

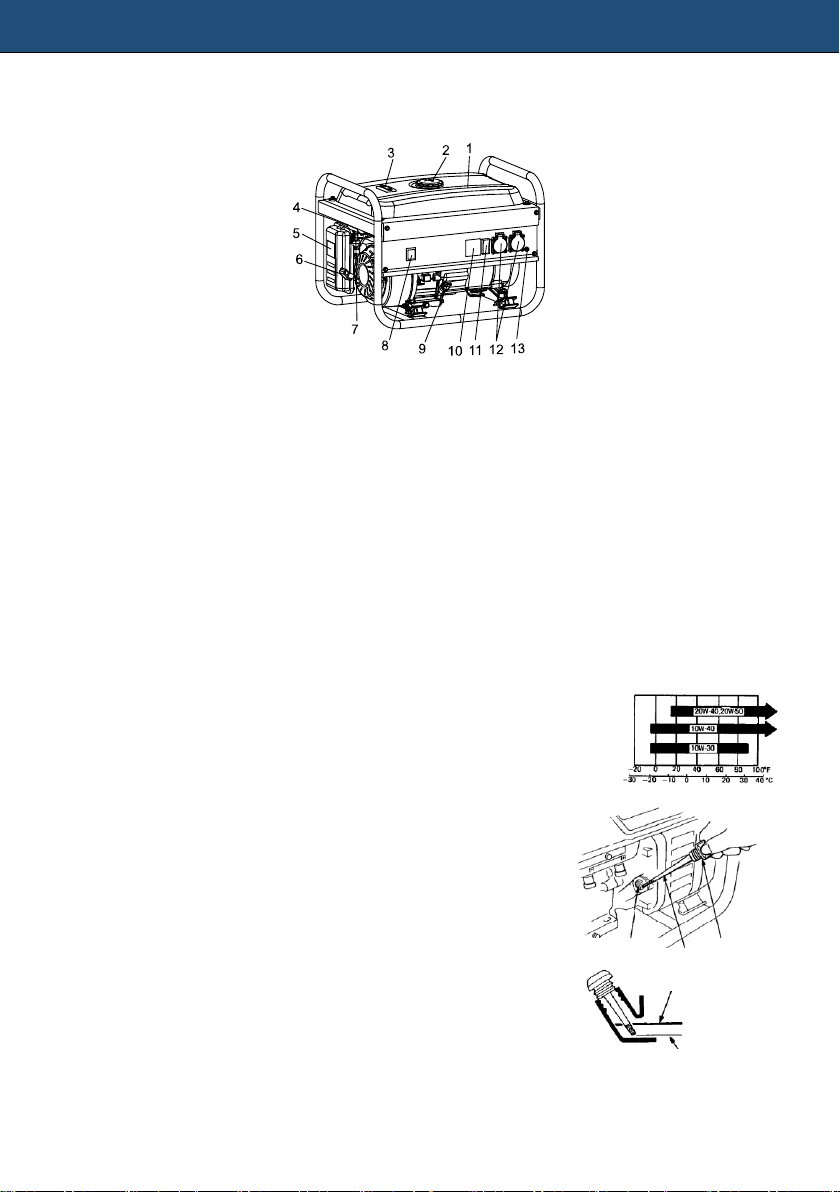

1. NAMES OF PARTS
(1) Fuel tank
(2) Fuel tank cap
(3) Fuel gauge
(4) Choke handle
(5) Air cleaner
(6) Starting handle
(7) Fuel valve
(8) Engine switch
(9) Oil filler cap
(10) Voltage meter
(11) AC circuit breaker
(12) AC socket
(13) Ground connection terminal
2．CHECKS BEFORE OPERATING
(1) Check the engine oil level
Notice: Stop the generator in a smooth place, then check the generator. Engine oil is
a major factor affecting engine performance and life.
Use the 4-stroke oil, SAE10W-40 is recommended for general,
all-temperature use. Other viscosities shown in the chart may be
used when the average temperature in your area is within the
indicated range.
① Uncover the oil mouth then clean the engine oil ruler
with clean cloth.
② Plug the engine oil ruler into the oil mouth and don’t
turn it. If the oil level is below the lower limit of the
engine oil ruler you should add some engine oil.
③ Add the engine oil to the upper limit of ruler.
④ Fix the engine oil plug ruler properly.
OIL FILLER HOLE
DIP STICK
OIL FILLER CAP
UPPER LEVEL
LOWER LEVEL

3
GASOLINE GENERATOR
(2) Check the fuel level
Check the fuel gauge, and refill the tank if
the fuel level is low.
Use the 93# unleaded gasoline or higher
① Uncover the fuel tank cap.
② Check the fuel level, if the fuel level is
low you should add more.
③ Add the fuel to the shoulder part of
fuel filter.
④ Fix the fuel tank cap.
3. STARTING THE ENGINE
(1) Disconnect any load from the AC socket and turn off the
alternating current circuit breaker.
(2) Turn the fuel valve to “ON” position.
(3) Turn the wind-block color rod to “CHOKE” position.
(4) Turn the engine switch to “ON” position.
(5) Pull the starting handle slightly until you feel some
resistance, then put forth your strength to pull it.
FUEL GAUGE
FUEL TANK CAP
FUEL FILLER SCREEN
AC CIRCUIT BREAKER
AC SOCKET

4
GASOLINE GENERATOR

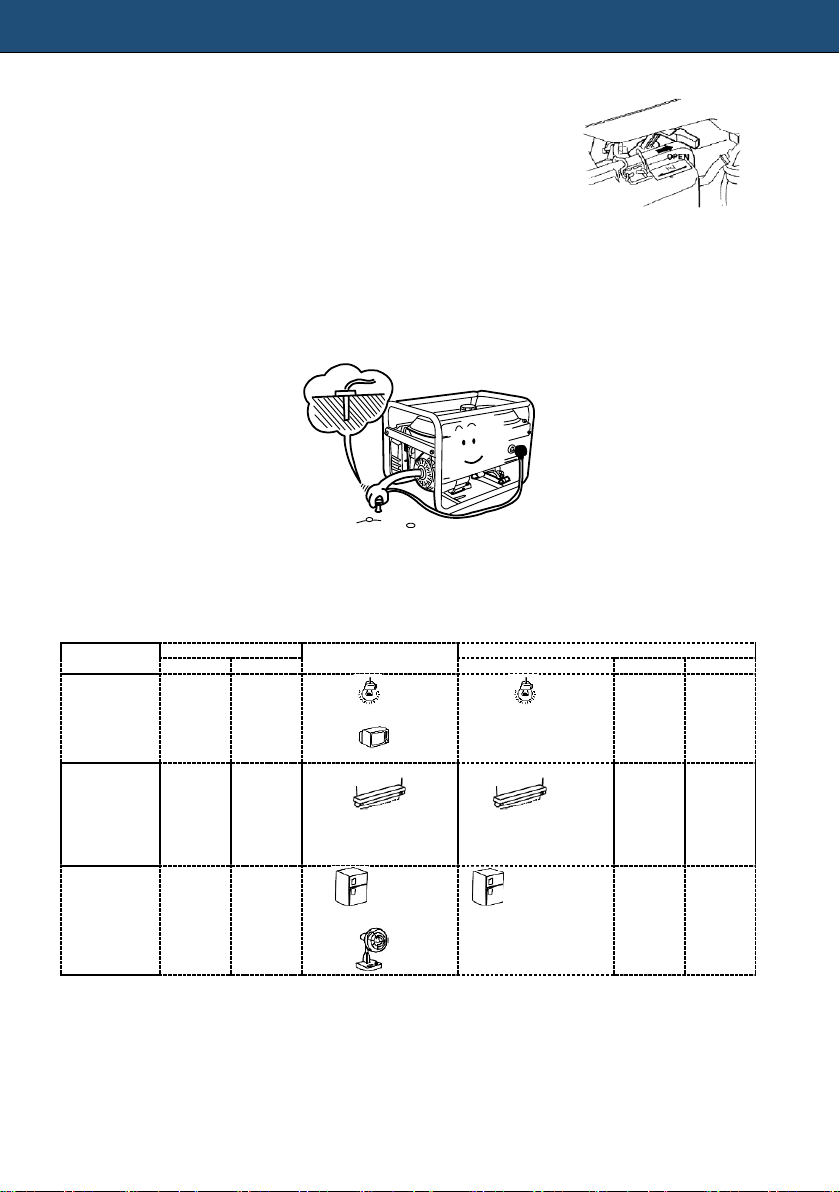

(6) When the temperature of engine increase, pull back
the wind-block door rod. See the arrow in the diagram.
4. OPERATING METHODS OF GENERATOR
In order to keep your generator in good condition, please follow the rules:
(1) Avoid improper operation, make sure to make your generator ground connection.
(2) Electrical equipment, motor-driven devices will produce lots of electric current
when they start. The following form will give you a reference when you connect
them to generator.
Mode
Amount of watt
Setting
Example
Starting
Rated
Setting
Starting
Rated
● Bulb
● Heating
setting
X1
X1
Bulb
TV
Bulb
100 W
100 VA
(W)
100 VA
(W)
● Fluorescent
lamp
X1
X1.5
fluorescent lamp
40 W
fluorescent lamp
40 VA
(W)
60 VA
(W)
● Motor driven
setting
X3~5
X2
Refrigerator
Fan
Refrigerator
1500 W
4500~
7500 VA
(W)
3000 VA
(W)

5
GASOLINE GENERATOR
(3) When you connect more than two loads on the generator, please connect from
high electric current to low electric current successively.
When using extension lines or mobile distribution networks the total length of lines
for a cross section of 1.5 mm2should not exceed 60 m; for a cross section of 2.5 mm2
this should not exceed 100 m.
Notice:
When you want to connect the generator to the family power, you should ask
electricians to fix it.
After connecting the load to the generator, check if the connection is right, otherwise
it will cause damages of fires.
CORRECT
CORRECT
INCORRECT

6
GASOLINE GENERATOR
5. STOPPING THE ENGINE
(1) Turn the AC circuit breaker to the OFF position.
(2) Turn the engine switch to the OFF position.
(3) Turn the fuel valve to the OFF position.
Notice: If you want to stop the engine emergently, please turn the engine switch to
“OFF” position.
6. MAINTENANCE
Notice: To maintenance of the large assembly, you need a professional.
REGULAR SERVICE PERIOD
Perform at every indicated
month or operating hour
interval, whichever occurs
first.
ITEM
Daily
First month
or 20 Hrs.
Every 3
months or
50 Hrs.
Every 6
months
or 100
Hrs.
Every
year or
300 Hrs.
Engine oil
Inspection
●
Change
●
●
Air cleaner element
Inspection
●
Cleaning
●(1)
Fuel filter cleaning
●
Spark plug maintenance
●
Valve clearance adjustment
●(2)
Combustion chamber and valve cleaning
●(2)
Fuel line inspection (replace if necessary)
●
Spark arrester
Clean every 100 operating hours.
Notice:
(1) Service more frequently when used in dusty areas.
(2) These items should be serviced by your servicing dealer, unless you have the
proper tools and are mechanically proficient.

7
GASOLINE GENERATOR
(1) Changing oil
Drain the oil while the engine is still warm to assure rapid and complete draining.
1. Remove the drain plug and filler cap, and drain the oil. Retighten the plug securely.
2. Refill with the recommended oil and check the level.
OIL TANK CAPACITY: 0.6 L
CAUTION: Used motor oil may cause skin cancer if repeatedly left in contact with the
skin for prolonged periods. Although this is unlikely unless you handle used oil on a
daily basis, it is still advisable to thoroughly wash your hands with soap and water as
soon as possible after handling used oil.
NOTE: Please dispose of used motor oil in a manner that is compatible with the
environment. We suggest you take it in a sealed container to your local service
station for reclamation. Do not throw it in the trash or pour it on the ground.
(2) Air cleaner service
A dirty air cleaner will restrict air flow to the carburetor. To prevent carburetor
malfunction, service the air cleaner regularly. Service more frequently when
operating the generator in extremely dusty areas.
WARNING! Never use gasoline or low flash point solvents for cleaning the air cleaner
element. A fire or explosion could result.
CAUTION: Never run the generator without the air cleaner. Rapid engine wear will
result.
1. Unsnap the air cleaner cover spring, remove the air cleaner cover and remove the
element.
OIL FILLER CAP
OIL DRAIN PLUG

8
GASOLINE GENERATOR

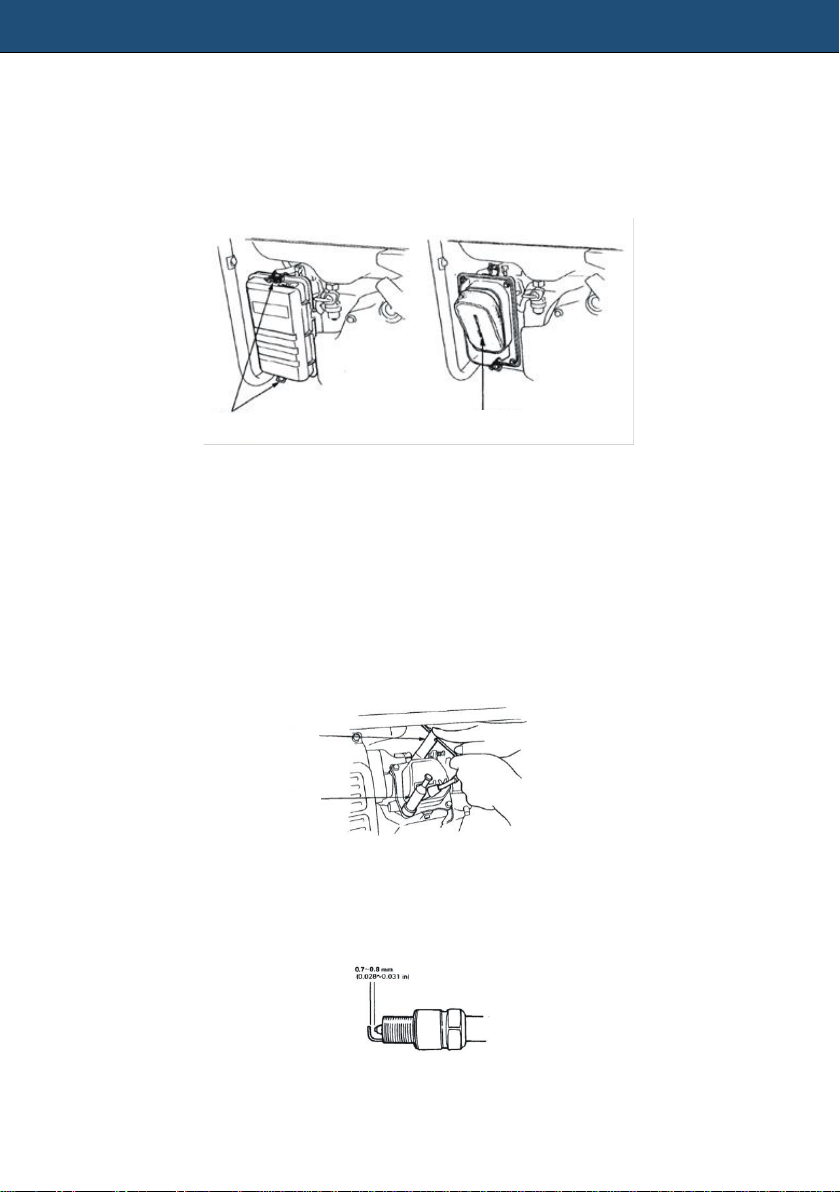

2. Wash the element in a non-flammable or high flash point solvent and dry it
thoroughly.
3. Soak the element in clean engine oil and squeeze out the excess oil.
4. Reinstall the air cleaner element and the cover.
(3) Spark plug service
Recommended spark plug: BP6ES, SPR6ES (NGK)
F6TC, F6RTC (LD)
To ensure proper engine operation, the spark plug must be properly gapped and free
of deposits.
1. Remove the spark plug cap.
2. Clean any dirt from around the spark plug base.
3. Use the wrench supplied in the tool kit to remove the spark plug.
4. Visually inspect the spark plug. Discard it if the insulator is cracked or chipped.
Clean the spark plug with a wire brush if it is to be reused.
5. Measure the plug gap with a feeler gauge. The gap should be 0.7~0.8 mm
(0.028~0.031 in). Correct as necessary by carefully bending the side electrode.
COVER SPRINGS
ELEMENT
PLUG WRENCH
SPARK PLUG CAP

9
GASOLINE GENERATOR
6. Attach the plug washer and thread the plug in by hand to prevent cross threading.
7. After a new spark plug has been seated by hand, it should be tightened 1/2 turn
with a wrench to compress its washer. If a used plug is being reinstalled, it should
only require 1/8 to 1/4 turn after being seated.
CAUTION:
•The spark plug must be securely tightened. An improperly tightened plug can
become very hot and possibly damage the generator.
•Never use a spark plug with an improper heat range.
(4) Fuel filter service
The filter prevents dirt or water which may be in fuel tank from entering the
carburetor. If the engine has not been run for a long time, the filter should be
cleaned.
1. Turn the fuel valve OFF. Remove the filter cup.
2. Clean the cup thoroughly.
3. Reassemble. Do not damage the rubber gasket.
WARNING! After installing the filter cup, check for leaks and make sure the area is
dry before starting the engine.
OFF
LOOSEN
RUBBER GASKET
FILTER CUP

10
GASOLINE GENERATOR
7．TRANSPORTING/STORAGE
WARNING! When transporting the generator, turn the engine switch OFF and keep
the generator level to prevent fuel spillage. Fuel vapor or spilled fuel may ignite.
Before storing the unit for an extended period:
1. Be sure the storage area is free of excessive humidity and dust.
2. Drain the fuel:
a. With the fuel valve OFF, remove and empty the filter cup.
b. Turn the fuel valve ON and drain the gasoline in the fuel tank into a suitable
container.
c. Replace the filter cup and tighten securely.
d. Loosen the carburetor drain screw and drain the gasoline from the carburetor into
a suitable container.
3. Slowly pull the starter grip until resistance is felt. At this point, the piston is coming
up on its compression stroke and both the intake and exhaust valves are closed.
Storing the engine in this position will help to protect it from internal corrosion.
DRAIN SCREW
ON
OFF
STARTER GRIP

11
GASOLINE GENERATOR
8．TROUBLESHOOTING
The engine does not start:
Is there fuel in the tank?
NO
Refill the fuel tank.
YES
Is there engine switch on?
NO
Turn the engine switch on.
YES
Is the fuel valve on?
NO
Turn the fuel valve on.
YES
Is there enough oil in the engine?
NO
(The oil alert lamp goes on when pulling
the start grip.)
Add the recommended oil
YES
Is there a spark from the spark plug?
NO
Take the generator to an authorized
dealer.
YES
Is the fuel reaching the carburetor?
NO
Clean the fuel filter cup.
YES
If the engine still does not start, take the
generator to an authorized dealer.
Replace the spark
plug.
WARNING! Be sure there is no spilled
fuel around the spark plug. Spilled fuel
may ignite.
To check:
1) Remove the spark plug cap and clean
any dirt from around the spark plug.
2) Remove the spark plug and install the
spark plug in the plug cap.
3) Set the plug side electrode on the
cylinder head.
4) Pull the recoil starter, spark should
jump across the gap.
To check:
1) Turn on the fuel valve and remove the
drain screw.
2) Fuel should flow from the drain when
the fuel valve is turned on.

12
GASOLINE GENERATOR
No electricity at the receptacles:
Is the AC circuit breaker on?
NO
Turn the AC circuit breaker on.
YES
Check the electrical appliance or
equipment for any defects.
NO DEFECTS
Take the generator to an authorized
dealer.
DEFECTS
No electricity at the DC terminals:
Is the DC circuit breaker on?
NO
Turn the DC circuit breaker on.
YES
9．TECHNICAL DATA
GASOLINE GENERATOR
Model
XXXX
Displacement
210CC (4 stroke)
AC voltage
230/~50Hz
Rated Power Output
2.8kw
Max. Power Output
3.0kw
Speed
4000 r/min
Fuel Tank Capacity
12.2L
Continuous operating time
10 hours
Motor
Copper Motor
Performance class
G1
Weight
40kg
Max. temperature:
40℃IP23M
Max. Attitude:
1000 m
Certification of gas emissions
e13*2016/1628*2016/1628SRA1/P*0322*00
The guaranteed value:
LWA=96dB(A)
* Replace the electrical appliance or
equipment.
* Take the electrical appliance or
equipment to an electrical shop for
repair.
Take the generator to an authorized
dealer.

13
GASOLINE GENERATOR
RECYCLING
Recycling and disposal of petrol engine powered tools, fuel and oil
• Tools powered by petrol-based internal combustion engines must not be disposed
of with household waste. Such tools should be taken to your local recycling centre
and disposed of according to current environmental protection requirements in your
country.
• Petrol, oil and petrol-oil-mixtures are hazardous waste and have to be treated as
such. Oil and fuel must not be disposed of with household waste. Improper disposal
may be regarded a criminal offence in your country. Contact your local authority or
dealer for correct disposal procedures for oil and old fuels.
Thank you for helping us protect the environment and our health!
Manufactured for
Network One Distribution
Marcel Iancu St., no. 3-5, Bucharest, 020757
2020
