Heinner HSBS-428NFX+ User manual

SIDE BY SIDE
Model: HSBS-428NFX+
www.heinner.ro
•Side by side
•Energy class: A+
•Net capacity: 428 L

www.heinner.com
1
Please read the instructions carefully and keep the manual for future information.
This manual is designed to give all necessary instructions concerning installation, use and
maintenance of the unit. In order to operate the unit correctly and safely, please read this
instruction manual carefully before installation and use.
I. INTRODUCTION
II. YOUR PACKAGE CONTAINS
➢Refrigerator
➢User manual
➢Certificate of warranty
Thank you for choosing this product!

www.heinner.com
2
III. SAFETY INFORMATION
For your safety and correct usage, before installing and first using the appliance, read this
user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and
accidents, it is important to make sure that all people using the appliance are thoroughly
familiar with its operation and safety features. Save these instructions and be sure that
they remain with the appliance if it is moved or sold, so that anyone using it throughout
its life, will be properly informed on its usage and safety notices.
For the safety of life and property, keep the precautions of these user's instructions as the
manufacturer is not responsible for damages caused by omission.
Safety for children and others who are vulnerable people
•According to EN standard: This appliance can be used by children aged from 8
years and above and persons with reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
•Children aged from 3 to 8 years are allowed to load and unload refrigerating
appliances.
•According to IEC standard: This appliance is not intended for use by persons
(including children) with reduced physical, sensory or mental capabilities, or lack
of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their
safety.
•Children should be supervised to ensure that they do not play with the appliance.
•Keep all packaging away from children as there is risk of suffocation.
•If you are discarding the appliance, pull the plug out of the socket, cut the
connection cable (as close to the appliance as you can) and remove the door to
prevent children playing from suffering an electric shock or from closing
themselves inside it.
•If this appliance, featuring a magnetic door seals, is to replace an older appliance
having a spring lock (latch) on the door or lid, be sure to make the spring lock
unusable before you discard the old appliance. This will prevent it from becoming
a death trap for a child.

www.heinner.com
3
General safety
WARNING! This appliance is intended to be used in household and similar applications such
as:
•staff kitchen areas in shops, offices and other working environments;
•farm houses and by clients in hotels, motels and other residential type
environments;
•bed and breakfast type environments;
•catering and similar non-retail applications;
WARNING! Do not store explosive substances such as aerosol cans with a flammable
propellant in this appliance.
WARNING! If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
WARNING! Keep ventilation openings, in the appliance enclosure or in the built-in
structure, clear of obstruction.
WARNING! Do not use mechanical devices or other means to accelerate the defrosting
process, other than those recommended by the manufacturer.
WARNING! Do not damage the refrigerant circuit.
WARNING! Do not use electrical appliances inside the food storage compartments of the
appliance, unless they are of the type recommended by the manufacturer.
WARNING! The refrigerant and insulation blowing gas are flammable. When disposing of
the appliance, do so only at an authorized waste disposal centre. Do not expose to flame.
WARNING! When positioning the appliance, ensure the supply cord is not trapped or
damaged.
WARNING! Do not locate multiple portable socket-outlets or portable power supplies at
the rear of the appliance.
WARNING! Food needs to be packed in bags before putting into the refrigerator, and liquids
need to be packed in bottles or capped containers to avoid the problem that the product
design structure is not easy to clean.
The symbol is a warning and indicates the refrigerant and insulation blowing gas are
flammable.
WARNING! Risk of fire
If the refrigerant circuit should be damaged:
•Avoid opening flames and sources of ignition.
•Thoroughly ventilate the room in which the appliance is situated.

www.heinner.com
4
Replacing the illuminating lamps
WARNING - The illuminating lamps must not be replaced by the user! If the illuminating
lamps is damaged, contact the customer helpline for assistance. This warning is only for
refrigerators that contain illuminating lamps.
Refrigerant
The refrigerant isobutene (R600a) is contained within the refrigerant circuit of the appliance,
a natural gas with a high level of environmental compatibility, which is nevertheless
flammable. During transportation and installation of the appliance, ensure that none of the
components of the refrigerant circuit becomes damaged. The refrigerant (R600a) is
flammable.
WARNING! Refrigerators contain refrigerant and gases in the insulation. Refrigerant and
gases must be disposed of professionally as they may cause eye injuries or ignition. Ensure
that tubing of the refrigerant circuit is not damage prior to proper disposal.
If the refrigerant circuit should be damaged:
• Avoid opening flames and sources of ignition.
• Thoroughly ventilate the room in which the appliance is situated.
It is dangerous to alter the specifications or modify this product in any way.
Any damage to the cord may cause a shortcircuit, fire, and/or electric shock.
Electrical safety
1. The power cord must not be lengthened.
2. Make sure that the power plug is not crushed or damaged. A crushed or damaged
power plug may overheat and cause a fire.
3. Make sure that you can access the main plug of the appliance.
4. Do not pull the main cable.
5. If the power plug socket is loose, do not insert the power plug. There is a risk of
electric shock or fire.
6. You must not operate the appliance without the interior lighting lamp cover.
7. The fridge is only applied with power supply of single phase alternating current of
220~240V/50Hz. If fluctuation of voltage in the district of user is so large that the
voltage exceeds the above scope, for safety sake, be sure to apply A.C. Automatic
voltage regulator of more than 350W to the fridge. The fridge must employ a
special power socket instead of common one with other electric appliances. Its plug
must match the socket with ground wire.

www.heinner.com
5
IV. DAILY USE
•Do not store flammable gass or liquids in the appliance. There is a risk of an
explosion.
•Do not operate any electrical appliances in the appliance (e.g.electric ice cream
makers.mixers etc.).
•When unplugging always pull the plug from the mains socket.do not pull on the
cable.
•Do not place hot items near the plastic components of this appliance.
•Do not place food products directly against the air outlet on the rear wall.
•Store pre-packed frozen food in accordance with the frozen food manufacture's
instructions.
•The appliances manufactures storage recommendations should be strictly adhered
to. Refer to relevant instructions for storage.
•Do not place carbonated or fizzy drinks in the freeze compartment as it creates
pressure on the container.which may cause it to explode,resulting in damage to the
appliance.
•Frozen food can cause frost burns if consumed straight from the freezer
compartment.
•Do not place the appliance in direct sunlight.
•Keep buring candles lamps and other items with naked flames away from the
appliance so that do not set the appliance on fire.
•The appliance is intended for keeping food stuff and/or beverages in normal
household as explained in this instruction booklet. The appliance is heavy. Care
should be taken when moving it.
•Do not remove nor touch items from the freezer compartment if your hands are
damp/wet, as this could cause skin abrasions or frost/freezer burns.
•Never use the base drawers, doors etc. to stand on or as supports.
•Frozen food must not be refrozen once it has been thawed out.
•Do not consume ice popsicles or ice cubes straight from the freezer as this can cause
freezer burn to the mouth and lips.
•To avoid items falling and causing injury or damage to the appliance, do not overload
the door racks or put too much food in the crisper drawers.

www.heinner.com
6
V. CLEANING AND MAINTENANCE
VI. INSTALLATION
•For electrical connection carefully, follow the instructions given in this manual.
•Unpack the appliance and check if there are damages on it.
•Do not connect the appliance if it is damaged. Report possible damages immediately
to the place you bought it. In this case retain packing.
•It is advisable to wait at least four hours before connecting the appliance to allow the
oil to flow back in the compressor.
•Adequate air circulation should be around the appliance, lacking this leads to
overheating. To achieve sufficient ventilation, follow the instructions relevant to
installation.
•Wherever possible the back of the product should not be too close to a wall to avoid
touching or catching warm parts (compressor, condenser) to prevent the risk of a fire,
follow the instructions relevant to installation.
•The appliance must not be locate close to radiators or cookers.
•Make sure that the mains plug is accessible after the installation of the appliance.
•Before maintenance, switch off the appliance and disconnect the mains plug from the
mains socket.
•Do not clean the appliance with metal objects, steam cleaner, ethereal oils, organic
solvents or abrasive cleansers.
•Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.

www.heinner.com
7
Service
•Any electrical work required to do the servicing of the appliance should be carried
out by qualified electrician or competent person.
•This product must be serviced by an authorized Service Center, and only genuine
spare parts must be used.
If the appliance is No Frost.
If the appliance contains freezer compartment.
Energy Saving tips
We recommend that you follow the tips below to save energy.
•Try to avoid keeping the door open for long periods in order to conserve energy.
•Ensure the appliance is away from any sources of heat (Direct sunlight, electric oven
or cooker etc).
•Don't set the temperature colder than necessary.
•Don't store warm food or evaporating liquid in the appliance.
•Place the appliance in a well ventilated, humidity free, room. Please refer to
Installing your new appliance chapter.
•If the diagram shows the correct combination for the drawers, crisper and shelves,
do not adjust the combination as this is designed to be the most energy efficient
configuration.
VII. SERVICE AND ENERGY SAVING

www.heinner.com
8
VIII. PRODUCT DESCRIPTION
1. Freezer door
10. Fridge wind channel part
2. Freezer glass shelf
11. Upper fridge rack
3. Freezer rack
12. Fridge glass shelf
4. Freezer wind channel part
13. Fridge rack
5. Freezer drawer cover
14. Fridge door
6. Freezer drawer
15. Crisper cover
7. Left adjustable bottom feat
16. Fruit and vegetable crisper
8. LED light
17. Right adjustable bottom feet
9. Display panel and LED light
Note:
•Due to unceasing modification of our products, your refrigerator may be slightly
different from this instruction manual, but its functions and using methods remain
the same.
•To get the best energy efficiency of this product, please place all shelves, drawers
and baskets on their original position as the illustration above.

www.heinner.com
9

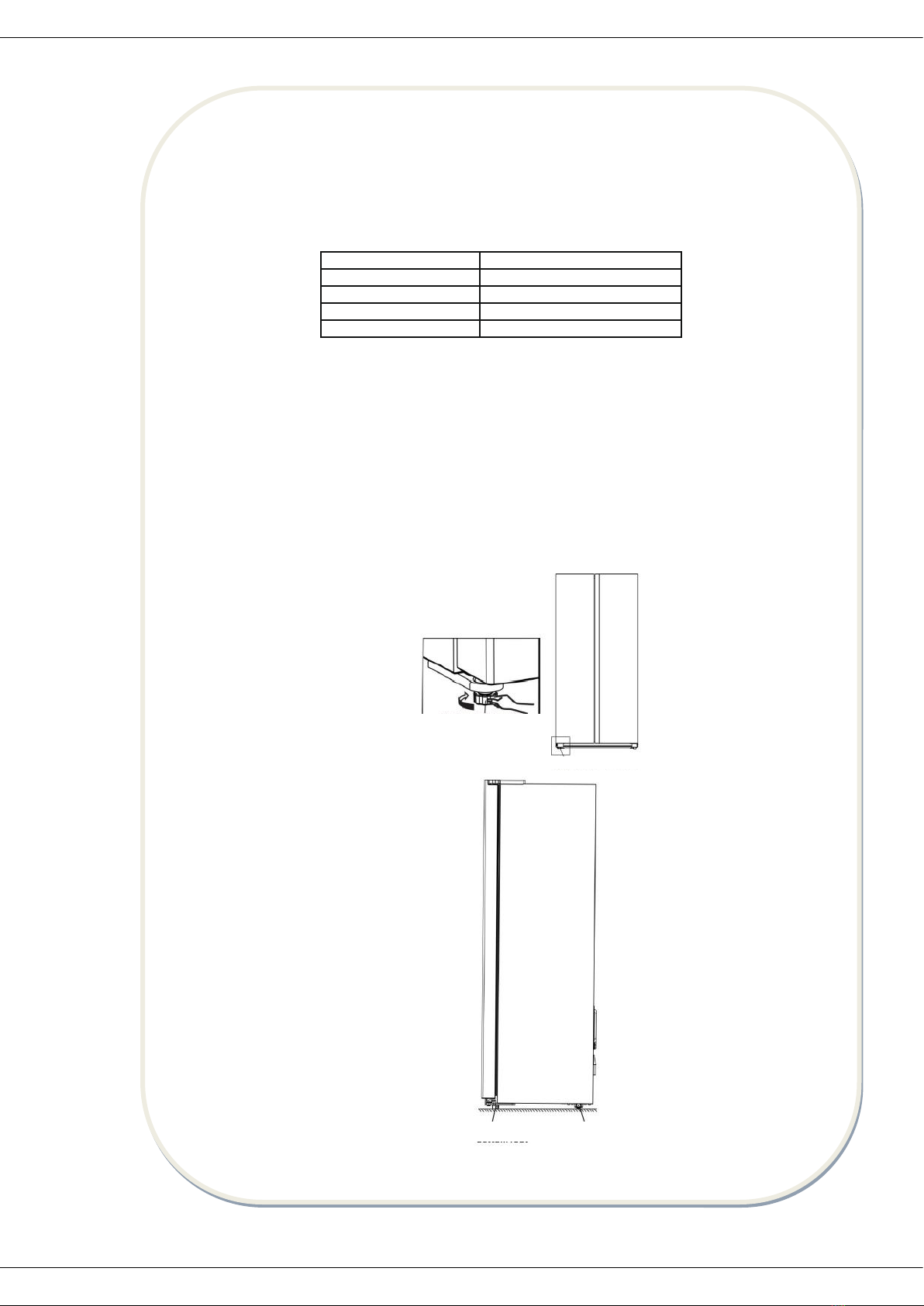

IX. INSTALLING
Before using the appliance for the first time, you should be informed of the following tips.
Warning!
For proper installation, this refrigerator must be placed on a level surface of hard material that
is the same height as the rest of the flooring. This surface should be strong enough to support a
fully loaded refrigerator.
The rollers, which are not castors, should be only used for forward or backward movement.
Moving the refrigerator sideways may damage your floor and the rollers.
Ventilation of appliance
Install the appliance in a plane and stable surface. Assure good ventilation.
We recommend letting a space at least:
•50-70mm from the back to the wall.
•100mm from the top to the wall.
•100mm from its side to the wall.
Enough space must be provided in the front of the appliance to allow the doors to open as
shown in follow diagrams.
at least 100 mm
at least 100 mm
at least 100 mm

www.heinner.com
10
Note:
•This appliance performs well within the climate class from N to ST showed in the
table below. It may not work properly if being left at a temperature above or below
the indicated range for a long period.
Climate Class
Ambient Temperature
SN
+10 °C to + 32 °C
N
+16 °C to + 32 °C
ST
+16 °C to + 38 °C
T
+16 °C to + 43 °C
•Stand your appliance in a dry place to avoid high moisture.
•Keep the appliance out of direct sunlight, rain or frost. Stand the appliance away from
heat sources such as stoves, fires or heaters.
Leveling of appliance
•For sufficient leveling and air circulating in the lower rear section of the appliance the
bottom feet may need to be adjusted. You can adjust them manually by hand or by
using a suitable spanner.
•To allow the doors to self close, tilt the top backwards by 10-15 mm.
Adjustable bottom feet
Adjustable bottom feet
Adjustable bottom feet
Rear roller

www.heinner.com
11
Doors removal
In case when your access door is too narrow for the refrigerator to pass through, remove the
refrigerator door and drawers. Then pass the refrigerator laterally. If you do not need to
remove the appliance doors, go to next section. If you need to remove the doors, continue
below.
Warning!
When removing the doors, the appliance must be unplugged.
The tools you will need (Not provided):
Disassembling the doors
Some models may be slightly different from pictures. If some parts show in the picture cannot
found in your appliance, please ignore the relevant description.
Since the steps to disassemble the fridge door is similar to the freezer door, the instructions
below are only for disassembling the freezer door except step 2. You could refer to the steps
below to disassemble the fridge door.
1. With the door closed, remove the screws with Philips (+) screwdriver, and then
remove the upper hinge cover carefully, because terminals under hinge cover are still
connected.
2. Disconnect terminal and take down upper hinge cover.
•You also have to remove the temperature sensor from upper hinge cover when you
disassemble fridge door.
•Press the plastic hooks of the terminal holding one side of the terminal with one
hand, at the same time pull out the other side out. Pulling out the terminal
straightway will damage it.
Philips screwdriver
Wrench (8 mm)

www.heinner.com
12
3. Remove the 3 screws fixed on the hinge with a Wrench (8mm). Then remove the upper
hinge.
Temperature sensor

www.heinner.com
13
4. Open the freezer door for a small angle, then lift it up with both hands and take it off. Be
careful of racks while remove the door.
5. Tip the refrigerator backwards, remove the screws fixed on the hinge with a Wrench. Then
remove the lower hinge.
Re-attach the door
You could re attach the door in reverse order of disassembling the door.
Disposal of the appliance
It is prohibited to dispose of this appliance as household waste.
Packaging materials with the recycle symbol are recyclable. Dispose of the packaging into a
suitable waste collection container to recycle it.
Before disposal of the appliance:
•Pull out the mains plug from the mains socket.
•Cut off the power cord and discard with the mains plug.
Warning! Refrigerators contain refrigerant and gases in the insulation. Refrigerant and gases
must be disposed of professionally as they may cause eye injuries or ignition. Ensure that
tubing of the refrigerant circuit is not damage prior to proper disposal.

www.heinner.com
14
X. TEMPERATURE SETTING
Use your appliance according to the following control regulations, your appliance has the
corresponding functions as the display panels showed in the pictures below.
Controlling the temperature
We recommend that when you start your refrigerator for the first time, the temperature for
the refrigerator is set to 4°C and the freezer to - 18°C. If you want to change the temperature,
follow the instructions below.
Caution! When you set a temperature, you set an average temperature for the whole
refrigerator cabinet. Temperatures inside each compartment may vary from the temperature
values displayed on the panel, depending on how much food you store and where you place
them. Ambient temperature may also affect the actual temperature inside the appliance.

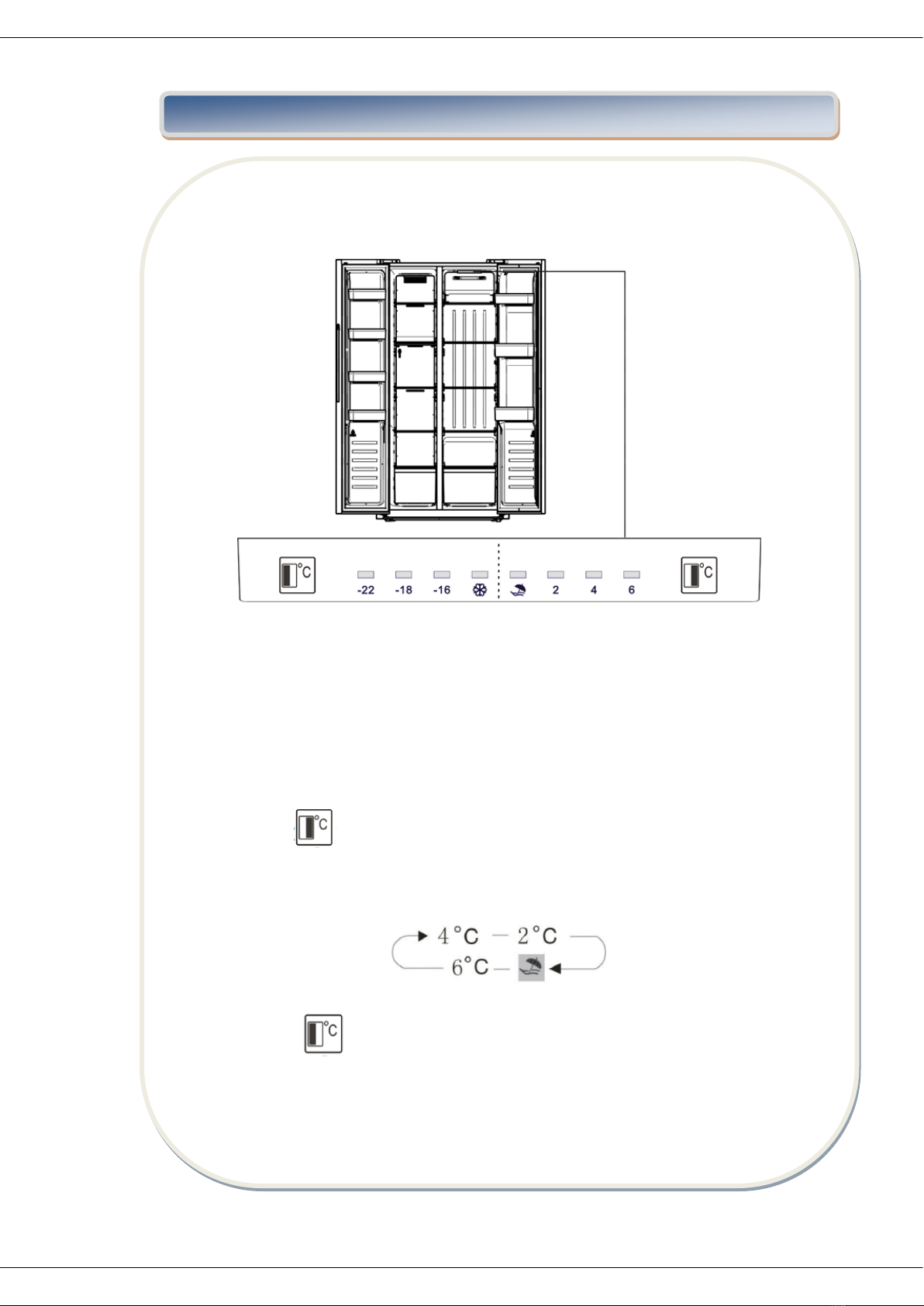

1. Fridge
Press "Fridge" to set fridge temperature between 2°C and 6°C as needed and display
panel will display corresponding values according to the following sequence.
2. Freezer
Press "Freezer" to set freezer temperature between -16°C and -22°C as needed, and the
display panel will display corresponding value according to the following sequence.

www.heinner.com
15
3. Mode Holiday
If you are going to be away for a long period of time, you can activate this function.
Important! Do not store any food in the fridge during this time.
4. Super Freeze
Super Freeze will quickly lower the temperature within the freezer so food will freeze
faster. This can lock in the vitamins and nutrients of fresh food and keep food fresh
longer.
•In case of the maximum amount of food to be frozen, please wait about 24 h.
•Super freeze automatically switches off after 52 hours and after 52 hours, the
freezer temperature setting will revert back to the previous setting.
Using your appliance
This section tells you how to use most of the useful features. We recommend that you read
through them carefully before using the appliance. it may be different depending on the
model.
Using your refrigerator compartment
The refrigerator compartment is suitable for storage of vegetables and fruit. Food inside
should be packed to store in order to avoid losing moisture or flavor permeating into other
foods.
Using the freezer compartment
The freezer compartment is suitable for storage of food which needs to be frozen, including
meat, fish, ice cream, etc.
Caution! Never close the door while the shelves and/or drawers are extended. It may
damage both them and the refrigerator.
Glass shelves and Door racks
The glass shelves and door racks are suitable for the storage of eggs, canned liquid, bottled
drinks and packed food. They can be placed in different heights according to your need. But
do not place too many heavy things in racks. Before you lift up the door shelf vertically,
please take the food out.

www.heinner.com
16
Note: All the door racks and shelves can be taken out to be cleaned.
When you remove the shelves, gently pull them forward until the shelf comes clear of the shelf
guides.
When you return the shelves, make sure there is no obstacle behind and gently push the shelf back
into the position.
Drawers
These are suitable for storage of fruits and vegetables. And it can be taken out to be cleaned.
To take them out, open the door to the final location first. Then pull out the drawer and tilt up the
front of the drawer after moving slightly in the direction.

www.heinner.com
17
XI. STORING THE FOOD
Hints for fresh food refrigeration
•Do not place hot food directly into the fridge or freezer, the internal temperature will
increase resulting in the compressor having to work harder and will consume more
energy.
•Do cover or wrap the food particularly if it has a strong flavor.
•Place food properly so that air can circulate freely around it.
Hints for refrigeration
•Meat (All Types) Wrap in polythene food: wrap and place on the glass shelf above
the vegetable drawer. Always follow food storage times and use by dates suggested
by manufacturers.
•Cooked food, cold dishes, etc.: They should be covered and may be placed on any
shelf.
•Fruit and vegetables: They should be stored in the special drawer provided.
•Butter and cheese: Should be wrapped in airtight foil or plastic film wrap.
•Milk bottles: Should have a lid and be stored in the door racks.
Hints for freezing
•When first starting up or after a period out of use, let the appliance run at least 2
hours on the higher settings before putting food in the compartment.
•Prepare food in small portions to enable it to be rapidly and completely frozen and
to make it possible to subsequently thaw only the quantity required.
•Wrap up the food in aluminum foil or polyethylene food wraps which are airtight.
•Do not allow fresh e unfrozen food to touch the food which is already frozen to avoid
temperature rise of the latter.
•Iced productseif consumed immediately after removal from the freezer
compartment, will probably cause frost burns to the skin.
•It is recommended to label and date each frozen package in order to keep track of
the storage time.
Hints for the storage of frozen food
•Ensure that frozen food has been stored correctly by the food retailer.
•Once defrosted, food will deteriorate rapidly and should not be re frozen. Do not
exceed the storage period indicated by the food manufacturer.
Switching off your appliance
If the appliance needs to be switched off for an extended period, the following steps should
be taken prevent mould on the appliance.
1. Remove all food.
2. Remove the power plug from the mains socket.
3. Clean and dry the interior thoroughly.
4. Ensure that all the doors are wedged open slightly to allow air to circulate.

www.heinner.com
18
Order
Compartments
TYPE
Target storage
temp. [ °C ]
Appropriate food
1
Fridge
+2≤+6
Eggs, cooked food, packaged food, fruits and
vegetables, dairy products, cakes, drinks and
other foods are not suitable for freezing.
2
(***)*-Freezer
≤-18
Seafood (fish, shrimp, shellfish), freshwater
aquatic products and meat products
(recommended for 3 months, the longer the
storage time, the worse the taste and
nutrition), suitable for frozen fresh food.
3
***-Freezer
≤-18
Seafood (fish, shrimp, shellfish), freshwater
aquatic products and meat products
(recommended for 3 months, the longer the
storage time, the worse the taste and
nutrition), are not suitable for frozen fresh food.
4
**-Freezer
≤-12
Seafood (fish, shrimp, shellfish), freshwater aquatic
products and meat products (recommended for 2
months, the longer the storage time, the worse the
taste and nutrition), are not suitable for frozen fresh
food.
5
*-Freezer
≤-6
Seafood (fish, shrimp, shellfish), freshwater aquatic
products and meat products (recommended for 1
months, the longer the storage time, the worse the
taste and nutrition), are not suitable for frozen fresh
food.
To avoid contamination of food, please respect the following instructions:
•Opening the door for long periods can cause a significant increase of the temperature in
the compartments of the appliance.
•Clean regularly surfaces that can come in contact with food and accessible drainage
systems.
•Store raw meat and fish in suitable containers in the refrigerator, so that it is not in
contact with or drip onto other food.
•Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or
making ice cream and making ice cubes.
•One-, two- and three-star compartments are not suitable for the freezing of fresh food.
Note: Please store different foods according to the compartments or target storage temperature
of your purchased products.
•If the appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the
door open to prevent mould developing within the appliance.

www.heinner.com
19
6
0-star
-6≤0
Fresh pork, beef, fish, chicken, some packaged
processed foods, etc. (Recommended to eat within
the same day, preferably no more than 3 days).
Partially encapsulated processed foods
(non-freezable foods)
7
Chill
-2≤+3
Fresh/frozen pork, beef, chicken, freshwater aquatic
products, etc. (7 days below 0 ℃and above 0 ℃is
recommended for consumption within that day,
preferably no more than 2 days). Seafood (less than
0 for 15 days, it is not recommended to store above
0 ℃).
8
Fresh Food
0≤+4
Fresh pork, beef, fish, chicken, cooked food, etc.
(Recommended to eat within the same day,
preferably no more than 3 days).
9
Wine
+5≤+20
Red wine, white wine, sparkling wine, etc.
