Heinner HF-240M User manual

DOUBLE DOOR REFRIGERATOR
Model: HF-240M
www.heinner.com
Double door refrigerator
Net capacity: 240L
Energy class: A+

www.heinner.com
1
Thank you for chosing this product!
Please read this instruction manual carefully before using it and kee it for later information
This manual is conceived for ofering you all of the necessary info regarding instalation, using
and maintenance of the machine. For a correctly and safely use of the machine, please, read
this manual before instalation and using.
I. INTRODUCTION
II. PACKAGE CONTENTS
Double door refrigerator
Instruction Manual
Warranty card

www.heinner.com
2
III. SAFETY WARNINGS
1) WARNING―Keep ventilation openings, in the appliance enclosure or in the built-in
structure, clear of obstruction.
2) WARNING―Do not use mechanical devices or other means to accelerate the
defrosting process, other than those recommended by the manufacturer.
3) WARNING―Do not damage the refrigerant circuit.
4) WARNING―Do not use electrical appliances inside the food storage compartments
of the appliance, unless they are of the type recommended by the manufacturer.
5) The appliance has to be unplugged after use and before carrying out user
maintenance on the appliance.
6) This appliance can be used by children aged from 8 years and above and persons with
reduce physical sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
7) If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified persons in order to avoid a hazard.
8) Please abandon the refrigerator according to local regulators for it use flammable
blowing gas and refrigerant.
9) Please according to local regulations regarding disposal of the appliance for its
flammable refrigerant and blowing gas. Before you scrap the appliance, please take off
the doors to prevent children trapped.
10) This appliance is intended to be used only in household.
11) Do not store explosive substances such as aerosol cans with a flammable propellant
in this appliance.
IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED SERVICE PERSONNEL
TO CARRY OUT SERVICING OF REPAIRS WHICH INVOLVE THE REMOVAL
OF COVERS.
TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPT REPAIRS
YOURSELF.

www.heinner.com
3
IV. INSTALATION
1. Location
When selecting a position for your unit you should make sure the floor is flat and firm,
and the room is well ventilated. Avoid locating your unit near a heat source, e.g. cooker,
boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption.
Extreme cold ambient temperatures may also cause the unit not to perform properly.
This unit is not designed for use in a garage or outdoor installation. Do not drape the unit
with any covering.
When installing the unit, ensure that 10 cm of free space is left at both sides, 10 cm at
the rear and 30 cm at the top of the unit. This will allow cold air to circulate around the
wine cooler and improve the efficiency of the cooling process.
2. Reversing the Door Swing
Tools Required: Phillips style screwdriver / Flat blated screwdriver / Hexagonal spanner
1) Remove the right top hinger cover.
2) Remove the screws fixed the top-hinge with cross-slot screwdriver.

www.heinner.com
4
3) Replace the top-hinge and the top-door limit block and the door bearing bush to
the other side.
A. Remove the nut with sleeve.Take off the washer then remove the axes to the other
side and fixed.
B. Remove the door limit block
C. Please taking out another door limit block, with screw mounting to the door
4) Disassemble the screws fixed the bottom-hinge with cross-slot screwdriver.

www.heinner.com
5
Note：the refrigerator-freezer incline angle less 45°.
5) Replace the bottom door bearing bush and the limit block.
6) Replace the bottom hinge to the other side then fix it with screws.
7) Replace the mid-hinge.

www.heinner.com
6
8) Set the bottom door right position,fix the mid-hinge.
9) Replace the top-hinge.
10) Set the top door right position,fix the top-hinge and the cover.
11) Install the four screw caps and two catches to corresponding position.
·Ensure the Appliance is unplugged and empty.
·Adjust the two leveling feet to their highest position.
·We recommend you have someone to assist you.

www.heinner.com
7
12) Replace the leveler to the other side and adjust it to make sure the cabinet level.
3. Door Space Requirements
The unit's door must be able to open fully as shown.
W×D≥902×1052mm
W
D
4. Levelling the Unit
To do this adjust the two levelling feet at the front of the unit.
If the unit is not level, the door and magnetic seal alignments will not be covered
properly. Make sure that the foot touches the ground before use. Look down from the
top, clockwise and counterclockwise loosening, tightening.

www.heinner.com
8
Cleaning Before Use
Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with
warm water using a 'Wrung-out' sponge or cloth. Wash the shelves and salad bin in
warm soapy water and dry completely before replacing in the unit. Clean the exterior of
the unit with a damp cloth.
If you require more information refer to the Cleaning section.
Before Using Your Unit
Do not damage the power cord under any condition so as to ensure safety use, do not
use when the power cord is damaged or the plug is worn.
Do not put flammable, explosive, volatile and highly corrosive items in the refrigerator
to prevent damages to the product or fire accidents.
Do not place flammable items near the refrigerator to avoid fires.
This product is household refrigerators and shall be only suitable for the storage of
foods. According to national standards, household refrigerators shall not be used for
other purposes, such as storage of blood, drugs or biological products.
Do not place items such as bottled or sealed container of fluid such as bottled beers and
beverages in the freezer to prevent bursts and other losses.
Before placing any food in your unit, turn it on and wait for 24 hours, to make sure it is
working properly and to allow it time to fall to the correct temperature. Your unit
should not be overfilled.
◆Before Plugging in
You must check that you have a socket which is compatible with the plug
supplied with the unit.
◆Before Turning On!
Do not turn on until two hours after moving the unit.
Interior Accessories
Various glass or plastic storage shelves are included with your appliance - different
models have different combinations.
You should always slide one of the full size glass storage shelves into the lowest set of
guides, above the fruit and vegetable containers, and keep it in this position. To do this,
pull the storage shelf forward until it can be swivelled upwards or downwards and
removed.
Please do the same in reverse to insert the shelf at a different height.
V. BEFORE USING

www.heinner.com
9
*All images in this instruction manual are for indication only; please refer to your individual unit for.
In order to make the most of the volume of the fresh food storage compartment and
frozen-food storage compartment, the user can remove one or more shelves, drawers, out of
the appliance, according to your daily use.

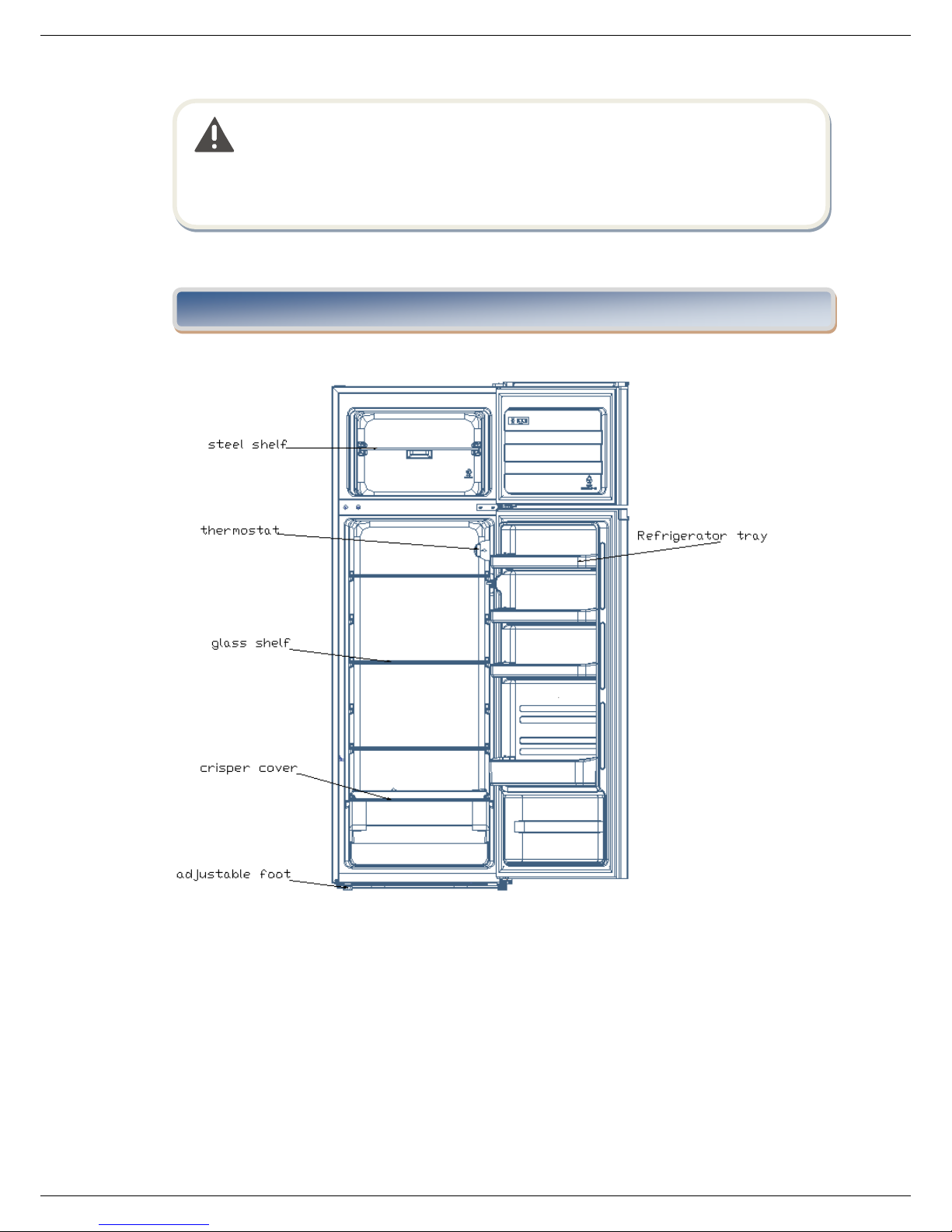

VI. PRODUCT DESCRIPTION

www.heinner.com
10
1. Switching On Your Unit
◆The temperature selector knob is located on the right hand side
wall of the refrigerator interior
wall of the refrigerator interior
Setting“Off”： UnitOff
Setting“Min”： Less Cool Temperature
Setting“Med”： Normal Operation(adequate for most situations)
Setting“Max”： Coolest Temperature
◆During high ambient temperatures e.g. on hot summer days. It may be necessary to set
the thermostat to the Coolest setting(position“Max”).This may cause the compressor
running continuously in order to maintain a low temperature in the cabinet.
◆For the first time you install your refrigerator, set the thermostat knob at “Med”.
Give your refrigerator time to cool down completely before adding food. It is the best to
wait 24 hours before adding food. The thermostat knob controls the temperature. When
the thermostat control knob is set to OFF, the refrigerator will not be running.
2. Noise Inside the Unit
You may notice that your unit makes some unusual noises. Most of these are perfectly
normal, but you should be aware of them!
These noises are caused by the circulation of the refrigerant liquid in the cooling system.
It has become more pronounced since the introduction of CFC free gases. This is not a
fault and will not affect the performance of your unit. This is the compressor motor
working, as it pumps the refrigerant around the system.
3. Tips for Keeping Food in the Unit
◆Cooked meats/fishes should always be stored on a shelf above raw meats/fishes to
avoid bacterial transfer. Keep raw meats/fishes in a container which is large enough to
collect juices and cover it properly. Place the container on the lowest shelf.
◆Leave space around your food, to allow air to circulate inside the unit. Ensure all
parts of the unit are kept cool.
◆To prevent transfer of favours and drying out, pack or cover the food separately. Fruit
and vegetables do not need to be wrapped.
◆Always let pre-cooked food cool down before you put in the unit. This will help to
maintain the internal temperature of the unit.
◆To prevent cold air escaping from the unit, try to limit the number of times you open
the door. We recommend that you only open the door when you need to put food in or
take food out.
4. Change the Light Bulb
Lamp replacement by professionals
VII. USING INSTRUCTION

www.heinner.com
11
DEFROSTING
NOTE THIS UNIT DOES NOT HAVE AN AUTO DEFROST SYSTEM.
Cleaning the Interior and the Exterior of the Unit
◆Remove all the shelves and the salad bin. To remove the salad bin first remove the
lower door shelf.
◆Wipe the inside of the unit with a weak solution of bicarbonate soda and then
rinse with warm water using a“wrung-out”sponge or cloth. Wipe completely dry
before replacing the shelves and salad bin.
◆Use a damp cloth to clean the exterior, and then wipe with a standard furniture
polish. Make sure that the door is closed to avoid the polish getting on the magnetic
door seal or inside the unit.
◆The grille of the condenser at the back of the unit and the adjacent components
can be vacuumed using a soft brush attachment.
Cleaning Tips
Condensation may appear on the outside of the unit. This may be due to a change in
room temperature. Wipe of any moisture residue. If the problem continues, please
contact a qualified technician for assistance.
MAINTENANCE
1. Changing the Internal Light
Lamp replacement by professionals.
2. Care When Handling / Moving Your Unit
Hold the unit around its sides or base when moving it. Under no circumstances should it
be lifted by holding the edges of the top surface.
3. Servicing
The unit should be serviced by an authorized engineer and only genuine spare parts
should be used. Under no circumstances should you attempt to repair the unit yourself.
Repairs carried out by inexperienced persons may cause injury or serious malfunction.
Contact a qualitatively technician.
4. Switching Of for Long Periods of Time
When the unit is not in use for a long period of time, disconnect it from the mains
supply, empty all food and clean the appliance, leaving the door ajar to prevent
unpleasant smells.
VIII. CLEANING AND MAINTENANCE

www.heinner.com
12
The following simple issues can be handled by the user. Please call the after-sale service
department if the issues are not settled.
Inoperation
Whether the freezer is plugged and connected to power;
Low voltage;
Failure power or tripping circuit
Odor
Odorous foods should closely wrapped;
Whether foods are rotten;
Whether the interior shall be cleaned.
Long-term operation of
compressor
It is normal that refrigerator operates for longer time in
summer when the ambient temperature is higher;
Do not put too much food in the freezer at one time;
Do not put foods until they are cooled;
Frequent opening of refrigerator door.
Illuminating light does not
shine
Whether the refrigerator is connected to power, whether
the illuminating light is damaged.
The refrigerator door can not
be properly closed.
The freezer door is stuck by food packages;
Too much food;
Tilt refrigerator.
Loud noises
Whether the food is leveled, whether the refrigerator is
balanced;
Whether the refrigerator parts are properly placed.
Warm tips:
◆The refrigerator enclosure may emit heat during operation specially in summer, this is
caused by the radiation of the condenser, and it is a normal phenomenon.
◆Condensation: condensation phenomenon will be detected on the exterior surface
and door seals of the freezer when the ambient humidity is large, this is a normal
phenomenon, and the condensation can be wiped away with a dry towel.
◆Buzz: Buzz will be generated by running compressor specially when starting up or
shutting down.
IX. TROUBLESHOOTING

www.heinner.com
13
Try not to open the door too often, especially when the weather is wet and hot. Once you
open the door, close it as soon as possible.
Every now and then check if the appliance is sufficiently ventilated (adequate air
circulation behind the appliance).
In normal temperature conditions, please arrange the thermostat at the middle setting.
Before loading the appliance with packages of fresh food, make sure they are cooled to
ambient temperature.
Ice and frost layer increase energy consumption, so clean the appliance as soon as the
layer is 3-5 mm thick.
If it is the outer condenser, the rear wall should be always clean free of dust or any
impurities.
◆The appliance should be located in the coolest area of the room, away from heat
producing appliances or heating ducts, and out of the direct sunlight.
◆Let hot foods cool to room temperature before placing in the appliance. Overloading
the appliance forces the compressor to run longer. Foods that freeze too slowly may lose
quality, or spoil.
◆Be sure to wrap foods properly, and wipe containers dry before placing them in the
appliance. This cuts down on frost build-up inside the appliance.
◆Appliance storage bin should not be lined with aluminum foil, wax paper, or paper
toweling. Liners interfere with cold air circulation, making the appliance less efficient.
◆Organize and label food to reduce door openings and extended searches. Remove as
many items as needed at one time, and close the door as soon as possible.
X. TIPS FOR ENERGY SAVING

www.heinner.com
14
PRODUCT FICHE - HF-240M
Brand name
HEINNER
Category
Double door refrigerator
Code
HF-240M
Energy efficiency class
A+
Energy consumption
kWh/year
228
Total gross volume
litres
245
Total net volume
litres
240
Fridge net volume
litres
199
Freezer net volume
litres
41
Climate class
ST, N
Refrigerant
R/g
R600a/47
Cooling capacity
kg/24 h
2
Noise level (max)
dB
42
Power supply/Frequency
220-240V/50Hz
Temperature rise time
h
15
Surge protection
I
Fridge defrosting
Manual
Freezer defrosting
Manual
Control system
Mechanical
Adjustable thermostat
Yes
Fridge
Shelves
3
Shelves material
glass
Crisper drawer
Yes
Bottle shelf
Yes
Reversible door
Yes
Freezer
Drawers
-
Shelves
1
Accessories
Fridge lamp
15W
Freezer lamp
-
Egg tray
Yes
Ice tray
Yes
Logistic data
Power supply cable length
cm
170
Net dimensions (WxDxH)
cm
55x55x159
Gross dimensions (WxDxH)
cm
58x58x162.2
Net weight
kg
42
Gross weight
kg
47

www.heinner.com
15
Environment friendly disposal
You can help protect the environment!
Please remember to respect the local regulations: hand in the non-working electrical equipment’s to
an appropriate waste disposal center.
HEINNER is a registered trademark of Network One Distribution SRL. Other brands and
product names are trademarks or registered trademarks of their respective holders.
No part of the specifications may be reproduced in any form or by any means or used to make any
derivative such as translation, transformation, or adaptation without permission from NETWORK
ONE DISTRIBUTION.
Copyright © 2013 Network One Distibution. All rights reserved.
www.heinner.com, http://www.nod.ro
This product is in conformity with norms and standards of European Community.
Importer: Network One Distribution
Marcel Iancu Street, 3-5, Bucharest, Romania
Tel: [phone], www.heinner.com , www.nod.ro

www.heinner.com
16
FRIGIDER CU DOUĂ UȘI
Model: HF-240M
www.heinner.com
Frigider cu două uși
Capacitate netă: 240 L
Clasa de energie: A+

www.heinner.com
17
Vă mulțumim pentru alegerea acestui produs!
Înainte de a utiliza acest aparat, citiți cu atenție manualul de instrucțiuni și păstrați-l
pentru consultări ulterioare.
Acest manual este conceput pentru a vă oferi toate instrucţiunile necesare referitoare la
instalarea, utilizarea şi întreţinerea aparatului. Pentru utilizarea corectă şi în siguranţă a
aparatului, vă rugam să citiţi cu atenţie acest manual de instrucţiuni, înainte de instalare şi
utilizare.
I. INTRODUCERE
II. CONȚINUTUL PACHETULUI DUMNEAVOASTRĂ
Frigider cu două uși
Manual de utilizare
Certificat de garanție

www.heinner.com
18
III. AVERTISMENTE PRIVIND SIGURANȚA
1) AVERTISMENT― Asiguraţi-vă că gurile de ventilaţie ale carcasei aparatului sau ale
corpului acestuia nu sunt obturate.
2) AVERTISMENT―Utilizaţi numai dispozitive mecanice sau mijloace de grăbire a
procesului de dezgheţare recomandate de către producător.
3) AVERTISMENT―Nu deterioraţi circuitul de refrigerare.
4) AVERTISMENT―Nu folosiţi aparate electrice în interiorul compartimentelor de
depozitare a alimentelor din acest aparat, decât dacă acestea sunt de tipul celor
recomandate de către producător.
5) După utilizare și înainte de efectuarea operațiilor de întreținere a aparatului, acesta
trebuie deconectat de la sursa de alimentare.
6) Aparatul poate fi utilizat de către copii cu vârste începând de la 8 ani şi de către
persoane cu capacităţi fizice, senzoriale sau mentale reduse, cu lipsă de experienţă sau
cunoştinţe, numai dacă acestea sunt supravegheate sau instruite în ceea ce priveşte
utilizarea în siguranţă a aparatului şi dacă înţeleg pericolele pe care le implică utilizarea.
Copiii nu au voie să se joace cu aparatul. Curățarea și întreținerea nu trebuie efectuate
de către copii nesupravegheați.
7) Pentru evitarea pericolelor, în cazul în care cablul de alimentare este deteriorat,
acesta trebuie înlocuit de către producător, de către agentul său de service sau de
persoane cu o calificare similară.
8) Vă rugăm să eliminați aparatul în conformitate cu reglementările locale, deoarece
acesta conține gaz izolant sub presiune și agent de refrigerare inflamabil.
9）Vă rugăm să respectați reglementările locale cu privire la eliminarea aparatului,
deoarece acesta conține gaz izolant sub presiune și agent de refrigerare inflamabil.
Înainte de eliminarea aparatului, vă rugăm să demontați ușile, pentru a evita blocarea
copiilor în interior.
10) Acest aparat este destinat exclusiv uzului casnic.
11) Nu depozitaţi în acest aparat produse explozive precum spray-urile cu aerosoli
inflamabili.
EFECTUAREA LUCRĂRILOR DE REPARAȚII CARE IMPLICĂ SCOATEREA UNOR
CAPACE SUNT PERICULOASE PENTRU TOATE PERSOANELE NEAUTORIZATE.
PENTRU EVITAREA PERICOLULUI DE ELECTROCUTARE, NU ÎNCERCAȚI SĂ
EFECTUAȚI REPARAȚIILE PE CONT PROPRIU.

www.heinner.com
19
IV. INSTALARE
1. Locul instalării
Atunci când alegeți locul în care urmează să amplasați aparatul, asigurați-vă că podeaua
este plană și rezistentă, precum și că încăperea este bine aerisită. Evitați poziționarea
aparatului lângă o sursă de căldură cum ar fi, de exemplu, aragazul, boilerul sau
radiatorul. Evitați expunerea aparatului la lumina directă a soarelui, deoarece aceasta
poate duce la creșterea consumului de energie electrică. De asemenea, temperaturile
foarte scăzute pot cauza funcționarea necorespunzătoare a aparatului. Aparatul nu este
destinat utilizării în garaj sau în aer liber. Nu acoperiți aparatul.
La instalarea aparatului, lăsați un spațiu de 10 cm în laterale, 10 cm în spate și 30 de cm
în partea de sus. Acest lucru va permite circulația aerului și va îmbunătăți eficiența
procesului de răcire.
2. Schimbarea direcției de deschidere a ușilor
Unelte necesare: Șurubelniță în cruce/ Șurubelniță în linie/ Cheie hexagonală
1) Îndepărtați capacul balamalei superioare.
2) Desfaceți șuruburile care fixează balamaua superioară, utilizând o șurubelniță în
cruce.
Capacul orificiului pentru axul balamalei
Capacul balamalei
superioare
