helavo H1040 Series User manual

User instructions
Rollator Series H1040
applies to H1040 - H1049

You can assemble this rollator on your own in a few
steps. Assembly takes about 10 minutes. No tools are
needed for assembly. Put a blanket underneath to
protect your floor.
Important: Please check the rollator for transportation
damage. Do not use the rollator if there is obvious
damage. Contact us regarding repairs or return.
Rollator Series H1040
English User instructions
Intended use
This rollator is intended to be used by persons with
reduced mobility as a walking aid and for transporting
smaller objects. This rollator model is specially designed
for outdoor use. It is intended for use on solid
ground by persons with a maximum weight of 300 lbs.
The user should have the necessary physical, visual and
cognitive abilities to operate the rollator safely.
Before using your rollator
Read the user instructions carefully before assembling
and using the rollator and keep it in a safe place. Consult
your medical professional to determine if the rollator is
suitable for your needs. If you have any questions regarding the assembly, the
rollator or if you are unsure about anything, please
contact our customer service at the e-mail address:
[email protected]
2 | User instructions

Scope of delivery
The Helavo Series H1040 comes with a frame and the
following parts:
•Removable cane holder
•Bag
•Wing screws
•Front wheels
•Rear axle with rear wheels
•Velcro strap
•User instructions
•Product insert
User instructions | 3

Description of the rollator
4 | User instructions
A.) Handle grip
C.) Seat
D.) Bag
E.) Wing screw on
front wheel
F.) Front wheel
G.) Parking brake
H.) Height adjustment
B.) Backrest
I.) Removable cane holder
L.) Rear wheel brake
J.) Wing screws on frame
K.) Rear wheel axle with rear wheel

Safety
Warning: The rollator can provide assistance to a
person with a maximum weight of 300 lbs. The
maximum load of the basket of 11 lbs should not
exceeded.
Follow the safety instructions
1. Make sure the parking brake ("G") is active when
the rollator is parked.
2. Check the handle height and make sure the height
adjustment ("H") is locked before use.
3. Make sure the rollator is completely unfolded and
locked into position with a "click" sound.
4. Keep your hands away from the folding
mechanism to avoid entrapment.
What not to do
1. Do not use the rollator as a wheelchair.
2. Do not sit on the rollator if the parking brake
("G") is not active or if it is at an angle.
3. Do not “drop” onto the seat ("C").
4. Do not hang any objects on the brake handles
("G") or hand grips ("A").
5. Do not use the rollator if one wheel ("F" / "K") is
flat.
6. Do not stand on the rollator or use it as a
stepladder.
If you have any questions regarding the assembly, the
rollator or if you are unsure about anything, please
contact our customer service at the e-mail address:
[email protected]
User instructions | 5

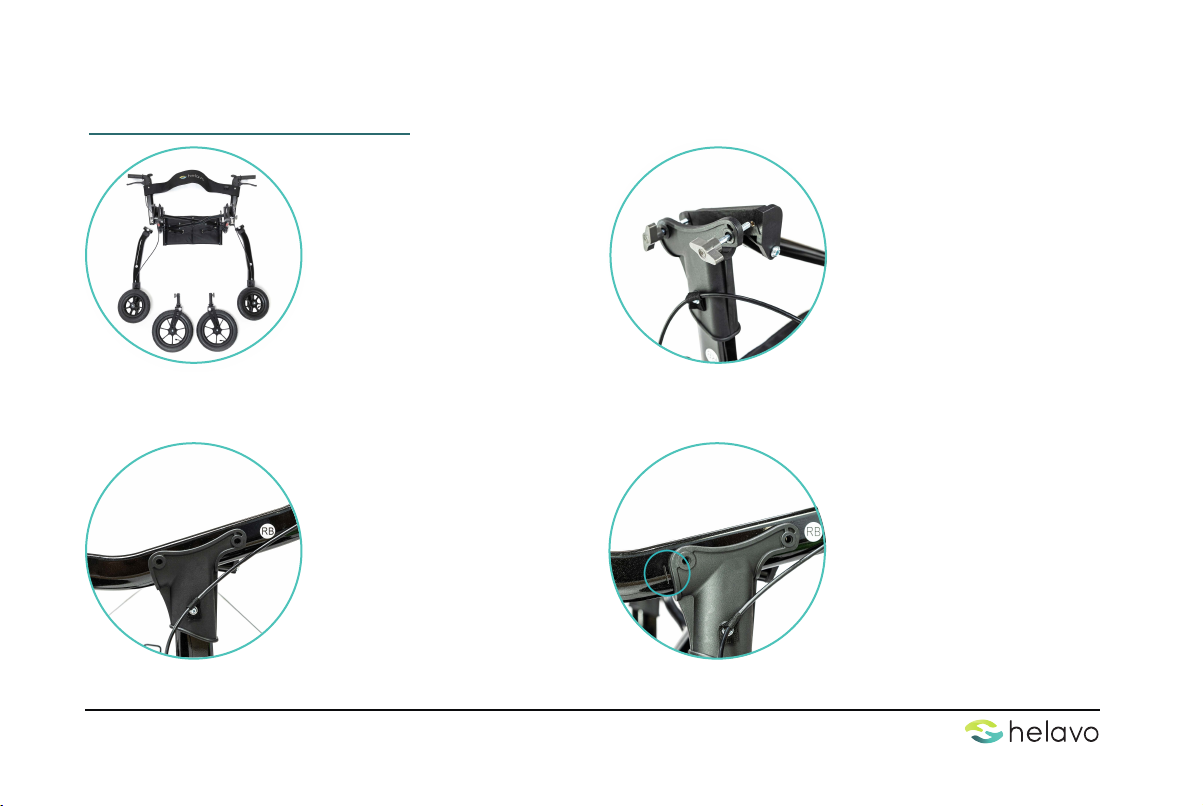

Assembly instructions
2.
3. 4.
1. Remove the rollator from
the packaging and remove
the protective foils. Spread
out the parts for assembly
as shown. The seat ("C") of
the rollator lies flat.
Remove the two wing
screws ("J") on the frame
of the rollator at the "RB"
mark.
Now insert the rear wheel
axle with rear wheel ("K")
with the marking "RB" into
the frame at the
corresponding marking
"RB". Both markings point
to the outer side of the
rollator.
Important: Make sure that
the pictured marking on the
rear wheel axle with rear
wheel ("K") is flush with the
frame. This way, the wing
bolt holes ("J") will be flush
with those on the frame.
6 | User instructions

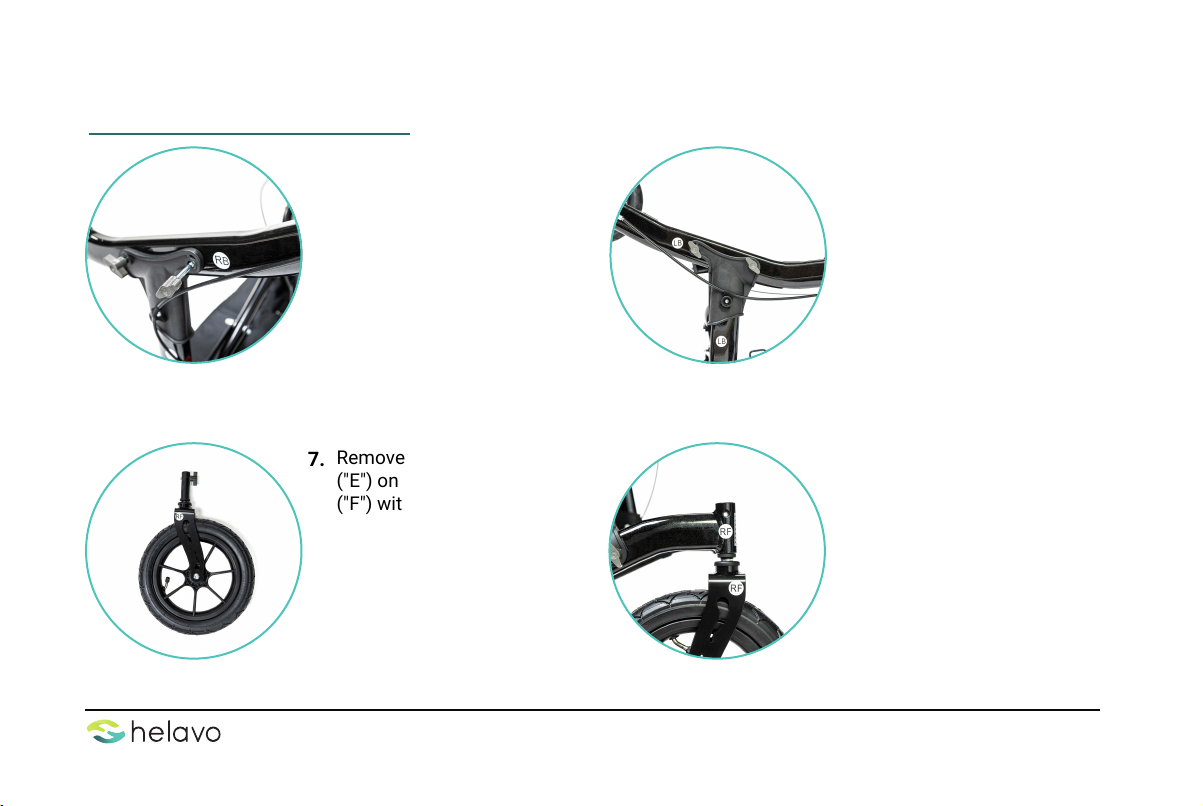

Assembly instructions
6.
7. 8.
5. Fasten the rear wheel axle
with rear wheel ("K")
with the wing screws
("J") loosened before.
Remove the wing screw
("E") on the front wheel
("F") with the marking "RF".
Now repeat steps 2. - 5. for
the second rear wheel axle
with rear wheel ("K") with
mark "LB" on the other side
of the frame.
Insert the front wheel ("F")
into the frame at the
corresponding " RF" mark.
User instructions | 7

Assembly instructions
10.
11. 12.
9. Fasten the front wheel ("F")
with the previously
loosened wing screw ("E").
The gray wing screw
pointing inwards. When
turning, the screw head will
tighten in the frame.
Repeat steps 6. - 8. for the
second front wheel ("F")
with the mark "LF" on the
other side of the frame.
Put the rollator in an
upright position and pull it
apart by both handles ("A").
Push it down on both sides
of the seat ("C") as shown.
Important: For the rollator
to be fully unfolded, it must
lock into place with a
"click" sound.
Press and hold the gray
height adjustment button
("H") and insert the two
handles ("A") into the
frame one after the other.
Adjust the handles so
that both sides are the
same height.
8 | User instructions

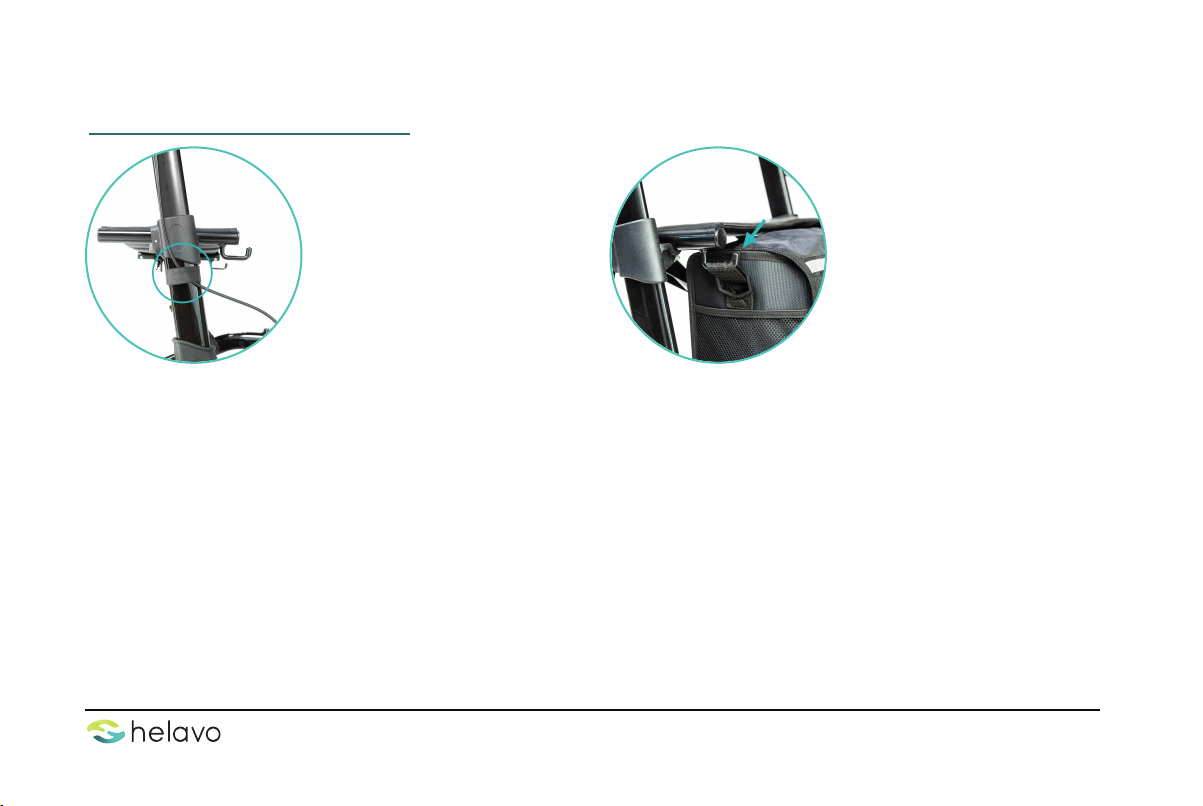

Assembly instructions
14.
13. Our recommendation: Fix
the brake cables on both
sides of the frame using
the velcro tape as shown.
Be careful not to cover
any reflectors when doing
this.
Attach the bag ("D"). Hook
the tabs of the bag into the
hooks provided.
User instructions | 9

Adjusting the height
Press the gray button on the height adjustment ("H") on
the frame of the rollator and adjust the handle to the
appropriate height. Repeat for the other side. Make sure the
gray buttons on both handles are locked. Make sure that
both handles are set to the same height.
Handle height: 31.9 - 37 inch
Your ideal handle height
Adjust the handles ("A") of the rollator so that they are at the
height of your wrist when your arms are hanging. When you
place your hand on the handle, your elbow should be slightly
bent. If you find that you need to bend over or keep your
arms bent at a right angle, adjust the height of the handles.
10 | User instructions

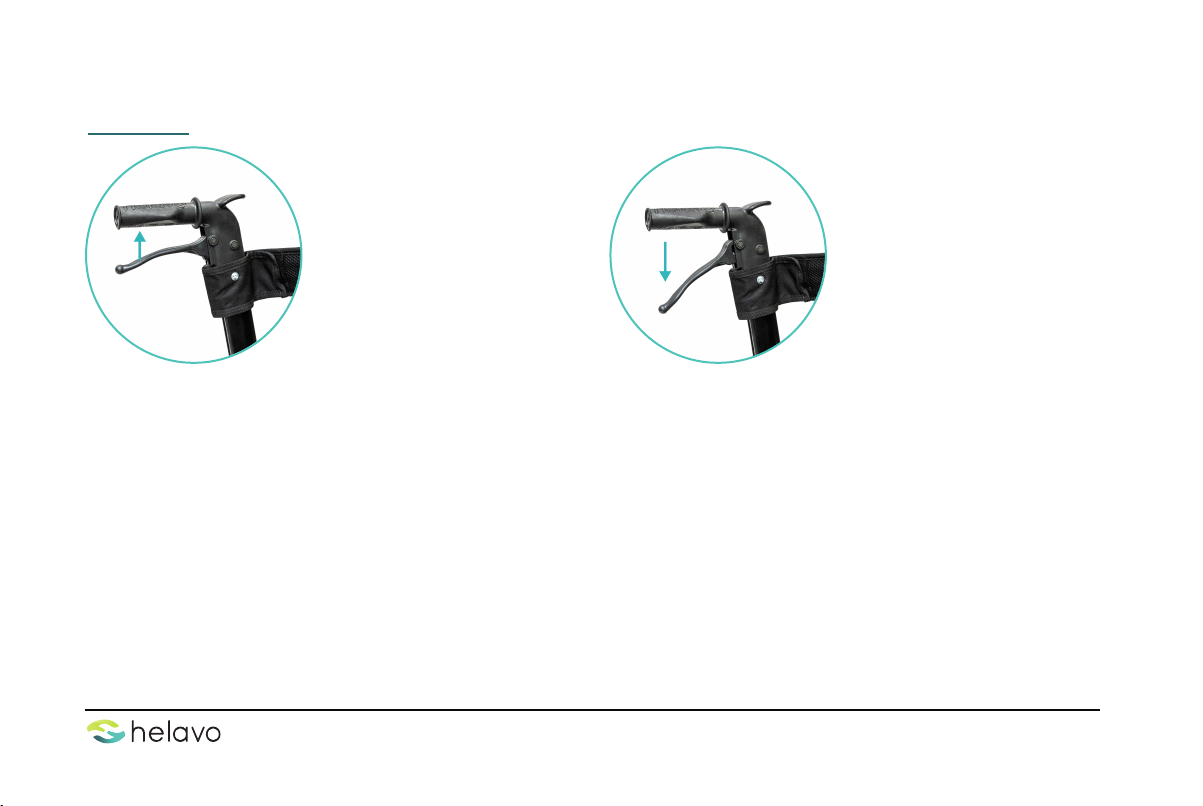

Brakes
2.
1. Pull the brake handles
("G") up to brake the
rollator.
Push the brake handles ("G")
down to lock the rear
wheels. In this position, the
parking brake of the rollator
is active.
To release the parking brake
again, pull the brake
handles ("G") upward.
User instructions | 11

Locking nut
Adjustment screw
Adjusting the brakes
To adjust the rear brake ("L"), adjust the adjustment screw
and locking nut. These are located on the rear wheels ("K") of
the rollator. Turn the adjustment screw
counterclockwise to increase the tension. Then secure the
adjustment by turning the locking nut clockwise. Hold the
adjustment screw in place while doing so.
 Important
If the brake adjustment has been made so that the rear brake ("L") is set too loose or too tight, this will affect the function
of the brake. If the brake is set too tight, it could drag on the wheel. If the brake is set too loose, it could affect the
operation of the brake.
12 | User instructions

Removable cane holder
2.
1. Attach the cane holder ("I")
to the side of the frame in
the provided position.
To do this, slide the cane
holder ("I") onto the holder
from above.
User instructions | 13

Folding and storing the rollator
2.
1. Pull the handle in the
middle of the seat ("B")
firmly upwards to fold the
rollator.
Continue to push the
rollator on both sides of
the frame.
14 | User instructions

Inflating the wheels
Open the valve to inflate the wheels. To do this, turn the cap
counterclockwise. Inflate the wheels. Then screw the cap
back onto the valves.
The valves on the wheels of this model are Schrader valves.
To inflate the wheels use a manual air pump with the
appropriate attachment.
Rear wheels ("J"): 20.3 - 29 psi
Front wheels ("F"): 24.7 - 31.9 psi
User instructions | 15

Cleaning
The rollator can be cleaned with a damp cloth / sponge and warm soapy water. If necessary, you can use an
antibacterial surface cleaner. Dry the areas thoroughly afterwards. When cleaning, take care not to leave any residue on
the seat and handles so that the surface does not become slippery in these areas. Do not use scouring pads or
scrapers to avoid damaging the surface coating.
Maintenance
1. Check the rollator at regular intervals for loose
wing screws ("E" / “J”) and defective height
adjustments ("H").
2. Periodically check for proper operation of the
rear wheel brakes ("L").
3. Check the air in the tires ("F" / "K") regularly and
inflate them if necessary.
4. Replace damaged or worn parts.
