INSTRUCTIONS FOR USE AND CARE
REAL 6100 PLUS
Article No.
Changed 121113
Valid from 130517
PRE-USE INSPECTION CHECKLIST
• All knobs and locking wheels shall be tightened on the
chair before use.
• The leg support may not be adjusted so that it touches
the floor or the ground at any time.
• If the REAL 6100 is equipped with a belt or a harness
of any kind it may not hang loosely on the chair but used
as intended or taken off.
• Make sure the foldable armrests are in an upright
position before driving the chair.
• Fold down the footplate.
• Attach the backrest.
PRE-USE INSPECTION CHECKLIST
CONTROLLER
• Turn on the main switch.
• Make sure the battery level indicator should not be
down at the red mark.
• Make sure the controller does not display any errors.
TECHNICAL INFO PAGE 3
USER GUIDE PAGE 5
CONTROL BOX SHARK PAGE 7
CONTROL BOX DX 2-REM550 PAGE 8
CHARGING PAGE 9
PROGRAMMING DIAGRAM OF THE ELECTRONICS PAGE 11
INDIVIDUAL CUTSTOMIZATION PAGE 12
GET ACQUAINTED WITH YOUR REAL 5100/6100 – PLEASE READ THESE OPERATING
AND MAINTENANCE INSTRUCTIONS AND THE USER GUIDE BEFORE USING
THE WHEEL CHAIR.
INDEX
REAL 6100 PLUS is an electrically powered indoor wheelchair for people with various disabilities.
The REAL chair as specified below model is CE certified in accordance with the MPA statutes of medical
devices LVFs 2003:11.
®
Mercado Medic AB Telefon & Fax Email & Internet
Tryffelslingan 14 Tel [phone] Email [email protected]
181 57 Lidingö Fax [phone] Internet www.mercado.se
Sweden

2
IMPORTANT INFORMATION AND CLASS
STORAGE, CLEANING AND MAINTENANCE
TECHNICAL DATA
• REAL 6100 PLUS is classified as A and is intended for indoor use only.
• Max users weight: 135 kg. If you want to adjust for heavier users – contact Mercado Medic UK.
• REAL 6100 PLUS is tested and approved according to the EMC-directive.
• Mobile Phones do not affect the manoeuvring of REAL 6100 PLUS.
• REAL 6100 PLUS may not be equipped with other accessories or components other than those authorised
by Mercado Medic AB.
• Repairs or other engineering work must be performed by personnel authorised by Mercado Medic AB.
• Chairs with adjustable seat angle should be in fixed position when sitting in or rising up from the chair.
• REAL 6100 PLUS shall not be operated when the seat height is in the raised position.
The REAL 6100 PLUS chair has exchangeable components, accessories and functions that can be adjusted to suit indi-
vidual needs. The chair should only be used by the person and for the purpose for which it was originally intended. The
chair is designed for indoor use and should not be exposed to water, other fluids or chemicals nor should it be exposed
to high temperatures intensive sunlight or similar. The chair may not be equipped with other accessories or components
than those approved by Mercado Medic. Repairs and other technical adjustments may only be carried out by personnel
authorised by Mercado Medic. Please read through these instructions carefully before using your chair.
Keep the chair in a dry, room temperature environment.
Check battery level prior to use. If the chair is to be stored
for longer than a month the battery terminals should be
disconnected. The chair is intended for indoor use and
should not be flushed with water, other liquids or chemicals.
The chair can be cleaned/wiped clean with disinfectants.
Do not expose the chair to high heat or prolonged/intense
sunlight or other radiation.
The chair should be wiped clean and kept free of dust
and dirt and the upholstery cleaned with foam upholstery
cleaner. Remove loose dirt from the fabric.
• Apply a thin layer of foam and rub it into the
fabric evenly with a damp cloth.
• Wipe dry with a clean, damp cloth.
• Vacuum well when dry.
The seat, backrest and other padded parts are, for functional
purposes, not made of impermeable materials. For hygienic
reasons, when the upholstery is changed, the seat and
padding material should be replaced.
The electronic lifting device should be checked regularly for
dust and dirt. Put the seat into its highest position. Clean
with a cloth. (Water or solvents may not be used).
Then lubricate the cylinder with a thin layer of Teflon- or
siliconbased grease, which does not become overviscous like
greases based on mineral oils.

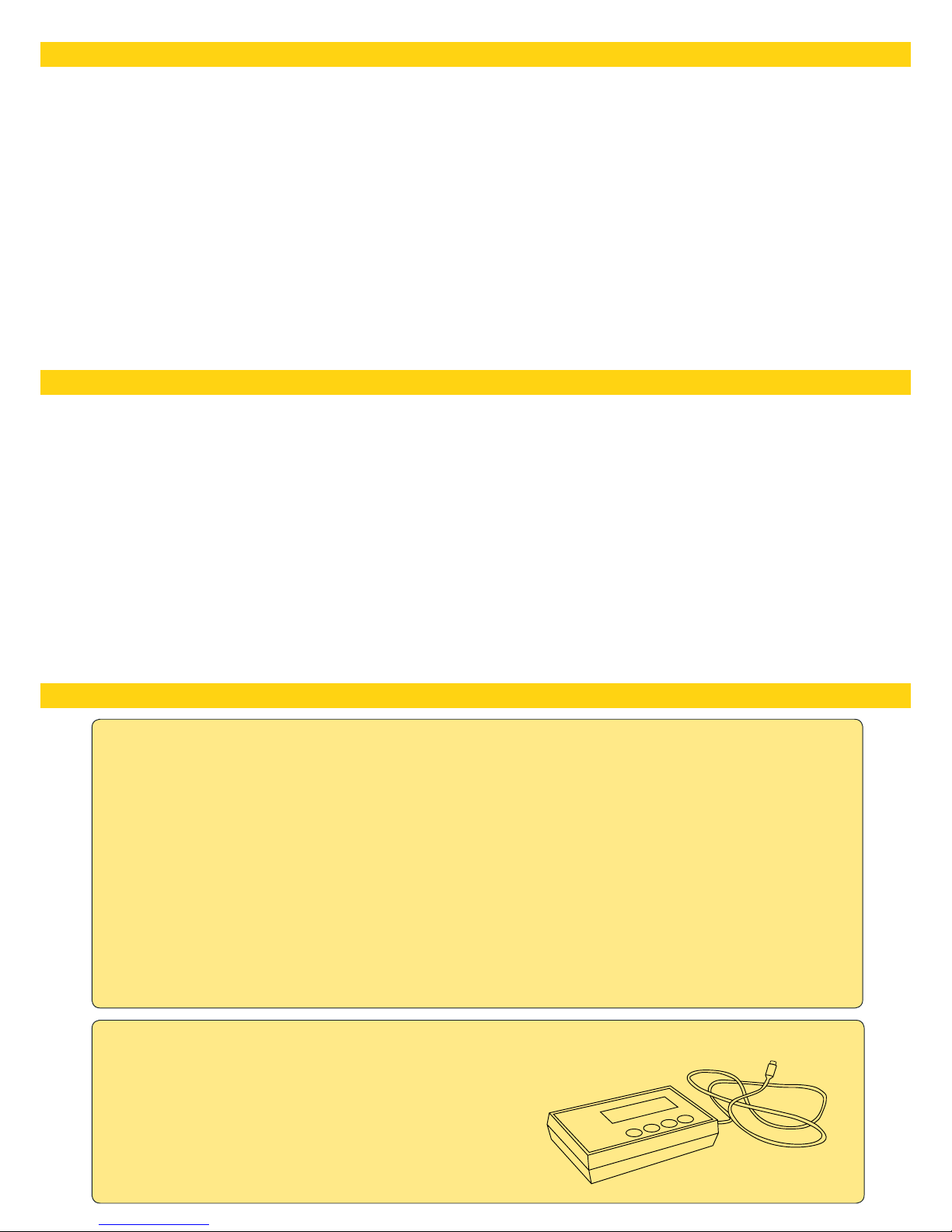

PROGRAMMING DEVICE
• Forward speed
•Forward acceleration
•Forward deceleration
•Reverse speed
•Reverse acceleration
•Reverse deceleration
•Turning speed
•Turning acceleration
•Turning deceleration
•Joystick sensitivity
•Reversed joystick function
•Use of external joystick
Selection of programmable functions:
Max user weight 135 kg
Top speed 4,5 km/h
Turning space180°870 mm
Driving wheel Both center wheels
Driving time per charge approx. 15 km
Obstacle ability 40 mm
Weight 76 kg incl. batt.
Charging time approx. 6-8 hours
Charger tested and approved by
Mercado Medic AB Mentzer 3A
Easy Buddy 4A
Batteries tested and approved by
Mercado Medic AB Sonnenschein 2pcs 12V 25 Ah
Total width 570 mm
Length 795 mm
Wheel front/back Ø 125 mm
Driving wheel Ø 210 mm
Seat height 480-760, 410-610 mm*
Leg support length 370-530 mm
Seat width 290-480 mm
Seat depth 320-480 mm
Seattilt -15° +8°, -8° +15°, 0° +23°
Back support height 330-430 mm
Back support angle -15-+45°
*with the ability to adjust down to a maximum of 3 cm.
TECHNICAL DATA STANDARD MEASUREMENTS

3
YOUR REAL 6100 PLUS
1. Backrest
2. Armrest
3. Controller
4. Seat
5. Drive wheel
6. Individual wheel suspension
7. Footplate
1
23
4
5
6
7
2
1 2
2
Battery level indicator
Main switch
Lower speed
Horn
Joystick
Accelerate
Speed indicator
Seat function
Service indicator

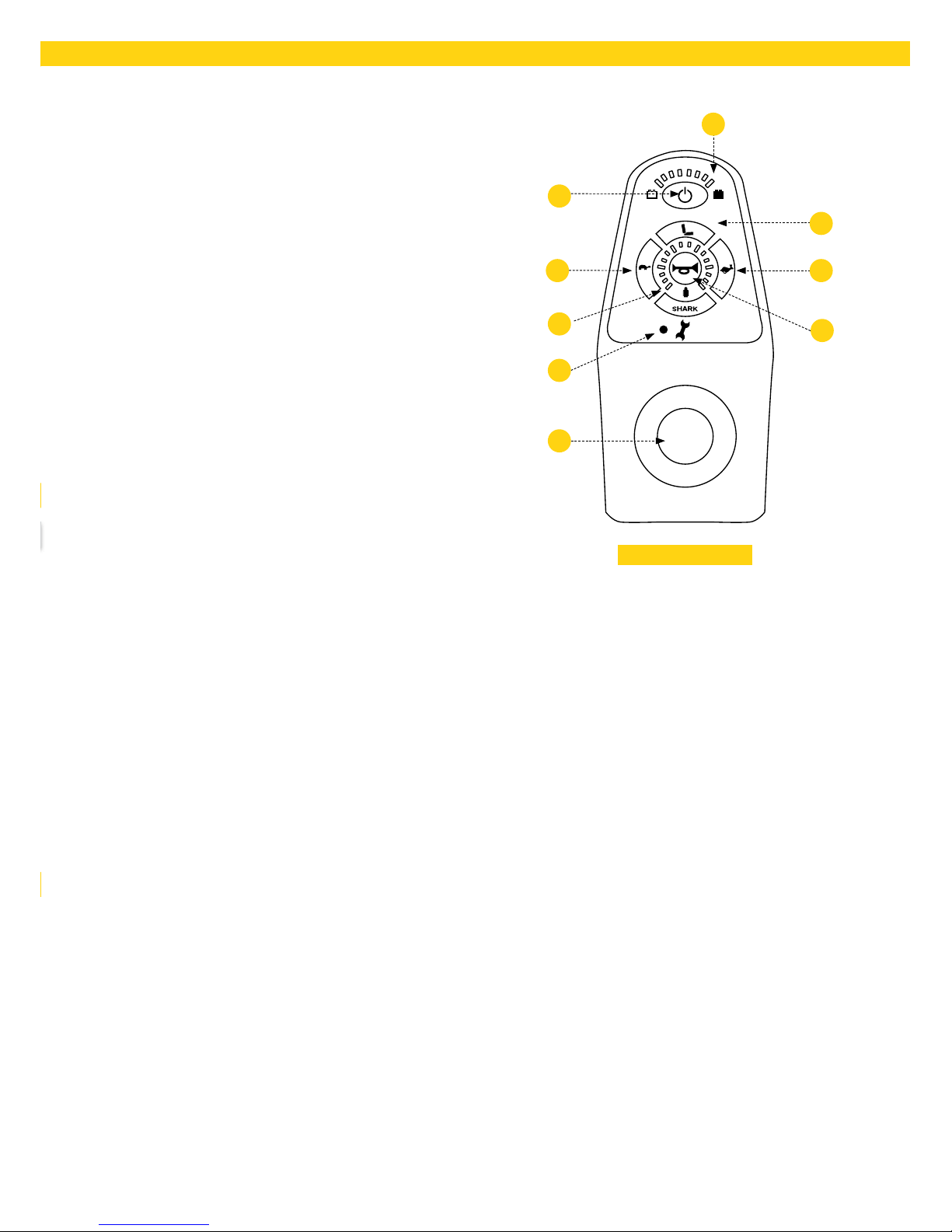

Control box SHARK
Joystick
Main switch
Left indicator
Right indicator
Horn
Option buttons
Operating program
Display
Battery level indicator
Function buttons
Control box DX 2-REM 550
21 2
2
1
23
4
Battery level indicator
Main switch
Horn
Option buttons
Electric functions
Joystick
Speed indicator
Drive function
Service indicator
Control box DX 2-REM421

4
BACKREST
THERE ARE FOUR TYPES OF BACKREST
MECHANISMS:
Standard, Medic, Comfort and Electric.
All are available as low-and high-performance
(all illustrated chairs have low mechanism).
All backrest mechanisms have separate controls for
height, depth and angle. The Medic model is adjustable
in depth. Backrest mechanism can be electrically
operated as an option, see the control panel.
CONTROLS
1. Height adjustment
2. Angle adjustment of backrest mechanism
3. Angle adjustment of backrest plate
4. depth adjustment
5. Electric controls – see the section for control box.
6. NOTE! Ensure that the Medic backrest fits in the bracket
so that snap locks and the backrest cannot be pulled out.
Standard Medic (Option) Comfort (Option) Electric
1
1
11
22 5
2
6
33
3
4

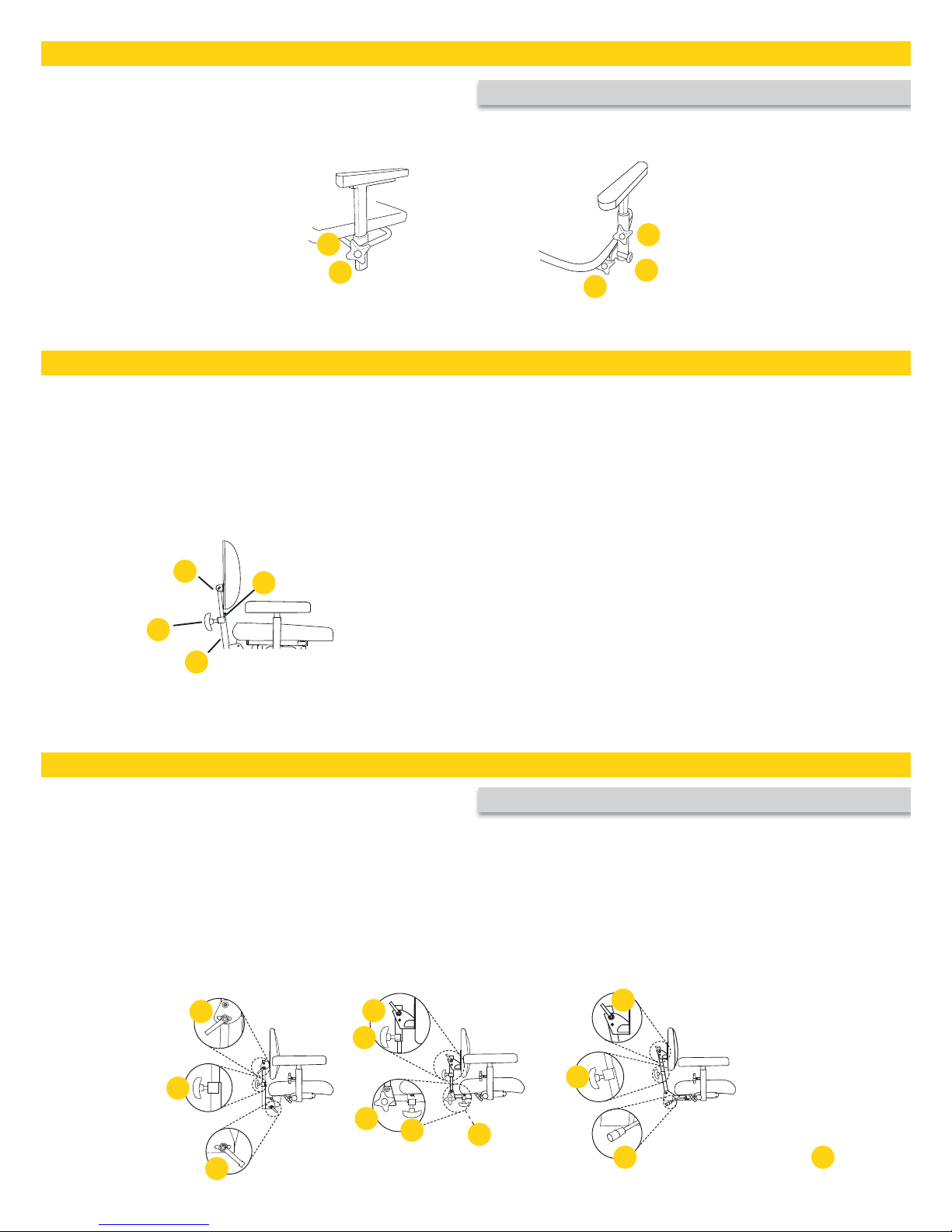

ARMREST
ATTACHING AND ADJUSTING THE BACKREST
The user can adjust the armrests height and width.
If the chair comes with folding armrests, these can
be folded down.
CONTROLS
1. Height adjustment. Turn to lower/raise the armrest
2. Width adjustment
3. Folding mechanism
Lower the backrest (1) into the backrest mechanism (2)
while you hold the snap lock (3). Adjust to the desired
height. Lock the backrest by tightening the knob (4).
Foldable armrestArmrest
1
1
2
3
4
1
2
2
3

5
TRANSPORTATION SERVICE
Users must not be seated in the chair when
transporting the REAL 6100 PLUS. Users must
move over to the dedicated vehicle seat. The chair
must be equipped with transport loops and must be
anchored to the vehicle using straps. Transport loops
are accessories that can be ordered separately, article
number 802210.
Crank control Electric
Gas spring
SEAT TILT
REVERSE TILT OR ALL TILT BACKWARDS (OPTIONAL)
THERE ARE THREE TYPES OF SEAT TILTS:
Gas spring, crank control and electric tilt. The gas
spring lever is located at the rear right side under the
seat (1) and is adjusted by moving the lever slowly
forward. The controls are alternatively under one of
the armrests (2). Crank operated tilt is adjusted using
the crank from the rear(3). The range of the tilt can
be reduced using attached nuts (4). Electric seat tilt
is controlled from the controller, see the controller
section.
SEAT TILT MECHANISMS
1. Gas spring under armrest
2. Gas spring under seat
3. Crank control under seat
4. Electric – see control box section.
CONTROLS
1. Armrest attached here move with the seat tilt
2. Armrest attached here do not move with the seat tilt
3. There are 3 positions. When selecting position 3,
the seat must be equipped with base extensions.
1. Front 15˚, back 8˚ – standard seat tilt
2. Front 8˚, back 15˚ – reversed seat tilt
3. Front 0˚, back 23˚ – all seat tilt backwards
1
2
3
4
3
2
1
3
2
1

6
ADJUSTING THE CONTROLLER POSITION
The controller can be adjusted for depth and sideways
position. To adjust the depth, undo screw (1) with
a 5 mm Allen key. Move the controller arm to the
required position (out of three possible) and reattach
the screw. The controller can also be moved sideways
to either the inside or the outside of the armrest.
The control arm is jointed at two points.
This allows the control box to be moved
horizontally and sideways without the use of tools.
Push the controller into the desired position and it
locks into position by itself. The controller can be
placed on either side of the chair.
WITH PARALLELOGRAM
The magnetic attachment allows the controller to be
positioned parallel to the arm rest. Adjust the position
of the screw (1) then lock the screw.
Adjust the control box to the desired position, release.
2
1
1
1
3
FOOTPLATE
The footplate has a height and an angle adjustment.
To adjust the height of the footplate: loosen screw
(1). Adjust the foot-plate to the required height and
tighten the screw. Note: ensure that the screw enters
one of the inner tube’s countersunk depressions.
The angle of the footplate is adjusted using screw
(3) with a 5 mm Allen key. To lower, turn the screw
clockwise; to raise, turn the screw anti-clockwise. The
leg position can be adjusted to four positions. Loosen
and remove screw (2) with a 5 mm Allen key. Set the
required angle, return the screw into the relevant hole
and tighten.
Calf/heel support and base plate with depth 100 mm
are available as options. Also with depth, width,
height and angle adjustment.
CONTROLS
1. Height
2. Angle – legrest
3. Angel – footplate
BRAKE RELEASE
Releasing the brake enables the chair to be moved
manually. To disengage the brakes press the switch away
from you (1), upwards in the picture on the right. To apply
the brakes again, push the controls back to the original
position. If the chair is disengaged when it is on, the panel
will display an alarm which means that the chair is not
possible to use. As soon as the brake is engaged, the alarm
is off and the chair is again possible to use.
Note! The chair must never be transported with the brakes
disengaged.
1

7
MANEUVER OPERATION
Press the main switch (1). Check the battery level (4).
The battery level should not be down at the red mark
(see“Charge”). Make sure the service indicator (9) is
not lit.
DRIVING
Before driving check that the seat function indicator
(6) is not lit. When driving the chair for the first
time, start with a low speed and gradually increase the
speed until you reach a comfortable cruising speed.
To reduce speed press the button with a turtle (2),
to increase speed press the button with a rabbit (3).
To fine-tune the speed, hold switch (2 alt. 3) to the
desired speed is displayed on the speed indicator (7).
SEAT UNIT
To select the seat control, press the button (6).
Pressing once lights function 1, pressing twice
switches mode to function 2. Seat height is always
operated by function 1. To raise or lower the seat
press the joystick forward alt backwards. Function
is switched off if the seat has no further power
functions. To return to run mode press the button
(6) again.
If the chair’s electrical functions are not used in five
minutes, the controller is automatically turned off to
save battery. To boot the electronics press the main
switch (1) or push the joystick (5) The time interval
for automatic shut-off is adjustable. Horn: press the
button (8).
LOCK THE CONTROLLER, SHARK
When the controller is turned on, hold the power
button (1) for 4 seconds. The controller is turned off.
After 4 seconds, all LEDs light up for a moment and
a the horn will sound. After that, turn the controller
on and it is now locked.
UNLOCK THE CONTROLLER, SHARK
When the controller is locked. Press the power
button to turn on the control box. All LED lights up
quickly. Battery indicator LED (8) will then light up
and count down slowly from right to left. Press the
“Horn” button (8) twice before the battery indicators
LED is completely related. You have about 10 seconds.
After that, the current battery level and your REAL
6100 is ready for use.
CONTROLLER SHARK
2
1 2
2
2 3
78
9
5
1
4
6
Control box SHARK

8
MANOEUVRE OPERATION
Press the main switch (1). Check the battery level (4).
The battery should not be down at the red mark.
(See “charging”).
Driving: make sure the display (3) shows one of the
driving programs 1 to 5. Press function buttons (2)
until any of these numbers appear. Set the program
speed with function buttons (6). Push the joystick (5)
straight forward to drive forwards and diagonally left/
right-forward to turn. The chair can be turned around
by moving the joystick (5) straight left/right.
To reverse, pull the joystick (5) backwards.
Horn: press the button (8).
SEAT UNIT OPERATION
To raise/lower the seat unit or to operate electric
tilt, backrest angle or angle of footplate. Press the
Option key (7) until a chair appears. The electrical
functions that are available on the chair are displayed
(one function visible at a time). Press the function
button (6) to toggle between the symbols or move the
joystick from side to side. The electric function that
is active is blue in the display (3). Move the joystick
forward/backward alt left/right to operate the different
functions. The symbol on the display switches to green
when adjusting.
Adjust the seat height: move the joystick (5) forward
to raise the seat, and down to lower it. Adjust the
seat tilt: move the joystick (5) forward to tilt the seat
forward, and back to tilt it backward. Adjust the angle
of the backrest: move the joystick (5) forward to tilt the
backrest forward, and back to tilt it backwards.
OPERATING THE ELECTRICAL FOOTPLATE
OPTION
The footplate has height and angle adjustment. Press
the option button (7) until a chair appears. Press the
function button (6) or move the joystick (5) left/ right
to highlight the function “electrical footplate” which
is divided into right and left. Move the joystick (5)
forward to extend and tilt the footplate or backward to
retract the footplate and move it backward.
To adjust the left footplate only, navigate to No. 1 and
move the joystick (5) forward to tilt the footplate up
or move it backward to tilt it down. To merely extend/
shorten the footplate on the left side navigate to No.
2 and move the joystick (5) forward to extend the
footplate and back to make it go back. To adjust the
right footplate only navigate to No 3 (see No. 1) and
No. 4 for vertical adjustment (as explained in # 2).
When the chair’s electrical functions are not used
in five minutes it will turn off automatically to save
battery. To boot the electronics press any key. The time
interval for automatic shut-off is adjustable.
IN ORDER TO LOCK THE CONTROLLER, DX 2
When the controller is turned on, hold the power
button (1) for 4 seconds. Lock will be displayed.
The control box is turned off.
TO UNLOCK THE CONTROL BOX DX 2
Press the Power button (1).
A lock appears in the display.
Push the horn (8) twice within 10 seconds.
The control box is started.
CONTROLLER DX 2-REM550
21 2
2
3
7
6
8
2
5
4
1
Controlbox DX 2-REM550

9
CHARGING
MAINTENANCE, CHARGE THE CHAIR EVERY
MONTH OR CONTINUOUSLY
When only the red lights appear on the battery
indicator (4, in the illustration at the top of the page),
this means that the chair is running on reserve power.
The batteries should be recharged since only
10 percent of the battery’s capacity remains. If the
chair continues to be used, the red lights will start
to flash to give a further reminder of the need for
recharging. To charge, make sure that the chair is
switched off. Insert the charge plug (1) into the charge
socket (2) on the front of the controller. Then connect
the charger’s mains plug (3) to a wall socket. A yellow
light (4) comes on when the battery is charging.
When light (4) turns off, the battery is charged
90% of its capacity and can be used. To increase the
durability of the battery it is recommended to wait
until light (5) is on.
When exchanging battery (brand: Sonnenschein, type:
Dryfit A500 A512 12V 25 Ah), make sure to connect
the cable marked with a plus sign to the positive pole
on the battery. The negative cable should be connected
to the negative pole.
GUIDELINES WHEN HANDLING BATTERIES:
• Do not ever short-circuit the battery.
• Do not throw it on a fire.
• Avoid heavy bumps to the battery.
• If exposed to battery acid, rinse immediately with water
for at least 15 minutes then contact a doctor.
• Used batteries must be left at a recycling station.
LED 1 On Connected to mains
LED 2 On Charging commences. LED flashes,
when battery is charged 90%
LED 3 On Battery charged, charger is in float
charge mode
LED 4 On Battery is connected in reverse polarity.
Disconnect the mains supply immediately,
change the battery connection and repeat
the start procedure.
1
2
3
4
Charger 6100 series 3/4 artno. 801965
Lysdiod
1
3
5
4
2

10
SAFETY INSTRUCTIONS
The chargers are especially designed to charge
maintenance free lead acid batteries. The charger
housing should only be opened and maintained by
authorized personnel. Unqualified opening may cause
damage to the charger and will void the guarantee.
Operation with an opened housing is strictly
prohibited. Only a qualified technician is allowed
to replace the fuse. The charger should only be
operated if sufficient cooling is assured. The chargers
should only be operated in closed rooms and must be
protected against moisture.
PUTTING INTO OPERATION
Compare the rated voltage of the type plate of the
charger with the rated voltage of the battery. If
identical connect the battery with the correct polarity.
Red cable to plus (+) terminal, black cable to minus (-)
terminal of the battery. Connect the mains supply.
When the polarity is correct a LED 1 and LED 3
ignites. The LED 3 will turn of shortly and the LED
2 ignites. The battery will now be charged with the
rated current. If connected with reverse polarity, the
LED 4 illuminates. In this case disconnect the mains
supply immediately, charge the battery connection
and repeat the start procedure after 30-60 seconds.
If LED 4 and LED 3 illuminates after connecting
battery and mains, the battery is not connected or
the battery wiring is damaged.
SPECIAL INSTRUCTIONS TO AVOID SPARKS:
• Connect mains supply without battery connection.
• Disconnect mains after a short period of time.
• Connect battery with correct polarity.
• Connect mains supply.
RECOMMENDATIONS FOR CHARGING
SEALED LEAD ACID BATTERIES:
Charge/Discharge
• Charge 12 hours prior to initial use.
• Charge after each discharge even after partly discharge.
• Never store a discharged battery.
• A completely discharged battery must be charged for
min. 16 hours.
• If the charging time is below 16 hours for more than 3
times then charge one time for 24 hours to equalize the
poor charging.
• The ambient charging temperature should range between
10ºC and 30º.
BEFORE LONGER STORAGE PERIODS
(2 POSSIBILITIES):
A Disconnect the battery from the charger and store it fully
charged. Before storage periods exceeding 3 months
charge the battery for min. 36 hours.
B You can leave the battery on charge for an unlimited time
(maintenance charge). It is recommended to store
the battery in a cool place.
HIGH AMBIENT TEMPERATURES
Charging in temperatures above 30°C is not
recommended. Your charger is adjusted with a
charging voltage valid for 20°C.
LOW AMBIENT TEMPERATURES
Charging below 10°C is not recommended. In low
temperatures the available capacity is reduced.
DEEP DISCHARGE
Try to avoid deep discharges. If a deep discharge
occurred, charge the battery as soon as possible for
24 hours.
GENERAL
The charger is designed in the primary switch mode
technology. The technology provides a constant
DC voltage which guarantees for a long lifetime for
maintenance free sealed lead acid batteries. A holding
device for wall mounting will be found on the back of
the charger.
DETAILED INFORMATION – CHARGER 6100 SERIES 3/4
WIRING DIAGRAM FOR CONNECTION OF OTHER CHARGERS
Batteri laddare
DX-RemG80 Batteri
Laddplugg 3 pin XLR typ
(framifrån)
Batteri -
Förregla
Batteri +

PROGRAMMING DIAGRAM OF THE ELECTRONICS
DX2 SHARK USER SETTINGS
PROG. 1 PROG. 2 PROG. 3 PROG. 1 PROG. 1 PROG. 2 PROG. 3 PROG. 4
Max forward speed 25 % 45 % 75 % 75 %
Forward acceleration 20 % 25 % 30 % 30 %
Braking, forward 35 % 40 % 50 % 75 %
Max reverse speed 20 % 25 % 50 % 50 %
Reverse Acceleration 20 % 20 % 25 % 25 %
Reverse brake 35 % 35 % 50 % 50 %
Max turning speed 15 % 20 % 45 % 40 %
Turn acceleration 20 % 20 % 25 % 30 %
Turn braking 35 % 40 % 55 % 55 %
Joystick sensitivity 50 % 50 % 50 % 40 %
Grip / Traction 100 % 100 % 80 % 80 %
* MUST NOT BE INCREASED. INCREASE AT YOUR OWN RISK.
STANDARD PROGRAM

GUIDELINES FOR INDIVIDUAL CUSTOMIzATION OF MERCADO MEDICS PRODUCTS
Customizations shall only be done by authorized personnel who have received Mercado Medic training program
for service and reconditioning.
Articles that are on the list over current combination agreements are allowed to be tted with maintained
CE-marking. If an article wants to be tted that is not on this list must authorized personnel contact Mercado
Medic and ask for a written approval.
Article to be approved must physically be sent to Mercado Medic for evaluation. Mercado Medic will then
contact the supplier of the article in order to sign a mutual combination agreement. In that process Mercado
Medic conducts a risk analysis for the article in combination with Mercado Medics product. When the risk
analysis is conducted the customer/supplier receives a written notion.
Chairs that have undergone changes, as described below, shall be veried by Mercado Medic to maintain product
liability.
• Upholstered parts such as seats, backrests, armrests, side supports and neckrests can be customized as it do
not exceed the original product measurements or centre of gravity.
• Center of gravity in relation to the actuator must be maintained.
• Upholstered parts shall meet current re and environmental requirements.
• Surfaces put under considerable load must not be outside the square formed by the wheels on the base.
If these guidelines are fullled Mercado Medic will keep the product responsibility (CE).
Special customization done by the healthcare beyond Mercado Medic guidelines overtake the responsibility for
the product in its form, but also how it is put back in its original form. is must be done by an authorized
technician approved by Mercado Medic. Mercado Medic then overtake the product responsibility according
CE93/42EEC; Medical Products Directive MDD.
For questions regarding adjustments/customizations, contact Andreas Teske.
Phone [phone]
Email [e-mail]
Mercado Medic AB Telefon & Fax Email & Internet
Tryffelslingan 14 Tel [phone] Email [email protected]
181 57 Lidingö Fax [phone] Internet www.mercado.se
Sweden
