Eradicator Gen II O3
Manual Supplement
Install & Service Guide
2Copyright ©2021 Aqua Systems, All Rights Reserved • 404 Moravian Valley Road, Waunakee, WI 53597
Introduction
This Advanced Features Supplement is a guide to
the Eradicator with EOG II external Ozone. The
Eradicator line of chemical free iron and sulfur
removal systems is enhanced with ozone during
the aeration cycle. Ozone is effective as a Super
Oxidant for water treatment.
The unique low voltage ozone generator has been
designed to t externally on the SmartChoice
Eradicator control valve in which both are operated by a single low voltage power supply. This approach
provides an attractive ozone system that is very efcient and simple to maintain. The generator is
power optimized to consistently deliver the highest quality of ozone to the system. The Eradicator with
Ozone is an advanced technology water treatment system. It is recommended that the owner arrange
for annual periodic maintenance by a qualied technician to achieve optimum long term performance.
The information in this guide is directed to an individual who has experience with Gen II Eradicator
systems, and related programming of the Gen II control. Review materials on the Gen II control
before proceeding with this guide.
The content of this guide is intended to provide an overall understanding of how the Gen II AQx control
will function with the ozone generator. There are specic procedures to be used during installation,
startup, and for long term periodic maintenance that are unique with the ozone components.
Contact the Technical Support Group for additional information.
Note:
Installing the Gen II with Ozone requires special provisions for all outdoor installa-
tions. Consult with Tech Services Group at Aqua Systems on outdoor installations
with Ozone.
Outdoor or Damp installations will decrease the performance and will increase the
frequency of Periodic Maintenance and should have the optional Dryer Kit added
for optimum performance.

Eradicator Gen II O3
Manual Supplement
Install & Service Guide
3Copyright ©2021 Aqua Systems, All Rights Reserved • 404 Moravian Valley Road, Waunakee, WI 53597
Table of Contents
Introduction............................................................................................................................................ 2
Eradicator with Ozone Overview - General Description ..................................................................... 4-5
Installation of the EOG II ....................................................................................................................... 6
Installation - Inlet Check Valve Position ................................................................................................ 6
Power Supply for Ozone Generator ...................................................................................................... 6
Ozone Resistant Check Valve Assembly............................................................................................... 7
Installation of the EOG II Wire Harness.............................................................................................. 8-9
Button Combination Guide .............................................................................................................10-11
Setup Procedures........................................................................................................................... 12-15
Ozone Programming Logic ..................................................................................................................12
Changing Programming Times ...........................................................................................................13
Start Up .............................................................................................................................................. 14
Programming Guide ............................................................................................................................14
Special Considerations in Checking for Ozone ................................................................................... 15
Ozone Wiring Diagram .................................................................................................................... 9,16
LED Diagnostic Functions .................................................................................................................. 16
Ozone Parts Diagram ........................................................................................................................ 17
Repair / Replacement Parts List ......................................................................................................... 17
Periodic Maintenance .................................................................................................................... 18-19
Special Considerations in Annual PM ..................................................................................................18
Disconnecting the CD Tube for Cleaning ...........................................................................................18
Cleaning the CD Tube ........................................................................................................................19
Trouble Shooting ..........................................................................................................................20-22
Notes....................................................................................................................................................23

Eradicator Gen II O3
Manual Supplement
Install & Service Guide
4Copyright ©2021 Aqua Systems, All Rights Reserved • 404 Moravian Valley Road, Waunakee, WI 53597
Overview
The Eradicator Gen II O3, with ozone, is a breakthrough in chemical free ltration. The ozone is made
from oxygen, then converts back to oxygen after its effective function. Ozone expedites the oxidation
in the Eradicator’s aeration process. The ozone is made from ambient air that is pulled into the control
during the draw cycle. A 12 volt DC generator creates electrical arcing technology, inside of a sealed
tube, known as Corona Discharge (CD). When the air is exposed to the arcing electrical current, the
Oxygen in the air (O2)converts to Ozone (O3). Once the ozone has done its job inside the ltration sys-
tem, it converts back to Oxygen (O2), leaving the efuent water from the lter refreshingly oxygenated.
The ozone generated in the Eradicator’s aeration process works as a Super Oxygen source. This
technique provides much more oxygen for the oxidation of iron and sulfur, and for restoring oxygen
sites on the media’s surface, than ambient air alone.
The ozone is generated from the auxiliary circuit board that is mounted inside of the Gen II EOG II
cover. This Eradicator O3 is operated by a single power supply in which the O3generator is activated
by the AQx relay function. The programming to activate the ozone generator is in the Eradicator elec-
tronics package. The programming for this function should only be accessed by a qualied technician.
Gen II O3with Ozone
Note:
The Gen II AQx control is programmed to activate the ozone generator. The ozone gen-
erator will not turn on if the control is fast-stepped through cycles by using the REGEN
button. You must wait for the activation based on the number of minutes from the start
of the cycle.
This issue is very different from standard Eradicator setup. The installer / service techni-
cian must be informed of these differences before proceeding with install.

Eradicator Gen II O3
Manual Supplement
Install & Service Guide
5Copyright ©2021 Aqua Systems, All Rights Reserved • 404 Moravian Valley Road, Waunakee, WI 53597
Overview
Note: This section is an introduction to the EOG II components.
Details on components and wiring are found later in this guide.
Gen II O3with Ozone
The EOG II Ozone system is mounted on the inlet side of the control valve with the wire harness
going through the backplate to the circuit board. This allows the control valve and the O3system to
operate with a single power supply. An optional air dryer which increases O3production and quality
can be added to this control using the single power supply (see separate Air Dryer instruction sheet).
Gen II
EOG II
Wire Harness
Side View with
External Ozone
Air Intake
Filter Stone
When the control stops in the Regeneration DN position, air is pulled into the control through the
air intake . The air is pulled through a porous stone as a lter. The air is pulled through the Corona
Discharge (CD) Tube. When the tube is activated by the relay controlled power supply, it creates an
electrical arc internally. The air is passed through this arcing where it is converted from Oxygen (O2)
to Ozone (O3). The ozone then travels through the special tubing, through the check valve, and the
brine tting,where it enters the lter system.
How Ozone is Produced

Eradicator Gen II O3
Manual Supplement
Install & Service Guide
6Copyright ©2021 Aqua Systems, All Rights Reserved • 404 Moravian Valley Road, Waunakee, WI 53597
Gen II O3with Ozone
Installation

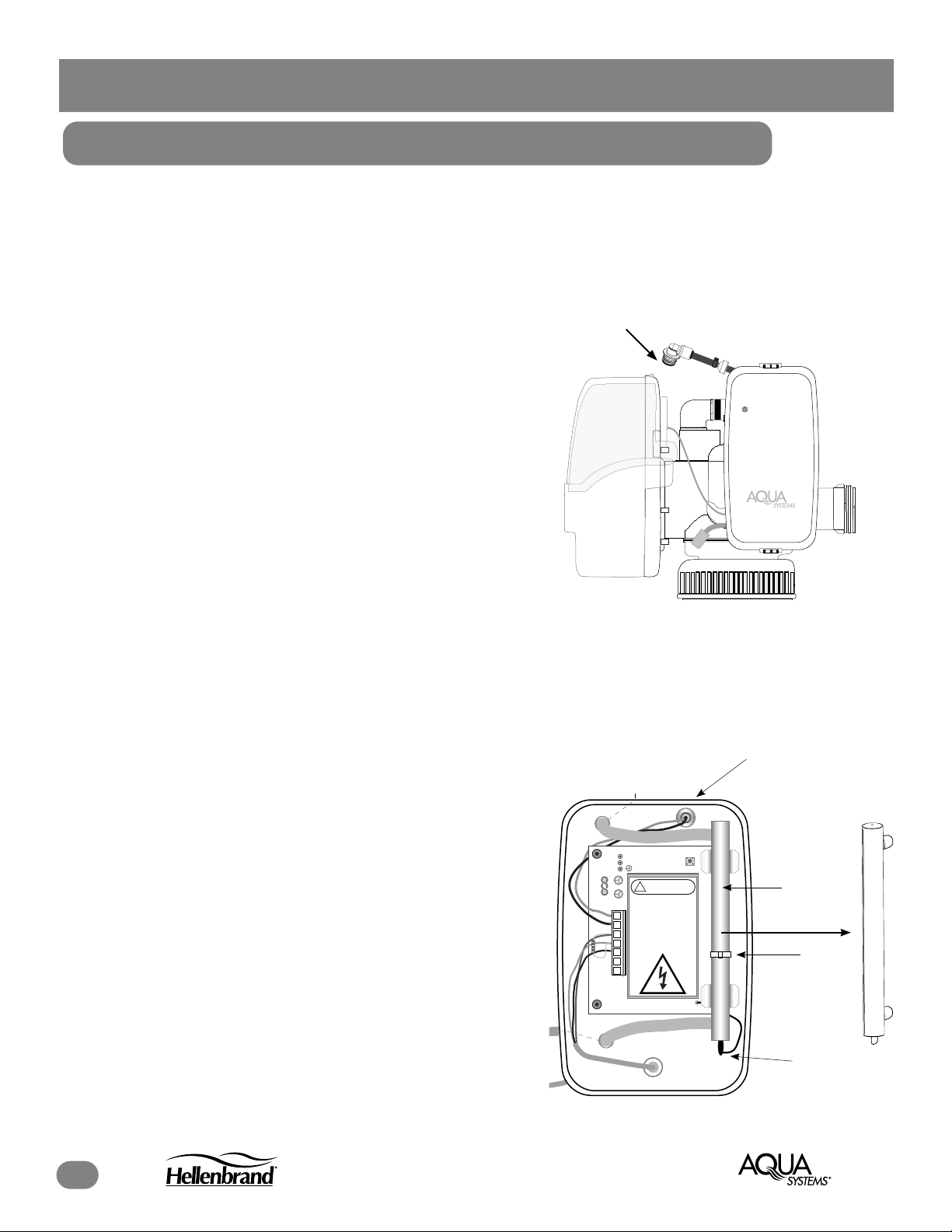

To mount the EOG II to
the control valve, slide
the mounting ring over
the injector cap, then
attach the lower clip
to the inlet part of the
valve body. Then snug
the clamp screw to
secure the EOG II to
the control valve.
Power Supply
Transformer Jack
Insert Power
Supply Plug Here
Install the Vertical
Adapter Elbow with
check valve to the
INLET port of the
bypass.
Then attach the
Bypass to the Control
Valve.
Power Supply Plug
Lower Clip
Clamp Set
Screw
Mounting
Clamp
Inlet Check
Valve
Attach O3outlet tube
see page 7, gures a & b
Make sure the Vertical
Adapter w/check valve is
installed facing down.
Note:

Eradicator Gen II O3
Manual Supplement
Install & Service Guide
7Copyright ©2021 Aqua Systems, All Rights Reserved • 404 Moravian Valley Road, Waunakee, WI 53597
Gen II O3with Ozone
Tygon
Tubing
Ozone Resistant
Check Valve
Ozone Resistant
Check Valve
Figure c
Locking Collar

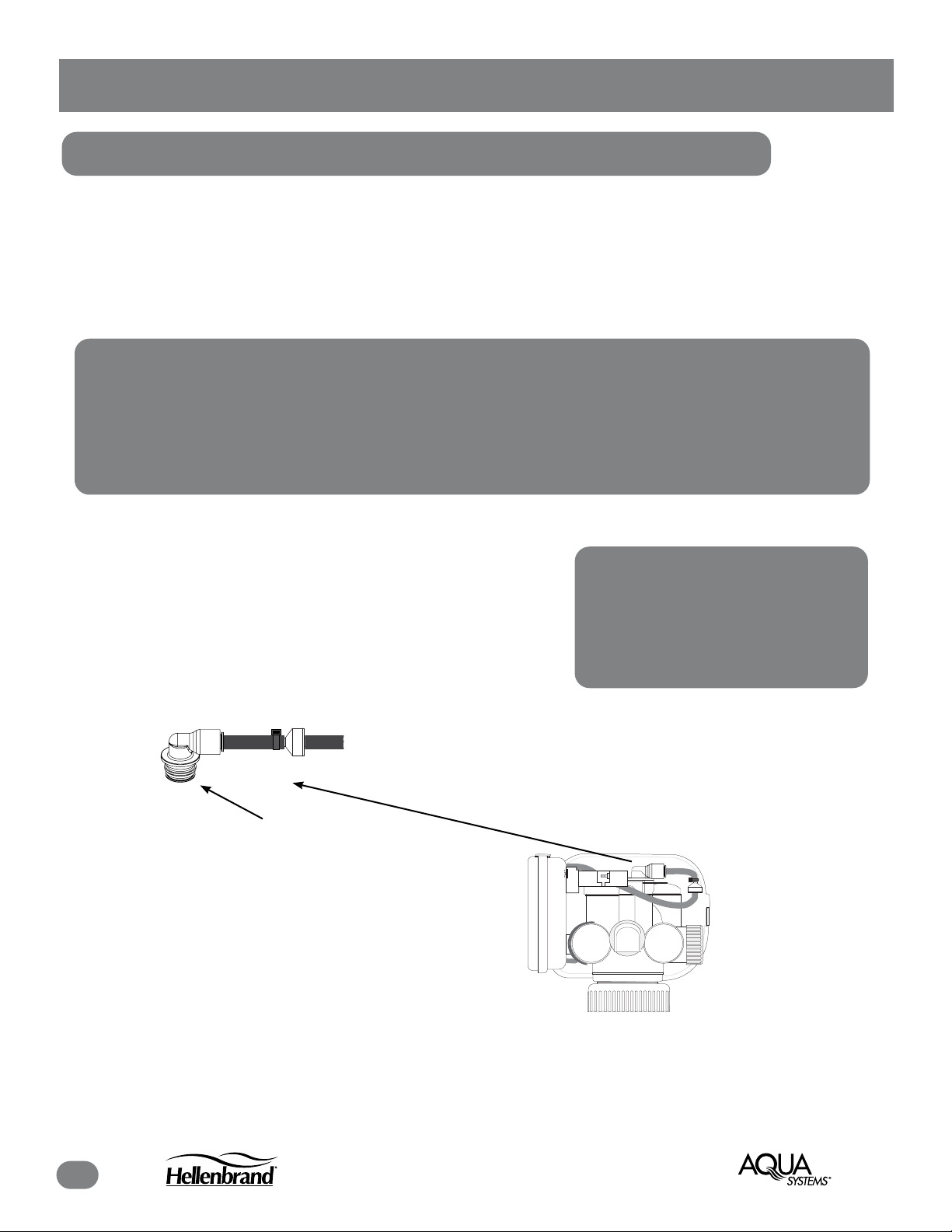

The ozone resistant check valve
is pre-inserted into the 3/8" Tygon
tubing.
Tygon tubing is inserted and
seated in the push connect
tting.
Firmly insert the black tubing
(figure b) from the EOG II
into the push connect elbow
(gure a). Be sure the tubing
has fully seated.
If the tubing needs to be
removed from the elbow,
press the locking collar (gure
c) ush with the tting and pull
out the tubing.
Installation
Ozone Resistant Air Draw Check Valve Assembly
Tubing to Elbow
Installation
Figure a
Figure b
These components should only be serviced by qualied
technicians.
Note:
There is no check valve in the bottom of
the brine tting like is found in standard
Eradicator. Brine ow control is also re-
moved for operating with ozone.
Note:

Eradicator Gen II O3
Manual Supplement
Install & Service Guide
8Copyright ©2021 Aqua Systems, All Rights Reserved • 404 Moravian Valley Road, Waunakee, WI 53597
Gen II O3with Ozone
Installation
On the circuit board, unplug the power plug (4-wire),
and the meter plug (3-wire) on the lower right side of the
board, then the motor plug on the lower left side of the
board. Carefully lift up slightly the tab holding the circuit
board in place, then gently pull the board forward, then
lift the board out.
Next, remove the drive bracket by gently lifting the two
tabs securing the the bracket and tilt it forward from the
tabs. The lower edge of the drive bracket has two notches
that rest on the drive back plate. Lift up and outward on
the drive bracket to disengage the notches.
Then, remove the power supply wire and transformer by
pushing/pulling it through the slot in the backplate.
Set the power supply and cord aside as it will not be
used in this application.
EOG II Wire Harness Assembly
Circuit board
locking tab
Drive bracket
locking tabs
Drive bracket
notches
Motor
Plug Power
Plug Meter
Plug
1.
2.
3.

Eradicator Gen II O3
Manual Supplement
Install & Service Guide
9Copyright ©2021 Aqua Systems, All Rights Reserved • 404 Moravian Valley Road, Waunakee, WI 53597
Gen II O3with Ozone
4.
5.
Green wire
to Relay 1
Meter wire
Power
wire
Drive Motor
wire
Installation

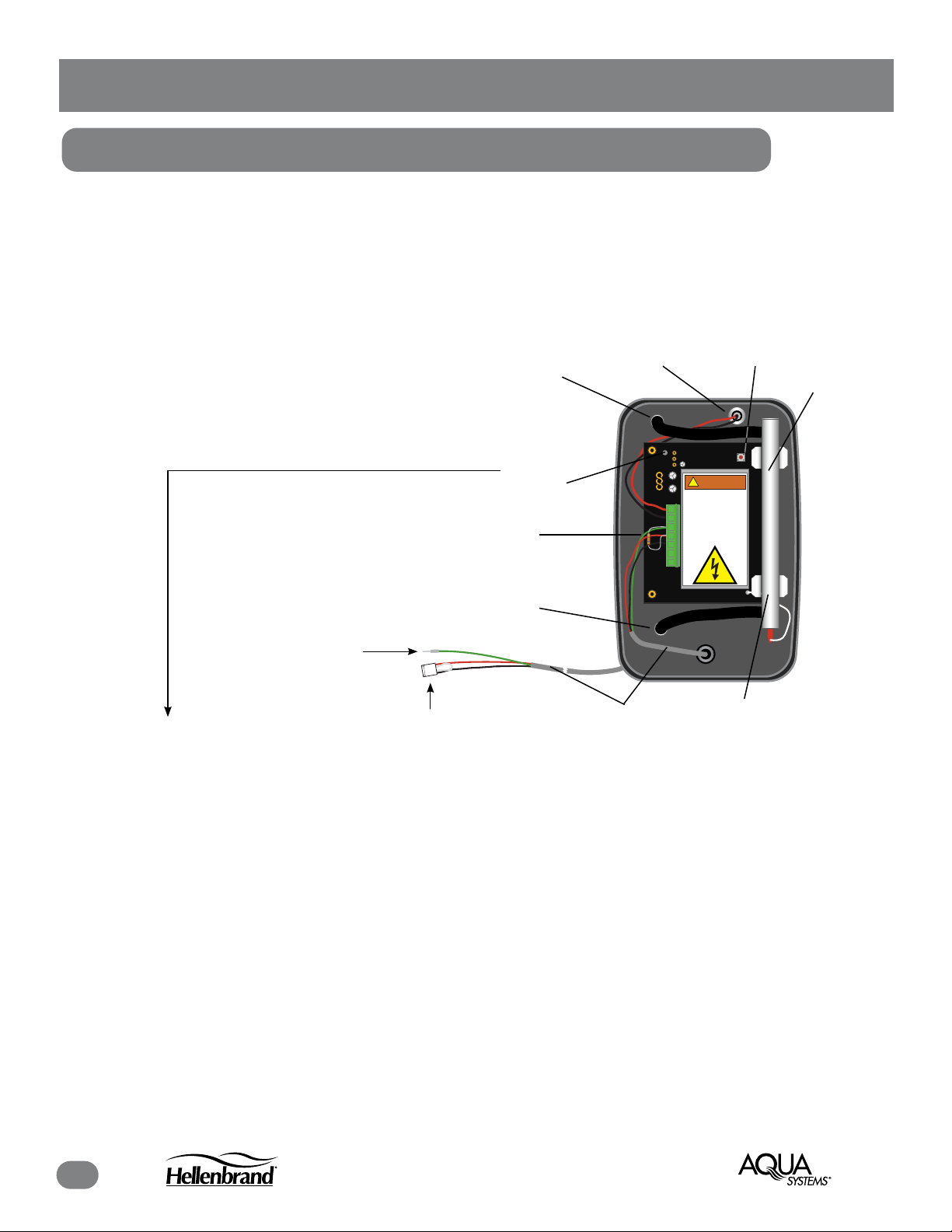

Push the EOG II harness through the strain relief slot that the
power cord went through. Pull through about 10” of the harness.
Then make sure the wire is fully seated in the strain relief slot.
Reinstall the drive bracket (step 2) and the circuit board (step 1)
in the reverse order of removal.
Connect the power, meter, and drive motor harnesses to the
circuit board as illustrated. Then connect the relay wire
(green wire) to the relay block in the Relay 1 port and tighten
the set screw until secure.
Harness to
EOG II Box
Q 101 . 10
TMO OR
SET
CLOCK NEXT
REGEN
DOWN
UP
DP SW
RLY2 COM RLY1
METER
J8 OUTPUT
METER
COMM CABLE
12 VAC
A LT
MTR
AUX
MAV

Eradicator Gen II O3
Manual Supplement
Install & Service Guide
10 Copyright ©2021 Aqua Systems, All Rights Reserved • 404 Moravian Valley Road, Waunakee, WI 53597
Button Combination Quick Reference Guide
Set Time
Press & Release CLOCK, Hour will ash. Set Hour us-
ing the UP & Down buttons. Press & Release CLOCK
again to set Minutes. With Minutes ashing use the UP
& Down keys to set Minutes. Press Clock again to return
to User Mode.
Press CLOCK while in any programming or diagnostic
mode to quick escape.
Advance Screen
Press NEXT to advance Screen
Change Variable
Press the UP or the Down Arrow to change a variable.
Variables that can be changed will be ashing.
NOTE:
When the Energy Saver is set to AUTO or ON, the dis-
play backlight will turn off after 5 minutes of no activity.
The rst push of any button will turn the backlight on.
The other function of that button will be ignored on the
rst push. See Energy Saver Tech Bulletin for details.
CLOCK
CLOCK REGEN
NEXT
NEXT
Transfer Tanks in ALT Twin & iTwin Systems
From any User Screen, Press UP & CLOCK together and
hold to activate a transfer of tanks. This action will transfer
the Online tank for the Stand By tank, without activating a
cycle. This is useful when servicing systems. It will allow
the testing of the Stand By tank without disrupting the bed
with a cycle activation.
CLOCK

Eradicator Gen II O3
Manual Supplement
Install & Service Guide
11 Copyright ©2021 Aqua Systems, All Rights Reserved • 404 Moravian Valley Road, Waunakee, WI 53597
Button Combination Quick Reference Guide
Regen Button
From any user screen, Press and release REGEN to set a
regeneration to occur at the next scheduled time. REGEN
TODAY will alternate on top line of display when activated.
Press and release again to deactivate.
Press REGEN & hold to initiate an immediate regeneration
cycle.
While in any programming or Diagnostic Mode, the REGEN
button will reverse direction to the previous screen viewed.
Soft Reset
From any user screen, Press NEXT & REGEN together and
hold until control resets.
Will drive all motorized pistons to the Home Position and re-
set the circuit board. Will retain all programming parameters.
Will display software version when board powers up.
Diagnostics and History
From any user screen, Press the UP and DOWN buttons
together and hold to enter Diagnostics. Once in Diagnostics,
Press and hold again to advance to History.
Service Alarm Reset
While on the Service Alarm Screen, or in the set screens
for Gallons or Time, Press Up & Down together and hold to
reset the Service Alarm. See Service Alarm Tech Bulletin for
details on this feature.
Lock and Unlock Control
Press DOWN then NEXT then UP then CLOCK in sequence
to Lock or to Unlock the control.
REGEN
REGEN
NEXT
CLOCK
NEXT

Eradicator Gen II O3
Manual Supplement
Install & Service Guide
12 Copyright ©2021 Aqua Systems, All Rights Reserved • 404 Moravian Valley Road, Waunakee, WI 53597
The Eradicator O3functions just as a standard Eradicator Filter with the addition of ozone that is pro-
duced during the air intake. The ozone is produced from ambient air that is entering the induction port
during the Regeneration Down cycle. The ozone generator is turned on through the Gen II AQx Relay
Function, after the control valve has already stopped in the Regeneration Down cycle, and air draw is
active. The ozone generation is not turned on during Back Wash or Rinse Cycles, and turns off before
the control exits the Regeneration Down Cycle. Turning off the ozone generator before the valve moves
from the draw cycle provides fresh air to run through the tubing, clearing out all ozone from the control.
Ozone remains in the tank air chamber until it is converted with service ow. The ozone can be purged
from the tank if desired with special programming. If it is desired to operate without the trapped air in
the head of the tank, refer to the instructions in the Tech Bulletin on programming to remove the air.
The ozone generator activates when needed through the Relay 1 module of the AQ x software. Relay
1 is set to Regen Time. The start point is set to the number of minutes that it takes the control to enter
the Regeneration Down cycle, plus one additional minute before turning on. This allows the control
to stop in the cycle and establish a stable draw of air into the control. The Relay 1 terminal block is
connected to a relay that turns the ozone generator’s auxiliary power supply on.
Factory Set Program Time:
Back Wash 8 Minutes Relay 1 - Set Regen Time
Rinse 4 Minutes Relay 1 - Set Point Start 13 Min
Regen DN 30 Minutes Relay 1 - Duration 28 Min
This says that the AQx Relay will activate 13 minutes after the start of the cycle, and turn off after 28
minutes from the start of the relay activation. The initial 13 minutes allows the control to stop in Regen
DN before ozone is produced, and it turns off the ozone after 28 minutes, which is 1 minute before the
control returns to service.
Setup Procedures
Ozone Generator Programming Logic
Gen II O3with Ozone
Note: When stepping the control manually through the cycles, with the REGEN button,
the Relay function is disabled. To check the ozone production, the cycle can be manu-
ally started, but the control must proceed with the time to reach the Relay Set Point. If
you push REGEN at any time during the cycling process, the Relay will not activate, and
if already activated, the Relay will turn off.

Eradicator Gen II O3
Manual Supplement
Install & Service Guide
13 Copyright ©2021 Aqua Systems, All Rights Reserved • 404 Moravian Valley Road, Waunakee, WI 53597
Adjusting cycle times
The following programming sequence is an example of changing the default draw time from 30
Min to 40 Min and the related Relay 1 adjustment for the longer cycle.
CLOCK CLOCK
CLOCK
CLOCK
CLOCK
REGEN REGEN
REGEN
REGEN
REGEN
NEXT NEXT
NEXT
NEXT
NEXT
NEXT
NEXT
NEXT
NEXT
NEXT
NEXT
Once in Level 1
press NEXT to
advance screens.
Continue advanc-
ing to Cycle Time
Screens.
Back Wash time
should match chart at
8:00 MIN.
Rinse should match
chart at 4:00 MIN.
New screen will show
40:00 MIN. Once set,
press NEXT, continue
to advance to RELAY
1 screen.
Press NEXT to
advance
Press NEXT to
advance
Regeneration DN
should read 30:00.
Adjust this to 40:00
MIN using up or
down arrows
Continue through
additional screens or
press CLOCK at any
time to exit program-
ming
RELAY 1 Set Point
will not require a
change because BW
and Rinse cycles did
not change. Continue
Change DURATION
from 28 MIN to 38
MIN using Up or
DN buttons. Once
set press NEXT to
continue.
New screen will 38
MIN to reect the
additional DRAW DN
time set in previous
adjustment. Press
NEXT to continue.
Continue next column
Press Clock to escape at any time, any
changes will be saved
From any User
Screen, press
NEXT & Down
together and hold
to enter Level 1
programming - Top
line change to
“FILTERING”
Use Up or Down
buttons to adjust the
ashing value
Use Up or Down
buttons to adjust the
ashing value
Use Up or Down
buttons to adjust the
ashing value
TIME REGEN TIME
RELAY 1 SET POINT
RELAY 1 DURATION
RELAY 1 DURATION
‘FILTERING’
RINSE TIME
BACKWASH TIME
AM SET
SET
SET
SET
MIN
MIN
MIN
10:02 RELAY 1
13
28
38
TYPE
‘8:00’
‘4:00’
SET
SET MIN
MIN
MIN
MIN
SET
CLOCK
DRAW DN TIME
DRAW DN TIME
SET
SET
‘30:00’
‘40:00’
Note: It is always best to follow a program-
ming chart when making changes.
Make sure that the times in all cycles match
the column in the chart on the following
page, or a chart that has been worked out.
The Relay 1 is not to turn on before the
valve has stopped in DRAW DN for a full
minute to ensure that proper air draw is in
place.
Setup Procedures

Eradicator Gen II O3
Manual Supplement
Install & Service Guide
14 Copyright ©2021 Aqua Systems, All Rights Reserved • 404 Moravian Valley Road, Waunakee, WI 53597
Gen II O3with Ozone
Plug the power supply into the receptacle. Refer to the main Eradicator manual for the instructions
for the start up procedure.
The programming for the O3 is already done for Eradicator O3systems, so no further action is
needed beyond the normal start up procedure.
Once set up is complete, start the Eradicator in a manual regeneration and let it complete the
regeneration.
It is highly recommended to have an annual inspection and maintenance on the Eradicator system
to keep it operating at optimum performance.
If any service or maintenance is required, have your customer contact you for this service.
The O3 programming chart is below. The rst program column is the default setting.
The other two are optional settings
if needed or recommended.
Setting Cycle Sequence
Next & Down 3 seconds &
repeat*
AIF Filter AIF Filter AIF Filter
Meter Size Match Size Match Size Match Size
Auxiliary Input OFF OFF OFF
Cycle 1 Backwash Backwash Backwash
Cycle 2 Rinse Rinse Rinse
Cycle 3 REGEN DN REGEN DN REGEN DN
Cycle 4 END END END
Programming Control
Next & Down 3 Seconds* AIF Filter AIF Filter AIF Filter
Set Filtering Filtering Filtering
Backwash 8 8 8
Rinse 4 4 4
REGEN DN 30 40 60
Gallons Capacity 500 500 500
REGEN Type Delayed Delayed Delayed
Relay 1 Regen Time Regen Time Regen Time
Relay 1 Setpoint 13 MIN 13 MIN 13 MIN
Relay 1 Duration 28 MIN 38 58
Relay 2 OFF OFF OFF
Service Alarm OFF OFF OFF
Default Install Settings - Step 4
Next & UP* AIF Filter AIF Filter AIF Filter
Days Between Regen OFF OFF OFF
Regen Time 1:00 AM 1:00 AM 1:00 AM
Energy Saver OFF OFF OFF
Setup Procedures
Start Up

Eradicator Gen II O3
Manual Supplement
Install & Service Guide
15 Copyright ©2021 Aqua Systems, All Rights Reserved • 404 Moravian Valley Road, Waunakee, WI 53597
Ozone is a gas that is made from oxygen. However, it can be an irritant to the eyes and respira-
tory system. When checking the system for ozone production, do not directly inhale the ozone.
Ozone can be detected by smell at a distance even when diluted with air. So use caution when
checking for ozone production. At low concentrations ozone has a very refreshing fragrance.
The check valve and tubing are special materials that are ozone resistant. Do not attempt to
replace any of these parts with alternates of any type. If additional parts are required for repair
or replacement, order ozone specic parts from the tables later in this manual.
Lift the entire brine elbow off at
the locking clip connection to the
control valve to check draw and/
or for ozone .
Setup Procedures
Special Considerations in Checking for Draw with Ozone
Gen II O3with Ozone
Note: Checking for ozone is done during the draw cycle.
Check for ozone by removing the lock clip on the brine elbow and lifting the entire
assembly up from the seated position. Then replace the brine elbow and clip in before
indexing the control to the next cycle. Only technicians familiar with the Gen II control
should attempt this test.
Once the draw cycle is pulling air and the EOG II has
activated, the brine elbow can be removed at the lock
clip. Lift the elbow up after the control has been draw-
ing air for a few minutes. This should release a small
amount of ozone into the air that can be detected by
smell. Place the elbow back into position and replace
the lock clip.
Note: Checking for ozone is
done during the draw cycle.
Check the note at the bottom
of Page 12 to access this
function.

Eradicator Gen II O3
Manual Supplement
Install & Service Guide
16 Copyright ©2021 Aqua Systems, All Rights Reserved • 404 Moravian Valley Road, Waunakee, WI 53597
The EOG II comes pre-assembled, wired, and is ready to connect to the Eradicator control.
See the wire harness connection instructions to the conrol valve on page 9.
The following diagram can be used for future service and trouble shooting if necessary.
Wiring Diagram
Ozone Components Wiring Guide
Gen II O3with Ozone
+
+
PILOT
GND
GND
N.C.
N.O.
WARNING
!
ELECTRICAL
HAZARD
DISCONNECT POWER
BEFORE SERVICING
OZOTECH
Harness to
Control Valve
To Power
Terminal on
Control Valve
Circuit Board
To Relay 1
terminal on
Control Valve
Circuit Board
Connect to
Control Valve
Not Shown:
Safety Cover
Alarm
Reset CD
Cell
Power
Input
Ozone
Outlet
Diagnostic
LED
Terminal
Block
Air Inlet
Green Light Blinking Slowly: Standby mode; unit is powered, pilot input is OFF.
Green Light Blinking Quickly: High voltage startup (up to 3 seconds).
Green Light Solid: High voltage is ON & stable; CD cell producing ozone.
Red Light Solid: Unstable operation; CD cell may need cleaning.
Green/Red Light Alternating Twice/Second: HV is ON, but
operating current is low. If persistent, CD cell may need cleaning.
Red Light Flashing: NO or NC contacts are shorted. Remove short condition.
Orange Light: 1-year timer has expired; clean CD cell, then reset timer by pressing red “alarm reset” button on PCB
once.
LED Diagnostic Functions:

Eradicator Gen II O3
Manual Supplement
Install & Service Guide
17 Copyright ©2021 Aqua Systems, All Rights Reserved • 404 Moravian Valley Road, Waunakee, WI 53597
Repair / Replacement Parts
Gen II O3with Ozone
1
2
3
4
6
10
5
+
+
PILOT
GND
GND
N.C.
N.O.
WARNING
!
ELECTRICAL
HAZARD
DISCONNECT POWER
BEFORE SERVICING
OZOTECH
7
8
No. Part No. Description Qty.
1 02910356 Ext EOG II Ozone Box Complete AS 1
2 02910331 CD Tube 1
3 02910361 Transformer for EOG II, 14v 1
4 02910360 Wire Harness for Ext EOG II 1
5 02910326 Air Intake Filter 1
6 02910359 Ozone Resistant Check Valve w/ 3/16 Barb 1
7 04110722 Tygon Tubing 3/16” I.D. x 3/8” O.D. x 3/16 per foot
8 02910358 Cover, Molded, EOG II, Aqua Systems 1
9 02910312 CD Cell Cleaning Kit Optional
10 02910367 Hose Clamp, Nylon, Max .406 in. 1
Replacement Part List
9

Eradicator Gen II O3
Manual Supplement
Install & Service Guide
18 Copyright ©2021 Aqua Systems, All Rights Reserved • 404 Moravian Valley Road, Waunakee, WI 53597
Gen II O3with Ozone
All Periodic Maintenance (PM) that is performed on Eradicator AIF systems annually should be done
in addition to the following procedures when applied with ozone:
1. Inspect all materials that are directly exposed to
ozone. This will include tygon tubing, brine elbow, and
check valve, as well as internal valve parts. Replace any
materials that have formed a brittle, cracked condition.
2. Check all wiring connections on the ozone
components.
3. Swap or Clean the CD tube. (see this page and next)
4. Perform the Periodic Maintenance items for
non O3 Eradicator lters.
4. Perform a test for draw and ozone production after
all PM service has been completed. (see page 15
or page 21)
Periodic Maintenance
Special Considerations in Annual PM with Eradicator AIF with Ozone
Disconnecting the CD Tube for Cleaning
Check Ozone
Here
After all PM maintenance is complete, check
for ozone production with AQ x Relay activated
in Regen DN.
+
+
PILOT
GND
GND
N.C.
N.O.
WARNING
!
ELECTRICAL
HAZARD
DISCONNECT POWER
BEFORE SERVICING
OZOTECH
1. Uplug the power supply before performing this
service.
2. With the front cover removed, remove the CD cell
from the ozone generator:
a. Disconnect the red spade terminal connector from
the CD cell connection terminal.
b. Cut the CD cell shipping strap holding the cell into
the cell clips, and discard.
c. Disconnect the air inlet and ozone outlet hoses from
the CD cell barb ttings.
d. Pull the CD cell straight up from the retaining clips.
3. Proceed to next page (19) to clean the CD Tube.
Shipping
Strap
Spade
Terminal
Power Supply Plug or Unplug
Transformer from Receptacle
CD
Tube

Eradicator Gen II O3
Manual Supplement
Install & Service Guide
19 Copyright ©2021 Aqua Systems, All Rights Reserved • 404 Moravian Valley Road, Waunakee, WI 53597
Gen II O3with Ozone
The CD tube can be cleaned on site. It is recommended to stock extra CD tubes. Cleaning can be
done in the shop, the clean tube tested, then swapped on location. This provides for a faster service
call for Periodic Maintenance and allows the CD tube to be tested after the PM service is complete.
Follow procedures outlined below for cleaning the CD tube. After cleaning the tube and testing,
reset the Alarm by pushing the reset button (see Page 21). See page 17, #9 for a cleaning kit.
1. Use a 20 - 60 CC utility syringe to draw and
extract RO water and air. The end of the syringe
should have a length of 5/16 O.D. - 3/16 ID clear
vinyl tubing on the end.
1.
2.
3.
4.
2. Use the plunger to pull Warm RO or DI wa-
ter into the syringe. The water should be luke
warm to the touch. If you have a good quality
RO bottled water, on a hot & cold cooler, a blend
of the two sides will provide a good solution for
cleaning.
(NOTE: Hot RO water can be used if nitric acid
buildup is severe.)
3. Push the 5/16 vinyl tubing over one end of
the CD tube. The tubing does not have to be
pushed over the barbed section of the tting.
Gently push the warm RO water through the
CD tube into a white container. Monitor the
discharge water. Continue until the water runs
clear. Repeat the step as needed until dis-
charge is clear.
4. Once the discharge is clear, push the excess
water out of the CD tube with air. Pull the plunger
back to ll syringe with air. Push the air through the
CD tube over the cup. Continue process to provide
some additional air after the water is completely
expelled. This air will expedite drying the CD tube.
It’s best to let the CD tube dry for 24 hours before
testing.
Periodic Maintenance
Cleaning the Corona Discharge (CD) Tube

Eradicator Gen II O3
Manual Supplement
Install & Service Guide
20 Copyright ©2021 Aqua Systems, All Rights Reserved • 404 Moravian Valley Road, Waunakee, WI 53597
Gen II O3with Ozone
Troubleshooting
This guide above is intended to be a general idea generator for sourcing a trouble issue. There
could be additional possibilities. If the technician is not able to detect an issue that is prevent-
ing the system from functioning as designed, contact Aqua SystemsTech Support for additional
guidance @ 800-272-5511.
Condition Possible Cause Testing Solutions
No Air in Tank Unit Not Drawing Air Place control in Regeneration DN / Draw. Check for
draw at injector port
Clean or replace internal valve parts, seal kit,
injector, piston. Increase feed pressure to filter.
No Air in Tank Unit drawing air, not pulling
through brine elbow
Remove air intake filter and check for vacuum at tubing
end while control is in Regeneration DN / Draw Clean or replace ozone resistant check valve
No Air in Tank Unit not programmed correctly Review programming sequence and cycle times with
chart Adjust programming
Not producing Ozone Electrical Circuit Issue
Check Status light to confirm solid green light when the
EOG II is activated. if not, refer to status parameters on
page 16 to diagnose
Correct improper or loose connections
Not Producing Ozone Electrical Circuit Issue Review that all wiring connections are correct with
diagram on page 16 Correct any wire out of place
Not Producing Ozone Relay 1 not programmed
Place unit in cycle and wait for relay 1 to activate. The
EOG II generator will turn on when Relay 1 activates.
The EOG II status light will glow solid green if the
generator is active
Program accordingly
Not Producing Ozone CD Tube needs cleaned Perform a test on the CD tube as explained on page 22 Clean CD tube or replace with clean tested tube
Not Producing Ozone
Cell is plugged with build-up
of nitrous byproducts and
particulate matter.
Perform a test on the CD tube as explained on page 22 Clean CD tube or replace with clean tested tube
Water in CD Tube Ozone resistant check valve is
not seated or defective
Remove tygon tubing from the check valve side (flat
side) away from brine elbow while stepping valve
through cycles. No water should escape the end of the
end of the check valve
Replace ozone resistant check valve, then clean
and thoroughly dry CD tube, then re-attach tube
and put back into service; see pages 18-19
