PROFINET-Connector, RJ45, EasyConnect®, 90°, 700-901-1BB20
Version: 2 / 29.10.2019
Intended Use
The field-assembled RJ45 connector for PROFINET, Modbus, and EtherCAT is easy and quick to install. With
a PROFINET cable of up to 100 m length, Ethernet components such as a PROFINET station can be
connected. In addition, the RJ45 connectors are designed in protection class IP20 and for transmission rates
up to 100 Mbps.
Features
-Color-coded contact elements help to avoid connection errors
-Transmission rates up to 100 Mbps
-No loose individual parts
-Tool-free installation
-EasyConnect® RJ45 connection (IDC) for industrial applications
-For PROFINET, Modbus, and EtherCAT
-90° cable outlet

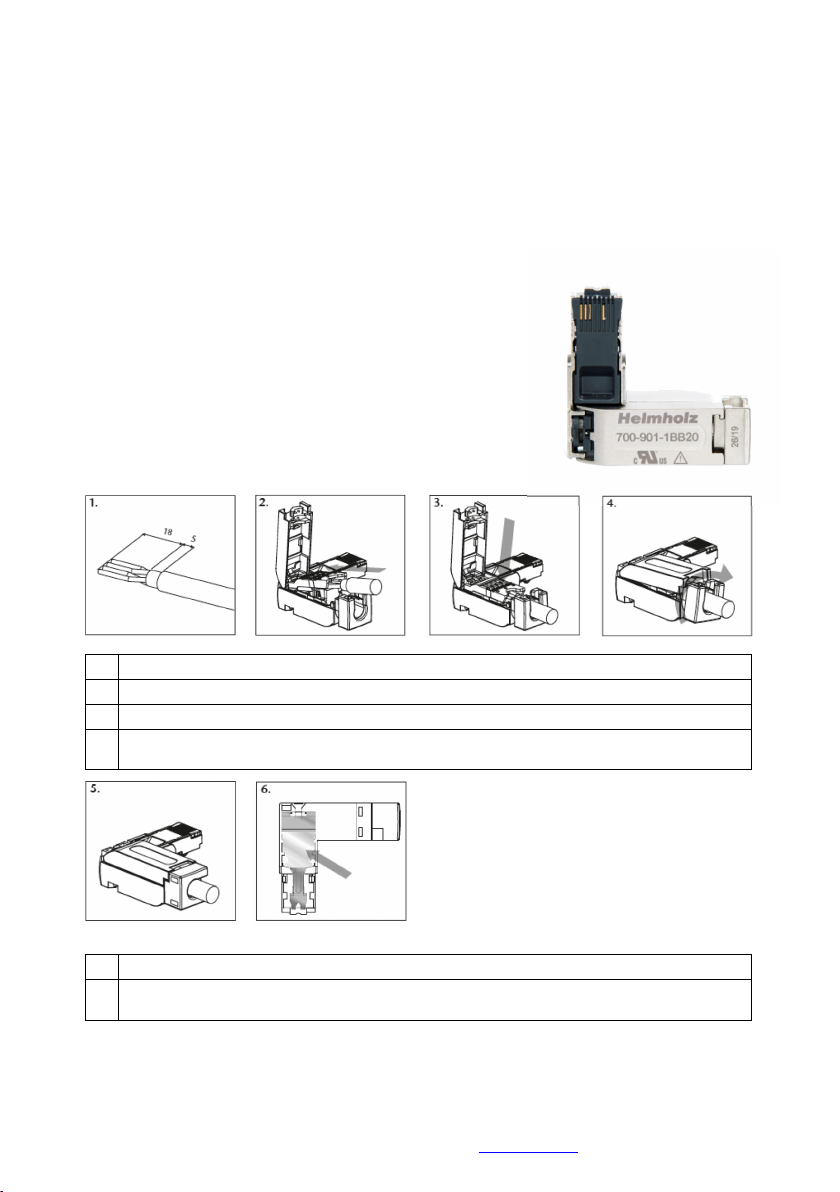

Assembly instructions
1. Lay out the stripped wires in accordance with the color coding of the RJ45 connector
2. Insert the wires into the contacts of the RJ45 connector as far as the limit stop
3. Press down on the contacts up to the limit stop to complete the connection
4. Close the housing cover and turn the sealing piece in the direction of the arrow. For a better lever
for proper sealing of the plug, insert a small screwdriver into the hole of the sealing piece
5. The connector is correctly locked when the screw cap is securely tightened
6. Release: Completely insert plug and mechanically relieve. Then push the release spring down at
the marked position

Helmholz GmbH & Co. KG | Hannberger Weg 2 | 91091 Großenseebach
Phone [phone] | Fax [phone] | [email protected] | www.helmholz.de BT-beipack-156
2019-10-29
Attention:If the device is used in a manner not specified by the manufacturer, the protection
provided by the device may be affected. Pay special attention to the correct contact during cable installation
and when plugging in and unplugging the plug. If you have problems, always read the latest documentation
first, which can be found on the Internet at www.helmholz.com. Connected circuits shall meet the requirements
of Limited energy circuits acc. UL61010-1
Technical data
Order no.
700-901-1BB20
Name
PROFINET-Connector, RJ45, EasyConnect®, 90°
General information
-Scope of delivery
PROFINET-Connector, manual
-Dimensions (WxDxH)
43,5 x 40,5 x 16,2 mm
-Weight
approx. 35g
PROFINET-Interface
-Number
1
-Type
Ethernet
-Connection
RJ45 connector
-Transmission rate
Up to 100 Mbit/s
Connector
-Cable outlet
90°
-Connector type
EasyConnect® (IDC connection)
-Connectible cables
PROFINET cable
-Cable cross section
4 x 24 AWG or 22 AWG
- Maximum outside diameter 6,7 mm
Ambient conditions
-Ambiant temperature
-30 °C ... +70°C
-
Transport and storage temperature
-40 °C … +80 °C
-Relative air humidity
95 % r. H. without condensation
-Protection rating
IP20
-
Certifications
CE, UL
UL
UL 61010-1 and UL 61010-2-201
-Pollution degree
2
- Ratings DC 2,8 V / 28 mA
-Use
Dry, indoor use
Note:
The content of this document has been checked by us for compliance with the hardware described. However, as deviations are not
excluded, we can not assume any warranty for full compliance, the information in this document is updated regularly. When
using the purchased products, please note the latest version of the document, which can be downloaded from the Internet at
www.helmholz.com.
