Thank you for choosing quality
products
Pentti Piisku, President, Saunatec Group Ltd
UserGuideSaunaheaterandDigitalcontrolpanel
Copyright©2003.HeloOy.Allrightsreserved.
We think that our products will live up to your expectations and give you many hours of
enjoyment in your sauna. We want you, your family and your friends to have many
comfortable sauna baths and at the same time find new ways to enjoy sauna bathing. We
have taken today’s demands on sauna bathing into consideration and equipped the sauna
heater with many usable and unique functions. Among other things the heater has a steam
unit that gives you wonderful steam during the sauna bath. Read this user guide carefully.
The guide is divided into two separate sections. The first is for you as a user and the
second is for the installer.
Helo oy is the world-leading producer of products for saunas and steam saunas. We
develop, produce and market products for saunas and steam saunas in the whole world.
Helo has the largest factories of sauna products in the world (Finland, Germany and
USA) and a well-developed net of retailers, both nationally and internationally. Our product
range consists of sauna- and steam rooms, electric and wood heaters, control panels and
sauna accessories.

3
Quick Reference Guide
In the following quick reference guide we have gathered important information for you as
a user. You will find more information about each function in the contents list on page 5.
Turn on the sauna
Example: Sauna with steam
1. Push ON/OFF button
2. Push button SAUNA WITH STEAM
3. Set start time with PROG OK button
4. Enter start time with arrow buttons
5. Save the setting with PROG/OK
6. Push DURATIONbutton
7. PushPROG OK
8. Enter the duration with arrow buttons
9. Save the setting with PROG OK
10. PushTEMPERATURE button
11. Push PROG OK
12. Enter the temperature with arrow
buttons
13. Save the setting with PROG OK
14. Push HUMIDITY button
15. PushPROGOK
16. Enter the humidity with arrow buttons
17. Save the setting with PROG OK
18. Activate the settings by pushing
PROG OK for three seconds.
Turn off the sauna
1. Push the button ON/OFF
Change the temperature
1. Push TEMPERATUREbutton
2. Push PROG/OK
3. Enter new temperature with
arrow buttons
4. Save the setting with PROG/OK
Change duration
1. Push DURATIONbutton
2. PushPROG OK
3. Enter new duration with
arrow buttons
4. Save the setting with PROG/OK
Change the humidity
1. Push HUMIDITY button
2. PushPROG OK
3. Enter new humidity with
arrow buttons
4. Save the setting with PROG/OK
Change settings
during the sauna bath
Information for the user

4
Maintenance
Water tank
The water tank should be drained after
using the sauna. Remove impurities
with solvent and a hard brush.
Be careful when emptying the water
tank. The water has a temperature of
100OC.
Sauna stones
Brush and rinse the sauna stones free
from grit before placing them in the
stone compartment. If the stones begin
to crumble, replace them as soon as
possible.
The sauna
The sauna should be kept free of dirt
and odors. Remove any stains of water
and salt with gentle soap and water.
Furthermore, be careful not to keep
laundry and other fire hazardous
materials close to the heater.

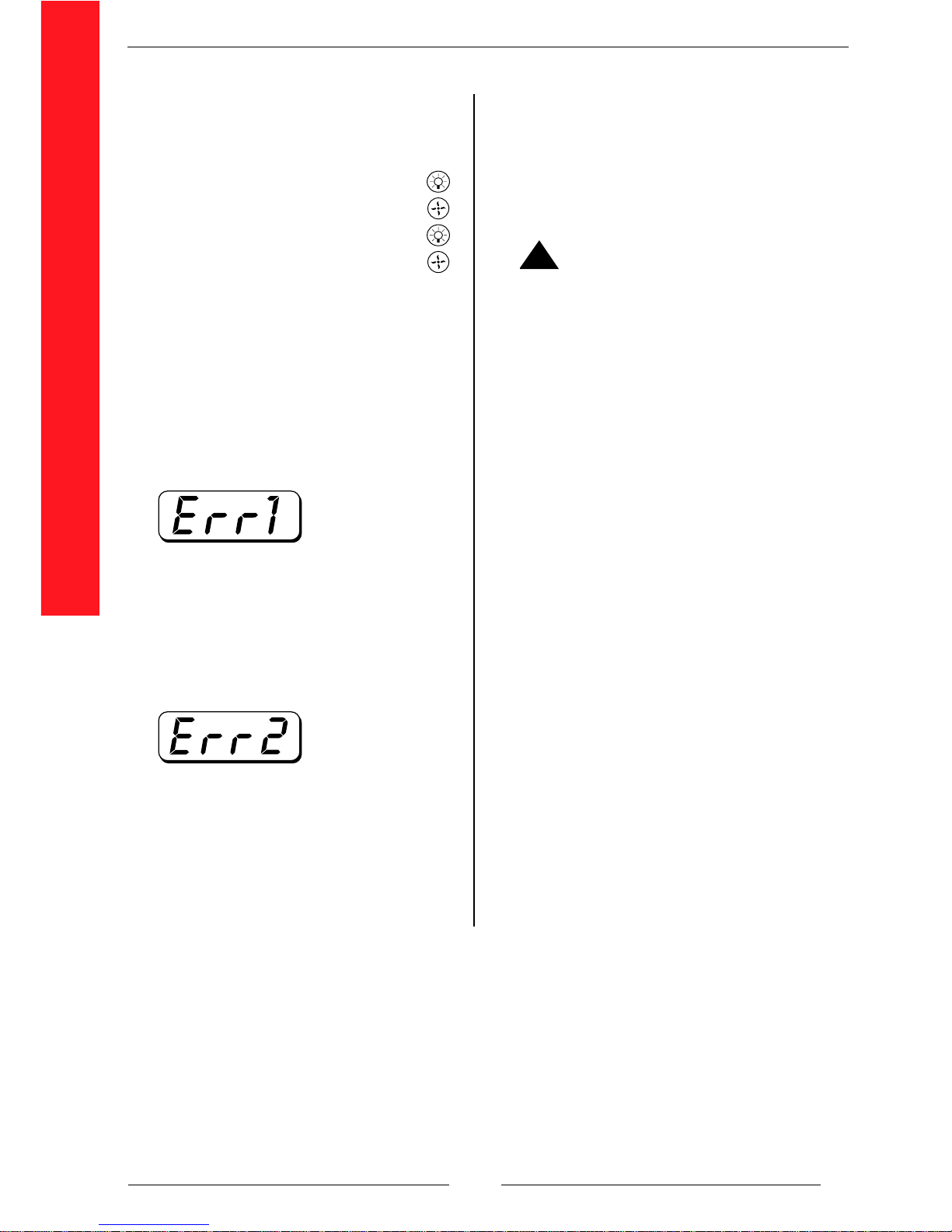

Alarm
In an alarm situation, the control panel
stops the heater, and the cause of the
alarm is shown on the display of the
control panel. Check the alarm and
restart the sauna heater.
Short facts about the
sauna heater
Output: 6 – 9 kW
Sauna volume: 5 – 13 m³
Amount of stones: 23 kg
1. Turn on the light and fan
by pushing the specific button
2. Turn off the light and fan by
pushing the specific button.
The temperature sensor cable is
broken or the overheating protection
has been triggered. Check the sensor
cable. Reset the sensor by pushing
the reset button. Offset the control
panel by pushing the button PROG OK.
The water tank is empty. Fill the tank
with water. Offset the control panel by
pushing the button PROG OK.
!
Warning!
Information for the user
Turn on/off the light
and the fan

5
Information for the user
Thank you for choosing Saunatec .................... 2
Quick Reference Guide ...................................... 3
Information for the user...................................... 5
This is how a sauna works ............................... 6
The sauna heater ............................................... 7
The control panel................................................ 8
Functions of the control panel ................ 9
Start the sauna ...................................................9
- With timer...................................................... 9
- With last used sauna program................... 11
Change the settings during the sauna bath .... 11
Turn on the light and fan .................................. 12
Alarm ................................................................ 13
Maintenance ..................................................... 13
General information about sauna bathing........ 14
Examples of different sauna baths ................. 15
Recommended ventilation ................................ 16
Information for the installer ........................ 19-31
Table of contents for the user
This user guide helps you to
understand and use your new
sauna products. We hope that
you read this user guide
carefully and that you respect
the warning texts.
The user guide is divided into
two sections: Information to
the user and Information to
the installer. You, as a user,
receive a thorough description
of the features of a sauna
heater, how to use the control
panel and what you should keep
in mind regarding maintenance.
If you have questions or if you
need help with the products,
please turn to your local retailer.
Certain parts of the user guide
are more important than others.
To highligt these parts we use
the following symbols:
Information for the user
Before you turn on the sanua heater, ensure that the sauna is ready to be used.
Do not install more than one heater in the sauna room.
The sauna heater must not be installed in a wall alcove or surrounded by close
structures.
The installation and connection of electrical equipment may be carried out by an
authorised electrician only.
Observe!
!
Warning Observe Tips and advice

6
Sauna functions in the same way as any room
in your house. Radiators in a room make sure
that the room temperature is maintained at the
desired temperature. Ventilation lets fresh air in
and spent air is lead out. A sauna works in the
same way. However, there are a few
parameters that must be correct for a sauna to
function optimally. The most important
relationship is between the output of the heater
and the volume of the sauna room. If the
power of the heater and the volume of the
room don’t match, it can cause the sauna to
heat up too quickly or the heater to overload.
Heating elements and stones
In the heater there are stainless steel elements
which radiate heat. The heat is transmitted to
stones which are placed in the heater. The
stones help to keep an even temperature in the
sauna. The stone compartment should be airy:
The larger stones are placed on the bottom and
the smaller stones on top. The stones should
cover the heating elements completely. After
some time of usage it may appear that the
amount of stones has diminished; some stones
may crack and then pack tighter together. This
reduces the air circulation in the heater, and it
takes longer time to heat up the sauna. A good
rule of thumb is: if you use your sauna once a
week you need to repack the stones once a
year. Twice a week means repacking twice a
year and so on. Replace cracked, brown or
discoloured stones. We recommend that you
brush and rinse the sauna stones free from
grit before you place them in the heater.

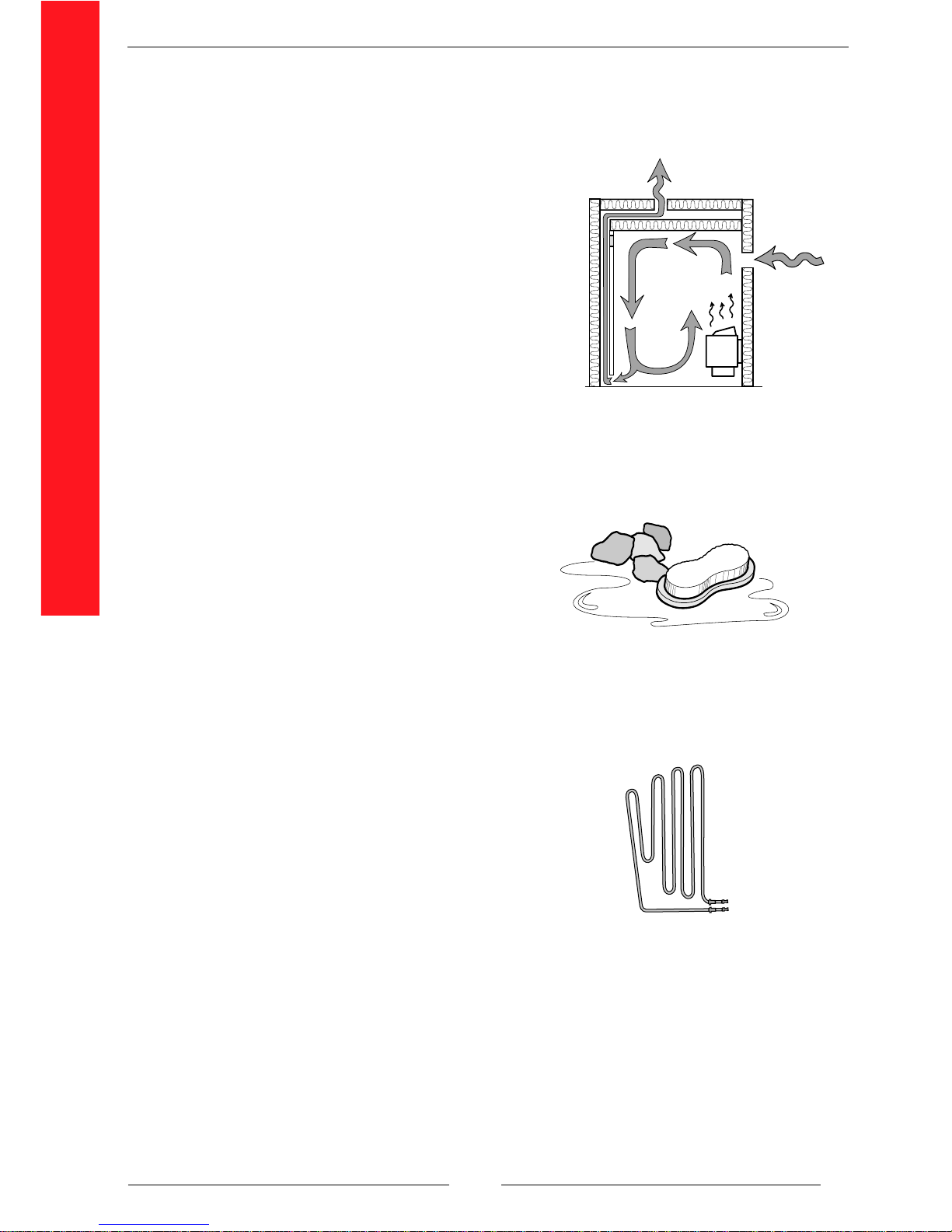

Example of the correct ventilation in
the sauna. Read more about ventilation
on page 16.
The heating elements heat the
stones in the sauna heater.
Brush off the sauna stones from grit
before you place them in the heater.
This is how sauna works
Information for the user

7

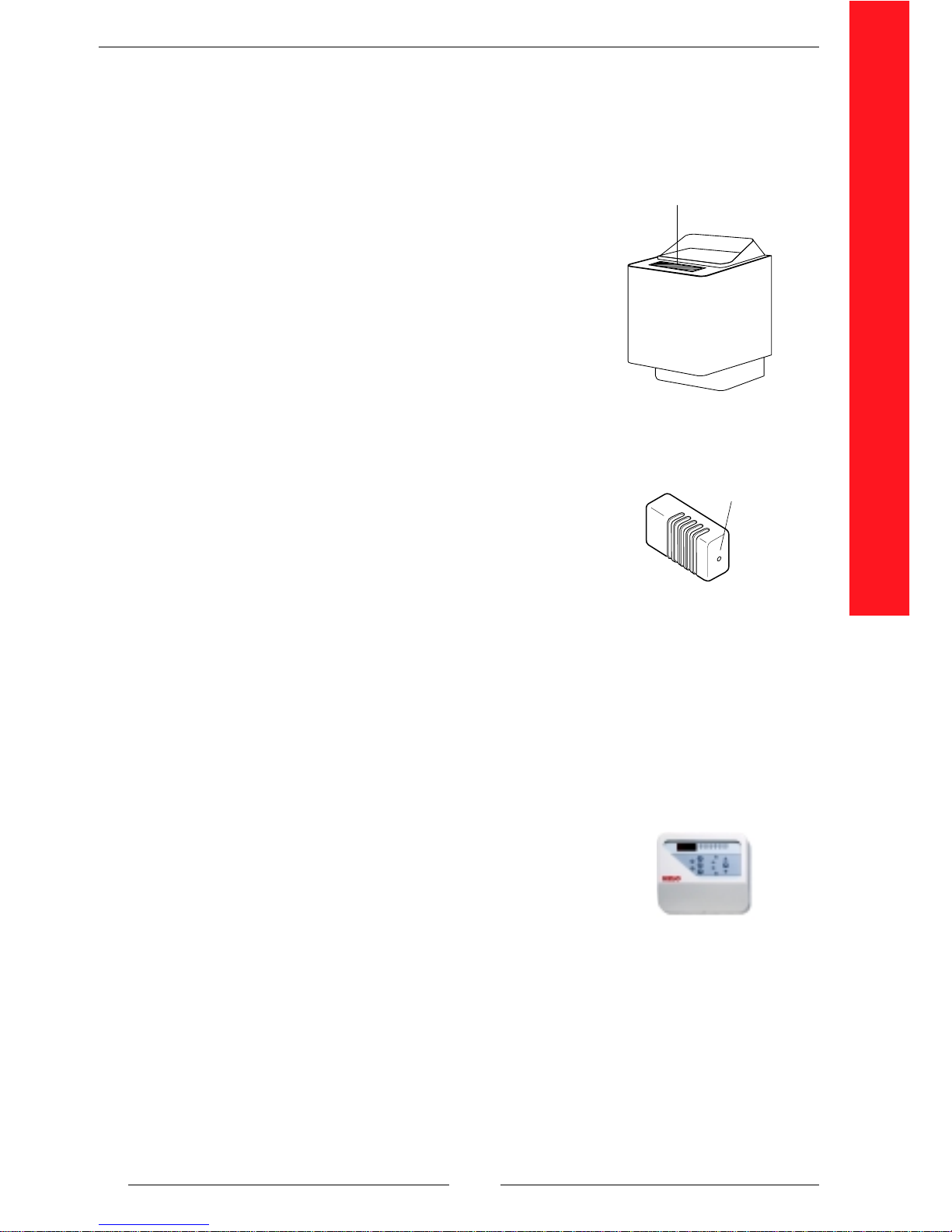

The sauna heater
Temperaturesensor
Reset
Cup for sauna fragrances
Sauna heater
The sauna heater, with its design and technology, is a
heater that offers unique qualities. The sauna heater can
be used in two different modes; normal sauna and sauna
with varying humidity. The settings are made from the
digital control panel. A water tank is placed in the front,
what means that you get more steam into the sauna room.
The steam increases your wellbeing and it has positive
effects on your skin and health. The tank is filled manually.
At the top of the tank there is a cup where you can put
sauna fragrances.
Temperature sensor OLET 19
Inside the sauna room the temperature sensor is installed.
The sensor is mounted by an installer directly over the
heater, 40 mm from the ceiling. The sensor has two tasks:
1. Register the temperature inside the sauna room and
send signals to the heater for more or less output.
2. Protection against overheating.
In the event of overheating, the heater is turned off (see
Alarm on page 13). Deviations from the given distances
can cause a fire hazard. The function of the sensor is to
turn off the entire output of the heater if the temperature
of the heater gets too high. When the temperature has
sunk, the sensor can be reset by pushing the reset button
with a screwdriver. Before you reset the sensor the
cause of the fault must be corrected.
Digital control panel
With a control panel, the user sets temperature, start time,
steam and duration. The control panel is mounted on the wall
outsidethesauna.Theprogrammingofthe time and language
is easily done by you or the installer.
Steam
Due to safety reasons the steam function only works at
temperatures up to 65OC. The control panel will not accept
humidity settings at higher temperatures. At 65OC the
heater will give 60 % humidity. At 45OC the heater will give
100 % humidity.
Digital control panel
Information for the user

8
Normal sauna
Sauna with steam
Start time
Duration
The control panel
*
Observe
Pages the menu and saves
the settings
Decreases the value
The button PROG OK
The display
If light and fan have been connected to the control panel, you can use them with
the appropriate buttons. If they are not connected, contact your retailer or a
certified electrician.
Increases the value
During the sauna
bath the measured temperature is
presented in the display If you want to
see duration and humidity you push
the specific button. The current value
is presented for five seconds.
Thereafter the display returns to
present measured temperature again.
Indication lamps
Temperature
Humidity
Light
Fan
The indication lamps are placed at the top of
the control panel. When the lamp is blinking
the control panel is in setting-mode. It is then
possible to set a value with the arrow
buttons. When the lamp is lit constant the
panel is in function-mode.
ON/OFF
Humidity
Start time
Duration
*Light
*Fan
Display
Indication lamps
Temperature
Normal sauna
Sauna with steam
PROG OK
Information for the user
PROG
OK
Main switch

9
Functions of the control panel
In the control panel, you set the start time, duration, temperature and humidity. You can
also choose if you want a sauna with or without steam.
Functions of the control panel:
1. Start and stop the sauna
- With timer
- With last used sauna program
2. Change the settings during the sauna bath
3. Turn on the light and fan
1. PushON/OFF
The display shows:
2. Push SAUNA WITH STEAM
The display shows the start time 00:00. It
means that the heater will start immediately after
you have finished the programming.
The indication lamp ”Sauna with steam” starts to blink
3. Set the start time with button PROG OK
The indication lamp ”Start time” starts to blink
Turn on the sauna
The control panel gives you two options how
to turn on the sauna. The options are:
- With a timer
- With last used program.
You can also choose between normal and
steam sauna bath.
With a timer
Example: Sauna with steam
You want to have a sauna with steam. The time is 16:00 and you want the sauna heater
to start heating at 18:00. You want the temperature 65OC, duration 50 minutes and
humidity 35 %.
By holding the arrow button
pressed the values are paged
up or down rapidly.
Tips and advice
The settings starts and stops
with a the button PROG OK.
Before you turn on the sauna
heater you must check that the
sauna is ready to be used.
Observe
Information for the user

10
4. Enter 02:00 with the arrow buttons
The heater will start heating in two hours
5. Save the start time with PROG OK
6. PushDURATION
7. PushPROG OK
The indication lamp ”Duration” starts to blink
8. Enter 00:50 with the arrow buttons
The heater will give output for 50 minutes
9. Save the duration with PROG OK
10. PushTEMPERATURE
11. Push PROG OK
The indication lamp ”Temperature” starts to blink
12. Enter 65 with the arrow buttons
13. Save the temperature with PROG OK
14. Push HUMIDITY
15. PushPROG OK
The indication lamp ”Humidity” starts to blink
16. Enter 35 with the arrow buttons
17. Save the humidity with PROG OK
18. Activate the settings (turn on the sauna) by
pushing PROG OK for three seconds
The display shows the time that remains until sauna is turned on.
Turn off the sauna
If you wish to turn off the sauna before or during the sauna bath, push the button START
STOP.
Information for the user

11

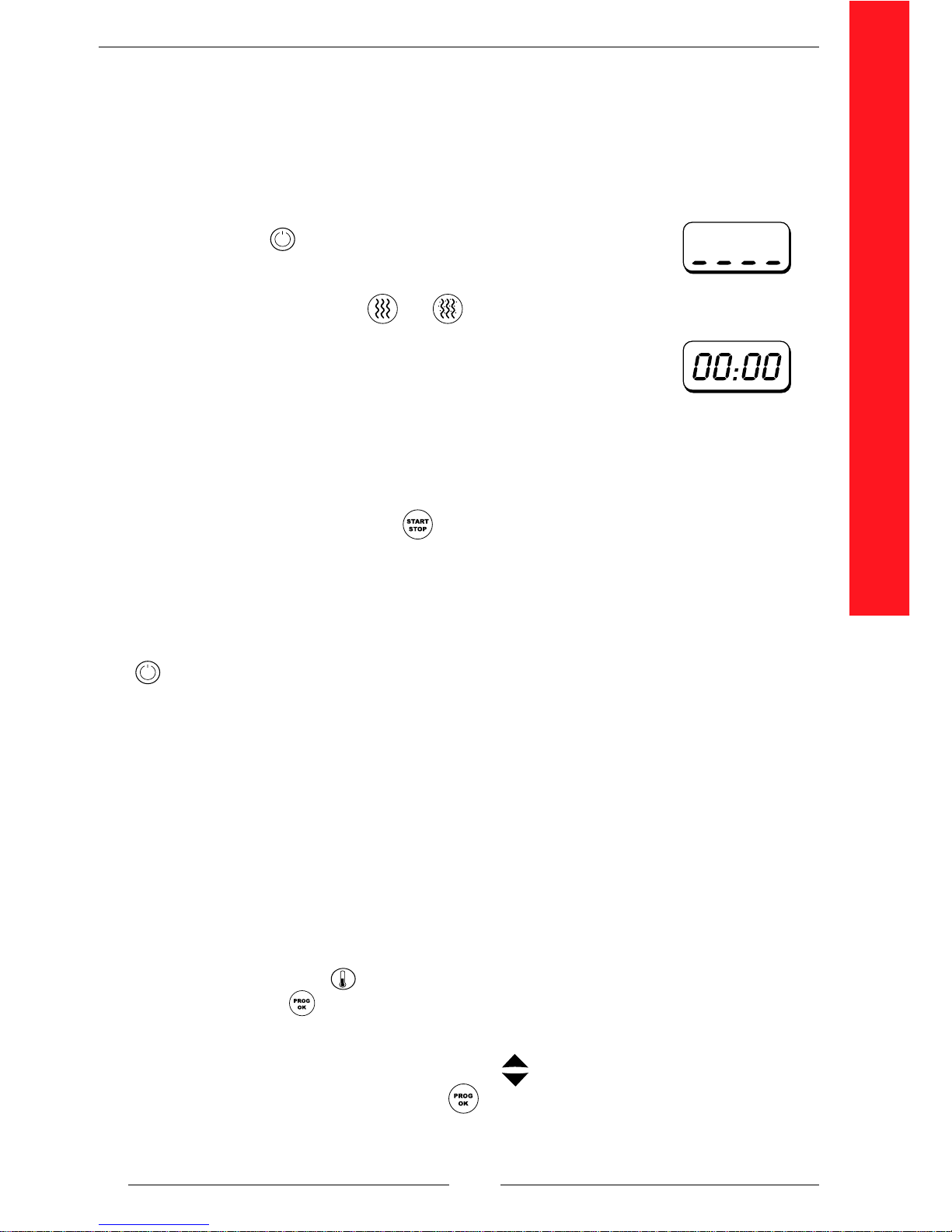

1. PushON/OFF
The display show:
2. Push NORMAL SAUNA
or SAUNA WITH STEAM
The display shows the start time 00:00. It
means that the heater will start immediately after
you have finished the programming.
The indication lamp for the chosen sauna starts to blink
3. Enter start time (more information on page 9) or
turn on the sauna by pushing the button
PROG OK for three seconds.
1. PushTEMPERATURE
2. PushPROG OK
The indication lamp ”Temperature” starts to blink
3. Change the temperature with arrow buttons
4. Save the new setting with PROG OK
To turn on the sauna with the last used program means that you will use the same
settings in the control panel as you had in your previous sauna bath. The setting for
start time is however specific for each sauna bath.
With the last used program
Change the settings during
the sauna bath
You can change the settings in the control panel during the sauna bath. Most likely you
sometimes want to change the temperature, duration or humidity during a sauna bath.
or
Turn off the sauna
If you wish to turn off the sauna before or during the sauna bath, push the button START
STOP.
Change the temperature
(3 s)
Information for the user

12
1. Push HUMIDITY
2. PushPROG OK
The indication lamp ”Humidity” starts to blink
3. Change the humidity with arrow buttons
4. Save the new setting with PROG OK
1. PushDURATION
2. PushPROG OK
The indication lamp ”Duration” starts to blink
3. Change the duration with arrow buttons
4. Save the new setting with PROG OK
Turn on the light and fan
Turn on the light
The light can be turned on when the control panel is in either off-mode or on-mode.
1. Push LIGHT
Turn off the light
1. Push LIGHT
Change the humidity
Change the duration
Turn on the fan
The fan can be turned on when the control panel is in either off-mode or on-mode.
1.Push FAN
Turn off the fan
1.Push FAN
Information for the user

13
Alarm Display Action
larm
In an alarm situation, the control panel stops the heater, and the cause for the alarm is
shown on the display of the control panel. Check the alarm and restart the sauna heater.
An alarm can be triggered by the following reasons:
Check the cable to and from the
sensor. If the cable is ok, check if
the sensors reset button has been
triggered. Reset the sensor by
pushing the reset button with a
screwdriver. Offset the control
panel with PROG OK.
Fill the tank with water. Offset the
control panel with PROG OK. If the
heater is not turned on, push the
reset switch on the heater. See
picture below.
The cable of the
temperature sensor
is broken or the
overheating
protection is
triggered.
The water tank is
empty.
Maintenance
The water tank
The water tank should be drained after every
sauna bath. After a while you will probably find
inpurities on the inside of the water tank. The tank
should therefore be cleaned 1-2 times every six
months. Use a hard brush to clean the inside of
the tank. Mix a litre of solvent (citric acid) and
water and pour it into the tank. Turn on the sauna
heater and make sure that the inpurities
disappear. End the cleaning by restarting the
heater using only water.
1. Remove the hose and
point it in vertical
direction.
2. Point the hose in a
vertical direction and into
a bucket when you are
opening the tap. Be
careful. The water is
very hot.
Information for the user
Reset switch of the
water tank.
Be careful when emptying the
water tank. The water has a
temperature of 100OC. The
hose should be pointed down
when the hot water is let out
from the tank.
Warning
!

14
Sauna stones
We recommend that you brush and rinse the sauna
stones free from grit before placing them in the stone
compartment. If the stones begin to crumble, you should
replace them as soon as possible. Read more about
sauna stones on page 6.
The sauna
The sauna should be kept free of dirt and odors, just like the bathroom. Remove any
stains of water and salt with a gentle soap and water. Furthermore, be careful not to
keep laundry and other fire hazardous materials close to the heater.
Vent
In the sauna there is a vent (outlet vent) that releases warm air. Clean the outlet vent
with water and a gentle soap once or twice a year.
Information for the user
General information about
sauna bathing
Allow yourself plenty of time when you take a sauna bath. You should not feel
stressed. To take a sauna bath should be a pleasure.
Take a shower before entering the sauna. If the situation requires that you wear a
towel, it should not be too tight.
Take a break after 10–15 minutes. Leave the sauna, enjoy a cool shower and relax.
Repeat this procedure if you feel like it.
Many feel that the most pleasurable part of sauna bathing is “sprinkling water” on the
hot stones of the heater, which means that a few scoops of water are ladled over
the hot stones. The cloud of hot steam that is formed is called “löyly” and is
considered the soul of the sauna.
Take a shower before
entering the sauna.
Use a towel if the
situation calls for it. Increase the moisture by ladling water on the
stones.

15
Examples of different baths
Finnish sauna
A Finnish sauna is humid and has relatively high temperature. This is achieved by ladling
water on the stones. After a Finnish sauna bath you feel clean and relaxed. To achieve this:
1. Set the temperature between 70 and 80°C
2. Ladle water on the stones until the humidity is ca 20 %.
3. Take a sauna bath for 10–15 minutes.
4. Take a break of about 5 minutes. Cool down and drink fluids.
5. Repeat this procedure as many times as you like.
Information for the user
Moist sauna
Dry sauna
A dry sauna has high temperature and low humidity. This is achieved by not ladling
water on the stones. After a dry sauna bath you feel calm and harmonious. To achieve
this:
1. Set the temperature between 85 and 90°C. Humidity 5–10 %.
2. Take a sauna bath for 15–20 minutes.
4. Take a break of about 5 minutes. Cool down and drink fluids.
5. Repeat this procedure as many times as you like.
A moist sauna means high humidity and low temperature. This is achieved by ladling
water on the stones. After a humid sauna bath you feel clean and refreshed. To
achieve this:
1. Set the temperature at about 60°C
2. Ladle water until the humidity is ca 40 %.
3. Take a sauna bath for 15–20 minutes before you take a break. Drink fluids.
4. Repeat this procedure as many times as you like.

17
1000 mm
Information for the user

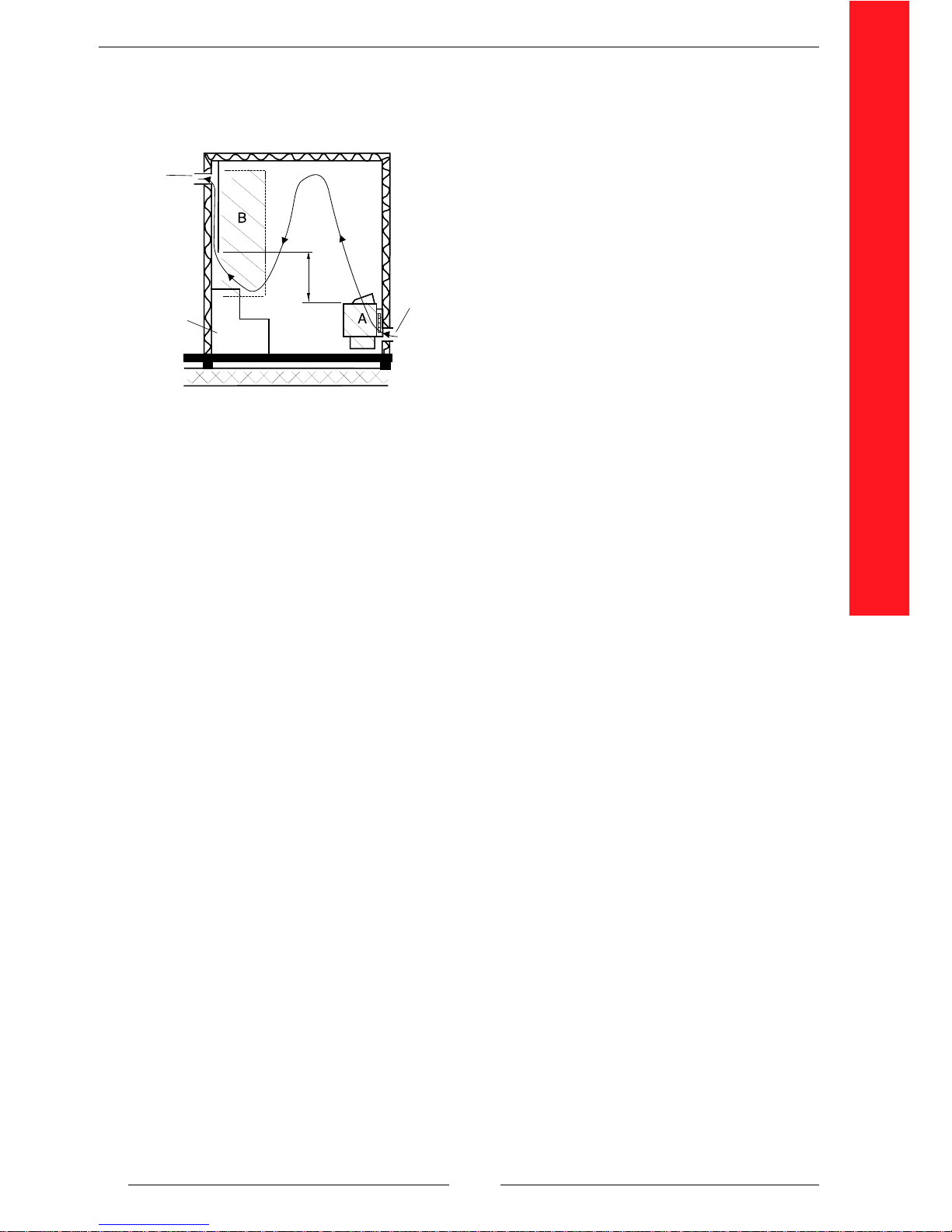

Natural draft
Natural draft
Natural draft means that fresh air is let
in to the sauna through a vent in the wall.
The vent for incoming air is placed
within the area A. The spent air vent is
placed within the area B, 700–1800 mm
from the floor and as far as possible
from the heater.
Freshair
Sauna
bench
Spentair

18
Information for the user

19
Information for the installer
This user guide gives you answers to how to install electrical cables and the control
panel in the sauna. We want you to read the ENTIRE user guide, both sections:
Information for the user and Information for the installer. We feel that even an
installer benefits from the information directed to the user. Be sure to read all the
Observe- and Warning-columns.
The user guide applies to the following heater models:
Sauna heaters
1720-60-1204 (6,0 kW)
1720-80-1204 (8,0 kW)
1720-90-1204 (9,0 kW)
Digital control panel
1418-2-151104
Some parts of the user guide are more important than others. We use the following symbols:
Information for the user........................................ 3-18
Important information for the installer ......................20
Checklist ...................................................................20
Parts included in the delivery ...................................21
Summary of the electrical connections ...................22
Install the heater and temperature sensor...............23
Connect the electricity..............................................26
Install and program the control panel.......................30
Test the sauna and make safety measurements ....31
Table of contents for the installer
Information for the installer
!
Warning Observe Tips and advice

20
Important information for the
installer
Before you turn on the
heater with the control panel,
make sure that you have
gone through all the steps in
the check list and that the
sauna is ready to be used.
Observe!
This user guide is an important tool for you
who will mount and install the sauna heater.
There are several installation dimensions that
must be followed exactly due to safety
requirements. If you have any questions
during the installation we recommend you to
turn to your retailer.
When the mounting and installation are
completed, we would like you to give this
user guide to the user. Do not throw it away
but make sure that the user gets the user
guide in order to be able to use the digital
control panel. Use the checklist to be sure
that all the steps in the installation process
have been completed.
Information for the installer
Follow the installation
dimensions given in this
user guide.
Make sure that the wall
behind the heater, to which
the screws are to be fixed,
is strengthened with wood.
Only one heater may be
installed in the sauna room.
The sauna heater must not
be installed in a wall, alcove
or surrounded by close
structures.
A certified electrician, in
accordance with the valid
regulations, must do all the
electrical connections.
Observe!
1. Read this user guide carefully
2. Check that all the parts are delivered
3. Connect the electrical cables to the
heater (page 26)
4. Intsall the heater in the sauna (page 23)
5. Install the temperature sensors in the
sauna (page 25)
6. Install the control panel on the wall (page 30)
7. Connect electrical cables to the control panel
(pages 28)
8. Test the sauna and make thenecessary safety
measurements (page 31)
9. Give this user guide to the user after finishing
theinstallation
Checklist
