Helo Piccolo Trend User manual

ELECTRIC SAUNA HEATER:
1217 –30 –040511
230V –240V 1N~ / 2~
400V –415V 2N~
CONTROL PANEL:
1601 –31 (RA –31) Trend)
314 SKMS 2-3 A
Installation and User Manual Piccolo Trend
REWARD YOURSELF

Contents Page
1.1. Check before taking a sauna bath 3
1.2. Sauna room 3
1.3. Information for users 3
1.4. Operation of the sauna heater controls 3
2. Preparing for sauna heater installation 4
2.1. Installation 4
2.2. Installing the sensor near a supply air vent 4
2.3. Ceiling installation of the sensor 4
2.4. Sauna heater safety clearances 5
2.5. Connection of the sauna heater to the mains 6
2.6. Electric heating toggle 6
2.7. Locating the connecting box for the connection cable in the sauna room 7
2.8. LocatRemote controlling 7
2.9. Door switch 8
2.10. Wiring diagram 9
2.11. Recommended sauna room ventilation 10
2.12. Heating the sauna 10
2.13. Sauna heater stones 11
2.14. If the sauna heater will not heat up 11
2.15. BWT technology in a Piccolo Trend heater 12
2.16. Door switch 12
2.17. Principle image when 1601 - 31 (RA - 31 Trend) is used as control panel 13
3.Piccolo Trend spare part list 14
4.ROHS 15
Figures and tables
Figure 1 and 2 sensor is installed 40 mm from the ceiling on the centre line 5
Figure 3 Sensor installation to the ceiling 5
Figure 4 OLET 31 sensor position in a ceiling installation…... 5
Figure 5 Heater wall mounts on the heater in wall installation. 5
Figure 6 Heater wall mounts on the heater in corner installation.5
Figure 7 Location for the connection box 7
Figure 8 Order of RJ 10 connectors. Sensor, Door switch, Remote control, 7
Figure 9 Installing the door switch 8
Figure 10 Pin –order of RJ 10 8
Figure 11 Wiring diagram for the sauna heater 9
Figure 12 Rekommended sauna room ventilation 10
Figure 13 Priciple image when 1601 - 31 (RA - 31 Trend) is used as control panel 13
Table 1 Safety clearances 5
Table 2 Connection cable and fuses 6
Table 3 Coupling order of RJ connectors to circuit board 7
Table 4 Connecting the door switch. 8
Table 5 Piccolo Trend spare parts list 14
Installation and User Manual Piccolo Trend
2

1. WARNINGS
1.1. Check before taking a sauna bath
1. The sauna room is suitable for taking a sauna bath.
2. The door and the window are closed.

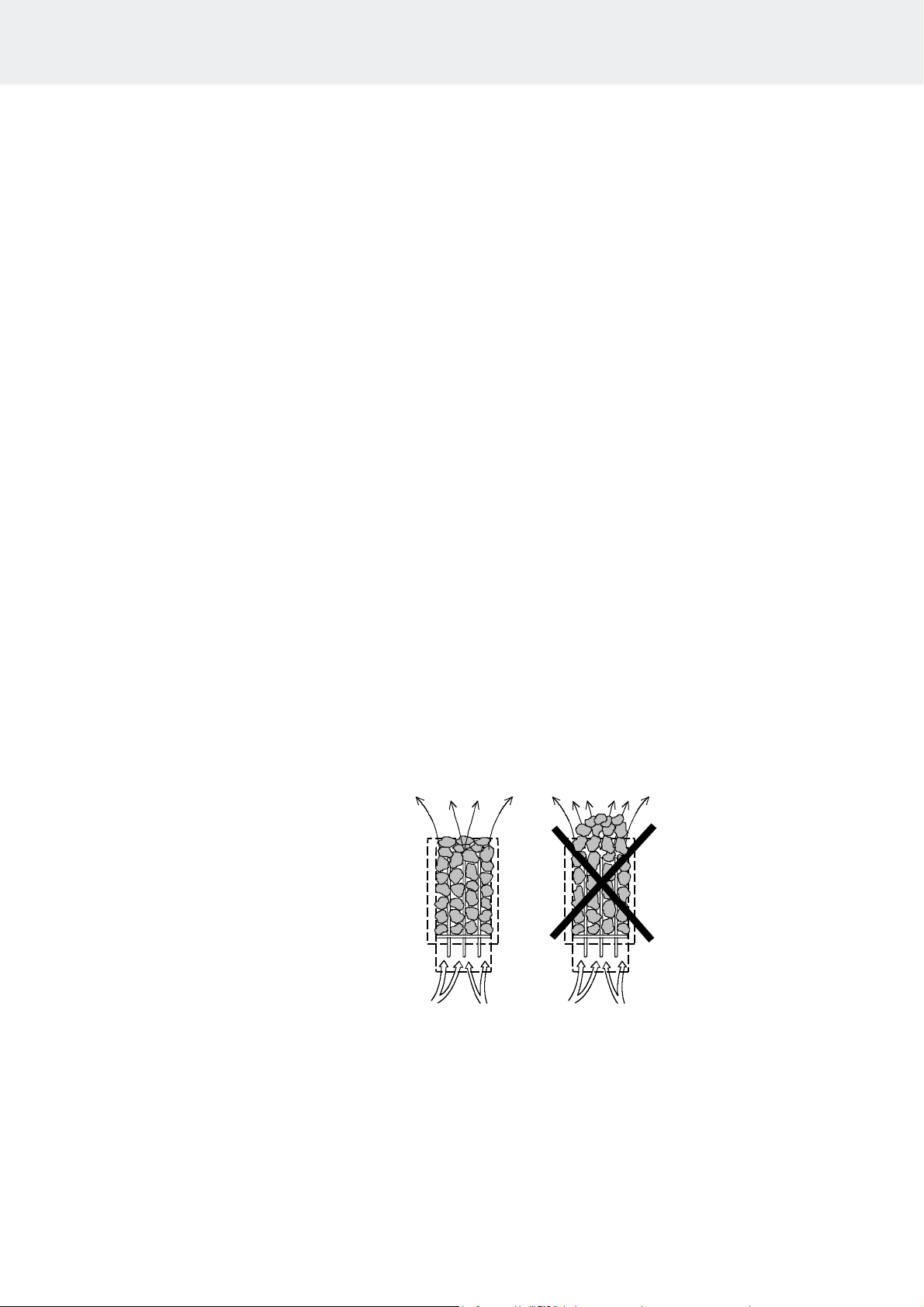

3. The sauna heater is topped with stones that comply with the manufacturer's recommendations, the
heating elements are covered with stones, and the stones are piled sparsely.
NOTE! Ceramic rocks are not allowed.
The heater's main switch is located at the bottom of the heater, on the right side as seen from the
front.
The main switch is marked with a 0 –1 sticker.
1.2. Sauna room
The walls and ceiling of a sauna room should be thermally well insulated. All surfaces that store
heat, such as tiled and plastered surfaces must be insulated. It is recommended to use wooden
panel cladding inside the sauna room. If there are heat storage elements in the sauna room, such
as decorative stone, glass etc., note that these elements may extend the pre-heating period even
though the sauna room is otherwise well insulated (see page 4, section 2. Preparing for sauna
heater installation).
1.3. Information for users
This appliance may not be used by children aged less than eight years, by persons with reduced
physical, sensory or mental capabilities, or by persons lacking experience and knowledge
regarding its operation only if such have been given instructions on the safe use of the device and
the risks involved. Children must not be allowed to play with the appliance or to clean and service it
without supervision. (7.12 EN 60335-1:2012)
1.4. Operation of the sauna heater controls
Refer to the specific control panel operating instructions.
Rearrange the sauna stones at least once a year and replace any weathered stones. This
enhances air circulation between the stones, which extends the useful life of the thermal resistors.
If you encounter any problems, please contact the manufacturer's warranty service shop.
For additional information about enjoying a sauna bath, please visit our website at :
www.tylohelo.com
Installation and User Manual Piccolo Trend
3

2. Preparing for sauna heater installation
Check the following before installing the sauna heater.
- The ratio of the heater's input (kW) and the sauna room's volume (m3). Volume recommendations are presented in
Table 1 on page 5. The minimum and maximum volumes must not be exceeded.
- The sauna room height must be a min. of 1900 mm.
- Uninsulated and masonry stone walls extend the preheating time. Each square metre of plastered ceiling or wall surface
adds 1.2 m3to the sauna room's volume.
- Check page 6 Table 2 for a suitable fuse size (A) and the correct diameter of the power supply cable (mm²) for the
sauna heater in question.
- Conform to the specified safe clearance around the sauna heater. Please refer to page 5.
- If you want to install your Piccolo sauna heater in a corner, detach the wall mounts from the heater, twist them 180
degrees and then reattach them. Refer to Figure 6 on page 5.
- There should be enough room around the sauna heater controls for maintenance purposes. Also a doorway can be
considered as a maintenance area.
2.1.Installation
Follow the safety clearance specifications on
page 5 when installing the sauna heater.
Walls or ceilings must not be clad with
fibre-reinforced plaster board or other
light-weight cladding, because they may
cause a fire hazard.
Only a single sauna heater is allowed per
sauna room.

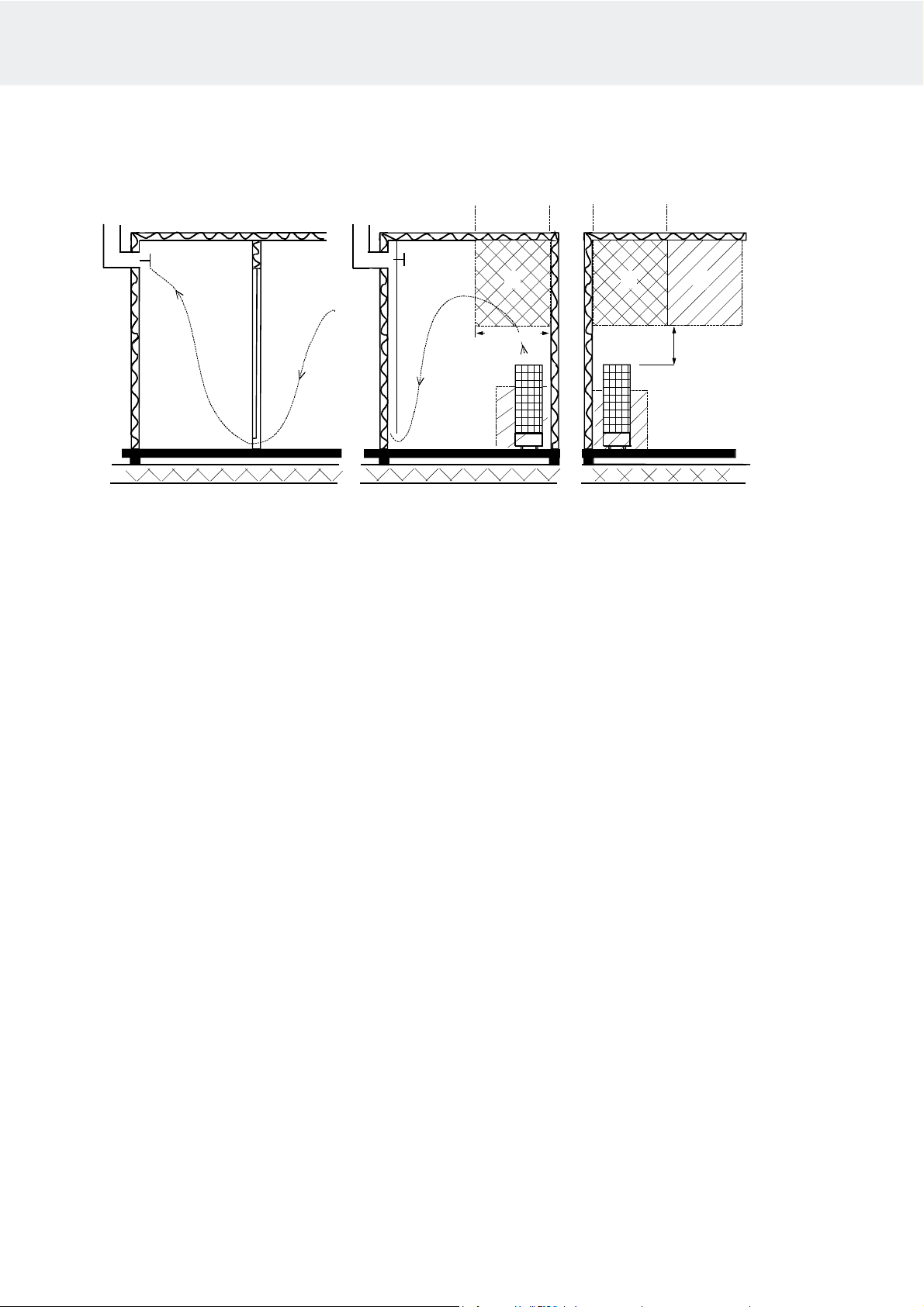

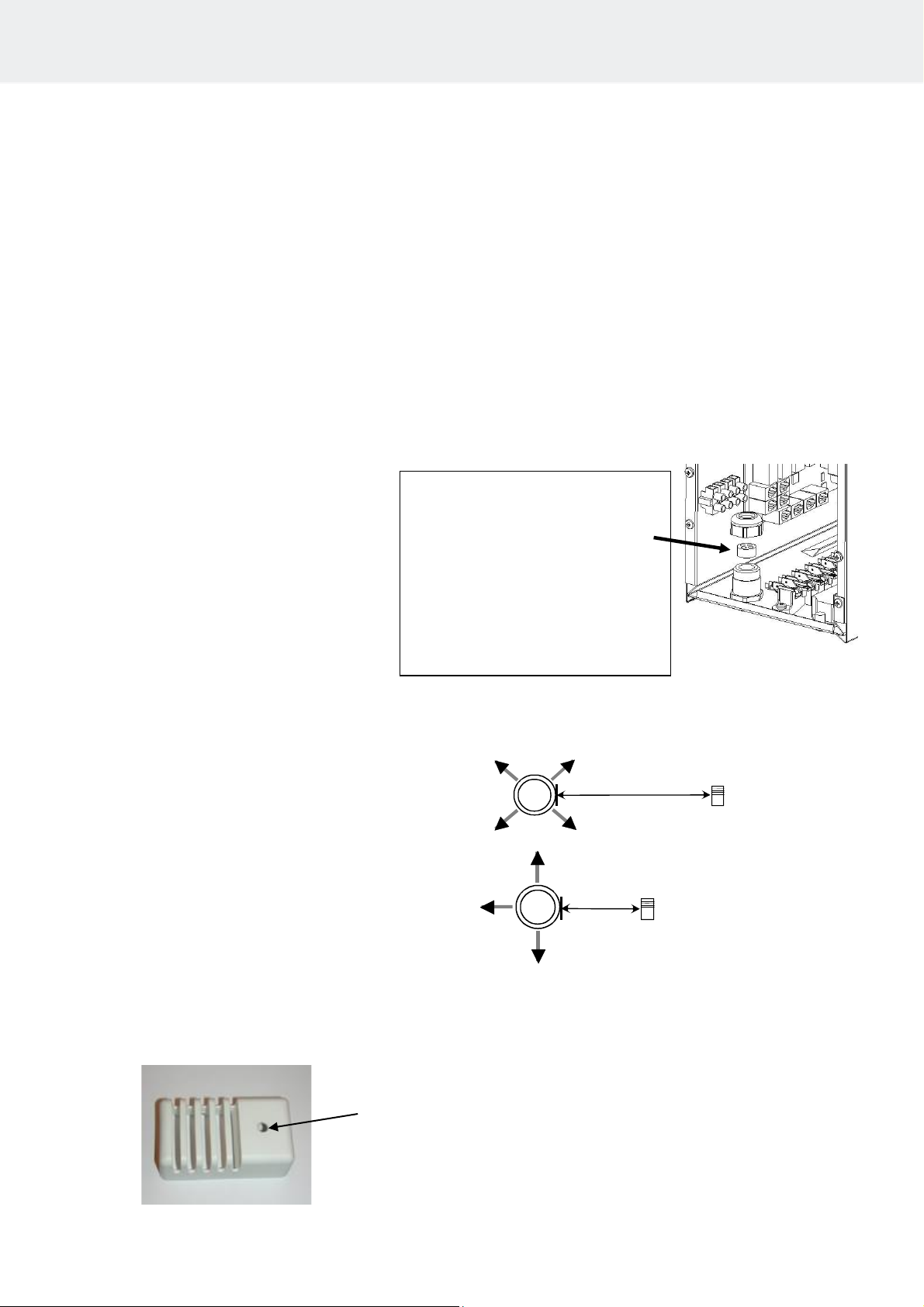

2.2. Installing the sensor near a supply air vent
The sauna room air should be exchanged six times in an
hour. The diameter of the supply air pipe should be
between 50 and 100 mm.
A circular air supply vent (360°) must be
installed at least 1000 mm away from the sensor.
An air supply vent with a flow-directing panel
(180°) must be installed at least 500 mm away from
the sensor. Air flow must be directed away from the
sensor.
2.3. Ceiling installation of the sensor
In ceiling installation, a 5-mm hole must be drilled to the sensor case to allow any condensed water to drain.
Do not spray water directly towards the sensor or splash water at it with a sauna scoop.
Installation and User Manual Piccolo Trend
4
Remove the nut and the rubber
grommet from the strain relief bushing.
Make a vertical split in the spot where
the lead-in rubber grommet aligns with
the hole. Insert the control panel's RJ10
and the cable through the strain relief
bushing and insert the cable through
the hole you just made. The sensor
cable can be inserted directly through
the hole. Tighten the strain relief
bushing nipple.
360° 1000 mm
180° 500 mm
Sensor
Sensor
ø5 mm

2.4. Sauna heater safety clearances

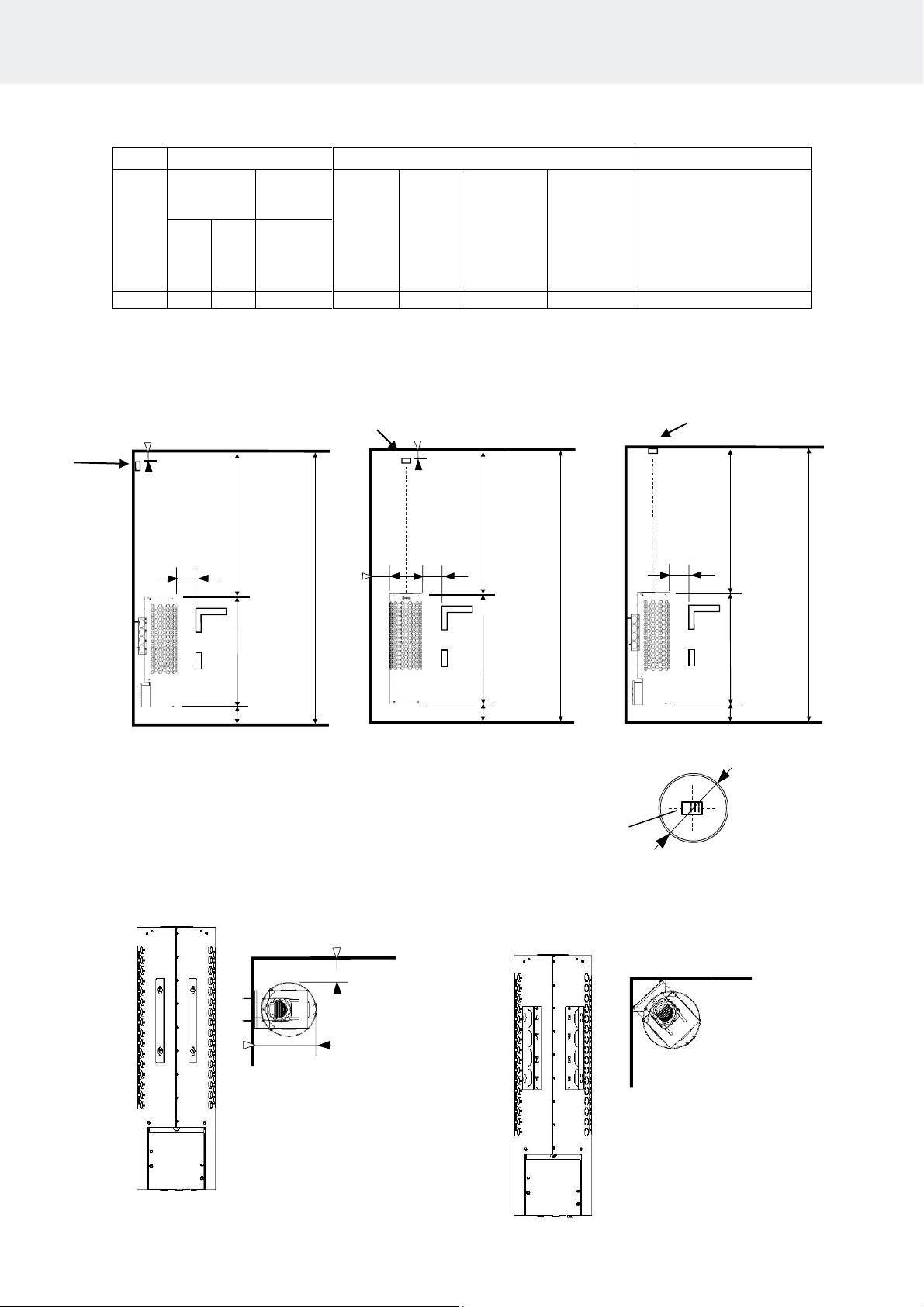

Table 1 Safety clearances
Corner and wall installations: The OLET 31 sensor is installed 40 mm from the ceiling on the centre line of the heater
on a wall. Alternatively, the sensor can be installed on the ceiling above the centre of the heater –see figure 3 and 4.
Figure 1 and 2 sensor is installed 40 mm from the ceiling on the centre line Figure 3 Sensor installation to the ceiling
of the heater on a wall
Output
Sauna rom
Heater minimum clearances
Amount of stones
kW
Volume
Height
From
side to
wall
A
mm
From
front to
sauna
bench
D
mm
To floor
To ceiling
H
mm
In kg, approx.
min.
m³
max.
m³
min. mm
K
mm
3,0
2
4
1900
60
60
60
1050
20 - 25
Installation and User Manual Piccolo Trend
5
D
790
F
1900
H
60
1 005
60
K
D
790
F
1900
H
60
1 005
4mm0
60
K
D
790
F
1900
H
60
1 005
4mm0
60
K
A
60
OLET 31
OLET 31
OLET 31
Figure 4. OLET 31 sensor position in a
ceiling installation above the heater,
230 mm diameter.
Figure 5. Heater wall mounts on
the heater in wall installation.
Figure 6
Heater wall mounts on the heater in
corner installation.
If you want to install your sauna
heater in a corner, detach the wall
mounts from the heater, twist them
180 degrees and then reattach them.
OLET 31
ø 230 mm
A60
275

2.5. Connection of the sauna heater to the mains
The sauna heater must be connected to the mains by a qualified electrician and in compliance with current regulations.
The sauna heater is connected with a semi-permanent connection. Use H07RN-F (60245 IEC 66) cables or a
corresponding type. Other output cables (signal lamp, electric heating toggle) must also adhere to these
recommendations. Do not use PVC insulated cable as a connection cable for the sauna heater.
A multipolar (e.g. 7-pole) cable is allowed, if the voltage is the same. In the absence of a separate control current fuse, the
diameter of all cables must be the same, i.e. in accordance with the front fuse.
The connecting box on the sauna wall should be located within the minimum safety clearance specified for the sauna
heater. The maximum height for the connection box is 500 mm from the floor. See page 7.
If the connection box is located at over 500mm distance from the heater, the maximum height is 1000mm from the floor.
Table 2Connection cable and fuses
NOTE: Controlling the lights in the sauna with the circuit board is only possible with resistive loads (incandescent light
bulbs). The circuit board relay cannot withstand capacitive loads (switched-mode power supply units). If the lighting
fixtures in the sauna have transformers, for example LED or halogen lamps, the stove circuit board's relay control must be
fitted with a separate relay or contactor for controlling the lights.
Sauna heater insulation resistance:
The sauna heater heating elements may absorb moisture from air, e.g. during storage. This may cause leakage currents.
The moisture will be gone after a few heating sessions. Do not connect the heater power supply through a ground fault
interrupter.
However, adhere to the effective electrical safety regulation when installing the sauna heater.
2.6. Electric heating toggle
Electric heating toggle applies to homes with an electric heating system.
Sauna heater has connections (marked N-55) for controlling the electric heating toggle. Connectors N-55 and the heating
elements are simultaneously live (230V). The sauna heater thermostat also controls the heating toggle. In other words,
home heating turns on once the sauna thermostat cuts power off the sauna heater.
Power
kW
Sauna heater’s connection cable
H07RN –F/60245 IEC 66
230 - 240V 1N~ / 2~ 400 –415V 2N~
mm² mm²
Fuse
A
3,0
3 x 2,5
1 x 16
3,0
4 x 1,5
2 x 10
Installation and User Manual Piccolo Trend
6

2.7. Locating the connecting box for the connection cable in the sauna room
A = Specified minimum safety clearance
1. Recommended location for the connecting box
2. Silumin box recommended in this area.
3. This area should be avoided. Always use a silumin box.
In other areas, use a heat-resisting box (T 125 °C) and heat-resisting cables (T 170 °C). The connection box must be
clear of obstacles. When installing the connection box to zones 2 or 3, refer to the instructions and regulations of the
local energy supplier.
Figure 7 Location for the connection box

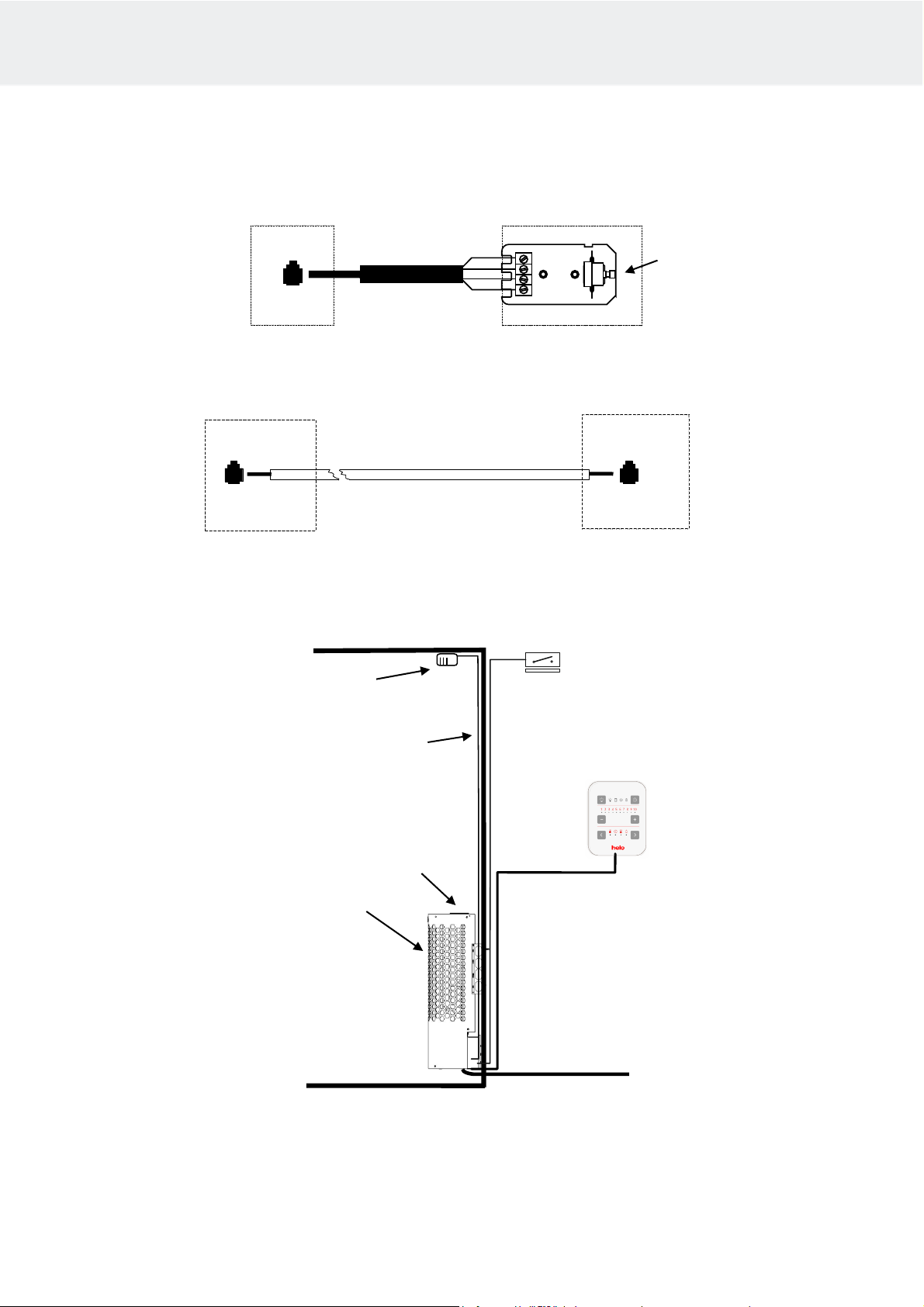

2.8. Locat remote controlling
The Heater can be remotely controlled by connecting a closed contactor, which can be pulse triggered, to connectors 3 and 4 of
a RJ10 circuit board. The recommended cable size is AWG 24 or 26. The maximum length of an AWG 24 cable is 200 m when
using a Trend controller.
The maximum length of an AWG 26 cable is 130 m when using a Trend controller.
Note! The sauna standard requires a door switch if the sauna heater is controlled from outside the sauna.
An indicator light can be connected to the remote button terminal, it will be lit up when the remote command is activated. The
indicator light shows an error by blinking rapidly, this error is caused by keeping the sauna door open for more than 5 minutes,
the sauna heater will be shut down automatically.
The remotely operated sauna heater stays on as long as the setting in the control panel (in private us max 6h). The sauna heat-
er can be shut off at any time by the remote-control device.

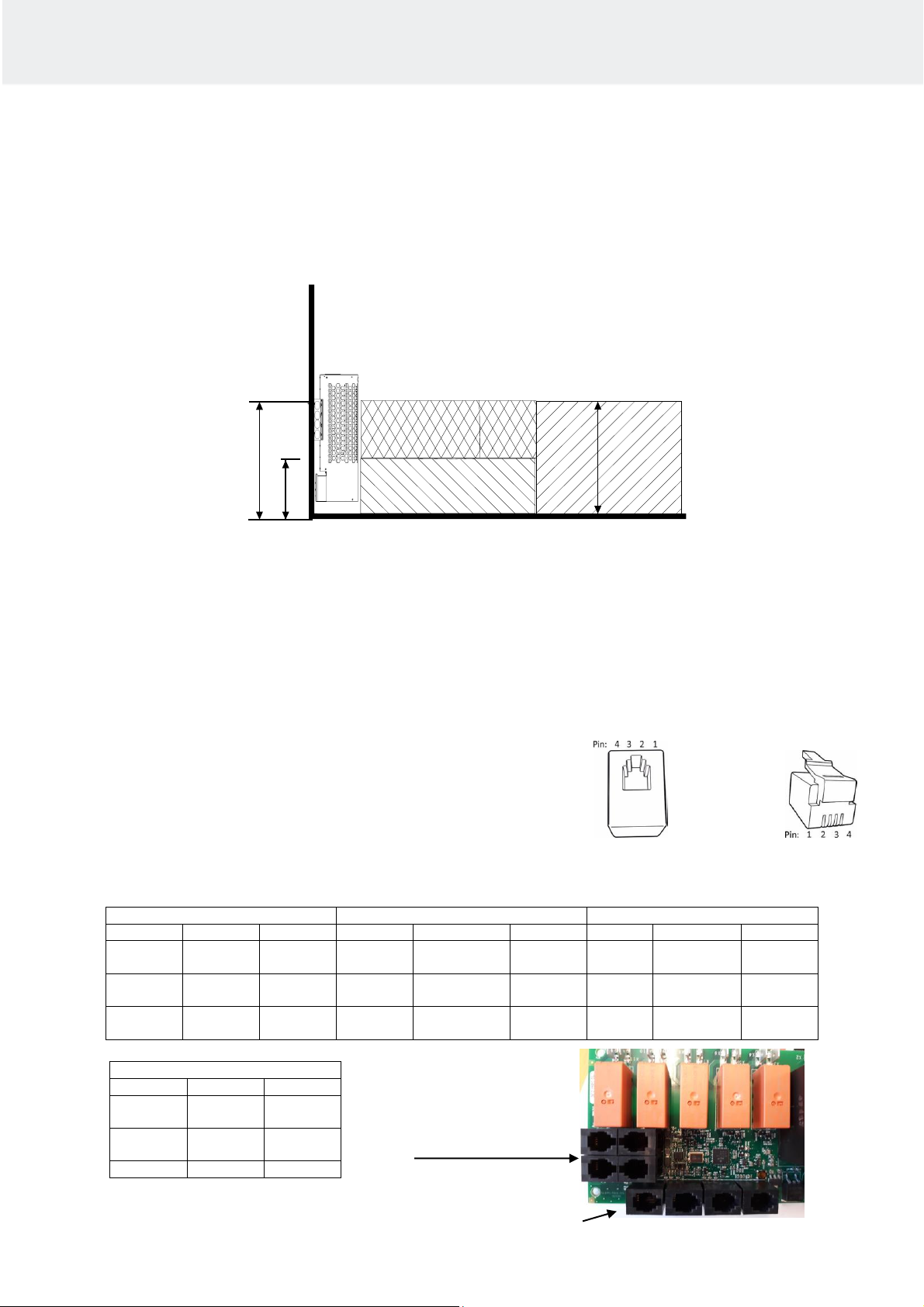

Circuit board RJ 10 connectors
NOTE: Incorrect connections may break a circuit board.
Additional sensor (NTC)
Remote control switch (Ext switch)
Door switch
Pin 1
Pin 1
Pin 1
Pin 2
NTC 10
kOhm
3.3 V
Pin 2
Pin 2
Alarm LED
GND
Pin 3
NTC 10
kOhm
CPU
Pin 3
To switch
GND
Pin 3
Door
switch
GND
Pin 4
Pin 4
To switch
12 VDC
Pin 4
Door
switch
12 VDC
Sensor (Sec/NTC)
Pin 1
End stop
GND
Pin 2
NTC 10
kOhm
3.3 V
Pin 3
NTC 10
kOhm
CPU
Pin 4
End stop
10V
Installation and User Manual Piccolo Trend
7
Figure 8 . Order of RJ 10 connectors. Sensor, Door switch, Remote control,
Additional NTC
200 mm
3.
2.
1.
500 mm
500 mm
Pin layout of a RJ10 circuit board connector
Pin layout of a RJ10
connector
Control panel RJ 10
connectors
Table 3 Coupling order of RJ connectors to
circuit board

3
4
2.9. Door switch
The door switch refers to the switch on the sauna door. This switch complies with regulations. Public and private saunas
must have a door switch, i.e. saunas where the heater can be switched on from outside the sauna, e.g. using an On/Off but-
ton or a similar method.
If the door is opened before the heating sequence is started, (pre-set heating) automatic use (remote use) is disabled after
one minute. The door must be closed and the function restarted from the control panel.
If the door has been left open for more than five minutes while the heater is on, the heater is automatically turned off.
The heater can be turned on again from the control panel after the door is closed. The fault indicator light, if installed, will
start flashing. See installation instructions below.
Door switch instructions for installation and connection
The door switch is installed outside the sauna room on the upper edge of the door, at least 300 mm from the inner corner.
The switch part is installed on the door frame and the magnet is installed on the door. The distance between the switch and
the magnet is 18 mm.
When the door switch is installed on the top part of the door, TylöHelo recommends using the TylöHelo model with product
number 0043233, SSTL 8260371.
When the door switch is installed on the bottom part of the door, TylöHelo recommends using the TylöHelo model with prod-
uct number SP11000326, SSTL 8263280.
See the installation and user instructions supplied with the heater for instructions.
Figure 9 Installing the door switch
Figure 10. Pin layout of a RJ10 connector
Table 4. Connecting the door switch.
Door switch
Conductor colour
Pin 1
Pin 2
Pin 3
Door switch
GND
Orange
Pin 4
Door switch
12 VDC
Green/white
Installation and User Manual Piccolo Trend
8
Magnet on
the door
Max 18 mm
Door switch Min. 300 mm Junction box
Door switch
position when
installed on
lower part of the
door
OLEA 99
Heater
Connection
box
Connect the brown and
black door switch wires.
(closing contact)
Door switch
Magnet for the door

2.10. Wiring diagram
354 SK AMS 3
kW
3,0
2
1
1.
N 55 N
N
12 3 6
4 5
N / L1 L2
12 3 6
4 5
L1 L2
1,2
K1
T 3,15 AH
F2
X1
X2
X X X
7 5 3
X X X
8 6 4
X10
X9
X11
X12
kW
3,0
230 V
SEPC 235
00 W15
2
1
1. 2. 3.
N 55 N
N
12 3 6
4 5
230V - 240V 1N~ / 2~
N / L1 L2
12 3 6
4 5
400V - 415V N~2
K1
X1
X2
X X X
7 5 3
X X X OLEA99
8 6 4
Light
X10
X9
X11
X12
Sec/
NTC
Door
Switch
Ext
Switch
Ext
NTC
Control
panel
Control
4.
5.
6.
7.
8.
F1
T 1AH
1. Syöttö / Nätet / Stromnetz / Power input / Stroomaansluiting / Puissanceabsorbée/ Leejasjauda / Toide/
Wejœcie zasilania / /Входное напряжение Napájení / Ingresso alimentazione
2. Sähkölämmityksen vuorottelu/ El.förregling av annan el. förbrukare/ Interrupteur du chauffageélect rique /
contact designal / Signal kontakt / signál kontaktu / Signal contact / signaalcontact / Signal kontakts / сигнала
Elektriküttekontakt / Wisselschakelaar elektrischeverwarming, / Sterowanieogrzewaniem elekt rycznym
3. Saunavalo / Bastu belysning / Saunabeleuchtung / Sauna light. / Sauna icht max 100W. / Ampoule du s auna/
Sauna swiatlamax / Pirts apgaismojums maksimali / Saunalamp / / Osvìtlení saunyСауна свет. макс
4. Ohjauskeskus/ Styrpanel / Steuergerät / Control panel. / Panneau de commande/ Bedieningspaneel
Panel de control / Table de commande / Vadibas pults / JuhtimiskeskusПульт управления / Panel sterujący /
Vadibas pults / Juhtimiskeskus/ Пульт управления
e5. Tuntoelin / Sensor/ Fühler / Capteur/ Sensor / Czujnik / / Senzor / Érzékelő / Датчик
6. Ovikytkin / Dörrströmbrytare/ Doorswitch / Türschalter / Interrupteur de porte / Interruptord e puerta/
Дверной выключатель / Rozłącznik na drzwiach
7. /Kauko-ohjaus Fjärrkontroll / Remotecontrol / Femsteuerung / Télécommande / Control remoto /
/Дистанционное управление Zdalne sterowanie Dálkové ovládání Afstandsbediening/ / /
8. Tuntoelin extra / Sensorextra/ Fühler extra / Capteurappoint / Dodatkowy czujnik/ Дополнительный датчик /
e / Senzor extra / Érzékelő extraSensor extra
Lämpövastukset, Värmeelement, Tennid, Heating elements,
Heizeelement, Resistores Térmicos, Éléments chauffants,
Elementy grzewcze, Element riscaldant , Kütteelemento e
Varmelegemer, Fûtõelemek,,ТЭНы
Teho, Effekt, Входное
Input, Potencia
Leistung, Moc
Vöimsus,Wejscie
Puissance, Ingresso
Potenza, Bement
Figure 11 Wiring diagram for the sauna heater
Installation and User Manual Piccolo Trend
9

2.11. Recommended sauna room ventilation
Figure 12 Rekommended sauna room ventilation
1. Sauna room 3. Electric sauna heater 5. Exhaust flue or channel
2. Washroom 4. Exhaust valve 6. Door to the sauna room
7. A ventilation valve can be installed here to be kept closed while the sauna is heated and during bathing.
Inlet vent can be positioned in the A zone. Make sure the incoming fresh air will not interfere with (i.e. cool down) the
sauna heater's thermostat near the ceiling.
The B zone serves as the incoming air zone, if the sauna room isn't fitted with forced ventilation. In this case, the exhaust
valve is installed min 1m higher than the inlet valve.
DO NOT ISTALL INLET VALVE WITHIN ZONE C, IF THE SAUNA HEATER'S CONTROL THERMOSTAT IS LOCATED
IN THE SAME ZONE.
2.12. Heating the sauna
Before turning the sauna heater on, make sure the sauna room is suitable for taking a sauna bath. When heated for the
first time, the sauna heater may emit some odour. If you detect any odour while the sauna heater warms up, disconnect
the sauna heater briefly, and air the room. Then turn the sauna heater back on.
You should turn the sauna heater on roughly an hour before you plan to take a sauna bath, so that the stones have time
to heat up properly and the air warms up evenly in the sauna room.
If you encounter any problems, please contact the manufacturer's warranty service shop.
Pleasant, smooth sauna bath temperature is about 70 °C.
Do not put any objects on the sauna heater. Do not dry clothes on the sauna heater or anywhere in its vicinity.
55
4
4
2
1
1
1
A
7
A
min
500 mm
6
3
B
3
B
C
C
C
C A
1000 mm
Installation and User Manual Piccolo Trend
10

2.13. Sauna heater stones
Quality stones meet the following requirements:
-Sauna stones should withstand heat and heat variation caused by vaporisation of the water thrown on the
stones.
- Stones should be rinsed before use in order to avoid odour and dust.
- Sauna stones should have an uneven surface to supply a larger surface for the water to evaporate from.
- Sauna stones should be large enough, measuring about 50–70 mm to allow good ventilation between the stones.
This extends the useful life of the heating elements.
- Sauna stones should be piled sparsely in order to enhance ventilation between the stones. Do not bend the heating
elements together or against the frame.
- Rearrange the stones regularly (at least once a year) and replace small and broken stones with new, larger stones.
-Empty the stone compartment regularly, at least once a year in private use, remove small and broken stones and
replace them with new ones.
-In commercial use this operation must be performed at least every second month.
- Stones are piled so that they cover the heating elements. Do not, however, pile a large heap of stones on the
heating elements. For a sufficient amount of stones refer to Table 1 on page 5. Any small stones in the package of
stones must not be piled on the sauna heater.
- The warranty does not cover defects resulting from poor ventilation caused by small and tightly packed stones.
-Structural clay tiles are not allowed. They may cause damage to the sauna heater that will not be covered
by the warranty.
- Do not use soapstone as sauna rocks. Any damages resulting from this will not be covered by the stove
warranty.
- Do not use lava stone as sauna rocks. Any damages resulting from this will not be covered by the stove
warranty.
-DO NOT USE THE HEATER WITHOUT STONES.
2.14. If the sauna heater will not heat up
If the sauna heater will not heat up, please check that:
- the power is on;
- the main fuses of the sauna heater are intact;
- is there any error messages on the control panel. In case of an error message on the control panel,
please refer to the control panel instructions.
THE PERSON INSTALLING THE SAUNA HEATER SHOULD LEAVE THESE INSTRUCTIONS AT THE PREMISES
FOR THE FUTURE USER.
Installation and User Manual Piccolo Trend
11

2.15. BWT technology in a Piccolo Trend heater
Bio Water Technology (BWT) uses the heater's thermal energy to heat water and raise the moisture level without
a separate heat source. Moisturised air improves the sauna climate, and various fragrances and salts can be
evaporated to make the sauna experience more enjoyable.
A water tank with a lid is delivered with the heater; the tank can be installed in the wider gap between the heating
elements. The water tank can be installed when approximately 2/3 of the heater stones have been stacked. The water
tank, even when empty, does not need to be removed when the heater is on.
The tank has a capacity of approximately 1,4 litres. Bringing water to the boil when the tank is full takes approximately
1-2 hours depending on the set temperature.
It is recommended to pour water into the tank when the heater is turned off. Water is poured through the grate on the lid.
You can pour less water into the tank if the bathing time is shorter.
The water tank must be removed and impurities, such as limescale etc. removed every so often. The stones surrounding
the tank must be removed during cleaning, so that the tank can be lifted more easily.
When the water is boiling, the moisture levels in the sauna remain high. This means that the temperature can be kept
lower while still experiencing pleasant heat. More heat and moisture can, if necessary, be created by throwing water on
the stones on top of the heater.
Mild fragrance essences, suitable for heater use, can be put in the water tank.
You can, for example, put mountain salt crystals on the lid of the water tank. They dissolve into the steam and evaporate
into the air. If mountain salt crystals are placed in the water tank, the salinity of the water will remain 26%.
H O2
max1,4 l
1
3
24
1 2 3 4
2.16. Door switch
The door switch refers to the switch on the sauna door. This switch complies with regulations. Public and private saunas
must have a door switch, i.e. saunas where the heater can be switched on from outside the sauna, e.g. using an On/Off
button or a similar method.
If the door is opened before the heating sequence is started, (pre-set heating) automatic use (remote use) is disabled after
one minute. The door must be closed and the function restarted from the control panel.
If the door has been left open for more than five minutes while the heater is on, the heater is automatically turned off.
The heater can be turned on again from the control panel after the door is closed.
For installation and user instructions, please refer to the manual supplied with the door switch accessory, which is sold
separately.
Installation and User Manual Piccolo Trend
12

2.17. Principle image when 1601 - 31 (RA - 31 Trend) is used as control panel
Figure 13 Priciple image when 1601 - 31 (RA - 31 Trend) is used as control panel
Installation and User Manual Piccolo Trend
13
RJ 10 intermediate cable
Control panel
1601 - 31
Adapter circuit
board OLEA 99
Heater
Input
230V –240V 1N~ / 2~
400V –415V 2N~
NOTE!
See more detailed
installation instructions
in the control panel
operating instructions
Principle image
Sensor
OLET 31
Silicone 4 x 0,25 mm²
Control panel
1601 - 31
Heater
Vater container
Door switch
4
3
2
1
Adapter circuit
board OLEA 99
Sensor cable
silicone 4 x 0,25 mm²
Limiter
Heater
OLET 31
1= Blue
2= White
3= Red
4= Yellow

3. Piccolo Trend spare part list
Table 5Piccolo Trend spare parts list
Part
Part nummer
Part name
Piccolo 30 Trend
1
7712000
Cable clamp
1
2
5916320
Circuit board OLEA 99
1
3
5716203
Finder relay
1
4
7801710
Fuse 3,15 AT
1
5
7817536
Fuse holder
1
6
6101741
Rocker switch OAAA 2
1
7
7306008
Rubber cover for rocker switch
1
8
5208822
Heating element SEPC 235
1500W/230V
2
9
7513002
Screw
M5 x 10
2
10
SP4056305
Vater container
1
11
SP4056306
Cover
1
Installation and User Manual Piccolo Trend
14

4. ROHS
Ympäristönsuojeluun liittyviä ohjeita
Tämän tuotteen käyttöiän päätyttyä sitä ei
saa hävittää normaalin talousjätteen
mukana, vaan se on toimitettava
sähkö- ja elektroniikkalaitteiden kierrätykseen
tarkoitettuun keräyspisteeseen.
Symboli tuotteessa,
käyttöohjeessa tai
pakkauksessa tarkoittaa sitä.
Valmistusaineet ovat kierrätettävissä merkintänsä
mukaan. Käytettyjen laitteiden
uudelleenkäytöllä, materiaalien hydöyntämisellä
tai muulla uudelleenkäytöllä teet arvokkaan teon
ympäristömme hyväksi.
Tuote palautetaan ilman kiuaskiviä ja verhouskiviä
kierrätyskeskukseen.
Tietoa kierrätyspaikoista saat
kuntasi palvelupisteestä.
Anvisningar för miljöskydd
Denna produkt får inte kastas med
vanliga hushållssopor när den
inte längre används. Istället ska den
levereras till en återvinningsplats
för elektriska och elektroniska apparater.
Symbolen på produkten,
handboken eller
förpackningen refererar till detta.
De olika materialen kan återvinnas enligt
märkningen på dem. Genom att återanvända,
nyttja materialen eller på annat sätt återanvända
utsliten utrustning, bidrar du till att skydda vår
miljö.
Produkten returneras till återvinningscentralen
utan bastusten och eventuell täljstensmantel.
Vänligen kontakta de kommunala myndigheterna
för att ta reda på var du hittar närmaste
återvinningsplats.
Instructions for environmental protection
This product must not be disposed with
normal household waste at the end of
its life cycle. Instead, it should be
delivered to a collecting place for the recycling
of electrical and electronic devices.
The symbol on the product, the
instruction manual or the
package refers to this.
The materials can be recycled according to the
markings on them. By reusing, utilising the
materials or by otherwise reusing
old equipment, you make an important
contribution for the protection of our environment.
Please note that the product is returned to the
recycling centre without any sauna rocks and
soapstone cover.
Please contact the municipal administration
with enquiries concerning the recycling place.
Hinweise zum Umweltschutz
Dieses Produkt darf am Ende seiner Lebens-
Dauer nicht über den normalen Haushaltsabfall
Entsorgt werden, sondern muss an einem
Sammelpunkt für das Recycling von elektrischen
und elektronischen Geräten abgegeben werden.
Das Symbol auf dem produkt, der
Gebrauchsanleitung oder der
Verpackung weist darauf hin.
Die Werkstoffe sind gemäß ihrer Kennzeichnung
wiederverwertbar, Mit der Wiederverwendung,
der stofflichen Verwertung oder anderen Formen
der Verwertung von Altgeräten leisten Sie einen
wichtigen Beitrag zum Schutze unserer Umwelt.
Dieses Produkt soll ohne Steine und
Specksteinmantel an dem Sammelpunkt für
Recycling zurückgebracht werden.
Bitte erfragen Sie bei der Gemeindeverwaltung
die zuständige Entsorgungsstelle.
Installation and User Manual Piccolo Trend
15
