HENNESSY INDUSTRIES coats 4T415CSAR1 User manual

1

2
Your new lift will provide years of dependable service if installed, operated and maintained properly.
Follow all safety, installation, operation, and maintenance instructions in this manual before installing
and operating the lift. In addition, follow all safety and other information included on and with the lift
before operating the lift. Keep this manual in a secure place for future reference, training and service
part identification.
TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS ...........................................................................................3
Safety Instruction and Information Decal Kit..................................................................................4
OWNER/EMPLOYER RESPONSIBILITY ...........................................................................................5
LOCKOUT/TAGOUT PROCEDUGRE ................................................................................................6
GENERAL REQUIREMENTS and LIFT SPECIFICATIONS ...................................................................7
RECOMMENDED BAY DIMENSSIONS.............................................................................................8
UNLOADING PROCEDURE and LIFT PACKAGE CONTENTS ..............................................................9
TOOLS REQUIRED and PRE INSTALLATION PROCEDURES ........................................................... 11
PRE-INSTALLATION PROCEDURE ............................................................................................... 11
INSTALLATION PROCEDURE ...................................................................................................... 12
PRE-OPERATION CHECK LIST .................................................................................................... 15
OPERATING INSTRUCTIONS ...................................................................................................... 16
MAINTENANCE INSTRUCTIONS.................................................................................................. 17
TROUBLESHOOTING GUIDE....................................................................................................... 19
LIFT ILLUSTRATIONS and PARTS LISTS...................................................................................... 22
IMPORTANT:It is the shop owner's responsibility to provide a satisfactory installation area for
the lift. Lift should only be installed on level concrete floors with no more than 3ºof slope and with a
minimum of 4 inches (102mm) and 3000 psi (20.7MPa) concrete that has been aged a minimum of 30
days. Please consult a qualified individual if any doubt exists concerning proper installation and
subsequent safe operation of the lift. Do not install the lift on asphalt or outdoors. Failure to comply
with these minimum standards could result in personal injury or death.
Prior to installation, it is the shop owner's responsibility to provide constant electrical power in the
correct voltage, phase, etc., and all wiring for electrical hook-up of the lift. The shop owner must insure
that the electrical installation conforms to local building and safety codes. Where required, the shop
owner will provide an electrical isolation switch located in close proximity to the lift. This switch will
have an emergency stop capability and isolate electrical power from the lift for servicing requirements.
Hydraulic oil cannot be shipped with the lift and will be supplied by either the shop owner or the installer.
ISO 32 hydraulic oil (10W non detergent hydraulic oil) must be used to fill the reservoir tank before
operating the lift.
It is the shop owner's responsibility to train all operators in
lift operation and lift safety.

3
IMPORTANT SAFETY INSTRUCTIONS
When using your garage equipment, basic safety precautions should always be followed, including the
following:
1. Read and follow all safety instructions and decals included with the lift. Read and follow all
safety instructions in this manual. Read and follow the ALI "Lifting It Right" manual (included

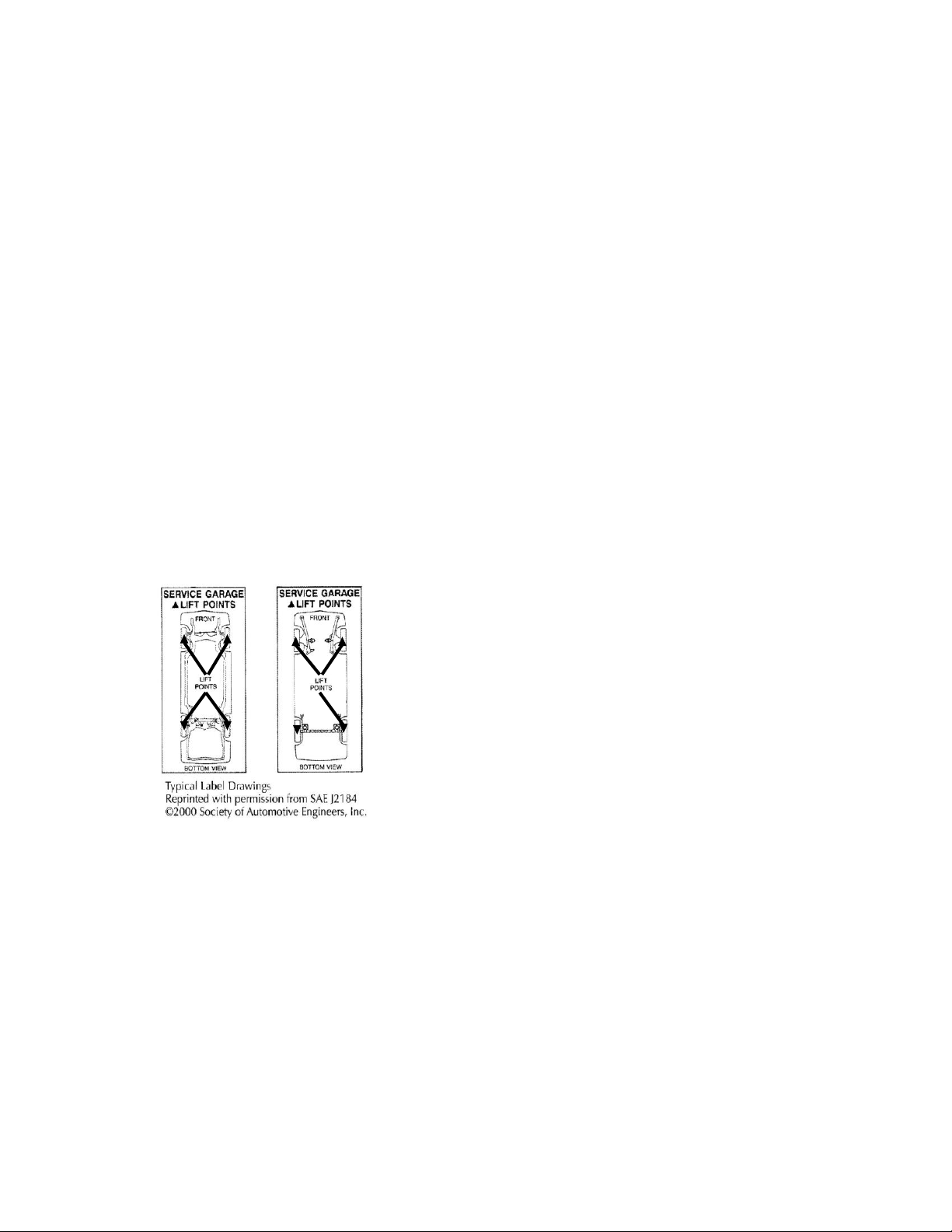

with the lift). Always use the "Vehicle Lifting Points" reference guide when lifting a vehicle.
Insure all materials stay up to date »» www.autolift.org/.
2. Only trained and authorized personnel should position a vehicle and operate the lift. Do not
allow customers or bystanders to operate the lift or be in the lift area.
3. Inspect the lift daily. Do not operate if potential problems have been identified or lift
malfunctions. Do not operate if lift has damaged or broken components. Never walk or work
under the lift unless all safety locks are completely engaged.
4. Never overload the lift. The rated capacity decal is located on the powerpack column. The
hydraulic system on this lift is not designed to be a load holding device. Mechanical safety locks
must be engaged before proceeding under the lift for vehicle servicing or lift maintenance.
Never override operating controls. This is unsafe and will void the warranty.
5. Before driving a vehicle onto the lift, insure that both slip plates and turn plates have all lock
mechanisms securely in place. Also insure that the lift and lift area is clear of all debris and that
all oil and grease has been cleaned from runway surfaces.
6. Before raising or lowering the lift, always totally secure the vehicle with wheel chocks.
7. When using a jack(s) to raise a vehicle, position jack lifting pads to contact vehicle
manufacturers recommended lifting points. Raise jack slowly until all pads contact the vehicle.
Confirm that the vehicle is stable on the jack(s) before raising to desired working height.
8. Some pickup trucks may require optional truck adapters to clear running boards and other
installed accessories. Special care must be exercised with pick-up trucks to insure safe lifting.
Always use vehicle manufacturers lifting points and insure the contents of the cargo box will not
affect vehicle balance while on the jack(s).
9. Important: Removal or installation of heavier parts can change the vehicle's center of gravity
on the jack(s) resulting in a critical load shift. The vehicle may then be unstable. Plan ahead
for this possibility to insure continued safety and refer to the vehicle manufacturer’s service
manual for recommended procedures.
10. Always keep the lift area free of obstructions and debris. Grease and oil spills should be cleaned
up immediately.
11. Never raise a vehicle on the lift with passengers inside. Before lowering, check the lift and lift
area and remove all obstructions. Before removing vehicle from the lift or lift area, confirm an
unobstructed exit.
12. DO NOT PERFORM ANY MAINTENANCE OR INSTALLATION OF ANY COMPONENTS WITH OUT
FIRST ENSURING THAT ELECTRICAL POWER HAS BEEN DISCONNECTED AT THESOURCE OR
PANEL AND CANNOT BE RE-ENERGIZED UNTIL ALL MAINTENANCE AND/OR INSTALLATION
PROCEDURES ARE COMPLETED (ANSI 244.1).
SAVE THESE INSTRUCTIONS

4

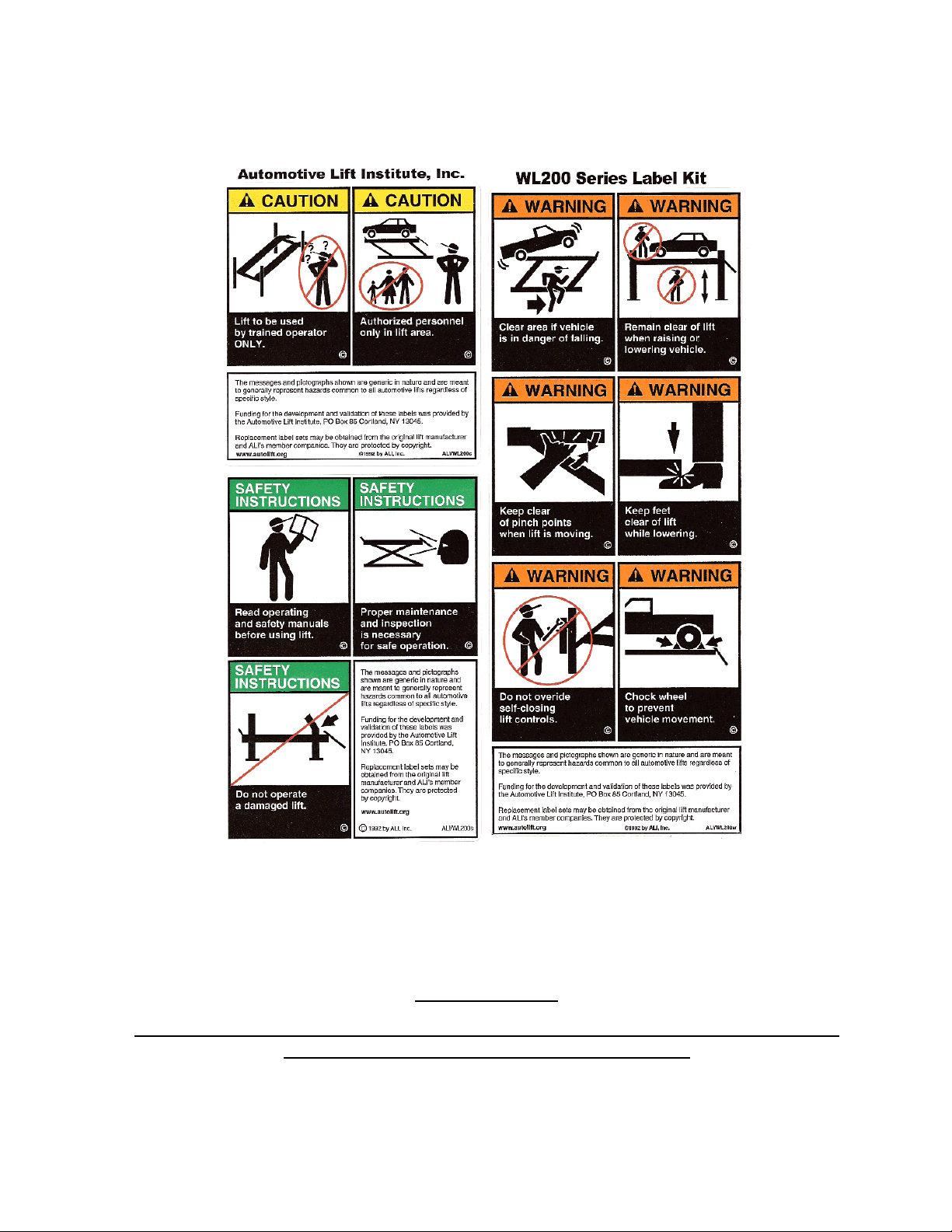

SAFETY INSTRUCTION AND INFORMATION DECAL KIT
Review all safety information daily with all lift operators
LIFT SAFETY and LIFT MAINTENANCE MUST BE PART OF YOUR DAILY ROUTINE
IMPORTANT:
Insure Safety Instruction Decals and Hang Card are affixed to the lift immediately
following installation and before the lift is used

5
OWNER/EMPLOYER RESPONSIBILITY
The Owner/Employer shall ensure that all lift operators are qualified and that they are trained in
the safe use and operation of the lift using the manufacturer's operating instructions; ALI/SM 93-1, ALI
SAFETY Tips card; ANSI/ALI ALOIM-1994, American National Standard for Automotive Lifts-Safety
Requirements for Operation, Inspection and Maintenance; ALI/WL Series, ALI Uniform Warning Label
Decals/Placards; and in the case of frame engaging lifts, ALI/LP-GUIDE, Vehicle Lifting Points/Quick
Reference Guide for Frame Engaging Lifts.
The Owner/Employer shall establish procedures to periodically inspect the lift in accordance with the
lift manufacturer's instructions and ANSI/ALI ALOIM-1994, American National Standard for Automotive
Lifts-Safety Requirements for Operation, Inspection and Maintenance. The owner/employer shall also
ensure that lift inspectors are qualified and that they are adequately trained in the inspection of the lift.
The Owner/Employer shall establish procedures to periodically maintain the lift in accordance with the
lift manufacturer's instructions and ANSI/ALI ALOIM-1994, American National Standard for Automotive
Lifts-Safety Requirements for Operation, Inspection and Maintenance. The owner/employer shall also
ensure that lift maintenance personnel are qualified and that they are adequately trained by factory
in the maintenance of the lift.
The Owner/Employer shall maintain the periodic inspection and maintenance records recommended
by the manufacturer or ANSI/ALI ALOIM-1994, American National Standard for Automotive Lifts-Safety
Requirements for Operation, Inspection and Maintenance.
The Owner/Employer shall display the lift manufacturer's operating instructions; ALI/SM 93-1, ALI
Lifting it Right safety manual; ALI/ST-90 ALI Safety Tips card; ANSI/ALI ALOIM-1994, American
National Standard for Automotive Lifts-Safety Requirements for Operation, Inspection and Maintenance;
and in the case of frame engaging lifts, ALI/LP-GUIDE, Vehicle Lifting Points/Quick Reference Guide
for Frame Engaging Lifts in a conspicuous location in the lift area convenient to the operator.
The Owner/Employer shall provide necessary lockout/tagout means for energy sources per ANSI
Z244.1-1982 (R1993), Safety Requirements for the Lockout/Tagout of Energy Sources, before
beginning any lift repairs.
The Owner/Employer shall not modify the lift in any manner without prior written consent of the
manufacturer.

6
LOCKOUT/TAGOUT PROCEDUGRE
This procedure establishes the minimum requirements for the lockout of energy that could cause
injury to personnel by the operation of lifts in need of repair or being serviced. All employees shall
comply with this procedure.
The responsibility for assuring that this procedure is followed is binding upon all employees and service
personnel from outside service companies (i.e., Authorized Installers, contactors, etc.). All employees
shall be instructed in the safety significance of the lockout procedure by the facility owner/manager.
Each new or transferred employee along with visiting outside service personnel shall be instructed by
the owner/manager (or assigned designee) in the purpose and use of the lockout procedure.
Employees authorized to perform lockout shall ensure that the appropriate energy isolating device (i.e.,
circuit breaker, fuse, disconnect, etc.) is identified for the lift being locked out. Other such devices for
other equipment may be located in close proximity of the appropriate energy isolating device. If the
identity of the device is in question, see the shop supervisor for resolution. Assure that proper
authorization is received prior to performing the lockout procedure.
Lockout Procedure
1. Notify all affected employees that a lockout is being performed and the reason for it.
2. Unload the subject lift. Shut it down and assure the disconnect switch is “OFF” if one is provided
on the lift.
3. The authorized lockout person operates the main energy isolation device removing power to the
subject lift. • If this is a lockable device, the authorized lockout person places the assigned
padlock on the device to prevent its unintentional reactivation. An appropriate tag is applied
stating the person’s name, at least 3” x 6” in size, an easily noticeably color, and states not to
operate device or remove tag. • If this device is a non-lockable circuit breaker or fuse, replace
with a “dummy” device and tag it appropriately as mentioned above.
4. Attempt to operate lift to assure the lockout is working. Be sure to return any switches to the
“OFF” position.
5. The equipment is now locked out and ready for the required maintenance or service.
Restoring Equipment to Service
1. Assure the work on the lift is complete and the area is clear of tools, vehicles, and personnel.
2. At this point, the authorized person can remove the lock (or dummy circuit breaker or fuse) &
tag and activate the energy isolating device so that the lift may again be placed into operation.

7
GENERAL REQUIREMENTS AND LIFT SPECIFICATIONS
Max. 15,000 lb. (6,818 kg) Capacity - 7,500 lbs. (3,409 kg) each Runway
Capacity
Wheel Base
Min. Wheelbase @ Rated Capacity
180’’
Min. Wheelbase @ 75% Capacity
140’’
Min. Wheelbase @ 50% Capacity
100’’
Min. Wheelbase @ 25% Capacity
60’’
Ongoing design modifications and quality improvements may change specifications listed in this manual without notice
Lift should only be installed on level concrete floors with a minimum of 4 inches and 3000 psi
(20.7MPa) concrete that has been aged a minimum of 30 days. A qualified person should be
consulted to address seismic loads and other local or state requirements.
A constant supply of 230 volt –1 phase –60 Hz –25 amp electrical power and a constant supply
of 100~125 psi dry compressed air is required for this lift.
This lift is designed for INDOOR use only, outdoor installation is prohibited.

8

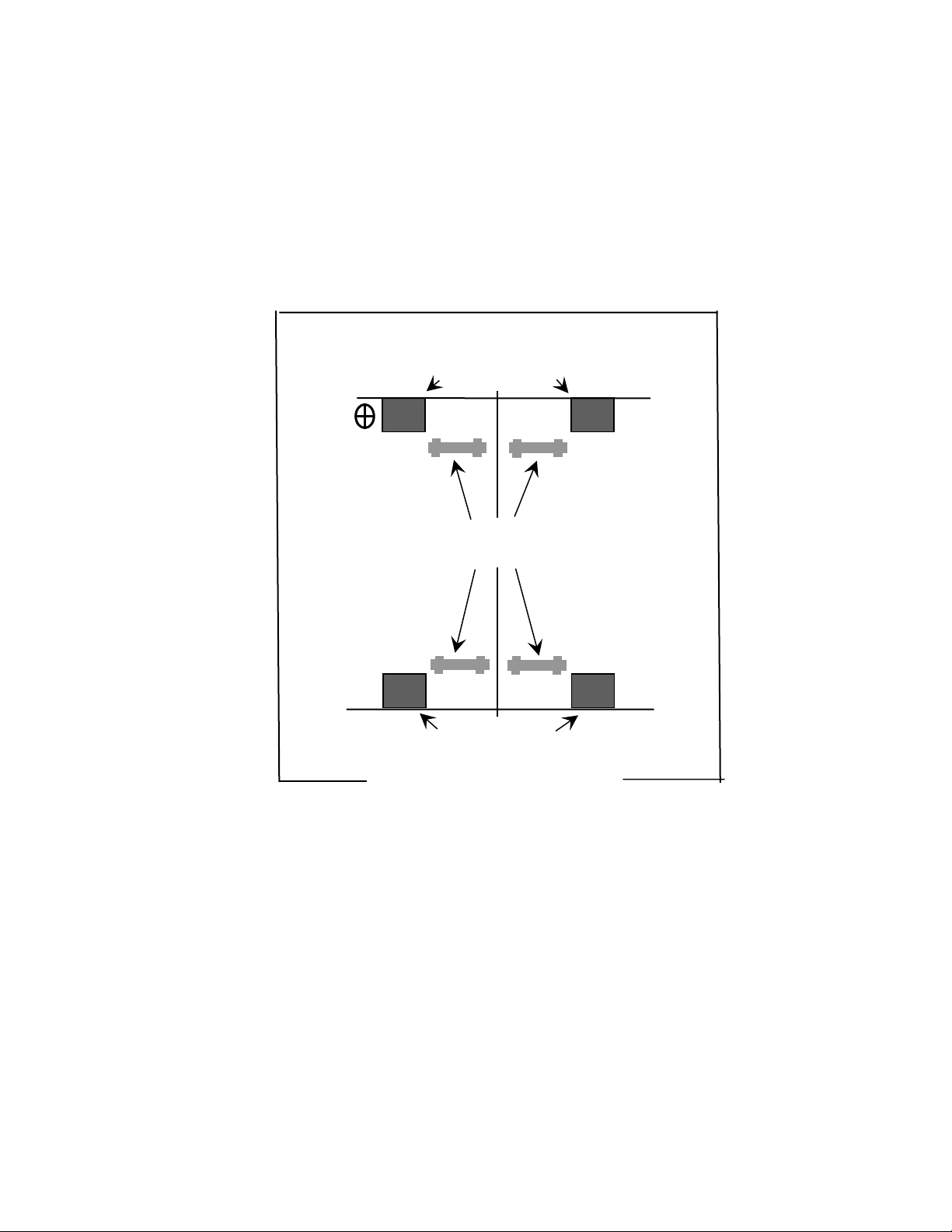

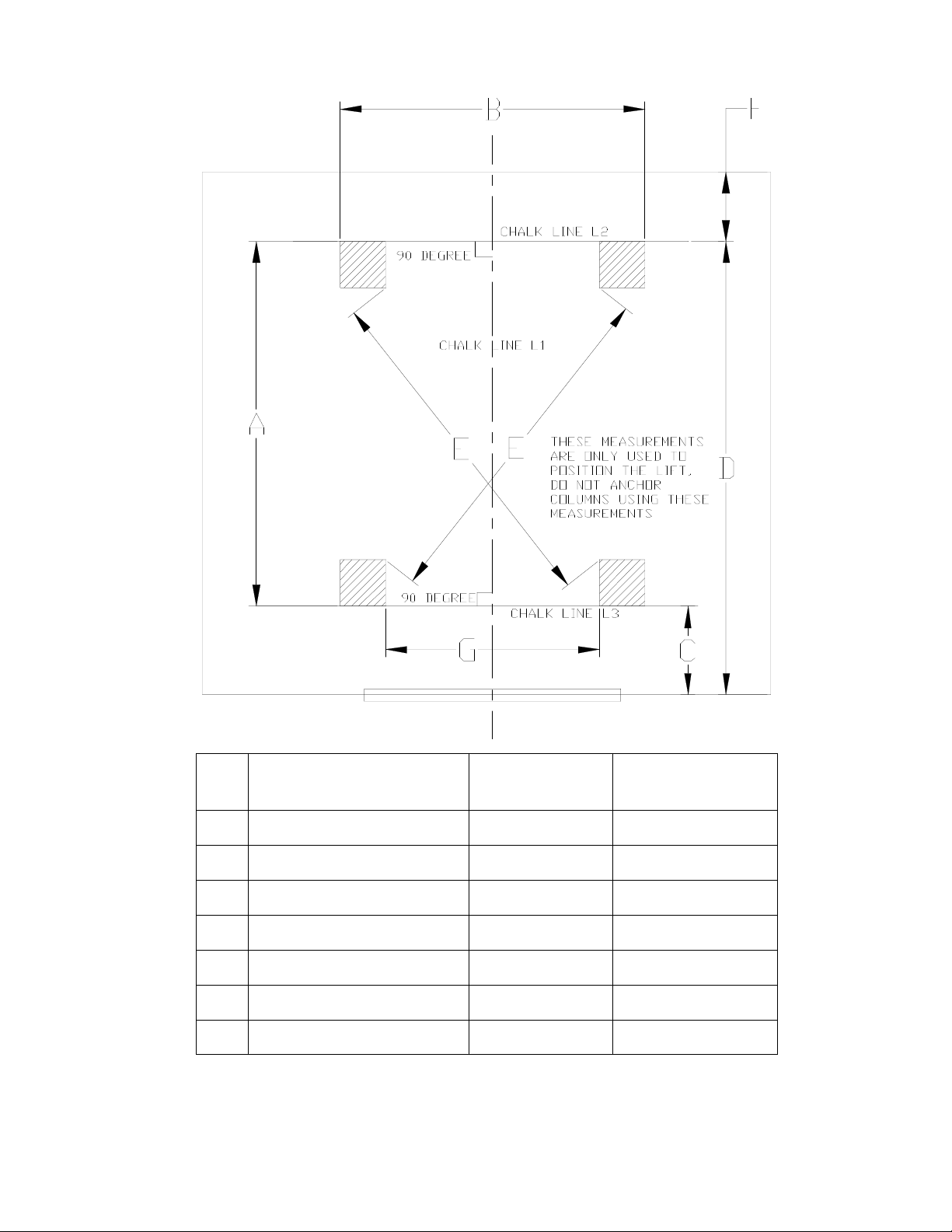

RECOMMENDED BAY DIMENSSIONS
DESCRIPTION
Extended
Models
Regular
Models
A
Baseplate to baseplate
245’’
218’’
B
Baseplate to baseplate
137.5’’
137.5’’
C
Rear baseplate to door
Min. 60’’
Min. 60’’
D
Front baseplate to door
Min. 305’’
Min. 278’’
E
Diag. measurement
EQUAL
EQUAL
F
Baseplate to obstacle
Min. 60’’
Min. 60’’
G
Baseplate to baseplate
115.5’’
115.5’’
Note: Each column must have at least 2ft clearance to obstacles (or consult local building
code). Minimum ceiling height H=74’’+Greatest Vehicle Height.

9
UNLOADING PROCEDURE AND LIFT PACKAGE CONTENTS
All lift components are packaged together in one module held together by steel frames Optional
accessories (rolling jacks and turnplates) are packaged separately.
When the lift arrives on site:
✓If possible have lift unloaded in the installation area and on two 4"x4"x24" Wooden Blocks
(required for unpacking)
✓Check for freight damage and report immediately to shipping company who delivered the lift
✓Check for missing parts and report immediately to the factory 1-877-799-LIFT(5438) or
[phone]
Main Components include:
✓Columns –4 pcs
✓Runway Assemblies –2 pcs
✓Crossmember –2 pcs (1 front –1 rear)
✓Approach Ramps –2pcs
✓Accessory and Hardware Box (see list below)
✓Powerpack –1 pc
Optional Accessories: (included only if ordered)
✓Rolling Air/Hydraulic Jacks (1 jack per box c/w coiled air line)
✓Turn-plates (1 turn-plate per box c/w retainer brackets)
Accessory Box includes:
✓Hydraulic Hose –1 pc
✓Wheel Stops - 2
✓WL 200 Series Safety Information Label Kit –1pc
✓ALI - “Lifting It Right “ Manual –1pc
✓ALI - “Vehicle Manufacturer's Lifting Point Guide" (CD) –1pc
✓Automotive Lift Safety Tips Hang Card –1pc
✓Automotive Lift, Operation, Inspection and Maintenance Manual –1pc
✓Owner’s Manual –1pc
Hardware Box includes:
✓Fittings, bolts, washers, nuts, anchor bolts, etc.

10
Important Notice
Krown Rust Proofing has been applied to
specific areas of your new lift to ensure
protection from corrosion.
•Please do not be alarmed if fluid is noticed
dripping from openings of the Drive on
Runways. This is normal.
•The application of the Krown Rust Proofing is
completed in the final stage of the lift
assembly process. To ensure protection and
coverage, a generous amount is sprayed and
may still be in a more fluid phase of its setup
when your new lift is put into service. This will
diminish over time, while maintaining
protection of areas that are unable to be
otherwise protected with paint coating.
