HER CHEE ACE-7XXX series User manual

2
12
10
11
9
8
RPM sensing wire:
1. Signal intensity from ignion coil is dependent on vehicle type.
FUNCTIONS
BAR RPM: Bar Graphic Tachometer
The bar tachometer has 10,000rpm and 20,000rpm opons.
Km/H or MPH: Speedometer
1. Displays speed meter up to 399.9 Km/H or 248.5 MPH.
2. Decimal of speedometer can be oponed by user.
3. Maximum input frequency 7KHz .
4. If a frequency of 7KHz is reached before the speed reaches 399.9Km/h
then the maximum speed will be lower. With a 1277mm diameter wheel
and the speed input connected to an ABS sensor producing 105 pulses
per revoluon the maximum speed displayed at 7KHz would be 250Km/h.
RPM: Digital Tachometer
1. It displays digital tachometer up to 19,990RPM and displays 19,999rpm
when tachometer is over 20,000rpm..
2. Tachometer signal can pick up from either CDI or Ignion Coil Signal.
: Shift Warning RPM
1. The funcon enables you to set up a shi warning RPM.
2. Shi warning LED indicator flashes when RPM reaches preset value, and
stops flashing aer you shi gear.
MAX RPM: Maximum Tachometer
Displays highest tachometer achieved since last Reset operaon.
MAX SPD: Maximum Speed Meter
Displays highest speed achieved since last Reset operaon.
AVG SPD: Average Speed Meter
It calculates average speed from last RESET. The AVG is calculated from
TRIP be divided by RT.
ODO: Odometer
1. ODO accumulates total distance traveled.
2. ODO data is adjustable when it is less than 30km (18.6 Miles), aer that
it stored in memory and cannot be reset.
RT: Riding Timer
1. Calculates total running me since last RESET.
2. Counter automacally begins with movement.
TT: Total Riding Timer
1. Calculates total running me since last RESET.
2. Counter automacally begins with movement.
HRT: Hour Meter
1. Calculates total engine operaon me since last RESET.
2. Counng automacally begins when revs are detected.
3. HRT data is stored in memory, and cannot be reset.
: 12/24 hour Clock
Displays 12 or 24 hour current me.
: Bar Thermometers
1. Has 7 bars to indicate engine temperature.
2. The 4th bar counng from boom is turned on when thermometer
reaches the preset warning temperature, each 15°C increase lights
another bar.
3. The bar-temperature flashes when the measured temperature is higher
than the preset warning temperature.
4. The over temperature LED flashes when either temperature input 1 or
input 2 exceeds preset warning temperatures or is connected to –ve.
Excellent water resistance, an-vibraon structure and noise immunity
design.
**EM & IR receivers and IR transmier for automated lap ming are
available as accessories.
2. Coil 2-5 turns around spark plug lead, with more turns creang steadily
stronger signal, fewer turns creang weaker signal.
3. The RPM circuit is designed for most bikes, however some bikes’ signal is
too strong if the RPM looks like much more than actual RPM and unstable,
please connect the included 1M Ohm resistor in series to solve it.
2-5
CDI Ignion Coil
Tuns
RPM-INPUT
Either One
Max. 8mm
Vibration Direction
sensor
Max. 8mm
Vibration Direction
sensor
Reed Speed Sensor and Magnet:
1. This sensor is universal sensor for motorcycle, find a rotang part to install
magnet (for example disk, sprocket or drivesha) and a locaon to install
the sensor where it can be aligned to the magnet.
2. Align the center of the magnet to either of the sensor marking lines or the
side of the sensor. The magnet must not travel down the body of the
sensor.
3. Installing the sensor parallel to the vibraon direcon creates oponal
an-vibraon effect.
4. Make sure the gap between the magnet and the sensor is within 8mm.
Speed Sensor Mounting:
ACEWELL has several speed sensors; the unit may include one of them. If the
model is intended to be connected to a gearbox electronic speed output to
obtain the speed reading, no speed sensor will be included.
Specific Hall sensors:
Cable drive adaptors for most bikes originally fied with cable driven
speedometers or milemeters are available. When using these cables it is
necessary to divide the circumference seng by the number of rotaons of
the cable per rotaon of the wheel or enter the number or rotaons into the
“P” screen in setup.
Hall Effec Speed Sensor and Magnet:
1. This is universal sensor for ATV front or rear wheel installaon or
motorcycle front wheel installaon. For some fitments an accessory speed
sensor holder may need to be purchased.
2. Find a rotang part to install magnet (for example disk, sprocket or
drivesha) and a locaon to install the sensor where it can be aligned to
the magnet.
3. Align the center of the magnet to center of side face of the sensor.
4. Make sure the gap between the magnet and the sensor is within 5mm.
*Thermo Sensor and Sensor Tube:
1. The unit includes a water temperature sensor; you have to purchase a
suitable water pipe temperature sensor tube to install the sensor easily.
2. Cut the water pipe, insert the temperature tube into the pipe and secure
it by aached pipe clamps.
3. Screw the sensor into the tube.
4. If your vehicle is fied with a thermostat that stops water flowing to the
radiator when the engine is cold, you will not get a reading unl the
thermostat opens.
**Wire Remote Control Switch Installation:
1. Install the switch arm on handlebar.
2. Install the switch box to one of 3 fixing holes and adjust switch box to a
suitable angle.
3. Plug the switch box connector into the main unit matching connector.
7
56
FEATURES
Simultaneously displays tachometer, speedometer, gear indicator,
fuel gauge and *bar-graph temperature meter as well as one of the
other funcons.
Built-in gear indicator which calculates gear by comparing speed and
RPM. The gear indicator can be switched off for automac vehicles.
On some models the backlight can be controlled separately from the
ignion power.
Bar-graph tachometer has selectable scale of 10,000rpm or 20,000
rpm.
End user is able to adjust odometer when the odometer is less than
30km /18.6 miles.
*Acceleraon and deceleraon mers as well as distance mer for
racing pracce.
** Features a 99 lap mer and an oponal cable connected remote
control switch.
Built-in 6-8 or 6-10 LED warning lamps with different symbols
depending on model.
Fast processor so can connect to pulse type gearbox speed sensors.
Universal wheel circumference seng range: 1-3999mm.
Fuel gauge full and empty resistances are fully adjustable and it can
connect to sender units with resistance range up to 990 ohms. In
reserve mode, the fuel gauge is not displayed and fuel symbol lights
when the input wire is connected to -ve. The gauge can be switched
off enrely if not required
Flexible baery warning voltage seng from 11.0 to 14.9V.
Speedometer can show nearest 0.1 mph or km/h speed if required by
user. E.g. 100 or 100.5
Includes bracket, RPM sensing wire, speed sensor, *temperature
sensor(s), fing kits, wiring harness and **wired remote control
switch.
Thanks for purchasing the ATV/Motorcycle computer; this manual
is specifically designed for ACE-7XXX series. The ACE-7XXX series
includes ACE-71XX/72XX, 75XX/76XX and ACE-77XX/78XX,
descripons with “*” are for ACE-75XX/76XX and ACE-77XX/78XX
only, funcons and descripons with “**” are for ACE-77XX/78XX
only. Each series has different models, each model has different
LED indicators. You may find that the photo has a set of LED
indicators different from your computer, the photo is for reference
only.
INSTALLATION & PARTS
Rubber Pad
Washer
Spring Washer
Fixing Screw Nut
Main Unit
Main Unit Mounting
3
PANEL DESCRIPTIONS
Le direcon indicator
High-beam headlamp
Low baery indicator
Right direcon indicator
Engine oil warning
Low fuel indicator
1. Tachometer Scale
2. Bar Tachometer
3. 1st row: Speedometer
4. 2nd row: Other funcons
5. RESET Buon
6. MODE Buon
7. Bar Fuel gauge
8. Bar temperature gauge*
9. Gear indicator
10. LED Indicators
11. External control indicators
12. Internal/external control
indicators
SPECIFICATIONS
Power Input
Tachometer Sensor
Speed Sensor
Wheel circumference setting
Speed input divider setup
Maximum frequency of divider
Dimensions
*Temperature Sensor
**Lap Timer Sensor
DC 12V
CDI or Ignition Coil Signal
Reed switch / 2 wire Hall-effect Sensor
& Magnet / Cable drive adaptor
1mm-3999mm (1mm increment)
1-199 Pulses
7K Hz
130.1mm x82.8mmx27.0 mm
Thermo Resistor Sensor
Push button or optional accessory spare parts of IR
receiver/Magnetic Field sensors
Function SpecificationsSymbol
500-10,000 rpm/1,000-20,000rpm options
2.4-399.9 km/h (248.5 MPH)
0.0-999.99 KM/Miles
0.0 – 999,999 KM, 0.0-621,387 Miles
0:00’ – 11H59’59”/23H59’59”
10-19,990 rpm, 10rpm increment
+25°C-180°C / 77°F-356°F
2.4-399.9 KM/h (248.5 MPH)
0-99H59`59``
0-9999H59’
0-9999H59’
8.0-18.0 Volt
0-9999H / 0-9999km(6213Miles)
2.4-399.9 Km/h (248.5 MPH),
10-19,990 rpm, 10rpm increment
+25°C-180°C / 77°F-356°F
N, R, P, H, L, 1, 2, ... 8 gears and off mode
0-1/4 mile. 0-100M, 0-400M
0-100km/h, 50-70mph
100kmh-0kmh
Adjustable 0Ω -990Ω, reserve mode, or not
displayed.
1-7 Bar-graphic
99 Laps
Bar Tachometer
Speedometer
Trip meter 1&2
Odometer
12/24 Hour Clock
Digital Tachometer
*Thermometer Meter
Average speed
Riding timer
Total Riding Timer
Hour meter
*Voltage Meter
Maintenance reminder
Maximum speed
Maximum RPM
*Max. Temperature
Gear Indicator
*Distance timer
*Acceleration timer
*Deceleration timer
Bar Temperature
**Lap Timer
Bar-Fuel gauge
Km/h / MPH
TRIP 1&2
ODO
rpm
RT
Trip RT
SPD RT
d SPD RT
LAP
TT
MAX SPD
MAX RPM
MAX
AVG SPD
LED Indicators
4
1
ACE-7XXX User Manual
HER CHEE ATV Computer

5. In SPD RT 2 set mode, it displays SPD RT 2 and flashes “100-0”, press
RESET buon to confirm the seng and go into the deceleraon mer.
The screen then flashes 00:00:00, speed the bike/vehicle up to more than
100km/h then decrease the speed, the mer counts automacally when
speed is less than 100km/h and auto-stops 2 seconds aer the bike/
vehicle stops then counts back 2 seconds automacally. Press RESET
buon to reset the tested mer and restart a new test, it displays SPD RT
2 and flashes 00:00:00 again. Press and hold MODE buon for 2 seconds
to leave the SPD RT 2 test screen and return to TT screen.
**Remote Control Switch for LAP timer:
1. The remote control switch has 2 buons, MODE and LAP buons. The
MODE buon is the same funcon as it on the main unit.
2. Press and hold the LAP buon for 2 seconds to go into the LAP mode.
3. LAP Record operaons:
A. In LAP mode, press LAP buon to RESET recorded LAP data and start
the LAP recording funcon, the LAP icon flashes when waing at start
line, the 1st lap mer will be counted automacally when the unit
receives speed signal; each press of MODE buon records a LAP mer
and displays the former LAP mer for 3 seconds then changes to
display the current lap and lap mer automacally.
B. The 100th lap will replace the 1st lap when lap record reaches the
maximum 99 laps, the 101st lap will replace the 2nd lap…etc.
C. The unit will be suspended to detecng signal for 4 seconds aer it
received an IR signal in order to avoid mistake counng.
D. Press LAP buon to convert stop or start LAP record funcon.
E. Press and hold the LAP buon for 2 seconds to go out LAP mode and
return to normal mode.
**LAP review operations:
1. In the LAP mode, press MODE buon to review the 1st storage data, it
displays number of lap and lap mer.
2. Press the LAP buon to switch between lap mer or average speed of
the same LAP; each press of the MODE buon displays data for the next
lap.
3. Press and hold LAP buons for 2 seconds to go out LAP mode and return
to normal mode.
Bars -250Ω-100Ω510Ω250Ω100Ω
7
6
5
4
3
2
1
0-Flash
0-10
11-20
21-35
36-45
46-60
61-75
76-90
91-100
0-25
26-50
51-85
86-110
111-150
151-200
201-230
231-250
0-50
51-100
101-180
181-230
231-300
301-380
381-460
461-510
100-90
89-75
74-60
59-45
44-35
34-20
19-10
9-0
250-230
229-200
199-150
149-110
109-85
84-50
49-25
24-0
-510Ω
510-460
459-380
379-300
299-230
229-180
179-100
99-50
49-0
RESET BUTTON
1. Momentarily pressing the reset buon cycles through funcons as MODE
buon above.
2. Press MODE or RESET buon to the desired screen then press RESET
buon for 2 seconds to reset TRIP 2, MAX SPD, MAX RPM and MAX
data from stored values to zero individually. The maintain reminder
data will be reset to the preset value rather than zero.
3. The data of Trip 1 and AVG SPD reset at the same me when either
one data is being reset.
4. ODO, clock and HRT data cannot be reset.
Shift Warning RPM Operation
1. Press MODE buon to reach the RPM screen; pull on the throle unl the
desired shi warning RPM.
2. Press RESET buon to confirm and set up the shi warning RPM.
3. Bar-graphic tachometer and warning LED will flash to warning you shi
gear.
4. Press RESET buon for 2 seconds at the RPM screen to re-adjust the shi
warning RPM.
Gear Indicator training operations:
1. Connects grey wire to N and purple wire to R (oponal).
2. Put vehicle to a rolling stand, start engine and keep at N gear.
3. Gear indicator shows “N” if grey wire is connected.
4. Change the LCD screen to digital RPM.
5. Press and hold MODE buon for 2 seconds to go into the mode to choose
the number of gears.
6. Gear indicator flashes the default 6 gears.
7. Press RESET buon to select the number of gear, user can select 4-8 gears
or “0” to disable the gear funcon. (N,R,P,H,L can sll be displayed in “0”
mode)
8. If opon “0” is chosen, momentarily press MODE to save the change.
9. Press MODE buon to confirm the number of gears and go to the
number gear rao seng mode.
10. It displays and flashes “1”, shi into 1st gear, release the clutch and run
the engine to between 2000-4000RPM.
11. Hold the speed and the RPM for about 5 seconds unl the “-“flashes.
The flashing “-“aer the gear “1” means the 1st gear is set.
12. Press MODE buon to confirm the seng and go to the 2nd gear seng.
13. It displays and flashes “2”, shi into 2nd gear, run the engine to between
2000-4000RPM.
14. Hold the speed and the RPM for about 5 seconds unl the “-“flashes.
The flashing “-“ aer the gear “2” means the 2nd gear be set.
15. Press MODE buon to confirm the seng and go to next gear seng.
16. Repeat 11-14 unl all gears have been set. Press MODE buon to return
to normal mode.
17. To leave gear indicator training without saving changes press and hold
MODE for 2 seconds before the last stage is reached
*TRIP RT (1-100/400m), SPD RT1(0-100km/h) and SPD RT2(100-0km/h)
setting mode:
1. Press MODE or RESET buon to the TT screen, press and hold MODE
buon for 2 seconds to go into the 3 test mers set mode.
2. It displays SELECt and flashes TRIP RT, press MODE buon to move
between SPD RT 1, SPD RT 2 and TRIP RT and press RESET to enter the
mode.
3. In TRIP RT set mode, it displays TRIP RT and flashes “100”, press MODE to
choose 100 or 400 metre then RESET. The screen then flashes 00:00:00,
the mer counts automacally when it receives a speed signal and
auto-stops when trip meter reaches preset 100 or 400 metres. Press
RESET buon to reset the tested mer ready for another test, it displays
TRIP RT and flashes 00:00:00 again. Press and hold MODE buon for 2
seconds to leave the TRIP RT test screen and return to TT screen.
4. In SPD RT 1 set mode, it displays SPD RT 1 and flashes “0-100”, press
MODE to choose 100 or 50-70mph then RESET. The screen then flashes
00:00:00, the mer counts automacally when it receive speed signal (or
when it reaches 50mph in 50-70 mode) and auto-stops when speed
reaches preset 100Km/H or 70mph. Press RESET buon to reset the
tested mer and restart a new test, it displays SPD RT 1 and flashes
00:00:00 again. Press and hold MODE buon for 2 seconds to leave the
SPD RT 1 test screen and return to TT screen.
1&2 : Digital Engine Temperature Meter *(temperature inputs 1 &2)
1. It displays -L-°C or -L-°F when temperature is lower than 25°C or 77°F,
and displays -H- °C or -H- °F when temperature is over 180°Cor 356°F.
2. The LCD screen flashes the digits of temperature when the thermo
sensor detects temperature higher than the maximum preset
temperature.
MAX : Maximum Temperature*
Displays highest temperature achieved since last Reset operaon.
: Maintenance Reminders
1. It counts down the preset entered me or distance since last
RESET.
2. It displays when the count down reaches to “0”, and symbol of
“ ” flash to remind you to perform a service.
3. Push and hold RESET buon to reset and restart the maintenance
reminder aer service.
: Digital Voltage Gauge
1. Monitors the vehicle’s baery and charging system.
2. User can set baery warning LED on and off voltages between 11.0V
and 14.9VDC (not fied to all models).
:Gear Indicator
1. The gear indicator has each one wire for N and R, connect wires to N
and R gears firstly.
2. The gear indicator calculates gear comparing speed and RPM then
displays gear posion.
3. User has to train the gear indicator before use.
4. Some models also have P, H, L, 2x4, 4x4 and LOCK symbols.
TRIP RT: Trip Timer Test
1. The Trip RT can be set 100 metre or 400 metre (1/4 mile).
2. The computer starts ming when the vehicle begins to move and
stops when the preset distance is reached
SPD RT 1: Acceleration Timer Test
1. The SPD RT 1 can be me a 0-100Km/H (0-62mph) acceleraon test.
2. The computer starts ming when the vehicle begins to move and
stops when the preset speed is reached.
SPD RT 2: Deceleration Timer Test
1. The SPD RT 2 can be set 100 to 0Km/H (62-0mph) deceleraon test.
2. The computer starts ming when the vehicle decelerates past
100km/h and stops two seconds aer the vehicle stops. The
computer then removes 2 seconds from the displayed me.
: Fuel Gauge
1. Has 7 bars to indicate how much fuel remains.
2. To use as a fuel gauge, the user enters the sender ‘empty’ resistance
between 10 and 990 ohms and the sender ‘full’ resistance between
10 and 990 ohms. The computer produces a linear scale of bars
between these two resistances. When less than 10% fuel remains the
gauge will flash and the warning LED if fied will light.
3. To use as a reserve indicator, connect the reserve swich to the input
and put into “rEs” mode. When the switch pulls the input to –ve the
LED warning will light. On vehicles with temperature based sensors a
68 ohm 5w resistor needs to be connected between the input wire
and 12v (switched)
4. If the gauge and warning lamp are not required they can be switched
off.
LAP**: Lap Timer
1. It can keep up to 99 sets of lap mer.
2. The funcon must be operated by an addional wiring remote control
switch or an accessory IR receiver/transmier or a magnec field
sensor.
BUTTON OPERATIONS
1. Press the MODE buon to move between all funcons in sequence as
“ ” from one funcon screen to another when the speed sensor does
not detect any signal input.
Trip 1-Trip2- ODO- CLK – RPM – TEMP – AVG SPD – RT – TT – HRT –
VOLTG-Maintain reminder - MAX SPD – MAX RPM – MAX TEMP – Trip 1
2. Press the MODE buon to move paral funcons in loop sequence as
“ ”when speed sensor detects signal input.
MODE BUTTON
Reset
Mode
Mode
Reset
Mode
Reset
Mode
Reset
Mode
Reset
Mode
Reset
Mode
Reset
Mode
Reset
Mode Reset
Mode Reset
Mode Reset
Mode Reset
Mode Reset
Mode Reset
Mode
Reset Mode Reset
Lap
Mode
Normal Mode Lap Mode
Lap
2 Sec.
Lap
2 Sec.
Start Record Start Record
Lap
Mode
3 Sec.
Auto Change
Mode
Mode
Lap
Lap Stop Record

Clock, RPM, Wheel, Divider, Unit, Maintenance , Thermometer, fuel meter and ODO 15. It displays " 1 XXX" and the selected unit. Follow the item 2 of buon
operaon to finish the temperature warning seng and go to
thermometer 2 seng.
16. Thermometer 2 seng It displays " 2 °C , °F or oFF", each press of
RESET buon converts °C , °F or Off, the temperature bars will
disappear when you select oFF mode; press MODE buon to confirm
temperature seng and jump to temperature warning seng.
17. It displays " 2 XXX" and the selected unit. Follow the item 2 of buon
operaon to finish the temperature warning seng and go to fuel
sensor resistance seng.
18. It displays “on, off or rES” and , the seng range of “on” from 10r to
990r, press and hold RESET buon can change digits quickly, follow the
item 2 to select a resistance same as your fuel sender and jump to
sensor type of **LAP mer seng. The fuel meter bar will disappear if
you select oFF mode. In “rES” mode connecng the input wire to 0v can
bring on the fuel symbol and/or LED indicator instantly.
19. **It displays Ir, EF1, EF2 or EF3, Ir means you elect IR receiver as the
sensor of LAP mer, and the selecon of EF1, 2 or 3 is a magnec field
sensor for LAP mer, the number of 1, 2 or 3 is means the number of
magnec sensor in track, for example EF2 means the track has 2
magnec sensor and it will combine 2 sensing signals in one. Follow the
item 2 to set sensor type of LAP mer and jump to odometer seng.
20. It displays “ODO & 00000X km”, the “X” is from odometer tesng in
factory, follow item 2 to seng a desired odometer and jump to clock
seng or return to Normal Mode. This seng screen will disappear
when the odometer is over 30km (18.6Miles) or your seng is over
30km.
Press 2 Seconds.
Mode Buon, RESET Buon, MODE Reset, Mode + Reset 2 seconds.

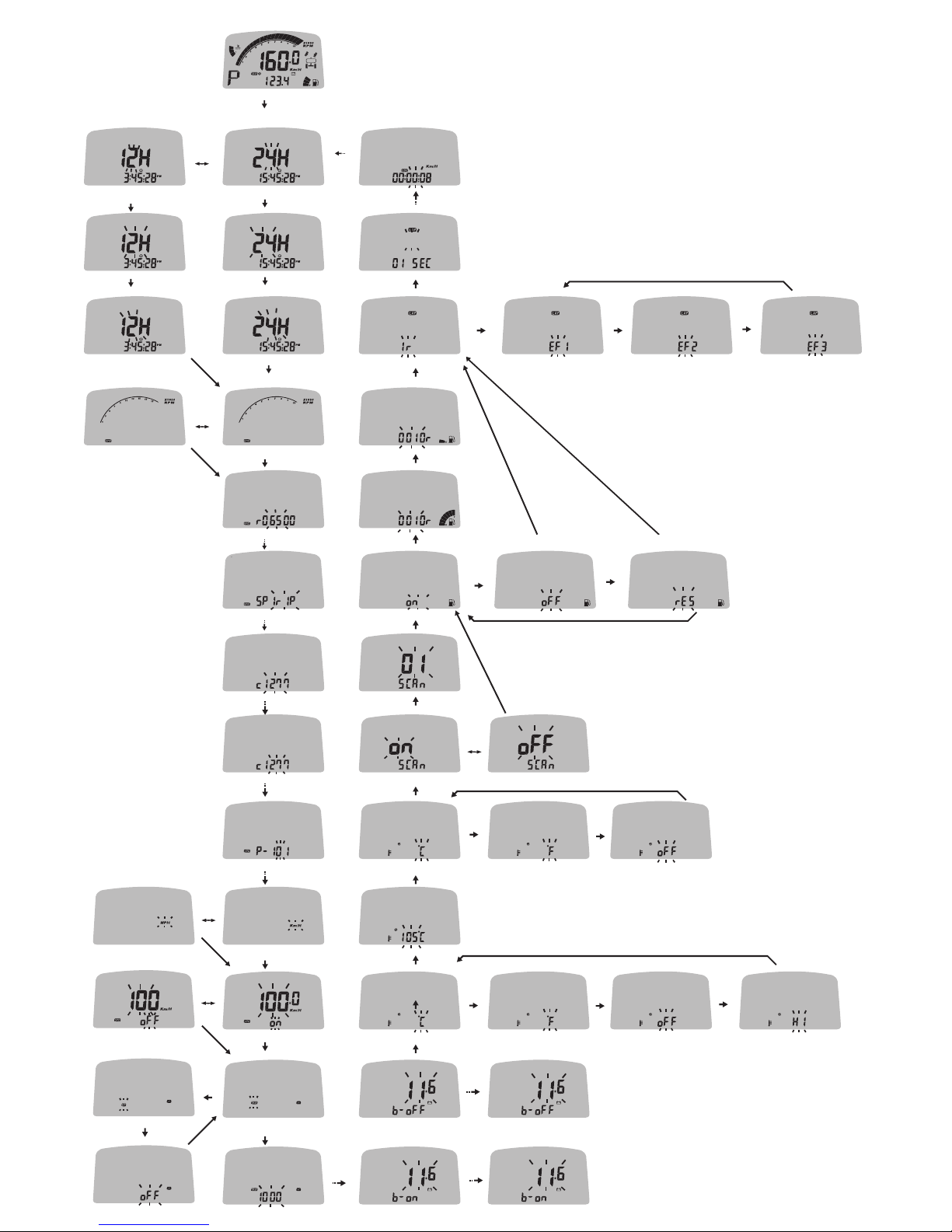

1. Setup operaons include 12/24hour clock, bar rpm scale, shi warning
RPM, numbers of engine signal, wheel circumference, signal divider,
units, decimal, maintain reminder, *voltage warning, *units of
temperature, *temperature warning, fuel meter input resistance
selecon, sensor type of **LAP mer and odometer adjustment.
These must be set up step by step. The computer will be automacally
revert to normal mode if no buon is pressed for 75 seconds at any
seng screen.
2. Press both MODE & RESET buons to go into seng mode. In seng
mode, each press of the RESET buon increments the flashing digit by
1 or converts units. Press MODE buon to confirm the digit seng and
jump to next digit or next seng screen to be set. Press MODE buon
for 2 seconds at any seng screen to finish the seng and go to
normal mode.
3. It displays "12 or 24H, and XX:XX-XX" symbols as well AM/PM in
case you select 12H. Operates buons as descripons of item 2 to
finish clock seng and jump to 10,000/20,000rpm scale seng.
4. It displays 10,000rpm scale, press RESET buon to convert 10,000 or
20,000rpm. Press MODE buon to confirm the seng and jump to
shi RPM warning seng.
5. It displays the default "RPM r06500", the digit “0” flash. Follow the
item 2 of buon operaon to finish the shi RPM warning seng and
jump to engine specificaon seng.
6. It displays "RPM SP 1r1P", the default value is 1r1P; there are 6
opons: 1r1P, 2r1P, 3r1P, 1r2P, 1r3P, 1r4P. “r” means the numbers of
engine rotaon, “P” means number of signals from engine. For
example the value 2r1P means the engine rotate 2 turns to output one
signal.
7. Press RESET buon to move in loop sequence from one to another
value of the 6 values. Press MODE buon to confirm the seng and go
to wheel circumference seng screen.
8. In "SPD cXXXX" display, "c" means "Circumference in mm", following 4
default digits; flashing digit is digit to be set. Follow the item 2 of
buon operaon to finish the wheel circumference seng and jump
to signal divider seng to set the number of pulses from the speed
sensor per turn of the wheel.
9. It displays "SPD P-001" for signals to be divided. Follow item 2 of
buon operaon to finish the seng and jump to unit seng.
10. It displays KM/H or MPH, each press of RESET buon converts unit;
press MODE buon to confirm unit seng and jump to speedometer
decimal point seng.
11. It displays “SPD 99.9Km/H” on or “SPD 99Km/H off”, the decimal
point will not be displayed when “off” is selected. Follow the item 2
of buon operaon to finish the decimal seng and jump to
maintain reminder seng.
12. It displays and RT, TRIP or OFF. RT has default of 100 hours, TRIP
has 1000km (621Miles) default. Follow the item 2 of buon
operaon to finish the maintain reminder seng and jump to
voltage warning seng. The maintain reminder funcon will be
disappear when select “OFF”.
13. It displays “ b-on and a flashing numbers of voltage” to be set,
“b-on” means baery warning on voltage – when the voltage falls
below this the LED will come on, seng range from 11.0 to 14.9V. It
displays “ b-off and a flashing numbers of voltage”, “b-off” means
baery warning off voltage, seng range from 11.0 to 14.9V to, but
b-off voltage must larger than b-on voltage – when this voltage is
exceeded the LED will go off. Follow the item 2 of buon operaon
to finish the voltage warning seng and jump to temperature unit
seng.
14. Thermometer 1 seng It displays " 1 °C , °F or oFF", each press of
RESET buon converts °C , °F or Off, the temperature bars will
disappear when you select oFF mode; press MODE buon to confirm
temperature seng and jump to temperature warning seng.
**LAP review operations:
1. In the LAP mode, press MODE buon to review the 1st storage data, it
displays number of lap and lap mer.
2. Press the LAP buon to switch between lap mer or average speed of
the same LAP; each press of the MODE buon displays data for the next
lap.
3. Press and hold LAP buons for 2 seconds to go out LAP mode and return
to normal mode.
Normal Mode
Lap Mode
Lap Review Mode
Lap
2 Sec.
Lap
2 Sec.
Mode Mode
Mode
Lap
Mode
WHEEL CIRCUMFERENCE TABLE
Tire Size Circumferen
ce number
(mm)
Tire Size Circumferen
ce number
(mm)
Tire Size Circumferen
ce number
(mm)
23 inch
24 inch
25 inch
26 inch
19 inch
20 inch
21 inch
22 inch
15 inch
16 inch
17 inch
18 inch
1835
1915
1995
2075
1516
1596
1676
1756
1197
1277
1357
1436
1. The details below have been calculated using following formula: Tire
Diameter (inches) x 25.4(mm/inches) x 3.1416 = wheel circumference
(in mm).
2. Idenfy the re size (not wheel size) of your ATV/Motorcycle when you
need to change different re size and key in the corresponding number
shown in the following chart.
3. These values are approximate and will differ for different brands of re,
we would always recommend that you measure the distance travelled
per revoluon of the wheel in mm and enter this into the computer.
4. The computer calculates the wheel rotang length between 2 passes of
the magnet; use this table to find the sengs when you are using a reed
sensor or an universal hall sensor with magnet to measure your speed.
5. If you are using a cable drive speed sensor then enter the number of
turns of the speedo cable per turn of the wheel into the “p” screen.
6. You can use more magnets, but the number of magnets must be entered
into the “p” screen.
7. The computer has a built-in soware divider (“p” screen) seng from
1 to 199 for different speed signal applicaon, refer to the divider
setup, one means one wheel revoluon creates one signal. You have
to input the number of signal per wheel revoluon to have a correct
speed.

Adjustable when ODO < 30KM
RESET
Mode
+
2 sec.
Mode
Mode
Mode
Mode
Mode
RESET
RESET
RESET
RESET
RESET
RESET RESET
Mode
Mode
Mode
Mode
Mode
Mode
Mode
Mode
Mode
Mode
Mode
Mode
RESET
RESET RESET
RESET
RESET
RESET
RESET
RESET
RESET
RESET
RESET RESET RESET
RESET
RESET
RESET
Mode
Mode
Mode
Mode
Mode
Mode
Mode
Mode
Mode
Mode
Mode
Mode
Mode
Shi Warning: 100 ~ 19900
Unit: KM/H / MPH
Maintenance reminder
Voltage Meter
Engine Temperature
Air Temperature
Air Temperature
SCAN
Bar-Fuel gauge
Wheel Size: 1 ~ 3999 mm
Mode
Mode
Mode
RESET
SPD Signal: P-001~199
Clock: 12/24
Clock: 12/24
RPM: 10000 / 20000
RPM SP
Clock: Hour
Clock: Hour
Clock: Minute Clock: Minute
