Hernik Starlight NXT User manual

Herni
USER MANUAL
version: 07-2019

Herni
TABLE OF CONTENTS
I. General information Seite
1.1 Introduction 2
1.2 Purpose and indication 2
1.3 Relevant information 3
1.4 Declaration of conformity 3
1.5 Warranty 3
1.6 Service and repair 3
1.7 Practical instructions 3
1.8 Using the 3-point-harness of the vehicle (Group I) 4
1.9 Buckling the child 5
1.10 Using the 3-point-harness of the vehicle (Group III) 6
II. Safety instructions
2.1 Safety instructions 7
III. Height adjustment of the headrest 8
IV. Installation of the XL-Kit 9
V. Using the optional accessories
5.1 ISOFIX-adapter 12
5.2 Clamp bow 13
5.3 Security tray 14
5.4 Lateral supports 14
5.5 Abduction block 15
5.6 Angular adjustment 15
5.7 Foot rest / foot roll 16
5.8 Swivel 16
VI. Guarantee 17
VII. Labeling 17
VIII. Maintenance & product care 18
IX. Technical characteristics 18
• Page 1 •

Herni
I. Allgemeine Informationen
• Page 2 •
1.1 Introduction
You have chosen the car seat "STARLIGHT-NXT" and get hereby a high quality
product from our house. We would like to thank you for your trust in us.
To make sure you find joy with this product and to ensure it helps you to make
everyday life easier, we present you this manual. It shows you the correct and
simple usage and the necessary care and maintenance. To avoid damage due to
operator error and to ensure best use, please read the following instructions
carefully. If you have any questions or problems, please contact your dealer.
We wish you a trouble-free use and hope that our products meet your
expectations.
We reserve the right to make technical changes to the version described in this
manual.
Before installing in your car and using it for the first time, please read and follow
the installation instructions on pages 4 - 6. Please ensure that the instructions for
use remain with the product and are therefore available to everyone who use the
seat.
Yours
HERNIK GmbH
1.2 Purpose and indication
The STARLIGHT-NXT was developed for the transport of children with special
needs in cars. Children with poor head or trunk control (eg infantile cerebral palsy,
muscular dystrophy, hypotension) can be supported in their posture by means of
individually positioned thorax pads and special upholstery which ensures a safe
transportation.
Important optional accessories can be used to address specific needs such as: the
seat angle or the installation of a stable abduction wedge or a footstool. More in
chapter V.

Herni
I. Allgemeine Informationen
• Page 3 •
1.3 Relevant information
The STARLIGHT-NXT car seat for disabled children consists of two modules:
1. A standard child car seat from Römer-Britax (please refer to the manufacturer's
manual for use).
2. Adaptation module with accessories, which offers the possibility to equip the car
seat according to individual needs. Please observe the instructions for use from
HERNIK GmbH.
1.4 Declaration of conformity
HERNIK GmbH declares in sole responsibility that car seat "STARLIGHT-NXT"
complies with the Essential Requirements (Appendix 1 of Directive 93/42 EEC). The
product is marked with the CE mark according to the above mentioned directive.
1.5 Warranty
A warranty can only be accepted if the product is used under the specified
conditions and for the intended purposes. The manufacturer is not liable for
damage caused by components and spare parts which were not approved by the
manufacturer.
1.6 Service and repair
Service and repairs on the STARLIGHT-NXT may only be carried out by specialized
dealers. If you have any problems, contact your local dealer. For repairs, you will
only receive original spare parts.
1.7 Practical instructions
The car seat will be delivered fully assembled. Upon delivery, the dealer will instruct
the user how to use the device by using the manual. The specialist dealer should
install together with the user the car seat in the car and if available adjust the Isofix
strap or the clamp.
When installing the car seat, it is best to hold it with one hand in the center of the
front and the other at the top. In order to achieve an optimal sitting position, it is
necessary to adjust the car seat individually to the circumstances of the child. This
should always be done by the dealer.

Herni
I. Allgemeine Informationen

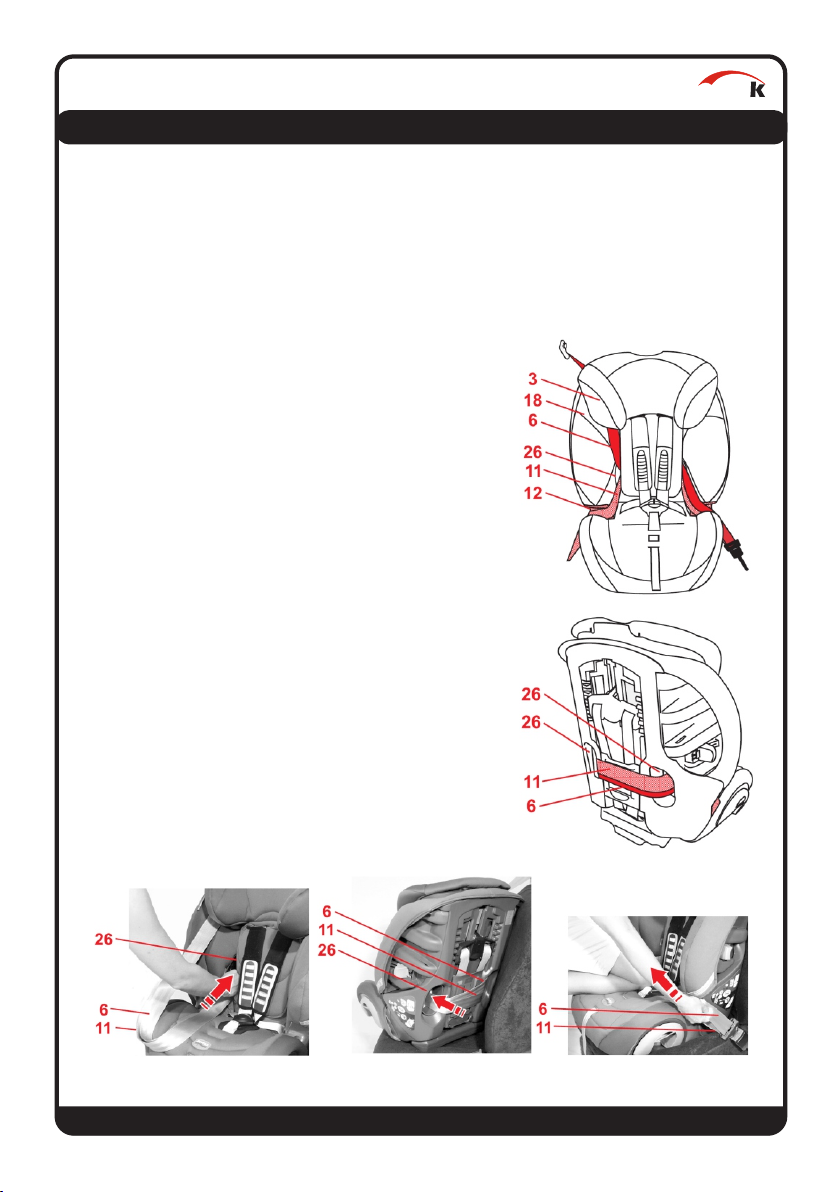

1.8 Using the 3-point-harness of the vehicle (Group I)
To be able to absorb the enormous forces during an accident, the STARLIGHT-NXT
must be secured with the vehicle's three-point belt according to ECE 44/04 Group
I, II + III. An ISOFIX connection alone is not sufficing!!!
The fixation as Group I show the following pictures:
• Seite 4 •
• Place the pelvic belt (11) in the light red belt guides
(12).
• Grasp about 80 cm of the diagonal belt (6) and the
pelvic belt (11) together.
• Guide the seat belt through the first seat belt
feedthrough (26) of the backrest.
• Turn the child seat slightly away from the car seat
and now guide the seat belt backwards through
the second seat belt feedthrough (26).
• Insert the diagonal belt (6) and pelvic belt (11) into
the belt guides (12) on the side of the auto buckle
(10). Engage the latch in the car buckle (10).
CLICK!
• Pull the diagonal belt (6) at the bottom of the seat
belt buckle to tighten the pelvic belt (11).
• While holding the diagonal strap (6) at the bottom,
pull it forward to the feedthrough (26) to pull the
loose strap through.
• Now pull hard on top of the diagonal strap (6) to
tighten the entire harness.
NOTE: Mandatory to a minimum distance
between the backseat of the car to the passenger
backrest of 60 cm!!!
• Page 4 •

Herni
I. General information
• Seite 4 •
1.9 Buckling the child
• Loosen the shoulder straps (02)
• Open the buckle (15) by pressing the red tab
• Put your child in the child seat.
• Pass the shoulder straps (02) over your child's
shoulders.
Attention! Do not twist or swap shoulder straps (02).
• Bring the two locking tongues (16) together and
audibly engage them in the belt lock (15). CLICK!
• Tighten the straps until they are snug against your
child's body. Attention! The hip straps (25) must run
as low as possible over the groin of your child.
Tighten the straps
• Pull the adjuster strap (17) until the harness is even
and tight against your child's body.
Attention! Pull the adjustment strap (17) out as straight
as possible and not laterally or upwards.
• Pull the shoulder pads (14) down again.
• Pull on the shoulder straps (02) to make sure the
waist straps (25) are taut and that the harness is even.
• Pull the adjuster belt (17) again until the harness is
even and tight against your child's body.
• Page 5 •

Herni
I. General information
• Page 6 •
1.10 Using the 3-point-harness of the vehicle (Group III)
To be able to absorb the enormous forces during an accident, the STARLIGHT-NXT
must be secured with the vehicle's three-point belt according to ECE 44/04 Group
I, II + III. An ISOFIX connection alone is not sufficing!!!
The fixation as Group III show the following pictures:
• Place the child seat on the vehicle seat and allow
your child to sit in the child seat.
• Pull out the seat belt and guide it to the seat belt
buckle (10) in front of your child.
Attention: Do not twist the belt.
• Engage the latch in the car buckle (10). CLICK!
• Place the diagonal strap (6) and the pelvic belt
(11) on the side of the car buckle (10) in the light
red belt guide (12).
Attention: The car seat belt buckle (10) must not
rest on the light red belt guide (12).
• Place the pelvic belt (11) on the other side in the
light red belt guide (12).
Attention: The lap belt (11) must run as low as
possible over the groin of your child on both sides.
• Insert the diagonal strap (6) into the dark red belt
holder (7) of the headrest (3) until it is completely
and undiluted in the belt holder (7).
• Make sure that the diagonal strap (6) runs over
your child's collarbone and does not touch the
neck.
NOTE: Make sure that the minimum distance
between the seat and the vehicle roof is 90 cm!

Herni
• Page 7 •
II. Safety instructions
· Before use, the components must be checked for perfect function and
condition.
· The instructions for use must always be carried on the child car seat.
· The safety of your child is only guaranteed if the seat is installed correctly and
if the child is fixed exactly.
· The straps must be laid tight and without twisting.
· The 3-point safety belt is to be guided through the provided belt guides and
is supposed to surround the seat tightly.
Please check:
A) whether the seat belt is securely placed in the belt guide
B) whether the belt buckles are locked correctly
C) that no textiles are impacted
· Make sure that no solid objects like pins, belt buckles, etc. are placed between
child and seat belt. This could lead to injuries in the event of accidents.
· Explain to your child how important it is to be well-secured and that the
course of the straps do not change. It shouldn't pull on the straps nor
open the belt buckles.
· Do not make any changes to the car seat, otherwise you risk your child's
safety.
· The car seat must not be damaged by moving parts in the car or through
doors.
· Never leave your child alone in the child car seat.
· Inform your passengers how your child can be taken out of the seat after an
accident.
· After an accident, the entire child car seat has to be renewed.

• Pull the locking bracket lightly on the 
backrest of the seat until it releases from the
toothing. Move it together with the headrest
 to the desired position. Finally, release the
bracket so that it can engage again - see Fig.
1.
ATTENTION: If the locking bar is already at
the highest point and you still need more back
or headrest height, the XL kit should be
retrofitted or a larger car seat be selected!
• Now the two-piece back cushion has to be
adjusted. Loosen the scratches between the
front back cushion and the wedge-shaped 
balance pad , which is behind it - see Fig. 2.
• Align the back cushions , make sure that the 
connected head restraints are seated correctly,
and revert the underside of the cushion
around the wedge-shaped cushions .
Make sure that no wrinkles form and a smooth
crossover is created.
Herni
III. Height adjustment of the headrest
• Page 8 •
Fig.1
Abb. 6

Fig. 2






Herni
IV. Installation of the XL-Kit

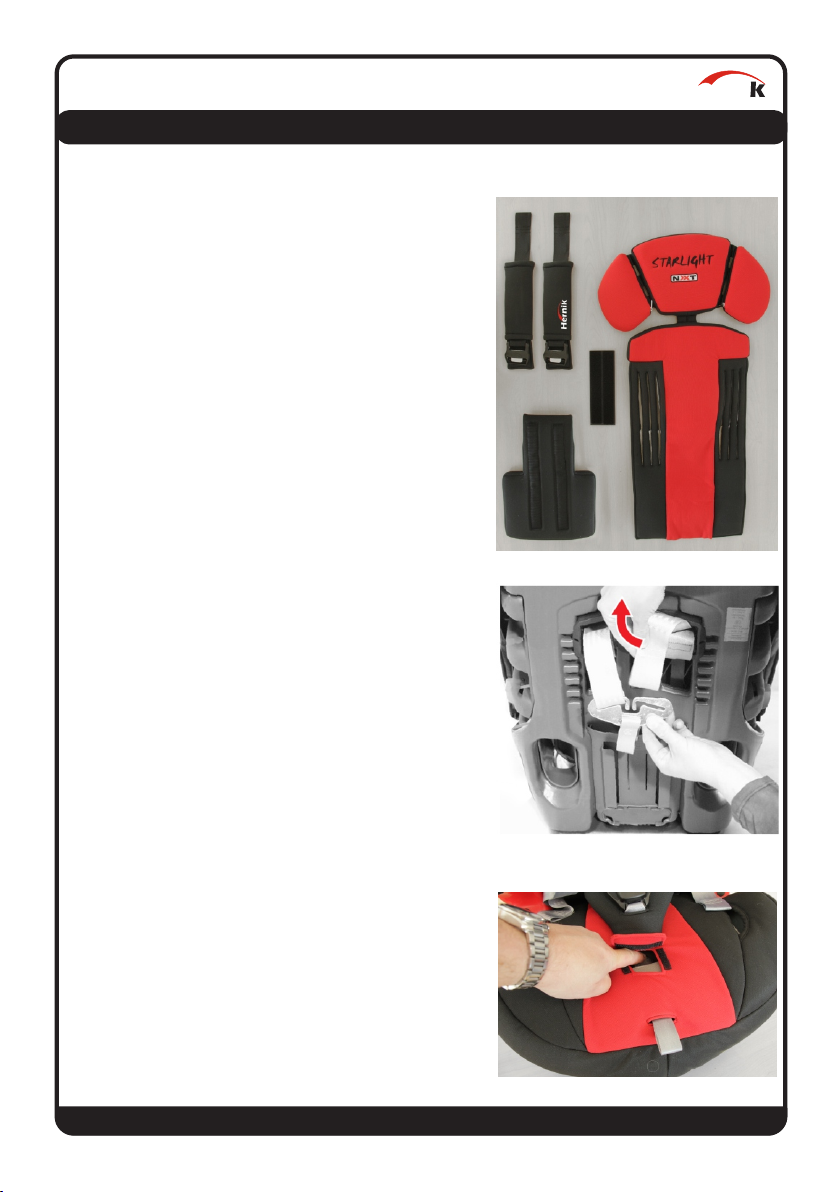

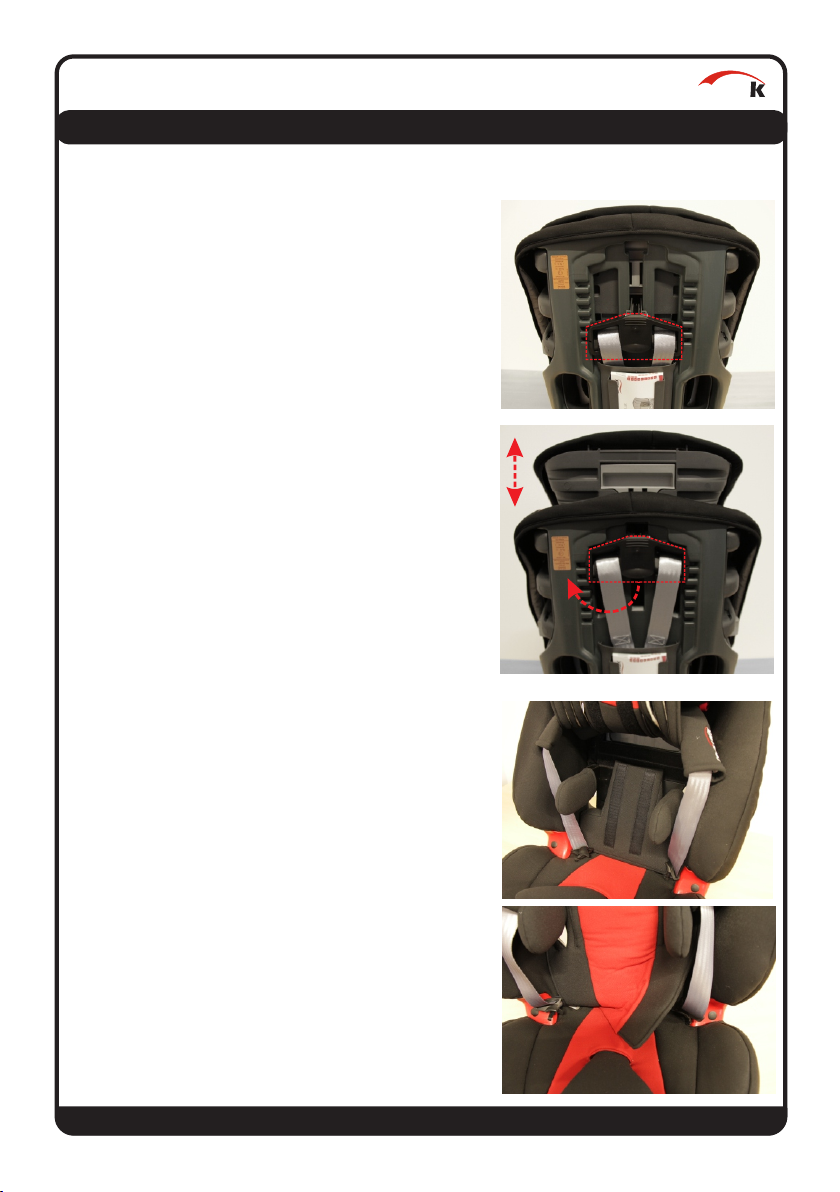

• The XL-Kit allows you to use the STARLIGHT-
NXT even for older children (1.20 m max.). If
the car seat has not already been ordered
with the XL kit, it can be retrofitted with it.
The XL-Kit consists of:
backrest cushion long, incl. headrest
 beltpads for the shoulder, pair
adapter plate (if thorax supports are used)
wedge-shaped pad, long
• First remove the already installed back
cushion, incl. the wedge-shaped compensati-
on cushion.
• Loosen the straps as far as possible and
remove the gray straps from the Y-connector
(fig. 2)
• Press the release button (Fig. 3) and pull the Y-
connector on the back of the car seat up as far
as it will go - until the gray 25 mm strap stops
and is visible only a few inches.
• Page 9 •




Fig. 2
Fig. 1 (components)
Fig. 3

Herni
• Page 10 •
Fig. 5
Fig. 4
Fig. 6
• Pass the strap ends of the beltpad through 
the openings below the headrest (Fig. 4 + 5)
and hook them into the Y-connection part.
The Y-connector remains in place as seen in 
Fig. 5.
ATTENTION: the 25 mm strap on the front of
the seat has no longer any function. Please do
not pull it anymore!!!
• The previously removed gray straps must now
be inserted into the two adjusters CORRECTLY
- see Fig. 6. Please note the course of the
arrows!
The length of the shoulder strap can then be
changed by means of the two adjusters,
which are located at the end of the beltpads.
The tightening is achieved by pulling on the
strap ends. For loosening press the gray
button off the adjuster and pulled on the
shoulder strap.
The belt must be easy to move without
exaggerated effort. If this is not the case, the
belt was threaded wrong !!!

IV. Installation of the XL-Kit

Herni
IV. Installation des XL-Kits
• Page 11 •
Fig. 8
Fig. 7
Fig. 9

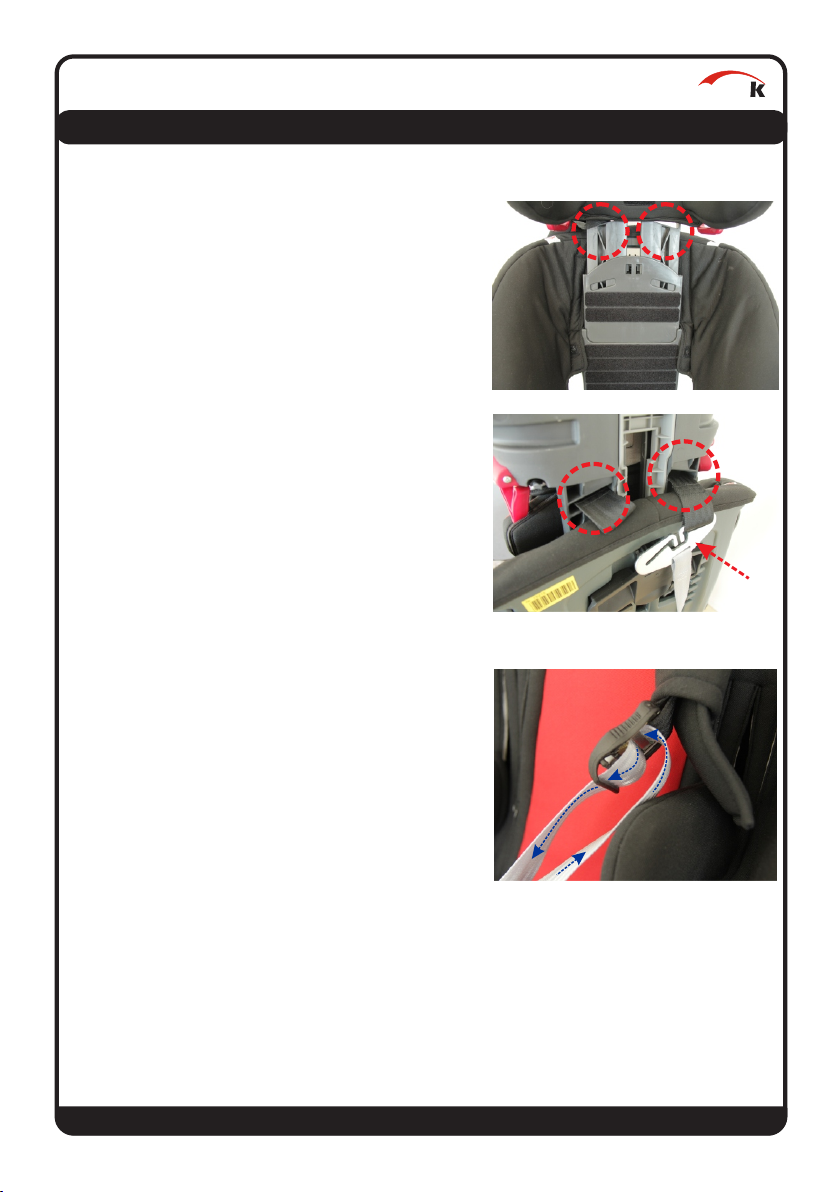

• If thorax supports were installed, the adapter
plate must now be attached - see Fig. 7.
To do this, the headrest must be pulled out
completely and two strips of self-adhesive loop
tape (included in delivery, adhering to the
adapter plate) to be glued to the red marked
area.
Now, the already existing mounting plate for
the thorax supports (square plate, about 20 
x 20 cm) must be removed from the car seat
back and be clamped at the height of the just
mounted adapter plate - see Fig. 8.
Now it is also advisable to adjust the thorax
supports to the height that suits the child - 
assuming you have previously taken your
measurements.
• Regardless of whether or not the thorax
supports are installed, the long wedge-shaped
cushion must now be attached to the lower 
edge of the back - see Fig. 9.
• The last step is to install the long back cushion
, including the positioning of the headrest.
Pass the thorax supports through the
appropriate longitudinal slots and then wrap
the excess pad around the wedge-shaped
pillow . Make sure that it does not wrinkle.
• The height of the
headrest can then
be adjusted to the
required height by
means of the
gray lever .





Fig. 10




Herni
V. Using the optional accessories
5.1 ISOFIX-adapter
Installation:
1. Let the installation of the seat and its adjustment been demonstrated to you by the
technician.
2. Open the setscrews on the left and right and pull 
the bracket out to the rear.
3. Adjust the back rest of the car's seat to the required angle,
taking advantage of the space created to the car's back
pad. Slide the ISOFIX adapter on both sides backwards in
the direction of the backrest until you hear the locking of
the two ISOFIX tongues in the vehicle's ISOFIX
mounting (two clicks).
4. Push the car seat towards the backrest of the vehicle until
both touch and are slightly under tension. This prevents
vibrations while driving.
5. Close the two setscrews left and right. In addition, 
the two ISOFIX tongues must be protected against
unattempt opening, which is why both screws 
must be tightened.
6. Ensure that both ISOFIX tongues are engaged by a
double-sided pulling test.
Removal Note:
1. Open the two screws .
2. Move them forwards in the direction of the car seat,
releasing the grid connection of the system. It may
be necessary to compensate for the pressure of the
seats padding so that the connection can be solved.
3. The car seat can now be removed from the vehicle.
• Page 12 •





Herni
• Page 13 •

5.2 Clamp bow
Installation:
1. Let the installation of the seat and adjustment
of it be shown to you during the delivery.
2. Open the setscrews on the left and right 
and pull the bracket to the rear.
3. Adjust the back rest of the car's seat to the
required angle, taking advantage of the space
created to the car's back pad. Now push the
clamp on both sides backwards in the direc-
tion of the backrest, until it sinks into the gap
of the car seat and seat upholstery and
remains firm.
4. Push the car seat against the backrest of the
vehicle until it rests flat.
5. Now close the two setscrews left and right.
6. Whether the offset of the bow must be
directed upwards or downwards depends on
the construction of the respective passenger
car seats.
Removal Note:
1. Pull the car seat including the clamp out of
the gap of the car seat.
V. Using the optional accessories

Herni
• Page 14•




Fig. 1

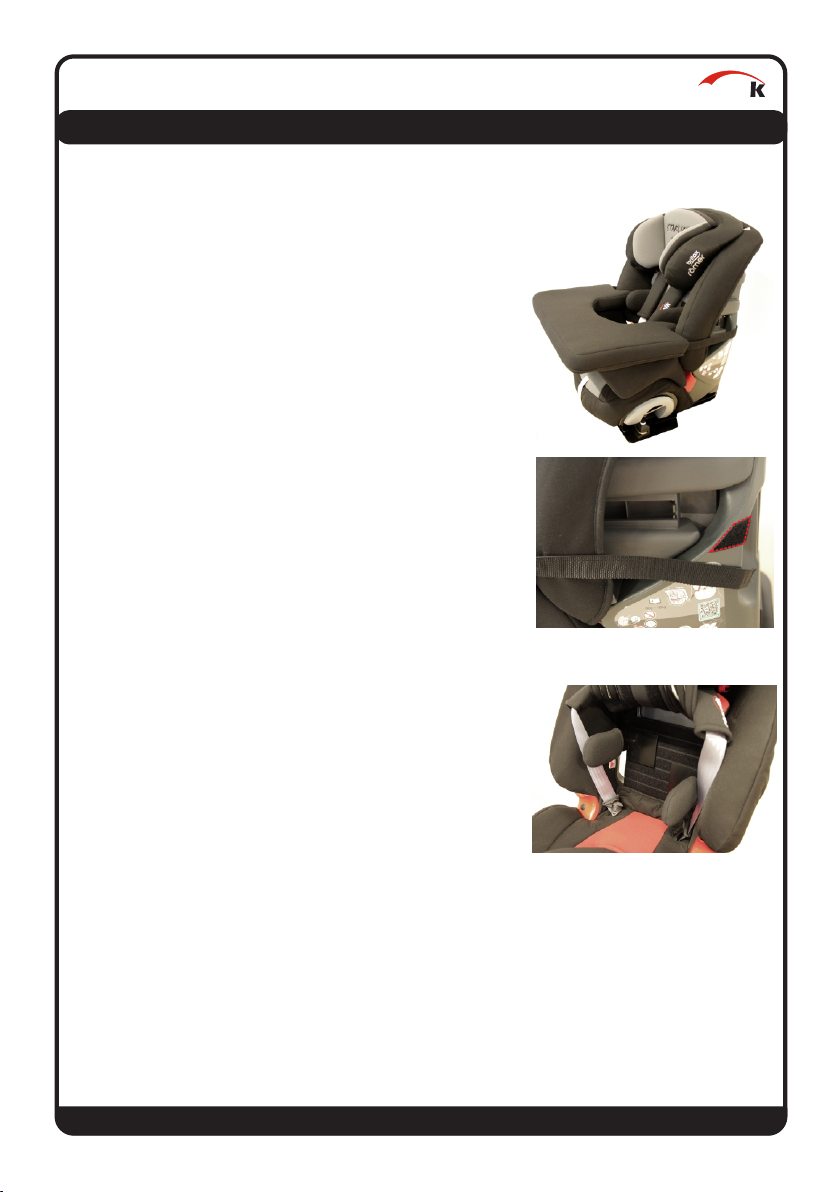

5.3 Security tray
Installation:
1. Let the installation of the seat and adjustment of it be
shown to you during the delivery.
2. Put the support and safety pad on the car seat 
after sitting your child into it and strapping it on.
3. Secure the padding using the supplied Velcro straps
, which are fastened to the back of the car seat.
4. Your child's arms should rest on the table, which
leads to an upright seating position. This supports the
upper body.
5. Make sure to avoid the risk of toys, which may be on
the upholstery. Do not use hard, solid or even sharp-
edged objects!
5.4 Lateral supports
1. HERNIK GmbH is not allowed to injure (drill, screw)
the body of the STARLIGHT-NXT. Nevertheless it was
very important to us to offer lateral supports for 
children with weak trunk muscles, so we decided for a
fixation solution, which uses Velcro for sufficient
stability and also provides flexibility.
2. In order to change the position of the pads, it must
first be carefully released by gently turning the Velcro
connection. Afterwards, the pad can be arranged freely.
IMPORTANT: For a stable fit, the pad should be pressed
with high pressure while turning back and forth on the
back of the STARLIGHT-NXT. This creates a firmer hold
of the Velcro elements!
V. Using the optional accessories

5.5 Abduction block
1. The abduction wedge helps your child to 
reach a predetermined distance between the
knees. In order to loosen or tightening the 5-
point belt, the wedge must be removed.
Open the clamp and remove the wedge 
upwards.
2. The wedge should be against the seat
upholstery as shown in the picture. The depth
of the wedge can be adjusted. For this
purpose, both hexagon screws must be
opened and offset under the seat.
3. The wedge should always be used while
driving (if chosen as an option), otherwise
your child could be injured by the mounting.
4. The lever can be changed in its position by 
gently pulling it forward without moving the
screw connection. Make sure it is up and not
out of the way, otherwise your child's calves
may come into contact with it.
5.6 Angular adjustment
1. If the seat angle provided by the vehicle seat
is insufficient, the seat angle of the car seat
can be increased by the (extended) child seat
angle adjustment . For this purpose, the 
screw left and right has to be opened and 
another hole to be selected. Then tighten the
screws back.
2. For safety reasons, here is no quick release
possible!
Herni
• Page 15 •




NOTE:
The abduction block may
only be used on children
over 16 kg, as minor
children may be injured
during an accident.
V. Using the optional accessories



Herni
• Page 16 •






V. Using the optional accessories
5.7 Foot rest / foot roll

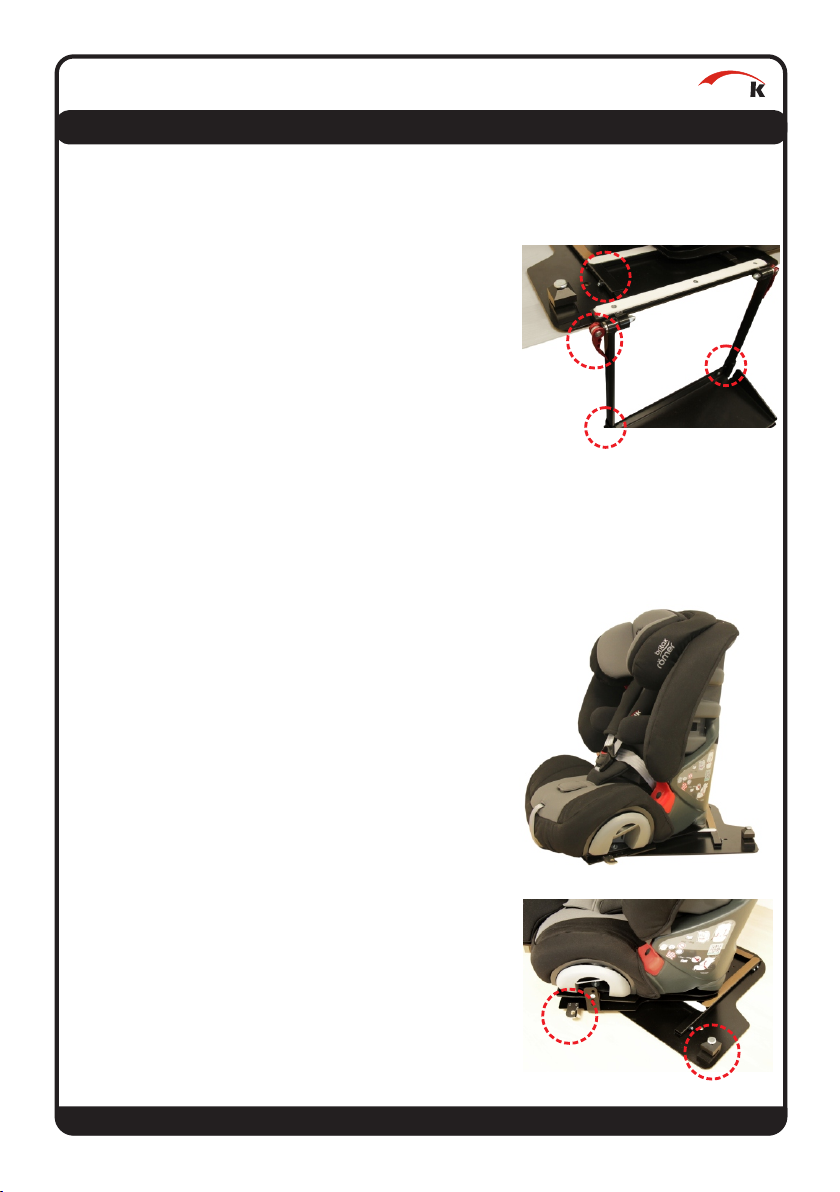

1. The tabs are fixed below the car seat by 
means of set screws on the base mount, so
that the depth can be adjusted.
2. The angle of the handrails can be varied by
opening the quick release lever . Care 
should be taken to ensure that the levers are
in a position that does not cause harm!
3. To adjust the height of the footrest, the
screws on the left and right must be 
opened. Now the height can be stepless
selected. Then please tighten the screws
again.
5.8 Swivel
1. To simplify the daily transfer to the vehicle, we
recommend our swivel adapter, which let the
car seat turn outwards by 90 °. For technical
reasons, only ONE direction of rotation is
possible. For a later change in the other
direction, the car seat must be rebuilt in our
house. The use of the ISOFIX adapters or the
clamp are recommended!
2. To turn the chair, the handle must be pulled 
up and the chair moved at the same time. The
optional footrest stops to avoid collisions with
the front passenger seat and the B-pillar.
Pay attention when rotating your child's legs!
3. After the transfer, simply turn the IPAI-NXT back
to the starting position and pay attention to the
"click" sound, in which the tongue snaps back 
into the catch.

Herni
VI. Guarantee
• Page 17 •
VII. Kennzeichnung
Partenhauserweg 14 • 81369 München • Germany
Serien-Nr.: SL-2019-9999
STARLIGHT-NXT (36 kg)
Lesen Sie bitte vor Gebrauch die Bedienungsanleitung!
Herni GmbH
Rückhalteeinrichtung f. spez. Anforderungen „S“
Hernik products are designed and manufactured in accordance with strict quality
standards. If, in exceptional circumstances, you have cause for complaint, Hernik
GmbH guarantee in accordance with the terms and conditions of delivery:
• 24 months warranty on all solid parts, from date of delivery.
• 12 months warranty on all moving parts, from date of delivery.
For parts that were not manufactured by Hernik GMBH, please refer to the
warranty policy of the respective manufacturer (Römer-Britax Kindersicherheit
GmbH). Claims under this guarantee are subject to the device being properly
installed and used in accordance with the instructions provided.
Warranty is void where modifications or improper repairs, without prior
consultation with the manufacturers are carried out. Warranty is void where a
device is improperly fitted.
Further claims, for whatever legal reason, in particular, claims for direct or indirect
damages are excluded.
On the back you‘ll find the following labeling:

Herni
VIII. Maintenance & product care
• Page 18 •
1. Every 8 weeks check the screw connections for
tightness and retighten if necessary.
2. Periodically clean with a dry cloth; if heavily soiled,
clean with a mild household cleaner.
3. Remove the cover:
• Open the Velcro fastener on the crotch pad (23) and
remove it.
• Open the pushbuttons (05) on the left and right of the
backrest cover (29) and the headrest (03).
• Unhook the reference edge and the rubber loops under
the edge of the child seat.
• Remove the cover of the headrest (03).
• Feed the belt lock (15) out of the cover.
• Disconnect the rubber bands of the cover from the cup
holder (04).
IX. Technical characteristics
Standard equipment:
• 5-point harness with padded buckle • two-part backrest for high comfort
pad remoable (height adjustable!) and padded headrest
and belt protectors (washable at 30 ° C)
• Headrest height • Side impact protection because of
adjustable large shock absorber
• exclusive ventilation system •cup holder on both sides

Herni
• Seite 13 •
HERNIK GmbH
Auf der Gröb 2 c
83064 Raubling • Germany
 [phone] •  [phone]
 [email protected] •  www.hernik.de
