I. General information
1.1 Introduction
You have chosen the car seat "IPAI-LGT" and get hereby a high quality product
from our house. We would like to thank you for your trust in us.
To make sure you find joy with this product and to ensure it helps you to make
everyday life easier, we present you this manual. It shows you the correct and
simple usage and the necessary care and maintenance. To avoid damage due to
operator error and to ensure best use, please read the following instructions
carefully. If you have any questions or problems, please contact your dealer.
We wish you a trouble-free use and hope that our products meet your
expectations.
We reserve the right to make technical changes to the version described in this
manual.
Before installing in your car and using it for the first time, please read and follow
the installation instructions on pages 5 - 8. Please ensure that the instructions for
use remain with the product and are therefore available to everyone who uses the
seat.
Your HERNIK GmbH
1.2 Purpose and indication
The IPAI-LGT was developed for the transport of children with special needs in
cars. Children with poor head or trunk control (e.g. infantile cerebral palsy,
muscular dystrophy, hypotension) can be supported in their posture by means of
individually positioned side supports and special upholstery which ensures a safe
transportation.
Important optional accessories can be used to address specific needs such as: the
seat angle or the installation of a stable abduction block. More in chapter IV.
• Page 2 •

Herni
I. General information
1.3 Relevant information
The IPAI-LGT car seat for disabled children consists of two modules:
1. A standard child car seat from Römer-Britax (please refer to the manufacturer's
manual for use).
2. Adaptation module with accessories, which offers the possibility to equip the car
seat according to individual needs. Please refer to the instructions for use from
HERNIK GmbH.
1.4 Warranty
A warranty can only be accepted if the product is used under the specified
conditions and for the intended purposes. The manufacturer is not liable for
damage caused by components and spare parts which were not approved by the
manufacturer.
1.5 Service and repair
Service and repairs on the IPAI-LGT may only be carried out by specialized dealers.
If you have any problems, contact your local dealer. For repairs you will only
receive original spare parts.
1.6 Practical instructions
The car seat will be delivered fully assembled. Upon delivery, the dealer will instruct
the user how to use the device by using the manual. The specialist dealer should
install together with the user the car seat in the car and, if available, adjust the
Isofix strap or the clamp.
When installing the car seat, it is best to hold it with one hand in the center of the
front and the other at the top. In order to achieve an optimal sitting position, it is
necessary to adjust the car seat individually to the circumstances of the child. This
should always be done by the dealer.
• Page 3 •

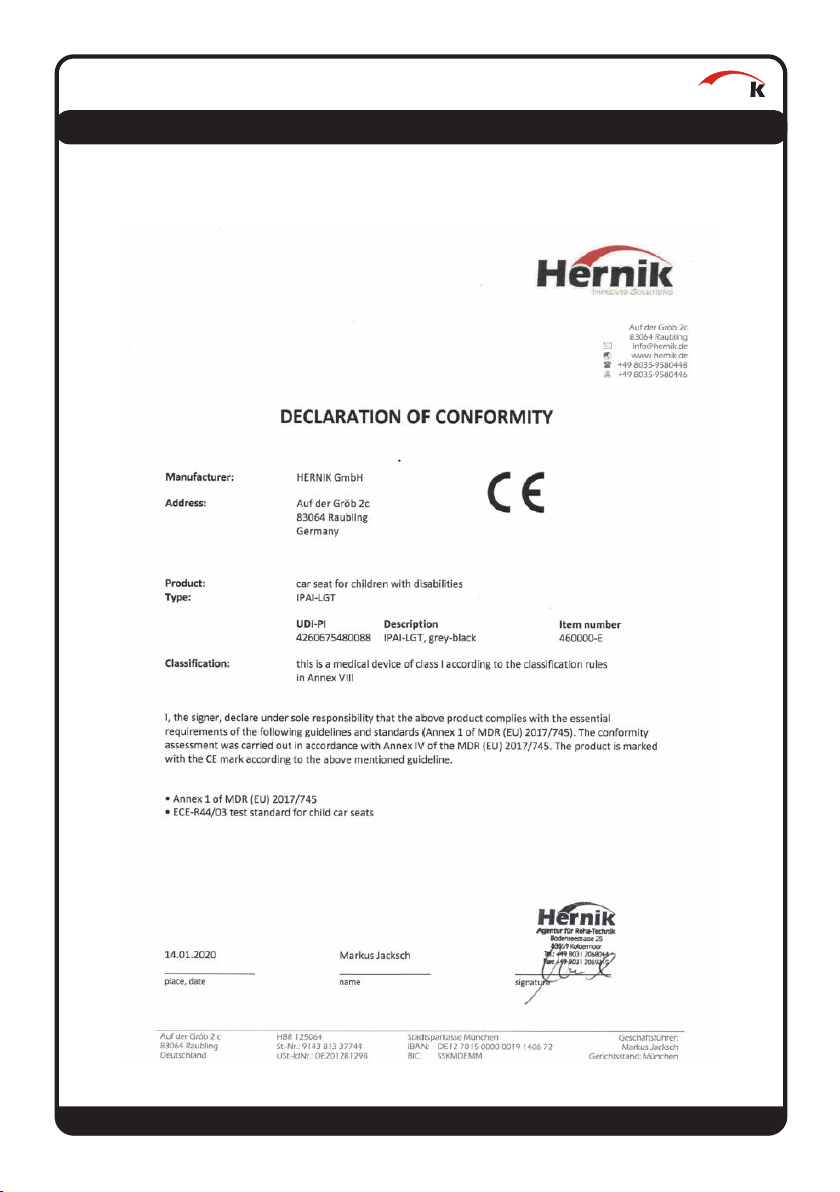

1.7 Declaration of conformity
Herni
• Page 4 •
1.3 Relevant informationI. General information

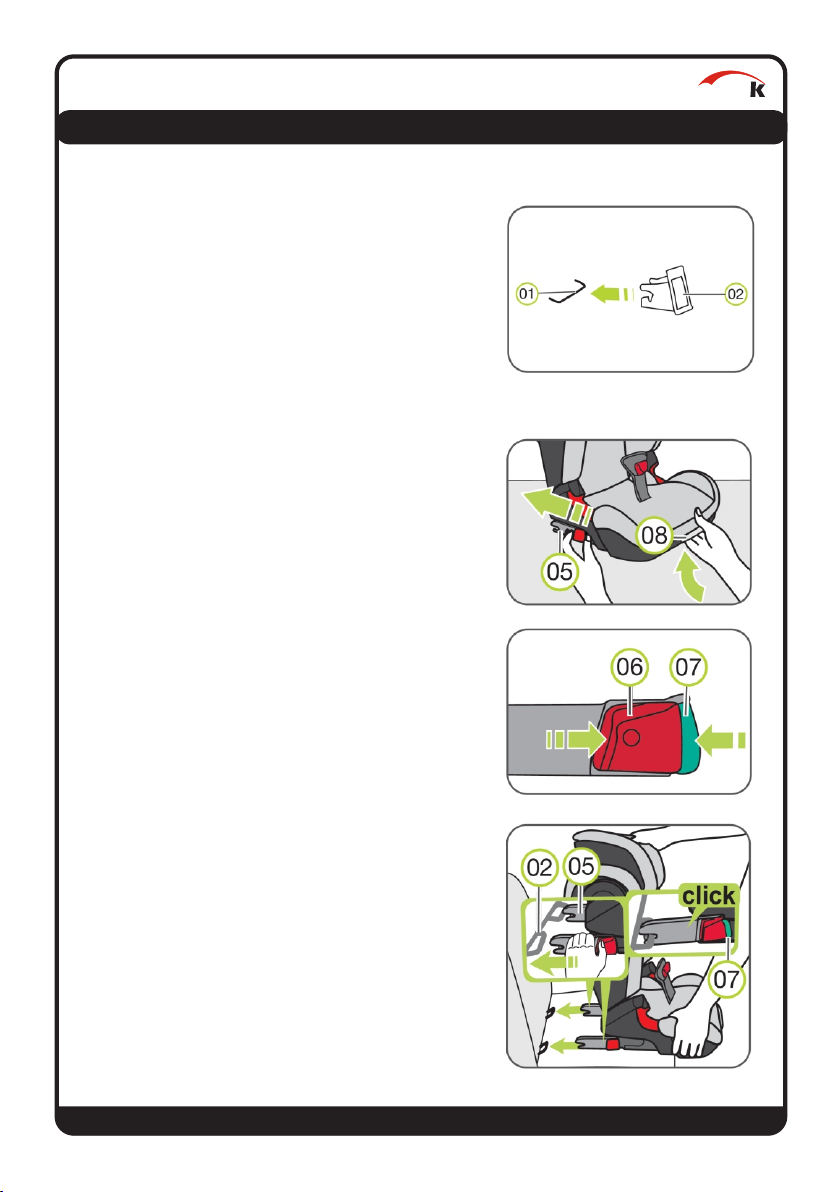

1.8 Installation in the car - with ISOFIX
The IPAI-LGT will be installed tightly with the
ISOFIX-locking arms (05) in your car. Your child
will then be buckled up with the vehicle‘s 3-
point belt.
1. If your vehicle is not equipped with ISOFIX
insertion aids as standard, clamp the two
insertion aids (02), which are included in the
delivery of the seat, with the cutout facing
upwards, onto the two ISOFIX fastening
points (01) of your vehicle.
TIP! Die ISOFIX fixation points are located
between the seat and the back of the vehicle
seat.
2. Move the vehicle seat headrest to it‘s
uppermost position.
3. Keep pushing the ISOFIX setting button (08)
and slide the ISOFIX locking arms (05) fully
out.
4. Press the green safety button (07) and the
red release button (06) against each other
on both sides of the seat. This ensures that
both hooks on the ISOFIX locking arms (05)
are open and ready for use.
5. Place the child seat in the direction of travel
on a vehicle seat approved for use. Make
sure that the backrest (12) lies flat against
the backrest of the vehicle seat.
6. Position the two ISOFIX locking arms (05)
directly in front of the two insertion aids (02).
Herni
I. General information
• Page 5 •

Herni
I. General information
• Page 6 •
7. Push both ISOFIX locking arms (05) into the
insertion aids (02) until the ISOFIX locking
arms (05) snap into place on both sides with
a „click“ sound.
ATTENTION! The green safety button (07)
must be visible on both sides so that the child
seat is properly attached.

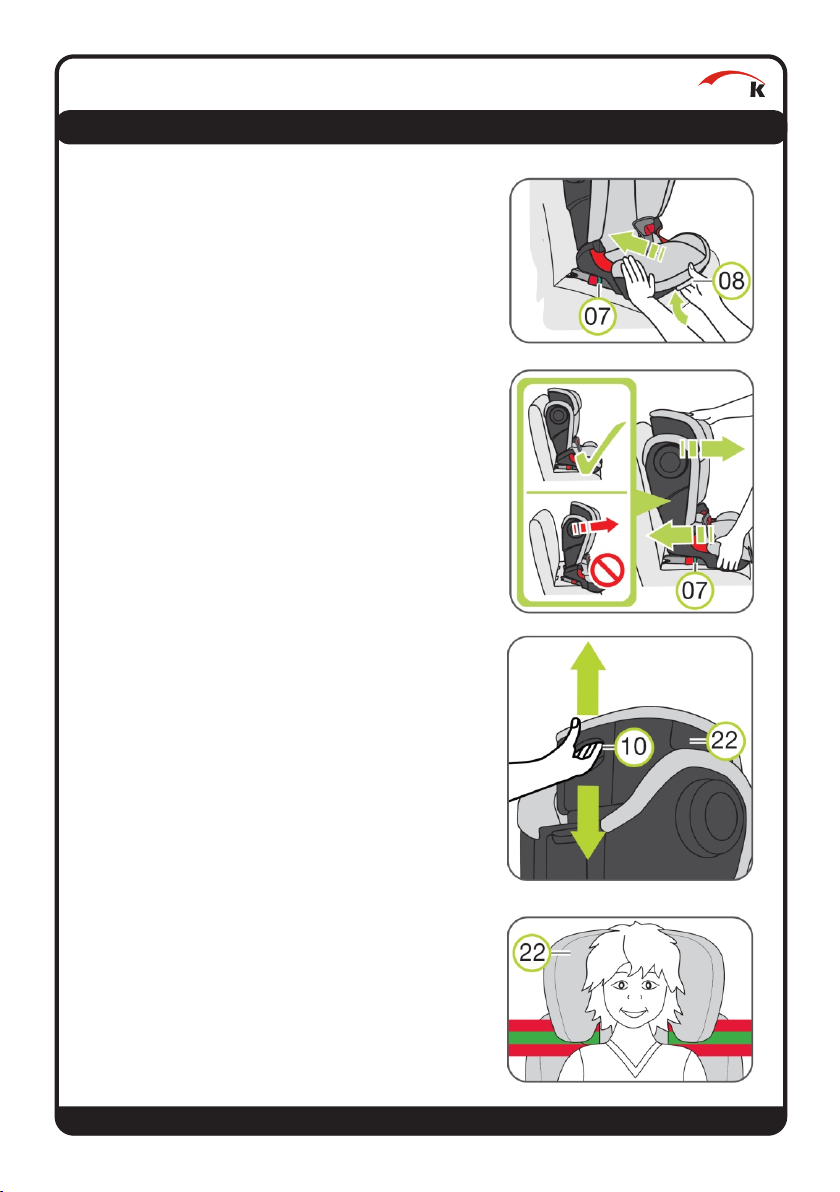

8. Keep pushing the ISOFIX adjustment button
(08) and push the child seat back as far as
possible.
9. Wiggle the child seat to ensure that it is
securely attached and check the safety
buttons (07) again to ensure that both are
completely green.
1.9 Adjusting the head rest
A correctly adjusted headrest (22) ensures the
optimal course of the car‘s diagonal belt (16)
and offers your child maximum protection. The
headrest (22) must be adjusted so that there is
still room for two fingers between the shoul-
ders of your child and the headrest (22).
1. Grasp the adjustment handle (10) on the
back of the headrest (22) and pull it up. Now
the headrest is unlocked.
2. Now you can push the unlocked headrest
(22) to the required height. As soon as you
release the adjustment handle (10), the
headrest (22) locks.

3. Place the child seat on the vehicle seat.
4. Let your child sit down in the child seat and
check the height. Repeat this process until
the headrest (22) is at the correct height.
1.10 Using the 3-point-harness
1. Unscrew the SICT (23) counter-clockwise (on
the side closer to the vehicle door) until it is
5 mm away from the vehicle door or it is
unscrewed to the maximum.
Pull out the vehicle belt and guide it in front
of your child to the vehicle belt buckle (18) .
ATTENTION! Make sure that the vehicle belt is
not twisted, otherwise the full protective effect
of the restraint system is not given.
2. Snap the buckle into the vehicle seat belt
buckle (18) with a CLICK.
3. Place the diagonal belt (16) and the lap belt
(15) on the side of the vehicle belt buckle
(18) in the light red belt guide (04) of the
seat cushion.
ATTENTION! The vehicle belt buckle (18) must
not lie between the light red belt guide (04)
and the armrest.
Herni
I. General information
• Page 7 •

4. Place the lap belt (15) also on the other side
of the seat cushion in the light red belt guide
(04).
ATTENTION! The lap belt (15) must run as low
as possible over your child‘s hips on both sides.
5. Insert the diagonal belt (16) into the dark red
belt holder (03) of the headrest (22) until it is
completely and untwisted in the belt holder
(03).
TIP! If the backrest covers the belt holder
(03), you can adjust the headrest (22)
upwards. The diagonal belt (16) can now be
easily inserted. Now put the headrest (22)
back to the correct height. Make sure that
the button on the belt holder (03) is
completely closed.
7. Make sure that the diagonal belt (16) runs
over your child‘s collarbone and not against
the neck.
TIP! You can also adjust the height of the
headrest (22) in the vehicle.
ATTENTION! The diagonal belt (16) must run
diagonally to the rear. You can regulate the
course of the belt with the adjustable belt
deflector of your vehicle.
ATTENTION! The diagonal belt (16) must
never lead to the belt deflector on the car. If
this is the case, then only use the child seat in
the back seat.

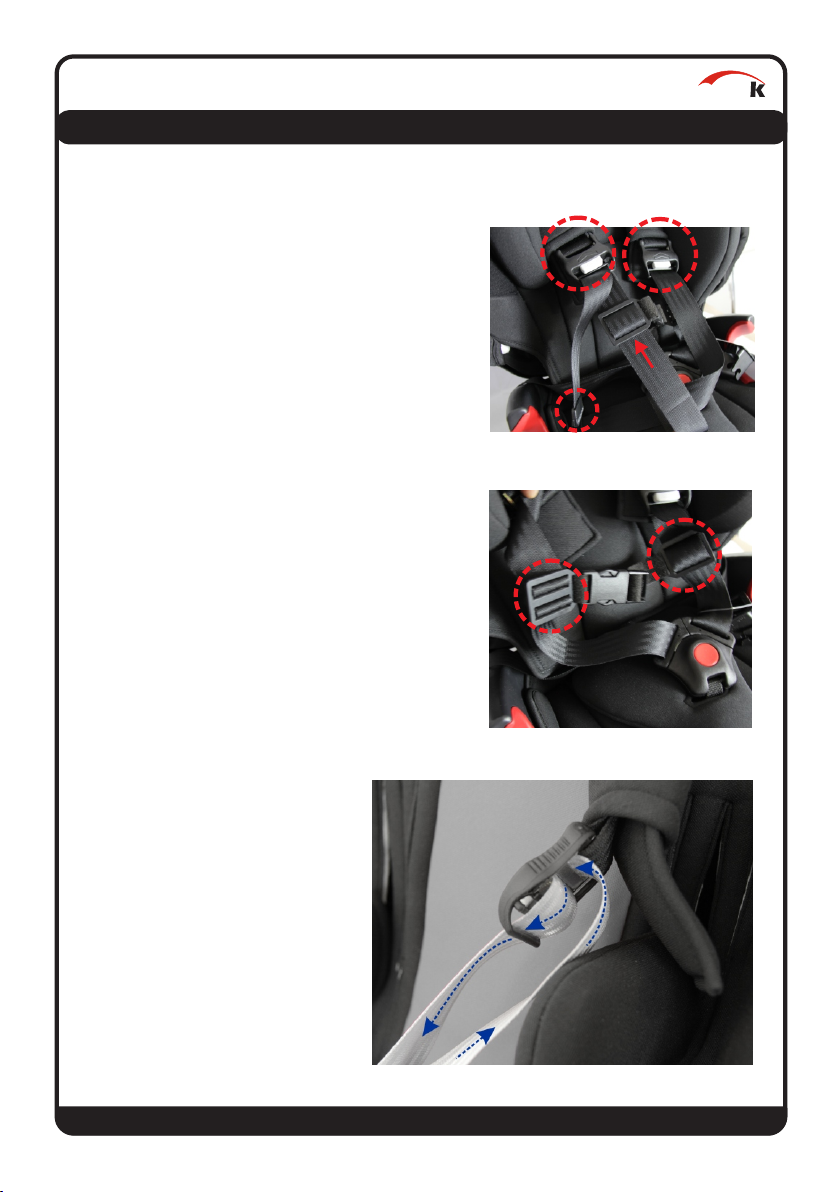

8. Tighten the vehicle belt by pulling the
diaginal belt (16).
Herni
I. General information
• Page 8 •

Herni
II. Safety instructions
· Before use, the components must be checked for perfect function and
condition.
· The user manual must always be carried with the child car seat.
· The safety of your child is only guaranteed if the seat is installed correctly and
if the child is fixed exactly.
· The straps must be laid tight and without twisting.
· The 3-point safety belt is to be guided through the provided belt guides and
is supposed to surround the seat tightly.
Please check:
A) whether the seat belt is securely placed in the belt guide
B) whether the belt buckles are locked correctly
C) that no textiles are clamped
· Make sure that no solid objects like pens, belt buckles, etc. are placed
between the child and the seat belt. This could lead to injuries in the
event of an accident.
· Explain to your child how important it is to be well-secured and that the
course of the straps should not be changed. It shouldn't pull on the
straps, nor open the belt buckles.
· Do not make any changes to the car seat, otherwise you risk your child's
safety.
· The car seat must not be damaged by moving parts in the car or by doors.
· Never leave your child alone in the child car seat.
· Inform your passengers how your child can be taken out of the seat after an
accident.
· After an accident, the entire child car seat has to be renewed.
• Page 9 •

Herni
III. Handling and functions of the basic seat

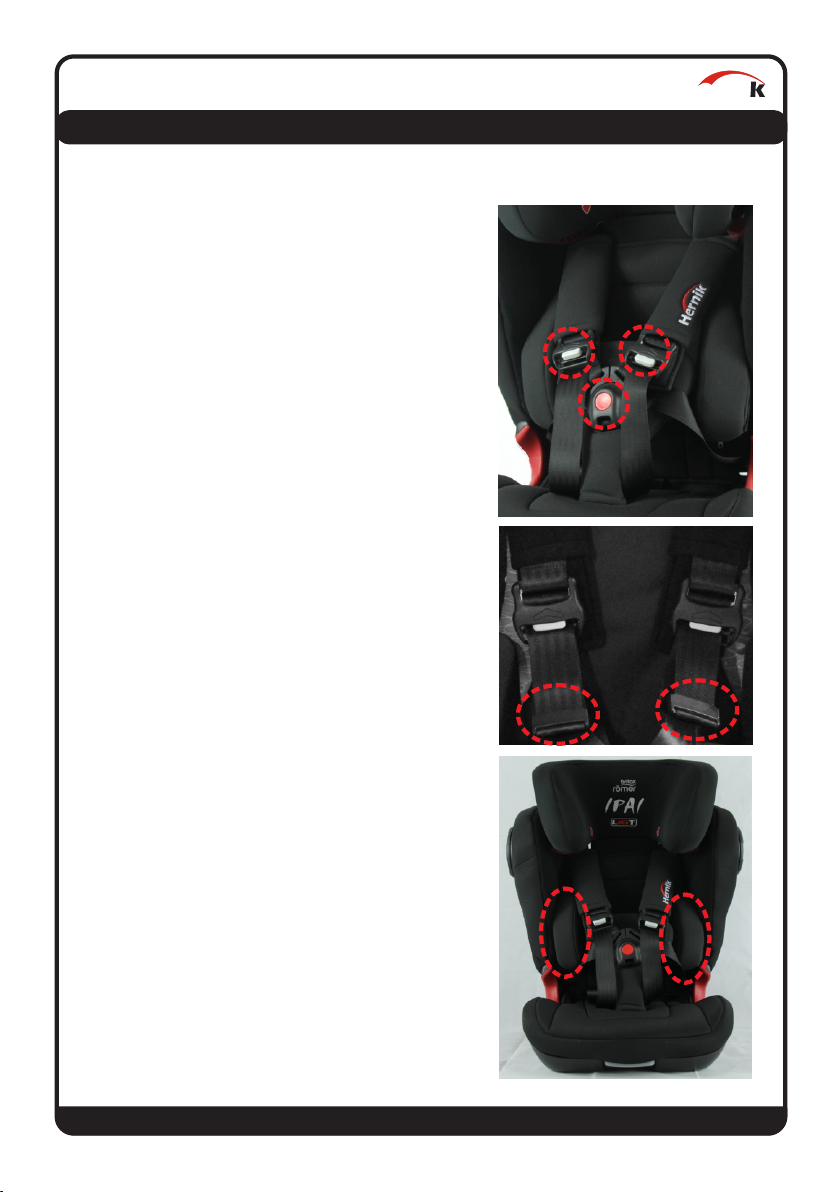

3.1 Adjusting the internal 5-point-belt
First extend the straps by simultaneously
pressing the grey button on the belt adjuster 
and pulling on the straps. Now put the straps
over the child‘s shoulders.
Then insert the two metal tongues into the belt
buckle until they click into place. Then tighten 
the belt system by pulling on the left and right
end of the strap until a stable sitting position 
has been found.
If you want to take the child out of the car seat,
first loosen the belt by pressing the grey button
on the belt adjuster and pulling the straps. 
Then the belt buckle can be opened with a 
firm push on the red round button.
3.2 Positioning of side supports
As standard, the IPAI-LGT is equipped with a pair
of anatomically shaped thorax pads . This can 
support children with poor upper body control
in their posture.
Loosen the thorax pads by pulling gently until
the Velcro connection is released. Since the
inside of the side back guidance was covered
with Velcro elements, a suitable position can
now be found completely freely by fixing it
again with Velcro.
• Page 10 •





Herni
III. Handling and functions of the basic seat
3.3 Adjusting the back angle
If the IPAI-LGT was installed in the car using
ISOFIX, it is possible to pull the seat unit
forward by driving out the ISOFIX tabs . 
Since the back and seat elements are equipped
with a movable joint, the back angle is therefor
opened. Your child has immediately taken a
relaxed position.
Therefor press the grey release handle on 
the front of the seat and pull the seat unit
forward. The back angle openes. For a smaller
angle, any intermediate positions can be
selected.
If later your child wants a more active sitting
position, e.g. after it has slept, you can push the
seat unit backwards in the same way, making
the back angle steeper.
• Page 11 •



4.1 Wedge pillow
Installation instructions:
1. Place the IPAI-LGT on a stable work surface.
2. Now take the wedge pillow as well as the 4 
Velcro strips from the packaging. 
3. First, remove the white protective film of the
Velcro . Make sure the underside of the car
seat is clean - it must be free of dust and
moisture. Now apply the Velcro strips to the
underside of the seat part - see mark 
in figure 3.
4. Now place the wedge pillow exactly on 
the Velcro strips. This prevents the wedge
pillow from shifting later in the car.
5. Turn the IPAI-LGT over again. Now the car
seat can be installed in the car.
INFO! 4 smaller instead of 2 longer Velcro
strips are deliberately included. This is
important if an abduction block is used
as well.
ATTENTION! Please make sure that there is
sufficient head space to the
vehicle roof!
There must be at least a hand
space between the child's head
and the vehicle roof!
Herni
IV. Using the optional accessories
• Page 12 •
fig. 1
fig. 2
fig. 3





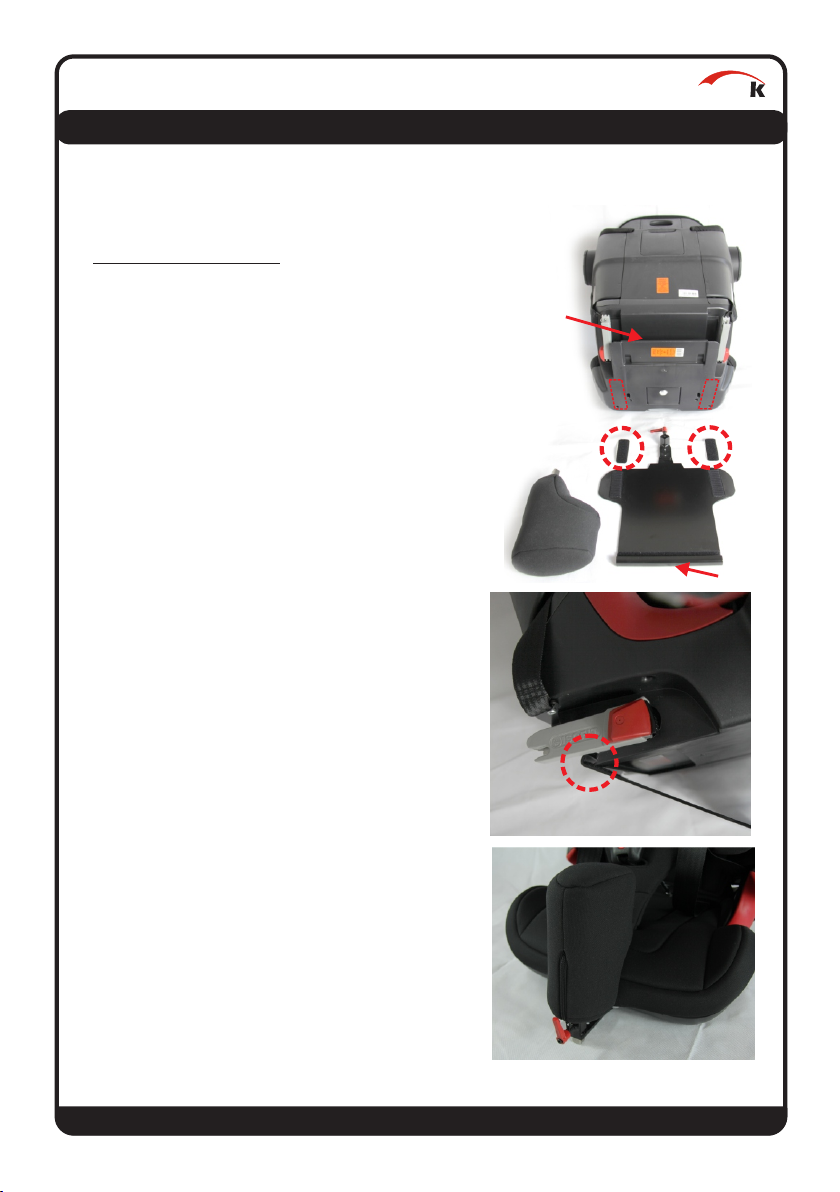

4.2 Abduction block
Installation instructions:
1. Place the IPAI-LGT on a stable work surface.
2. Now take the mounting plate , the two 
Velcro strips , and the abduction block  
out of the packaging.
3. First remove the white protective film from
the two Velcro strips. Make sure, the undersi-
de of the car seat is clean - it must be free of
dust and moisture. Now apply the Velcro
strips to the underside of the seat part - see
marking in figure 1.
4. Now hang in the mounting plate (see figure
2). The U-profile must be placed on the 
plastic edge. The mounting plate must be 
placed flat on the underside of the seat part,
whereby the Velcro strips form a connection.
5. Turn the IPAI-LGT over again. Now the
abduction block can be inserted into the 
holder and fixed using the rocker arm.
TIP! If the abduction block is not used, the 
mounting plate should be removed.
Otherwise there is a risk of injury due to
protruding metal parts.
Herni
IV. Using the optional accessories
• Page 13 •








fig. 1
fig. 2
fig. 3

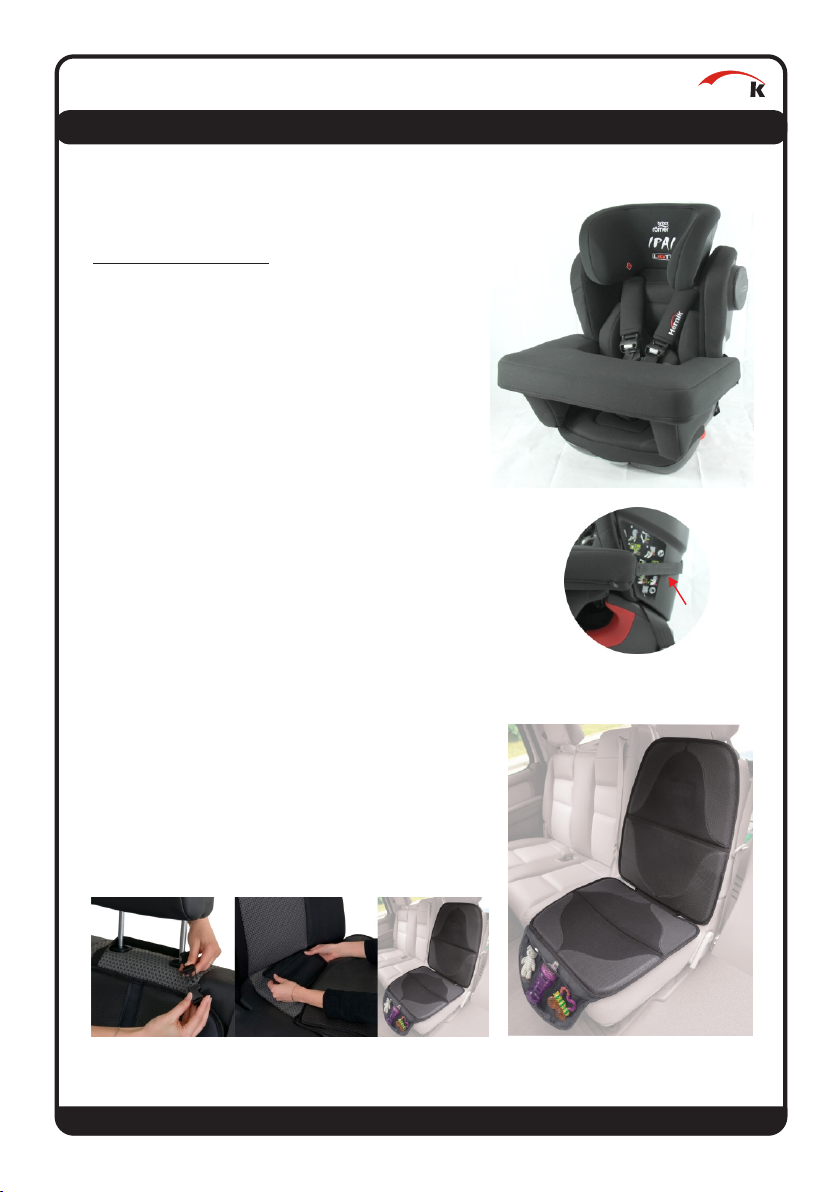

4.3 Security tray
Installation instructions:
1. Let the installation of the security tray be shown
to you at the handover of the car seat.
2. Put the security tray on the car seat after sit-
ting your child into it and strapping it on.
3. Secure the pad, using the supplied Velcro straps
, with fastening them on the back of the car
seat.
4. Your child‘s arms should rest on the table, which
leads to an upright seating position. This supp-
orts the upper body.
5. Make sure, you avoid the risk of toys, which may
be on the upholstery. Do not use hard, solid or
sharpedged objects.
4.4 Protection mat
1. Position the mat on the car seat without
blocking the ISOFIX connectors.
2. Place the IPAI-LGT in the center of the protection
mat and secure it as described in chapter 1.8 to
1.10.
Herni
IV. Using the optional accessories
• Page 14•



4.5 Belts to connect the chest straps
1. Remove the belt end caps . Now thread the 
belts out of the belt adjusters .
2. Now guide the belt through the belt clip as 
shown in figure 2. Position the belt at the
height of your child‘s chest. Keep a sufficient
distance to the neck!
3. Now the belt has to be threaded through the
belt adjusters again. In order to ensure proper
functioning, it is imperative to adhere to the
correct path of the belt - see figure 3.
4. Finally, the previously removed belt end caps 
should be clipped back onto the belt end.
Herni
IV. Using the optional accessories
• Page 15 •


fig. 1
fig. 2
fig. 3


Herni
V. Guarantee
Hernik products are designed and manufactured in accordance with strict quality
standards. If, in exceptional circumstances, you have cause for complaint, Hernik
GmbH guarantees, in accordance with the terms and conditions of delivery:
• 24 months warranty on all solid parts from date of delivery.
• 12 months warranty on all moving parts from date of delivery.
For parts that were not manufactured by Hernik GMBH, please refer to the
warranty policy of the respective manufacturer (Römer-Britax Kindersicherheit
GmbH).
No guarantee can be given for special constructions, unless this is due to
manufacturing or material defects. Here the replacement of the objectionable
product is granted for 12 months.
Claims under this guarantee are subject to the device being properly installed and
used in accordance with the instructions provided.
Warranty is void where modifications or improper repairs, without prior
consultation with the manufacturers are carried out. Warranty is void where a
device is improperly fitted.
Further claims, for whatever legal reason, in particular claims for direct or indirect
damages are excluded.
You will find the following identification on the back:
• Page 16 •
VI. Labeling
Partenhauserweg 14 • 81369 München • Germany
SN: IPAI-LGT-2020-9999
IPAI-LGT (36 kg)
Lesen Sie bitte vor Gebrauch die Bedienungsanleitung!
Herni GmbH
Rückhalteeinrichtung f. spez. Anforderungen „S“

7.1 Pulling of the cover
Please ensure that you only use original BRITAX-
RÖMER or HERNIK replacement seat covers, as
the seat cover is an integral part of the child
safety seat and fulfills important functions to
ensure the perfect functioning of the seat.
Replacement seat covers are available from your
dealer.
• The cover can be removed and washed with a
mild detergent in the fine washing program of
the washing machine (30 ° C). Please refer to
the instructions on the washing label of the
cover.
• The plastic parts can be cleaned with soap
and water. Do not use harsh cleaning material
(such as solvents).
ATTENTION! The child safety seat must not be
used without the seat cover.
Seat cover:
1. Move the headrest of the car seat to its uppermost
position.
2. Unhook the hooks (19) on the back of the backrest.
3. Pull off the upper part of the cover and fold it
forward onto the seat.
4. Now unhook the hooks (19) on the front of the
backrest and the seat on both sides and release the
plastic cards on the front of the seat cushion.
5. Pull the cover off the seat.
Headrest cover:
1. Unhook the cover loops (20) on the back of the
backrest.
2. Unhook the cover hooks (19) on the front of the
backrest.
3. Pull off the cover of the headrest (22). To do this,
unhook both hooks on the underside of the
headrest.
Herni
VII. Maintenance & product care
• Page 17 •

Herni
• Page 18 •

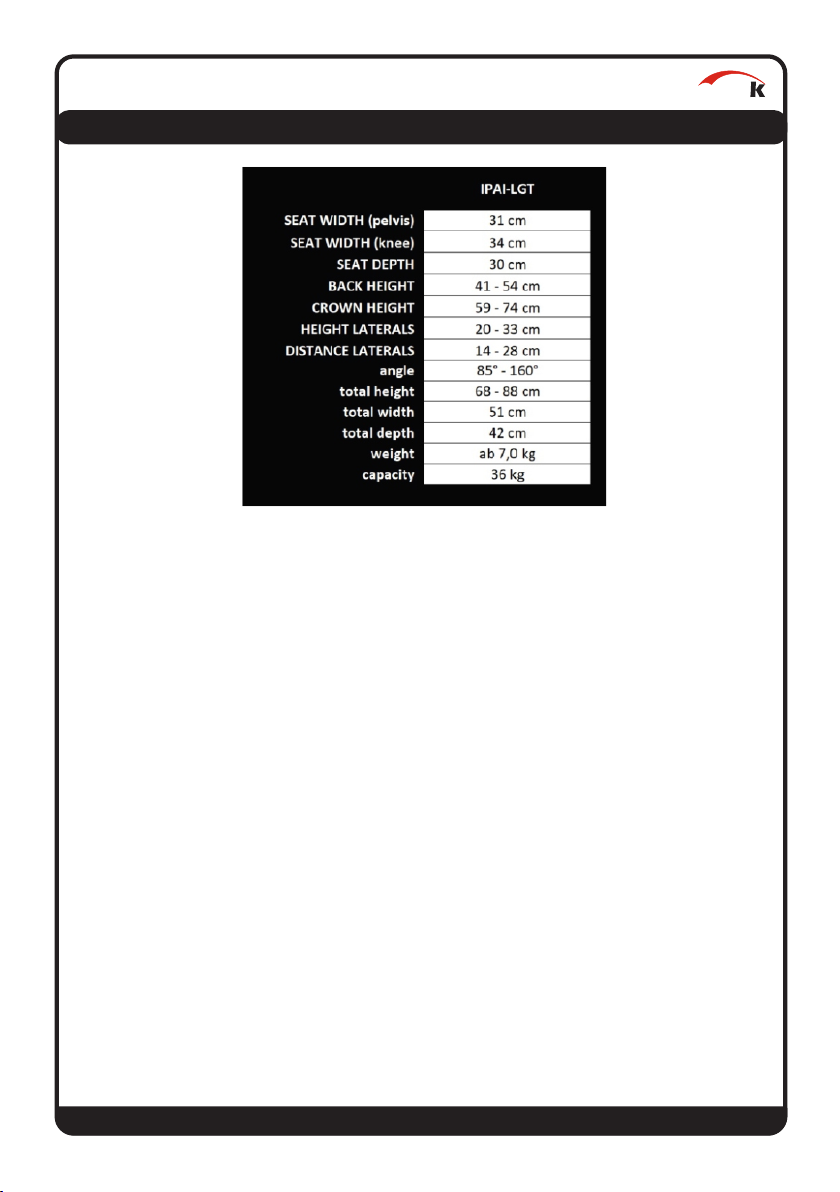

Standard equipment:
• 5-point-harness with upholstery, height adjustable
• ISOFIX adapter, adjustable
• head rest, height adjustable
• side impact protection SICT
• three parts, removable and breathable cover (washable at 30 °C)
• side supports, height adjustable
VIII. Technical characteristics

Herni
• Seite 13 •
HERNIK GmbH
Bodenseestrasse 25
83059 Kolbermoor • Germany
 [phone] •  [phone]
 [email protected] •  www.hernik.de
