■ BASIC OPERATION
when the unit is turned on, starting and stopping the engine with its
volume raised to the maximum level may cause hearing damage.
Make sure you adjust the volume in advance.
Power On/Off
Note:
- Start the engine before using this unit.
- Be careful about using this unit for a long time without running the engine.
- If you drain the vessel ba ttery, you may not be able to start the engine and this
can reduce the service life of the battery.
1. Start the engine.
@I Engine ON position
2. Press C) to turn the unit ON.
■ INSTALLATION
P"\ .. I IP
1
1.This device is exclusively for use in vessels with a
negative ground 12/24 V power supply.
2. Read these instructions carefully.
3.Makesure the battery"-" terminal is disconnected before starting.
This is to prevent shortcircuits duringinstallation.(Figure 1)
I I
1.In order to avoid any interference, do not install the unitin the proximity of the
engine compartment.
2. The use of unauthorized parts can cause permanent damage to the unit.
Figure 1
3. Always check your wire connections to ensure proper installation before turning the unit on .
4.Consult with your nearestdealer for proper installation or if otheraccessories
are needed to complete the installation.
5.Seek assistance if modifications or drilling holes to your vessel is needed.
6. Do not install the unit where it will be subjected to excessive moisture, dust, dirt,
foreign particles or vibration. Areas of high temperature from the engine, direct
sunlight, or heatsources should also be avoided.
7. Do not install the unit in a location where it will interfere with thevessel operation,
or it will injure the passengers if there is a sudden or emergency stop.
Information on el ectrical and electronic equipment waste (for those European countries w hich organize the separate
collection of waste)
Produc ts which are marked wi th a wheeled bin wi th an X through it can not be disposed of together with ordinary domestte waste.
These electrical and electron te products must be recycled in proper facilities, capable of managing the disposal of these products and
components. In order to know whereand how to deliver theseproducts to the nearestrecycling/ disposal site please contactyourlocal
municipal office. Recycling and disposing of waste in a proper way contributes to the protection of the environment and to prevent
harmf uleffectsonhealth.

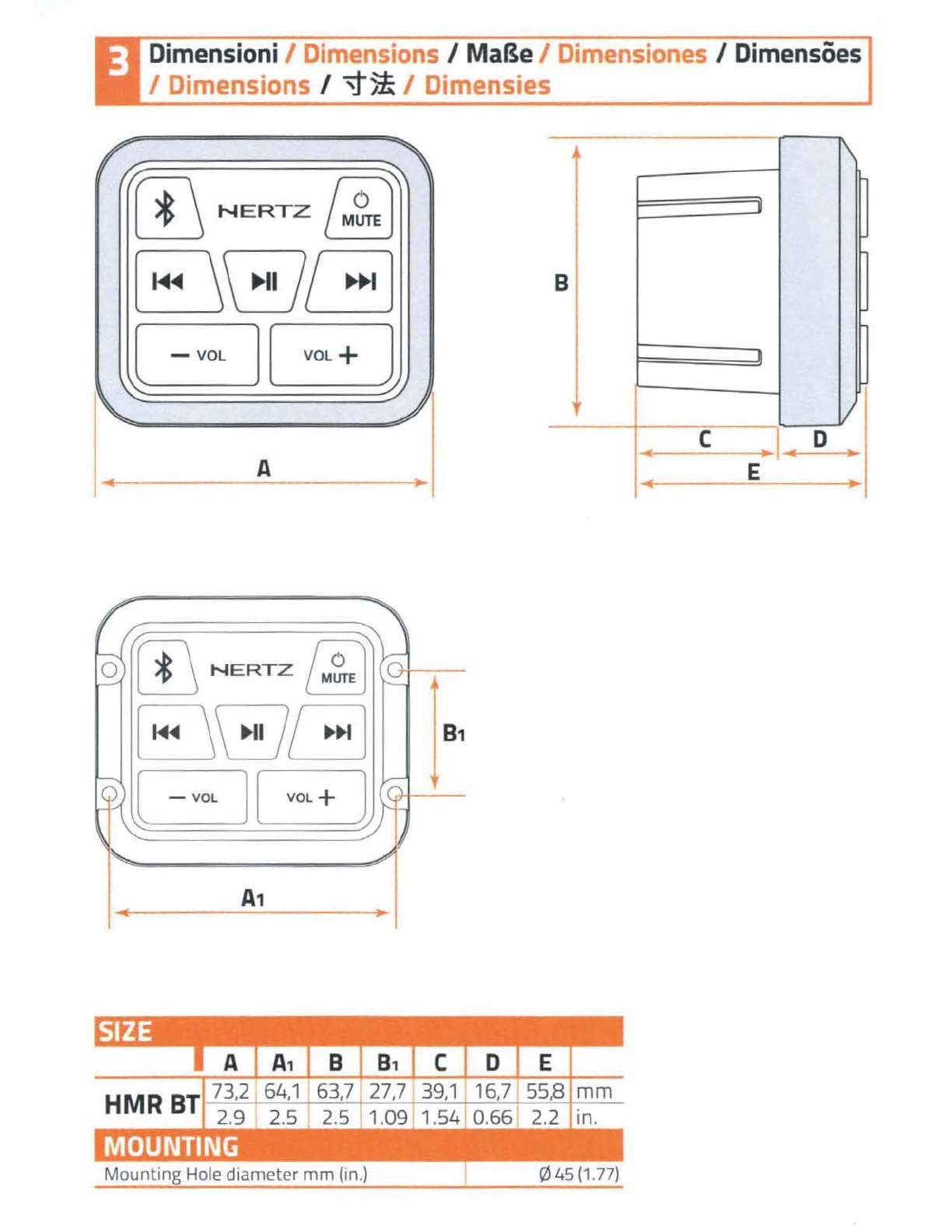

Dimensioni / Dim • ns / MaBe Dimensiones / Dimensoes
/ Dimensions / ~)! / Dimens1e
(TI NERTZ / M?n.]
EJ0G
GB
A
0 * NERTZ M~E
80G
-VOL VOL+
A1
B1
'
'\
I
B
I
1'
V
-
C D
E

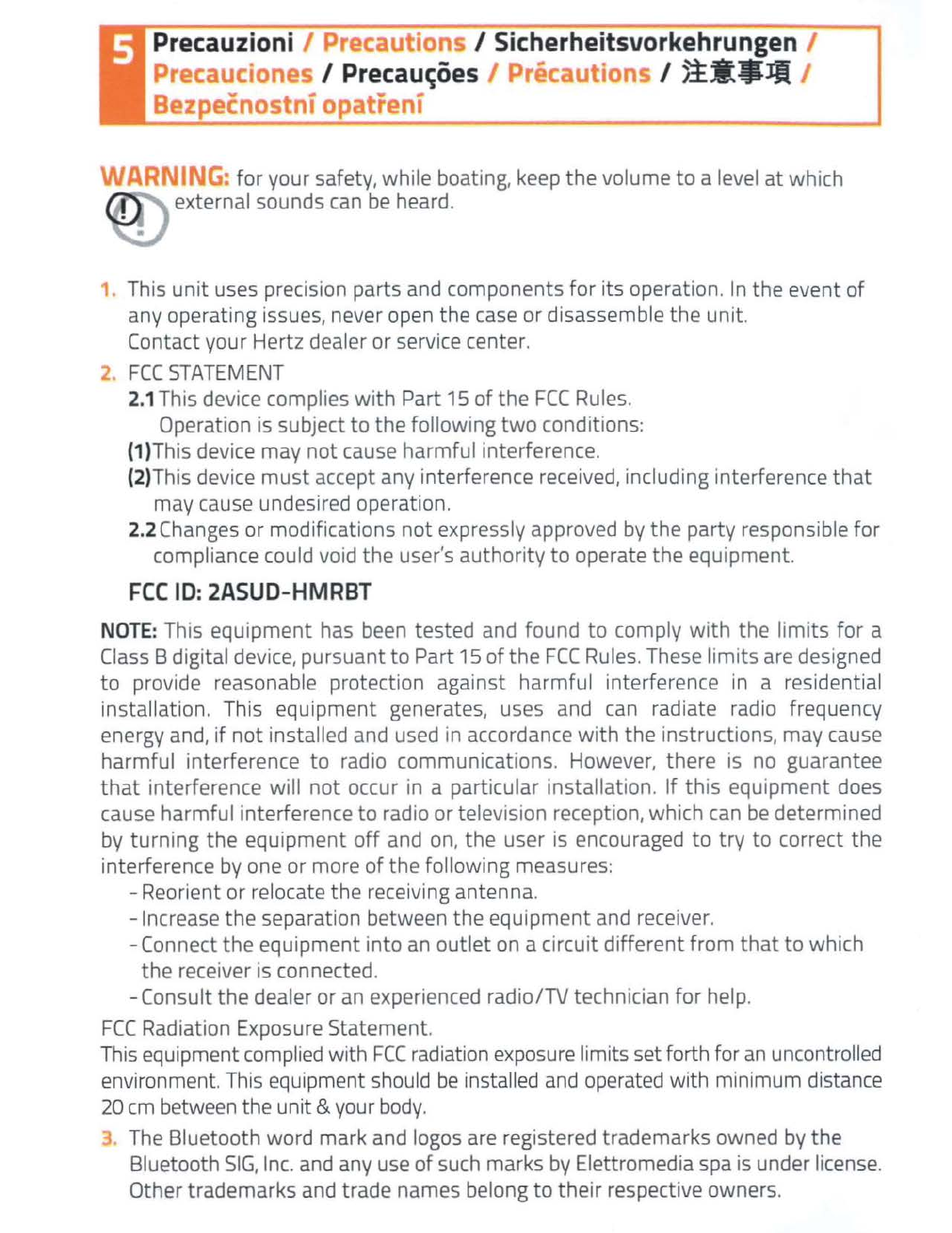

Precauzioni / Pree • i / Sicherheitsvorkehrungen I
Precaucion s/ Precau,;oes / Pr c on / fttSJl
Bez ecnostni opatren,
• for yoursafety, while boating, keep the volume to a level at which
external sounds can be heard.
This unit uses precision parts and components for its operation. In the event of
any operating issues, neveropen the case or disassemble the unit.
Contact your Hertz dealeror service center.
FCC STATEMENT
2.1This device complies with Part15 of the FCC Rules.
Operation is subject to the following two conditions:
(1)This device may not cause harmful interference.
(2)This device must accept any interference received, including interference that
may cause undesired operation.
2.2Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
FCC ID: 2ASUD-HMRBT
NOTE: This equipment has been tested and found to comply with the limits for a
Class Bdigital device, pursuant to Part 15 of the FCC Rules. These limitsare designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio ortelevision reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit differentfrom that to which
the receiver is connected.
-Consult the dealer oran experienced radio/TV technician for help.
FCC Radiation Exposure Statement.
This equipmentcomplied with FCC radiation exposure limitssetforth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance
20 cm between the unit& your body.
The Bluetooth word mark and logos are registered trademarks owned by the
Bluetooth SIG, Inc. and any use of such marks by Elettromediaspa is underlicense.
Othertrademarks and trade names belong to their respective owners.

I. IC warning
This device complies with Industry Canada's license-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1 )This device may not cause interference
(2) This device must accept any interference, including interference that may
cause undesired operation of the device.
This Class Bdigital apparatus complies with Canadian ICES-0003.
Le presentappareil est conformeaux CNR d'lndustrieCanada applicables auxappareils
radio exempts de licence.
L'explo1tation est autorisee aux deux conditions suivantes:
(1) 1'appareil ne doit pas produire de brouillage
(2) l'utilisateurde l'appareil doitaccepter tout brouillage radioelectrique subi, meme
s1 le brouillage est susceptible d'en compromettre le fonctionnement.
This equipmentcomplies with IC radiation exposure limitsset forth for an uncontrolled
environment. The antenna should be installed and operated with minimum distance
of 20cm between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
Cet appareil est conforme aux limites d'exposition aux rayonnements de la IC pour
un environnement non contr61e. L'antenne doit etre installe de fa~on agarder une
distance minimalede 20 centimetres entre la source de rayonnements et votre corps.
L'emetteur ne doit pas etre colocalise ni fonctionner conjointement avec aautre
antenne ou autre emetteur.
' Ir r changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
IC ID: 24882-HMRBT

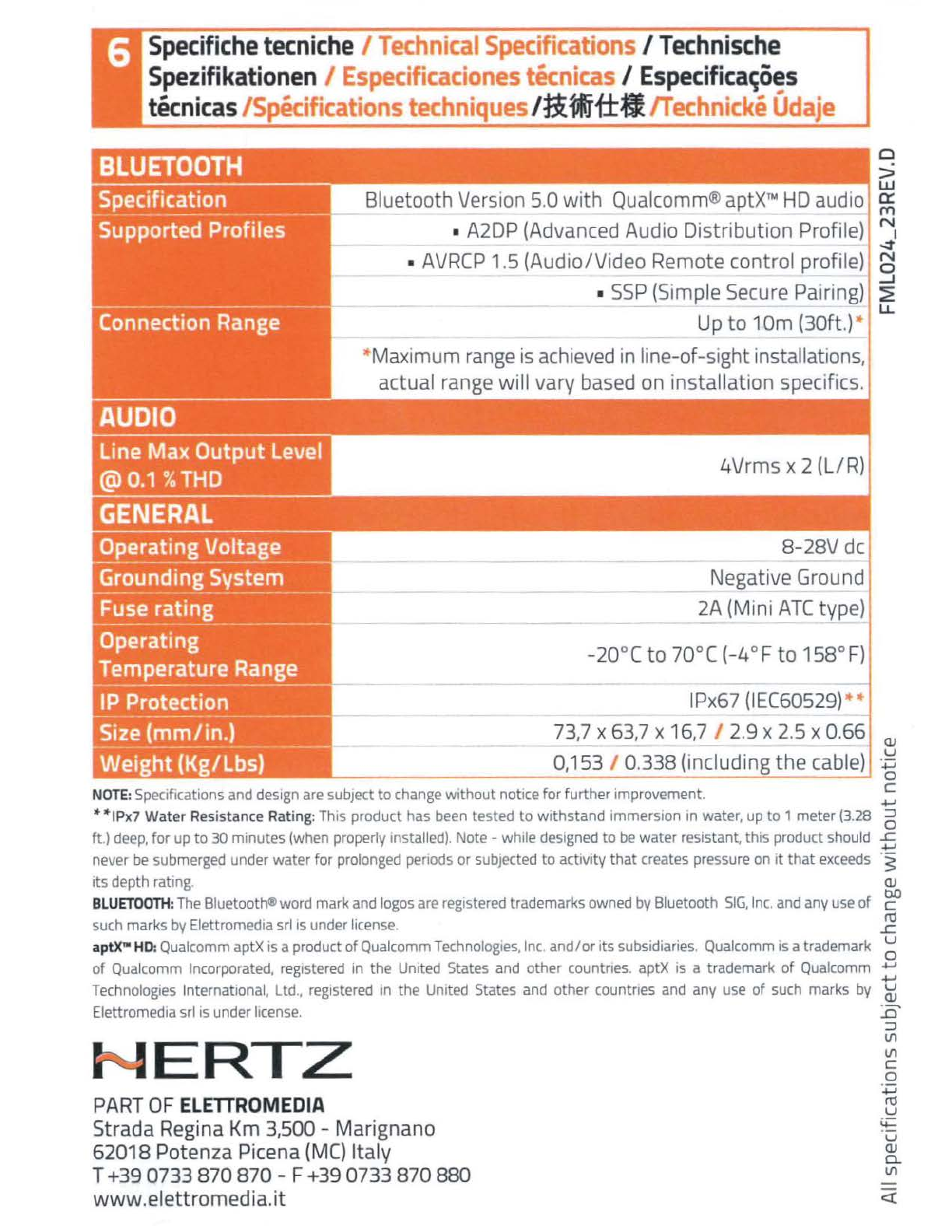

• Specifiche tecniche / Technical Specifications / Technische
Spezifikationen I Especificaciones r· ica / Especifica~oes
tecnicas ,s1£.· cations technique lttffif.t- /Te .. Udaje
Cl
>
LU
Bluetoo th Version 5.0 wi th Qua lcomm®aptX™ HD audio ~
: ~ine Max Output Level ,
@i0 .1 %T 1 HD
■ A2DP (Advanced Audio Distribution Profile) N ,
~
■ AVRCP 1.5(Audio/Video Remote control profile)! ~
-'
■ SSP (S imple Se cure Pairing) ~
LL
Up to 10m (30ft .) I
Maximum range is ach i eved in line-of-sight installations,
actual range will vary based on installation specific s.
4Vrms x 2 (L/ R)
8-28V de
Negative Ground
2A (Mini ATC type)
-20 °( to 70°( (-4 °F to 158° F) I
I
1Px6 7 (IEC60529) I
73 ,7 X 63 ,7 X 16,7 2.9 X 2.5 X 0. 66] QJ
____ o_,153 I 0.338(including the cable)I·~
C
NOT E:Specifications anddesign are subject to change without notice for furtherimprovement.
+-'
* ""IP x7 Wat er Resis t ance Ra tin g: This product has been tested to withs tand immersion in water,up to 1 meter(3.28 g
ft .) deep, for up to 30 minutes(when properly install ed). Note -while designed to be water resistant, this product should .c
+-'
never be submerged underwater for prolonged periods or subjected to activity t hat creates pressure on 1t that exceeds -~
its depth rating w
BLUET00TH :The Bluetooth®word markand logosare registered trademarks owned by Bluetooth SIG, Inc. and any use of ~
such ma rks byElettromed1asrl 1s under license. Jg
ap tX"' HD :Qualcomm aptX isa product of QualcommTechnologies,Inc. and/or itssubsidiaries. Qualcomm is a trademark ~
of Qualcomm Incorporated, registered in the United States and other countries. apt X 1s a trademark of Qualcomm ..,
+-'
Technologies International, Ltd ., registered in the United States and other countries and any use of such marks by ~
Elettromedia srl is underlicense. :O
PART OF ELETTROMEDIA
Strada Regina Km 3,500 -Marignano
62018 Potenza Picena (MC) It aly
T+39 0733870 870 - F+39 0733870880
www .el ettrom edia.it
