Hewlett Packard Enterprise Synergy 480 Gen10 Manual

HPE Synergy 480 Gen10 Compute Module Maintenance
and Service Guide
Part Number: 876832-008
Published: July 2020
Edition: 8
Abstract
This document is for the person who installs, administers, and troubleshoots the HPE Synergy system. Hewlett Packard
Enterprise assumes you are qualified in the servicing of computer equipment and trained in recognizing hazards in
products with hazardous energy levels.

©Copyright 2017-2020 Hewlett Packard Enterprise Development LP
Notices
The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise
products and services are set forth in the express warranty statements accompanying such products and services.
Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable
for technical or editorial errors or omissions contained herein.
Confidential computer software. Valid license from Hewlett Packard Enterprise required for possession, use, or copying.
Consistent with FAR 12211 and 12212, Commercial Computer Software, Computer Software Documentation, and
Technical Data for Commercial Items are licensed to the U.S. Government under vendor's standard commercial license.
Links to third-party websites take you outside the Hewlett Packard Enterprise website. Hewlett Packard Enterprise has no
control over and is not responsible for information outside the Hewlett Packard Enterprise website.
Acknowledgments
Intel®, Itanium®, Optane™, Pentium®, Xeon®, Intel Inside®, and the Intel Inside logo are trademarks of Intel Corporation
in the U.S. and other countries.
Microsoft®and Windows®are either registered trademarks or trademarks of Microsoft Corporation in the United States
and/or other countries.
Adobe®and Acrobat®are trademarks of Adobe Systems Incorporated.
Java®and Oracle®are registered trademarks of Oracle and/or its ailiates.
UNIX®is a registered trademark of The Open Group.
All third-party marks are property of their respective owners.

Contents
Illustrated parts catalog...................................................................................................6
Mechanical components.............................................................................................................................................................................................. 6
Access panel spare part..............................................................................................................................................................................6
SFF drive blank spare part........................................................................................................................................................................7
DIMM bale spare parts.............................................................................................................................................................................7
Front panel/drive cage assembly spare parts............................................................................................................................... 7
Rear heatsink blank spare part.............................................................................................................................................................. 7
Compute module end cap spare part................................................................................................................................................. 7
Mezzanine assembly spare part............................................................................................................................................................ 7
System components.......................................................................................................................................................................................................7
System battery spare part........................................................................................................................................................................ 8
DIMM spare parts...........................................................................................................................................................................................8
HPE 16GB NVDIMM spare part.............................................................................................................................................................9
HPE Persistent Memory module spare parts.................................................................................................................................9
Processor heatsink spare parts..............................................................................................................................................................9
System board spare parts...................................................................................................................................................................... 10
Drive backplane spare parts................................................................................................................................................................. 10
First Generation Intel Xeon Scalable Processor spare parts..............................................................................................10
Second-Generation Intel Xeon Scalable Processor spare parts.......................................................................................12
Compute module options.........................................................................................................................................................................................14
M.2 SSD adapter board spare part....................................................................................................................................................15
M.2 flash drive spare parts.................................................................................................................................................................... 15
HPE Trusted Platform Module 20 spare part...........................................................................................................................16
Energy pack options..................................................................................................................................................................................16
Mezzanine option spare parts............................................................................................................................................................. 16
HPE Synergy Internal SATA board spare part.......................................................................................................................... 17
Drive spare parts......................................................................................................................................................................................... 17
USB and microSD option spare parts.............................................................................................................................................. 22
Storage controller spare parts.............................................................................................................................................................22
Customer self repair....................................................................................................... 23
Removal and replacement procedures........................................................................32
Required tools.................................................................................................................................................................................................................32
Safety considerations.................................................................................................................................................................................................32
Preventing electrostatic discharge................................................................................................................................................... 32
Compute module warnings and cautions......................................................................................................................................32
Symbols on equipment............................................................................................................................................................................ 32
Preparing the compute module............................................................................................................................................................................33
Powering down the compute module ............................................................................................................................................ 34
Removing the compute module..........................................................................................................................................................34
Installing the compute module............................................................................................................................................................35
Removing and replacing an access panel.......................................................................................................................................................37
Removing and replacing a drive blank.............................................................................................................................................................37
Removing and replacing a drive...........................................................................................................................................................................38
Removing and replacing an SFF flash adapter............................................................................................................................................39
3

Removing and replacing a compute module end cap............................................................................................................................. 39
Removing and replacing the front panel/drive cage assembly......................................................................................................... 40
Removing and replacing the M.2 SSD adapter board and flash drive ..........................................................................................41
Removing and replacing a mezzanine option card...................................................................................................................................42
Removing and replacing a heatsink blank..................................................................................................................................................... 43
Removing and replacing DIMM bales............................................................................................................................................................ 44
DIMM-processor compatibility..............................................................................................................................................................................44
Removing and replacing DIMMs.........................................................................................................................................................45
Removing and replacing an NVDIMM...............................................................................................................................................................46
NVDIMM-processor compatibility..................................................................................................................................................... 47
DIMM and NVDIMM population information.............................................................................................................................. 47
NVDIMM sanitization................................................................................................................................................................................ 47
NVDIMM relocation guidelines............................................................................................................................................................48
Recovering restored data from an NVDIMM-N DRAM......................................................................................................... 48
Configuring the compute module for NVDIMMs .....................................................................................................................49
Removing and replacing an HPE Persistent Memory module............................................................................................................49
HPE Persistent Memory module-processor compatibility..................................................................................................51
Configuring the compute module for HPE Persistent Memory....................................................................................... 51
HPE Persistent Memory module relocation guidelines.........................................................................................................51
HPE Persistent Memory module sanitization.............................................................................................................................52
HPE Smart Storage Battery....................................................................................................................................................................................53
HPE Smart Storage Hybrid Capacitor.............................................................................................................................................................. 53
Minimum firmware versions..................................................................................................................................................................54
Removing and replacing the Energy pack option....................................................................................................................54
Removing and replacing a storage controller..............................................................................................................................................54
Removing and replacing the drive backplane..............................................................................................................................................55
Removing and replacing the internal SATA board................................................................................................................................... 56
Removing and replacing the system battery................................................................................................................................................57
Removing and replacing the mezzanine assembly...................................................................................................................................58
Removing and replacing the system board...................................................................................................................................................59
Re-entering the server serial number and product ID...........................................................................................................62
Unassigning a server profile using HPE OneView................................................................................................................... 63
Reassigning a server profile using HPE OneView....................................................................................................................63
Migrating a processor-heatsink assembly to a replacement system board............................................................. 63
HPE Trusted Platform Module 20 Gen10 Option....................................................................................................................................66
Dual 8Gb microSD Enterprise Midline USB device....................................................................................................................................66
Component identification..............................................................................................67
Front panel components...........................................................................................................................................................................................67
Serial label pull tab information..........................................................................................................................................................67
Front panel LEDs and buttons..............................................................................................................................................................................68
Drive numbering............................................................................................................................................................................................................69
Smart Carrier (SC) drive LED definitions........................................................................................................................................................70
SFF flash adapter components and LED definitions................................................................................................................................71
Smart Carrier NVMe (SCN) drive LED definitions..................................................................................................................................... 72
System board components..................................................................................................................................................................................... 73
System maintenance switch..................................................................................................................................................................74
Processor, heatsink, and socket components.............................................................................................................................75
Mezzanine connector definitions....................................................................................................................................................... 75
DIMM slot locations....................................................................................................................................................................................76
DIMM label identification........................................................................................................................................................................76
NVDIMM identification.............................................................................................................................................................................78
NVDIMM LED identification..................................................................................................................................................................79
HPE Persistent Memory module label identification..............................................................................................................81
4

Enterprise Midline USB............................................................................................................................................................................81
LEDs....................................................................................................................................................................................................................82
Component and LED identification for HPE Synergy hardware.......................................................................................................82
Cabling.............................................................................................................................. 83
Cabling resources......................................................................................................................................................................................................... 83
Energy pack option cabling.................................................................................................................................................................................... 83
P416ie-m Smart Array Controller cabling......................................................................................................................................................83
Specifications...................................................................................................................85
Compute module environmental specifications..........................................................................................................................................85
Compute module physical specifications........................................................................................................................................................85
HPE Synergy documentation resources......................................................................86
HPE Synergy firmware update resources...................................................................................................................................................... 87
HPE Synergy document overview (documentation map)....................................... 89
Acronyms and abbreviations........................................................................................91
Websites............................................................................................................................92
Support and other resources........................................................................................ 93
Accessing Hewlett Packard Enterprise Support.........................................................................................................................................93
Accessing updates....................................................................................................................................................................................................... 93
Remote support.............................................................................................................................................................................................................94
Warranty information................................................................................................................................................................................................. 94
Regulatory information............................................................................................................................................................................................. 94
Documentation feedback......................................................................................................................................................................................... 95
5

Illustrated parts catalog

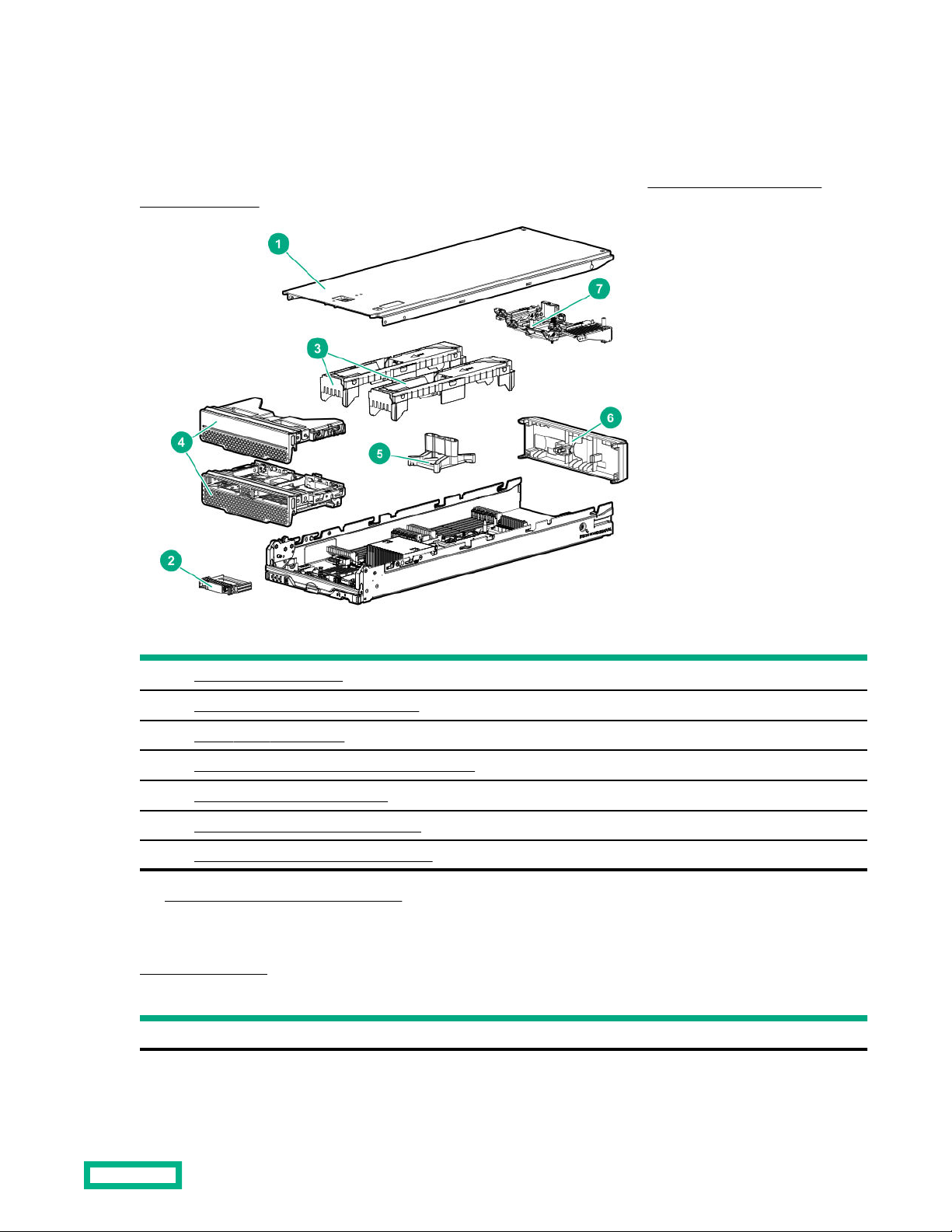

Mechanical components
Hewlett Packard Enterprise continually improves and changes product parts. See the Hewlett Packard Enterprise
PartSurfer website for complete and current supported parts information.
Item Description
1Access panel spare part
2SFF HDD blank assembly spare part
3DIMM bale spare parts
4Front panel/drive cage assembly spare parts
5Rear heatsink blank spare part
6Compute module end cap spare part
7Mezzanine frame assembly spare part
See Removal and replacement procedures for more information.
Access panel spare part
Customer self repair: mandatory
Description Spare part number
Access panel 873077-001
Illustrated parts catalog 6

SFF drive blank spare part
Customer self repair: mandatory
Description Part number
SFF drive blank 670033-001
DIMM bale spare parts
Customer self repair: mandatory
Description Spare part number
DIMM bales 873078-001
Front panel/drive cage assembly spare parts
Customer self repair: mandatory
Description Spare part number
Front panel/drive cage assembly, standard 873079-001
Front panel/drive cage assembly, no drives 830892-001
HPE Synergy 480 Gen10 pull tab 873074-001
Rear heatsink blank spare part
Customer self repair: mandatory
Description Spare part number
Rear heatsink blank 873080-001
Compute module end cap spare part
Customer self repair: mandatory
Description Spare part number
Compute module end cap 813579-001
Mezzanine assembly spare part
Customer self repair: mandatory
Description Spare part number
Mezzanine assembly 801369-001
System components
Hewlett Packard Enterprise continually improves and changes product parts. See the Hewlett Packard Enterprise
PartSurfer website for complete and current supported parts information.
Illustrated parts catalog 7

Item Description
1System battery spare part
2DIMM spare parts
HPE 16GB NVDIMM spare part
HPE Persistent Memory module spare parts
3Processor heatsink spare parts
4Drive backplane spare parts
5Processor spare parts
See Removal and replacement procedures for more information.
System battery spare part
Customer self repair: optional
Description Spare part number
System battery 234556-001
DIMM spare parts
Customer self repair: mandatory
Table 1: 2666 MT/s DIMMs
Description Spare part number
8-GB, 1Gx8, PC4-2666V-R 850879-001
16-GB, 2Gx4, PC4-2666V-R 850880-001
16-GB, 1Gx8, PC4-2666V-R 868846-001
Table Continued
Illustrated parts catalog 8

Description Spare part number
32-GB, 2Gx4, PC4-2666V-L 850881-001
64-GB, 2Gx4, PC4-2666V-L 850882-001
128-GB, 2Gx4, PC4-2666V-L 850883-001
Table 2: 2933 MT/s DIMMs
Description Spare part number
8-GB, 1Rx8, PC4-2933Y-R P06186-001
16-GB, 1Rx4 PC4-2933Y-R P06187-001
16-GB, 2Rx8 PC4-2933Y-R P06188-001
16-GB, 1Gx8, PC4-2933Y-R, SAM P12416-001
32-GB, 2Rx4 PC4-2933Y-R P06189-001
32-GB, 2Gx4, PC4-2933Y-R, SAM P12417-001
64-GB, 4Rx4 PC4-2933Y-L P06190-001
64-GB, 2Rx4 PC4-2933Y-R P06192-001
64-GB, 4Gx4, PC4-2933Y-R, SAM P12418-001
128-GB, 8Rx4 PC4-2933Y-L 3DS P06191-001
HPE 16GB NVDIMM spare part
Customer self repair: mandatory
Description Spare part number
NVDIMM 16GB 1Rx4 NN4-2666V-R 874540-001
HPE Persistent Memory module spare parts
Customer self repair: mandatory
Description Spare part number
HPE Persistent Memory module, 128 GB 844071-001
HPE Persistent Memory module, 256 GB 844072-001
HPE Persistent Memory module, 512 GB 844073-001
Processor heatsink spare parts
Customer self repair: no
Description Spare part number
Front processor heatsink (processors 1 and 2) 873081-001
Rear processor heatsink (processors 3 and 4) 873082-001
Illustrated parts catalog 9

System board spare parts
Customer self repair: optional
Description Spare part number
System board with base pan, compatible with First
Generation Intel Xeon Scalable Processors
870841-001
System board with base pan, compatible with Second
Generation Intel Xeon Scalable Processors
P08271-001
Drive backplane spare parts
Customer self repair: mandatory
Description Spare part number
Standard drive backplane 873075-001
Premium drive backplane 873076-001
First Generation Intel Xeon Scalable Processor spare parts
Customer self repair: no
All Intel Xeon processors in this HPE ProLiant server must have the same cache size, speed, number of cores, and rated
maximum power consumption.
Table 3: 31XX processors
Description Spare part number
Xeon-B 31046c 17-GHz 85W 875709-001
Table 4: 41XX processors
Description Spare part number
Xeon-S 41108c 21-GHz 85W 875711-001
Xeon-S 41124c 26-GHz 85W 875714-001
Xeon-S 411410c 22-GHz 85W 875713-001
Xeon-S 411612c 21-GHz 85W 875716-001
Table 5: 51XX processors
Description Spare part number
Xeon-G 511510c 24-GHz 85W 878082-001
Xeon-G 511812c 23-GHz 105W 875717-001
Xeon-G 512014c 22-GHz 105W 875718-001
Xeon-G 51224c 36-GHz 105W 875719-001
Illustrated parts catalog 10

Table 6: 61XX processors
Description Spare part number
Xeon-G 612612c 26-GHz 125W 875720-001
Xeon-G 61286c 34-GHz 115W 875721-001
Xeon-G 613016c 21-GHz 125W 874736-001
Xeon-G 613214c 26-GHz 133W 875722-001
Xeon-G 61348c 32-GHz 130W 875723-001
Xeon-G 613612c 30-GHz 150W 875724-001
Xeon-G 613820c 20-GHz 125W 874735-001
Xeon-G 614018c 23-GHz 140W 874734-001
Xeon-G 6140M 18c 23-GHz 140W 878084-001
Xeon-G 614216c 26-GHz 150W 874733-001
Xeon-G 6142M 16c 26-GHz 150W 878085-001
Xeon-G 614316c 28-GHz 205W 882169-001
Xeon-G 61448c 35-GHz 150W 875725-001
Xeon-G 614612c 32-GHz 165W 875726-001
Xeon-G 614820c 24-GHz 150W 874732-001
Xeon-G 615018c 27-GHz 165W 874731-001
Xeon-G 615222c 21-GHz 140W 874730-001
Xeon-G 615418c 30-GHz 200W 875727-001
Table 7: 81XX processors
Description Spare part number
Xeon-P 815316c 20-GHz 120W 875728-001
Xeon-P 81564c 36-GHz 105W 875732-001
Xeon-P 815812c 30-GHz 150W 875733-001
Xeon-P 816024C 21-GHz 150W 874729-001
Xeon-P 8160M 24c 21-GHz 150W 878086-001
Xeon-P 816426c 20-GHz 150W 875729-001
Xeon-P 816524c 23-GHz 205W P00868-001
Xeon-P 816824c 27-GHz 205W 875730-001
Xeon-P 817026c 21-GHz 165W 874728-001
Xeon-P 8176M 28c 21-GHz 165W 878088-001
Xeon-P 817628c 21-GHz 165W 874727-001
Table Continued
Illustrated parts catalog 11

Description Spare part number
Xeon-P 818028c 25-GHz 205W 875731-001
Xeon-P 8180M 28c 25-GHz 205W 878089-001
Second-Generation Intel Xeon Scalable Processor spare parts
Customer self repair: no
All Intel Xeon processors in this HPE ProLiant server must have the same cache size, speed, number of cores, and rated
maximum power consumption.
Table 8: 32XX processors
Description Spare part number
Xeon-B 32046c 17-GHz 85W P11604-001
Xeon-B 3206R 8c 19-GHz 85W P19248-001
Table 9: 42XX processors
Description Spare part number
Xeon-S 42088c 21-GHz 85W P11605-001
Xeon-S 421010c 22-GHz 85W P11606-001
Xeon-S 4210R 10c 24-GHz 100W P19246-001
Xeon-S 421412c 22-GHz 85W P11607-001
Xeon-S 4214R 12c 24-GHz 100W P19245-001
Xeon-S 4214Y 12/10/8c 21-GHz 105W P11636-001
Xeon-S 42158c 25-GHz 85W P11608-001
Xeon-S 4215R 8c 30-GHz 130W P19243-001
Xeon-S 421616c 22-GHz 85W P11609-001
Xeon-S 4216R 16c 22-GHz 125W P19244-001
Table 10: 52XX processors
Description Spare part number
Xeon-G 521510c 26-GHz 85W P11610-001
Xeon-G 5215M 10c 26-GHz 85W P11626-001
Xeon-G 5215L 10c 26-GHz 85W P11631-001
Xeon-G 52178c 30-GHz 115W P11611-001
Xeon-G 521816c 23-GHz 125W P11612-001
Xeon-G 5218B 23-GHz 125W 16C P12532-001
Xeon-G 5218N 16c 23-GHz 105W P12021-001
Table Continued
Illustrated parts catalog 12

Description Spare part number
Xeon-G 5218R 20c 21-GHz 125W P19242-001
Xeon-G 522018c 22-GHz 125W P11613-001
Xeon-G 5220S 18c 26-GHz 125W P11627-001
Xeon-G 5220R 24c 21-GHz 150W P19241-001
Xeon-G 52224c 38-GHz 105W P11632-001
Table 11: 62XX processors
Description Spare part number
Xeon-G 6222v 20c 18-GHz 115W P12019-001
Xeon-G 622612c 27-GHz 125W P12008-001
Xeon-G 623020c 21-GHz 125W P11614-001
Xeon-G 6230N 20c 23-GHz 125W P12022-001
Xeon-G 6230R 26c 21-GHz 150W P25095-001
Xeon-G 62348c 343-GHz 130W P12009-001
Xeon-G 623822c 21-GHz 140W P12010-001
Xeon-G 6238L 22c 21-GHz 140W P12016-001
Xeon-G 6238M 22c 21-GHz 140W P12014-001
Xeon-G 6238R 28c 22-GHz 165W P25096-001
Xeon-G 624018c 26-GHz 150W P11615-001
Xeon-G 6240L 18c 26-GHz 150W P12015-001
Xeon-G 6240M 18c 26-GHz 150W P12013-001
Xeon-G 6240R 24c 24-GHz 165W P25097-001
Xeon-G 6240Y 18/14/8c 26-GHz 150W P11637-001
Xeon-G 624216c 28-GHz 150W P11616-001
Xeon-G 6242R 20c 31-GHz 205W P25098-001
Xeon-G 62448c 37-GHz 150W P11617-001
Xeon-G 624612c 33-GHz 165W P12018-001
Xeon-G 6246R 16c 34-GHz 205W P25099-001
Xeon-G 624820c 25-GHz 150W P11618-001
Xeon-G 6248R 24c 29-GHz 205W P25100-001
Xeon-G 625224c 21-GHz 150W P11619-001
Xeon-G 6252N 24c 23-GHz 150W P12023-001
Xeon-G 625418c 31-GHz 200W P11620-001
Xeon-G 6262V 24c 19-GHz 135W P12020-001
Xeon-G 6226R 16c 28-GHz 150W P25094-001
Illustrated parts catalog 13

Table 12: 82XX processors
Description Spare part number
Xeon-P 825322-GHz 125W 16C P12011-001
Xeon-P 82564c 38-GHz 105W P12012-001
Xeon-P 826024c 24-GHz 165W P11621-001
Xeon-P 8260M 24c 24-GHz 165W P11628-001
Xeon-P 8260L 24c 24-GHz 165W P11633-001
Xeon-P 8260Y 24-20-16c 24-GHz 165W P11638-001
Xeon-P 826824c 29-GHz 205W P11622-001
Xeon-P 827026c 27-GHz 205W P11623-001
Xeon-P 827628c 22-GHz 165W P11624-001
Xeon-P 8276M 28c 22-GHz 165W P11629-001
Xeon-P 8276L 28c 232-GHz 165W P11634-001
Xeon-P 828028c 27-GHz 205W P11625-001
Xeon-P 8280M 28c 27-GHz 205W P11630-001
Xeon-P 8280L 28c 27-GHz 205W P11635-001

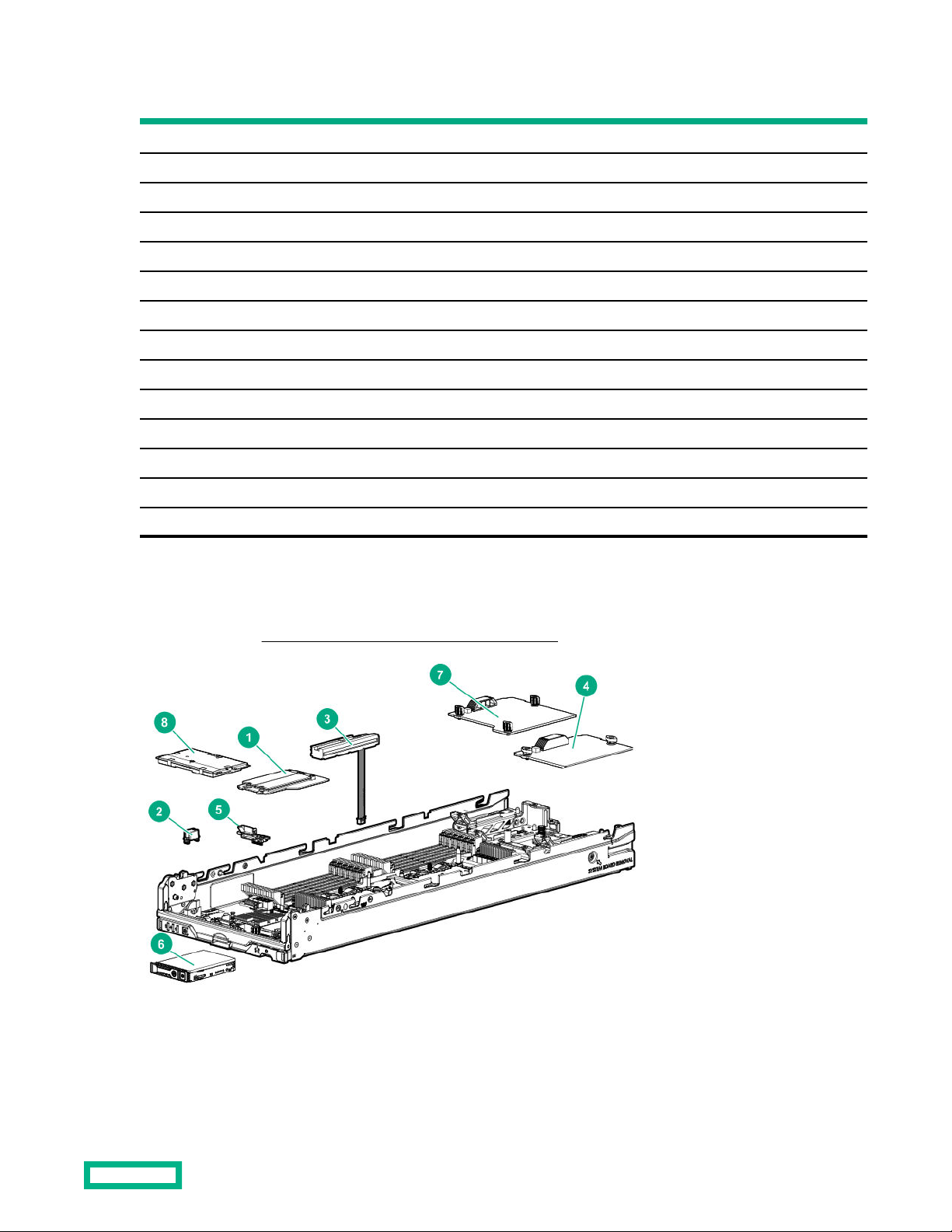

Compute module options
Hewlett Packard Enterprise continually improves and changes product parts. For complete and current supported parts
information, see the Hewlett Packard Enterprise PartSurfer website.
Illustrated parts catalog 14

Item Description
1M.2 SSD flash drive and adapter board spare parts1
2HPE Trusted Platform Module 2.0 spare part
3Energy pack options spare parts
4Mezzanine option card (Type C) spare parts
5HPE Synergy Internal SATA board spare part
6Drive spare parts:
•SFF SAS HDD spare parts
•SFF SATA HDD spare parts
•SFF SAS SSD spare parts
•SFF SATA SSD spare parts
•SFF NVMe SSD spare parts
•Dual Flash Adapter and SFF SATA uFF SSD spare parts
•M.2 flash drive spare parts
7Mezzanine option card (Type D) spare part
8Storage controller spare parts
1 Supports 2280 form factor only
For more information, see Removal and replacement procedures.
M.2 SSD adapter board spare part
Customer self repair: optional
Description Spare part number
M.2 SSD adapter board kit 873086-001
M.2 flash drive spare parts
Customer self repair: mandatory
Description Spare part number
120 GB SATA M.22280 6G RI VE 781565-001
150 GB SATA M.22280 12G RI DS 875835-001
240 GB SATA M.22280 MU SCM DS P07721-001
240 GB SATA M.22280 MU DS 875850-001
340 GB SATA M.22280 6G RI VE 781566-001
480 GB SATA M.22280 6G RI DS 875836-001
480 GB SATA M.22280 MU DS P07437-001
Table Continued
Illustrated parts catalog 15

Description Spare part number
480 GB SATA M.22280 MU DS 875851-001
480 GB SATA M.22280 RI DS 875855-001
960 GB SATA M.22280 RI DS 875856-001
960 GB SATA M.22280 MU DS 875852-001
HPE Trusted Platform Module 2.0 spare part
Customer self repair: no
Description Spare part number
HPE Trusted Platform Module 20 Gen 10 kit, TAA 872159-001
Energy pack options
HPE Smart Storage Battery spare part
Customer self repair: mandatory
Description Spare part number
HPE Smart Storage Battery with cable, 96W 878644-001
HPE Smart Storage Hybrid Capacitor spare part
Customer self repair: mandatory
Description Spare part number
HPE Smart Storage Hybrid Capacitor, 260mm cable P07474-001
Mezzanine option spare parts
Customer self repair: mandatory
Description Spare part number
HPE Synergy 2820C 10Gb CNA 815670-001
HPE Synergy 3820C 10/20Gb CNA 782833-001
HPE Synergy 4820C 10/20/25Gb CNA 877647-001
HPE Synergy 3830C 16G FC Host Bus Adapter 782829-001
HPE Synergy 5330C 32Gb FC Host Bus Adapter 872164-001
HPE Synergy 4610C 10/25Gb Ethernet Adapter P01921-001
HPE Synergy 6410C 25/50Gb Ethernet Adapter 871365-001
HPE Synergy 6810C 25/50Gb Ethernet Adapter 867569-001
Table Continued
Illustrated parts catalog 16

Description Spare part number
HPE Synergy 480 NVIDIA Quadro M3000SE 869002-001 1
HPE Synergy 480 NVIDIA Tesla P6 (100W) 882006-0011
1 This spare part number is for the graphics option card only. Spare part numbers for heatsink and adapter board are shown in
Mechanical components. You must order the thermal grease kit (PN 874039-001) with the graphics option card spare part. For more
information, see Removal and replacement procedures.
HPE Synergy Internal SATA board spare part
Customer self repair: mandatory
Description Spare part number
HPE Synergy Internal SATA board 873085-001

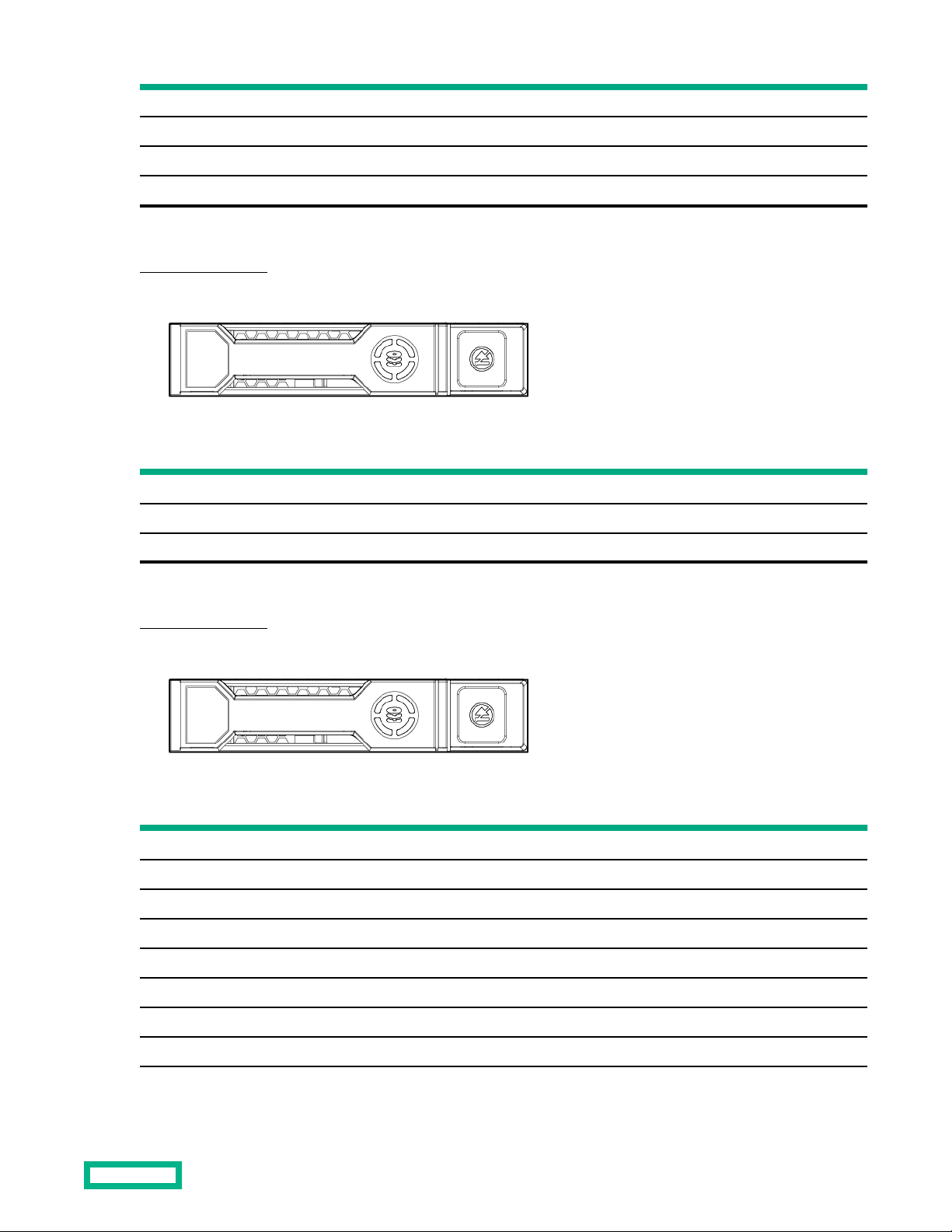

Drive spare parts
SFF SAS HDD spare parts
Customer self repair: mandatory
Description Spare part number
600 GB SAS 15000-rpm, SC 512e DS HDD 870797-001
600 GB SAS 15000-rpm, SC ENT HDD 870794-001
900 GB SAS 15000-rpm, SC DS HDD 870795-001
900 GB SAS 15000-rpm, SC 512e DS HDD 870798-001
300 GB SAS 10000-rpm, SC HDD 785410-001
300 GB SAS 10000-rpm, SC DS HDD 872735-001
600 GB SAS 10000-rpm, SC HDD 781577-001
600 GB SAS 10000-rpm, SC DS HDD 872736-001
900 GB SAS 10000-rpm, SC HDD 785411-001
12 TB SAS 10000-rpm, SC HDD 781578-001
12 TB SAS 10000-rpm, SC DS HDD 872737-001
18 TB SAS 10000-rpm, SC 512e DS HDD 872738-001
Table Continued
Illustrated parts catalog 17

Description Spare part number
18 TB SAS 10000-rpm, SC 512e HDD 791055-001
10 TB SAS 7200-rpm, SC DS HDD 832984-001
10 TB SAS 7200-rpm, SC 512e DS HDD 765872-001
20 TB SAS 7200-rpm, SC 512e DS HDD 765873-001
SFF SATA HDD spare parts
Customer self repair: mandatory
Description Spare part number
1 TB SATA 7200-rpm, SFF SC 512e DS HDD 765868-001
2 TB SATA 7200-rpm, SFF SC 512e DS HDD 765869-001
1 TB SATA 7200-rpm, SFF SC DS HDD 656108-001
SFF SAS SSD spare parts
Customer self repair: mandatory
Description Spare part number
400 GB 12G MU SC SSD 872505-001
400 GB MU DS SC SSD P06576-001
400 GB MU SC DS SSD P09922-001
400 GB WI DS SC SSD P06600-001
400 GB WI SC DS SSD P09947-001
800 GB 12G MU SC SSD 872506-001
800 GB MU DS SC SSD P06577-001
800 GB MU SC DS SSD P09923-001
Table Continued
Illustrated parts catalog 18

Description Spare part number
800 GB WI DS SC SSD P06602-001
800 GB WI SC DS SSD P09948-001
900 GB RI DS SC SSD P06596-001
960 GB MU SC VS DS SSD P10604-001
960 GB RI SC DS SSD P08608-001
960GB RI SC VS DS P10637-001
960 GB 12G RI SC SSD 872432-001
16 TB 12G MU SC SSD 872509-001
16 TB MU DS SC SSD P06580-001
16 TB MU SC DS SSD P09924-001
16 TB WI DS SC SSD P06604-001
16 TB WI SC DS SSD P09949-001
192 TB 12G RI SC SSD 872433-001
192 TB MU SC VS DS SSD P10607-001
192TB RI DS SC SSD P06597-001
192TB RI SC DS SSD P08609-001
192TB RI SC VS DS SSD P10638-001
32 TB 12G MU SC SSD 872511-001
32 TB MU DS SC SSD P06582-001
32 TB MU SC DS SSD P09925-001
32 TB WI DS SC SSD P06605-001
384 TB MU SC VS DS SSD P10610-001
384 TB RI DS SC SSD P06598-001
384 TB RI SC DS SSD P08610-001
384 TB RI SC VS DS SSD P10639-001
384 TB 12G RI SC SSD 872434-001
64 TB MU DS SC SSD P06583-001
64 TB MU SC DS SSD P09926-001
768 TB RI DS SC SSD P06599-001
768 TB RI SC DS SSD P08611-001
768 TB RI SC VS DS SSD P10640-001
153 TB RI SC DS SSD P08612-001

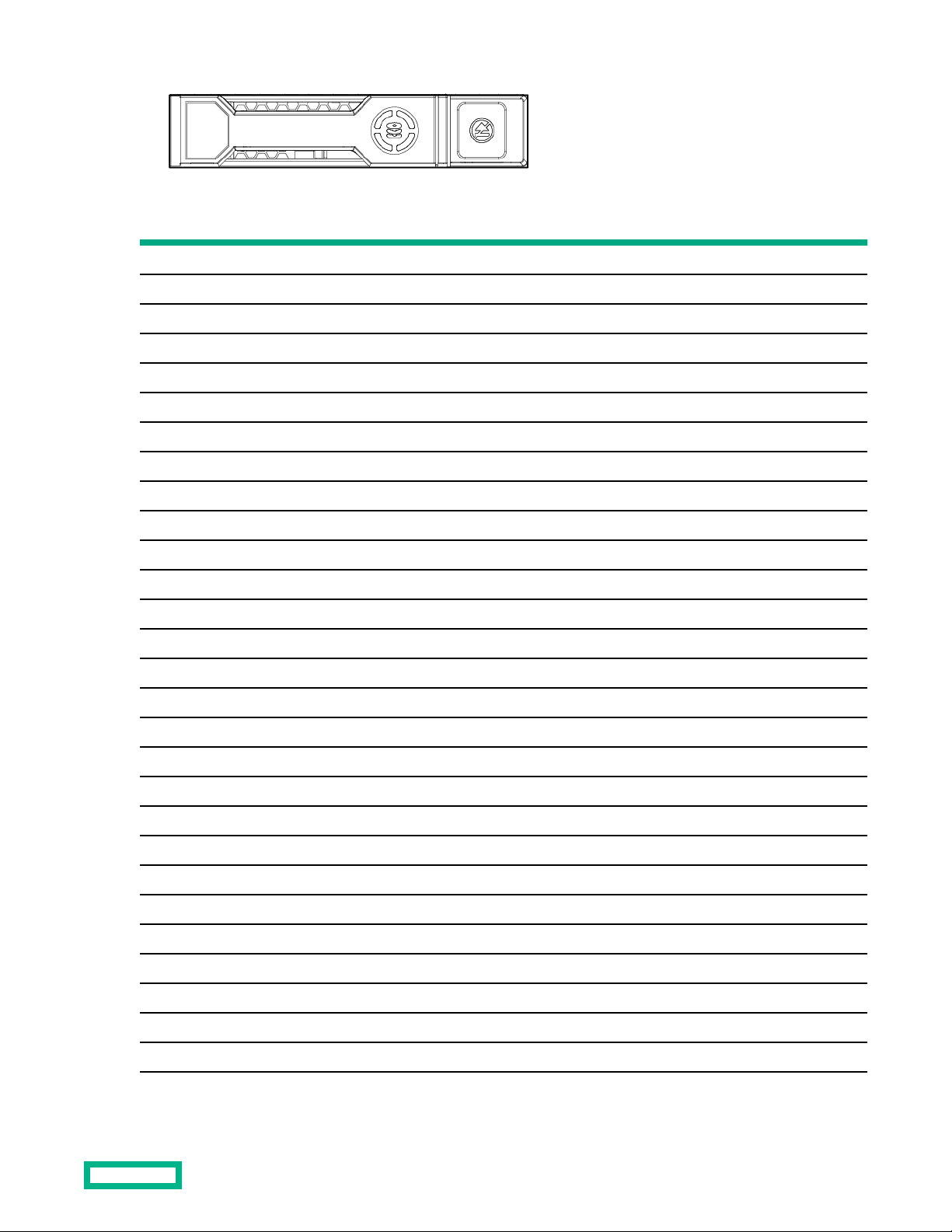

SFF SATA SSD spare parts
Customer self repair: mandatory
Illustrated parts catalog 19

Description Spare part number
240 GB SATA 6G RI SC DS SSD 868924-001
240 GB SATA RI DS SC SSD 875652-001
240 GB SATA RI SC DS SSD P05319-001
240 GB SATA RI SC DS SSD P08565-001
400 GB SATA 6G WI SC DS SSD 872512-001
480 GB SATA RI SC DS SSD P05320-001
480 GB SATA RI SC DS SSD P05312-001
480 GB SATA 6G RI SC DS SSD 868936-001
480 GB SATA 6G MU SC DS SSD 872518-001
480 GB SATA RI DS SC SSD P06571-001
480 GB SATA RI SC DS SSD P08567-001
480 GB SATA MU SC DS SSD P08620-001
480 GB SATA MU SC DS SSD P08690-001
480 GB SATA MU SC DS SSD P09907-001
800 GB SATA 6G WI SC DS SSD 872514-001
960 GB SATA RI DS SC SSD P06572-001
960 GB SATA RI SC DS SSD P05321-001
960 GB SATA 6G MU SFF SC DS SSD 872520-001
960 GB SATA 6G RI SFF SC DS SSD 868928-001
960 GB SATA RI SC DS SSD P05313-001
960 GB SATA RI SC DS SSD P08569-001
960 GB SATA MU SC DS SSD P08622-001
960 GB SATA MU SC DS SSD P08692-001
960 GB SATA MU SC DS SSD P09909-001
16 TB SATA 6G WI SC DS SSD 872516-001
192 TB SATA 6G RI SC DS SSD 868930-001
192 TB SATA 6G MU SC DS SSD 872522-001
192 TB SATA RI SC DS SSD P05314-001
Table Continued
Illustrated parts catalog 20
