Heyer AGFS User manual

Operating Instructions
Anaesthetic Gas Evacuation System
AGFS

 Operating Instructions AGFS 
2
1. Manufacturer's information.......................................................................3
2. Foreword.....................................................................................................4
3. Function and mode of operation.................................................................5
4. Assembly dimensions and parts specification.............................................6
4.1 Front view with front plate..................................................................................................6
4.2 Front view without front plate.............................................................................................7
4.3 Side view...........................................................................................................................7
4.4 Hose plan..........................................................................................................................9
5. Technical data...........................................................................................11
6. List of spare parts.....................................................................................12
7. Warranty...................................................................................................13

 Operating Instructions AGFS 
3
1. Manufacturer's information
Product
Anaesthetic Gas Evacuation System AGFS
Manufacturer and Distributor
Heyer Aerotech GmbH
Nieverner Straße 30
56132 Nievern
Tel.: [phone]
Fax.: [phone]
E-Mail: [e-mail]

 Operating Instructions AGFS 
4
2. Foreword
Dear customer!
Thank you for choosing a HEYER Aerotech product! HEYER Aerotech products represent state-
of-the-art technology and are manufactured according to the highest quality standards. You have
chosen a professional, durable, easy-to-maintain product, the result of many years of experience
and know-how from a competitive supplier of medical technology.
The anaesthetic gas evacuation system AGFS is in accordance with all standards and specifications
that currently apply to the production and operation of this product.
In the unlikely event of malfunction please contact our Customer Service. For details refer to page
3 of these Operating Instructions.
Before using the unit, please read these Operating Instructions carefully and
particularly observe the warnings.

 Operating Instructions AGFS 
5
3. Function and mode of operation
Whenever anaesthesia is carried out in half-closed or half-open systems, excess anaesthetic gas
escapes through the pressure control valve of the circulation system and is inhaled by users and
staff. This is avoided by installing an anaesthetic gas evacuation system.
The anaesthetic gas evacuation system AGFS is installed in the vicinity of the anaesthesia working
area. A transvector integrated in the AGFS generates the required underpressure. The suction
power is adjusted separately on every evacuation box to a standard value of 45-50 l/min, but it can
be tailored to the customer's needs.
The anaesthetic gas evacuation system is started up by connecting the anaesthetic gas suction plug,
supplying the transvector with driving air (5 bar). The underpresssure generated by the transvector
is indicated by the green colour of the visual signal.
The anaesthetic gas drawn off, including the driving air of the transvector, is passed into the open
air through a separate pipe or duct.
When the plug is disconnected the driving gas inflow to the transvector is interrupted, which ceases
to generate a low pressure, and the visual signal turns white. Simultaneously the integrated safety
valve closes and prevents the anaesthetic gas in the exhaust pipe from flowing back.

 Operating Instructions AGFS 
6
4. Assembly dimensions and parts specification
4.1 Front view with front plate
Fig. 1 Front view with front plate
Legend:
1 Front plate 3 Visual signal
2 Connection AGFS gas suction plug
1 2 3

 Operating Instructions AGFS 
7

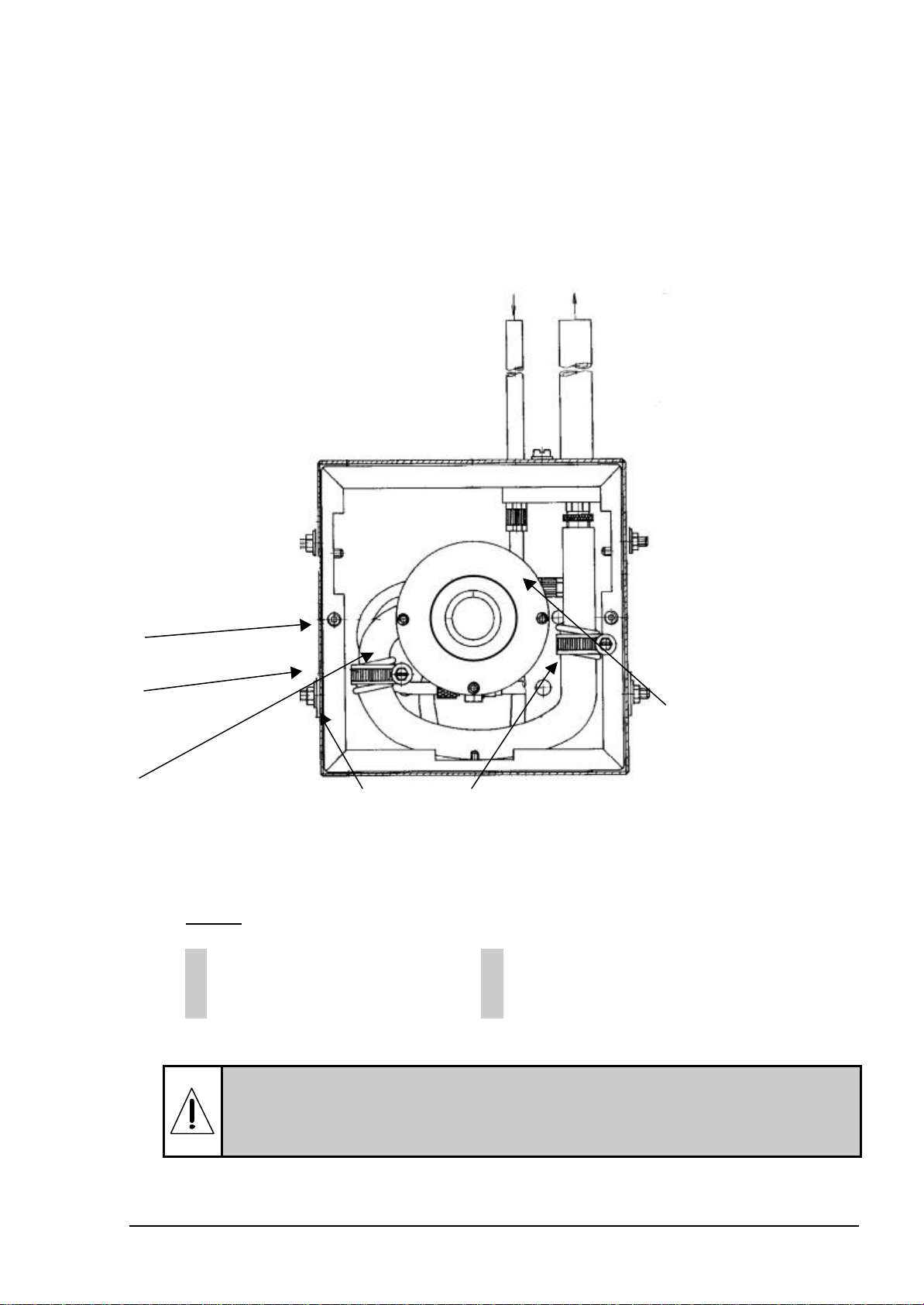

4.2 Front view without front plate
Fig. 2 Front view without front plate
Legend:
4 Bend 15 5001A 7 VACUFLEX hose
5 Hose clip 8 Flush socket AGFS
6 Connection AGFS suction plug 9 Transvector complete
Ensure that no foreign substance can enterthe open connections.
4
6
5
7 8
9

 Operating Instructions AGFS 
8

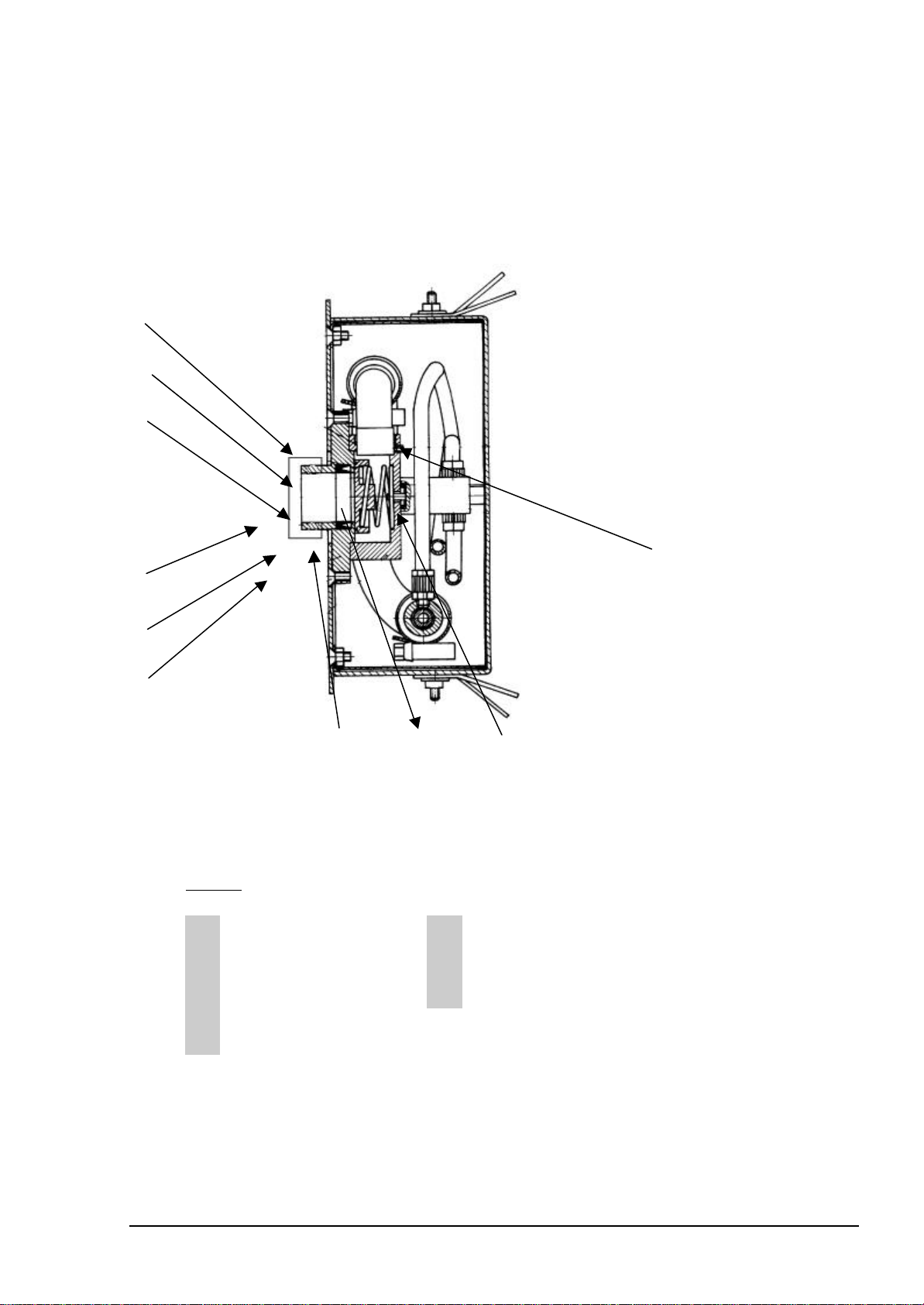

4.3 Sideview
Fig. 3 Side view
Legend:
10 O-ring 14 x 1 16 Valve housing AGFS
11 Valve disk 17 Seat valve
12 Spring for valve disk 18 O-ring 7 x 1,5
13 O-ring 19 Headless pin
14 AGFS, upper part
15 Flat head screw
10
11
12
13
14
15
16
18 17
19

 Operating Instructions AGFS 
9

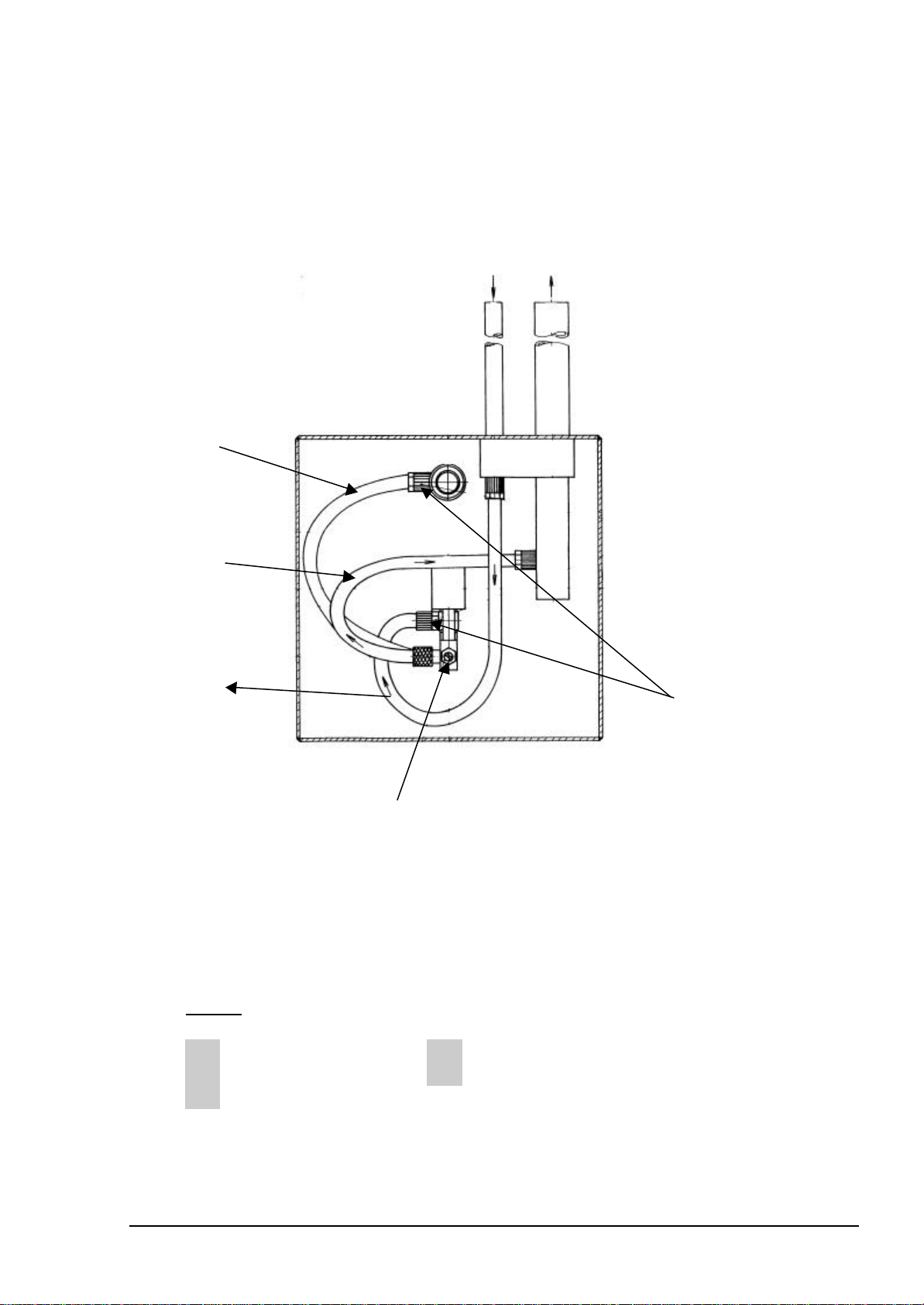

4.4 Hose plan
Fig. 4 View of hose plan
Legend:
20 PE hose 150 mm 23 Choke valve
21 PE hose 150 mm 24 Swing fixture
22 PE hose 240 mm
20
21
22
23
24

 Operating Instructions AGFS 
10

 Operating Instructions AGFS 
11
5. Technical data
Performance:
Suction power: 45-50 l/min
Air consumption: 40-60 l/min maximum
Suction volume: 80 l/min maximum
Connections:
Compressed air: Copper pipe 8 x 1 mm
Exhaust air: Copper pipe 15 x 1 mm
Operating pressure:
5 bar
Dimensions:
Front plate: 160 x 160 mm
Flush socket: 150 x 150 x 60 mm
Plaster equalisation: stepless up to approx. 20 mm

 Operating Instructions AGFS 
12
6. List of spare parts
Pos.
Order number Description
1117-1955 Front plate AGFS
2--- Connection AGFS plug
3117-1440 Green visual signal
4131-1810 Bend 15 5001A
5046-4080 Hose clip
6047-4102 Cap screw (Allen)
7006-3900 VACUFLEX hose
8117-1600 Flush socket AGFS
9117-2010 Transvector complete
10 049-3102 O-ring 14 x 1
11 117-1370 Valve disk
12 117-1200 Spring for valve disk
13 117-1360 Ball ∅4
14 117-1300 Lip seal gasket
15 117-1150 AGFS, upper part
16 047-3606 Flat head screw
17 117-1155 Valve housing AGFS
18 117-1165 Seat valve
19 049-3081 O-Ring 7 x 1,5
20 047-4172 Headless pin
21 017-1550 PE hose 150 mm
22 017-1550 PE hose150 mm
23 017-1550 PE hose 240 mm
24 017-3091 Choke valve
25 017-3076 Swing fixture
not
shown 017-3095 T-piece Kuhnke
not
shown 017-3100 Spacer
not
shown 047-3622 Flat head screw

 Operating Instructions AGFS 
13
7. Warranty
Warranty for the HEYER Aerotech anaesthetic gas evacuation system AGFS is twelve (12)
months from the date of purchase, according to the following conditions:
1. Within the guarantee period we will remedy free of charge any product which proves to be
defective or non-conforming in materials or workmanship, if we are notified without delay as
soon as the defect or non-conformity is detected. The warranty does not extend to fragile parts,
such as glass, or perishable parts and consumables.
2. In the case of warranty we will at our discretion repair or replace the product. Neither does
such claim cause the guarantee period to be extended, nor will a new guarantee be started.
There will be no independent guarantee period for any spare parts installed.
3. This warranty does not apply to defects arising out of improper or inexpert treatment, faulty
operation, mechanical damage or disregard of our Operating Instructions, as well as any such
damage caused by acts of God or exceptional environmental conditions.
4. These guarantee conditions are invalidated in the case of third-party intervention, modification
and/or repair of the product by persons not authorised by HEYER Aerotech, or if the product is
operated with auxiliary equipment or spare parts of from another source.
Any and all further claims as well as so-called incidental or consequential damages are excluded,
insofar as not otherwise compelling stated by law.
Subject to technical changes!
Rev. Nr. : 1.1
