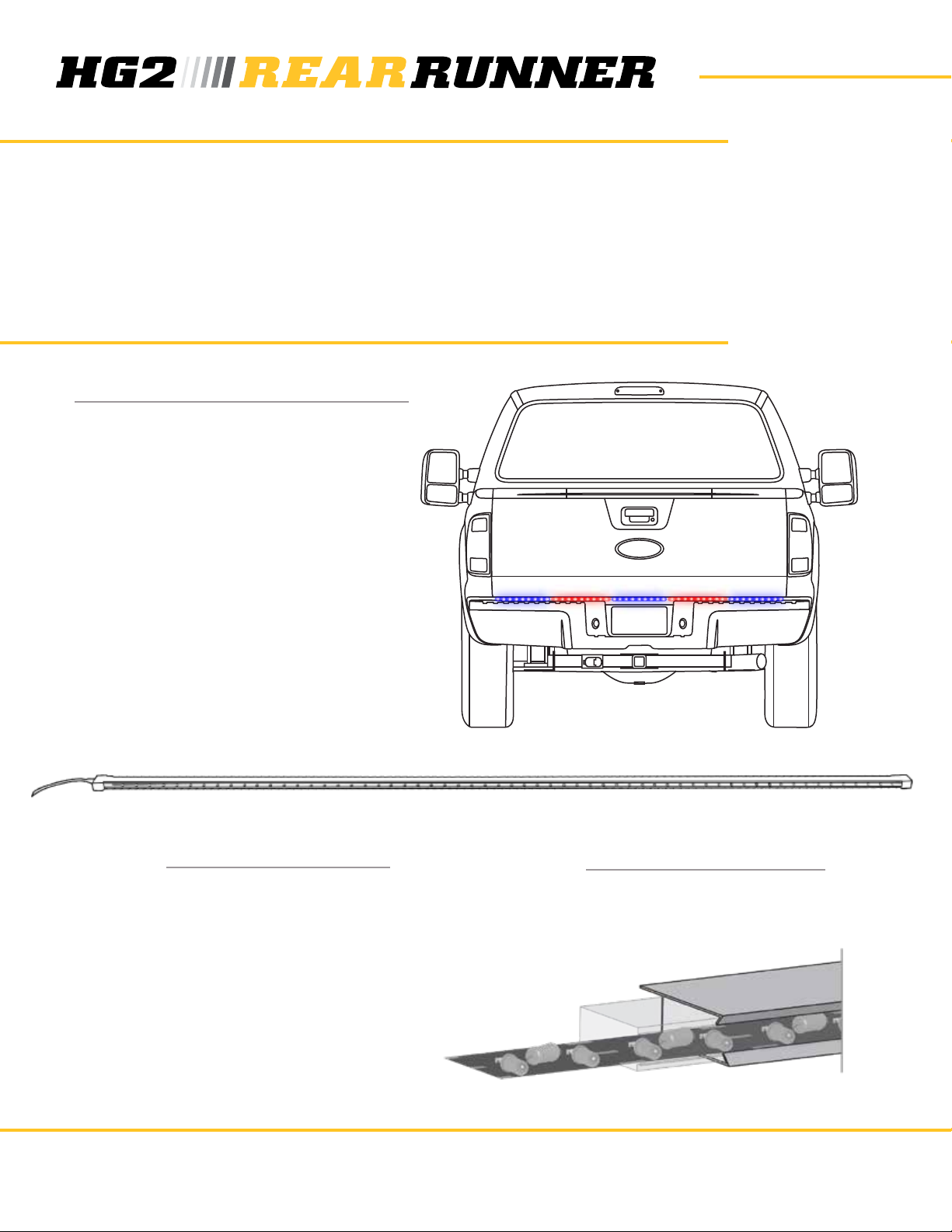

The HG2 Runner® Package is an extremely versatile
emergency lighting system designed for maximum visibility
with a minimal footprint. HG2 Runners were developed to
enhance the outline of a vehicle’s prole (rear of vehicle),
oering greater visibility through installation location,
variable ash patterns and lighting intensity.
Our patent-pending designs feature super-bright, wide-
angle LEDs, a high-impact polycarbonate housing and a
powder-coated extruded aluminum mounting sleeve for
stealth installation.
INTRODUCTION
BEFORE YOU BEGIN
1. Read the installation guide for this
product in its entirety.
2. Unpack product components and
review parts list.
3. Bench test Runner Platform Module
and HG2 Runner(s) using 12v power
supply to ensure components are in
working order.
4. Disconnect negative terminal
from vehicle battery.
5. Remove door sill panels at all
door locations.
6. Place vehicle on vehicle lift or
jack stands.
Pre-Installation Instructions
2015+ | Dodge Ram series
2015+ | Ford F-series
Models
• (1) HG2 Rear Runner
• (1) Cordless Screwdriver
• (5) #8 Short Self-Tapping
Metal Screws
• (1) 12V Battery (Optional: for
testing purposes)
Required Tools

HG2LIGHTING.COM/SUPPORT
© 2019 Copyright HG2 Emergency Lighting. All Rights Reserved. • PATENT PENDING • Patents #
INSTALL GUIDE
V071619
4
INSTALLATION INSTRUCTIONS
Step 1:
Place runner against tailgate to ensure correct
sizing and placement before beginning the install.
Above the central license plate location, just
before the right license plate light, there will be a
notch at the top of the bumper. (Circled in red.)
This notch is where the vehicle manufacturer’s
tools go into the tube and allow the winch to drop
the spare tire.
Do not block this notch with the rear runner light
or you will be unable to drop the vehicle’s spare
tire.
IT IS HIGHLY RECOMMENDED THAT THE INSTALLER
HAS ASSISTANCE IN POSITIONING AND HOLDING THE
RUNNER ASSEMBLY DURING THE INSPECTION AND
MOUNTING PROCESS.
Step 2:
To ensure that placement of the rear runner does
not interfere with spare tire winch or tail gate
usage, insert the shaft extension for the spare
tire winch into the notch to use as a reference. In
the back steel plate under the tail gate there is a
small cut out notch. Use this notch as a height
reference.
Step 3:
With the shaft extension in place as a reference,
use one self-tapping #8 screw in the middle of
the rear runner to secure.
NOTE: Check once again for runner obstructing
the tailgates pathway.

HG2LIGHTING.COM/SUPPORT
© 2019 Copyright HG2 Emergency Lighting. All Rights Reserved. • PATENT PENDING • Patents #
INSTALL GUIDE
V071619
5
Use the other 4 self-tapping #8 screws to nish
securing the rear runner. Screw in the left side
of the runner, then the right side. Center the
two remaining screws between the left side and
middle, and the middle and right side.
Step 4:

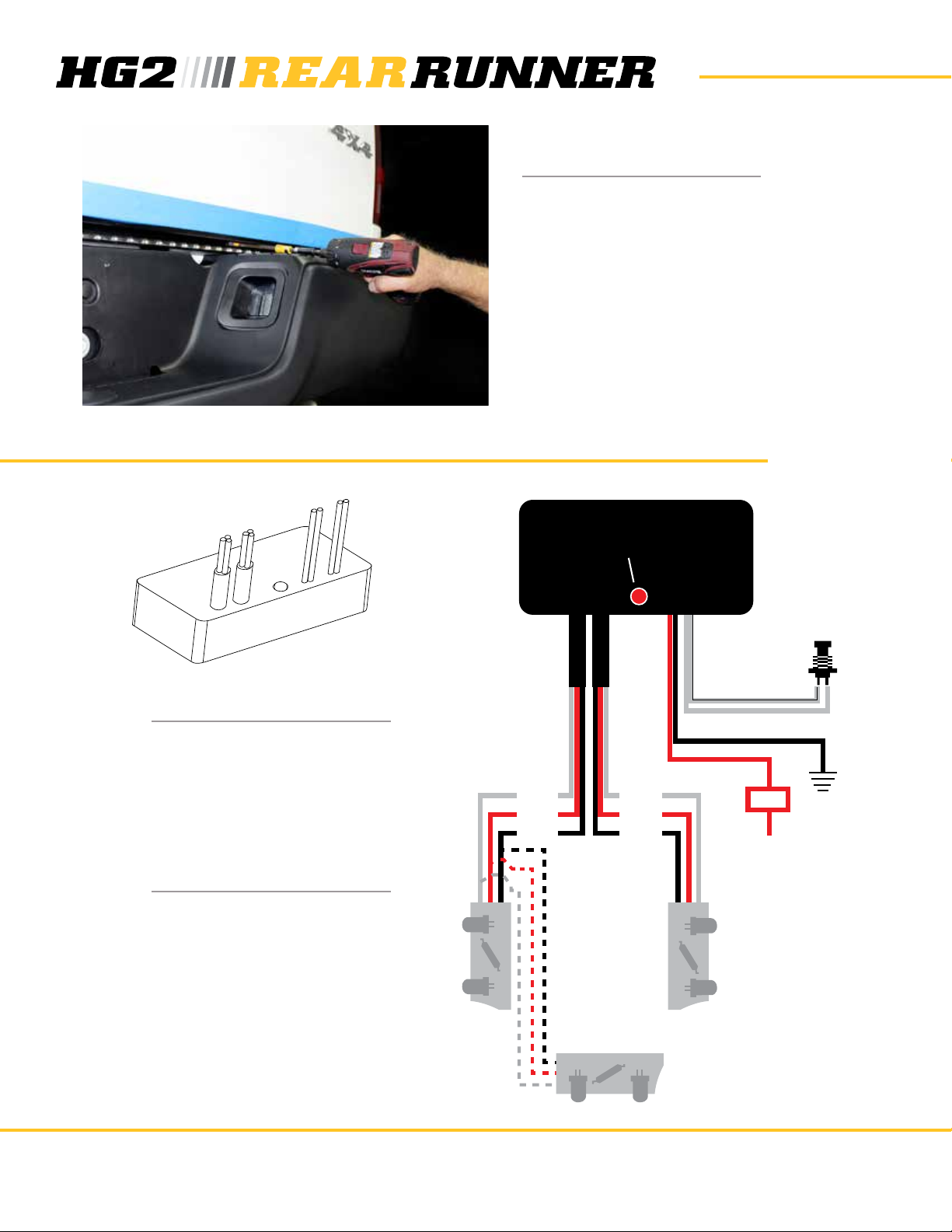

WIRING
Chassis Ground
HG2 Runner HG2 Runner
To (+) 12 Volt Power Source
(Existing Switiching Module)
Rear Bumper/Tailgate Runner
(optional)
Pattern Selector Button
Power
Indicator
Black
White
Red
Black
White
Red
Black
Red
7A Fuse
• Drill
• 9/32” Drill Bit
• Wire Strippers
• Soldering Iron/Solder
• Heat Shrink Tubing
• Wire/Cable Ties
Additional tools may be required to
complete installation.
Required Tools
1 — RPM12 Runner Platform Module
1 — Pattern Selector Button
1 — 10A Fuse
1 — Installation Guide & Warranty
Packet
Parts List

HG2LIGHTING.COM/SUPPORT
© 2019 Copyright HG2 Emergency Lighting. All Rights Reserved. • PATENT PENDING • Patents #
INSTALL GUIDE
V071619
6
INSPECT EXTERIOR OF VEHICLE TO ENSURE MOUNTING
FASTENERS WILL NOT BE OBSTRUCTED BY, OR DAMAGE,
VEHICLE SYSTEMS SUCH AS FUEL OR BRAKE LINES.
EXAMINE THE VEHICLE’S INTERIOR FLOOR, UNDER
CARPET AND DOOR SILLS TO MAKE CERTAIN DRILLING
OF HOLES OR INSERTION OF FASTENERS WILL NOT
DAMAGE OR INTERFERE WITH WIRING, SENSORS, OR
COMPUTERS.

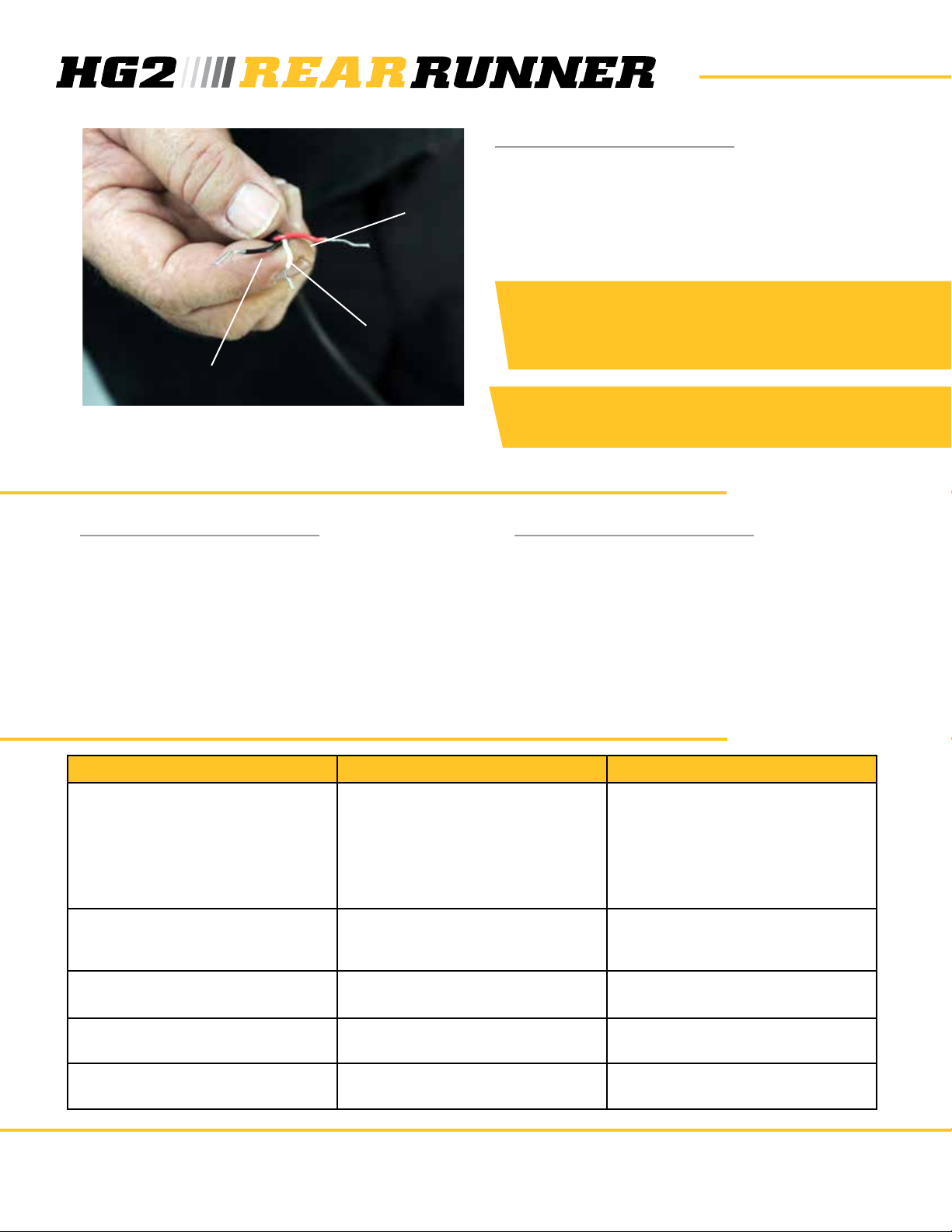

The runner is now installed under the tail gate.
Ensure that both channels on the runner (the
LED elements) are working. Test the LEDs using
any 12V battery by bringing together the two
channels.
Testing:
RED (+)
12V Channel 1
WHITE (+)
12V Channel 2
BLACK (-)
Ground
PROBLEM CAUSE SOLUTION
Rear Runner does not illuminate 1. No power to RPM12 module
2. Power wires reversed
3. Fuse blown
4. Improper ground to chassis
1. Check wiring for loose connection;
check fuse
2. Check wiring diagram; reverse power
wires
3. Replace fuse
4. Ensure ground wire terminates to
metal chassis ground
External fuse blows 1. Power wires shorted
2. Incorrect fuse size
1. Check power connections for
damaged or shorted wiring
2. Replace with correct fuse size
Rear Runner illuminates regardless of
ignition switch position
1. RPM12 module wired to constant
+12V power source
1. Check wiring connection to RPM12
module for switched power
Incorrect ash pattern 1. Wrong ash pattern is selected 1. Select another pattern; see BASIC
OPERATIONS
Flash patterns continually change 1. RPM12 module is in “Demo Mode” 1. Exit “Demo Mode”; see BASIC
OPERATIONS
TROUBLESHOOTING
BASIC OPERATION
Demo mode rotates through each of up to 20 patterns
every 10 seconds.
To enter demo mode, press the pattern selector
button and power up module (key on or power from
existing switching unit). Exit demo mode by cycling
power o and on again without pattern selector button
depressed.
Press pattern selector button to select a new pattern.
The selected pattern is reatined even after cycling
power.
Demo Mode Selecting Patterns
