SIDE RUNNER ®
INSTALL GUIDE
2013-2019 Ford Explorer
2013-2019 Ford Inceptor SUV
866.468.4569 |www.HG2LIGHTING.com | [e-mail]
© 2019 Copyright HG2 Emergency Lighting. All Rights Reserved.
SAE USA
PATENT
US
CERTIFIED
MADE IN
CLASS 2
#8,480,253B1

© 2019 Copyright HG2 Emergency Lighting. All Rights Reserved.

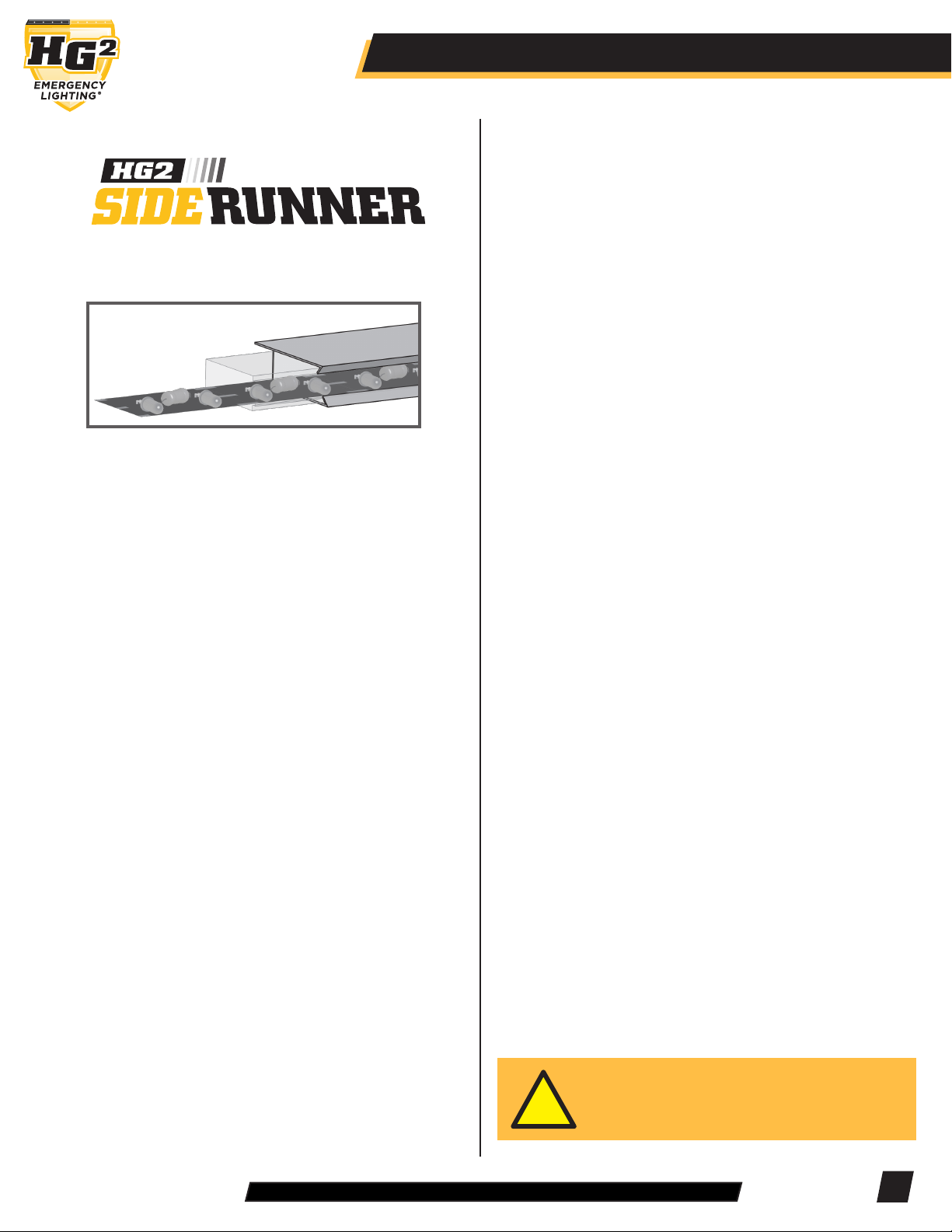

The HG2 Runner®Package is an extremely versatile
emergency lighting system designed for maximum
visibility with a minimal footprint. HG2 Runners were
developed to enhance the outline of a vehicle’s prole
(side of vehicle), offering greater visibility through
installation location, variable ash patterns and
lighting intensity.
Our patent-pending designs feature super-bright,
wide-angle LEDs, a high-impact polycarbonate
housing and a powder-coated extruded aluminum
mounting sleeve for stealth installation.
SAFETY FIRST!
This guide provides information for a safe and proper
installation of your HG2 Emergency Lighting product.
Please read this guide in its entirety before attempting
to install or operate this product.
This guide oers information that could prevent
damage or serious injury.
The installation of this kit may require that the
vehicle is safely supported off of the ground, using
jack stands or a vehicle lift. Never work on a vehicle
supported only by a jack. Observe all warnings and
procedures as outlined in the manual or instructions
provided by the manufacturer of your jack stands,
vehicle lift and other necessary tools required to
install this kit.
Installer or technician should have a good
understanding of automotive electronics, and a
general working knowledge of related automotive
systems and procedures.
When mounting this product, care must be taken to
avoid damage/interference to vehicle components and
systems—such as brake and fuel lines, electrical devices
(computers and airbag sensors) and wiring:
• Inspect both sides of mounting surface before
drilling or inserting fasteners
• Use fasteners of proper length
• Install control components in accessible location
that provides for safe operation of the vehicle and
product controls under any driving condition
• Do not install this product in a manner that
interferes with moving parts, or where lifts or jacks
are used to raise the vehicle
• Do not install this product in a manner that
interferes with the deployment of an airbag
When wiring this product:
• Deburr and install grommets into any holes drilled
for wiring
• Route wires to avoid sources of excessive heat
and any moving parts, such as exhaust, suspension
systems, brake pedal
• Secure all wires using wire/cable ties or equivalent
• Use NEGATIVE (-) battery post for all chassis
ground connections for optimum per formance and
efciency
• Do not route wires in a manner that interferes with
the deployment of an airbag
The installer or technician assumes any and all
responsibility to determine proper mounting location
and wire routing, with consideration of the safety of the
vehicle operator and passengers.
DO NOT:
• Stare directly into the lights. High-intensity LEDs
can cause momentary blindness and/or damage to
your eyes
• Mount product/product controls that interfere with/
impede safe operation of vehicle
• Attempt to initiate or control this lighting system
during hazardous driving conditions
• Clean product with a pressure washer, solvents or
other chemicals
WWW.HG2LIGHTING.COM/SUPPORT
1.0 | 1.5.19
FAILURE TO FOLLOW THESE GUIDELINES
COULD CAUSE DAMAGE TO THE PRODUCT,
VEHICLE AND/OR SERIOUS PERSONAL
INJURY OR DEATH.
HG2 Side Runner®- Installation Guide
®
UNDERSTANDING
THE GUIDELINES
!
1
PATENT PENDING • U.S. Patents #6,612,726; #6,962,427

© 2019 Copyright HG2 Emergency Lighting. All Rights Reserved.
PARTS LIST
2 – 72” HG2 Runners – Side of Vehicle
1 – RPM12 Runner Platform Module
1 – Pattern Selector Button
1 – 10A Fuse
1 – Installation Guide and Warranty Info Packet
REQUIRED TOOLS
• Drill
• 9/32” Drill Bit
• Phillips-head Screwdriver/bit
• Wire Strippers
• Soldering Iron / Solder
• Heat Shrink Tubing
• Wire/Cable Ties
Additional tools may be required to complete installation.
INSTALLATION
Preparation
1. Read the installation guide for this product in its
entirety.
2. Unpack product components and review parts list.
3. Bench test Runner Platform Module and HG2 Runner(s)
using 12v power supply to ensure components are in
working order.
4. Disconnect negative terminal from vehicle battery.
5. Remove door sill panels at all door locations.
6. Place vehicle on vehicle lift or jack stands.
Side Mount:
2013-2019 Ford Explorer
2012-2019 Ford Inceptor SUV
It is highly recommended that the
installer has assistance in positioning
and holding the runner assembly during
the inspection and mounting process.
1. Locate edge of vehicle frame where HG2 Runner assembly
will mount to rocker panel.
Arrows indicate where Runner will be placed against
rocker panel.
Arrows indicate factory jacking points where runner will
be mounted to edge of body frame
Photo illustrates pre-mounting marking points for
Runner Assembly
MOUNTING
Driver’s Side Shown
Repeat steps 1 – 5 for passenger side.
1.0 | 1.5.19 2
!
WWW.HG2LIGHTING.COM/SUPPORT
PATENT PENDING • U.S. Patents #6,612,726; #6,962,427
®

© 2019 Copyright HG2 Emergency Lighting. All Rights Reserved.
2. Position Runner aseembly against rocker panel to ensure
correct t and spacing. Mark areas for mounting.
Correct placement for rear of HG2 Runner assembly.
Note assembly aligns with rear jack location. Rear of
HG2 Runner assembly butts against rocker panel seam
flange.
Inspect exterior of vehicle to ensure
mounting fasteners will not be obstructed
by, or damage, vehicle systems such as
fuel or brake lines. Examine the vehicle’s
interior oor, under carpet and door sills to
make certain drilling of holes or insertion of
fasteners will not damage or interfere with
wiring, sensors or computers.
3. Using self-tapping sheet metal screws, fasten using
front-most mounting hole, then fasten at rear using
rear-most mounting hole.
The rocker panel is slightly curved. By fastening front and
rear first, the HG2 Runner assembly will conform to curve
of the panel as you continue fastening the length of the
assembly.
Continue fastening with self-tapping sheet metal screws
until all factory mounting holes are utilized.
4. Ensure all fasteners are tightened and mounting is
secure.
Wiring
5. Factory grommet will be utilized in the rear of the vehicle,
located near the rear wheel well.
6. With door sill and kick panel removed, lift carpet to
access factory grommet for wire routing.
!
1.0 | 1.5.19 3
WWW.HG2LIGHTING.COM/SUPPORT
Detail photo illustrates The front of the HG2 Runner
assembly aligns with the factory jack location as
shown.
Detail view of correct placement of HG2 Runner
assembly. Rear of HG2 Runner assembly butts
against rocker panel seam flange.
Arrows in photo illustrates factory grommet area and
area to route wiring under vehicle to Runner Platform
Module [RPM12]
Fasten wire stress-relief clamp to underside of vehicle in
a suitable location using self-tapping sheet metal screw.

© 2019 Copyright HG2 Emergency Lighting. All Rights Reserved.
Parts list
1 – RPM12 Runner Platform Module
1 – Pattern Selector Button
1 – 10A Fuse
1 – Installation Guide and Warranty Info Packet
Required Tools
• Drill
• 9/32” Drill Bit
• Wire Strippers
• Soldering Iron / Solder
• Heat Shrink Tubing
• Wire/Cable Ties
Additional tools may be required to complete
installation.
Installation
Preparation
1. Read the installation guide for this product in its entirety.
2. Unpack product components and review parts list.
3. Bench test Runner Platform Module and HG2 Runner(s)
using 12v power supply to ensure components are in
working order.
4. Disconnect negative terminal from vehicle battery.
5. Prepare mounting location by removing interior panels
as necessary.
Mounting
6. Mount the Runner Platform Module in a secure, dry
location (interior of the vehicle). Keep away from moving
parts, heat sources or locations that interfere with safe
operation of the vehicle.
7. Mount the Pattern Selector Button in an easily
accessible location. Drill a 9/32” hole for mounting.
Wiring
8. All wiring connections should be soldered and
protected using appropriate heat shrink tubing.
BASIC OPERATION
Demo mode
Demo mode rotates through each of up to 20
patterns every 10 seconds. To enter demo mode, press the
pattern selector button and power up module (key on or
power from existing switching unit). Exit demo mode by
cycling power off and on again without pattern selector
button depressed.
Selecting Patterns
Press pattern selector button to select a new pattern. The
selected pattern is retained even after cycling power.
Inspect exterior of vehicle to ensure
mounting fasteners will not be obstructed
by, or damage, vehicle systems such as
fuel or brake lines. Examine the vehicle’s
interior floor, under carpet and door sills to
make certain drilling of holes or insertion of
fasteners will not damage or interfere with
wiring, sensors or computers.
Chassis Ground
HG2 Runner HG2 Runner
To (+) 12 Volt Power Source
(Existing Switiching Module)
Rear Bumper/Tailgate Runner
(optional)
Pattern Selector Button
Power
Indicator
Black
White
Red
Black
White
Red
Black
Red
7A Fuse
Runner Platform Module [RPM12]
1.0 | 1.5.19 4
WWW.HG2LIGHTING.COM/SUPPORT
!

© 2019 Copyright HG2 Emergency Lighting. All Rights Reserved
This warranty gives you certain rights and you may also have other
rights that may vary from state to state. This warranty is given only
to the end-use purchaser of the accompanying product (referred
to in this warranty as “this Product”).
Product Registration
HG2 Emergency Lighting warrants Products within the “Warranty
Period” and that have been properly registered. To register this
Product, go to www.hg2lighting.com. Each HG2 product must be
registered within 90 days of purchase.
What Is Covered
HG2 Emergency Lighting warrants to you for the Warranty Period
that there are no defects in the materials and workmanship of this
Product. The “Warranty Period” is a maximum of 5 years (Limited)
from the date of purchase with proof of purchase.
What Is NOT Covered
This warranty is VOID—that is, this Product has no warranty—if (1)
you did not purchase this Product from an authorized HG2 reseller
within the United States, (2) this Product has been serviced,
modified or tampered with by anyone other than an Authorized
Service Representative of HG2 Emergency Lighting (3) the serial
number has been modified, defaced or removed from this Product,
(4) this Product has been abused or purposely damaged, (5)
non-HG2 controllers have been used, (6) this Product has been
transported without the proper preparation and packaging, (7) a
non-certified HG2 Installer performed work on the unit or installed
the unit.
If Your Product Defective
Call 866-468-4569, or if you suspect a defect in materials
or workmanship in this Product, you can report it to a HG2
Emergency Lighting Authorized Service Center. During the
Warranty Period, supply HG2’s representative with a copy of
your dated bill of sale showing that this Product was purchased
within the United States. For the name of HG2 Authorized Dealer
or Distributor call 866-468-4569. After contacting the HG2
Authorized Dealer or Distributor, you may be required to deliver
or send the Product properly packaged, freight prepaid,to the
Authorized Service Center together with a photocopy of your bill
of sale.
What HG2 Will Do
HG2 will evaluate your report of a possible defect to determine
whether a defect exists, and if it does exist, HG2 (or its Authorized
Service Center) will repair this product or (at HG2’s option) replace
Problem
TROUBLESHOOTING
WARRANTY
HG2 Product does not illuminate 1. No power to RPM12 module
2. Power wires reversed
3. Fuse blown
4. Improper ground to chasis
1. Check wiring for loose connection;
check fuse
2. Checking wiring diagram;reverse
power wires
3. Replace fuse
4. Ensure ground wire terminates to
metal chassis ground
External fuse blows
HG2 Product illuminates regardless
of ignition switch postion
Incorrect flash pattern
Flash patterns continually change
1. Power wires shorted
2. Incorrect fuse size
1. RPM12 Module wired to constant
+12v power source
1. Wrong flash pattern is selected
1. RPM12 Module in “Demo Mode”
1. Check wiring connection to RPM12
Module for switched power
1. Select another pattern; see Basic
Operations: Selecting Patterns
1. Exit “Demo Mode”; see Basic
Operations: Demo Mode
1. Check power connections for damaged
or shorted wiring
2. Replace with correct fuse size
Solution
5
WWW.HG2LIGHTING.COM/RETURNS-WARRANTY
this Product with a product that performs the same functions and
performs as well as the original Product. HG2 reserves the right
to supply refurbished or remanufactured replacement products
provided that the replacement products meet the manufacturer’s
specifications for new products. The repaired or replacement
product will be returned to you at no cost.
Exchange Service
HG2 Emergency Lighting Systems are covered by an 5 Year
Limited Warranty. You must contact HG2 Support to first
troubleshoot the issue, and if this Product is deemed inoperable,
then a RMA (Return Merchandise Authorization) will be opened
and sent to you. All RMA shipments must have the RMA number
listed on the box or on a form in the box. Return shipments
without RMA information attached will not be guaranteed.
HG2 Support
Toll-free customer service and technical support is available for
assistance at 866-468-4569. You may access more HG2 support
by going to the HG2 website at: www.hg2lighting.com.
Please keep a record of this Product by completing the online
registry. In response we will send a confirmation of the approved
registered products. Retain this information with your proof
of purchase (bill of sale) in case your Product is lost, stolen, or
requires service.
You may ship this product back to
Attn: Returns
HG2 Emergency Lighting
477 N. Semoran Blvd, Orlando FL, 32807
Important
We recommend that you keep all original packing materials, in the
event that you ship this product.
HG2 Emergency lighthing reserves the right to discontinue,
modify, or upgrade any products it manufactures with design
improvements without prior notice.
THIS WARRANTY IS GIVEN IN LIEU OF ALL OTHER
WARRANTIES, WRITTEN OR ORAL, WHETHER EXPRESSED BY
AFFIRMATION, PROMISE, DESCRIPTION, DRAWING, MODEL,
OR SAMPLE. ANY AND ALL WARRANTIES OTHER THAN THIS
ONE, WHETHER EXPRESSED OR IMPLIED, INCLUDING IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
PARTICULAR PURPOSE, ARE HEREBY DISCLAIMED.
PATENT PENDING • U.S. Patents #6,612,726; #6,962,427, #8,480,253 B1
1.0 | 1.5.19
