HG2 REAR RUNNER User manual
REAR
2019 © Copyright HG2 Emergency Lighting. All Rights Reserved | PATENT PENDING • U.S. Patents #6,612,726; #6,962,427
V01052019
HG2LIGHTING.COM/SUPPORT
INSTALL GUIDE
1
®
REAR RUNNER ®
INSTALL GUIDE
2013-2019 Ford F-Series
866.468.4569 |www.HG2LIGHTING.com | Support@HG2Lighting.com
© 2019 Copyright HG2 Emergency Lighting. All Rights Reserved.
REAR
2019 © Copyright HG2 Emergency Lighting. All Rights Reserved | PATENT PENDING • U.S. Patents #6,612,726; #6,962,427
V01052019
HG2LIGHTING.COM/SUPPORT
INSTALL GUIDE
2
®

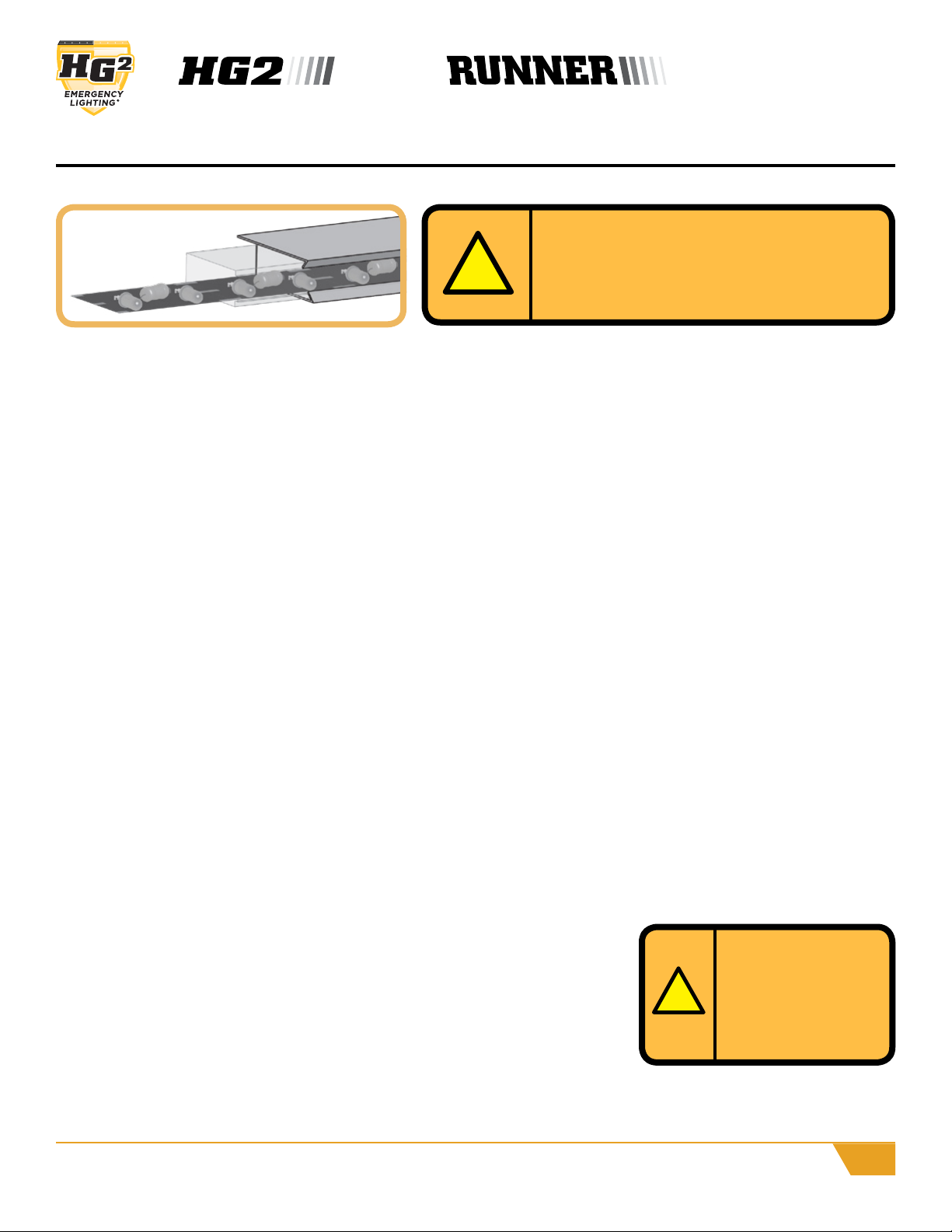

The HG2 Runner® Package is an
extremely versatile emergency lighting
system designed for maximum visibility
with a minimal footprint. HG2 Runners
were developed to enhance the outline
of a vehicle’s prole (rear of vehicle),
oering greater visibility through
installation location, variable ash
patterns and lighting intensity.
Our patent-pending designs feature
super-bright, wide-angle LEDs, a high-
impact polycarbonate housing and a
powder-coated extruded aluminum
mounting sleeve for stealth installation.
SAFETY FIRST!
This guide provides information for a
safe and proper installation of your HG2
Emergency Lighting product. Please
read this guide in its entirety before
attempting to install or operate this
product.
This guide oers information that could
prevent damage or serious injury.
The installation of this kit may require
that the vehicle is safely supported o
of the ground, using jack stands or a
vehicle lift. Never work on a vehicle
supported only by a jack. Observe all
warnings and procedures as outlined in
the manual or instructions provided by
the manufacturer of your jack stands,
vehicle lift and other necessary tools
required to install this kit.
Installer or technician should have a
good understanding of automotive
electronics, and a general working
knowledge of related automotive
systems and procedures.
When mounting this product, care must
be taken to avoid damage/interference
to vehicle components and systems—
such as brake and fuel lines, electrical
devices (computers and airbag sensors)
and wiring:
• Inspect both sides of mounting surface
before drilling or inserting fasteners
• Use fasteners of proper length
• Install control components in
accessible location that provides
for safe operation of the vehicle and
product controls under any driving
condition
• Do not install this product in a manner
that interferes with moving parts, or
where lifts or jacks are used to raise the
vehicle
• Do not install this product in a manner
that interferes with the deployment of
an airbag
When wiring this product:
• Deburr and install grommets into any
holes drilled for wiring
• Route wires to avoid sources of
excessive heat and any moving parts,
such as exhaust, suspension systems,
brake pedal
• Secure all wires using wire/cable ties or
equivalent
• Use NEGATIVE (-) battery post for
all chassis ground connections for
optimum per formance and eciency
• Do not route wires in a manner that
interferes with the deployment of an
airbag
The installer or technician assumes any
and all responsibility to determine proper
mounting location and wire routing, with
consideration of the safety of the vehicle
operator and passengers.
DO NOT:
• Stare directly into the lights. High-
intensity LEDs can cause momentary
blindness and/or damage to your eyes
• Mount product/product controls that
interfere with/impede safe operation of
vehicle
• Attempt to initiate or control this
lighting system during hazardous
driving conditions
• Clean product with a pressure washer,
solvents or other chemicals
FAILURE TO FOLLOW THESE GUIDELINES
COULD CAUSE DAMAGE TO THE PRODUCT,
VEHICLE AND/OR SERIOUS PERSONAL
INJURY OR DEATH.
NEVER WORK UNDER
THE HOOD WITHOUT THE
PROPER EQUIPMENT
IN PLACE TO HOLD
THE VEHICLE SAFELY
AND SECURELY WHILE
OPERATING/FIXING IT
!
UNDERSTANDING THE GUIDELINES
!
REAR
2019 © Copyright HG2 Emergency Lighting. All Rights Reserved | PATENT PENDING • U.S. Patents #6,612,726; #6,962,427
V01052019
HG2LIGHTING.COM/SUPPORT
INSTALL GUIDE
3
®

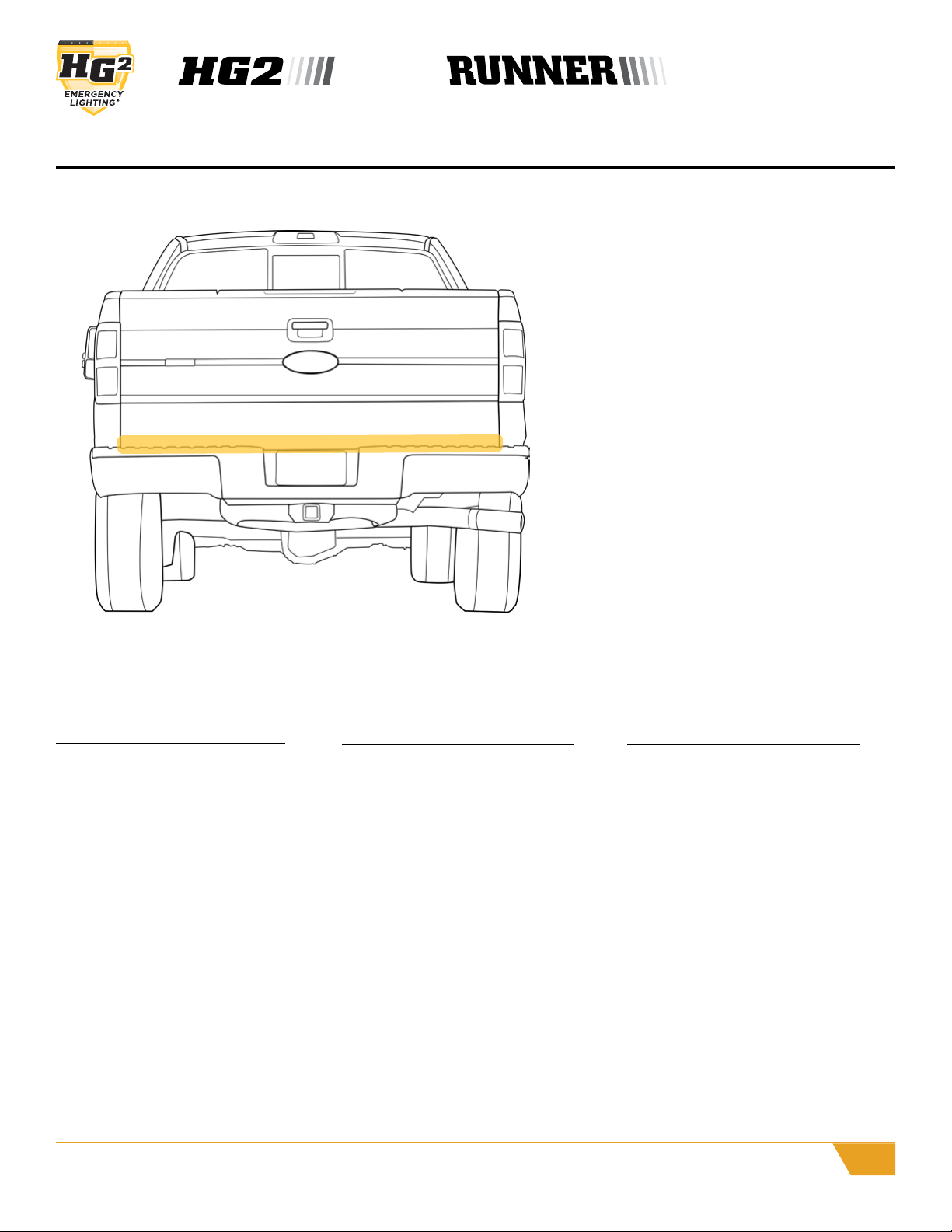

2 – 68” HG2 Runners – Ride of Vehicle
1 – RPM12 Runner Platform Module
1 – Pattern Selector Button
1 – 10A Fuse
1 – Installation Guide and Warranty Info
2013 | Ford F-Series
2014 | Ford F-Series
2015 | Ford F-Series
2016 | Ford F-Series
2017 | Ford F-Series
2018 | Ford F-Series
2019 | Ford F-Series
1. Read the installation guide for this
product in its entirety.
2. Unpack product components and
review parts list.
3. Bench test Runner Platform
Module and HG2 Runner(s) using
12v power supply to ensure
components are in working order.
4. Disconnect negative terminal
from vehicle battery.
5. Remove door sill panels at all
door locations.
6. Place vehicle on vehicle lift or
jack stands.
• Drill
• 9/32” Drill Bit
• Phillips-head Screwdriver/bit
• Wire Strippers
• Soldering Iron / Solder
• Heat Shrink Tubing
• Wire/Cable Ties
(Additional tools may be required
to complete installation)
Model:
Pre-Install Instructions:
Parts List:Required Tools
INSTALL PREPARATION & TOOLS
REAR
2019 © Copyright HG2 Emergency Lighting. All Rights Reserved | PATENT PENDING • U.S. Patents #6,612,726; #6,962,427
V01052019
HG2LIGHTING.COM/SUPPORT
INSTALL GUIDE
4
®
Open Tailgate door to check obstruction
of Runner to avoid the product from
getting damaged or crushed.
NOTE: Use another person to help align
Runner position while checking tailgate
door.
Step 1
Step 2
Step 3
While checking alignment, Install one
self-tapping screw down the middle of
Runner to hold it in place.
NOTE: Check once again for Runner
obstructing the tailgates pathway.
Place Runner against tailgate to
ensure correct sizing and placement
before do the install.
NOTE: Do not place Runner too high
under tailgate door.
It is highly recommended that the
installer has assistance in positioning
and holding the runner assembly during
the inspection and mounting process.
!
REAR
2019 © Copyright HG2 Emergency Lighting. All Rights Reserved | PATENT PENDING • U.S. Patents #6,612,726; #6,962,427
V01052019
HG2LIGHTING.COM/SUPPORT
INSTALL GUIDE
5
®

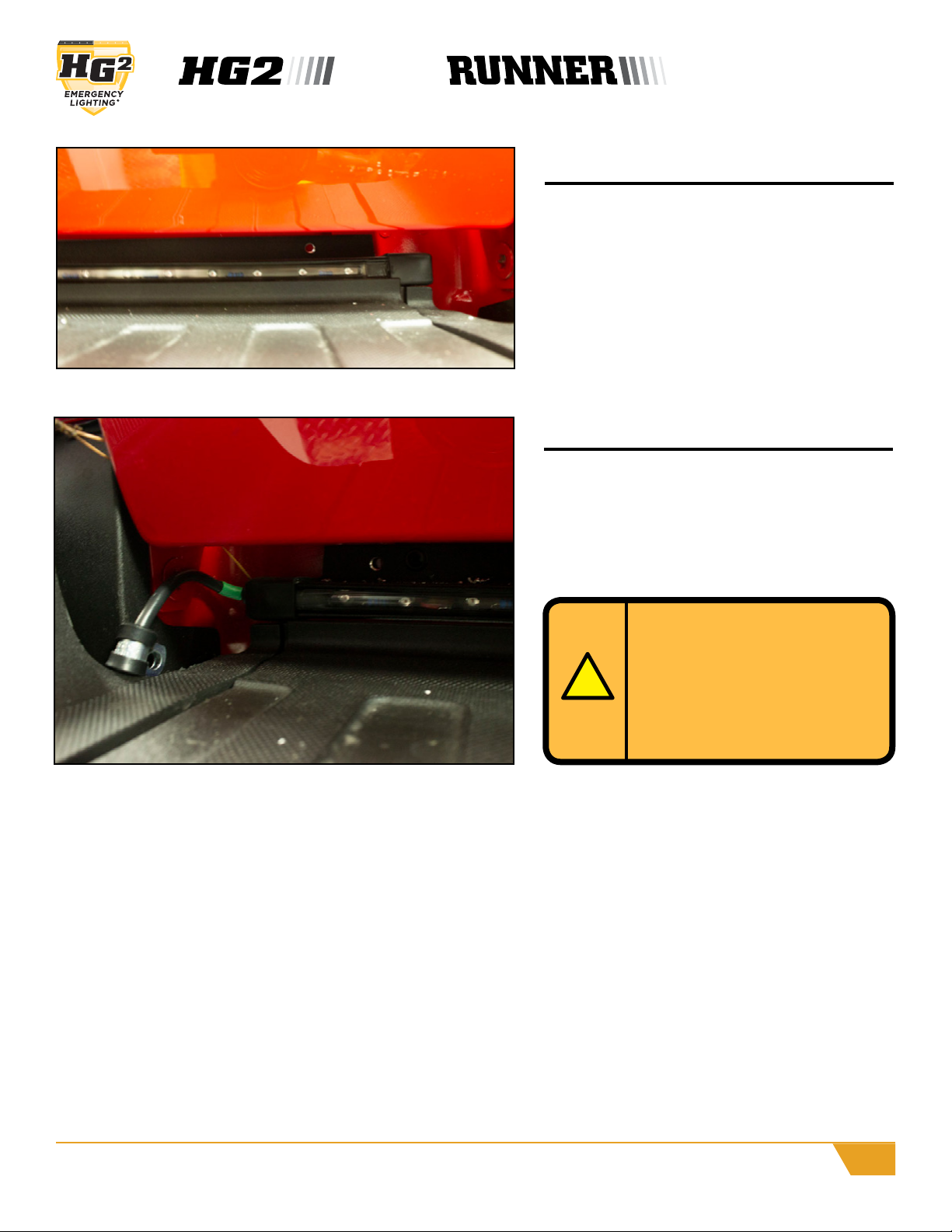

Once Runner is in place runner factory
wire down left side of tailgate to the
underside of vehicle.
NOTE: Wire from Runner will feed under
left side of vehicle.
Step 5
Inspect exterior of vehicle to ensure
mounting fasteners will not be
obstructed by, or damage, vehicle
systems such as fuel or brake lines.
Examine the vehicle’s interior oor,
under carpet and door sills to make
certain drilling of holes or insertion of
fasteners will not damage or interfere
with wiring, sensors or computers.
!
Step 4
While Runner is being held in place to
the tailgate, use self-tapping screws to
mount the remaining factory holes.
Left & Right Openings
REAR
2019 © Copyright HG2 Emergency Lighting. All Rights Reserved | PATENT PENDING • U.S. Patents #6,612,726; #6,962,427
V01052019
HG2LIGHTING.COM/SUPPORT
INSTALL GUIDE
6
®
Factory grommet will be utilized in
the rear of the vehicle, located near
the rear wheel well.
With door sill and kick panel removed,
lift carpet to access factory grommet
for wire routing.
Fasten wire stress-relief
clamp(included) to underside of
vehicle in a suitable location using
self-tapping sheet metal screw.
Wiring
REAR
2019 © Copyright HG2 Emergency Lighting. All Rights Reserved | PATENT PENDING • U.S. Patents #6,612,726; #6,962,427
V01052019
HG2LIGHTING.COM/SUPPORT
INSTALL GUIDE
7
®
INSTALLATION
Preparation
1. Read the installation guide for this product in its
entirety.
2. Unpack product components and review parts list.
3. Bench test Runner Platform Module and HG2 Runner(s)
using 12v power supply to ensure components are in
working order.
4. Disconnect negative terminal from vehicle battery.
5. Prepare mounting location by removing interior panels
as necessary.
Mounting
6. Mount the Runner Platform Module in a secure, dry
location (interior of the vehicle). Keep away from moving
parts, heat sources or locations that interfere with safe
operation of the vehicle.
7. Mount the Pattern Selector Button in an easily
accessible location. Drill a 9/32” hole for mounting.
Wiring
8. All wiring connections should be soldered and
protected using appropriate heat shrink tubing.
BASIC OPERATION
Demo mode
Demo mode rotates through each of up to 20 patterns every
10 seconds. To enter demo mode, press the pattern selector
button and power up module (key on or power from existing
switching unit). Exit demo mode by cycling power o and on
again without pattern selector button depressed.
Selecting Patterns
Press pattern selector button to select a new pattern. The
selected pattern is retained even after cycling power.
Inspect exterior of vehicle to ensure
mounting fasteners will not be obstructed by, or
damage, vehicle systems such as fuel or brake
lines. Examine the vehicle’s interior oor, under
carpet and door sills to make certain drilling of
holes or insertion of fasteners will not damage or
interfere with wiring, sensors or computers.

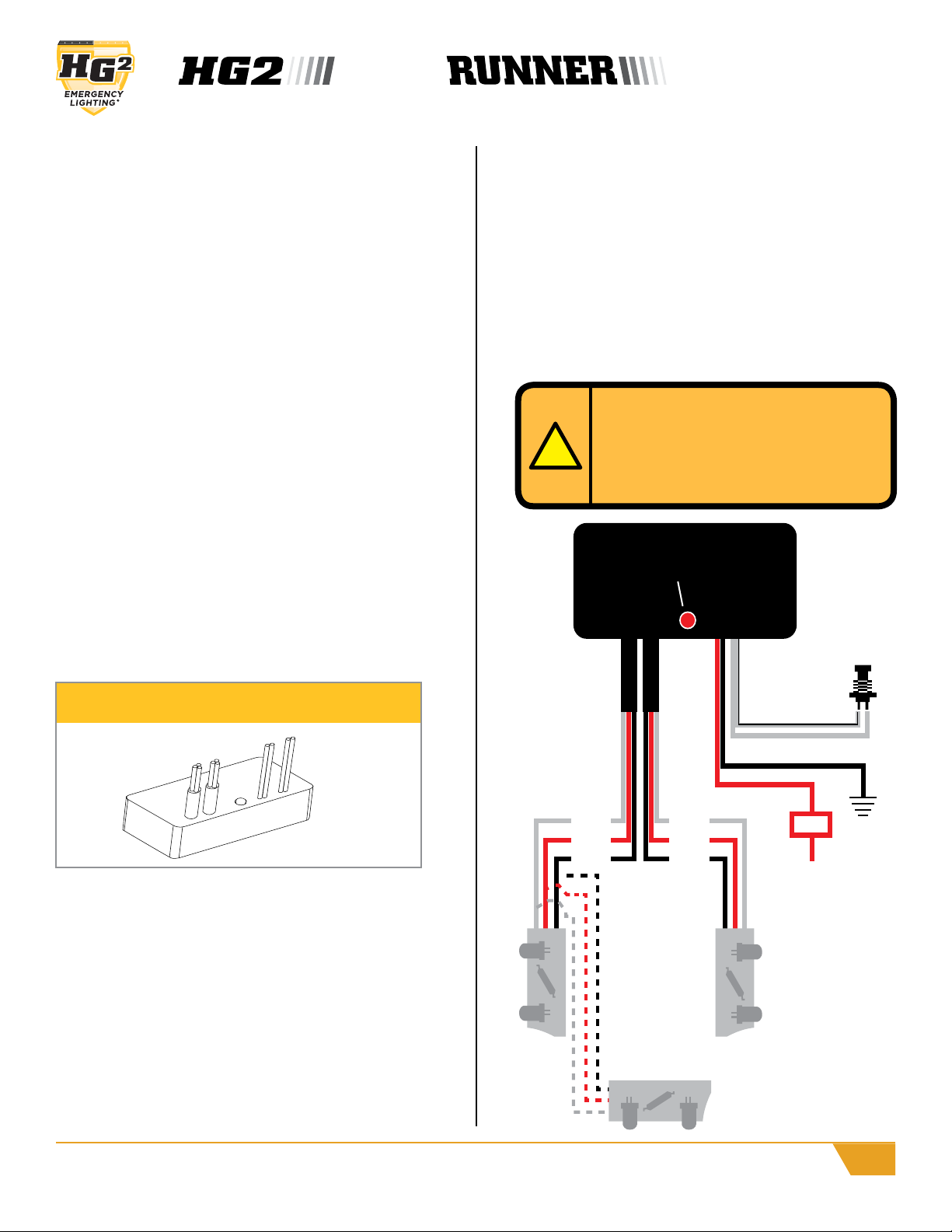

Chassis Ground
HG2 Runner HG2 Runner
To (+) 12 Volt Power Source
(Existing Switiching Module)
Rear Bumper/Tailgate Runner
(optional)
Pattern Selector Button
Power
Indicator
Black
White
Red
Black
White
Red
Black
Red
7A Fuse
Runner Platform Module [RPM12]
Parts List
1 – RPM12 Runner Platform Module
1 – Pattern Selector Button
1 – 10A Fuse
1 – Installation Guide and Warranty Info Packet
Required Tools
• Drill
• 9/32” Drill Bit
• Wire Strippers
• Soldering Iron / Solder
• Heat Shrink Tubing
• Wire/Cable Ties
(Additional tools may be required to complete installation)
!
2019 © Copyright HG2 Emergency Lighting. All Rights Reserved | PATENT PENDING • U.S. Patents #6,612,726; #6,962,427
HG2LIGHTING.COM/SUPPORT 8
This warranty gives you certain rights and you may also have other rights
that may vary from state to state. This warranty is given only to the end-
use purchaser of the accompanying product (referred to in this warranty
as “this Product”).
Product Registration
HG2 Emergency Lighting warrants Products within the “Warranty Period”
and that have been properly registered. To register this Product, go to
www.hg2lighting.com. Each HG2 product must be registered within 90
days of purchase.
What Is Covered
HG2 Emergency Lighting warrants to you for the Warranty Period that
there are no defects in the materials and workmanship of this Product.
The “Warranty Period” is a maximum of 5 years (Limited) from the date of
purchase with proof of purchase.
What Is NOT Covered
This warranty is VOID—that is, this Product has no warranty—if (1) you
did not purchase this Product from an authorized HG2 reseller within the
United States, (2) this Product has been serviced, modied or tampered
with by anyone other than an Authorized Service Representative of HG2
Emergency Lighting (3) the serial number has been modied, defaced
or removed from this Product, (4) this Product has been abused or
purposely damaged, (5) non-HG2 controllers have been used, (6) this
Product has been transported without the proper preparation and
packaging, (7) a non-certied HG2 Installer performed work on the unit or
installed the unit.
If Your Product Defective
Call 866-468-4569, or if you suspect a defect in materials or
workmanship in this Product, you can report it to a HG2 Emergency
Lighting Authorized Service Center. During the Warranty Period, supply
HG2’s representative with a copy of your dated bill of sale showing that
this Product was purchased within the United States. For the name of
HG2 Authorized Dealer or Distributor call 866-468-4569. After contacting
the HG2 Authorized Dealer or Distributor, you may be required to deliver
or send the Product properly packaged, freight prepaid,to the Authorized
Service Center together with a photocopy of your bill of sale.
What HG2 Will Do
HG2 will evaluate your report of a possible defect to determine whether
a defect exists, and if it does exist, HG2 (or its Authorized Service
Center) will repair this product or (at HG2’s option) replace this Product
with a product that performs the same functions and performs as well
as the original Product. HG2 reserves the right to supply refurbished or
Problem
TROUBLESHOOTING
WARRANTY
HG2 Product does not illuminate 1. No power to RPM12 module
2. Power wires reversed
3. Fuse blown
4. Improper ground to chasis
1. Check wiring for loose connection;
check fuse
2. Checking wiring diagram;reverse power
wires
3. Replace fuse
4. Ensure ground wire terminates to metal
chassis ground
External fuse blows
HG2 Product illuminates regardless
of ignition switch postion
Incorrect ash pattern
Flash patterns continually change
1. Power wires shorted
2. Incorrect fuse size
1. RPM12 Module wired to constant +12v
power source
1. Wrong ash pattern is selected
1. RPM12 Module in “Demo Mode”
1. Check wiring connection to RPM12
Module for switched power
1. Select another pattern; see Basic
Operations: Selecting Patterns
1. Exit “Demo Mode”; see Basic Operations:
Demo Mode
1. Check power connections for damaged or
shorted wiring
2. Replace with correct fuse size
Solution
remanufactured replacement products provided that the replacement
products meet the manufacturer’s specications for new products. The
repaired or replacement product will be returned to you at no cost.
Exchange Service
HG2 Emergency Lighting Systems are covered by an 5 Year Limited
Warranty. You must contact HG2 Support to rst troubleshoot the
issue, and if this Product is deemed inoperable, then a RMA (Return
Merchandise Authorization) will be opened and sent to you. All RMA
shipments must have the RMA number listed on the box or on a form in
the box. Return shipments without RMA information attached will not be
guaranteed.
HG2 Support
Toll-free customer service and technical support is available for
assistance at 866-468-4569. You may access more HG2 support by
going to the HG2 website at: www.hg2lighting.com.
Please keep a record of this Product by completing the online registry.
In response we will send a conrmation of the approved registered
products. Retain this information with your proof of purchase (bill of sale)
in case your Product is lost, stolen, or requires service.
You may ship this product back to
Attn: Returns
HG2 Emergency Lighting
477 N. Semoran Blvd, Orlando FL, 32807
Important
We recommend that you keep all original packing materials, in the event
that you ship this product.
HG2 Emergency lighthing reserves the right to discontinue, modify, or
upgrade any products it manufactures with design improvements without
prior notice.
THIS WARRANTY IS GIVEN IN LIEU OF ALL OTHER WARRANTIES,
WRITTEN OR ORAL, WHETHER EXPRESSED BY AFFIRMATION,
PROMISE, DESCRIPTION, DRAWING, MODEL, OR SAMPLE. ANY
AND ALL WARRANTIES OTHER THAN THIS ONE, WHETHER
EXPRESSED OR IMPLIED, INCLUDING IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSE, ARE
HEREBY DISCLAIMED.
Table of contents
Other HG2 Automobile Accessories manuals
