Hi-Spec HSODS User manual

HSODS
Instruction Manual
Welcome to the Hispec HSODS infrared motion sensor!
The product has a high sensitive detector and integrated circuit. It utilizes the infrared energy
from a person as the control-signal source and it starts to load when one enters detection field. It
can identify day and night automatically. It is easy to install.
SPECIFICATION:
Power Source: 220-240V/AC Detection Range: 360°
Power Frequency: 50/60Hz Detection Distance: 6m max(<24℃)
Ambient Light: <3-2000LUX (adjustable) Working Temperature: -20~+40℃
Time Delay: Min.10sec±3sec Working Humidity: <93%RH
Max.15min±2min Power Consumption: approx 0.5W
Rated Load: Max.1200W Installation Height: 2.2-4m
300W Detection Moving Speed: 0.6-1.5m/s
FUNCTION:
➢Can identify day and night: The consumer can adjust working state in different ambient light.
It can work in the daytime and at night when it is adjusted on the “sun” position (max). It can
work in the ambient light less than 3LUX when it is adjusted on the “3” position (min). As for
the adjustment pattern, please refer to the testing pattern.
➢Time-Delay is added continually: When it receives the second induction signals within the
first induction, it will restart to time from the moment.
Good sensitivity Poor sensitivity
INSTALLATION ADVICE:
As the detector responds to changes in temperature, avoid the following situations:
➢Avoid pointing the detector towards objects with highly reflective surfaces, such as mirrors
etc.
➢Avoid mounting the detector near heat sources, such as heating vents, air conditioning
units, light etc.
➢Avoid pointing the detector towards objects that may move in the wind, such as curtains, tall
plants etc.

CONNECTION:
Warning. Danger of death through electric shock!
Must be installed by a professional electrician.
Disconnect power source.
Cover or shied any adjacent live components.
Ensure device cannot be switched on.
Check power supply is disconnected.

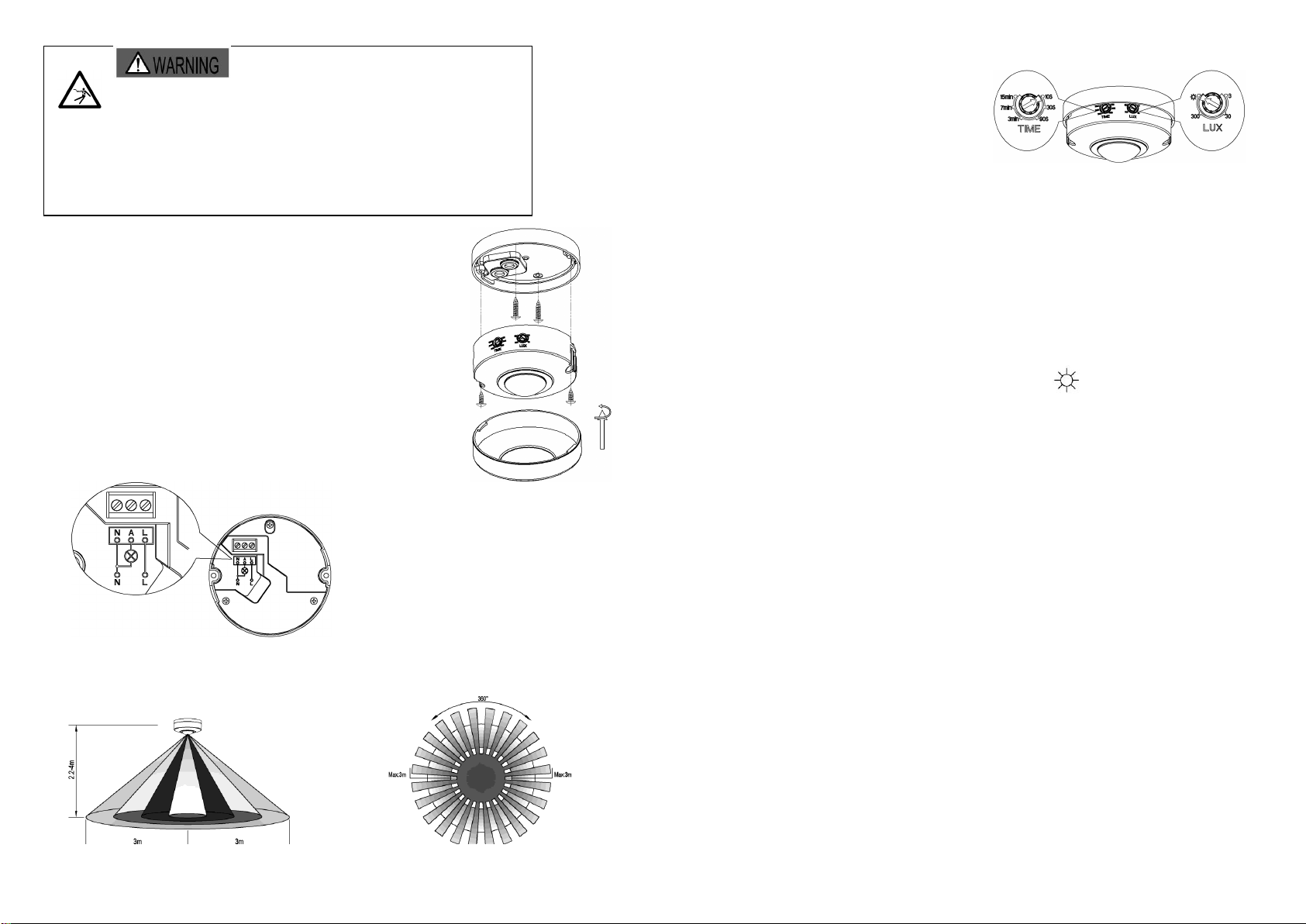

➢Please move the upper cover with anti-clockwise as per the
diagram on the right.
➢the load according to theConnect the power and
connection-wire diagram.
➢Fix the bottom on the selected position with the inflated
screw.
➢Install back the upper cover on the sensor, then
switch on the power and test it.
CONNECTION-WIRE DIAGRAM:
(See the right figure)
SENSOR INFORMATION:
TEST:
➢Turn the TIME knob anti-clockwise on the
minimum (10S). Turn the LUX knob clockwise
on the maximum (sun).
➢Switch on the power; the sensor and its
connected lamp will have no signal at the beginning. After Warm-up (30sec), the sensor
can start work .If the sensor receives the induction signal, the lamp will turn on. While there
is no another induction signal any more, the load should stop working within 10sec±3sec
and the lamp would turn off.
➢Turn LUX knob anti-clockwise on the minimum (3). If the ambient light is more than 3LUX,
the sensor would not work and the lamp stop working too. If the ambient light is less than
3LUX (darkness), the sensor would work. Under no induction signal condition, the sensor
should stop working within 10sec±3sec.
Note: when testing in daylight, please turn LUX knob to (SUN) position, otherwise
the sensor lamp could not work!
SOME PROBLEM AND SOLVED WAY:
➢The load does not work:
a. Please check if the connection of power source and load is correct.
b. Please check if the load is good.
c. Please check if the settings of working light correspond to ambient light.
➢The sensitivity is poor:
a. Please check if there is any hindrance in front of the detector to affect it to receive
the signals.
b. Please check if the ambient temperature is too high.
c. Please check if the induction signal source is in the detection field.
d. Please check if the installation height corresponds to the height required in the
instruction.
e. Please check if the moving orientation is correct.
➢The sensor can not shut off the load automatically:
a. Please check if there is continual signal in the detection field.
b. Please check if the time delay is set to the maximum position
c. Please check if the power corresponds to the instruction.
Height of installation: 2.2-4m
Detection Distance: Max.6m
L = Live supply into sensor
N = Neutral
A = Switched live output
(connect to light)
= Circuit symbol for lamp (light)
