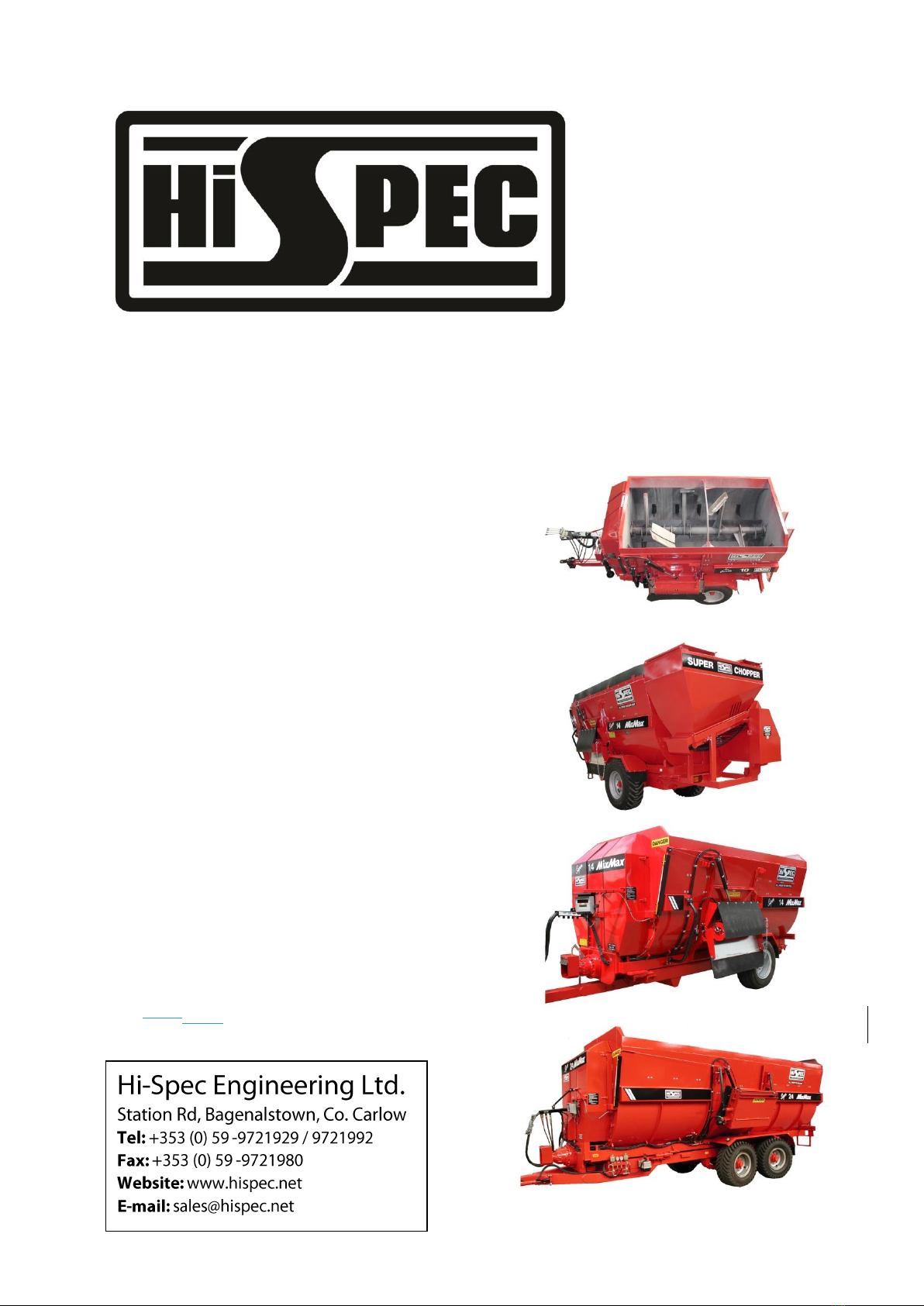

Hi-Spec MixMax10 User manual

Manufacturers of Agricultural Machinery
Hi-Spec
Mixmax Diet Feeder
Operators
Manual
Models:
10, 14, 16, 18, 21, 24, 30
rev –mm10mm104

MixMax Diet
Contents
Introduction.......................................................................................................4
Contents ............................................................................................................2
Designated Use of Machine...............................................................................5

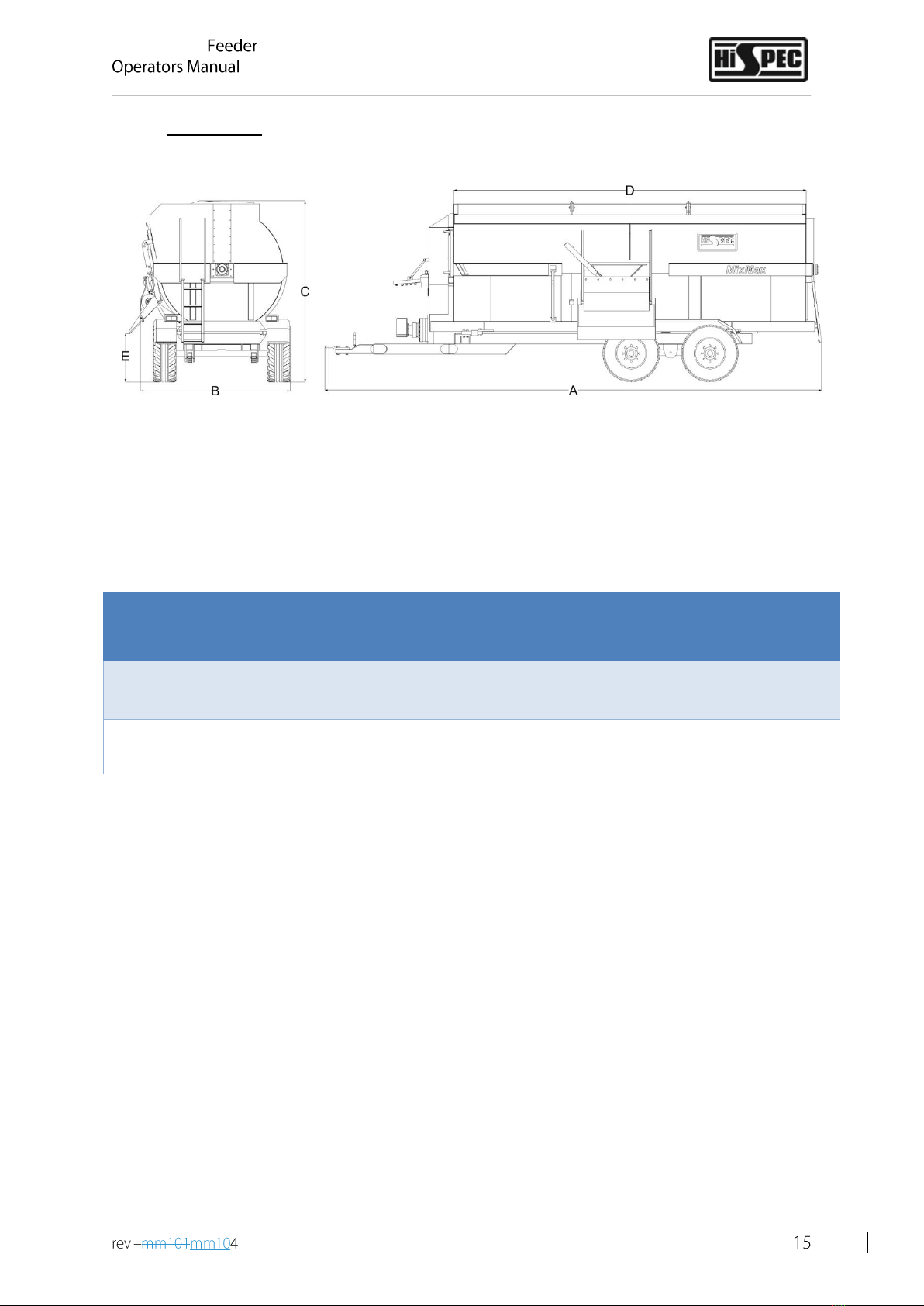

Technical Specifications and Dimensions........................................................14
Safety.................................................................. Error! Bookmark not defined.
Recognize safety information............................. Error! Bookmark not defined.
General Safety.......................................... Error! Bookmark not defined.
Safety Checklist .....................................................................................11
Description of Safety Warnings and Instructions....................................9
PTO Shaft Safety....................................... Error! Bookmark not defined.
Getting Started ................................................................................................15
Tractor Requirements ...........................................................................16
Hydraulic Requirements........................................................................16

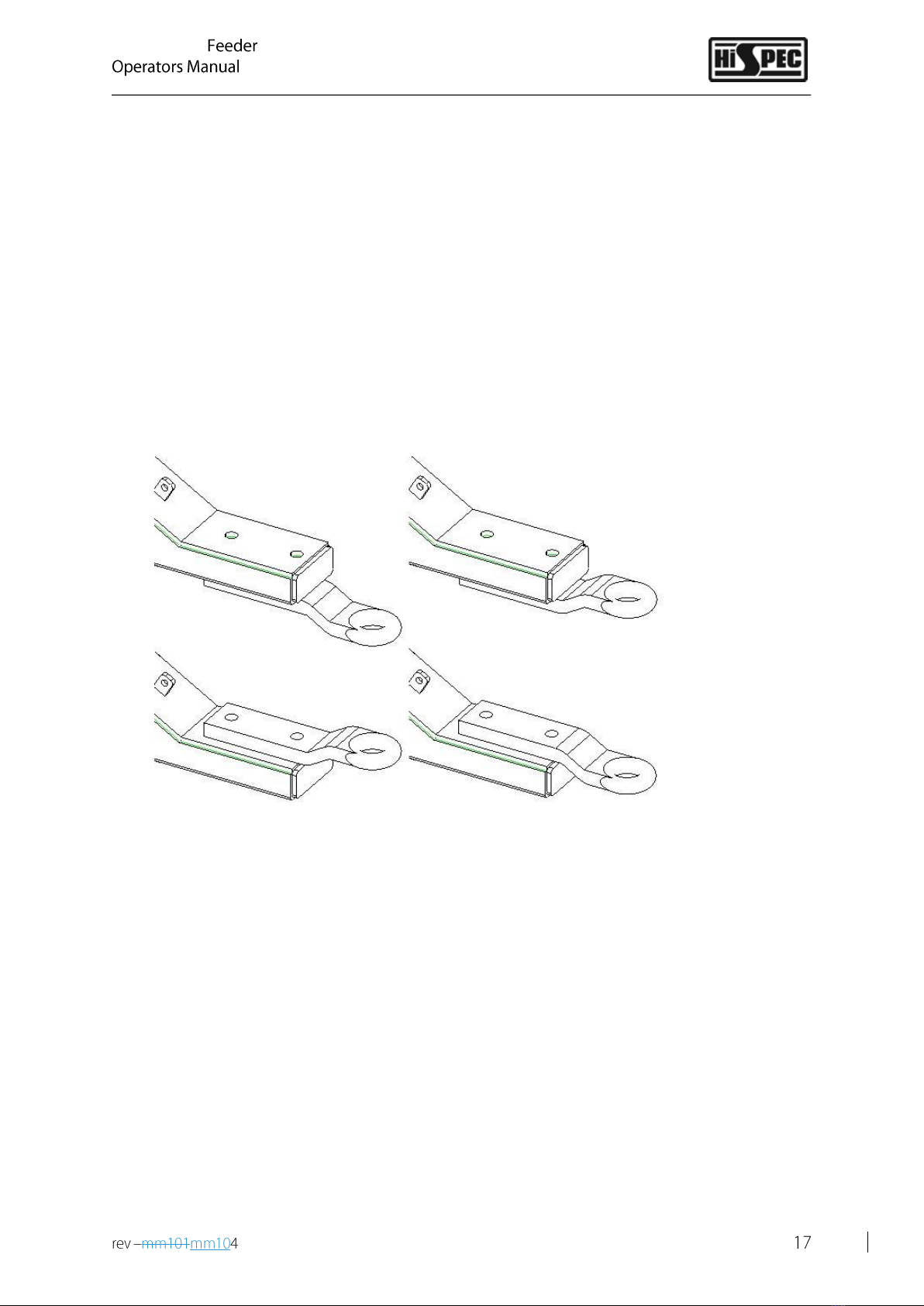

Connecting Feeder to Tractor ...............................................................17

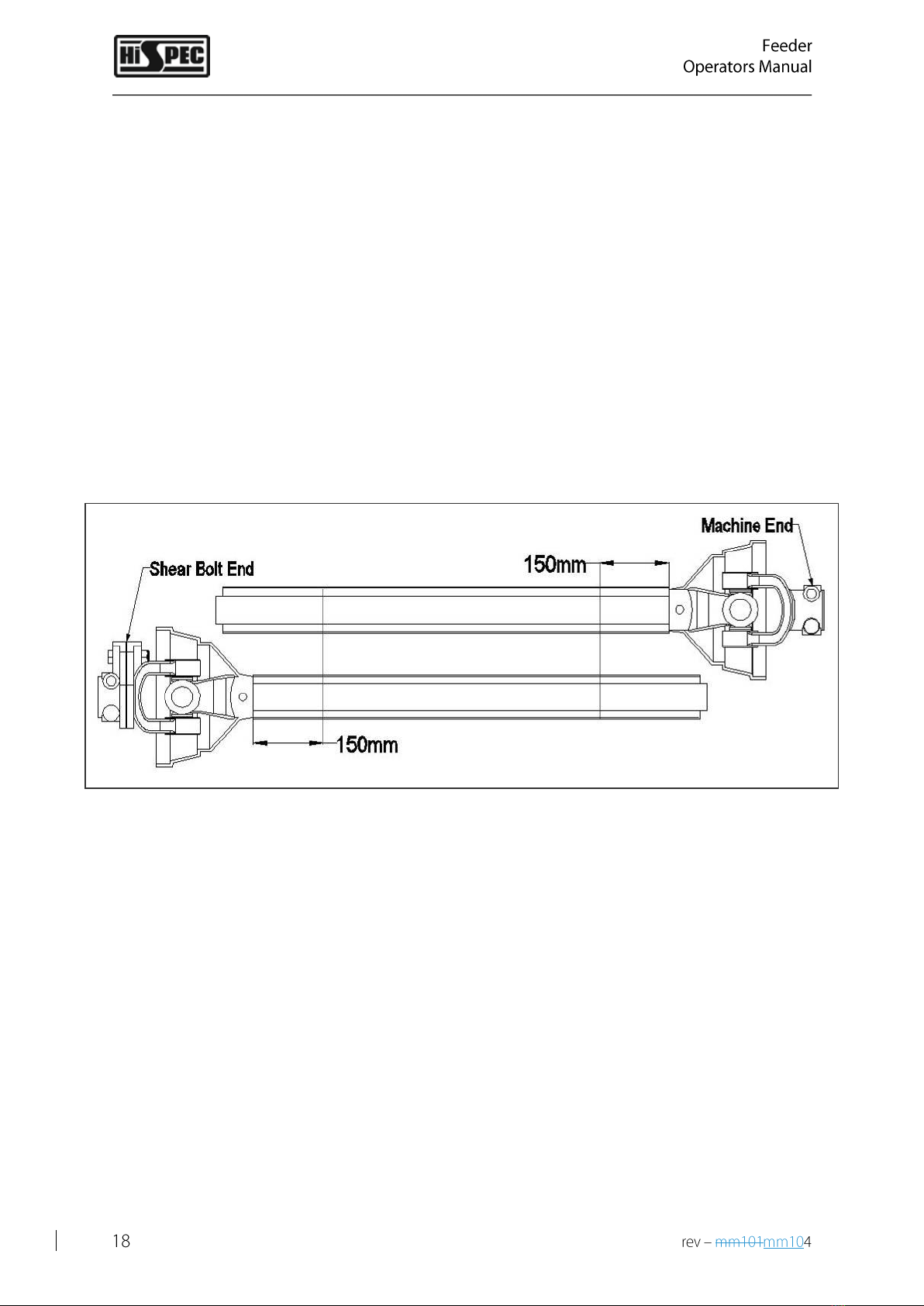

Fitting PTO Shaft....................................................................................18
Road Transportation........................................................................................19
Emergency Breakaway Handbrake..................................................................20
Operating Instructions.....................................................................................22
Ladder Operation ..................................................................................24
Loading Instructions ........................................................................................25
Feedout Instructions........................................................................................26
Feeding with Chute Discharge...............................................................26
Feeding with an Elevator Fitted ............................................................27
Maintenance....................................................................................................28
Correct Maintenance and Inspection Procedures: ...............................28
Maintenance Safety ..............................................................................28
Recommended Interval Maintenance...................................................29
Recommended Yearly Maintenance .....................................................30
Front Gearbox Maintenance .................................................................31
Lubrication.............................................................................................32
Elevator Maintenance ...........................................................................33

MixMax Diet
Greasing and Maintenance Location Points..........................................34
Wheel removal/refitting .......................................................................44
Root Chopper (Optional Extra) ........................................................................45
Designated use of machine ...................................................................45
Operating Instructions ..........................................................................45
Safety Decals .........................................................................................46
Greasing and Maintenance points ........................................................47
Sales and Service .............................................................................................51
Warranty..........................................................................................................52
Conditions of Sale............................................................................................53
Registration Forms ..........................................................................................56
Declaration of Conformity...............................................................................60

MixMax Diet
1
Introduction
Congratulations on your purchase of MixMax Diet Feeder.
Please Read the Following Manual Before Using Machine.
The way you care for and maintain this machine will decide its future performance. This manual has
been carefully written to help you maintain the condition of your machine. Read this manual
carefully to learn how to operate and service your machine correctly. Failure to do so could result in
personal injury or machine damage.
MixMax Diet Feeders have been designed and manufactured in compliance with the following
directives and standards;
Machinery Directive 2006/42/EEC
Harmonized standards ;
EN ISO 12100-1:2003, Safety of machinery Part 1: Basic terminology, methodology
EN ISO 12100-2:2003, Safety of machinery Part 2: Technical principles
EN ISO 4254-1:2005, Agricultural machinery -- Safety -- Part 1: General requirements
EN ISO 14121-1:2007, Safety of Machinery –Principle of Risk Assessment
BS EN 703:2004+A1:2009, Agricultural machinery –Silage loading, mixing and distributing machines –
safety
This manual should be kept within the vicinity of the machine at all times. This manual should be
considered a permanent part of your machine and should remain with the machine should you
decide to sell it.
Warranty is provided as a part of Hi-Spec Engineering’s support program for customers who operate
and maintain this machine and equipment as described in this manual. This warranty provides you
the assurance that Hi-Spec Engineering will back its machines where defects appear within the
warranty period. Should the machine be abused, or modified to change its performance beyond the
original factory specifications, the warranty will become void and improvements may be denied.
All information, illustrations, and specifications in this manual are based on the latest product
information available at the time of publication.
It is the policy of Hi-Spec Engineering to improve its products and designs whenever it is practical
and possible to do so. We reserve the right to make changes or improvements at any time without
incurring any obligation to make such changes on products sold previously
Thank you for choosing Hi-Spec Engineering

MixMax Diet
2
Designated Use of Machine
The MixMax Diet Feeder is exclusively designed to mix and dispense feed in a controlled
environment e.g. level, stable ground such as a cattle shed, using low power requirements and low
maintenance costs. Ensure the machine is level to get the best results while mixing.
Hi-Spec Engineering will not be held responsible for any loss or damage resulting from machine
applications other than those specified above. Any other use the machine may be put to is entirely
at the owners/operators risk. The Designated use of a MixMax Diet Feeder includes that the
operating, maintenance, and repair instructions given by the manufacturer will be strictly fulfilled.
Designated use means operating the Diet Feeder is exclusively for persons familiar with the machine
and fully aware of the associated risks involved in operating it.
By any alteration of safety equipment, the Declaration of Conformity, as well as the CE sign on
machine loses its validity.

MixMax Diet
3
Foreword
To ensure personal safety and the safety of others, please ensure that everybody that operates the
machine reads and fully understands this manual prior to operation. It is essential that you observe
all safety instructions. It is the responsibility of the owner to advise the operator of the operating
instructions and make sure they fully understand all instructions. Failure to do so may lead to
personal injury and/or machine damage. Using the vertical feeder is a one person operation
therefore there should be no other person(s) in the vicinity of the machine while in use. Person
under the age of 16 must not operate the machine
Designated Use of Machine
Hi-Spec Engineering will not be held responsible for any loss or damage resulting from machine
applications other than those specified above. Any other use the machine may be put to is entirely
at the owners/operators risk. The Designated use of a vertical feeder includes that the operating,
maintenance and repair instructions given by the manufacturer will be strictly fulfilled. Designated
use means operating the vertical feeder is exclusively for persons familiar with the machine and fully
aware of the associated risks involved in operating it.
The Hi-Spec Vertical Feeder is exclusively designed to mix and dispense feed in a controlled
environment, e.g. level stable ground such as a cattle shed, using low power requirements and low
maintenance costs. Ensure the machine is level to get the best results while mixing.
By any alteration of safety equipment, the Declaration of Conformity, as well as the CE sign on
machine loses it validity
Intended Use:
Vertical Feeder –Machine for handling, transporting and distributing and mixing of animal feed
Note: It must be noted that feeders have been designed to travel at a maximum speed of 40 km/h,
unless otherwise stated.

MixMax Diet
4.
Safety
The Hi-Spec MixMax diet feeder has been designed with many safety
features built in to its design but ultimately, safe operation and
maintenance is the responsibility of the operator.
Recognise Safety Information.
Please pay attention to these signs for your own safety
This is a safety alert symbol. When you see this symbol on your machine or in this manual be alert to
the potential for personal injury.
Follow the recommended guidelines for safe operating practice:
Understand signal words: - On machine safety signs, signal words give the level of the hazard.
Danger
Indicates an imminently hazardous situation which, if not avoided, will result in
death or serious injury.
Warning
Indicates a potentially more hazardous situation which, if not avoided, could
result in death or serious injury.
Caution
Indicates a potentially hazardous situation which, if not avoided, may result in
minor or moderate injury. You will find these signs located near specific hazards
on your machinery.
Safety signs should be maintained and replaced when necessary.
They can often become dirty, torn or unreadable due to dirt and wear and tear.
If you need a replacement sign or have lost your user manual, please contact your Hi-Spec
authorised dealer or Hi-Spec engineering directly and we would be happy to issue you with a
replacement.

MixMax Diet
4.1
General Safety
Have an emergency plan.
Keep all emergency numbers close by; write them into your manual.
Inspect your machine carefully each time before use; this will only take a minute.
Stop machine when leaving unattended.
Children should never be in the area when your mix max is in operation.
Using A mix max is a one-man operation therefore there should be no other person(s) in the
vicinity of the machine while in use.
Remember that the first step to avoiding danger is to recognise the hazards.
Keep a first-aid kit and a fire extinguisher close by at all times, if possible, on your tractor
with this operator instruction manual.
Always climb the ladder and check inside the machine before starting or filling it, to make
certain it is empty.
When stopping the machine always ensure a SAFE STOP
oHandbrake ON
oControls to Neutral
oEngine OFF
oRemove key

MixMax Diet
4.2
Description of Safety Warnings and Instructions
Description of Safety Warnings and Instructions
The following is a list of safety signs and warning labels on the MixMax Diet Feeder. Look carefully
and make sure you know where on the Mix Max they are positioned and what they mean. It is
important you are fully aware of the areas of risk on your machine.

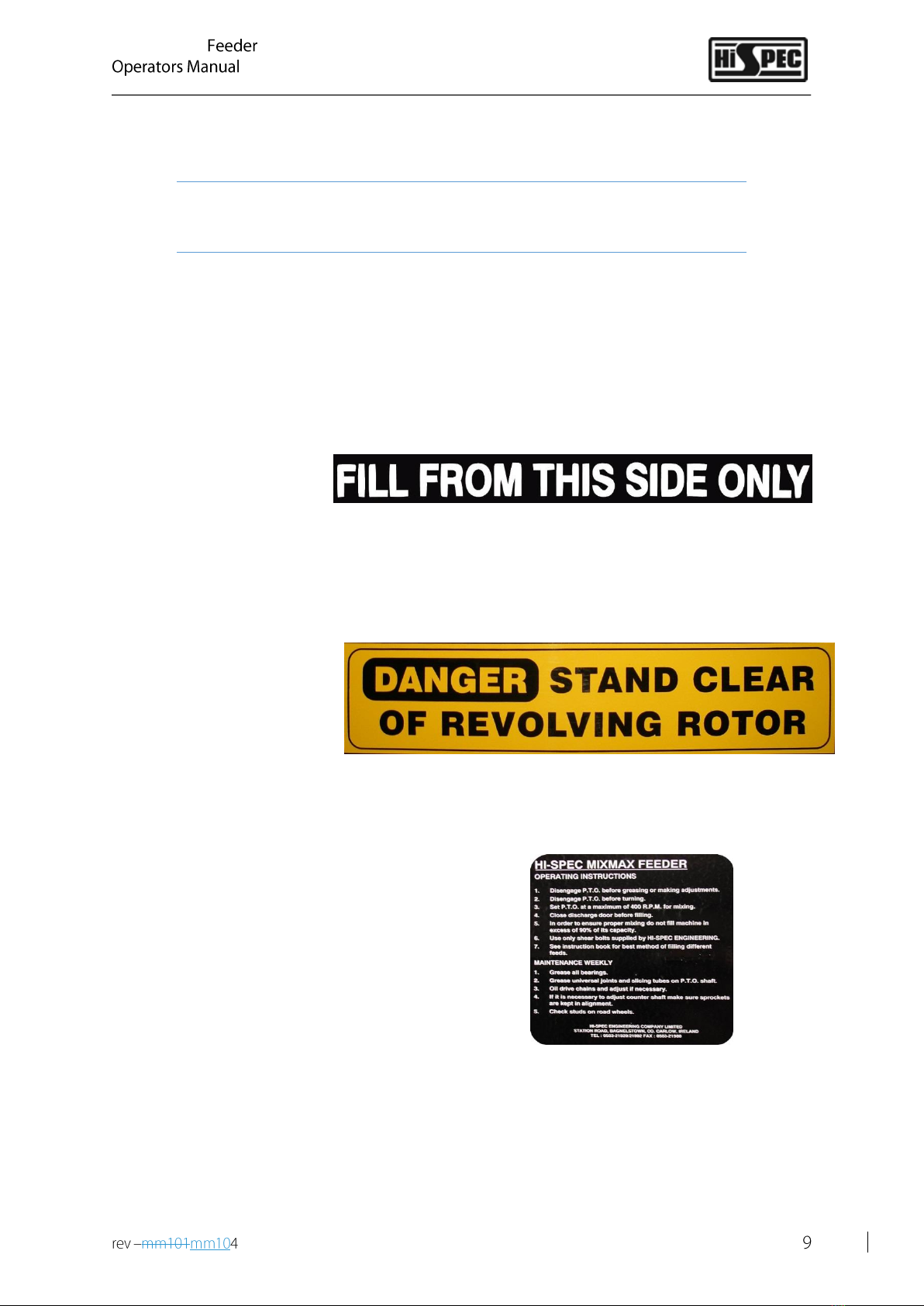

Feed should be
loaded into the
machine from this
side only, i.e. the side
with this decal.
Keep a safe distance
from the revolving
rotor while machine is
in operation.
MixMax Feeder Operating Instructions.

MixMax Diet
General danger sign, danger of rotating
parts and foreign objects. Keep clear of
machine while working.

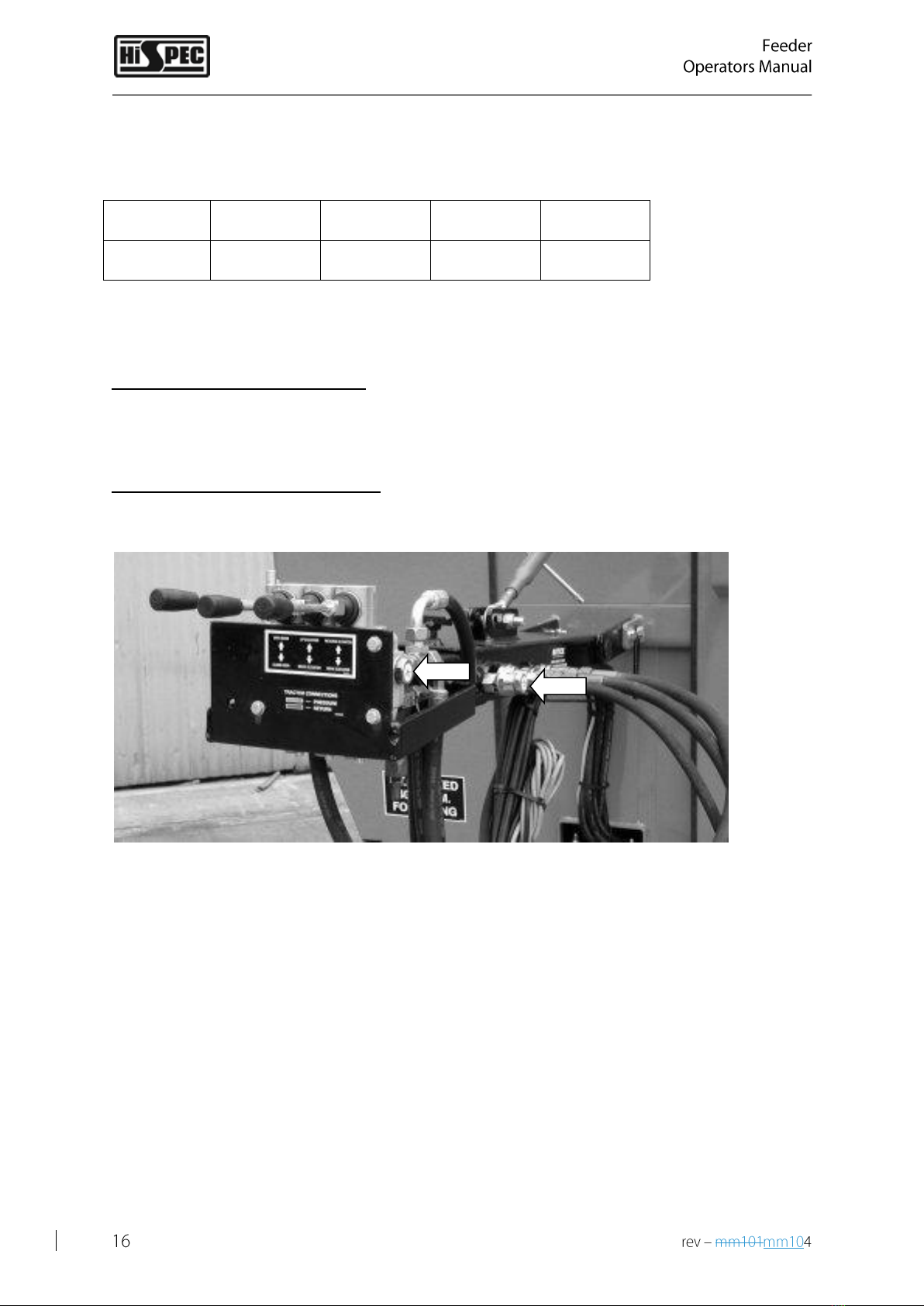

Follow these tractor hydraulic connection diagrams.
Remember Red for Pressure and Green for return!
The maximum PTO speed for mixing is 400 R.P.M.
This safety sign is to remind the operator
to disengage the PTO before turning

MixMax Diet
4.3
Safety checklist
Do’s
Always disconnect all power sources before carrying out any adjustment or maintenance.
Always check inside the mixer to make sure it is empty
Always check around the feeder making sure everything is in order, this will only take a
minute.
Provide training to new users. Study this manual. Like all farm machinery, the MixMax
feeder is a potentially dangerous machine when under the control of untrained personnel.
Exercise extreme care when loading feed and additive into the mixer
Always ensure guards and other safety devices are kept in good working order. Replace if
necessary
Keep clear of all moving parts.
Always connect the shear bolt end of the PTO shaft to the tractor
Always use shearbolts recommended to you by Hi-Spec Engineering.
Always keep all hydraulic hoses and electric cables clear from PTO shaft
Always apply handbrake before unhitching and park the Feeder in a level area.
Always use ladder for mixing inspection point, DO NOT climb up the side of the Feeder.
Remember to fold up ladder after each inspection
Always take extra precautions when using the machine on hilly or sloping ground.

MixMax Diet
Don’ts
XNever permit young persons or spectators to operate PTO driven equipment or stand
anywhere close by when the MixMax feeder is in operation.
XNever permit untrained personnel to operate the Feeder without reading this manual and or
receiving training
XNever operate machine without having all guards in place, they are there for your safety and
protection against serious injury and death
XNever remove guards while there is still power going into the machine, all power must be
off!
XNever put your hands past the guard in front of the teaser roller while there is power going
into the machine, turn the machine off and then assess the situation.
XNever enter the machine while in operation. The mixing chamber is extremely dangerous,
there is a risk of fatal injury if you enter the mixing chamber while components are moving,
never under any circumstance enter the mixing chamber. If you need to enter the mixing
chamber for maintenance, please see instructions in the maintenance section..
XNever wear loose clothing when operating machinery, if standing too close your clothing can
pull you into the machine. This is one of the most common causes of machinery users being
dragged into moving parts causing serious injury or death
XNever operate the Feeder if you think there could be large stones or foreign objects inside,
they could cause serious damage to your machine
XNever leave machine running when unattended.
XIf the machine should become blocked with a stone or foreign object, DO NOT attempt to
free the object while the machine is running.
XDo not climb into the machine using the ladder or control box at the front or rear of the
machine
XDo not stand on the ladder whilst the feeder is in transit, the vertical feeder should never be
used for the transport of people, animals or objects.

MixMax Diet
4.4
PTO Shaft Safety
The PTO shaft is a vital link in driving the machine. It is also a very dangerous piece of equipment,
therefore it is important to follow the manufacturer’s guidelines on maintenance and repair. These
guidelines are fixed to the PTO when new. They should be removed, read carefully and then stored
with this instruction manual for future reference. If the guidelines are missing from the PTO Shaft
please contact your Hi-Spec dealer for another copy.
The irregular shape and connection joints of a turning shaft can cause serious injury. The rotational
force of the shaft is the main hazard.
Do not wear loose fitting clothing or articles such as jewellery that might get caught in a turning PTO.
The rotation of the PTO is 540 rpm when mixing. Accidents can happen very fast therefore keep a
safe distance from the shaft when it is in use.
PTO Shafts account for most of tractor related
fatalities.
Make sure the shaft is guarded.
Replace the guards when they are
Damaged or missing.
Never use the machine with
Damaged or missing guards
In an emergency situation, take the PTO
Out of gear, stop the engine and set the brake.

MixMax Diet
5
Technical Specifications and Dimensions
Single axles
Single Axle
Capacity
Overall
Length (A)
Overall
Width (B)
Overall
Height (C)
Length of
Chamber
(D)
Feedout
Height
(E)
Unladen
Weight
MixMax10
10m3
5325
17’6”
2450
8’
2630
8’8”
3050
10’
995
3’3”
4720kg
MixMax14
14m3
6250
20’6”
2450
8’
2630
8’8”
4050
13’3”
995
3’3”
5270kg
MixMax16
16m3
6280
20’7”
2550
8’4”
2945
9’8”
4050
13’3”
995
3’3”
5990kg
MixMax18
18m3
7050
23’2”
2550
8’4”
2945
9’8”
4560
15’
995
3’3”
6375kg

MixMax Diet
Twin axles
Capacity
Overall
Length (A)
Overall
Width (B)
Overall
Height (C)
Length of
Chamber
(D)
Feedout
Height
(E)
Unladen
Weight
MixMax18
18m3
7050
23’2”
2550
8’4”
2945
9’8”
4560
15’
995
3’3”
6375kg
MixMax24
24m3
8390
27’5”
2580
8’6”
3100
10’2”
6025
19’9”
1165
3’10”
9400kg
Getting Started

MixMax Diet
Tractor Requirements
The horsepower needed to power a Diet Feeder depends on the size of the machine;
MixMax 10
MixMax 14
MixMax 16
MixMax 18
MixMax 24
60 hp
70 hp
85 hp
100 hp
125 hp
Hydraulic Requirements
On Feeders with a Spool valve fitted:
One single acting valve is required. Attach the pressure pipe (RED) to the tractor valve and the return
pipe (GREEN) to the tractor reservoir.
On Feeders with no Spool Valve Fitted:
Two double acting valves are required.
!! WARNING!!
On Feeders with a Spool Valve fitted
Before connecting the hydraulic system it is imperative to ascertain the type of hydraulic system on
your tractor (open or closed centre)
With an open centre system insert valve marked X1 into the side of the Spool Valve
With a closed centre system insert valve marked X2 into the side of the Spool Valve

MixMax Diet
Connecting Feeder to Tractor
1. Use a pickup hitch or a short drawbar.
2. Have the Feeder on a level area.
3. Adjust the height of the bolt on hitch to ensure the machine is level when attached to
tractor.
The following diagram shows four different height options

MixMax Diet
Fitting PTO Shaft
Turn the tractor to full lock to either the left or right to get the shortest point of the PTO
shaft.
Slide the PTO apart and fit the half with the shear bolt to the tractor and the other end to
the machine.
Lift the two parts of the PTO shaft up so that they are level with each other.
Mark 150 mm (6″) back from each other as shown in the diagram below.
Cut off the excess profile.

MixMax Diet
Road Transportation
Before bringing your machine onto a public road, it is important to check thoroughly that the
machine is following all of the appropriate guidelines.
Ensure brakes are connected and working correctly
Ensure lights are connected and working correctly
Ensure PTO is disengaged and electronic readout is switched off
Observe local maximum road speeds for this type of machine
Hi-Spec Engineering strongly recommend extreme care to be taken by the operator when
travelling on rough roads with a loaded Machine as shock loads will damage the
weighbars. Owners and/or operators do so at their own risk.
The operator must ensure that any other regulations regarding road use are adhered to.
Extreme care must be taken when negotiating acute bends with high speed tractors.

MixMax Diet
Emergency Breakaway Handbrake
The emergency breakaway handbrake should be connected to the tractor every time the diet feeder
is been used. It should be done using the wire rope provided. The wire rope should be attached to a
solid part of the tractor like the top link pin and not to a panel on the tractor.
The wire rope should be tight enough so it will work effectively if the diet feeder became detached
from the tractor but loose enough that the handbrake is not been applied during normal operation.
Handbrake in the off position
Handbrake in the on position
Disengaging the Emergency breakaway handbrake
