Hi-Tec X2 Ultima User manual

WARNING: THE CHARGING AND DISCHARGING OF RC HOBBY BATTERIES CAN BE DANGEROUS.
FAILURE TO FOLLOW THE INSTRUCTIONS AND WARNINGS IN THIS MANUAL MAY RESULT IN
PROPERTY DAMAGE AND/OR LOSS OF LIFE.

2
Table of Contents:
Introduction..................................................................................................................................03
Warning and Safety Notes.....................................................................................................04
Product Layout............................................................................................................................08
Specications................................................................................................................................09
Features..........................................................................................................................................10
Battery & Power Supply Connections..............................................................................12
Power Distribution....................................................................................................................13
Operation.......................................................................................................................................14
Program Flow Chart..................................................................................................................15
Charger Operation....................................................................................................................16
Lithium Battery Program [LiP0/LiHV/LiFe/Lilon]..................................................................17
NiMH/NiCd Battery Program.................................................................................................25
Pb Lead-Acid Battery Program............................................................................................29
Battery Meter...............................................................................................................................32
Battery Resistance Meter........................................................................................................33
Memory Preset - Data Store/Load......................................................................................34
Advanced System Set Up........................................................................................................36
Warning and Error Messages................................................................................................38
Using the Charge Control Software [CHARGE MASTER]..................................................39
Recommended Accessory......................................................................................................39
Commonly Used Terms............................................................................................................40
Conformity Declarations.........................................................................................................41
Disposal and Prop 65 Warning............................................................................................42
Warranty and Service...............................................................................................................42
Table of Contents

3
Congratulations on purchasing your new X2 High Power Charger! This
latest addition to our innovative charger line offers expanded capacity and
compatibility in a portable and compact package. With dual inputs affording
exible battery charging at home and in the eld, the X2 High Power also boasts
Hitec’s innovative power distribution mode which allows you to efficiently assign
output power based on individual battery requirements, as well as being able
to distribute power to a DC output port to power even more devices. Capable
of charging all battery chemistries (including the new generation LiHV), this
powerhouse has a built in 250 Watt power supply, internal balancing circuits and
10 different charge/discharge proles. The X2 High Power also features a highly
unique and innovative Voice Guide function which will help you program your
charger to give you a charger that is unmatched in performance capability.
As with all Hitec products, please read the OPERATING INSTRUCTIONS, WARNING
and SAFETY NOTES in their entirety before you attempt to use your new product.
THE CHARGING AND DISCHARGING OF RC HOBBY BATTERIES CAN BE
DANGEROUS. FAILURE TO FOLLOW THESE EXPLICIT WARNINGS CAN
RESULT IN PROPERTY DAMAGE AND/OR LOSS OF LIFE.
ANEVER LEAVE YOUR CHARGER UNATTENDED WHILE IN OPERATION.
ANEVER CHARGE ON OR AROUND COMBUSTIBLE MATERIALS.
ANEVER CHARGE A DAMAGED BATTERY PACK.
ALOW COST, NO-NAME BATTERY PACKS POSE THE MOST DANGER. WE
RECOMMEND YOU ONLY USE BATTERY PACKS THAT ARE SOLD AND
WARRANTIED BY A REPUTABLE COMPANY.
AIT IS HIGHLY RECOMMENDED THAT YOU UTILIZE A SAFETY DEVICE SUCH
AS A STEEL CASE OR LIPO SACK™ WHILE CHARGING LITHIUM CHEMISTRY
BATTERIES.
AIT IS HIGHLY RECOMMENDED THAT YOU KEEP AN OPERABLE“CLASS A” FIRE
EXTINGUISHER IN THE CHARGING AREA.
FAILURE TO FOLLOW THESE WARNINGS CAN BE CONSIDERED
NEGLIGENCE BY THE OPERATOR AND MAY NEGATE ANY CLAIMS
FOR DAMAGES INCURRED.
Hitec RCD USA will not be held responsible for any damages or injuries that may
Warning
Introduction
Warning

4
These warnings and safety notes are of the utmost importance. You must follow
these instructions for maximum safety. Failure to do so can damage the charger
and the battery and in the worst cases, may cause a re.
NEVER LEAVE THE CHARGER UNATTENDED WHILE IT IS CONNECTED TO
ITS POWER SOURCE. IF ANY MALFUNCTION IS FOUND, TERMINATE THE
PROCESS AT ONCE AND REFER TO THE OPERATION MANUAL.
AThe allowable DC input voltage is 11-18V DC.
AThe allowable AC input voltage is 100-240V AC.
AKeep the charger away from dust, damp, rain, heat, direct sunlight and
excessive vibration.
AIf the charger is dropped or suffers any type of impact, it should be inspected
by an authorized service station before using it again.
AThis charger and the battery should be put on a heat-resistant, non-
ammable and non-conductive surface.
ANever place a charger on a car seat, carpet or similar surface. Keep all
ammable, volatile materials away from the operating area.
AMake sure you know the specications of the battery to be charged or
discharged to ensure it meets the requirements of this charger. If the
program is set up incorrectly, the battery and charger can be damaged.
AFire or explosion can occur due to overcharging.
Warning
Warning: Be sure to read this section for your own safety.
Caution: Be sure to read this section to prevent accidents
and damage to your charger.
Tip: This section will help you maximize the performance of
your charger.
Note: This section will provide more detailed explanations.
Caution
Tip
Warning
Note
Warning and Safety Notes
occur by persons who fail to follow these warnings or who fail to properly follow
the instructions in this manual.

5
Warning and Safety Notes [cont.]
ATo avoid a short circuit between the charge lead, always connect the charge
cable to the charger rst, then connect the battery. Reverse the sequence
when disconnecting.
ANever attempt to charge or discharge the following types of batteries:
• A battery tted with an integral charge circuit or a protection circuit
• A battery pack which consists of different types of cells (including
different manufacturer’s cells)
• A battery that is already fully charged or just slightly discharged and
non-rechargeable batteries (these pose an explosion hazard)
• A faulty or damaged battery
• Batteries installed in a device or which are electrically linked to other
components
• Batteries that are not expressly stated by the manufacturer to be
suitable for the currents the charger delivers during the charge process
PLEASE BEAR IN MIND THE FOLLOWING POINTS BEFORE YOU
COMMENCE CHARGING:
• Did you select the appropriate program suitable for the type of battery you
are charging?
• Did you set up the adequate current for charging or discharging?
• Have you checked the battery voltage? Lithium battery packs can be wired
in parallel and in series, i.e. a 2-cell pack can be 3.7V (in parallel) or 7.4V (in
series).
• Have you checked that all connections are rm and secure?
• Make sure there are no intermittent contacts at any point in the circuit.

6
LiPo LiHV LiIon LiFe NiCd NiMH Pb
Nominal
Voltage
3.7V/cell 3.8V/cell 3.6V/cell 3.3V/cell 1.2V/cell 1.2V/cell 2.0V/cell
Max. Charge
Voltage
4.2V/cell 4.35V/cell 4.1V/cell 3.6V/cell 1.5V/cell 1.5V/cell 2.46V/cell
Storage
Voltage
3.8V/cell 3.85V/cell 3.7V/cell 3.3V/cell n/a n/a n/a
Allowable Fast
Charge
≤ 1C ≤ 1C ≤ 1C ≤ 4C ≤ 1-2C ≤ 1-2C ≤ .04C
Min. Discharge
Voltage
3.0-3.3V/cell 3.1-3.4V/cell 2.9-3.2V/cell 2.6-2.9V/cell 0.1-1.1V/cell 0.1-1.1V/cell 1.8V/cell
Standard Battery Parameters
WHEN ADJUSTING YOUR X2 HIGH POWER CHARGING PARAMETERS,
BE SURE YOU SELECT THE PROPER BATTERYTYPE AND CELL VOLTAGE
FOR THE TYPE OF CELL YOU ARE CHARGING. CHARGING BATTERIES WITH
THE WRONG SETTINGS MAY CAUSETHE CELLS TO BURST, CATCH FIRE OR
EXPLODE.
Charging
Before charging your batteries, it is critical that you determine the maximum
allowable charge rate for your batteries. The X2 High Power is capable of
charging at high rates that may not be suitable or safe for your particular
batteries. For example, Lithium cells are typically safe to charge at 1C, or the
total mAh÷1000. A 1200mAh battery would have a 1C charge rate of 1.2 amps. A
4200mAh battery would have a 1C charge rate of 4.2 amps. Some manufacturers
are offering Lithium cells that can be charged at greater than 1C but this should
ALWAYS be veried before charging a Lithium battery at rates higher than 1C.
Voltage is just as critical as the charging amperage rate and this is determined
by the number of cells in series, or “S”. For example, a 3S LiPo is rated at 11.1 volts
(“S”multiplied by a single LiPo cell with a nominal voltage of 3.7 volts DC. 3 cells
x 3.7 volts each equals 11.1 volts DC).
Connect the battery’s main leads to the charger output: red is positive and
black is negative. Keep in mind that the gauge or thickness of your charging
leads from the X2 High Power to your battery must be of an acceptable current
rating to handle the applied charge current. For maximum safety and charging
effectiveness, always match or exceed the main battery lead rating when
assembling or selecting your charging leads. If you charge a battery at a high
current rate (amperage) with a charging lead not rated for the chosen amperage,
the wire could get hot, catch re, short out and/or potentially destroy your
battery and the charger.
Warning
Warning and Safety Notes [cont.]

7
Warning and Safety Notes [cont.]
Note
When in doubt, always use a higher gauge wire (lower AWG number). It is
common to see charging leads constructed of 14AWG, 16AWG or 18AWG wire.
Always refer to recommendations from your battery manufacturer for your
specic battery type and size before initiating a charge or discharge process.
Do not attempt to disassemble or modify Lithium or Lead-Acid battery packs.
Discharging
The X2 High Power discharging functions are for two specic purposes:
• Refreshing the capacity of a Nickel-based battery that has lost capacity over
time (NiMH or NiCd).
• Reducing the voltage of a Lithium battery for safe storage.
LITHIUM CHEMISTRY BATTERY PACKS SHOULD ONLY BE DISCHARGED
TO THEIR MINIMUM SAFE VOLTAGE, NO LOWER. DEEP DISCHARGING
A LITHIUM CELL WILL DO PERMANENT DAMAGE. REFER TO THE
STANDARD BATTERY PARAMETERS TABLE ON PAGE 6 OF THIS MANUAL
FOR MINIMUM DISCHARGE VOLTAGES.
LiPo & LiHV Charge/Discharge Cycling
Lithium batteries are known to reach full capacity after a break-in period of
about 10 charge/discharge cycles. We do not recommend you use the X2 High
Power charger to do this; normal use and recharging will achieve the same
results. If you wish to perform a Lithium break-in on the bench with the X2 High
Power, discharging to minimum acceptable voltages and performing a balance
charge at 1C maximum rate is recommended. If you choose to break in your
Lithium batteries under normal use, charging at only 1C for the rst ten cycles
will help ensure full performance and service life from your Lithium cells.
Error Codes
In the case of an error, the screen will communicate the cause of the error and
emit an audible sound. The descriptions for these errors can be found on the
Warning and Error Messages page.

8

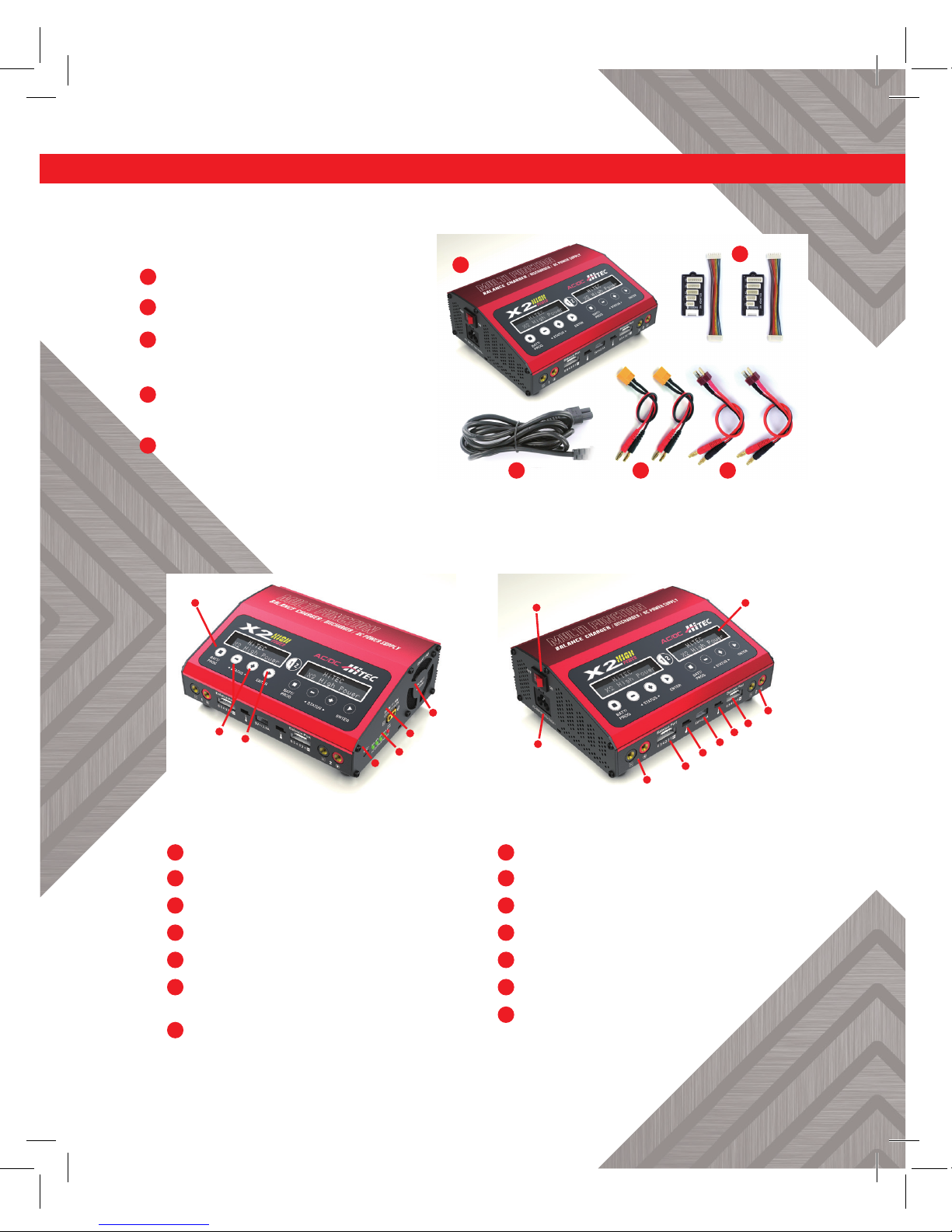

Product Layout
The Set Contains:
1 x X2 High Power Charger
2 x XH Adaptor
2 x Charging Cables w/
Dean Connectors
2 x Charging Cables w/
XT-60 Connectors
Power Cord
1
2
3
4
5
6
7
5
4
3
2
6
5
4
3
2
1
4
5
7
3
1
1
2
3
4
5
6
7
Cooling Fan
DC Input 11-18V/DC Output 13.8V
DC Output Power Level Indicator
Micro USB Port for PC Link

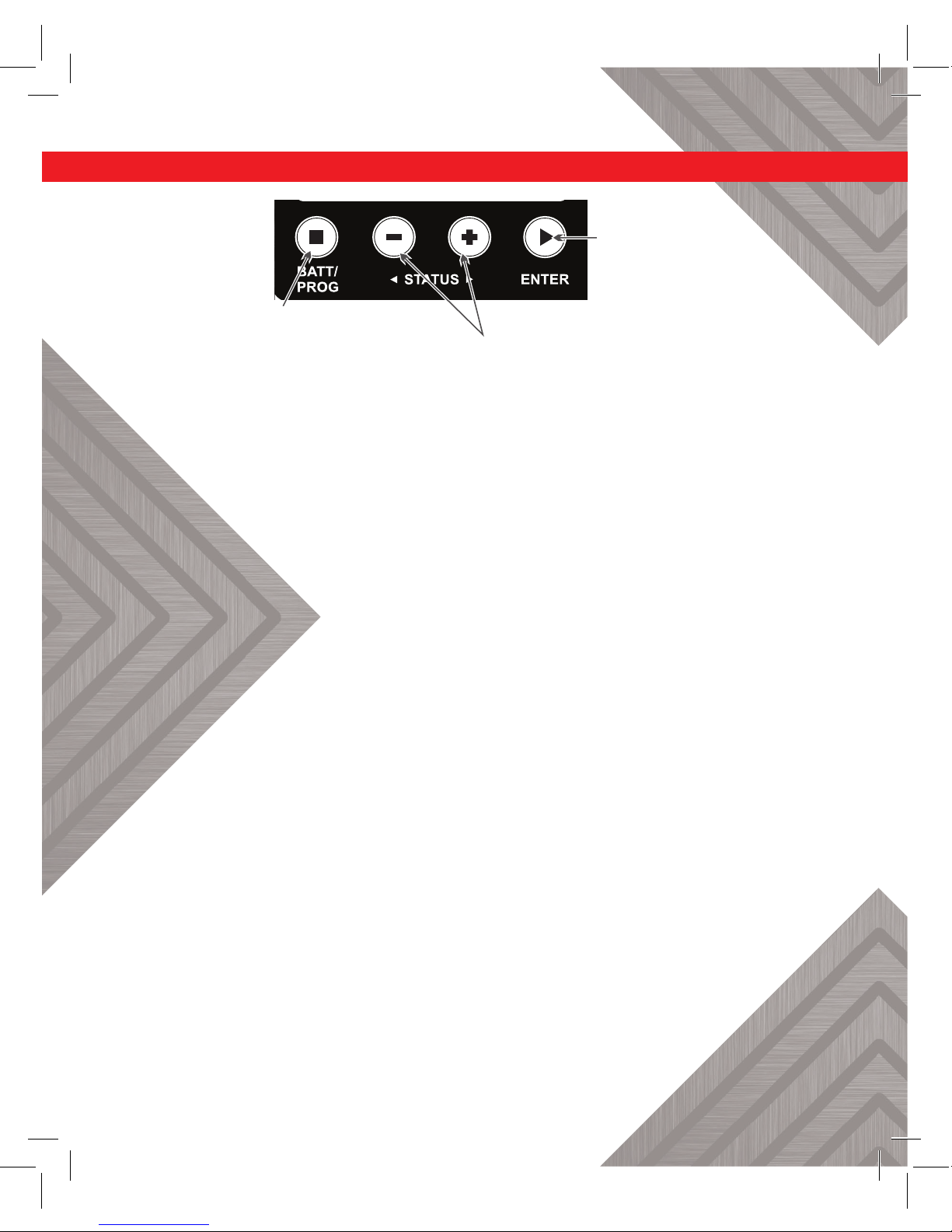

Resume or Start Charge Processes
Adjust Values / See the Status of
Individual Cells in Balance Charge Mode
Scroll through the Main Menu / Stop Any
Charge Processes
1
2
3
4
5
6
7
AC Socket 100-240V
Power Switch
Output Socket 4mm Banana Plug
Balance Lead Socket
Temperature Sensor Port
USB Port
LCD Display
RIGHT SIDE LEFT SIDE
5
1
2
3
4

9
AC Input
DC Input
Charge Circuit Power
(CH1 + CH2 + PS = 250W)
Charge Current Range
Discharge Current Range
Discharge Current Power
Current Drain for LiPo Balancing
100 - 240 Volts AC
11 - 18 Volts DC
Channel 1: 50 -120 Watts AC input
Channel 2: 50 -120 Watts AC input
10 - 150 Watts DC Output
0.1 - 10.0 Amps x 2
10 Watts x 2
0.1 - 2.0 Amps x 2
300mA per cell
NiCd/NiMH Battery Cell Count 1 - 15 Cells
- Capacity Range 100 - 50000mAh
LiPo/LiHV/LiFe/Lilon Cell Count 1 - 6 Cells
- Capacity Range 100 - 50,000mAh
Pb Battery Voltage 2 - 20 Volts
- Capacity Range 100 - 50,000mAh
2.85 lbs
1293g
Net Weight
7.24 x 5.74 x 2.75 in
184 x 146 x 70mm
Dimensions

10
Features
Dual Input and Power Distribution:
The X2 High Power has a dual AC/DC input comprised of AC 100-240V and DC
11-18V. In DC mode, the power of each channel is 120W with an overall power
of 240W. Power distribution is supported in AC mode, with the ability to power
other DC powered devices using the chargers built-in DC output power supply.
Optimized Operating Software:
The X2 High Power features the latest in innovative microprocessor controlled
charging software to help aid end users in charging their batteries safely and
if an abnormal reaction has been detected. Each programming feature of your
X2 High Power is controlled by two way linkage and communication and is
completely customizable to the user’s preferences.
Battery Memory (Data Store/Load):
channel and lets you recall the data from each program setting at any time.
Terminal Voltage Control(TVC):
For experienced users, the charger’s end voltage can be reset.
Internal Independent Lithium Battery Balancer:
Hitec’s X2 High Power employs an individual cell-voltage balancer built into
the unit. It is not necessary to connect an external balancer for balance charging.

11
Re-Peak Mode of NiMH/NiCd Battery:
In re-peak charge mode, the charger can peak charge the battery once, twice,
or three times in a row automatically. This function is useful for ensuring a full
battery charge.
Delta-Peak Sensitivity for NiMH/NiCd:
This automatic charge termination program is based on the principle of the
Delta-peak voltage detection. When the battery’s voltage exceeds the threshold,
the process will be terminated automatically.
Cyclic Charging/Discharging:
1 to 5 cyclic and continuous charge > discharge or discharge > charge sessions
are optimal for battery performance and balancing.
Automatic Charging Current Limit:
You can set the upper limit of the charging current when charging your NiMH
or NiCd battery. The ‘AUTO’ charging mode, however, is recommended when
charging NiMH batteries with low impedance and capacity.
LiPo Battery Meter:
The user can check the battery’s total voltage, the highest voltage, the lowest
voltage and the voltage of each cell.
Battery Internal Resistance Meter:
The user can check the battery’s total internal resistance and the internal
resistance of each cell.
Capacity Limit:
The charging capacity is always calculated as the charging current multiplied by
time. If the charging capacity exceeds the limit, the process will automatically
terminate according to the maximum value previously set.
Temperature Threshold*:
The battery’s internal chemical reaction will cause the temperature of the
battery to rise. If the temperature limit is reached, the process will be terminated.
* This function is available by connecting an optional temperature probe which
is available as a separate purchase.
Processing Time Limit:
Protect your battery by setting a maximum time limit for charging and discharging.
Features [cont.]

12
Battery & Power Supply Connections
TO AVOID SHORT CIRCUITS, ALWAYS CONNECT THE CHARGE LEADS
TO THE CHARGER FIRST, AND THEN TO THE BATTERY. REVERSE THE
SEQUENCE WHEN DISCONNECTING THE PACK.
Warning
Battery Connection With Balance Adaptor.
Battery Connection
Without Balance Adaptor.
12VDC Battery/DC Power Supply Connection.
**12VDC battery or
11~18V DC, 30 amp
power supply
2S 3S 4S 5S
6S
1
2
3
4
5
6
BATTERY
DC 11-18V BALANCE
SOCKET
BALANCE ADAPTOR
X1 CHARGER
BALANCE
LEAD
BATTERY
DC 11-18V BALANCE
SOCKET
X1 CHARGER
DC 11-18V BALANCE
SOCKET
Channel A Channel B
Channel A Channel B

13
Powered by AC Household Current: In AC mode, the X2 High Power has
a maximum charging output of 240 watts total. This charge output can be
allocated differently to the DC power to provide more or less charging power.
To adjust the wattage between the channels, go to the BATT/PROGRAM menu
and use the INC. – or DEC + buttons to get to the SYSTEM SETTINGS menu, press
ENTER/Start to enter the SYSTEM SETTINGS menu and use the – or + buttons to
scroll to the AC/DC Max Power Set screen. Press ENTER/Start and the wattage
amount will begin to blink on CH1, press ENTER/Start again to change the
wattage output for CH2. Use the – or + buttons to adjust the wattage for the
channel you have selected.
Adjusting one or both channels will change the DC port output
power, I.E. if you change both CH1 and CH2 to 120w the DC power will
automatically change to 10 watts. If you change CH1 to 70 watts and
CH2 to 100 watts then the DC port will automatically change to 80 watts.
Powered by Automotive Battery or DC Power Supply: The DC power output
port is used as the DC power input port when used with an external DC power
source or 12-volt car battery. When used in this mode, the X2 High Power has a
maximum charging output of 300 watts.
NOTE: It is extremely important that you use either a fully charged 12-volt car
battery or a high-quality AC/DC power supply with an output voltage range in
the 11-18V DC range and a minimum output power of 300W or higher to ensure a
reliable performance.
Power Distribution
Note
CH1:100 CH2:100WBATT/PROGRAM
SYSTEM SETTING -> DC SUPPLY 50W

14
BATT PROG / STOP Button:
Stop a function in- progress or to go back to previous step/screen.
DEC Button:
Scroll through menus or decrease the parameter value.
INC Button:
Scroll through the menus or increase the parameter value.
ENTER / START Button:
Enter parameters or store parameters on-screen.
When changing a parameter value in the program, press the START/ENTER
button to make it blink, then change the value by pressing the DEC and INC
button. The value will be stored by repressing the START/ENTER button. If there
is a second parameter to edit on the same screen, it will begin blinking after you
conrm the rst parameter value.
When you power the charger on, it will automatically enter the LiPo Battery
balance program screen. You can change the mode (balance mode, normal
charge mode, fast charge mode, store mode, or discharge mode), enter the
desired charging/discharging mode, or set the preferred parameter to begin. If
there are no changes to make in the LiPo Battery program, press the BATT PROG/
STOP button to enter the BATT PROGRAM screen.
Operation
Yellow - Red Version
Exit to Main Menu Alter Values
Resume or Start Charge
Processes Conrm Any Action
See the Status of Individual
Cells in Balance Charge Mode
Stop Any Charge Processes

15
The ow chart depicts one channel as the example for both channels.
Channel A and Channel B are identical.
Program Flow Chart
For larger version visit www.hitecrcd.com
Note
BATT/PROGRAM
Pb BATT
ENTER
Pb CHARGE
2.0A 2.0V (1P)
Pb DISCHARGE
0.1A 2.0V (1P)
BATT/PROGRAM
NiCd BATT
NiCd CHARGE
CURRENT 2.0A
ENTER
NiCd DISCHARGE
0.1A CUT: 1.0V
NiCd CYCLE
CHG>DCHG 1
BATT/PROGRAM
NiMH BATT
ENTER
NiMH CHARGE
CURRENT 2.0A
NiMH DISCHARGE
0.1A CUT: 1.0V
NiMH CYCLE
CHG>DCHG 1
BATT/PROGRAM
LiPo BATT
LiPo BALANCE
2.0A 7.4V (2S)
LiPo CHARGE
2.0A 7.4V (2S)
LiPo FAST CHG
2.0A 7.4V (2S)
LiPo STORAGE
2.0A 7.4V (2S)
LiPo DISCHARGE
2.0A 7.4V (2S)
ENTER
BATT/PROGRAM
LiFe BATT
Lilo BALANCE
2.0A 7.2V (2S)
Lilo CHARGE
2.0A 7.2V (2S)
Lilo FAST CHG
2.0A 7.2V (2S)
Lilo STORAGE
2.0A 7.2V (2S)
Lilo DISCHARGE
2.0A 7.2V (2S)
ENTER
BATT/PROGRAM
LiIo BATT
LiFe BALANCE
2.0A 6.6V (2S)
LiFe CHARGE
2.0A 6.6V (2S)
LiFe FAST CHG
2.0A 6.6V (2S)
LiFe STORAGE
2.0A 6.6V (2S)
LiFe DISCHARGE
2.0A 6.6V (2S)
ENTER
NiCd RE-PEAK
1
NiMH RE-PEAK
1
NiMH Auto CHARGE
CURRENT 2.0A
NiCd Auto CHARGE
CURRENT 2.0A
LiHV BALANCE
2.0A 7.6V (2S)
LiHV CHARGE
2.0A 7.6V (2S)
LiHV FAST CHG
2.0A 7.6V (2S)
LiHV STORAGE
2.0A 7.6V (2S)
LiHV DISCHARGE
2.0A 7.6V (2S)
BATT/PROGRAM
LiHV BATT
ENTER
BATT/PROGRAM
BATT METER
3.99 4.00 3.99 V
0.00 0.00 0.00 V
MAIN 11.98V
H4.003V L3.986V
BATT/PROGRAM
BATT MEMORY
ENTER
[ BATT MEMORY 1 ]
ENTER SET->
ENTER
BATT TYPE
LiPo
BATT VOLTAGE
7.4V ( 2S )
CHARGE CURRENT
4.9A
DISCHG CURRENT
2.2A
DISCHG VOLTAGE
3.0V/CELL
TVC=YOUR RISK
4.20V
ENTER
ENTER
BATT/PROGRAM
SYSTEM SETTING->
ENTER
Stop
Batt/
Type
SAVE PROGRAM
ENTER
SAVE PROGRAM
SAVE….
[ BATT MEMORY 1 ]
LiPo 7.4V (2S )
[ BATT MEMORY 1 ]
C:4.9A D:2.2A
ENTER CHARGER
LOAD……
LiPo BALANCE CHG
4.9A 7.4V(2S)
LiPo CHARGE
4.9A 7.4V(2S)
LiPo FAST CHARGE
4.9A 7.4V(2S)
LiPo STORAGE
4.9A 7.4V(2S)
LiPo DISCHARGE
2.2A 7.4V(2S)
BATT TYPE
NiMH
BATT VOLTAGE
2.4V (2S)
ENTER
CHARGE CURRENT
3.3A
TRICKLE
100mA
PEAK DELAY
1Min
DISCHG CURRENT
2.2A
DISCHG VOLTAGE
1.1V/CELL
SAVE PROGRAM
ENTER
ENTER
BATT TYPE
Pb
BATT VOLTAGE
4.0V (2P)
CHARGE CURRENT
3.3A
DSCH CURRENT
1.5A
DSCH VOLTAGE
1.7V/CELL
SAVE PROGRAM
ENTER
BATT/PROGRAM
BATT RESISTANCE
ENTER
5 3 3 mΩ
0 0 0mΩ
TATAL: 11mΩ
ENTER
ENTER>3 Seconds
SAVE PROGRAM
SAVE….
ENTER
[ BATT MEMORY 2 ]
NiMH 2.4V (2S )
[ BATT MEMORY 2 ]
C:1.0A D:1.0A
ENTER>3s
ENTER CHARGER
LOAD……
NiMH CHARGE
CURRENT 1.0A
NiMH Auto CHARGE
CURRENT 1.2A
NiMH DISCHARGE
1.0A CUT: 2.0V
NiMH RE-PEAK
2
NiMH CYCLE
DCHG>CHG 1
[ BATT MEMORY 2 ]
ENTER SET->
[ BATT MEMORY 3 ]
ENTER SET->
SAVE PROGRAM
SAVE….
ENTER
[ BATT MEMORY 3 ]
Pb 4.0V (2S )
[ BATT MEMORY 3 ]
C:3.3A D:1.5A
ENTER CHARGER
LOAD……
Pb CHARGE
3.3A 4.0V(2P)
Pb DISCHARGE
1.5A 4.0V(2P)
Capacity Cut-Off
ON 5000mAH
Temp Cut-Off
ON 50°C 122°F
Rest Time
CHG>DCHG 10Min
Safety Timer
ON 120Min
Synchronization
OFF
CH1: 100 CH2: 100W
DC SUPPLY: 50W
NiMH Sensitivity
D.Peak Default
NiCd Sensitivity
D.Peak Default
Key Beep ON
Buzzer ON
DC Input Low
CUT-OFF 11.0V
Temperature Unit
Celsius
ENTER
ENTER > 3s
Version
HW:1.00 SW: 1.10
Load Factory Set
Enter

16
Charger Operation
Note: You should set up the upper limit of the charge current to
avoid damage by excessive feeding current. Some batteries of low
resistance and capacity can lead to higher current.
lithium battery which
NiMH
NiCd
RE-PEAK
CYCLE
Pb
Batt
Type
Operation
Program Description
This charging mode is for charging LiPo/LiFe/LiIon/LiHV battery in normal mode.
This program is for charging or discharging
will not be used for long time.
The charging capacity may be less than normal charging but the
process time will be reduced.
This mode is for balancing the voltage of lithium-polymer battery
cells while charging.
The charger will charge NiMH and NiCd batteries using the
charge current set by the user.
.
In re-peak charge mode, the charger can peak charge the
battery once, twice or three times in a row automatically. This is
good for confirming the battery is fully charged, and for checking
how well the battery receives fast charges.
1 to 5 cyclic and continuous process of charge>discharge or
discharge>charge is operable for battery refreshing and
balancing to stimulate the battery's activity.
LiPo
Lilon
LiFe
LiHV
CHARGE
DISCHARGE
STORAGE
FAST CHG
BAL CHARGE
CHARGE
AUTO CHG
DISCHARGE
CHARGE
DISCHARGE
This mode is for discharging LiPo/LiFe/LiIon/LiHV battery.
This mode is for discharging NiMH/NiCd battery.
This mode is for charging Pb battery.
This mode is for discharging Pb battery.
The following section contains detailed procedures that must be followed to
make the charger work. When you power the charger on, it will automatically
enter the LiPo Battery balance program screen. Use the BATT PROG/STOP button
to exit back to the BATT PROGRAM screen, or push ENTER/Start to continue.
Once in the Battery Programming section use the < or > to select the desired
battery or function then press ENTER/Start to make your parameter adjustments.
The X2 AC High Power is capable of the following processes based on the type of
battery chosen.
In this program, the charger detects the condition of the
battery which is connected to the output and automatically
charges the battery.

17
Lithium Battery Program [LiP0/LiHV/LiFe/Lilon]
Lithium:
This program is only suitable for charging/discharging Lithium chemistry
batteries (LiPo, LiHV, LiIon and LiFe).
The X2 High Power offers the following lithium charge modes: Charge, Balance
Charge, Fast Charge, Storage and Discharge.
BEFORE SELECTING A CHARGE MODE, IT IS CRITICAL THAT YOU SELECTTHE
CORRECT TYPE OF LITHIUM BATTERY TO BE CHARGED. FAILURE TO DO SO
CAN RESULT IN DAMAGE TOTHE BATTERY AND POSSIBLE EXPLOSION.
Selecting a Lithium Battery Type:
From the“BATT/PROGRAM” screen, press the INC. – or
DEC + button to scroll through the battery type selections.
Once you have selected the correct battery type, press the ENTER/Start ►
button to enter the charge/discharge menu.
Lithium Charge Mode:
BEFORE YOU BEGIN CHARGING YOUR BATTERY, MAKE SURE YOU
HAVE READ AND UNDERSTAND ALL OF THE WARNINGS AND SAFETY
INFORMATION CONTAINED ON PAGES 2  7.
IN THE CHARGE MODE, LITHIUM BATTERIES CAN BE CHARGED WITHOUT
THE USE OF A BALANCE ADAPTOR. A BALANCE ADAPTOR CAN BE USED,
BUT IT IS NOT REQUIRED. BALANCE CHARGE MODE IS RECOMMENDED
FOR ANY BATTERY WITH A BALANCE LEAD.
See page 12 for the appropriate charging connections setup for this operation.
First, select the correct battery type by following the instructions on page 16. Once
you have set the correct battery type, press the ►button once to enter the charge
mode and battery settings screen, use the INC. – or DEC + to select “CHARGE”
mode. Press the ►button again and the amp rate value will begin ashing. Use
the + or ▬buttons to adjust the value to the desired rate. Follow the instructions
provided with your battery when setting the charge amperage rate.
Press the ►button again and the voltage value will begin
ashing. Use the +or ▬buttons to adjust the value to the
desired rate. The voltage and cell count should match the values listed on the
battery label.
Warning
BATT/PROGRAM
LiPo BATT
Note
Warning
LiPo Charge
2.7A 11.1V (3S)

18
Lithium Battery Program [LiP0/LiHV/LiFe/Lilon cont.]
You are now ready to begin charging. Press and hold the
ENTER/Start ►button until you see “BATTERY CHECK”,
followed by the“CONFIRM (ENTER) / CANCEL(STOP)“
screen. This screen displays the number of cells you set up
as ”R” and the number of cells detected by the processor as “S”. If both numbers
are identical, you may press and hold the ENTER/Start ►button to conrm and
begin charging. If these numbers do not match, press the BATT/PROG Stop ■
button to return to the previous screen and carefully check the number of cells
of the battery pack before proceeding.
DURING CHARGING/DISCHARGING, THE BATTERY SHOULD BE PLACED
INSIDE A FIRE PROOF/RETARDANT BAG AND ON A FIRE PROOF SURFACE
AWAY FROM OTHER COMBUSTIBLE OBJECTS.
Once charging has commenced, the charger will display
the following real-time information: battery type/cell
count, charging current, battery voltage, charging time and charged capacity.
If you are using a balance adaptor during charging,
you may press the + button to view the voltage of each
individual cell.
Once the battery is fully charged, the screen will read “FINISHED” and the charger
will emit a chiming sound. Press the ■button to stop charging. You may also
press the ■button at any time during the charging process to stop charging.
Lithium Balance Charge Mode:
This function is for balancing the voltage of individual Lithium-polymer battery
cells while charging. In order to use the Balance Mode, the battery must have a
balance lead. Charging in this mode is different from the normal modes because
the built-in processor monitors the voltage of each individual cell and controls
the discharge of each individual cell in order to equalize the voltage. Use of
a balance adaptor with any battery that has a balance lead will improve the
performance and lifespan of your battery.
BEFORE YOU BEGIN CHARGING YOUR BATTERY, MAKE SURE YOU
HAVE READ AND UNDERSTAND ALL OF THE WARNINGS AND SAFETY
INFORMATION CONTAINED ON PAGES 2  7.
Warning
R:3SE R S:3SER
CANCEL(STOP)
R:3SE R S:3SER
CONFIRM(ENTER)
Caution
LP3s 2.7A 11.88V
CHG 005:39 00256
4.07 4.06 4.11V
0.00 0.00 0.00V

19
Lithium Battery Program [LiP0/LiHV/LiFe/Lilon cont.]
See page 12 for the appropriate charging connections setup for this operation.
First, select the correct battery type by following the
instructions on page 16. Once you have set the correct
battery type, press the ►button once to enter the charge mode and battery
settings screen, use the INC. – or DEC + to select “BALANCE” mode. Press the ►
button again and the amp rate value will begin ashing. Use the + or ▬buttons
to adjust the value to the desired rate. Follow the instructions provided with
your battery when setting the charge amperage rate.
Press the ►button again and the voltage value will begin ashing. Use the +
or ▬buttons to adjust the value to the desired rate. The voltage and cell count
should match the values listed on the battery label.
You are now ready to begin charging. Press and hold the
ENTER/Start ►button until you see “BATTERY CHECK.”
followed by the“CONFIRM (ENTER) / CANCEL(STOP)“
screen. This screen displays the number of cells you set up
as ”R” and the number of cells detected by the processor as “S”. If both numbers
are identical, you may press and hold the ENTER/Start ►button to conrm and
begin charging. If these numbers do not match, press the BATT/PROG Stop ■
button to return to the previous screen and carefully check the number of cells
of the battery pack before proceeding.
DURING CHARGING/DISCHARGING, THE BATTERY SHOULD BE PLACED
INSIDE A FIRE PROOF/RETARDANT BAG AND ON A FIRE PROOF SURFACE
AWAY FROM OTHER COMBUSTIBLE OBJECTS.
Once charging has commenced, the charger will display
the following real-time information: battery type/cell
count, charging current, battery voltage, charging time and charged capacity.
To view the voltage of each individual cell charging, press the +button.
Once the battery is fully charged the screen will read“FINISHED” and the charger
will emit a chiming sound. Press the ■button to stop
charging. You may also press the ■button at any time
during the charging process to stop charging.
LiPo BALANCE
2.7A 11.1V (3S)
R:3SE R S:3SER
CANCEL(STOP)
R:3SE R S:3SER
CONFIRM(ENTER)
Caution
LP3s 2.7A 11.88V
BAL 005:39 00256
4.07 4.06 4.11V
0.00 0.00 0.00V

20
Lithium Battery Program [LiP0/LiHV/LiFe/Lilon cont.]
Lithium Fast Charge Mode:
Charging in Fast Charge Mode allows for a shorter charge time and will result
in a slightly reduced charging capacity. To achieve maximum charge capacity,
we recommend you use the Lithium Balance Charge Mode. If a fast charge
is necessary, select the fast charge mode and follow the same charging
instructions as for the Lithium Charge Mode or Lithium Balance Charge Mode.
BEFORE YOU BEGIN CHARGING YOUR BATTERY, MAKE SURE YOU
HAVE READ AND UNDERSTAND ALL OF THE WARNINGS AND SAFETY
INFORMATION CONTAINED ON PAGES 2  7.
IN THE CHARGE MODE, LITHIUM BATTERIES CAN BE CHARGED WITHOUT
THE USE OF A BALANCE ADAPTOR. A BALANCE ADAPTOR CAN BE USED,
BUT IT IS NOT REQUIRED. BALANCE CHARGE MODE IS RECOMMENDED
FOR ANY BATTERY WITH A BALANCE LEAD.
See page 12 for the appropriate charging connections setup for this operation.
First, select the correct battery type by following the
instructions above. Once you have set the correct battery
type, press the ►button once to enter the charge mode and battery settings
screen, use the INC. – or DEC + to select “FAST CHG” mode. Press the ►button
again and the amp rate value will begin ashing. Use the + or ▬buttons to
adjust the value to the desired rate. Follow the instructions provided with your
battery when setting the charge amperage rate.
Press the ►button again and the voltage value will begin ashing. Use the +
or ▬buttons to adjust the value to the desired rate. The voltage and cell count
should match the values listed on the battery label.
You are now ready to begin charging. Press and hold the
ENTER/Start ►button until you see “BATTERY CHECK.”
followed by the“CONFIRM (ENTER) / CANCEL(STOP)“
screen. This screen displays the number of cells you set up
as ”R” and the number of cells detected by the processor as “S”. If both numbers
are identical, you may press and hold the ENTER/Start ► button to conrm and
begin charging. If these numbers do not match, press the BATT/PROG Stop ■
button to return to the previous screen and carefully check the number of cells
of the battery pack before proceeding.
Warning
Note
4.07 4.06 4.11V
0.00 0.00 0.00V
R:3SE R S:3SER
CANCEL(STOP)
R:3SE R S:3SER
CONFIRM(ENTER)
