HIHAP HE-143 User manual

HE-143
28000mg Ozone generator
OWNER’S MANUAL
Please read all of the information provided in this owner’s manual
before operating your new Ozone generator.

CAUTION
RISK OF ELECTRICAL
SHOCK DO NOT
OPEN
ATTENTION
CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO
NOT REMOVE COVER. NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVCE PERSONNEL.
This “bolt of lightning” indicates that uninsulated material within
your unit may cause an electrical shock. For the safety of
everyone, do not remove product covering.
The Ozone generator is designed to
use in unoccupied spaces only.

Read ALL instructions carefully before using this product.
CAUTION!
In order to reduce the risk of leakage to
damage the instrument or person, It’s
important that be properly grounded to avoid
potential shock.

INTRODUCTION
This ozone generator is an advanced and convenient contaminant
remediation product. High-powered oxidation in a compact, rugged and
simple design. Utilizing controlled corona discharge ozone technology
developed specifically to reduce odors and smoke in unoccupied spaces,
ideal for treatment for large space etc. It is with 4 grades adjustment,
from 7000mg ozone output to 28000mg ozone output.
Technology：
Utilizing controlled corona discharge ozone technology
Application:
Special designed for high ozone shock treatment.
in fire / flood restoration, crime scene cleanup , garbage compactors,
heavy restoration, auto detailing, all heavy odor remediation tasks, food
service sterilization packaging manufacturing, bacteria or mold odors
Home/ Commercial decontamination, purifying rooms in hotels and for
killing mold, and more.
Feature:
With heat sink to reduce the heat on 4pcs of ozone plates
All inner terminals and screws are stainless steel
Stainless steel pre-filter to remove large particle
High quality electronic parts, UL listed bigger fan
Digital remote control (19~32ft. (6~10m))
Delay Designed, after turn off the machine, the fan and one ozone plate
still will work one minute to cool the machine

Model:
HE-143
Rated Voltage:
230V/50Hz
Power Consumption:
270W
Supply gas
Ambient Air
Air Volume:
Max 170CFM
Active Oxygen(on) ：
7000-28000mg/h
Construction:
Stainless steel cabinet and inner
terminal and screws.
Ozone plate:
4pcs 7g ozone plates, 90*70mm
Remote Control/Manual:
19~32ft. (6~10m)
Fuse:
110-120 Volt, 6 Amp, 50/60Hz,
or 220-240 Volt, 3 Amp, 50/60Hz
Sound Level(DB):
55 Db.
Product size(mm):
202x379x215MM(without handle)
202x379x265MM(with handle)
Packing size:
440x280x340mm
Net Weight/Gross Weight:
6.2Kgs(13.6Lbs)/7.36（16.22Lbs）
Application Area:
Over 2000sq.ft (200m2)
Packing details:
1pc machine, 1pc remote control,
1pcs manual, 1pc power plug.

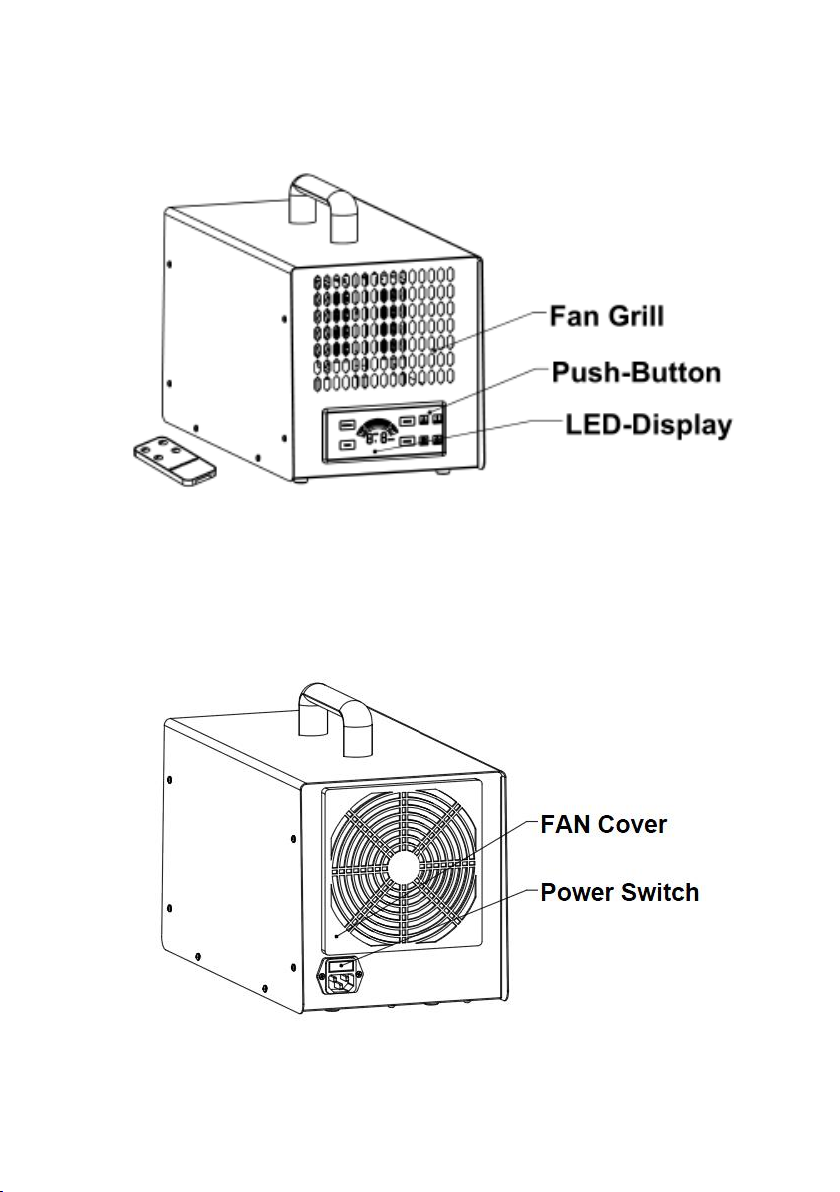

(Front View)
(Back View)

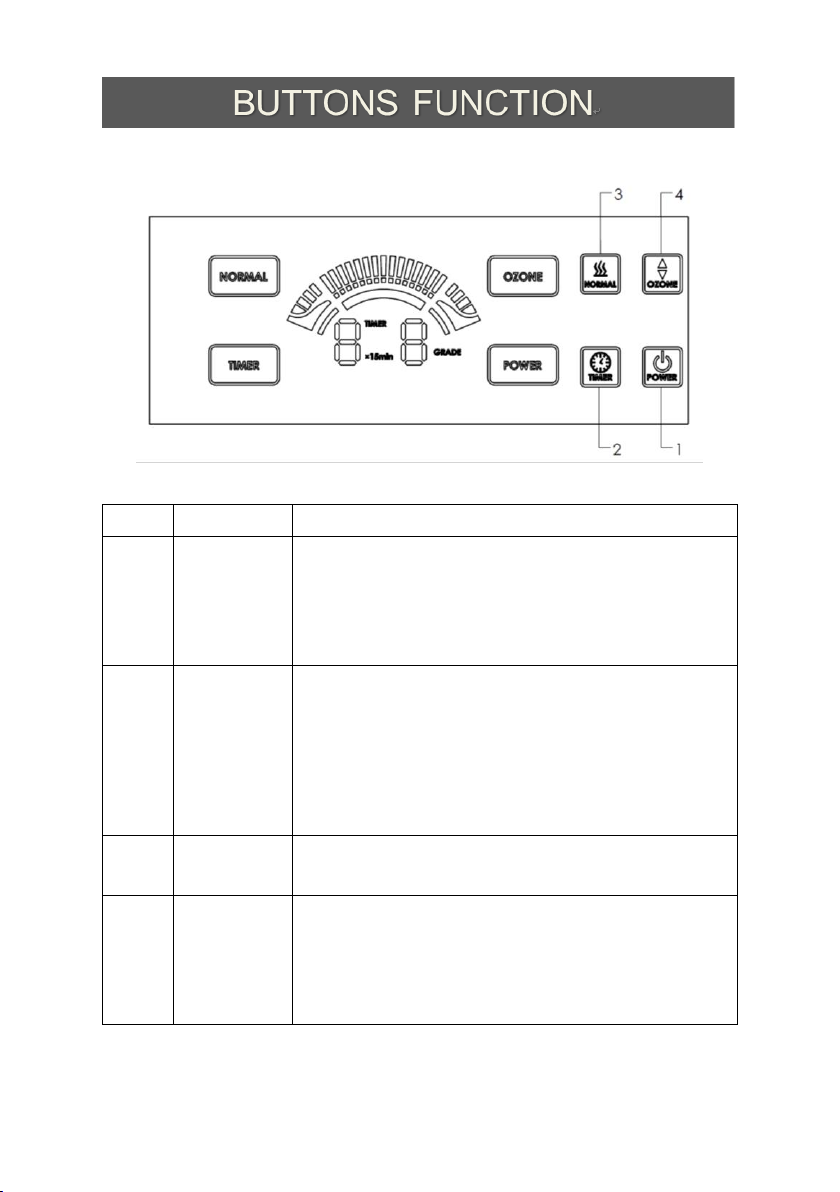

No.
Display
Function and operation instruction
1
Power
Standby mode: Machine turns on when press
Power button, it starts working at grade 1;
Power on mode: Machine turns off when
press the Power button
2
Timer
1. Press TIMER, display 15 minutes
2. Press one time, It will increase 15 minutes,
the max. is 2 hour 15 minutes, the min. is 15
minutes
3. When the time setting is finished, press
NORMAL would shut off mode, and back to
normal working mode.
3
Normal
Press NORMAL, display 15 minutes,
and come to grade 2 as default
4
Ozone
Ozone output is divided to 4 grades: “1-2-3-4”
Grade 1: 7000mg ozone output;
grade 2: 14000mg ozone output;
grade 3: 21000mg ozone output;
grade 4: 28000mg ozone output.

No.
Display
LED display
1
Machine
working
status
Press POWER to turn on the machine
2
Ozone grade
Press OZONE to indicate ozone working
status, to display 1 to 4 ozone grade.
3
Countdown
display
Display the countdown clock.
4
Timing
reminder
Timing function is turned on.
5
Normal mode
reminder
Press NORMAL to indicate Normal mode
working status.
6
Ozone grade
Display 1 to 4 ozone grade
7
Ozone
working
status
Ozone function is turned on

No
Name
Function and operation instruction
1
Power
Standby mode: it turns on when press
Power, start working at grade 1;
Power on mode: it turns off when press the
Power
2
Ozone up
Increase the ozone output, it is “1-2-3-4”
3
Ozone down
Reduce the ozone output, it is “4-3-2-1”
4
Timer
1. Press TIMER, display 15 minutes
2. Press one time, It will increase 15
minutes,
the max. is 2 hour 15 minutes, the min. is 15
minutes
3. When the time setting is finished, press
NORMAL would shut off mode, and back to
normal working mode.
5
Normal
Press NORMAL, display 15 minutes
and come to grade 2 as default

The Ozone generator is designed to use in unoccupied
spaces. The unit has a timer that will enable it to run for a
maximum duration of 135 minutes. You can set the timer
from 15 minutes to 135 minutes; it will then shut the
Ozone generator off. You should allow 40-60 minutes
before returning to the treated area.
To operate the Ozone Generator:
Before use, the device should be placed something under
the unit bottom for steady
Close off the desired area to be treated.
Remove all occupants and pets.
Position the unit as close as possible to the odor source.
In such environments as motels that have individual heating
and cooling systems, turn the fan on and set on re-circulate.
Set timer to desired time and leave the room.
Allow 40-60 minutes before re-entering the treated space.
Return to space & ventilation area.
Notes：
After closing the machine, the fan and one ceramic ozone
plate will work delay one minute to cool the machine.

When the air purifier no longer produces enough ozone to be
effective, the ozone plates should be replaced. (Usually they should
be replaced after 6000 hours)
How to replace the ozone plate:
1) Turn the unit off and unplug from outlet.
2) Use a screw driver to unfasten cover screw and remove cover.
3) Pull ceramic plate out of ozone generator module.
4) Install ceramic plate as shown in above figure (be careful not to
drop the plate).

How to clean the ozone plate:
Wash the stainless steel screen and ceramic plate using a spray
cleaner or detergent. Scrub with a stiff brush. A spray liquid cleaner
with ammonia or chlorine may also be used to remove any non-visible
adherents. Be careful not to drop the plate. Rinse plate thoroughly in
hot water and dry completely before reinstalling. A hair dryer may be
used to dry the plate more quickly.
When running the device, it has a burning smell, and/or appears to be
Ozone produces a smell or odor that smells like bleach or electric
smell. This is normal during Ozone use.
If you suspect a problem with your unit check the following:
1) Unit is plugged in properly.
2) It’s important that the Ozone Generator be properly
grounded to avoid potential shock.
Fuse is installed properly and in good condition.
To replace fuse, pull out the plastic fuse holder, remove old fuse
and insert new fuse. (220-240 Volt, 3 Amp)
Refer to picture as follows

Important
1. To extend the life, continuous power interval must be 30 seconds or
more, please unplug the device if the device are not used for
long-term. Also the device should be worked within the specified
voltage range.
2. User normal use of the product in accordance with the instruction
manual, the failure of the warranty period, can be a free repair.
3. If the following conditions are paid maintenance during the warranty
period:
Misuse, demolition, and modification caused the failure and
damage;
Drop and faults and damage caused by transport;
For other disasters or abnormal voltage caused by the failure or
damage
The ozone generator comes with two Year Limited Warranty.
