HIK VISION DS-7204HVI-ST User manual

Hikvision Technical Manual
©2006 –2011 by HIKVISION. All rights reserved.
DS-7204/7208/7216HVI-ST
Series DVR
Technical Manual

Hikvision Technical Manual
©2006 –2011 by HIKVISION. All rights reserved.
Notices
The information in this documentation is subject to change without notice and does
not represent any commitment on behalf of HIKVISION. HIKVISION disclaims any
liability whatsoe er for incorrect data that may appear in this documentation. The
product(s) described in this documentation are furnished subject to a license and
may only be used in accordance with the terms and conditions of such license.
Copyright © 2006-2011 by HIKVISION. All rights reser ed.
This ocumentation is issue in strict confi ence an is to be use only for
the purposes for which it is supplie . It may not be reproduced in whole or in
part, in any form, or by any means or be used for any other purpose without prior
written consent of HIKVISION and then only on the condition that this notice is
included in any such reproduction. No information as to the contents or subject
matter of this documentation, or any part thereof, or arising directly or indirectly
therefrom, shall be gi en orally or in writing or shall be communicated in any
manner whatsoe er to any third party being an indi idual, firm, or company or any
employee thereof without the prior written consent of HIKVISION. Use of this
product is subject to acceptance of the HIKVISION agreement required to use this
product. HIKVISION reser es the right to make changes to its products as
circumstances may warrant, without notice.
This ocumentation is provi e “as-is,” without warranty of any kin .
Please send any comments regarding the documentation to:
o erseasbusiness@hik ision.com
Find out more about HIKVISION at www.hik ision.com

Hikvision Technical Manual
©2006 –2011 by HIKVISION. All rights reserved.

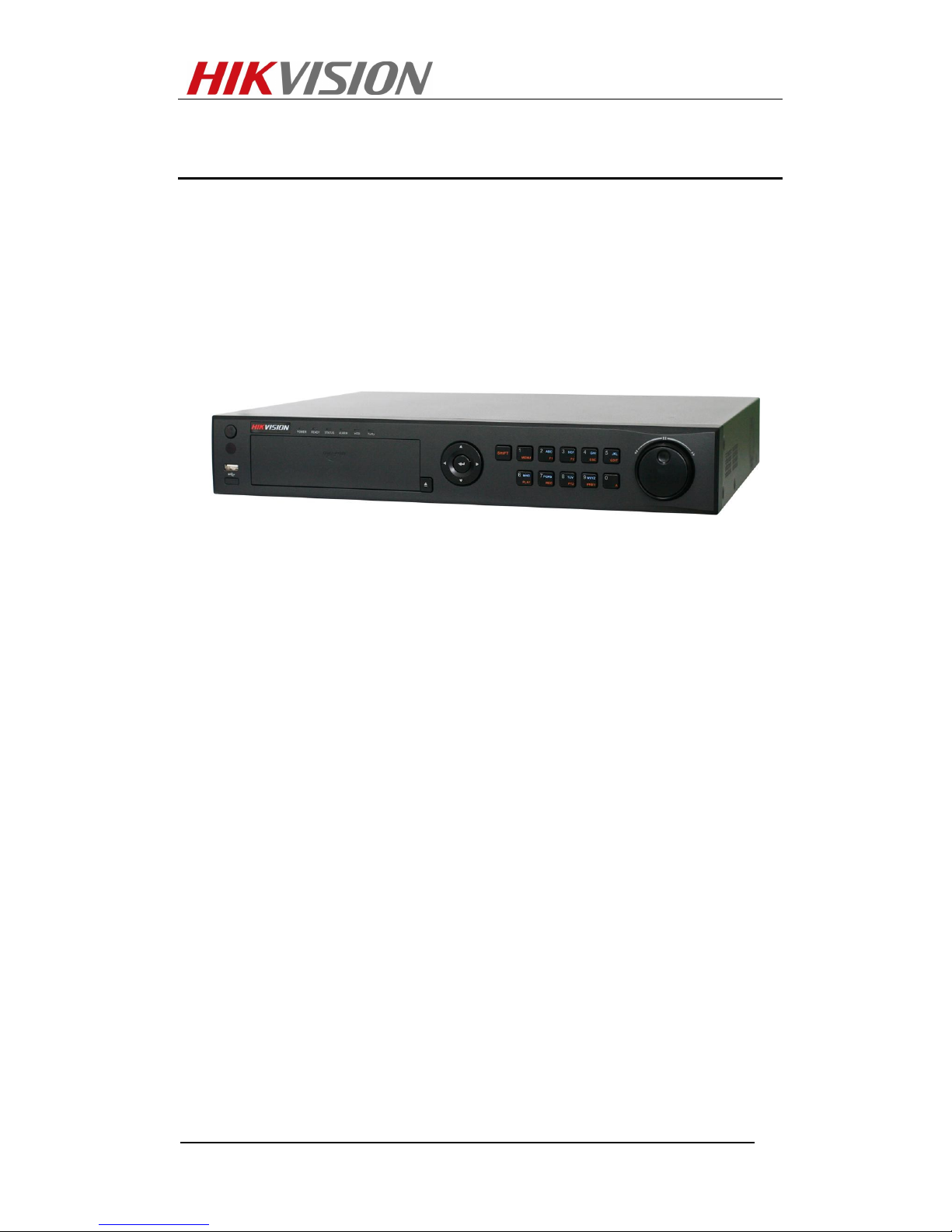

Overview
De eloped by Hik ision on the basis of the latest technology, DS-7216HVI-ST
Series Digital Video Recorder combines the latest in ad anced H.264 ideo encoding
and decoding technologies deli ering high performance rock-solid reliability and
longer recording times.
DS-7216HVI-ST Digital Video Recorder can be used as a standalone ideo
sur eillance product, as well as to build up a powerful sur eillance network making
it is perfect for home or small business applications.
DS-7216HVI-ST

Hikvision Technical Manual
©2006 –2011 by HIKVISION. All rights reserved.
Main Features
User-frien ly GUI for easy operation
1024×768 VGA output resolution
Simultaneous VGA an CVBS output
Up to 4CIF resolution
Sche ule an event recor ing parameters configurable per
in ivi ual camera
Partial igital zoom by using mouse when in PTZ control mo e
16-ch synchronous playback
Support ual stream
Different recor ing storage perio configurable for each channel
NTP, SADP, DHCP protocols supporte

Hikvision Technical Manual
©2006 –2011 by HIKVISION. All rights reserved.
Functions & Performances
Compression
PAL/NTSC adapti e ideo inputs.
H.264 ideo compression with high reliability and superior definition.
G.711 audio compression standard.
Independent ideo encoding parameters, including frame rate,
resolution, bit rate, ideo quality, etc.
Scheduled and e ent recording parameters configurable for per
indi idual camera.
Support dual stream.
Encoding for both audio/ ideo composite stream and ideo stream;
audio and ideo synchronization during composite stream encoding.
Compression, storage and network transmission of ideo image at 4CIF
or CIF resolution.
Watermark technology.
Local Monitoring
Up to 1024×768 resolution for VGA output display.
Simultaneous VGA and CVBS output.
1/4/9/16-camera ideo li e iew, with the camera order adjustable.
Group switch, manual switch and automatic cycle modes selectable for
ideo li e iew, with the auto cycle period configurable.
Digital zoom in li e iew mode.
Shield of assigned channel for li e iew.
Pri acy masking capability.
Multiple PTZ protocols supported, and settings and callup of presets,
patrols and patterns.
Video image zoom-in by clicking the mouse and tracing by dragging
mouse in PTZ control mode.
Har Disk Management
Connection to 2 SATA hard disks supported, with up to 2TB storage
capacity.
S.M.A.R.T technology.
HDD standby function.
HDD file system is compatible with Windows. Use pre-allocating hard
disk management technology, and no disk fragments.
Recor ing
Cycle and non-cycle recording mode.
Scheduled and e ent ideo encoding parameters.

Hikvision Technical Manual
©2006 –2011 by HIKVISION. All rights reserved.
Multiple recording types, including manual, continuous, alarm, motion,
motion | alarm and motion & alarm recording, etc.
8 recording time periods with separate recording types.
Pre-record and Post-record time for alarm and motion detection, and
pre-record time for schedule and manual recording.
Lock and unlock of ideo files.
HDD property can be set to read-only.
Video data search and playback by channel number, recording type,
time etc.
Digital zoom function in playback mode.
Pause, play fast, play slow, skip forward, and skip backward when
playback, locating in progress bar by dragging the mouse.
16-channel synchronous playback.
Backup
Record files backed up ia USB de ice.
Bunch backup by file or by time.
Record files edited for backup in playback.
Management and maintenance for backup de ices.
Alarm & Exception
Configurable arming time for alarm in/out.
Various alarm types supported: alarms for ideo loss, motion detection,
ideo tempering, ideo signal abnormal, ideo in/out format
unmatched, illegal access, network disconnection, IP conflict, hard disk
error and hard disk full.
Various alarm response actions supported: camera recording, relay out,
on-screen warning, audible warning and upload to center, etc.
Auto reco ery from exceptions.
Others
Control of DVR ia front panel keys, mouse and IR remote control.
Three-le el user management, each user with indi idual operating
permission for DVR and camera.
Powerful record and search for log of operation, alarm and exceptions.
Import/export of de ice configuration files.
Network
10/100M adapti e network interface.
TCP/IP protocol suites, PPPoE, DHCP, DNS, DDNS, NTP, SADP protocols,
etc.
Unicast and multicast supported; TCP and UDP protocols applicable in
unicast transmission.
Remote search, playback and download, lock/unlock of ideo files;

Hikvision Technical Manual
©2006 –2011 by HIKVISION. All rights reserved.
support breakpoint resume.
Remote access and configuration of parameters; remote import/export
of de ice configuration parameters.
Remote access of de ice running status, system log and alarm status.
Remote control of DVR ia button operation.
Remote lock/unlock of panel buttons and mouse.
Remote formatting of hard disk, upgrade, reboot/shutdown and other
system maintenance operations.
RS-485 transparent channel transmission.
E ent alarm and exceptions upload to remote management host.
Remote manual recording.
Remote ideo image capture in JPEG format.
Remote PTZ control.
Voice talk and broadcast.
Built-in WEB Ser er.
Development
Pro ision of SDK in Windows and Linux operating systems.
Application software source code of Demo.
Support and training ser ice for application system de elopment.

Hikvision Technical Manual
©2006 –2011 by HIKVISION. All rights reserved.

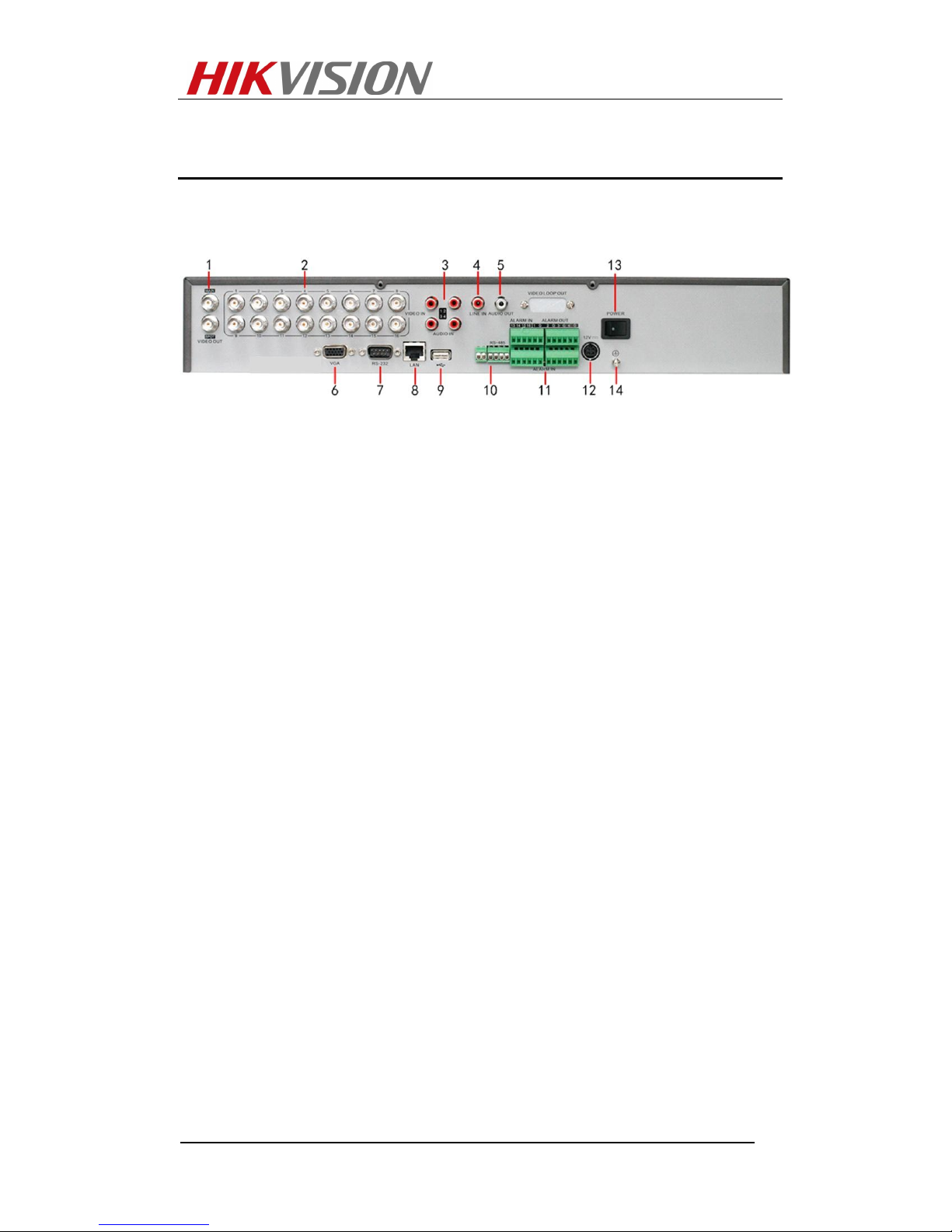

Rear Panel & Interfaces
Rear Panel of DS-7216HVI-ST
①MAIN/SPOT VIDEO OUT
②VIDEO IN
③AUDIO IN
④LINE IN
⑤AUDIO OUT
⑥VGA Interface
⑦RS-232 Serial Interface
⑧LAN
⑨USB Interface
⑩RS-485 Interface
⑪ALARM IN, ALARM OUT
⑫12VDC Power Supply Interface
⑬POWER
⑭GND

Hikvision Technical Manual
©2006 –2011 by HIKVISION. All rights reserved.
Specifications
Mo el DS-7216HVI-ST
Vi eo/Au io
input
Vi eo
compression H.264
Analog vi eo
input
16-ch, BNC connector (1.0 Vp-p, 75 Ω);
PAL / NTSC adapti e
Au io
compression G.711
Au io input 4-ch, RCA connector (2 Vp-p, 1 kΩ)
Voice talk input 1-ch, RCA (2.0 Vp-p, 1 kΩ）
VGA output 1-ch, resolution: 1024 × 768/60 Hz
CVBS output
2-ch, BNC connector (1.0 Vp-p, 75 Ω);
Resolution: PAL: 704 × 576,
NTSC: 704 × 480
Au io output 1-ch, RCA connector (Linear, 1 kΩ)
Vi eo/Au io
output
Recor ing
resolution 4CIF / 2CIF / CIF / QCIF
Frame rate 4CIF / 2CIF: 6 fps
CIF / QCIF: 25 fps (P) /30 fps (N)
Vi eo bit rate 32 kbps ~ 2048 kbps, or user-defined
(Max. 3072 kbps)
Stream type Video / Video & Audio
Au io bit rate 64 kbps
Dual stream Support
Synchronous
playback 16-ch
Har isk Type 2 SATA interfaces
Capacity Up to 2 TB capacity for each interface
External
interface
Network interface 1, RJ45 10 M / 100 M adapti e Ethernet
interface
Serial interface 1 RS-485 interface, 1 RS-232 interface
USB interface 2, USB 2.0
Alarm in 16
Alarm out 4
Others
Power supply 12 VDC
Consumption ≤15 W (without hard disk or DVD-R/W)
Working
temperature - 10℃
~ + 55℃
Working humi ity 10% ~ 90%
Chassis 19-inch standard rack-mounted 1.5 U
chassis
Dimensions
(W x D x H) 440 ×390 ×70 mm
Weight ≤8 kg (without hard disk or DVD-R/W)

Hikvision Technical Manual
©2006 –2011 by HIKVISION. All rights reserved.

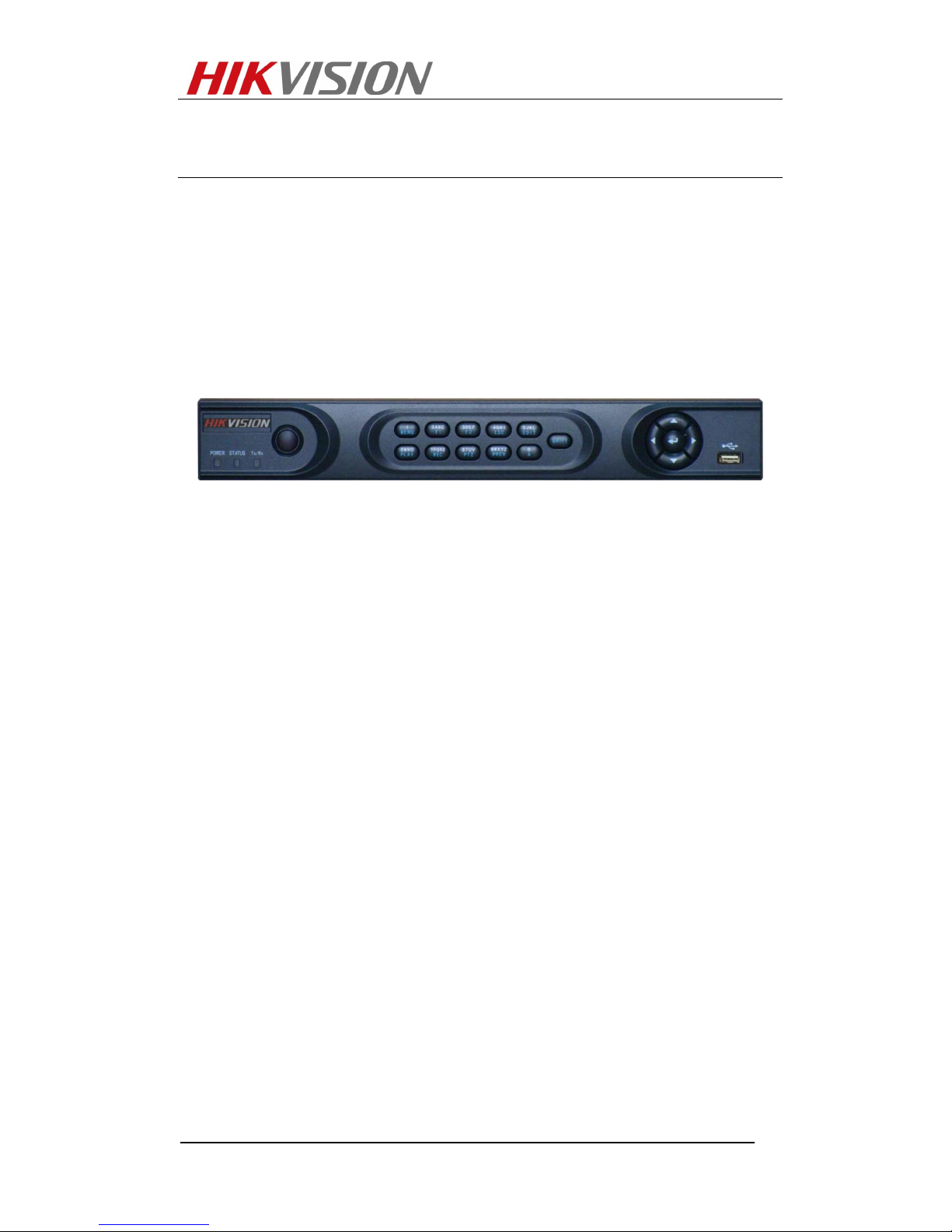

Overview
De eloped by Hik ision on the basis of the latest technologies, DS-7208HVI-ST
Series Digital Video Recorder combines with the ad anced H.264 ideo encoding
and decoding standard and maintains high performance rock-solid reliability and
longer recording ser ice time.
DS-7208HVI-ST Digital Video Recorder can be used as a standalone ideo
sur eillance product, as well as to build up a powerful sur eillance network which is
suitable for home or small-scale business applications.
DS-7208HVI-ST

Hikvision Technical Manual
©2006 –2011 by HIKVISION. All rights reserved.
Main Features
User-frien ly GUI for easy operation
1024×768 VGA output resolution
Simultaneous VGA an CVBS output
Up to 4CIF resolution
Sche ule an event recor ing parameters configurable per
in ivi ual camera
Partial igital zoom by using mouse when in PTZ control mo e
8-ch synchronous playback
Support ual stream
Different recor ing storage perio configurable for each channel
NTP, SADP, DHCP protocols supporte

Hikvision Technical Manual
©2006 –2011 by HIKVISION. All rights reserved.
Functions & Performances
Compression
PAL / NTSC adapti e ideo inputs.
H.264 ideo compression with high reliability and superior definition.
G.711 audio compression standard.
Independent ideo encoding parameters, including frame rate,
resolution, bit rate, ideo quality, etc.
Scheduled and e ent recording parameters configurable for per
indi idual camera.
Support dual stream.
Encoding for both audio/ ideo composite stream and ideo stream;
audio and ideo synchronization during composite stream encoding.
Compression, storage and network transmission of ideo image at 4CIF
or CIF resolution.
Watermark technology.
Local Monitoring
Up to 1024×768 resolution for VGA output display.
Simultaneous VGA and CVBS output.
1/4/9-camera ideo li e iew, with the camera order adjustable.
Group switch, manual switch and automatic cycle modes selectable for
ideo li e iew, with the auto cycle period configurable.
Digital zoom in li e iew mode.
Shield of assigned channel for li e iew.
Pri acy masking capability.
Multiple PTZ protocols supported, and settings and callup of presets,
patrols and patterns.
Video image zoom-in by clicking the mouse and tracing by dragging
mouse in PTZ control mode.
Har Disk Management
Connection to 2 SATA hard disks supported, with up to 2TB storage
capacity.
S.M.A.R.T technology.
HDD standby function.
HDD file system is compatible with Windows. Use pre-allocating hard
disk management technology, and no disk fragments.
Recor ing
Cycle and non-cycle recording mode.
Scheduled and e ent ideo encoding parameters.

Hikvision Technical Manual
©2006 –2011 by HIKVISION. All rights reserved.
Multiple recording types, including manual, continuous, alarm, motion,
motion | alarm and motion & alarm recording, etc.
8 recording time periods with separate recording types.
Pre-record and Post-record time for alarm and motion detection, and
pre-record time for schedule and manual recording.
Lock and unlock of ideo files.
HDD property can be set to read-only.
Video data search and playback by channel number, recording type,
time etc.
Digital zoom function in playback mode.
Pause, play fast, play slow, skip forward, and skip backward when
playback, locating in progress bar by dragging the mouse.
8-channel synchronous playback.
Backup
Record files backed up ia USB de ice.
Bunch backup by file or by time.
Record files edited for backup in playback.
Management and maintenance for backup de ices.
Alarm & Exception
Configurable arming time for alarm in/out.
Various alarm types supported: alarms for ideo loss, motion detection,
ideo tempering, ideo signal abnormal, ideo in/out format
unmatched, illegal access, network disconnection, IP conflict, hard disk
error and hard disk full.
Various alarm response actions supported: camera recording, relay out,
on-screen warning, audible warning and upload to center, etc.
Auto reco ery from exceptions.
Others
Control of DVR ia front panel keys, mouse and IR remote control.
Three-le el user management, each user with indi idual operating
permission for DVR and camera.
Powerful record and search for log of operation, alarm and exceptions.
Import/export of de ice configuration files.
Network
10/100M adapti e network interface.
TCP/IP protocol suites, PPPoE, DHCP, DNS, DDNS, NTP, SADP protocols,
etc.
Unicast and multicast supported; TCP and UDP protocols applicable in
unicast transmission.
Remote search, playback and download, lock/unlock of ideo files;

Hikvision Technical Manual
©2006 –2011 by HIKVISION. All rights reserved.
support breakpoint resume.
Remote access and configuration of parameters; remote import/export
of de ice configuration parameters.
Remote access of de ice running status, system log and alarm status.
Remote control of DVR ia button operation.
Remote lock/unlock of panel buttons and mouse.
Remote formatting of hard disk, upgrade, reboot/shutdown and other
system maintenance operations.
RS -485 transparent channel transmission.
E ent alarm and exceptions upload to remote management host.
Remote manual recording.
Remote ideo image capture in JPEG format.
Remote PTZ control.
Voice talk and broadcast.
Built-in WEB Ser er.
Development
Pro ision of SDK in Windows and Linux operating systems.
Application software source code of Demo.
Support and training ser ice for application system de elopment.

Hikvision Technical Manual
©2006 –2011 by HIKVISION. All rights reserved.
Rear Panel & Interfaces

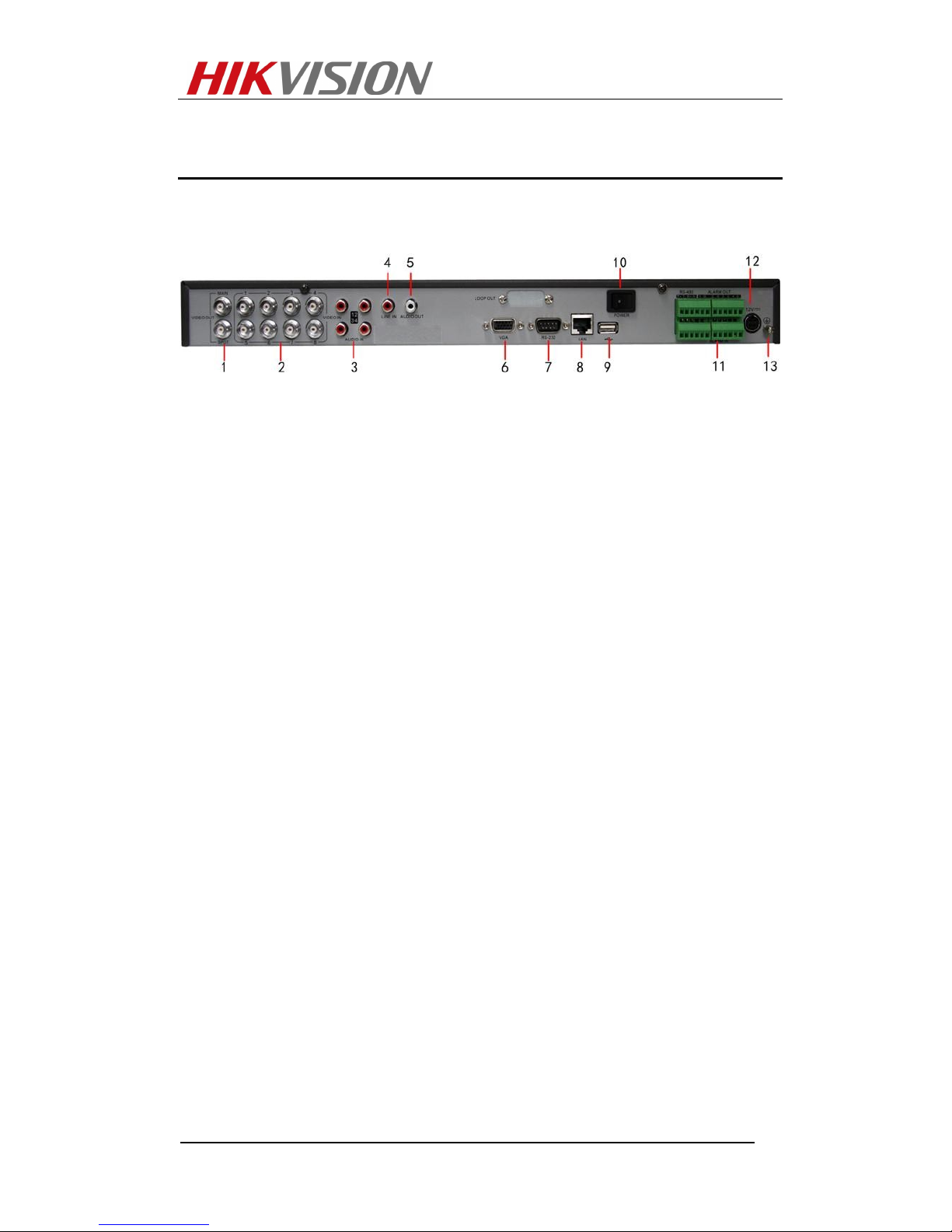

Rear Panel of DS-7208HVI-ST
①MAIN/SPOT VIDEO OUT
②VIDEO IN
③AUDIO IN
④LINE IN
⑤AUDIO OUT
⑥VGA Interface
⑦RS-232 Serial Interface
⑧LAN
⑨USB Interface
⑩POWER
⑪RS-485 Interface, ALARM IN, ALARM OUT
⑫12VDC Power Supply Interface
⑬GND

Hikvision Technical Manual
©2006 –2011 by HIKVISION. All rights reserved.
Specifications
Mo el DS-7208HVI-ST
Vi eo/Au io
input
Vi eo compression H.264
Analog vi eo input 8-ch, BNC connector (1.0 Vp-p, 75 Ω);
PAL / NTSC adapti e
Au io compression G.711
Au io input 4-ch, RCA connector (2 Vp-p, 1 kΩ)
Voice talk input 1-ch, RCA (2.0 Vp-p, 1 kΩ）
VGA output 1-ch, resolution: 1024 × 768/60 Hz
CVBS output
2-ch, BNC connector (1.0 Vp-p, 75 Ω);
Resolution: PAL: 704 × 576,
NTSC: 704 × 480
Au io output 1-ch, RCA connector (Linear, 1 kΩ)
Vi eo/Au io
output
Recor ing
resolution 4CIF / 2CIF / CIF / QCIF
Frame rate 4CIF / 2CIF: 8 fps
CIF / QCIF: 25 fps (P) / 30 fps (N)
Vi eo bit rate 32 kbps ~ 2048 kbps, or user-defined
(Max. 3072 kbps)
Stream type Video/ Video & Audio
Au io bit rate 64kbps
Dual stream Support
Synchronous
playback 8-ch
Har isk Type 2 SATA interfaces
Capacity Up to 2TB capacity for each interface
External
interface
Network interface 1, RJ45 10 M / 100 M adapti e Ethernet
interface
Serial interface 1 RS-485 interface, 1 RS-232 interface
USB interface 2, USB 2.0
Alarm in 8
Alarm out 4
Others
Power supply 12 VDC
Consumption ≤10 W (without hard disk or DVD-R/W)
Working
temperature -10 ℃ ~ +55 ℃
Working humi ity 10% ~ 90%
Chassis 19-inch standard rack-mounted 1U
chassis
Dimensions
(W x D x H) 445× 45 ×290 mm
Weight ≤4 kg (without hard disk or DVD-R/W)

Hikvision Technical Manual
©2006 –2011 by HIKVISION. All rights reserved.
Overview
De eloped by Hik ision on the basis of the latest technologies, DS-7204HVI-ST
Series Digital Video Recorder combines with the ad anced H.264 ideo encoding
and decoding standard and maintains high performance rock-solid reliability and
longer recording ser ice time.
DS-7204HVI-ST Digital Video Recorder can be used as a standalone ideo
sur eillance product, as well as to build up a powerful sur eillance network which is
suitable for home or small-scale business applications.
DS-7204HVI-ST

Hikvision Technical Manual
©2006 –2011 by HIKVISION. All rights reserved.
Main Features
User-frien ly GUI for easy operation
Up to 1024×768 VGA output resolution
Simultaneous VGA an CVBS output
Up to CIF/QCIF real-time or 4CIF non-real-time resolution
Sche ule an event recor ing parameters configurable per
in ivi ual camera
Partial igital zoom by using mouse when in PTZ control mo e
Up to 4-ch synchronous playback
Support ual stream
Different recor ing storage perio configurable for each channel
NTP, SADP, DHCP protocols supporte

Hikvision Technical Manual
©2006 –2011 by HIKVISION. All rights reserved.
Functions & Performances
Compression
PAL/NTSC adapti e ideo inputs.
H.264 ideo compression with high reliability and superior definition.
G.711 audio compression standard.
Independent ideo encoding parameters, including frame rate,
resolution, bit rate, ideo quality, etc.
Scheduled and e ent recording parameters configurable for per
indi idual camera.
Support dual stream.
Encoding for both audio/ ideo composite stream and ideo stream;
audio and ideo synchronization during composite stream encoding.
Compression, storage and network transmission of ideo image at 4CIF
or CIF resolution.
Watermark technology.
Local Monitoring
Up to 1024×768 resolution for VGA output display.
Simultaneous VGA and CVBS output.
1/4-camera ideo li e iew, with the camera order adjustable.
Group switch, manual switch and automatic cycle modes selectable for
ideo li e iew, with the auto cycle period configurable.
Digital zoom in li e iew mode.
Shield of assigned channel for li e iew.
Pri acy masking capability.
Multiple PTZ protocols supported, and settings and callup of presets,
patrols and patterns.
Video image zoom-in by clicking the mouse and tracing by dragging
mouse in PTZ control mode.
Har Disk Management
Connection to 1 SATA hard disk supported, with up to 2TB storage
capacity.
S.M.A.R.T technology.
HDD standby function.
HDD file system is compatible with Windows. Use pre-allocating hard
disk management technology, and no disk fragments.
Recor ing
Cycle and non-cycle recording mode.
Scheduled and e ent ideo encoding parameters.

Hikvision Technical Manual
©2006 –2011 by HIKVISION. All rights reserved.
Multiple recording types, including manual, continuous, alarm, motion,
motion | alarm and motion & alarm recording, etc.
8 recording time periods with separate recording types.
Pre-record and Post-record time for alarm and motion detection, and
pre-record time for schedule and manual recording.
Lock and unlock of ideo files.
HDD property can be set to read-only.
Video data search and playback by channel number, recording type,
time etc.
Digital zoom function in playback mode.
Pause, play fast, play slow, skip forward, and skip backward when
playback, locating in progress bar by dragging the mouse.
4-channel synchronous playback.
Backup
Record files backed up ia USB de ice.
Bunch backup by file or by time.
Record files edited for backup in playback.
Management and maintenance for backup de ices.
Alarm & Exception
Configurable arming time for alarm in/out.
Various alarm types supported: alarms for ideo loss, motion detection,
ideo tempering, ideo signal abnormal, ideo in/out format
unmatched, illegal access, network disconnection, IP conflict, hard disk
error and hard disk full.
Various alarm response actions supported: camera recording, relay out,
on-screen warning, audible warning and upload to center, etc.
Auto reco ery from exceptions.
Others
Control of DVR ia front panel keys, mouse and IR control.
Three-le el user management, each user with indi idual operating
permission for DVR and camera.
Powerful record and search for log of operation, alarm and exceptions.
Import/export of de ice configuration files.
Network
10/100M adapti e network interface.
TCP/IP protocol suites, PPPoE, DHCP, DNS, DDNS, NTP, SADP protocols,
etc.
Unicast and multicast supported; TCP and UDP protocols applicable in
unicast transmission.
Remote search, playback and download, lock/unlock of ideo files;
