HIK VISION DS-D5043FL-B User manual

LCD Monitor
User Manual

Legal Informaon
User Manual
©2018 Hangzhou Hikvision Digital Technology Co., Ltd.
About this Manual
This Manual is subject to domesc and internaonal copyright protecon. Hangzhou Hikvision
Digital Technology Co., Ltd. ("Hikvision") reserves all rights to this manual. This manual cannot be
reproduced, changed, translated, or distributed, parally or wholly, by any means, without the
prior wrien permission of Hikvision.
Please use this user manual under the guidance of professionals.
Trademarks
and other Hikvision marks are the property of Hikvision and are
registered trademarks or the subject of applicaons for the same by Hikvision and/or its aliates.
Other trademarks menoned in this manual are the properes of their respecve owners. No right
of license is given to use such trademarks without express permission.
Disclaimer
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, HIKVISION MAKES NO WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, REGARDING THIS MANUAL.
HIKVISION DOES NOT WARRANT, GUARANTEE, OR MAKE ANY REPRESENTATIONS REGARDING THE
USE OF THE MANUAL, OR THE CORRECTNESS, ACCURACY, OR RELIABILITY OF INFORMATION
CONTAINED HEREIN. YOUR USE OF THIS MANUAL AND ANY RELIANCE ON THIS MANUAL SHALL BE
WHOLLY AT YOUR OWN RISK AND RESPONSIBILITY.
REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY
AT YOUR OWN RISKS. HIKVISION SHALL NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL
OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER
ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL
PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.
SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR
JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS
THE APPLICABLE LAW. HIKVISION SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED
WITH ILLEGITIMATE PURPOSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER
PREVAILS.
LCD Monitor User Manual
i

Perface
Symbol Convenons
The symbols that may be found in this document are dened as follows.
Symbol Descripon
Danger
Indicates a hazardous situaon which, if not avoided, will or could
result in death or serious injury.
Cauon
Indicates a potenally hazardous situaon which, if not avoided, could
result in equipment damage, data loss, performance degradaon, or
unexpected results.
Note Provides addional informaon to emphasize or supplement
important points of the main text.
Applicable Models
This manual is applicable to monitors of the following sizes: 22 inch, 32 inch, 43 inch, and 55 inch.
LCD Monitor User Manual
ii

Contents
Chapter 1 Introducon ............................................................................................................... 1
1.1 Overview ................................................................................................................................ 1
1.2 Key Features ........................................................................................................................... 1
1.3 Panel Buons ......................................................................................................................... 1
1.4 Interfaces ............................................................................................................................... 2
1.5 Power Supply Connecons .................................................................................................... 3
1.6 Remote Control ...................................................................................................................... 3
Chapter 2 Terminal Operaons ................................................................................................... 5
2.1 Switch Input Source ............................................................................................................... 5
2.2 Menu Descripons ................................................................................................................. 5
2.3 Congure Image Parameters .................................................................................................. 7
2.4 Congure Audio Sengs ...................................................................................................... 10
2.5 Enable/Disable keypad lock ................................................................................................. 11
2.6 System Maintenance ............................................................................................................ 12
2.6.1 Upgrade the Device .................................................................................................... 12
2.6.2 Restore the Defaults ................................................................................................... 12
2.6.3 Congure Temperature Monitoring ............................................................................ 13
2.6.4 View System Informaon ............................................................................................ 14
2.6.5 Enable/Disable Auto Sleep .......................................................................................... 15
2.6.6 Enable/Disable Power Saving Mode ........................................................................... 15
2.6.7 Congure Screen Saver ............................................................................................... 15
2.6.8 Check Energy Diagram ................................................................................................ 15
Chapter 3 Client Operaon ....................................................................................................... 17
3.1 Log in to Client ..................................................................................................................... 17
3.2 Congure Serial Port ............................................................................................................ 17
3.3 Startup/Shutdown ............................................................................................................... 17
LCD Monitor User Manual
iii

3.4 Switch Input Source ............................................................................................................. 18
LCD Monitor User Manual
iv

Chapter 1 Introducon
1.1 Overview
The LCD monitor is a reliable surveillance display with excellent color reducon, image processing,
and true display of video details. Mulple interfaces can meet various surveillance environments,
and build-in speaker is convenient for audio play. The monitor is an ideal choice for security and
surveillance applicaon.
1.2 Key Features
• 8-bit 2-ch LVDS (1920 × 1080) HD display.
• 3D digital comb lter.
• True color OSD and user-friendly operang menu.
• Mstar ACE-5 auto color and image enhancement engine, improving the image contrast, details,
color of skin and edges, etc.
• Programmable 12-bit RGB gamma correcon.
• 1-ch HDMI 1.3 input interface, supporng HDCP 1.2.
•Soware spread-spectrum technology to reduce EMI radiaon.
• 3D noise reducon.
• HD JPEG decoding.
•Mulmedia playing of text, image, audio, video, etc.
1.3 Panel Buons
Touch buons place on the le side of the monitor. See details in the following gure and table.
LCD Monitor User Manual
1

Figure 1-1 Panel Buons
Table 1-1 Buons Descripon
Buon Descripon
POWER Conrm
Start up
Hold down to shut down
MENU Enter main menu
SOURCE Enter source menu
▲/▼/◄/►Move the cursor up/down/le/right
1.4 Interfaces
Figure 1-2 Rear Panel of Device
Table 1-2 Descripon of Rear Panel
Interface Descripon
BNC IN CVBS input
BNC OUT CVBS output
LCD Monitor User Manual
2

Interface Descripon
HDMI IN HDMI digital signal input
DVI IN DVI digital signal input
VGA IN Analog VGA input
USB USB interface
AUDIO IN Audio input
RS232 IN RS-232 serial port input
RS232 Out RS-232 serial port output
1.5 Power Supply Connecons
Insert the 3-pin power plug (100 to 240 VAC, 2A) into well-grounded power socket.
Note
Disconnect the power of the monitor if it will not be used for a long me.
1.6 Remote Control
Refer to the following table for the remote controller descripons.
Figure 1-3 Remote Control
LCD Monitor User Manual
3

Note
The following keys are only used under the USB signal source: , , , , , .
Table 1-3 Descripon of Remote Control Buons
Key Funcon
Turn on/o the monitor
Turn on/o the sound
MENU Enter/Exit main menu
FREEZE Freeze the image
SOURCE Input source selecon menu
▲/▼/◄/►Up/down/le/right direcon keys, select a submenu or set menu
parameters
OK Conrm
Play/Pause
Stop
/ Previous/Next
Repeat
Return
LCD Monitor User Manual
4

Chapter 2 Terminal Operaons
2.1 Switch Input Source
The monitor supports 5 signal sources: HDMI, DVI, VGA, CVBS , USB.
Steps
1. Press SOURCE to enter Input Source page.
Figure 2-1 Input Source
2. Press ▼ or ▲ to select the input source.
3. Press OK to accomplish the input source selecon.
2.2 Menu Descripons
Menu Operaons
Note
Conguraon steps vary depending on the menu you choose.
LCD Monitor User Manual
5

Table 2-1 Descripon of Menu Operaons
1 Press MENU and the main menu appears on the screen, such as image mode,
audio sengs, VGA parameters, etc.
2 Press ▲/▼/◄/► to select a submenu.
3 Press OK to conrm the submenu.
4 Press ▲/▼ to select parameters.
5 Press ◄/► to set the parameters.
6 Press MENU to complete the sengs and back to the main menu interface.
OSD Sengs
You can set the language and OSD duraon on the menu.
Enter Menu Sengs page: Menu → Menu Sengs , and then set language, OSD duraon, and
OSD blending.
Figure 2-2 OSD Sengs
Language
Supports Chinese & English menu switch.
OSD Duraon
Refers to the display me of the menu aer it is not used. Press ◄ or ► to adjust the OSD
duraon to: Always On/5 Sec/15 Sec/30 Sec.
OSD Blending
Refers to the OSD transparency. You can adjust the blending value to: High/Middle/Low/O.
LCD Monitor User Manual
6

2.3 Congure Image Parameters
Image Mode
You can switch image modes and adjust image parameters including contrast, brightness, color,
sharpness, and hue.
Enter Image Mode page: MENU → Image Mode , and then press ▲or▼to select Image Mode.
Figure 2-3 Image Mode
Standard
Suitable for a normal environment.
Gentle
Suitable for a dark room.
Dynamic
Suitable for a bright room.
User
When you select the User mode, press ◄ or ► to set the brightness, contrast, color, or
sharpness to adjust display eect.
Note
Adjustable parameters vary depending on the input source you choose. If the parameter bar is
gray, it indicates that the parameter is unadjustable under the current input source.
Backlight Sengs
You can adjust the screen brightness. The higher the backlight value, the brighter the screen.
LCD Monitor User Manual
7

Enter Backlight Sengs page: MENU → Backlight Sengs , and then press ▲ or ▼to select
Backlight.
Figure 2-4 Backlight Sengs
VGA Parameter
When you select VGA as the input source, you can adjust VGA parameters to make the picture
show in the correct posion.
Enter VGA Parameter page: MENU → VGA Parameter , and then press ▲ or ▼to adjust VGA
parameters according to your needs.
Figure 2-5 VGA Parameter
LCD Monitor User Manual
8

Overscan Sengs
When there is black border, you can shield the borders for beer image quality.
Enter Overscan Sengs page: MENU → Overscan Sengs , and then press◄ or ► to disable
Overscan. You can set Le Edge, Right Edge, Top Edge and Boom Edge from 0 to 100.
Figure 2-6 Oversan Sengs
Note
The value of overscan is the pixel value of certain edge.
Aspect
You can set the aspect rao as 16:9, 4:3, and P-to-P to zoom pictures.
Enter Aspect page: MENU → Aspect , and then press ◄ or ► to set the aspect rao.
LCD Monitor User Manual
9

Figure 2-7 Aspect
Image Freeze
Image freeze refers to freezing the current image on the monitor.
Enter Image Freeze page: MENU → Other Sengs → Image Freeze , and then press ◄ or ►to set
Image Freeze as Yes or No to enable or disable the image freeze.
Note
Aer switching the input source, the image freeze is automacally disabled by default.
Lighng
You can set the lighng parameters to adopt dierent surrounding lighng condions.
Enter Lighng page: MENU → Other Sengs → Lighng , and then press ◄ or ► to switch
lighng modes.
Normal Mode
Suitable for normal light condions.
Daylight Mode
Suitable for daylight condions.
Night Mode
Suitable for night light condions.
2.4 Congure Audio Sengs
You can switch the mute on/o, and adjust the volume/balance.
LCD Monitor User Manual
10

Enter Audio Mode page: Menu → Audio Mode , and then press ◄ or ► to set the mute, volume,
and balance.
Figure 2-8 Audio Sengs
2.5 Enable/Disable keypad lock
You can disable keypad lock to avoid the misoperaon of control panel buons.
Enter Lock Keypad page: MENU → Lock Keypad , and then press ◄ or ► to turn on/o Lock
Keypad.
Figure 2-9 Lock Keypad
LCD Monitor User Manual
11

Note
When the lock keypad keypad lock is enabled, the control panel buons are invalid.
2.6 System Maintenance
The device supports funcons such as viewing system informaon, upgrading soware, high
temperature protecon, no signal screensaver.

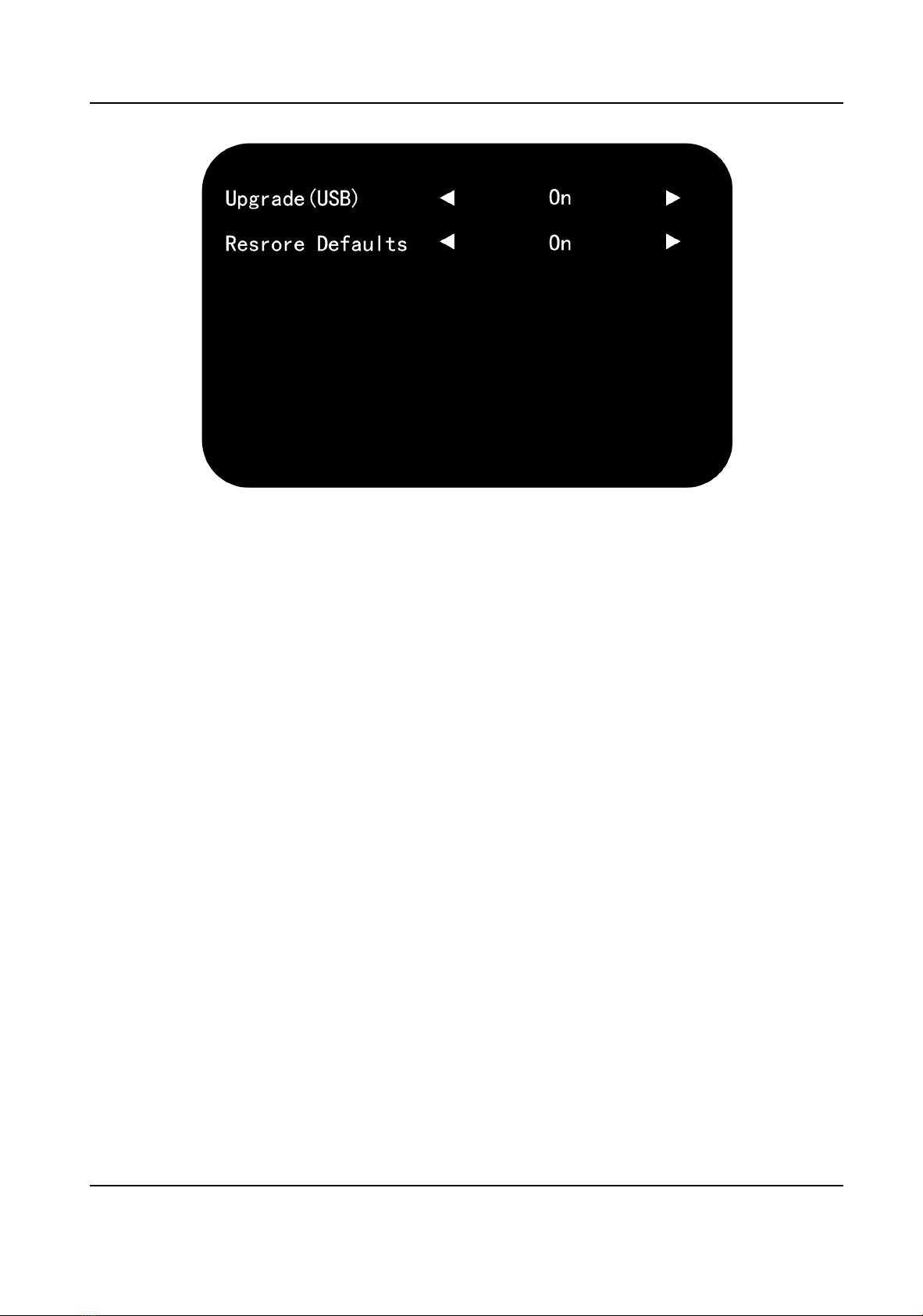

2.6.1 Upgrade the Device
Please use the latest update package to get all the possible updates.
Before You Start
Insert the USB ash drive with the update package to the device.
Steps
1. Enter Upgrade(USB) page: MENU → Maintenance → Upgrade(USB) .
2. Press ►to to start upgrading.
3. Press ◄ to connue the upgrading process or ► to cancel the operaon and back to the menu.
2.6.2 Restore the Defaults
All parameters of the device can be restored to default sengs.
Steps
1. Enter Restore Defaults page: MENU → Restore Defaults .
LCD Monitor User Manual
12

Figure 2-10 Restore Defaults
2. Press ►to start restoraon.
A dialog box pops up.
3. Press ◄ to connue restoring the defaults or ► to cancel the operaon and back to the menu.
2.6.3 Congure Temperature Monitoring
You can enable Overheat Alarm and once the board temperature is too high, an alarm prompt
appears on the screen.
Steps
1. Enter Alarm Sengs page: MENU → Alarm Sengs .
2. Press ◄or ► to enable/disable Overheat Alarm.
LCD Monitor User Manual
13

Figure 2-11 Alarm Sengs
3. Select Alarm Temp (°C) and press ◄ or ► to adjust the alarm temperature.
4. Press MENU again to complete the sengs and back to the main menu interface.
2.6.4 View System Informaon
View the system informaon for maintenance.
Enter System Info page: MENU → System Info , and check current soware version, working hours,
current temperature, device ID.
Figure 2-12 System Informaon
LCD Monitor User Manual
14

2.6.5 Enable/Disable Auto Sleep
When the monitor does not have signal input in a preset interval, it goes to sleep automacally.
Steps
1. Enter Auto Sleep page: MENU → Backlight Sengs → Auto Sleep .
2. Press ◄ or ► to set Auto Sleep value or turn o Auto Sleep.
3. Press MENU again to complete the sengs and back to the main menu interface.
2.6.6 Enable/Disable Power Saving Mode
The Power Saving Mode can reduce screen brightness and power consumpon.
Steps
1. Enter Power Saving Mode page: MENU → Other Sengs → Power Saving Mode .
2. Press◄ or ►to enable/disable Power Saving Mode.
3. Press MENU again to complete the sengs and back to the main menu interface.
2.6.7 Congure Screen Saver
The screen saver allows you to set the screen mode when the monitor has no signal input.
Steps
1. Enter No Signal Screensaver page: MENU → Other Sengs → No Signal Screensaver .
2. Press ◄ or ► to set Blue or Black or LOGO when there is no signal input.
3. Press MENU again to complete the sengs and back to the main menu interface.
2.6.8 Check Energy Diagram
You can conrm the working condion of power saving mode and check current power, the power
rao, the sum power of the monitor.
Steps
1. Enter Energy Diagram page: MENU → Other Sengs → Energy Diagram .
2. Press ► to enable Energy Diagram.
3. Press MENU again to complete the sengs and back to the main menu interface.
LCD Monitor User Manual
15
