HIK VISION TurboHD DS-2CE56D7T-IT Z Series User manual

DS-2CE56D7T-xITxZ Series
DS-2CE56F7T-xITxZ Series
Dome Cameras
User Manual

UM DS-2CE56(D/F)7T-xITxZ TurboHD Dome Camera (UD00351 ) 022220NA 2
2.1 Privacy Notice ..................................................... 3
2.2 Regulatory Information ....................................... 3
2.2.1 FCC Information .................................................. 3
2.2.2 FCC Conditions.................................................... 3
2.2.3 EU Conformity Statement ................................... 4
2.2.4 Industry Canada ICES-003 Compliance ............. 4
4.1 Type I Camera Overview ...................................... 5
4.2 Type II Camera Overview ..................................... 5
5.1 efore You Start .................................................. 5
5.2 Ceiling Mounting ................................................. 6
5.3 In-Ceiling Mounting ............................................ 7
5.3.1 In-Ceiling Mounting without Gang ox ............... 7
5.3.2 In-Ceiling Mounting with Gang ox .................... 8
5.4 Mounting Type I Camera with Inclined ase ....... 8
6.1 Format ............................................................... 10
6.2 Focus ................................................................ 10
6.3 Main Menu ......................................................... 10
6.3.1 AE (Auto Exposure) ........................................... 10
6.3.2 RIGHTNESS ....................................................... 10
6.3.3 EXPOSURE MODE ................................................ 10
6.3.4 GAIN ................................................................... 10
6.3.5 W (White alance) .......................................... 11
6.3.6 DAY/NIGHT ......................................................... 11
6.3.7 VIDEO SETTING ................................................... 11
6.3.8 RESET ................................................................ 12
6.3.9 SAVE & EXIT ....................................................... 12

UM DS-2CE56(D/F)7T-xITxZ TurboHD Dome Camera (UD00351 ) 022220NA 3
Introduction
Thank you for purchasing our product. For questions
or requests, please contact your dealer.
This manual applies to the models below:
Ty e
Model
Ty e I Camera
DS
-
2CE56D
7T
-
AVPIT3Z
DS-2CE56F7T-AVPIT3Z
DS
-
2CE56D
7T
-
VPIT3Z
DS-2CE56F7T-VPIT3Z
Ty e II Camera
DS
-
2CE56D
7T
-
AITZ
DS-2CE56F7T-AITZ
DS
-
2CE56D
7T
-
ITZ
DS-2CE56F7T-ITZ
This manual may contain incorrect information or
printing errors, and the content is subject to change
without notice. This manual will be updated
periodically. We will readily improve or update the
products or procedures described in the manual.
Notices
2.1 Privacy Notice
Surveillance laws vary by jurisdiction. Check all
relevant laws in your jurisdiction before using this
product for surveillance purpose to ensure that your
use of this product conforms.
2.2 Regulatory Information
2.2.1 FCC Information
FCC Com liance: This equipment has been tested and
found to comply with the limits for a digital device,
pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference when the equipment is operated
in a commercial environment. This equipment
generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance
with the instruction manual, may cause harmful
interference to radio communications. Operation of
this equipment in a residential area is likely to cause
harmful interference, which the user will be required
to correct the interference at their own expense.
2.2.2 FCC Conditions
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
•This device may not cause harmful interference
•This device must accept any interference received,
including interference that may cause undesired
operation

UM DS-2CE56(D/F)7T-xITxZ TurboHD Dome Camera (UD00351 ) 022220NA 4
2.2.3 EU Conformity Statement
This product and, if applicable, the supplied
accessories too are marked with “CE” and
comply therefore with the applicable harmonized
European standards listed under the Low Voltage
Directive 2006/95/EC, the EMC Directive 2004/108/EC.
2002/96/EC (WEEE Directive): Products
marked with this symbol cannot be disposed
of as unsorted municipal waste in the
European Union. For proper recycling, return
this product to your local supplier upon the purchase
of equivalent new equipment or dispose of it at
designated collection points. For more information
see: www.recyclethis.info.
2006/66/EC (Battery Directive): This product
contains a battery that cannot be disposed
of as unsorted municipal waste in the
European Union. See the product documentation for
specific battery information. The battery is marked
with this symbol, which may include lettering to
indicate cadmium (Cd), lead (Pb), or mercury (Hg). For
proper recycling, return the battery to your supplier or
to a designated collection point. For more information
see: www.recyclethis.info.
2.2.4 Industry Canada ICES-003 Com liance
This device meets the CAN ICES-3 (A)/NM -3(A)
standards requirements.
Product Features
This camera series adopts high performance sensor
and advanced circuit board design technology. It
features high resolution, low distortion, low noise,
etc. It is suitable for surveillance and image process
systems.
The main features are as follows:
•High performance, high resolution CMOS sensor for
a high-quality image
•Low illumination, 0.01 lux @ (ƒ/1.2, AGC on), 0 lux
with IR
•IR cut filter with auto switch
•OSD menu with configurable parameters
•Auto white balance and internal synchronization
•SMART IR mode
•True WDR
•Advanced 3-axis design meets different installation
requirements

UM DS-2CE56(D/F)7T-xITxZ TurboHD Dome Camera (UD00351 ) 022220NA 5

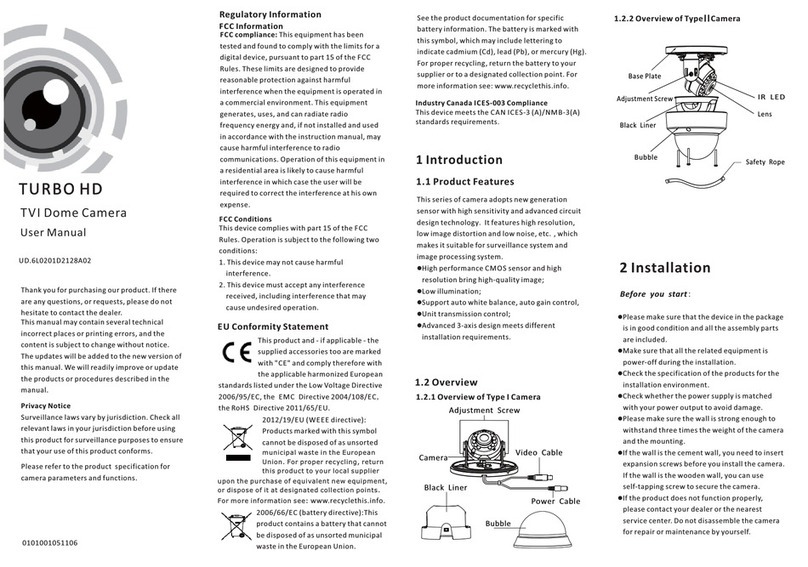

Overview
•Device cables may vary by model. The cables of
each type are shown below. Please refer to your
actual sample.
•You can debug the camera by connecting an
auxiliary HD-TVI cable to the auxiliary video output.
4.1 Ty e I Camera Overview
Figure 1, Overview of Type I Camera
4.2 Ty e II Camera Overview
Figure 2, Overview of Type II Camera
Installation
5.1 Before You Start
•Please make sure that the device in the package is
in good condition and all the assembly parts are
included.
•Make sure that all the related equipment is powered
off during the installation.
•Check the product specification for the installation
environment.
•Check that the power supply matches your required
output to avoid damage.
•Make sure the wall is strong enough to withstand
three times the weight of the camera and the
mounting.
•If the wall is concrete, insert expansion screws
before you install the camera. If the wall is wood,
use self-tapping screws to secure the camera.
•If camera does not function properly, contact your
dealer or nearest service center. Do not disassemble
the camera for repair/maintenance yourself.

UM DS-2CE56(D/F)7T-xITxZ TurboHD Dome Camera (UD00351 ) 022220NA 6
5.2 Ceiling Mounting
1. Attach the drill template (supplied) to the location
you want to fix the camera.
2. Drill the screw holes and the cable hole in the
ceiling according to the drill template.
Figure 3, Drill Templates
3. Loosen the three screws on the edge of the
bubble with the supplied screwdriver to remove
the bubble.
4. Attach the Type I camera back box/Type II camera
base plate to the ceiling and secure with supplied
self-tapping screws.
Figure 4, Attach the ack ox/ ase Plate
5. Route the cables through the cable hole.
6. Align the cameras with the back box/base plate,
and tighten the set screws to secure the camera
with the back box/base plate.
Figure 5, Affix the Camera to the Ceiling
7. Connect the video cable to the monitor, and
connect the power cable to the power supply.

UM DS-2CE56(D/F)7T-xITxZ TurboHD Dome Camera (UD00351 ) 022220NA 7
8. Adjust the camera according to the figure below
to get an optimum angle.
1) View the camera image with the monitor.
2) Rotate the panning table to adjust the pan
direction.
3) Loosen the tilting lock screw.
4) Rotate the tilting table to adjust the tilt
direction.
5) Tighten the tilting lock screw.
6) Rotate the camera to adjust the lens to the
surveillance angle.
Figure 6, 3-Axis Adjustment
9. Tighten the screws to secure the bubble to the
back box/base plate.
Gently remove the protection film, which protects the
bubble during installation, from the bubble after the
installation is complete.
5.3 In-Ceiling Mounting
You must purchase an in-ceiling mount separately if
you use in-ceiling mounting.
5.3.1 In-Ceiling Mounting without Gang Box
1. Drill the screw holes and the cable hole in the
ceiling according to the supplied drill template.
2. Secure the in-ceiling mount with two screws as
shown below.
Figure 7, Install the Mount
3. Route the cables through the in-ceiling mount
hole and connect the corresponding cables.
4. Affix the camera to the in-ceiling mount with the
supplied screws.

UM DS-2CE56(D/F)7T-xITxZ TurboHD Dome Camera (UD00351 ) 022220NA 8
Figure 8, Fix the Camera to the Mount
5. Repeat steps 6 to 8 of the ceiling mounting
section to complete the installation.
5.3.2 In-Ceiling Mounting with Gang Box
Figure 9, Install the Mount
1. Repeat steps 1 to 3 of In-Ceiling Mounting Without
Gang ox and secure the in-ceiling mount
(supplied) to the gang box with two screws.
2. Route the cables through the hole in the center of
the in-ceiling mount.
3. Align the camera with the gang box, and tighten
the screws to secure the camera to the gang box.
Figure 10, Secure the Camera
4. Repeat steps 6 to 8 of the Ceiling Mounting
section to complete the installation.
5.4 Mounting Ty e I Camera with Inclined Base
1. Install the inclined base to the ceiling with
supplied screws, as shown below.

UM DS-2CE56(D/F)7T-xITxZ TurboHD Dome Camera (UD00351 ) 022220NA 9
Figure 11, Fix the Inclined ase
2. Route the cables through the in-ceiling mount
hole and connect the corresponding cables.
3. Affix the camera to the in-ceiling mount with the
supplied screws.
Figure 12, Fix the Camera to the ase
4. Repeat steps 6 to 8 of the Ceiling Mounting
section to complete the installation.
Menu Descri tion
Figure 13, Main Menu Overview
•With a camera controller (purchased separately) or
calling DVR preset no. 95 you can select the menu
and adjust the parameters.
•Move the cursor up/down to select the menu item.
•Move the cursor left/right to adjust the value of the
selected item.
•Press the OK key to confirm a selection.

UM DS-2CE56(D/F)7T-xITxZ TurboHD Dome Camera (UD00351 ) 022220NA 10
6.1 Format
Move the cursor to FORMAT, and press the menu
button to enter the FORMAT sub menu. Set the camera
format and confirm.
6.2 Focus
Move the cursor to FOCUS, and press the menu button
to enter the FOCUS sub menu. Move the cursor to
adjust the camera lens by using FOCUS+, FOCUS-,
ZOOM+, and ZOOM-.
6.3 Main Menu
6.3.1 AE (Auto Ex osure)
AE describes the brightness-related parameters. You
can adjust the image brightness by using Brightness,
Ex osure Mode, and Gain in different light conditions.
Figure 14, AE
6.3.2 Brightness
rightness refers to the brightness of the image. Set
the value from 1 to 10 to darken or brighten the image.
The higher the value, the brighter the image.
6.3.3 Ex osure Mode
You can set AE mode as Global, BLC, and WDR.
•Global: Normal exposure mode, which is for
adjusting situations including unusual lighting
distribution, variations, non-standard processing,
or other underexposure conditions to get an
optimum image.
•BLC (Backlight Com ensation): Compensates light
to the object in the front to make it clear, but
causes overexposure of the background where the
light is strong. Can be adjusted from 0 to 8.
•WDR (Wide Dynamic Range): Helps the camera
provide clear images even under backlight
circumstances. WDR balances the brightness level
of the whole image and provides clear images with
details.
6.3.4 Gain
Gain optimizes the clarity of image in poor light
scenes. The Gain level can be set to High, Middle, or
Low. Select Off to disable the Gain function.
The noise will be amplified when Gain is on.
EXPOSURE
BRIGHTNESS
EXPOSURE MODE
LV
GAIN
RETURN
5
5
BLC
MIDDLE

UM DS-2CE56(D/F)7T-xITxZ TurboHD Dome Camera (UD00351 ) 022220NA 11
6.3.5 WB (White Balance)
White balance is the white rendition function of the
camera to adjust the color temperature according to
the environment. It can remove unrealistic color casts
in the image. You can set W mode as ATW or MWB.
•ATW: White balance is adjusted automatically
according to the color temperature of the scene
illumination.
•MWB: You can set the R GAIN/ GAIN value from 0 to
255 to adjust the shades of red/blue color of the
image.
Figure 15, MW Mode
6.3.6 Day/Night
Color, B/W, and Smart are selectable for Day/Night
switches.
•Color: In Day Mode, the image is always in color.
•B/W: The image is always in black and white, and
the IR LED turns on in low-light conditions.
•Smart: You can select to turn on/off the Infrared
and set the value of Smart IR in this menu.
Figure 16, Day/Night
•Infrared: You can select to turn on/off the IR LED to
response to the requirements of different
circumstances.
•Smart IR: Adjusts the light to its most suitable
intensity and prevents the image from
overexposure. The SMART IR value can be adjusted
from 0 to 3. The higher the value, the more obvious
the effects (it is disabled when the value is 0).
6.3.7 Video Setting
Move the cursor to Video Setting and press the
confirm button to enter the submenu. Contrast,
Shar ness, Color Gain, DNR, and Mirror are adjustable.
WB
MODE
R GAIN
B GA IN
RETURN
5
MWB
5
1
OPEN
SMART
DAY/NIGHT
MODE
INFRARED
SMART IR
RETURN

UM DS-2CE56(D/F)7T-xITxZ TurboHD Dome Camera (UD00351 ) 022220NA 12
Figure 17, Video Setting
•Contrast: Enhances the difference in color and light
between parts of an image. You can set the value
from 1 to 10.
•Shar ness: Determines the amount of detail an
imaging system can reproduce. You can set the
value from 1 to 10.
•Color Gain: Adjust to change the color saturation.
The value ranges from 1 to 10.
•DNR (Digital Noise Reduction): The DNR function can
decrease the noise effect, especially when
capturing moving images in low light conditions to
deliver more accurate and sharp image quality.
You can set the DNR value from 1 to 10.
•Mirror: Default, H, V, and HV are selectable for
mirror.
-Default: The mirror function is disabled.
-H: The image will be flipped 180 degrees
horizontally.
-V: The image will be flipped 180 degrees
vertically.
-HV: The image will be flipped 180 degrees both
horizontally and vertically.
6.3.8 Reset
Resets all the settings to the default.
6.3.9 Save & Exit
Move the cursor to Save & Exit and press OK to save
the setting and exit the menu.
IR Reflection Prevention
For cameras that support IR, you must pay attention
to the following precautions to prevent IR reflection:
•Dust or grease on the dome cover will cause IR
reflection. Please do not remove the dome cover
film until the installation is finished. If there is dust
or grease on the dome cover, clean the dome cover
with a clean, soft cloth and isopropyl alcohol.
•Make sure that there is no reflective surface too
close to the camera lens. The IR light from the
VIDEO SETTING
CONTRAST
SHARPNESS
COLOR GAIN
DNR
MIRROR
RETURN
5
5
5
5
DEFAULT

UM DS-2CE56(D/F)7T-xITxZ TurboHD Dome Camera (UD00351 ) 022220NA 13
camera may reflect back into the lens causing
reflection.
•The foam ring around the lens must be seated flush
against the inner surface of the bubble to isolate
the lens from the IR LEDS. Fasten the dome cover to
the camera body so that the foam ring and the
dome cover are attached seamlessly.
