HIK VISION DS-PM1-I16O2-WB User manual

©2021 Hangzhou Hikvision Digital Technology Co., Ltd. All rights reserved.
About this Manual
The Manual includes instructions for using and managing the Product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change,
without notice, due to rmware updates or other reasons. Please nd the latest version of this Manual at the Hikvision website (https://www.hikvision.com/).
Please use this Manual with the guidance and assistance of professionals trained in supporting the Product.
and other Hikvision's trademarks and logos are the properties of Hikvision in various jurisdictions. Other trademarks and logos mentioned are the properties of their respective owners.
Disclaimer
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS MANUAL AND THE PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, ARE PROVIDED “AS IS” AND “WITH ALL FAULTS AND ERRORS”. HIKVISION MAKES
NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL
HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA, CORRUPTION OF
SYSTEMS, OR LOSS OF DOCUMENTATION, WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKVISION HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS.
YOU ACKNOWLEDGE THAT THE NATURE OF INTERNET PROVIDES FOR INHERENT SECURITY RISKS, AND HIKVISION SHALL NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM
CYBER-ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.
YOU AGREE TO USE THIS PRODUCT IN COMPLIANCE WITH ALL APPLICABLE LAWS, AND YOU ARE SOLELY RESPONSIBLE FOR ENSURING THAT YOUR USE CONFORMS TO THE APPLICABLE LAW. ESPECIALLY, YOU ARE RESPONSIBLE, FOR USING THIS
PRODUCT IN A MANNER THAT DOES NOT INFRINGE ON THE RIGHTS OF THIRD PARTIES, INCLUDING WITHOUT LIMITATION, RIGHTS OF PUBLICITY, INTELLECTUAL PROPERTY RIGHTS, OR DATA PROTECTION AND OTHER PRIVACY RIGHTS. YOU
SHALL NOT USE THIS PRODUCT FOR ANY PROHIBITED END-USES, INCLUDING THE DEVELOPMENT OR PRODUCTION OF WEAPONS OF MASS DESTRUCTION, THE DEVELOPMENT OR PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY
ACTIVITIES IN THE CONTEXT RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS.

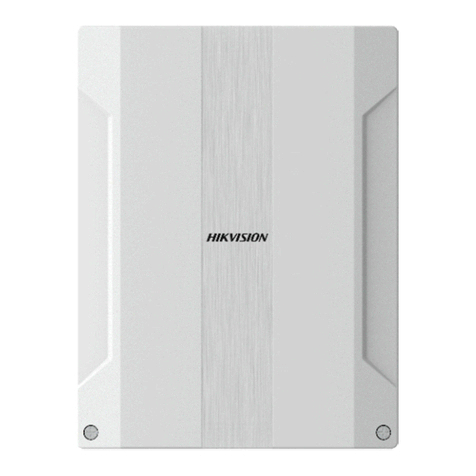

Appearance
1
This product and - if applicable - the supplied accessories too are
marked with "CE" and comply therefore with the applicable harmonized
European standards listed under the EMC Directive 2014/30/EU, RE
Directive 2014/53/EU, the RoHS Directive 2011/65/EU.
Ensure correct wiring of the terminals for connection to an AC mains supply.
2012/19/EU (WEEE directive): Products marked with this symbol
cannot be disposed of as unsorted municipal waste in the European
Union. For proper recycling, return this product to your local supplier
upon the purchase of equivalent new equipment, or dispose of it at
designated collection points. For more information see:
www.recyclethis.info
2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal
waste in the European Union. See the product documentation for specic battery information. The battery is marked
with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper
recycling, return the battery to your supplier or to a designated collection point. For more information see:www.recy-
clethis.info
1
Hangzhou Hikvision Digital Technology CO.,Ltd. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China
Certied by KIWA
Multi IO Transmitter
DS-PM1-I16O2-WB/WE
Caution
1.Install the equipment according to the instructions in this manual.
2.This equipment is not suitable for use in locations where children are likely to be present.
3.This equipment is suitable for use in gang box or other encloslure protected device only.
4.To prevent injury, this equipment must be securely attached to the oor/wall in accordance with the installation instructions.
5.No naked ame sources, such as lighted candles, should be placed on the equipment.
6.The equipment has been designed, when required, modied for connection to an IT power distribution system.
7.A readily accessible disconnect device shall be incorporated external to the equipment.
8.The socket-outlet shall be installed near the equipment and shall be easily accessible.
9.Burned ngers when handling the device. Wait one-half hour after switching o before handling the parts.
10.Use only power supplies at the standard of 100 VAC to 240 VAC, 50/60 HZ.
11.The equipment shall not be exposed to dripping or splashing and that no objects lled with liquids, such as vases, shall be placed on the equipment.
LED Indicator
Tamper Switch
Power Switch
Wiring Terminal
Battery Holder
Alarm Indicator Alarm: Solid red for 2s
Fault alarm: Solid amber
Enrollment completed:
Flashing green for 7 times
Fault Indicator
Enrollment Indicator

2Set Up
2
Hangzhou Hikvision Digital Technology CO.,Ltd. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China
1. Loosen the screw and open the shell.
2. Pull the plastic buckle outward and get the board.
3. Set wiring.
2
1
- BAT + 100~240 VAC
3
B
A
Z1 C Z2 Z3 Z6 Z7 C Z8 AUX- AUX+ Z9 C Z10 Z11 C Z12 Z13 C Z14 -EXT +EXT PGM1 C1 PGM2 C2 C Z4 Z5 C Z15 C Z16
C
D
Battery Plug Power Supply :
100 to 240 VAC
Power Supply :
-EXT and +EXT; AUX- and AUX+
Zone Input: Z1 to Z16 and C
Alarm Output(NO1/NC1 and COM1):
PGM1 and C1
Dry Contact
C1 PGM1
aAlarm Input(NO2/NC2 and COM2):
PGM2 and C2
NC Detector NO Detector
Tamper-proof Dual-Zone Series Connection Dual-Zone Connection
b
2.2K Ω
2.2K Ω
NC
NO
Z
C
TAMPER
Detector
2.2kΩ
Local Zone Local Zone
Security
Control Panel
Security
Control Panel
8.2kΩ
Local Expanding
Zone
Z
C
C
CNO
NO
2.2kΩ 8.2kΩ
NC
C
NC
C
Local Expanding Zone
Z
C
2.2KΩ2.2KΩ
NC NO
CC CC
ZZ
Peripheral Security Detector Peripheral Security Detector

3
Hangzhou Hikvision Digital Technology CO.,Ltd. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China
4. Install the board back.
Fix the transmitter to the wall with screws.
5. Enrollment
6. Power on the transmitter.
Enrollment completed: Flashing green for 7 times.
7. Install the shell back.
Enrollment Preparation
Log in to the APP Store, download and install the App.
Power on the security control panel.
Log in the APP and tap the icon "+". Scan the QR code or input the control panel serial No. to add the control panel.
In the APP, tap the "Enrollment Mode" button on the control panel page to make the control
panel enter the enrollment status.
1Enroll the Peripheral Locally
2Enroll the Peripheral with QR and serial No.
In the APP, tap the icon "+" and scan the QR code or serial No. on the peripheral.
4
6 7
5
xxxx
Device
7 Times

6
Hangzhou Hikvision Digital Technology CO.,Ltd. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China
5Specication
4
3
Operation Caution and Device Maintenance
- All the electronic operation should be strictly compliance with the electrical safety regulations, re prevention regulations and other related
regulations in your local region.
- Do not drop the device or subject it to physical shock, and do not expose it to high electromagnetism radiation. Avoid the equipment
installation on vibrations surface or places subject to shock (ignorance can cause equipment damage).
- Please make sure that the power has been disconnected before you wire, install or dismantle the device.
- If smoke, odors or noise rise from the device, turn o the power at once and unplug the power cable, and then please contact the service
center.
- Do not drop the device or subject it to physical shock, and do not expose it to high electromagnetism radiation. Avoid the equipment
installation on vibrations surface or places subject to shock (ignorance can cause equipment damage).
- Do not place the device in extremely hot (refer to the specication of the device for the detailed operation temperature), cold, dusty or
damp locations, and do not expose it to high electromagnetic radiation.
- The device for indoor use shall be kept from rain and moisture.
Exposing the equipment to direct sun light, low ventilation or heat source such as heater or radiator is forbidden (ignorance can cause re
danger).
- Do not aim the device at the sun or extra bright places. A blooming or smear may occur otherwise (which is not a malfunction however), and
aecting the endurance of sensor at the same time.
- Improper use or replacement of the battery may result in hazard of explosion. Replace with the same or equivalent type only. Dispose of
used batteries according to the instructions provided by the battery manufacturer.
- Do not expose the device to the corrosive gas. Otherwise the equipment damage may occur.
- Do not expose the device to the explosive situation.
Set Up with App
You can view the device status including temperature, signal intensity, battery level, lid, external input, etc.,on the device page.
Tap the button to enter the settings page.
UD25334B
RF Frequency 868 MHz
Modulation 2GFSK
Method Two-way communication
RF Distance 800 m (open area)
12 V Input
Relay Output
Tamper Switch
Zone Input
Power Switch 1
1
1, Connects to the Battery
Series Port
2
2 (Front and Rear)
16
LED Status 3: Alarm/Tamper(Red), Fault(Amber),
Signal Strength(Green/Red)
Power Supply 100 to 240 VAC
12 V Output 2-channel
Total Consumption : 1 A
Operation temperature
Operation humidity
Dimension (W x H x D)
Weight
1K, 2.2K, 4.7K, 8.2KEOL
975 g (without battery)
3024g (with battery)
10% to 90%
199 x 261 x 86.4mm
-10 ℃to 55 ℃
