HIKOKI G 18SE4 User manual

角向磨光机
Disc Grinder
G 18SE4
使用说明书
Handling instructions
保留备用
Keep for future reference
中 文
English
000BookG18SE4ChS.indb1000BookG18SE4ChS.indb1 2018/06/2813:41:322018/06/2813:41:32

2
中文
电动工具通用安全警告
警告！
阅读所有警告和所有说明。
不遵照以下警告和说明会导致电击、着火和／或严重伤害。
保存所有警告和说明书以备查阅。
在所有下列的警告中术语“电动工具”指市电驱动（有线）电动工具或电池驱动（无
线）电动工具。
1) 工作场地的安全
a) 保持工作场地清洁和明亮。
混乱和黑暗的场地会引发事故。
b) 不要在易爆环境，如有易燃液体、气体或粉尘的环境下操作电动工具。
电动工具产生的火花会点燃粉尘或气体。
c) 让儿童和旁观者离开后操作电动工具。
注意力不集中会使操作者失去对工具的控制。
2) 电气安全
a) 电动工具插头必须与插座相配。绝不能以任何方式改装插头。需接地的
电动工具不能使用任何转换插头。
未经改装的插头和相配的插座将减少电击危险。
b) 避免人体接触接地表面，如管道、散热片和冰箱。
如果你身体接地会增加电击危险。
c) 不得将电动工具暴露在雨中或潮湿环境中。
水进入电动工具将增加电击危险。
d) 不得滥用电线。绝不能用电线搬运、拉动电动工具或拔出其插头。使电
线远离热源、油、锐边或运动部件。
目次
电动工具通用安全警告 .............................2
砂磨或切割操作的通用安全警告...........4
反弹和相关警告..............................................5
对磨削和金刚石轮切割操作的专用
安全警告.............................................................6
对金刚石轮切割操作的附加专用
安全警告.............................................................6
使用角向磨光机时的注意事项................7
符号.......................................................................7
规格.......................................................................7
标准附件.............................................................8
用途.......................................................................8
作业之前 ...........................................................8
实用角向磨光机的应用...............................9
砂轮或金刚石轮的组装与分解.............10
维护和检查.....................................................10
选择附件 . .......................................................12
000BookG18SE4ChS.indb2000BookG18SE4ChS.indb2 2018/06/2813:41:332018/06/2813:41:33

3
中文
受损或缠绕的软线会增加电击危险。
e) 当在户外使用电动工具时，使用适合户外使用的外接软线。
适合户外使用的软线将减少电击危险。
f) 如果在潮湿环境下操作电动工具是不可避免的，应使用剩余电流动作保
护器（ＲＣＤ）。
使用ＲＣＤ可减小电击危险。
3) 人身安全
a) 保持警觉，当操作电动工具时关注所从事的操作并保持清醒。当你感到
疲倦，或在有药物、酒精或治疗反应时，不要操作电动工具。
在操作电动工具时瞬间的疏忽会导致严重人身伤害。
b) 使用个人防护装置。始终佩戴护目镜。
安全装置，诸如适当条件下使用防尘面具、防滑安全鞋、安全帽、听力
防护等装置能减少人身伤害。
c) 防止意外起动。确保开关在连接电源和／或电池盒、拿起或搬运工具时
处于关断位置。
手指放在已接通电源的开关上或开关处于接通时插入插头可能会导致危
险。
d) 在电动工具接通之前，拿掉所有调节钥匙或扳手。
遗留在电动工具旋转零件上的扳手或钥匙会导致人身伤害。
e) 手不要伸展得太长。时刻注意立足点和身体平衡。
这样在意外情况下能很好地控制电动工具。
f) 着装适当。不要穿宽松衣服或佩戴饰品。让衣服、手套和头发远离运动
部件。
宽松衣服、佩饰或长发可能会卷入运动部件中。
g) 如果提供了与排屑、集尘设备连接用的装置，要确保它们连接完好且使
用得当。
使用这些装置可减少尘屑引起的危险。
4) 电动工具使用和注意事项
a) 不要滥用电动工具，根据用途使用适当的电动工具。
选用适当设计的电动工具会使你工作更有效、更安全。
b) 如果开关不能接通或关断工具电源，则不能使用该电动工具。
不能用开关来控制的电动工具是危险的且必须进行修理。
c) 在进行任何调节、更换附件或贮存电动工具之前，必须从电源上拔掉插
头和／或使电池盒与工具脱开。
这种防护性措施将减少工具意外起动的危险。
d) 将闲置不用的电动工具贮存在儿童所及范围之外，并且不要让不熟悉电
动工具或对这些说明不了解的人操作电动工具。
电动工具在未经培训的用户手中是危险的。
000BookG18SE4ChS.indb3000BookG18SE4ChS.indb3 2018/06/2813:41:332018/06/2813:41:33

4
中文
e) 保养电动工具。检查运动件是否调整到位或卡住，检查零件破损情况和
影响电动工具运行的其他状况。如有损坏，电动工具应在使用前修理好。
许多事故由维护不良的电动工具引发。
f) 保持切削刀具锋利和清洁。
保养良好的有锋利切削刃的刀具不易卡住而且容易控制。
g) 按照使用说明书，考虑作业条件和进行的作业来使用电动工具、附件和
工具的刀头等。
将电动工具用于那些与其用途不符的操作可能会导致危险。
5) 维修
a) 将你的电动工具送交专业维修人员，使用同样的备件进行修理。
这样将确保所维修的电动工具的安全性。
注意！
不可让儿童和体弱人士靠近工作场所。
应将不使用的工具存放在儿童和体弱人士接触不到的地方。
砂磨或切割操作的通用安全警告
a) 该电动工具是用于实现砂轮机或切断工具功能的。阅读随该电动工具提供的
所有安全警告、说明、图解和规定。
不了解以下所列所有说明将导致电击、着火和 / 或严重伤害。
b) 不推荐用该电动工具进行诸如砂光、刷光、抛光或砂磨切断等操作。
电动工具不按指定的功能去操作，可能会发生危险和引起人身伤害。
c) 不使用非工具制造商推荐和专门设计的附件。
否则该附件可能被装到你的电动工具上，而它不能保证安全操作。
d) 附件的额定速度必须至少等于电动工具上标出的最大速度。
附件以比其额定速度大的速度运转会发生爆裂和飞溅。
e) 附件的外径和厚度必须在电动工具额定能力范围之内。
不正确的附件尺寸不能得到充分防护或控制。
f) 砂轮、法兰盘、靠背垫或任何其他附件的轴孔尺寸必须适合于安装到电动工
具的主轴上。
带轴孔的、与电动工具安装件不配的附件将会失稳、过度振动并会引起失控。
g) 不要使用损坏的附件。在每次使用前要检查附件，例如砂轮是否有碎片和裂
缝，靠背垫是否有的裂缝、撕裂或过度磨损，钢丝刷是否松动或金属丝是否
断裂。如果电动工具或附件跌落了，检查是否有损坏或安装没有损坏的附件。
检查和安装附件后，让自己和旁观者的位置远离旋转附件的平面，并以电动
工具最大空载速度运行 1 分。
损坏的附件通常在该试验时会碎裂。
h) 戴上防护用品。根据适用情况，使用面罩、安全护目镜或安全眼镜。适用时，
戴上防尘面具、听力保护器、手套和能挡小磨料或工件碎片的工作围裙。
000BookG18SE4ChS.indb4000BookG18SE4ChS.indb4 2018/06/2813:41:332018/06/2813:41:33

5
中文
眼防护罩必须挡住各种操作产生的飞屑。防尘面具或口罩必须能过滤操作产
生的颗粒。长期暴露在高强度噪声中会引起失聪。
i) 让旁观者与工作区域保持－安全距离。任何进入工作区域的人必须戴上防护
用品。
工件或破损附件的碎片可能会飞出并引起紧靠着操作区域的旁观者的伤害。
切割附件触及带电导线会使电动工具外露的金属零件带电，并使操作者触电。
j) 当在切割附件有可能切割到暗线或自身电线的场所进行操作时，只能通过绝
缘握持面来握住电动工具。
切割附件碰到一根带电导线可能会使电动工具的外露金属零件带电并使操作
者发生电击危险。
k) 使软线远离旋转的附件。
如果操作不当、软线可能被切断或缠绕，并使得你的手或手臂可能被卷入旋
转附件中。
l) 直到附件完全停止运动才放下电动工具。
旋转的附件可能会抓住表面并拉动电动工具而让你失去对工具的控制。
m) 当携带电动工具时不要开动它。
意外地触及旋转附件可能会缠绕你的衣服而使附件伤害身体。
n) 经常清理电动工具的通风口。
电动机风扇会将灰尘吸进机壳，过多的金属粉末沉积会导致电气危险。
o) 不要在易燃材料附件操作电动工具。
火星可能会点燃这些材料。
p) 不要使用需用冷却液的附件。
用水或其他冷却液可能会导致电腐蚀或电击。
反弹和相关警告
反弹是因卡住或缠绕住的旋转砂轮、靠背垫、或其他附件而产生的突然反作用力。
卡住或缠绕会引起旋转附件的迅速堵转，随之使失控的电动工具在卡住点产生
与附件旋转方向相反的运动。
例如，如果砂轮被工件缠绕或卡住，伸入卡住点的砂轮边缘可能会进入材料表
面而引起砂轮爬出或反弹。砂轮可能飞向或飞离操作者，这取决于砂轮在卡住
点的运动方向。在此条件下砂轮也可能碎裂。
反弹是电动工具误用和 / 或不正确操作工序或条件的结果，可以通过采取以下
给出的适当预防措施得以避免。
a) 保持紧握电动工具，使你的身体和手臂处于正确状态以抵抗反弹力。如有辅
助手柄，则要一直使用，以便最大限度控制住起动时的反弹力或反力矩。
如采取合适的预防措施，操作者就可以控制反力矩或反弹力。
b) 绝不能将手靠近旋转附件。
附件可能会反弹碰到手。
c) 不要站在发生反弹时电动工具可能移动到的地方。
反弹将在缠绕点驱使工具逆砂轮运动方向运动。
000BookG18SE4ChS.indb5000BookG18SE4ChS.indb5 2018/06/2813:41:332018/06/2813:41:33

6
中文
d) 当在尖角、锐边等处作业时要特别小心。避免附件的弹跳和缠绕。
尖角、锐边和弹跳具有缠绕旋转附件的趋势并引起反弹的失控。
e) 不要附装上锯链、木雕刀片或带齿锯片。
这些锯片会产生频繁的反弹和失控。
对磨削和金刚石轮切割操作的专用安全警告
a) 只使用所推荐的砂轮型号和为选用砂轮专门设计的护罩。
不是为电动工具设计的砂轮不能充分得到防护，是不安全的。
b) 护罩必须牢固地装在电动工具上，且放置得最具安全性，只有最小的砂轮部
分暴露在操作人面前。
护罩帮助保护操作者免于受到爆裂砂轮碎片和偶然触及砂轮的危险。
c) 砂轮只用作推荐的用途。例如 ：不要用切割砂轮的侧面进行磨削。
施加到砂轮侧面的力可能会使其碎裂。
d) 始终为所选砂轮选用未损坏的、有恰当规格和形状的砂轮法兰盘。
合适的砂轮法兰盘支承砂轮可以减小砂轮破裂的可能性。切割砂轮的法兰盘
可以不同于砂轮法兰盘。
e) 不要使用从大规格电动工具上用剩的磨损砂轮。
用于大规格电动工具上的砂轮不适于较小规格工具的高速工况并可能会爆
裂。
对金刚石轮切割操作的附加专用安全警告
a) 不要“夹”住切割砂轮或施加过大的压力。
不要试图做过深的切割。
给砂轮施加过应力增加了砂轮在切割时的负载，容易缠绕或卡住，增加了反
弹或砂轮爆裂的可能性。
b) 身体不要对着旋转砂轮，也不要站在其后。
当把砂轮从操作者身边的操作点移开时，可能的反弹会使旋转砂轮和电动工
具朝你推来。
c) 当砂轮被卡住或无论任何原因而中断切割时，关掉电动工具并握住工具不要
动，直到砂轮完全停止。
决不要试图当砂轮仍然运转时使切割砂轮脱离切割，否则会发生反弹。
调查并采取校正措施以消除砂轮卡住的原因。
d) 不能在工件上重新起动切割操作。让砂轮达到全速后再小心地重新进入切割。
如果电动工具在工件上重新起动，砂轮可能会卡住，爬出或反弹。
e) 支撑住板材或超大工件可使得砂轮卡住和反弹的危险降到最低限度。
大工件凭借自重而下垂。必须在工件靠近切割线处和砂轮两侧近工件边缘处
放置支承。
f) 当进行“盲切割”进入墙体或其他盲区时要格外小心。
伸出的砂轮可能会割到煤气管或水管，电线或由此引起反弹的物体。
000BookG18SE4ChS.indb6000BookG18SE4ChS.indb6 2018/06/2813:41:332018/06/2813:41:33

7
中文
使用角向磨光机时的注意事项
1. 没有砂轮防护装置时千万不要使用本角向磨光机。
2. 确认砂轮上所标示的转速等於或大於角向磨光机的额定转速。
只能使用额定转速为 80 m/s 的砂轮。
3. 确保砂轮尺寸与角向磨光机相符、砂轮与主轴相配。
4. 须按照厂家的使用说明书小心存放和使用磨轮。
5. 使用前检查砂轮，不要使用破损、有裂缝的或有其他缺陷的产品。
6. 使用角向磨光机时，应牢牢握住工具的操作柄和侧柄。否则，所产生的反作
用力会将孔钻歪，甚至会造成危险。
7. 请勿使用切断砂轮进行侧面研磨。
8. 请勿将独立的减速轴衬或接头用於大孔砂轮。
9. 在切断本电动工具的电源之后，砂轮仍会继续旋转一段时间。
符号
警告！
如下所示的符号用于本机。使用前请务必理解其含意。
为降低伤害风险，用户必须阅读使用说明书
始终戴好护目镜。
规格
电压 220 V
输入功率 2050 W
空载转速 8500 /min
砂轮
金刚石轮
外径 180 mm
穴径 22.23 mm
圆周速度 80 m/s
重量（仅为主机的重量） 5.9 kg
000BookG18SE4ChS.indb7000BookG18SE4ChS.indb7 2018/06/2813:41:332018/06/2813:41:33

8
中文

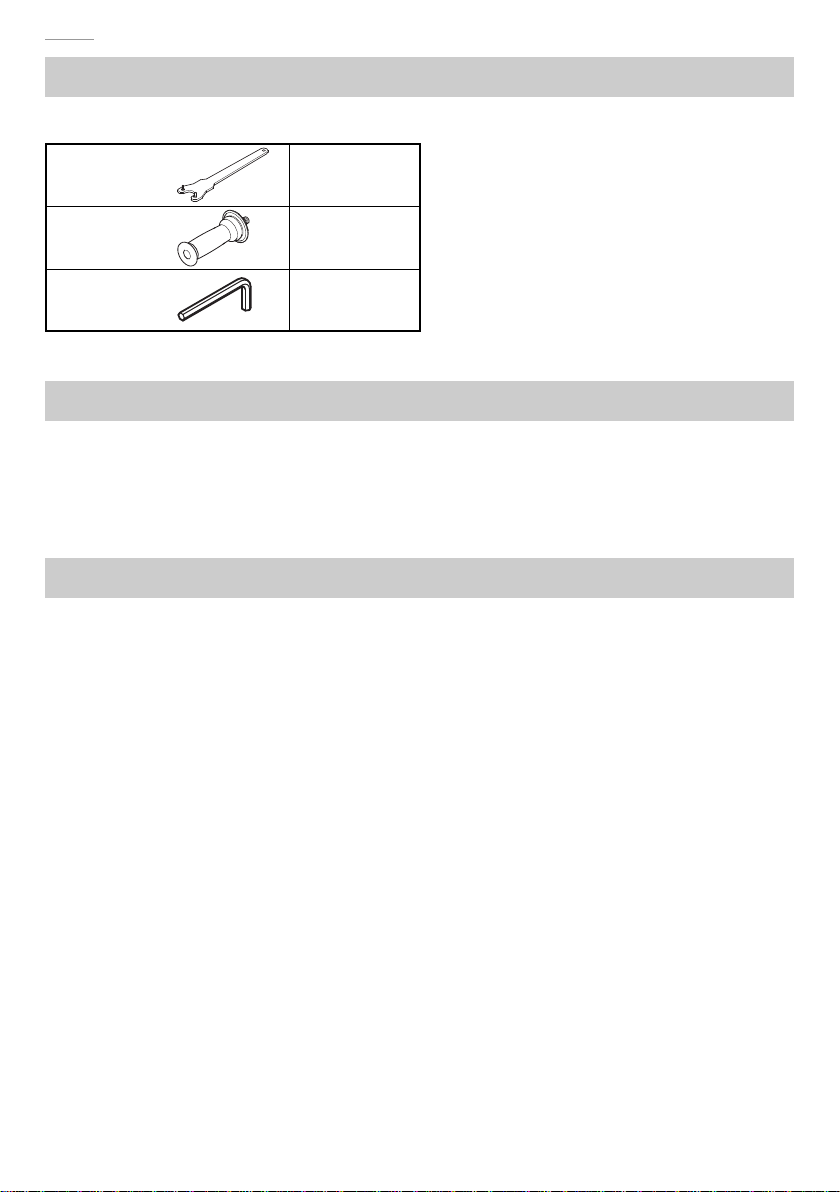

标准附件
除了主机（1 台）外，产品包中还包括表中所列的附件。
扳手 1
侧柄 1
六角杆扳手 1
砂轮不作为标准附件附送。
用途
○ 用于去除铸品毛刺，飞边等物及抛光各种型号的钢、青铜、铝及铸造品。
○ 研磨焊接部分或研磨用焊开的部分。
○ 合成树脂、石板、砖、大理石等的研磨。
○ 混凝土、石头、砖、大理石等的切削。
作业之前
1. 电源
确认所使用的电源与工具铭牌上标示的规格是否相符。
2. 电源开关
确认电源开关是否切断。若电源开关接通，则插头插入电源插座时电动工具
将出其不意地立刻转动，从而招致严重事故。
3. 延伸线缆
若作业场所移到离开电源的地点，应使用容量足够、铠装合适的延伸线缆，
并且要尽可能地短些。
4. 安装并调整轮罩
轮罩是一种保护装置用来防止作业中因砂轮破裂而受伤。开始研磨作业之前，
请确认轮罩是否安装得紧固妥善。稍微拧松固定螺丝后，即可转动轮罩并将
其固定在所需角度，以得到最大工作效率。调整好轮罩後，必须确认固定螺
丝是否完全拧紧。
5. 确保要使用的砂轮属于正确类型、没有裂纹或表面缺陷。同时也要确认砂轮
装好，轮螺母紧固。参照“砂轮的组装与分解”一节。
6. 试行运转
在使用前确保已正确安装并拧紧研磨产品，并在安全场所在空载状态下运转
30 秒钟，若有较大的振动或察觉到其他缺陷，则应立即停止试运转。
遇此情况时，检查电动工具以究明原因。
000BookG18SE4ChS.indb8000BookG18SE4ChS.indb8 2018/06/2813:41:332018/06/2813:41:33

9
中文
7. 检查主轴锁的装置
在打开电源开关之前，揿两、三下锁定销检查锁定销是否被释放。( 第10页
的图 2)
8. 固定侧柄
把侧柄旋进齿轮罩。
实用角向磨光机的应用
1. 压力
本机不可施加过大压力使其过载，这样才能延长机器的使用寿命并确保加工
质量。在大部分的用法中，机器本身的重量即够研磨。加压过大将导致转速
降低、表面加工不良以及过载，从而使机器寿命缩短。
2. 研磨角度
切勿将砂轮的全表面施加于要研磨的
材料上。如图 1 所示，机器应保持
15° - 30° 使砂轮的外缘以最佳角度
与工件相接触。
3. 用新砂轮首次进行研磨时，应将角向
磨光机由对面横过工件往操作人员这
边拉，以免挖入工件（图 1 的 B 方向）。
等砂轮的前缘适当磨损后，就可往任何方向进行研磨。
4. 角向磨光机的开关
接通∶ 将开关锁往前推，接着按开关的手柄开关就被接通。
＊ 长时间使用时，只须再度将开关径前推，开关将上锁。
（＊依地区而异。）
断开∶ 按紧开关的手柄，然后释放，开关就会断开。
5. 收工后的注意事项
关掉机器之后，需等角向磨光机完全停止才能将其放下，以免造成严重事故，
而且还可以减少吸入机器的尘埃及切屑量。
注意！
○ 检查工件已被正确固定。
○ 在多尘的条件下工作时，确保通风口畅通无堵塞现象。
如果需要清除灰尘，首先使电动工具断开电源（使用非金属物品）并避免损
坏内部零件。
○ 确保使用时产生的火花不会引起危险∶例如，不要溅在身体上或点燃易燃物。
○ 始终采用视力和听力保护。
必要时应使用其他个人保护装置，如口罩、手套、头盔和围裙等。
拿不准时，请使用保护装置。
○ 未使用本电动工具时，请断开电源。
15 — 30°
A B
图 1
000BookG18SE4ChS.indb9000BookG18SE4ChS.indb9 2018/06/2813:41:332018/06/2813:41:33

10
中文
砂轮或金刚石轮的组装与分解
注意！
为了防备发生严重事故，必须关掉电源并将电源插头从插座中拔出。
1. 组装（图 2）
(1) 将机器翻过去，使主轴朝上。
(2) 将砂轮垫圈装于主轴上。
(3) 将砂轮或金刚轮的突出部装
入砂轮垫圈。
(4) 将砂轮螺帽旋入主轴。
（使用金刚轮时，请把砂轮
螺帽的凸面装到金刚轮的相
反方向上，并且把螺帽拧到
主轴上。）
(5) 按下锁定销以防止主轴转
动，并如图 2 所示用附送
的扳手拧紧砂轮螺帽。
2. 分解
分解顺序与安装顺序相反。
注意！
○ 请确认砂轮是否安装紧固。
○ 请在打开电源开关之前，按两三下按钮，以确认按钮是否已被释放。
维护和检查
1. 检查砂轮
检查砂轮确无破裂和表面缺陷。
2. 检查安装螺钉
要经常检查安装螺钉是否紧固妥善。若
发现螺钉松了，应立即重新扭紧，否则
会导致严重的事故。
3. 检查炭刷（图 3）
电动机里的炭刷是一种消耗品。
炭刷一旦使用到磨损极限，电动机就会
出现各种障碍 ；如果所使用的炭刷是
“自停式”，电动机将自动地停止转动。
遇到上述情况，应立即换上与图上代码
号一致的新炭刷。此外，炭刷应经常保
持干净状态，以保证能在刷握中自由滑动。
砂轮
砂轮螺帽
扳手
图 2
按钮
（主轴锁）
主轴
砂轮保护
装置
砂轮垫圈
砂轮螺帽
金刚石轮
砂轮垫圈
22.5 mm
a
磨损极限
炭刷号
炭刷号 a
通常炭刷 61 6.5 mm
自动停止炭刷 89 8.5 mm
图 3
000BookG18SE4ChS.indb10000BookG18SE4ChS.indb10 2018/06/2813:41:342018/06/2813:41:34

11
中文

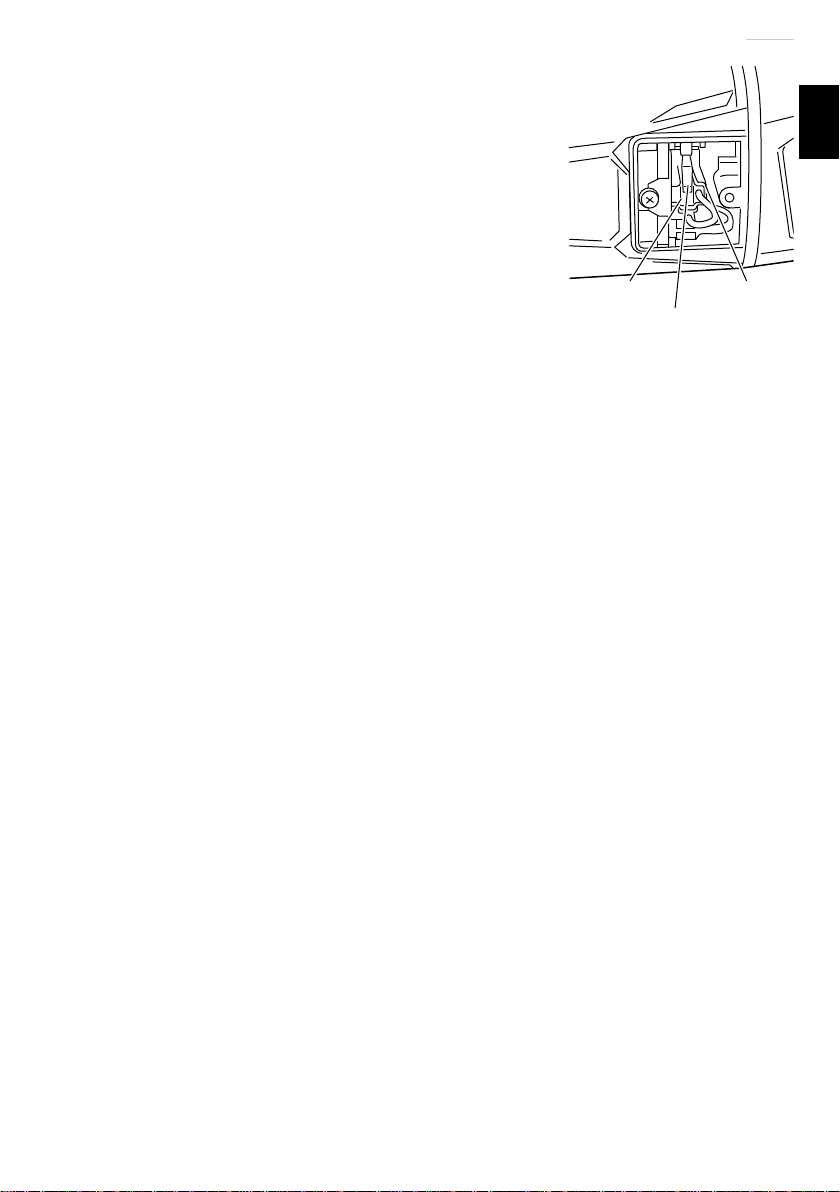

4. 更换炭刷（图 4）
〈拆卸〉
(1) 拧松固定炭刷盖的 D4 自攻螺丝钉，拆下炭
刷盖。
(2) 使用六角形扳手或小螺丝刀拔起固定炭刷的
弹簧边缘。朝刷握的外侧方拆下弹簧边缘。
(3) 从刷握的端部取下炭刷上的引出端，然后从
刷握里拆下炭刷。
〈安装〉
(1) 将炭刷的引线端插入刷握的端部。
(2) 将炭刷装入刷握。
(3) 使用六角形扳手或小螺丝刀使弹簧边缘回到
炭刷头处。
(4) 安上尾部盖并拧紧 D4 自攻螺丝钉。
5. 电动机的维护
电动机绕线是电动工具的“心脏部”。应仔细检查有无损伤，是否被油液或
水沾湿。
注意！
在操作和维修电动工具时，必须遵守贵国制定的安全的有关规则和标准。
● 供电电缆线
本电动工具应采用性能不低于重型氯丁橡胶 245IEC66（YCW）型电缆线更换。
通常炭刷
自动停止炭刷 弹簧
刷握
图 4
000BookG18SE4ChS.indb11000BookG18SE4ChS.indb11 2018/06/2813:41:342018/06/2813:41:34

12
中文
选择附件
根据特定作业选择适合的附件。
有关详细信息请联系 HiKOKI 授权服务中心。
产品编号：937913Z
扳手
产品编号：336844
侧柄
产品编号：332796
砂轮保护装置 (用于切割轮)
产品编号：337226
砂轮保护装置
产品编号：937981
侧柄
产品编号：937907Z
砂轮垫圈
产品编号：316824
砂轮
产品编号：937909Z
砂轮螺帽
产品编号：999061
通常炭刷
产品编号：999089
自动停止炭刷
000BookG18SE4ChS.indb12000BookG18SE4ChS.indb12 2018/06/2813:41:342018/06/2813:41:34

English
13
GENERAL POWER TOOL SAFETY WARNINGS
WARNING
Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may result in electric shock, fire and/or serious
injury.
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your mains-operated (corded) power tool or
battery-operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence
of flammable liquids, gases or dust.
Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet.
CONTENTS
GENERAL POWER TOOL SAFETY WARNINGS ........................................13
SAFETY WARNINGS COMMON FOR GRINDING OR CUTTING-OFF
OPERATIONS ..............................................................................................15
KICKBACK AND RELATED WARNINGS.....................................................17
SAFETY WARNINGS SPECIFIC FOR GRINDING AND DIAMOND
WHEEL CUTTING-OFF OPERATIONS ....................................................... 18
ADDITIONAL SAFETY WARNINGS SPECIFIC FOR DIAMOND
WHEEL CUTTING-OFF OPERATIONS ....................................................... 18
PRECAUTIONS ON USING DISC GRINDER...............................................19
SYMBOL.......................................................................................................19
SPECIFICATIONS........................................................................................ 19
STANDARD ACCESSORIES ....................................................................... 20
APPLICATIONS............................................................................................20
PRIOR TO OPERATION...............................................................................20
PRACTICAL GRINDER APPLICATION........................................................21
ASSEMBLING AND DISASSEMBLING THE DEPRESSED CENTER
WHEEL OR DIAMOND WHEEL ...................................................................22
MAINTENANCE AND INSPECTION ............................................................ 23
SELECTING ACCESSORIES.......................................................................25
000BookG18SE4ChS.indb13000BookG18SE4ChS.indb13 2018/06/2813:41:342018/06/2813:41:34

English
14
Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes,
radiators, ranges and refrigerators.
There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging
the power tool.
Keep cord away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for
outdoor use.
Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual
current device (RCD) protected supply.
Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a
power tool.
Do not use a power tool while you are tired or under the influence of drugs,
alcohol or medication.
A moment of inattention while operating power tools may result in serious personal
injury.
b) Use personal protective equipment. Always wear eye protection.
Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the offposition before
connecting to power source and/or battery pack, picking up or carrying the
tool.
Carrying power tools with your finger on the switch or energising power tools that have
the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on.
A wrench or a key left attached to a rotating part of the power tool may result in
personal injury.
e) Do not overreach. Keep proper footing and balance at all times.
This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair,
clothing and gloves away from moving parts.
Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection
facilities, ensure these are connected and properly used.
Use of dust collection can reduce dust-related hazards.
000BookG18SE4ChS.indb14000BookG18SE4ChS.indb14 2018/06/2813:41:342018/06/2813:41:34

English
15
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application.
The correct power tool will do the job better and safer at the rate for which it was
designed.
b) Do not use the power tool if the switch does not turn it on and off.
Any power tool that cannot be controlled with the switch is dangerous and must be
repaired.
c) Disconnect the plug from the power source and/or the battery pack from the
power tool before making any adjustments, changing accessories, or storing
power tools.
Such preventive safety measures reduce the risk of starting the power tool
accidentally.
d) Store idle power tools out of the reach of children and do not allow persons
unfamiliar with the power tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the power toolʼs
operation.
If damaged, have the power tool repaired before use.
Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean.
Properly maintained cutting tools with sharp cutting edges are less likely to bind and
are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these
instructions, taking into account the working conditions and the work to be
performed.
Use of the power tool for operations different from those intended could result in a
hazardous situation.
5) Service
a) Have your power tool serviced by a qualified repair person using only identical
replacement parts.
This will ensure that the safety of the power tool is maintained.
CAUTION
Keep children and infirm persons away.
When not in use, tools should be stored out of reach of children and infirm persons.
SAFETY WARNINGS COMMON FOR GRINDING OR
CUTTING-OFF OPERATIONS
a) This power tool is intended to function as a grinder or cut-offtool. Read all safety
warnings, instructions, illustrations and specifications provided with this power
tool.
Failure to follow all instructions listed below may result in electric shock, fire and/or serious
injury.
000BookG18SE4ChS.indb15000BookG18SE4ChS.indb15 2018/06/2813:41:342018/06/2813:41:34

English
16
b) Operations such as sanding, polishing, wire brushing or abrasive cutting-offare
not recommended to be performed with this power tool.
Operations for which the power tool was not designed may create a hazard and cause
personal injury.
c) Do not use accessories which are not specifically designed and recommended by
the tool manufacturer.
Just because the accessory can be attached to your power tool, it does not assure safe
operation.
d) The rated speed of the accessory must be at least equal to the maximum speed
marked on the power tool.
Accessories running faster than their rated speed can break and fly apart.
e) The outside diameter and the thickness of your accessory must be within the
capacity rating of your power tool.
Incorrectly sized accessories cannot be adequately guarded or controlled.
f) The arbour size of wheels, flanges, backing pads or any other accessory must
properly fit the spindle of the power tool.
Accessories with arbour holes that do not match the mounting hardware of the power tool
will run out of balance, vibrate excessively and may cause loss of control.
g) Do not use a damaged accessory. Before each use inspect the accessory such
as abrasive wheels for chips and cracks, backing pad for cracks, tear or excess
wear, wire brush for loose or cracked wires. If power tool or accessory is dropped,
inspect for damage or install an undamaged accessory. After inspecting and
installing an accessory, position yourself and bystanders away from the plane of
the rotating accessory and run the power tool at maximum no-load speed for one
minute.
Damaged accessories will normally break apart during this test time.
h) Wear personal protective equipment. Depending on application, use face shield,
safety goggles or safety glasses. As appropriate, wear dust mask, hearing
protectors, gloves and workshop apron capable of stopping small abrasive or
workpiece fragments.
The eye protection must be capable of stopping flying debris generated by various
operations. The dust mask or respirator must be capable of filtrating particles generated by
your operation. Prolonged exposure to high intensity noise may cause hearing loss.
i) Keep bystanders a safe distance away from work area. Anyone entering the work
area must wear personal protective equipment.
Fragments of workpiece or of a broken accessory may fly away and cause injury beyond
immediate area of operation.
j) Hold power tool by insulated gripping surfaces only, when performing an operation
where the cutting accessory may contact hidden wiring or its own cord.
Cutting accessory contacting a”live” wire may make exposed metal parts of the power tool
“live” and shock the operator.
k) Position the cord clear of the spinning accessory.
If you lose control, the cord may be cut or snagged and your hand or arm may be pulled
into the spinning accessory.
000BookG18SE4ChS.indb16000BookG18SE4ChS.indb16 2018/06/2813:41:342018/06/2813:41:34

English
17
l) Never lay the power tool down until the accessory has come to a complete stop.
The spinning accessory may grab the surface and pull the power tool out of your control.
m) Do not run the power tool while carrying it at your side.
Accidental contact with the spinning accessory could snag your clothing, pulling the
accessory into your body.
n) Regularly clean the power tool’s air vents.
The motor’s fan will draw the dust inside the housing and excessive accumulation of
powdered metal may cause electrical hazards.
o) Do not operate the power tool near flammable materials.
Sparks could ignite these materials.
p) Do not use accessories that require liquid coolants.
Using water or other liquid coolants may result in electrocution or shock.
KICKBACK AND RELATED WARNINGS
Kickback is a sudden reaction to a pinched or snagged rotating wheel, backing pad
or any other accessory. Pinching or snagging causes rapid stalling of the rotating
accessory which in turn causes the uncontrolled power tool to be forced in the direction
opposite of the accessory’s rotation at the point of the binding.
For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of
the wheel that is entering into the pinch point can dig into the surface of the material
causing the wheel to climb out or kick out. The wheel may either jump toward or away
from the operator, depending on direction of the wheel’s movement at the point of
pinching. Abrasive wheels may also break under these conditions.
Kickback is the result of power tool misuse and/or incorrect operating procedures or
conditions and can be avoided by taking proper precautions as given below.
a) Maintain a firm grip on the power tool and position your body and arm to allow you
to resist kickback forces. Always use auxiliary handle, if provided, for maximum
control over kickback or torque reaction during start-up.
The operator can control torque reactions or kickback forces, if proper precautions are
taken.
b) Never place your hand near the rotating accessory.
Accessory may kickback over your hand.
c) Do not position your body in the area where power tool will move if kickback
occurs.
Kickback will propel the tool in direction opposite to the wheel’s movement at the point of
snagging.
d) Use special care when working corners, sharp edges etc. Avoid bouncing and
snagging the accessory.
Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and
cause loss of control or kickback.
e) Do not attach a saw chain woodcarving blade or toothed saw blade.
Such blades create frequent kickback and loss of control.
000BookG18SE4ChS.indb17000BookG18SE4ChS.indb17 2018/06/2813:41:342018/06/2813:41:34

English
18
SAFETY WARNINGS SPECIFIC FOR GRINDING AND
DIAMOND WHEEL CUTTING-OFF OPERATIONS
a) Use only wheel types that are recommended for your power tool and the specific
guard designed for the selected wheel.
Wheels for which the power tool was not designed cannot be adequately guarded and are
unsafe.
b) The guard must be securely attached to the power tool and positioned for
maximum safety, so the least amount of wheel is exposed towards the operator.
The guard helps to protect operator from broken wheel fragments and accidental contact
with wheel.
c) Wheels must be used only for recommended applications. For example: do not
grind with the side of cut-offwheel.
Abrasive cut-offwheels are intended for peripheral grinding, side forces applied to these
wheels may cause them to shatter.
d) Always use undamaged wheel flanges that are of correct size and shape for your
selected wheel.
Proper wheel flanges support the wheel thus reducing the possibility of wheel breakage.
Flanges for cut-offwheels may be different from grinding wheel flanges.
e) Do not use worn down wheels from larger power tools.
Wheel intended for larger power tool is not suitable for the higher speed of a smaller tool
and may burst.
ADDITIONAL SAFETY WARNINGS SPECIFIC FOR
DIAMOND WHEEL CUTTING-OFF OPERATIONS
a) Do not “jam” the cut-offwheel or apply excessive pressure. Do not attempt to make
an excessive depth of cut.
Overstressing the wheel increases the loading and susceptibility to twisting or binding of
the wheel in the cut and the possibility of kickback or wheel breakage.
b) Do not position your body in line with and behind the rotating wheel.
When the wheel, at the point of operation, is moving away from your body, the possible
kickback may propel the spinning wheel and the power tool directly at you.
c) When wheel is binding or when interrupting a cut for any reason, switch offthe
power tool and hold the power tool motionless until the wheel comes to a complete
stop. Never attempt to remove the cut-offwheel from the cut while the wheel is in
motion otherwise kickback may occur.
Investigate and take corrective action to eliminate the cause of wheel binding.
d) Do not restart the cutting operation in the workpiece. Let the wheel reach full speed
and carefully reenter the cut.
The wheel may bind, walk up or kickback if the power tool is restarted in the workpiece.
e) Support panels or any oversized workpiece to minimize the risk of wheel pinching
and kickback.
Large workpieces tend to sag under their own weight. Supports must be placed under
the workpiece near the line of cut and near the edge of the workpiece on both sides of the
wheel.
000BookG18SE4ChS.indb18000BookG18SE4ChS.indb18 2018/06/2813:41:342018/06/2813:41:34

English
19
f) Use extra caution when making a “pocket cut” into existing walls or other blind
areas.
The protruding wheel may cut gas or water pipes, electrical wiring or objects that can cause
kickback.
PRECAUTIONS ON USING DISC GRINDER
1. Never operate these power tools without Wheel Guards.
2. Check that speed marked on the wheel is equal to or greater than the rated speed
of the grinder.
Use only depressed center wheels rated at 80 m/s.
3. Ensure that the wheel dimensions are compatible with the grinder and that the
wheel fits the spindle.
4. Abrasive wheels shall be stored and handled with care in accordance with
manufacturer’s instructions.
5. Inspect the depressed center wheel before use, do not use chipped, cracked or
otherwise defective products.
6. Always hold the body handle and side handle of the power tool firmly. Otherwise
the counterforce produced may result in inaccurate and even dangerous operation.
7. Do not use cutting-offwheels for side grinding.
8. Do not use of separate reducing bushings or adapters to adapt large hole abrasive
wheels.
9. The wheel continues to rotate after the tool is switched off.
SYMBOL
WARNING
The following show symbols used for the machine. Be sure that you understand their
meaning before use.
To reduce the risk of injury, user must read instruction manual.
Always wear eye protection.
SPECIFICATIONS
Voltage 220 V
Input 2050 W
No-Load speed 8500 / min.
Wheel
Diamond wheel
Outer dia. 180 mm
Inner dia. 22.23 mm
Peripheral speed 80 m/s
Weight (Only main body) 5.9 kg
000BookG18SE4ChS.indb19000BookG18SE4ChS.indb19 2018/06/2813:41:342018/06/2813:41:34

English
20
STANDARD ACCESSORIES
In addition to the main unit (1 unit), the package contains the accessories listed in the below.
Wrench 1
Side handle 1
Hexagonal bar
wrench 1
Depressed center wheels are not provided as standard accessories.
APPLICATIONS
○ Removal of casting fin and finishing of various types of steel, bronze and aluminum
materials and castings.
○ Grinding of welded sections or sections cut by means of a cutting torch.
○ Grinding of synthetic resins, slate, brick, marble, etc.
○ Cutting of synthetic concrete, stone, brick, marble and similar materials.
PRIOR TO OPERATION
1. Power source
Ensure that the power source to be utilized conforms to the power requirements specified
on the product nameplate.
2. Power switch
Ensure that the power switch is in the OFF position. If the plug is connected to a receptacle
while the power switch is in the ON position, the power tool will start operating immediately,
which could cause a serious accident.
3. Extension cord
When the work area is removed from the power source, use an extension cord of sufficient
thickness and rated capacity. The extension cord should be kept as short as practicable.
4. Fitting and adjusting the wheel guard
The wheel guard is a protective device to prevent injury should the depressed center
wheel shatter during operation. Ensure that the guard is properly fitted and fastened before
commencing grinding operation. By slightly loosening the setting screw, the wheel guard
can be turned and set at any desired angle for maximum operational effectiveness. Ensure
that the setting screw is thoroughly tightened after adjusting the wheel guard.
5. Ensure that the depressed center wheel to be utilized is the correct type and free of cracks
or surface defects. Also ensure that the depressed center wheel is properly mounted and
the wheel nut is securely tightened, Refer to the section on “Depressed Center Wheel
Assembly”.
000BookG18SE4ChS.indb20000BookG18SE4ChS.indb20 2018/06/2813:41:342018/06/2813:41:34
