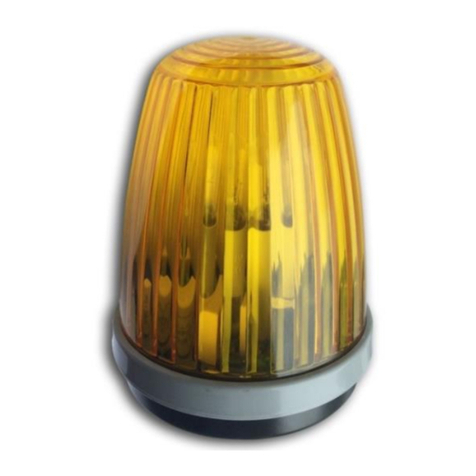

Hiland F7000 User manual

F700X Flash lamp user manual Version: A13
F700X Flash lamp user manual
I. Safety Instruction
1. For security, please read the user manual carefully before initial operation;
2. Please be sure the power is off before connecting, the product is produced without fuse;
3. This system must not endanger life or property during the running failure or its security risks have
been eliminated
II. Technical Specification
1. working voltage：12-265VAC /DC
2. Loading capacity：<3W
3. Flicker Frequency：1HZ
4. Working temperature：-20º～+60℃
5．Size：φ68* 120mm
6. Weight: 63g
III. Connecting Instruction
1. Port CN1 is for connecting the power input, working voltage is 12-265VAC/DC
2. Port CN2 is for connecting the antenna to extend the effective distance of controller
IV. Instructions
4.1 LED will flicker in 1HZ after power on
4.2 JP1 switch
It’s the switch for switching LED in flickering or lighting,
When JP1 at connecting, LED will flicker in 1Hz after power on;
When JP1 at disconnecting, LED will light after power on
Danger: The whole product including the LED is with high voltage when power on (Power off before open the case)
V. Installation
5.1 F7000 with bracket
2．Mark the 2 holes as it in picture
1．Open the package ,take out the
accessories and rotate the
antenna anticlockwise.
3．Drill two 6mm diameter holes and one 10mm
diameter hole. Then put the expansion tube into 6mm
diameter holes, put wire through 10mm diameter hole.

F700X Flash lamp user manual Version: A13
5.2 F7000 should be installed with bracket and perpendicular to the ground
.
The interpretation and ownership of this manual belong to Hiland company. Any change of the product can be without prior
notice
7．Connect the power and antenna
wires with terminals.
4．Put the power wire and antenna
through the hole of bracket, fix the
holder with TA4*30 screw on the wall
5. Put the power wire and antenna
through the hole of holder, fix the holder
on the bracketer with PA4*10mm screws.
8．
Install the case, and make sure the
fastener fixed with the holder. Then
screw up the antenna clockwise.
7.扣上上盖，注意将灯罩托板的卡扣和底
座扣好，然后将天线顺时针方向拧紧。
OK
NG
User must install the lamp with bracket and
make the lamp perpendicular to the ground
Make sure the lamp not install slantwise
to avoid water gets inside the lamp
6. Make sure the Sealing ring installed
correctly into the Groove on the holder.
9．Fit the cover case on the holder
without gap. And twist the antenna
until it’s getting tight
