inVue OneKEY AKD40 User manual

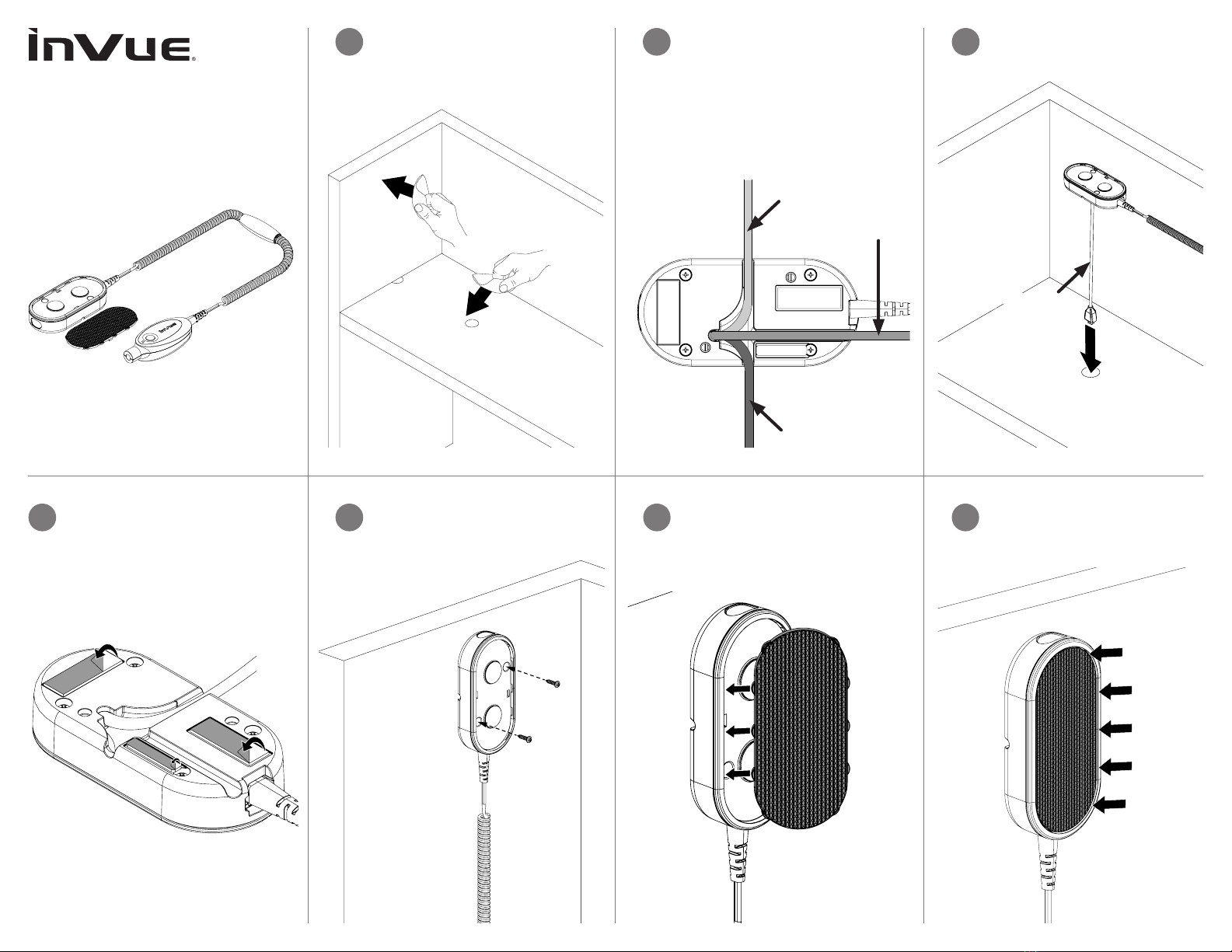

Decide how the power cable will
be routed. There are 4 options; the
power cable can be routed out from
the back of the base (Option A), out
either side of the base (Options B or
C) or the power cable can be routed
straight down through the xture
(Option D shown in the next step).
2a
OneKEY
Counter Detacher
AKD40
Screw Mount (Optional):
Peel the clear lm from the 3
adhesives on the bottom of the base.
3a
1
Use the provided alcohol wipe to
clean the area where the Detacher
will be placed, either on a horizontal
or vertical surface. Allow it to dry
completely.
1
CONTENTS:One pad saturated in 75%
IsopropylAlcohol
DIRECTIONS: Applytopically as
neededto cleanse surface mounting area.
FOREXTERNAL USE ONLY
KEEPOUT OF REACH OF
CHILDREN
KEEPAWAY FROM EYES
ANDFIRE
CONTENTS:One pad saturated in 75%
IsopropylAlcohol
DIRECTIONS: Applytopically as
neededto cleanse surface mounting area.
FOREXTERNAL USE ONLY
KEEPOUT OF REACH OF
CHILDREN
KEEPAWAY FROM EYES
ANDFIRE
If mounting the base over a hole, the
power cable can be routed straight
down through the xture.
2b
Place the base in the desired location
and use the 2 provided screws to
secure the base to the xture.
3b
Or Option A
Option B
Option C
Option D
3c Insert one side of the pad into the
rim of the base. The tabs on the pad
will t into the slots on the inner rim
of the base.
3d Apply pressure around the edge of
the pad to fully secure the pad in the
rim of the base.

Place the base in the desired location
(either on a horizontal or vertical surface)
and apply pressure for at least 10
seconds.
4b
6Plug the power supply into a power
outlet. The LED on the key will be
red.
7To activate the Detacher, hold a charged
and coded OneKEY close to the nose of
the Detacher key. Press the button on
the OneKEY. The LED on the Detacher
key will turn blue when successfully
coded.
5Plug the Detacher’s power cable into
the PS18V power supply.
8Place the Detacher key onto the
base.
4a Adhesive Mount: Peel the clear
lm from the 3 adhesives on the
bottom of the base
4c Insert one side of the pad into the
rim of the base. The tabs on the pad
will t into the slots on the inner rim
of the base.
4d Apply pressure around the edge of
the pad to fully secure the pad in the
rim of the base.

SD0666 Rev3 05/23/19
© 2019 InVue Security Products Inc. All rights reserved.
InVue is a registered trademark of InVue Security Products.
www.invue.com
NA / LATAM // 704.752.6513 •888.55.INVUE
EMEA // +31.23.8900150
APAC // +852.3127.6811
Perfectly connecting people and
tablets in the workplace.™
Plug the new cable into the base and key.
10b
Cable Replacement:
Use a key fob tool to press in the tabs to release the cable from both the base and the key.
10a
9To manually deactivate the Detacher before the 12 hour timeout, hold the button on the base
for 5 seconds. The LED on the key will turn red.
