Install Guide

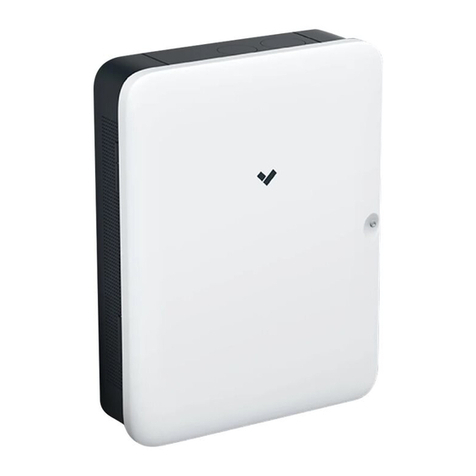

BP41 Alarm Panel

Introduction
What’s in the box
What you’ll need
●A working wired Internet connection over Ethernet
●A smartphone or laptop
●1 Flat head screwdriver
●A #2 Phillips screwdriver or power drill with a #2 Phillips driver bit
●5/16 inch (7.9mm) drill bit for wall anchors
●5/32 inch (4mm) drill bit for pilot holes
●A Cat5 or Cat6 Ethernet cable
Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401
[email protected]
All specifications are subject to change without notice
Copyright © Verkada Inc. All rights reserved.
Connect
After connecting BP41 to Ethernet and an AC outlet,
visit www.verkada.com/start
2
What’s in the box
●1 BP41 Alarm Panel
●1 Wall mount plate
●1 T10 Security torx screwdriver
●4 Mounting screws and wall anchors
●32 1kΩ EOL resistors
●1 AC Power cable

Introduction
Alarm Panel Details
Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401
[email protected]
All specifications are subject to change without notice
Copyright © Verkada Inc. All rights reserved.
LED Behavior
Solid Orange
Alarm panel is on and booting up.
Flashing Orange
Alarm panel is updating firmware.
Flashing Blue
Alarm panel is managing inputs and outputs, but cannot reach the server.
Solid Blue
Alarm panel is managing inputs and outputs.
3

Installation
Mounting 1/2
To remove the wall mount,
unscrew the two security torx
screws from the inside.
Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401
[email protected]
All specifications are subject to change without notice
Copyright © Verkada Inc. All rights reserved.
4
Once the security screws are
fully removed, slide the wall
mount down and away from
the main enclosure.

Installation
Mounting 2/2
Note
Drill four 5/16” Ø holes into the
wall. Insert the drywall anchors
into the holes. Fasten the mount
plate onto the wall by installing
the mounting screws into the
wall anchors.
Drill four 5/32” Ø holes into the
wall. Fasten the mount plate
onto the wall by installing the
mounting screws into the pilot
holes.
Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401
[email protected]
All specifications are subject to change without notice
Copyright © Verkada Inc. All rights reserved.
5
Place the sheet metal enclosure over
and onto the mounting plate tabs. Fasten the two security torx screws to secure the enclosure to the mounting
plate.

Installation
Wiring
Note
Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401
[email protected]
All specifications are subject to change without notice
Copyright © Verkada Inc. All rights reserved.
Current Limiting Resistor
If a powered peripheral has inrush current over 10A, an in-line current limiting power
resistor of 10Ω should be used to ensure peripheral does not exceed max power draw,
which may disrupt normal operation.
Max Line Resistance
The maximum line resistance for input wire runs should be less than 100Ω, exclusive of
end-of-line supervision resistors.
Max Power
For programmable 12V Outputs A and B: 1A max per output. For 12V AUX terminals 2A max
combined.
End-of-Line Resistor (EOLR) Supervision
EOLR supervision of inputs is optional on the BP41, and resistors do not need to be
installed for normal operation. The panel does support single EOLR and double EOLR
supervision modes. The supervision mode for each input can be configured in
Command. 1KΩ resistors may be used for both single and double EOL supervision.
Battery Backup
Battery should be sized to provide at least 4 hours of operation. The BP41 consumes
350mA with no sensors connected.
AC Field Wiring
If AC power is brought in via conduit, cut and splice wire going from AC inlet to PSU.
6

Installation
Wiring Diagram
Note
Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401
[email protected]
All specifications are subject to change without notice
Copyright © Verkada Inc. All rights reserved.
Input
Line resistance should be less than 100Ω exclusive of EOL resistor.
7
12V AUX
Maximum current draw across all 6 12V
AUX outputs must not exceed 2A.
12V Programmable Output
Examples below are illustrative. Any 12V
alarm signaling device can be used with
either output.

Installation
Connect
Note
Connect the BP41 to your
network using either of the
Ethernet ports located at the
bottom of the alarm panel. If
you are adding an additional
BP41 unit to your system, you
can connect BP41s by Ethernet.
Connect the BP41 power supply
into your standard power
outlet (120 VAC).
Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401
[email protected]
All specifications are subject to change without notice
Copyright © Verkada Inc. All rights reserved.
8
