The Progressa™ Bed System
Bed Controls: Quick Reference Guide

©2013 Hill-Rom Services, Inc. ALL RIGHTS RESERVED INTL. Version
For detailed Warning and Caution statements, and operating instructions, refer to the Progressa™ Bed User Manual
The Progressa™ Bed System
Foot Controls Night Light
Removable
Headboard
Removable
Footboard
Intellidrive® Transport
System Controls
Graphic Caregiver Interface
(GCI)® Controls
Caregiver Siderail
Controls
Caregiver Pendant
Brake & Steer
CPR Control
Oxygen
Tank Holder
Brake
1
Brake

©2013 Hill-Rom Services, Inc. ALL RIGHTS RESERVED INTL. Version
For detailed Warning and Caution statements, and operating instructions, refer to the Progressa™ Bed User Manual
Caregiver Siderail Control
FlexAFoot™ Controls
Boost®
Control
Chair Control Bed Flat
Service Indicator
Battery Life
Indicator
Side Exit Assist
Head Up/Down
Controls
Knee Up/Down
Controls
Bed Up/Down
Controls
Lock-Out
Control
Foot Up/Down
Controls
Knee Up/Down
Controls
Bed Up/Down
Controls
Head Up/Down
Controls
Max Inflate
Trendelenburg
Control Reverse
Trendelenburg
Control
Nurse Call
(not in EU)
Low Bed
Indicator
2

©2013 Hill-Rom Services, Inc. ALL RIGHTS RESERVED INTL. Version
For detailed Warning and Caution statements, and operating instructions, refer to the Progressa™ Bed User Manual
Graphical Caregiver nterface (GC )® Controls
Home Screen
Screen Lock
Lowest Bed Position Indicator
(Green indicates the bed is in the lowest position
Yellow indicates the bed is not in the lowest position)
Alarms
Scale
Surface Controls
Pulmonary
Therapies
Help Tab
Head of bed alarm indicator
(Green indicates alarm is active)
Head Angle Status
Bed Exit Status
Surface Status
Rotation Status
Bed Zeroed Status
Trendelenburg
Status
Alarm silent
Percussion & Vibration
3

©2013 Hill-Rom Services, Inc. ALL RIGHTS RESERVED INTL. Version
For detailed Warning and Caution statements, and operating instructions, refer to the Progressa™ Bed User Manual
Caregiver Pendant Controls
The ‘Enable’ control is designed to deter unauthorized
operation of controls on the pendant. It is only
required for the functions connected with the green
line. The indicator will stay on for 60 seconds.
To activate:
•Press and hold the ‘Enable’ control until the
indicator light comes on
•During the 60 second period, you may activate
the bed controls on the pendant without
pressing the ‘Enable’ control again
•If during the 60 second enabled time you want to
turn it off, press the ‘Enable’ control
•The indicator light will turn off when the pendant
controls are no longer enabled
Knee Section
Controls
Low Bed
Indicator
Bed Up/Down
Controls
Chair Control
Bed Flat
Max Inflate Trendelenburg
Control
Reverse
Trendelenburg
Control
Head Section
Controls
Enable
Control
4

©2013 Hill-Rom Services, Inc. ALL RIGHTS RESERVED INTL. Version
For detailed Warning and Caution statements, and operating instructions, refer to the Progressa™ Bed User Manual
Unlocking and Locking the Screen
To activate:
Unlocking Screen
•Slide your finger across screen (left to right),
toward the unlock symbol
•The 5 lights will turn green when slide is
performed properly
Locking Screen
•From any active screen, press the
“lock button” at the bottom left hand side
5

©2013 Hill-Rom Services, Inc. ALL RIGHTS RESERVED INTL. Version
For detailed Warning and Caution statements, and operating instructions, refer to the Progressa™ Bed User Manual
Zero/New Patient
To activate:
•Make sure the patient is not in bed
•Put bed in required position
•Press the ‘Scale’ control on the GCI
•Press ‘Zero’
•Press:
–‘New Patient’
1. Erases Scale History
2. Zeroes the scale
3. Returns surface to Normal mode
4. Turns off RemindMe reminders
–‘Zero’
1. Does not erase Scale History
2. Zeroes to scale
6

©2013 Hill-Rom Services, Inc. ALL RIGHTS RESERVED INTL. Version
For detailed Warning and Caution statements, and operating instructions, refer to the Progressa™ Bed User Manual

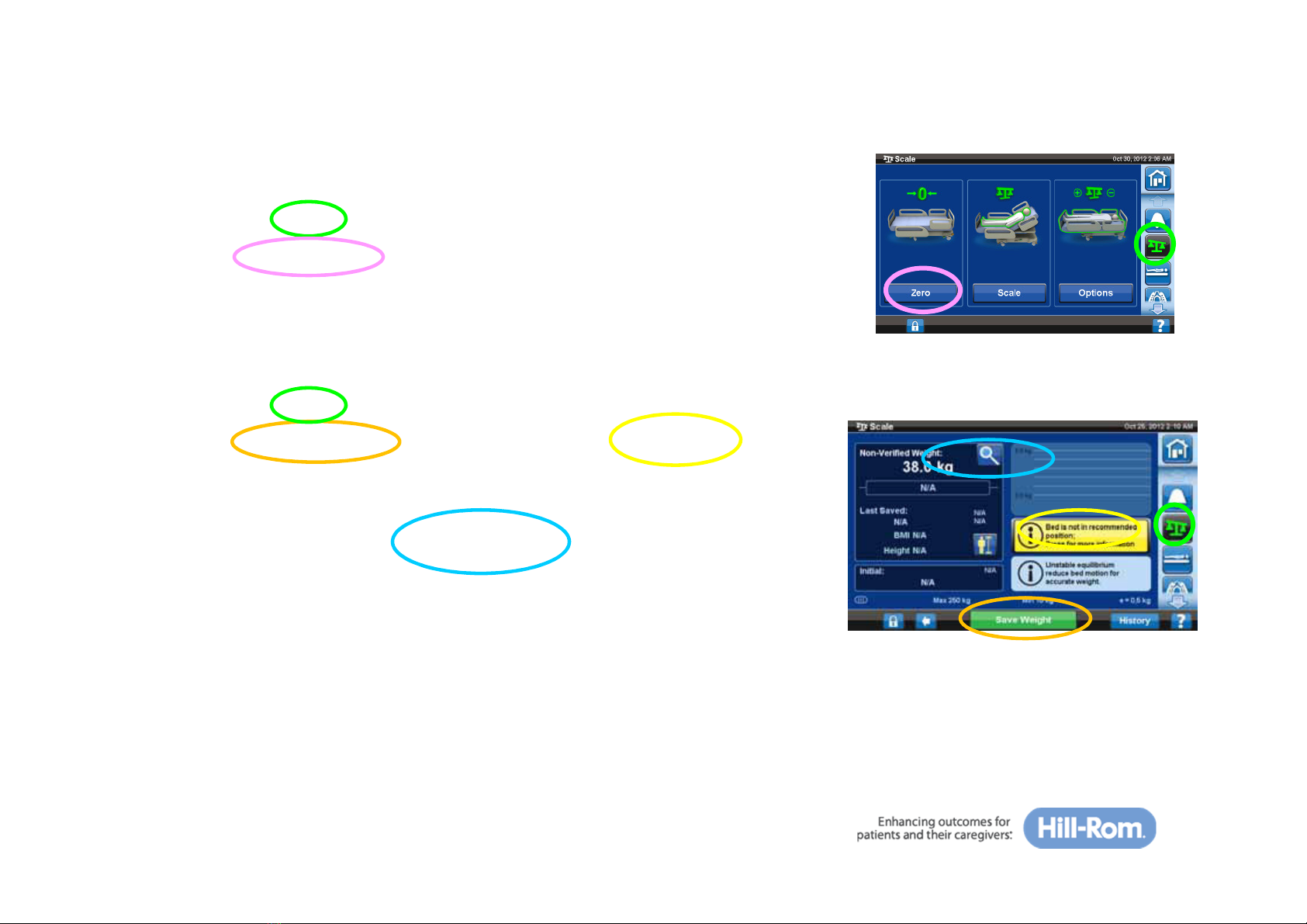

Using the Scale ( O ML)
To zero the scale:
1. Make sure the patient is not in the bed
2. Press the ‘Scale’ tab
3. Press ‘Zero the Bed’ and follow on-screen instructions
To weigh the patient:
1. Make sure the patient is in the center of the bed
2. Press the ‘Scale’ tab
3. Press ‘Weigh Patient’ and follow on-screen instructions
4. You will be prompted to put the bed into the recommend
position
5. Only available on the NAWI Compliant (EN 45501) Scale:
Pressing the magnifier button will change the scale display
increments to 0.1 kg for 5 seconds. Weights cannot be saved
in the Magnification Mode.

©2013 Hill-Rom Services, Inc. ALL RIGHTS RESERVED INTL. Version
For detailed Warning and Caution statements, and operating instructions, refer to the Progressa™ Bed User Manual
Using the Scale ( Non O ML)
To zero the scale:
•Make sure the patient is not in the bed
•Press the ‘Scale’ tab
•Press ‘Zero the Bed’ and follow on-screen instructions
To weigh the patient:
•Make sure the patient is in the center of the bed
•Press the ‘Scale’ tab
•Press ‘Weigh Patient’ and follow on-screen instructions
•You will be prompted to put the bed into the recommended position
‘Green’ screen indicates recommended position is achieved
•Press ‘Continue’
Note: You can weigh the patient if the bed is not in recommended position
•You will be prompted to remove all items hanging on the bed frame
•Once patient is weighed, press ‘Accept’ to move on or ‘Re-weigh’ to
rerdo the weighing process
8

©2013 Hill-Rom Services, Inc. ALL RIGHTS RESERVED INTL. Version
For detailed Warning and Caution statements, and operating instructions, refer to the Progressa™ Bed User Manual

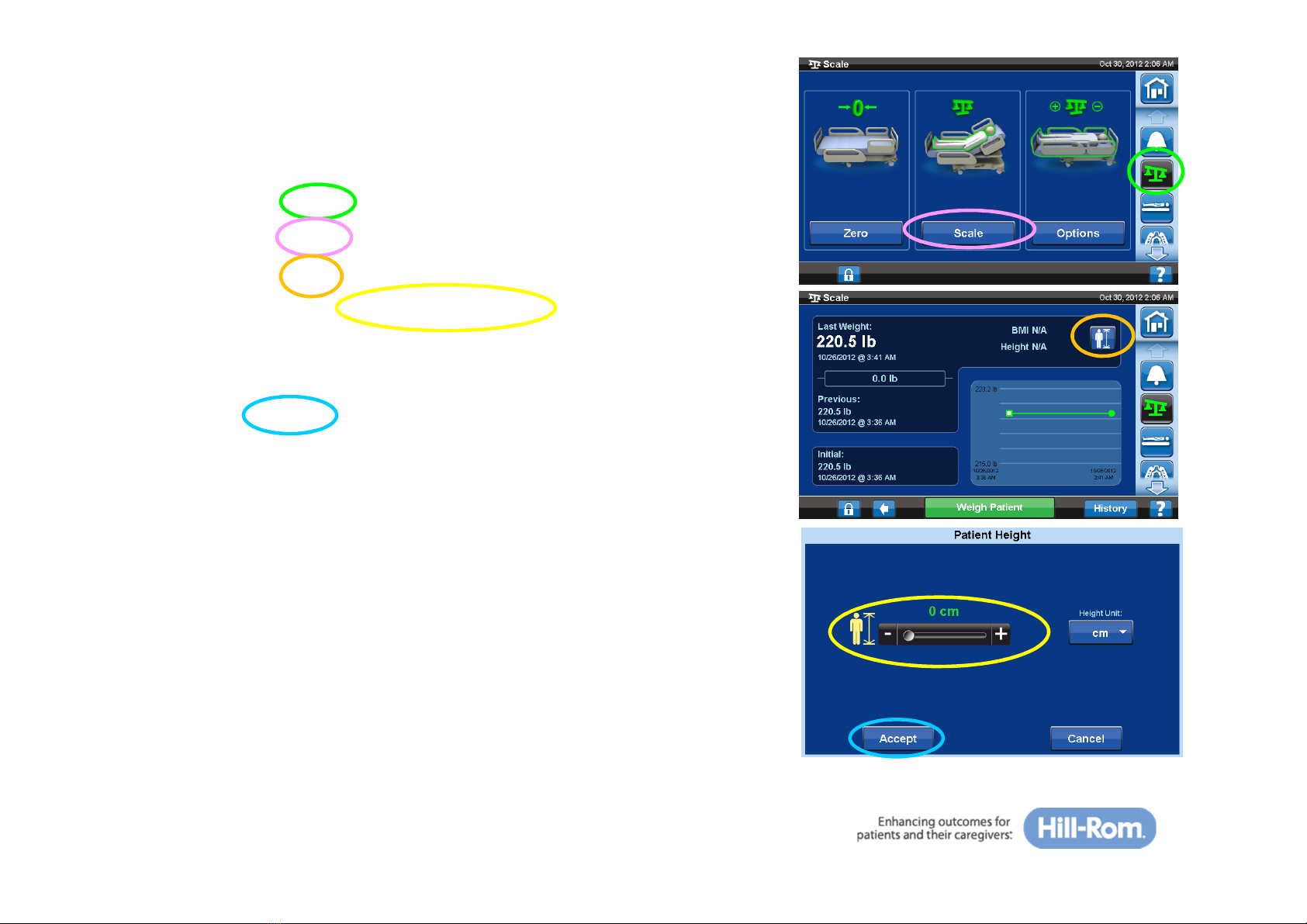

BM Calculator
To activate:
•Press the ‘Scale’ tab on home screen
•Press the ‘Scale’ option
•Press the ‘BM ’ button
•Slide finger on ‘Height Adjustment’ until
patient height is reached
–You can choose between cm and in
•Press ‘Accept’
9

©2013 Hill-Rom Services, Inc. ALL RIGHTS RESERVED INTL. Version
For detailed Warning and Caution statements, and operating instructions, refer to the Progressa™ Bed User Manual

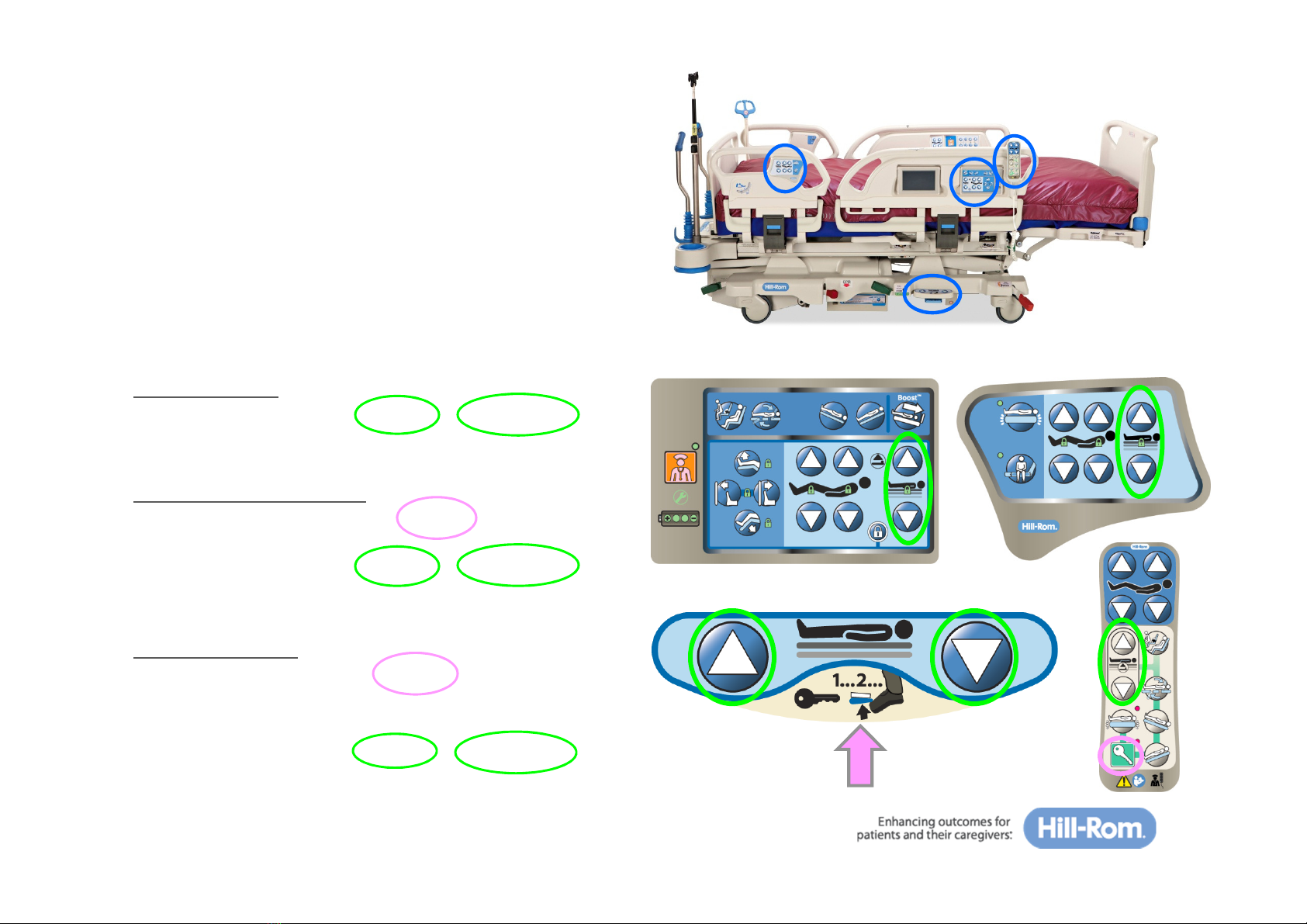

Adjust the height of the bed from low position
for patient exit to high position for examination.
The Bed Up/Down controls are located on the:
To activate:
On the Siderails:
•Press and hold the ‘Bed Up’ or ‘Bed Down’
button to desired position
On the Caregiver Pendant:
•First press and hold the ‘Enable’ button to
activate controls
•Press and hold the ‘Bed Up’ or ‘Bed Down’
button to desired position
On the Foot Pedal:
•First lift and hold the ‘Enable’ button
underneath the pedal to activate controls until
you hear a beep (~ 3 seconds)
•Press and hold the ‘Bed Up’ or ‘Bed Down’
button to desired position
Bed Up/Down
•Head-end siderails
•Intermediate siderails
•Foot controls
•Caregiver pendant
10

©2013 Hill-Rom Services, Inc. ALL RIGHTS RESERVED INTL. Version
For detailed Warning and Caution statements, and operating instructions, refer to the Progressa™ Bed User Manual
FlexAfoot™ Mechanism
Allows the caregiver to customize the overall length of
the bed and sleep surface to the patient.
The bed and surface can be retracted up to 10” (25 cm).
To activate:
•Press and hold the ‘Foot Extend’ control to
extend the foot section
•Press and hold the ‘Foot Retract’ control to
retract the foot section
11

©2013 Hill-Rom Services, Inc. ALL RIGHTS RESERVED INTL. Version
For detailed Warning and Caution statements, and operating instructions, refer to the Progressa™ Bed User Manual

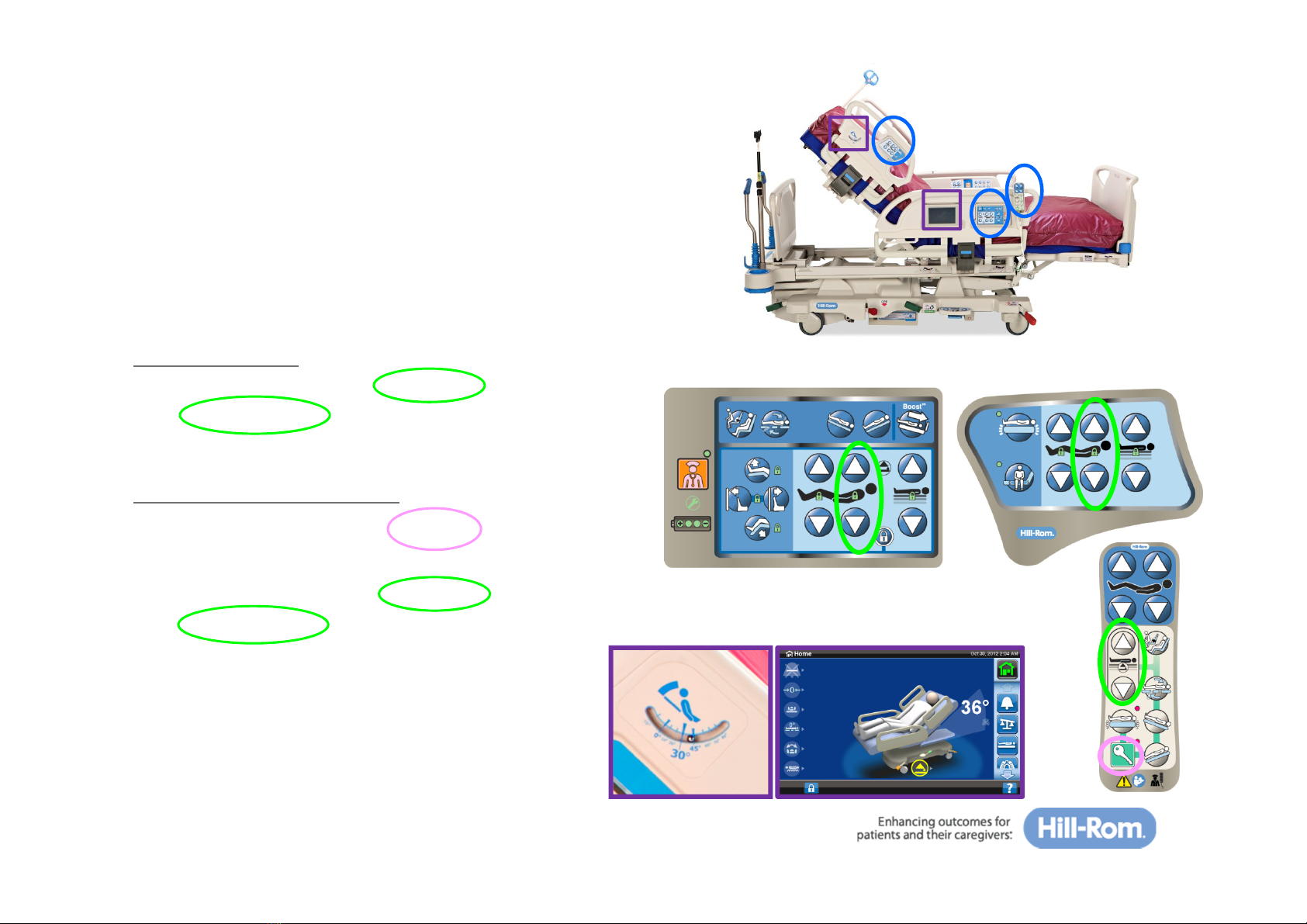

Head Up/Down
Raise or lower the head section of the bed
by using the Head Up/Down controls.
Use the Line-of-Site® Angle Indicators or
GCI home screen to see the specific angle.
To activate:
On the Siderails:
•Press and hold the ‘Head Up’ or
‘Head Down’ button to desired position
On the Caregiver Pendant:
•First press and hold ‘Enable’ button to
activate the controls
•Press and hold the ‘Head Up’ or the
‘Head Down’ button to desired position Line-of-Site® Angle Indicators
Head Up/Down Controls
12

©2013 Hill-Rom Services, Inc. ALL RIGHTS RESERVED INTL. Version
For detailed Warning and Caution statements, and operating instructions, refer to the Progressa™ Bed User Manual

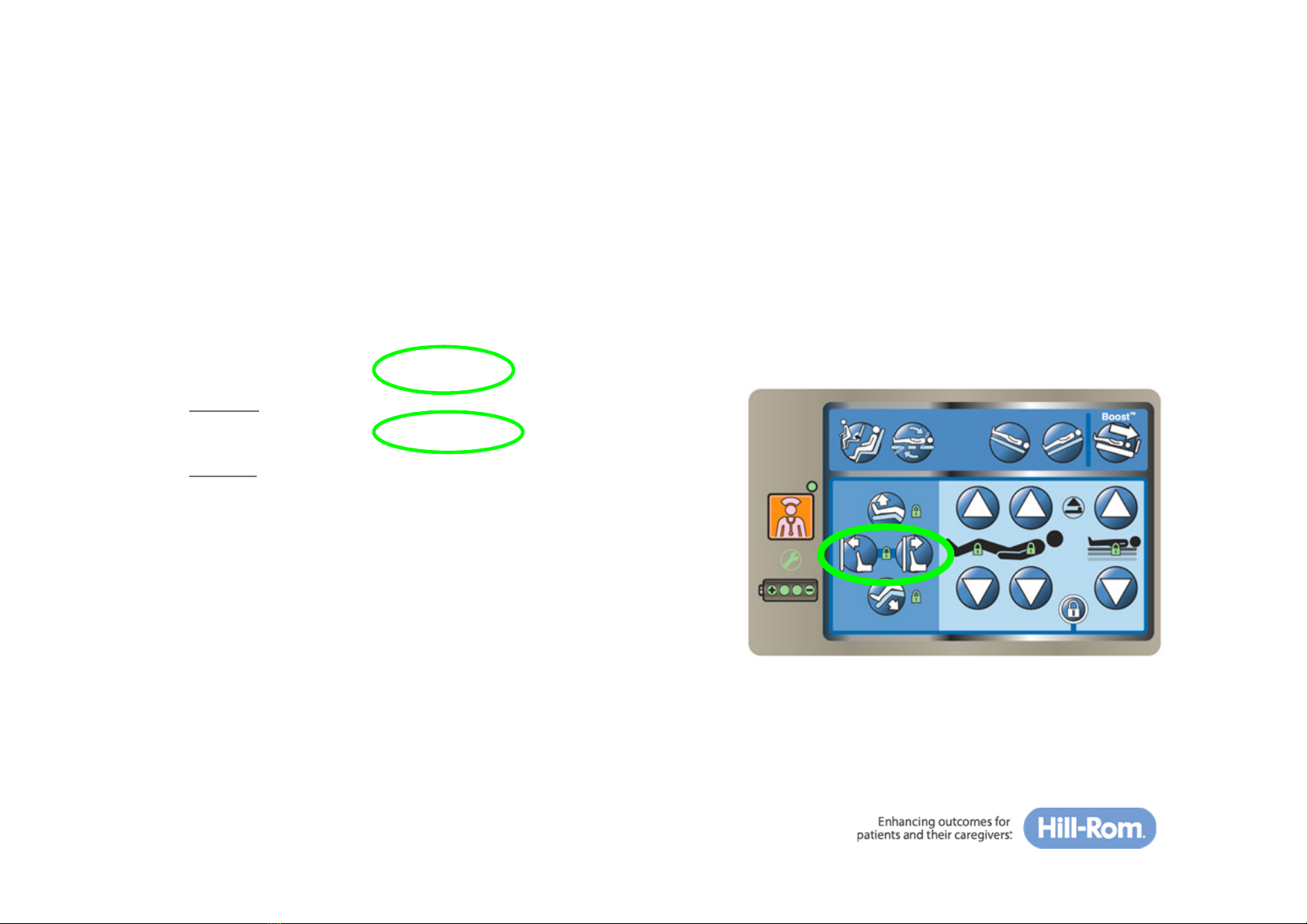

Knee Up/Down
Raise and lower the knee section by using the
Knee Up/Down controls.
To activate:
•Press and hold the ‘Knee Up/Down’
controls to reach desired height
Tip:
The automatic contour feature
does not work when only using
the Knee Up/Down controls.
13

©2013 Hill-Rom Services, Inc. ALL RIGHTS RESERVED INTL. Version
For detailed Warning and Caution statements, and operating instructions, refer to the Progressa™ Bed User Manual
Foot Up/Down
Raise and lower the foot section by using the
Foot Up/Down controls.
To activate:
•Press and hold the ‘Foot Up/Down’
controls to reach desired height
14

©2013 Hill-Rom Services, Inc. ALL RIGHTS RESERVED INTL. Version
For detailed Warning and Caution statements, and operating instructions, refer to the Progressa™ Bed User Manual

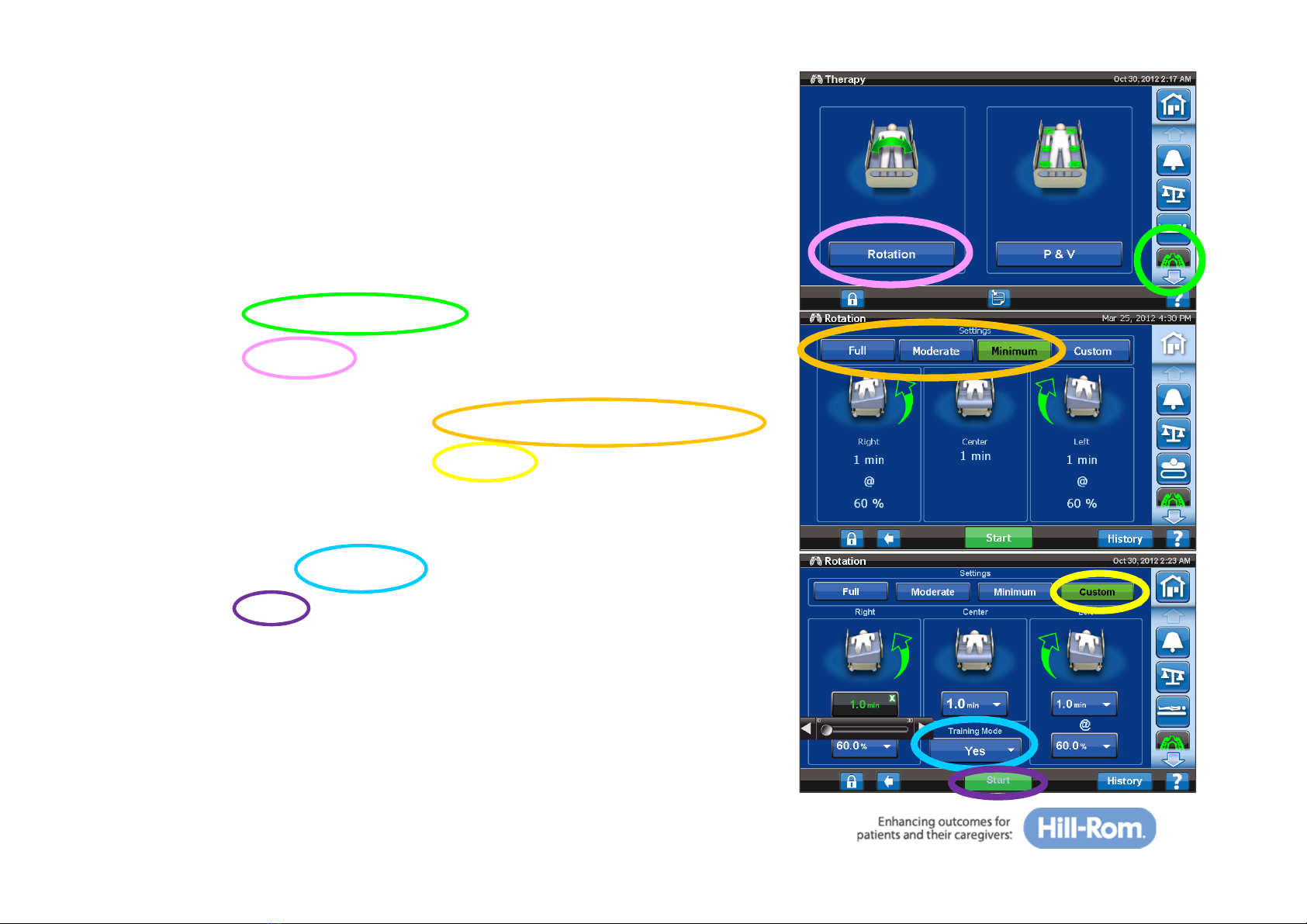

Continuous Lateral Rotation Therapy
Rotation provides side-to-side Continuous Lateral Rotation
Therapy (CLRT) to aid in the prevention and treatment of
pulmonary complications related to immobility.
To activate:
•Select ‘Pulmonary Therapy’ control on the GCI
•Select ‘Rotation’
•For pre-set options, select ‘Full’ ‘Moderate’ or ‘Minimum’
•For custom option, select ‘Custom’
— Set rotation direction, rotation percentage and duration
•Select either ‘Yes’ or ‘No’ on rotation training mode
•Select ‘Start’
15

©2013 Hill-Rom Services, Inc. ALL RIGHTS RESERVED INTL. Version
For detailed Warning and Caution statements, and operating instructions, refer to the Progressa™ Bed User Manual
Percussion & Vibration
Percussion & Vibration helps loosen secretions in the lungs and
helps move lung secretions for easier removal.
To activate:
•Select the ‘Pulmonary Therapy’ control on the GCI
•Select ‘P & V’
•For pre-set options, select ‘High’ ‘Medium’ or ‘Low’
•For custom option, select ‘Custom’
•Set Percussion intensity
•Set Vibration intensity, frequency and duration
•Select ‘Start’
16

©2013 Hill-Rom Services, Inc. ALL RIGHTS RESERVED INTL. Version
For detailed Warning and Caution statements, and operating instructions, refer to the Progressa™ Bed User Manual
Deactivate Therapies
To deactivate:
•Select the ‘Pulmonary Therapy’ control on GCI
•Press the ‘Stop Therapies’ button and follow the
instructions on the GCI screen
NOTE:
If P&V and CLRT are both active and P&V is stopped,
CLRT will also automatically stop. You will need to
re-activate CLRT to resume rotation therapy.
17

©2013 Hill-Rom Services, Inc. ALL RIGHTS RESERVED INTL. Version
For detailed Warning and Caution statements, and operating instructions, refer to the Progressa™ Bed User Manual

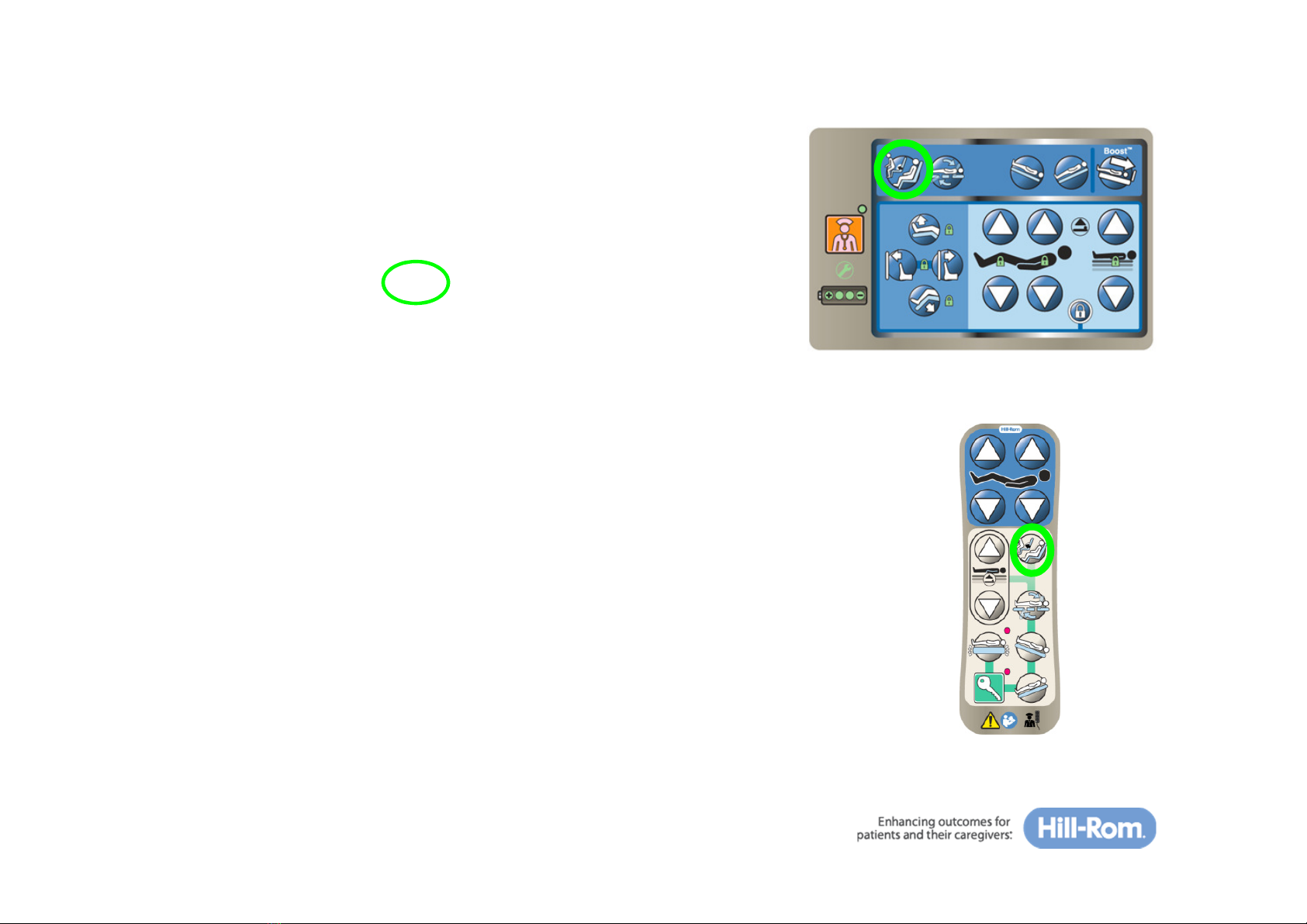

Reverse Trendelenburg-Tilt Table
To activate:
•Prior to activation of the Tilt Table position
always use Flexafoot™ to adapt to the
individual patient
•Press and hold the ‘Reverse Trendelenburg’
button on the siderail or caregiver pendant*
Allows the bed to achieve up to 18 degrees of
Reverse Trendelenburg.
*Optional control
18

©2013 Hill-Rom Services, Inc. ALL RIGHTS RESERVED INTL. Version
For detailed Warning and Caution statements, and operating instructions, refer to the Progressa™ Bed User Manual
FullChair® Position
To activate:
•Set the brake
•Press and hold the ‘Chair’ button on the siderail or
caregiver pendant*to go into the FullChair® position
•The patient deck will slightly recline backwards as the
seat and lumbar sections on the mattress slightly deflate
•If the footboard is installed, when the articulation stops
and a tone sounds, the bed has reached the
FullChair® position
*Optional control
NOTE: If the footboard is not installed,
the bed will proceed into Chair Egress.
19
