ORIGINAL OPERATING INSTRUCTIONS
DD 120 diamond coring system
It is essential that the operating instructions
are read before the machine is operated for
the first time.
Always keep these operating instructions to-
gether with the machine.
Ensure that the operating instructions are
with the machine when it is given to other
persons.
Contents Page
1 General information 20
2Description 22
3 Accessories 24
4 Technical data 25
5 Safety instructions 26
6Beforeuse 28
7 Operation 31
8 Care and maintenance 34
9 Troubleshooting 35
10 Disposal 37
11 Manufacturer’s warranty 37
12 EC declaration of conformity (original) 38

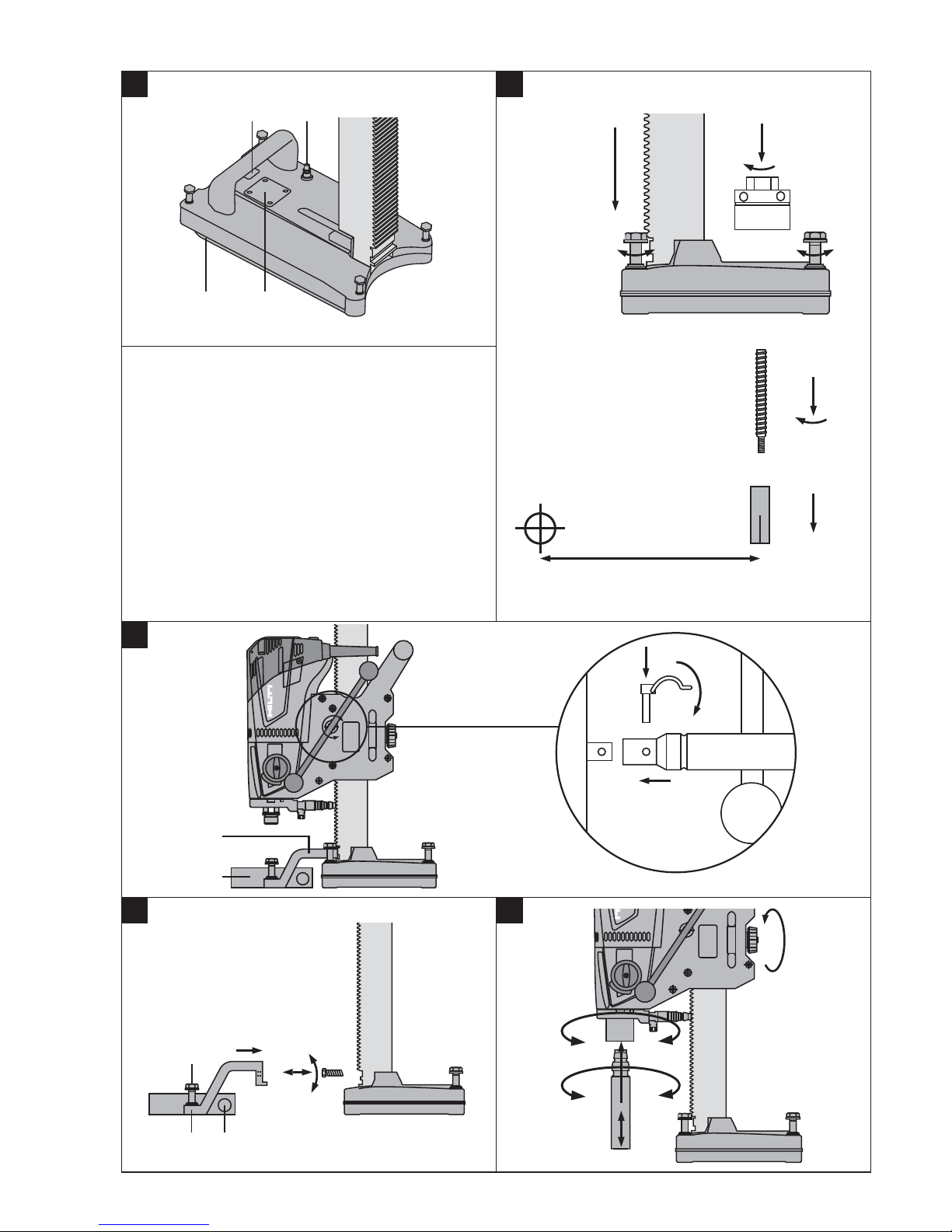

1These numbers refer to the corresponding illustra-
tions. The illustrations can be found on the fold-out cover
pages. Keep these pages open while studying the oper-
ating instructions.
In these operating instructions, the designation “the ma-
chine” always refers to the DD 120 diamond core drilling
system.
Operating controls, parts and indicators (drive unit
and drill stand) 1
DD 120 diamond core drilling system
@Service indicator
;Drilling performance indicator
=On/off switch
%Gear selector
&Gearing section
(Motor
)Carbon brush cover
+Water swivel
§Supply cord with PRCD
/Theft protection indicator (option)
:Carriage
·Carriage brake
$Carriage play adjustment screws
£Rail
|Chuck
¡Anchor base plate
QHandwheel
WEnd stop
ELeveling screws
Alternative: Combination base plate (anchor or va-
cuum) 2
RPressure gauge
TVacuum release valve
ZVacuum seal
UVacuum hose connector
Accessories 3
Fastening accessories
IClamping spindle
OClamping spindle nut
PAnchor
Water collection system 4
ÜWater collector bracket
[Water collector
1 General information
1.1 Safety notices and their meaning
DANGER
Draws attention to imminent danger that will lead to
seriousbodilyinjuryorfatality.
WARNING
Draws attention to a potentially dangerous situation that
could lead to serious personal injury or fatality.
CAUTION
Draws attention to a potentially dangerous situation that
could lead to slight personal injury or damage to the
equipment or other property.
NOTE
Draws attention to an instruction or other useful informa-
tion.
en
20
Printed: 22.11.2013 | Doc-Nr: PUB / 5127345 / 000 / 02

VACUUM
VACUUM
1.2 Explanation of the pictograms and other
information
Prohibition signs
Transport by
crane is not
permissible.
Warning signs
General
warning
Warning:
electricity
Warning: hot
surface
Obligation signs
Wear eye
protection.
Wear a hard
hat.
Wear ear
protection.
Wear
protective
gloves.
Wear safety
shoes.
Symbols
Read the
operating
instructions
before use.
Revolutions
per minute
Lock symbol Equipped
with theft
protection
system
Return waste
material for
recycling.

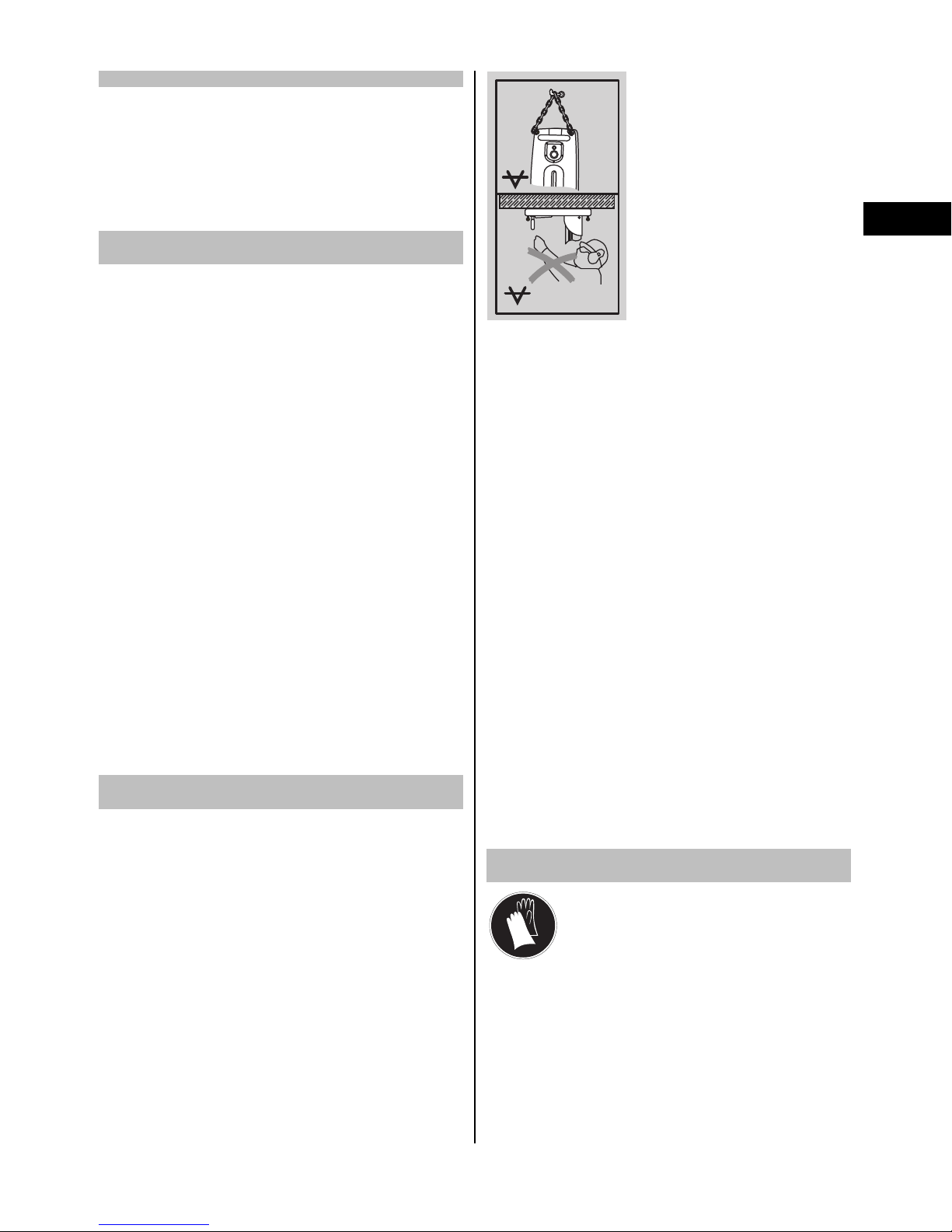

On the combination base plate
Upper: An additional means of securing the drill stand
must be employed when the machine is used for hori-
zontal drilling with the vacuum securing method.
Lower: Use of the vacuum securing method for overhead
drilling with the drill stand is not permissible.
On the machine
Use of the water collection system in conjunction with
a wet-type industrial vacuum cleaner is a mandatory
requirement for working on ceilings.
en
21
Printed: 22.11.2013 | Doc-Nr: PUB / 5127345 / 000 / 02

PRCD
GFCI
208188 B/2.2004
On the machine
Operate the system only with a properly functioning
PRCD.
Location of identification data on the machine
The type designation and serial number can be found on
thetypeidentificationplateonthemachine.Makeanote
of this data in your operating instructions and always refer
to it when making an enquiry to your Hilti representative
or service department.
Type:
Serial no.:
2 Description
2.1 Use of the product as directed
The DD 120 is an electrically-powered, rig-type diamond core drilling machine for drilling through-holes and blind
holes in (reinforced) mineral materials using diamond core bits and the wet drilling technique (hand-held use is not
permissible).
The machine must be adequately secured to the working surface with an anchor or vacuum base plate before use.
To avoid injury, use only genuine Hilti core bits and DD 120 accessories.
Observe the safety rules and operating instructions for the accessories used.
Observe the information printed in the operating instructions concerning operation, care and maintenance.
Nationally applicable industrial safety regulations must be observed.
The machine, accessories and cutting tools may present hazards when handled incorrectly by untrained personnel or
when used not as directed.
Use of the water collection system in conjunction with a wet-type industrial vacuum cleaner is a mandatory requirement
for working overhead.
An additional means of securing the drill stand must be employed when the machine is secured with the vacuum base
plate (accessory) for horizontal drilling.
Do not strike the base plate with a hammer or other heavy object when making adjustments to it.
Tampering with or modification of the machine, drill stand and accessoriesisnotpermissible.
en
22
Printed: 22.11.2013 | Doc-Nr: PUB / 5127345 / 000 / 02

WARNING
The machine may be operated only when connected to an adequately-rated electric supply equipped with an
earth (ground) conductor.
WARNING
Drilling into materials hazardous to the health (e.g. asbestos) is not permissible.
DANGER
Use only the genuine Hilti accessories or ancillary equipment listed in the operating instructions. Use of
accessories or ancillary equipment not listed in the operating instructions may present a risk of personal injury.
2.2 Use of the system with various items of equipment
Equipment Core bit diameters Drilling direction
With water collection system and wet-type in-
dustrial vacuum cleaner
16…132 mm (162*) All directions
Without water collection system and wet-type
industrial vacuum cleaner
16…132 mm (162*) Not upwards
With water collection system 16…132 mm (162*) Not upwards
* The machine’s drilling diameter capacity can be found on the rating plate.
2.3 Gears and corresponding core bit diameters
Gear Core bit diameters
(mm)
Core bit diameters
(inches)
No-load speed
(r.p.m.)
1 57…132 2¹⁄₄…5¹⁄₄ 650
2 16…52 ⁵⁄₈…2 1,380
* The machine’s drilling diameter capacity can be found on the rating plate.
NOTE
Second gear may be used to achieve faster progress when drilling holes up to 82 mm (3¹/₂") in diameter in lightly
reinforced concrete.
2.4 Status indicator 1
LED indicators State Description / information
Theft protection indicator (10) Blinking yellow light The machine's theft protection system
is active and must be unlocked with the
TPS key.
Service indicator (1) Red light and the machine
starts
The carbon brushes are badly worn.
After the lamp lights for the first time,
the machine may continue to be used
for several hours before the automatic
cut-out is activated. Have the carbon
brushes changed in good time so that
the machine is always ready for use.
Red light and the machine
doesn’t start
The carbon brushes must be changed.
Blinking red light Motor speed error, see section
“Troubleshooting”.
Drilling performance display (2) Orange light Contact pressure too low
Green light Optimum contact pressure
Red light Contact pressure too high
Blinking red light The machine has temporarily
overheated, see section
“Troubleshooting”.
en
23
Printed: 22.11.2013 | Doc-Nr: PUB / 5127345 / 000 / 02

2.5 TPS theft protection system (optional)
The machine may be optionally equipped with the TPS theft protection system. If equipped with this feature, the
machine can be unlocked and made ready for operation only through use of the corresponding TPS key.
2.6 The items supplied as standard include:
1 Machine including hand wheel
1 Operating instructions
1 Hilti toolbox or cardboard box
2.7 Using extension cords
Use only extension cords of a type approved for the application and with conductors of adequate gauge.
Recommended minimum conductor gauge (cross section) and max. cable lengths
Conductor cross section 1.5 mm² 2 mm² 2.5 mm² 3.5 mm²
Mains voltage 100V Not recommen-
ded
Not recommen-
ded
Not recommen-
ded
40 m
Mains voltage 110-120 V Not recommen-
ded
Not recommen-
ded
30 m
Mains voltage 220-240 V 30 m 50 m
Do not use extension cords with 1.25 mm² conductors. Use only extension cords equipped with an earth conductor.
2.8 Using a generator or transformer
This machine may be powered by a generator or transformer when the following conditions are fulfilled: The unit must
provideapoweroutputinwattsofatleasttwicethevalueprintedonthetype identification plate on the machine. The
operating voltage must remain within +5% and -15% of the rated voltage at all times, frequency must be in the 50 – 60
Hz range and never above 65 Hz, and the unit must be equipped with automatic voltage regulation and starting boost.
NOTE
Switching other machines or appliances on and off can cause undervoltage and/or overvoltage peaks which could
damage the machine. Never operate other machines from the generator/transformer at the same time.
3 Accessories
Designation Item number, description
TPS theft protection system with company card, com-
pany remote and TPS‑K key
Option
Water collector bracket 331622
Flow indicator (BI+) 305939
Handwheel (lever) 332023
Handwheel (star handle) 332033
Clamping nut 333477
Clamping spindle 333629
Set of seals for combination base plate 333846
Leveling screw 351954
Core bit extension (BI+) 220929
Drill stand (anchor base plate, 600 mm rail, only as
replacement part)
334206
Drill stand (anchor base plate, 720 mm rail) 352164
Drill stand (anchor base plate, 830 mm rail, only as
replacement part)
277337
en
24
Printed: 22.11.2013 | Doc-Nr: PUB / 5127345 / 000 / 02

Designation Item number, description
Drill stand (anchor base plate, 720 mm rail with tilt
mechanism)
335883
Drill stand (combination base plate, 830 mm rail with
tilt mechanism)
335896
Vacuum base plate 232991
4 Technical data
Right of technical changes reserved.
NOTE
The machine is available in various voltage ratings. Please refer to the machine’s type identification plate for details of
its rated voltage and rated input power.
Rated
voltage
[V]
100 110 110 120 220 230 240
Rated
power [W]
1,450 1,600 1,570 1,600 1,600 1,600
Rated cur-
rent [A]
15 15.4 15 14.1 7.7 7.4 7.1
Mains fre-
quency
[Hz]
50…60 50 60 60 50/60 50…60 50
Rated
speed
under no
load, 1st
gear [/min]
650 650 650 650 650 650 650
Rated
speed
under no
load, 2nd
gear [/min]
1,380 1,380 1,380 1,380 1,380 1,380 1,380
Other information about the machine
Max. permissible water supply pressure 6 bar
Dimensions of drill stand with short rail (L x W x H) 330 mm x 147 mm x 600 mm
Dimensions of drill stand with medium rail (L x W x H) 330 mm x 147 mm x 720 mm
Dimensions of drill stand with long rail (L x W x H) 330 mm x 147 mm x 830 mm
Weight (600 mm rail) 9.8 kg
Protection class Protection class I (earthed)
NOTE
The vibration emission level given in this information sheet has been measured in accordance with a standardised test
giveninEN61029andmaybeusedtocompareonetoolwithanother.Itmaybeused for a preliminary assessment
of exposure. The declared vibration emission level represents the main applications of the tool. However if the tool is
used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This
may significantly increase the exposure level over the total working period. An estimation of the level of exposure to
vibration should also take into account the times when the tool is switched off or when it is running but not actually
doing the job. This may significantly reduce the exposure level over the total working period. Identify additional safety
measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep
the hands warm, organisation of work patterns.
en
25
Printed: 22.11.2013 | Doc-Nr: PUB / 5127345 / 000 / 02
