Hilti DST 10-CA User manual

DST 10-CA English

DST 10-CA
Original operating instructions

*2328079* 2328079 English 1
Original operating instructions
Contents
1 Information about the documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.1 Aboutthisdocumentation ...................................... 3
1.2 Explanationofsymbolsused .................................... 3
1.2.1 Warnings ............................................. 3
1.2.2 Symbols in the operating instructions . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.2.3 Symbolsinillustrations ................................... 3
1.3 Product-dependentsymbols .................................... 4
1.3.1 Generalsymbols ........................................ 4
1.3.2 Obligationsymbols ...................................... 4
1.3.3 Prohibitionsymbols...................................... 4
1.3.4 Hazardsymbols ........................................ 4
1.4 Stickers .................................................. 5
1.5 Productinformation .......................................... 5
1.6 Declarationofconformity ...................................... 5
1.7 RadioEquipmentDirective ..................................... 5
2 Safety ................................................... 6
2.1 General power tool safety warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.2 Additional safety instructions for wall saws . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.3 Safety measures at the danger areas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.4 Safetyduringoperation....................................... 10
2.5 Safetyduringtransport ....................................... 11
3 Description .............................................. 12
3.1 Productoverview ........................................... 12
3.2 Intendeduse .............................................. 13
3.3 Possiblemisuse............................................ 13
3.4 ItemssuppliedDST10-CA .................................... 13
3.5 Accessories............................................... 14
4 Technicaldata ............................................ 15
4.1 Sawhead ................................................ 15
4.2 Sawblade................................................ 16
4.3 Transporttrolley............................................ 16
4.4 Noise information in accordance with EN 15027 . . . . . . . . . . . . . . . . . . . . . 16
5 Planning ................................................ 16
5.1 Cuttingsequence........................................... 16
5.2 Overcutoruncutdistances .................................... 17
5.3 Distance between rail supports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
5.4 Position of holes drilled for fastening the rail supports . . . . . . . . . . . . . . . . . 19

2 English 2328079 *2328079*
5.5 Powersource ............................................. 20
5.6 Useofextensioncables ...................................... 20
5.7 Coolingwatersupply ........................................ 21
6 Assemblingthesawsystem .................................. 21
6.1 Installing the anchors for the track supports . . . . . . . . . . . . . . . . . . . . . . . . 21
6.2 Fasteningtherailsupports .................................... 22
6.3 Mounting the rail on the rail supports for normal cutting . . . . . . . . . . . . . . . . 22
6.4 Mounting track on track supports for bevel cutting and adjusting cutting
angle ................................................... 23
6.5 Mounting the rail on the rail supports for cutting on stairs . . . . . . . . . . . . . . . 25
6.6 Installing the rail and flush-cutting saw head . . . . . . . . . . . . . . . . . . . . . . . . 26
6.7 Extendingtracks ........................................... 26
7 Preparing the saw system for use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
7.1 Mountingthesawhead ...................................... 27
7.2 Connecting the saw to the electric supply and water supply . . . . . . . . . . . . . 28
7.3 Adjustingthebladeguard ..................................... 29
7.4 Installing inner flanges and saw blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
7.4.1 Installing inner flange (normal cut) . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
7.4.2 Installing saw blade (normal cut) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
7.4.3 Installing inner flange (flush cutting) . . . . . . . . . . . . . . . . . . . . . . . . . . 32
7.4.4 Installing saw blade (flush-cut) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
7.5 Fittingthebladeguard ....................................... 35
8 Workingwiththesaw ....................................... 36
8.1 Checks before beginning sawing work . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
8.2 Guidelinesandguidevalues ................................... 36
8.3 Dry-cuttingapplication ....................................... 37
8.3.1 Installing inner flange and saw blade (dry cutting) . . . . . . . . . . . . . . . . 37
8.3.2 Installingwaterbypass .................................. 38
8.3.3 Installing blade guard and dust extractor . . . . . . . . . . . . . . . . . . . . . . 38
9 Dismantlingthesawsystem .................................. 38
9.1 Removing saw blade (normal cutting) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
9.2 Removing inner flange (normal cutting, dry cutting) . . . . . . . . . . . . . . . . . . . 39
9.3 Removing saw blade and inner flange (flush cutting) . . . . . . . . . . . . . . . . . . . 39
9.4 Dismantlingthesawsystem ................................... 39
9.5 Blowing out the cooling circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
10 Careandmaintenance ...................................... 40
10.1Adjustingtheguiderollers ..................................... 41
10.2Inspection ................................................ 41
10.3Maintenance .............................................. 42
11 Transportandstorage ...................................... 43
12 Troubleshooting ........................................... 44

*2328079* 2328079 English 3
13 China RoHS (Restriction of Hazardous Substances) . . . . . . . . . . . . . . . . 45
14 Disposal................................................. 45
15 Manufacturer’swarranty .................................... 46
1 Information about the documentation
1.1 About this documentation
• Read this documentation before initial operation or use. This is a prerequisite for safe,
trouble-free handling and use of the product.
• Observe the safety instructions and warnings in this documentation and on the
product.
• Always keep the operating instructions with the product and make sure that the
operating instructions are with the product when it is given to other persons.
1.2 Explanation of symbols used
1.2.1 Warnings
Warnings alert persons to hazards that occur when handling or using the product. The
following signal words are used:
DANGER
DANGER !
▶Draws attention to imminent danger that will lead to serious personal injury or fatality.
WARNING
WARNING !
▶Draws attention to a potential threat of danger that can lead to serious injury or fatality.
CAUTION
CAUTION !
▶Draws attention to a potentially dangerous situation that could lead to personal injury
or damage to the equipment or other property.
1.2.2 Symbols in the operating instructions
The following symbols are used in these operating instructions:
Comply with the operating instructions
Instructions for use and other useful information
Dealing with recyclable materials
Do not dispose of electric equipment and batteries as household waste
1.2.3 Symbols in illustrations
The following symbols are used in illustrations:
These numbers refer to the illustrations at the beginning of these operating
instructions.

4 English 2328079 *2328079*
The numbering reflects the sequence of operations shown in the illustrations
and may deviate from the steps described in the text.
Item reference numbers are used in the overview illustration and refer to the
numbers used in the key in the product overview section.
These characters are intended to specifically draw your attention to certain
points when handling the product.

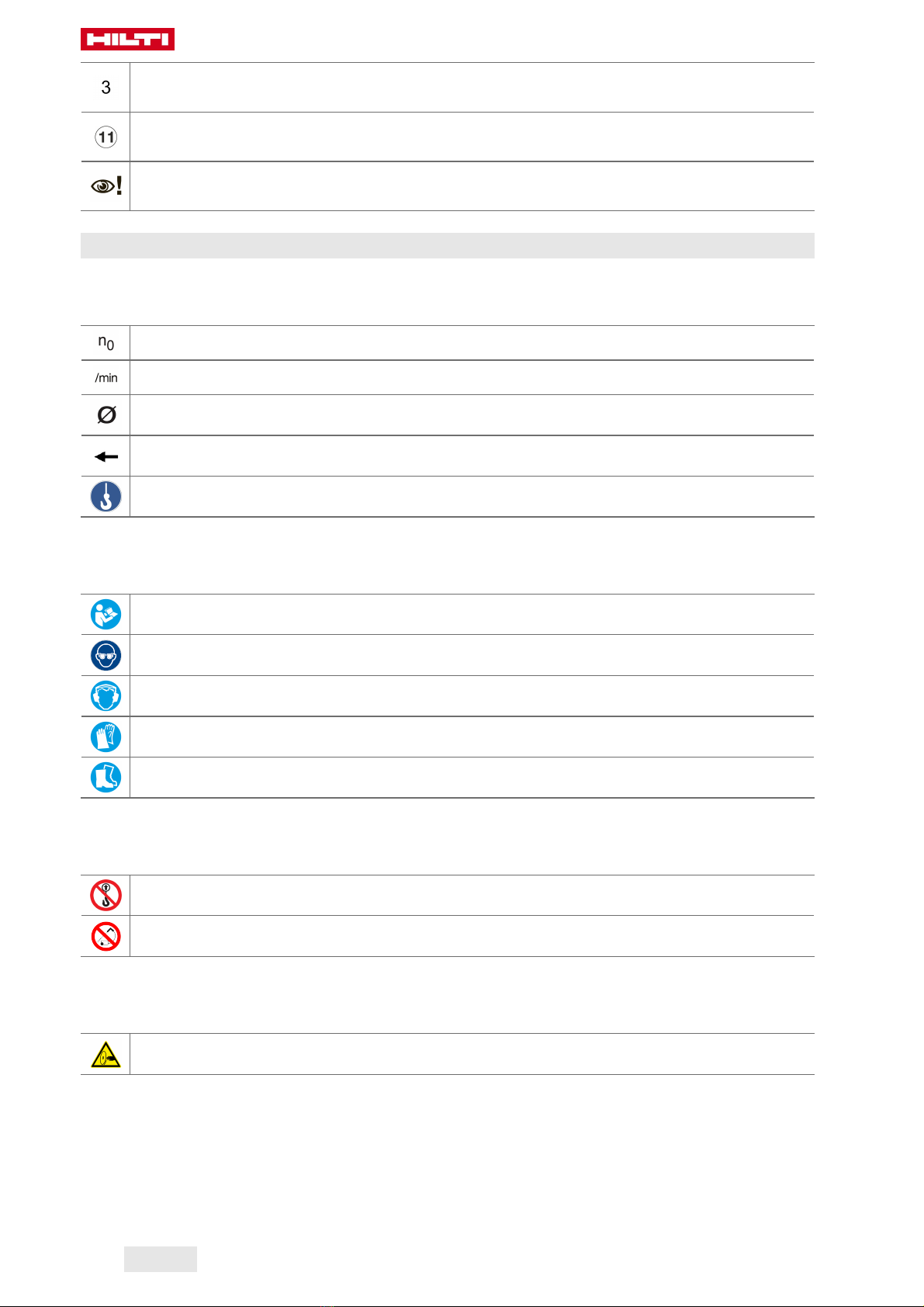

1.3 Product-dependent symbols
1.3.1 General symbols
The following symbols are used on the product:
Rated speed under no load
Revolutions per minute
Diameter
Saw blade direction of rotation (arrow on the blade guard holder)
Suspension point provided for lifting by crane
1.3.2 Obligation symbols
The following obligation symbols are used on the product:
Read the operating instructions
Wear eye protection
Wear ear protection
Wear protective gloves
Wear safety shoes
1.3.3 Prohibition symbols
The following prohibition symbols are used on the product:
Lifting by crane prohibited
Use of high-pressure cleaning equipment prohibited
1.3.4 Hazard symbols
The following hazard symbols are used on the product:
Warning: risk of cutting injury

*2328079* 2328079 English 5
1.4 Stickers
Stickers on the product
On the transport trolley
Using the transport trolley
On the saw head
Maximum water pressure and action to be taken in the event of
risk of frost
On the saw head
The machine is equipped with the Cut Assist function.
1.5 Product information
Hilti products are designed for professional use and may be operated, serviced and
maintained only by trained, authorized personnel. This personnel must be specifically
informed about the possible hazards. The product and its ancillary equipment can present
hazards if used incorrectly by untrained personnel or if used not in accordance with the
intended use.
The type designation and serial number are printed on the rating plate.
▶Write down the serial number in the table below. You will be required to state the
product details when contacting Hilti Service or your local Hilti organization to inquire
about the product.
Product information
Electric wall saw DST 10-CA
Generation 02
Serial no.
1.6 Declaration of conformity
The manufacturer declares, on his sole responsibility, that the product described here
complies with the applicable legislation and standards. A copy of the declaration of
conformity can be found at the end of this documentation.
The technical documentation is filed here:
Hilti Entwicklungsgesellschaft mbH | Tool Certification | Hiltistrasse 6 | D-86916 Kaufering,
Germany
1.7 Radio Equipment Directive
This equipment complies with IEC 61000-3-12 provided that the short-circuit power Ssc
is greater than or equal to 5 MVA at the interface point between the user's supply and
the public system
It is the responsibility of the installer or user of the equipment to ensure, by consultation
with the distribution network operator if necessary, that the equipment is connected only
to a supply with a short-circuit power Ssc greater than or equal to 5 MVA.

6 English 2328079 *2328079*
2 Safety
2.1 General power tool safety warnings
WARNING Read all safety warnings, instructions, illustrations and specifications
provided with this power tool. Failure to follow all instructions listed below may result
in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool
or battery-operated (cordless) power tool.
Work area safety
▶Keep work area clean and well lit. Cluttered or dark areas invite accidents.
▶Do not operate power tools in explosive atmospheres, such as in the presence
of flammable liquids, gases or dust. Power tools create sparks which may ignite the
dust or fumes.
▶Keep children and bystanders away while operating a power tool. Distractions
can cause you to lose control.
Electrical safety
▶Power tool plugs must match the outlet. Never modify the plug in any way. Do
not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs
and matching outlets will reduce risk of electric shock.
▶Avoid body contact with earthed or grounded surfaces, such as pipes, radiators,
ranges and refrigerators. There is an increased risk of electric shock if your body is
earthed or grounded.
▶Do not expose power tools to rain or wet conditions. Water entering a power tool
will increase the risk of electric shock.
▶Do not abuse the cord. Never use the cord for carrying, pulling or unplugging
the power tool. Keep cord away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of electric shock.
▶When operating a power tool outdoors, use an extension cord suitable for
outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
▶If operating a power tool in a damp location is unavoidable, use a residual current
device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
Personal safety
▶Stay alert, watch what you are doing and use common sense when operating a
power tool. Do not use a power tool while you are tired or under the influence of
drugs, alcohol or medication. A moment of inattention while operating power tools
may result in serious personal injury.
▶Use personal protective equipment. Always wear eye protection. Protective
equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection
used for appropriate conditions will reduce personal injuries.
▶Prevent unintentional starting. Ensure the switch is in the off-position before
connecting to power source and/or battery pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch or energising power tools that
have the switch on invites accidents.
▶Remove any adjusting key or wrench before turning the power tool on. A wrench
or a key left attached to a rotating part of the power tool may result in personal injury.
▶Do not overreach. Keep proper footing and balance at all times. This enables
better control of the power tool in unexpected situations.

*2328079* 2328079 English 7
▶Dress properly. Do not wear loose clothing or jewellery. Keep your hair and
clothing away from moving parts. Loose clothes, jewellery or long hair can be
caught in moving parts.
▶If devices are provided for the connection of dust extraction and collection
facilities, ensure these are connected and properly used. Use of dust collection
can reduce dust-related hazards.
▶Do not let familiarity gained from frequent use of tools allow you to become
complacent and ignore tool safety principles. A careless action can cause severe
injury within a fraction of a second.
Power tool use and care
▶Do not force the power tool. Use the correct power tool for your application. The
correct power tool will do the job better and safer at the rate for which it was designed.
▶Do not use the power tool if the switch does not turn it on and off. Any power tool
that cannot be controlled with the switch is dangerous and must be repaired.
▶Disconnect the plug from the power source and/or remove the battery pack,
if detachable, from the power tool before making any adjustments, changing
accessories, or storing power tools. Such preventive safety measures reduce the
risk of starting the power tool accidentally.
▶Store idle power tools out of the reach of children and do not allow persons
unfamiliar with the power tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained users.
▶Maintain power tools and accessories. Check for misalignment or binding of
moving parts, breakage of parts and any other condition that may affect the
power tool’s operation. If damaged, have the power tool repaired before use.
Many accidents are caused by poorly maintained power tools.
▶Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp
cutting edges are less likely to bind and are easier to control.
▶Use the power tool, accessories and tool bits etc. in accordance with these
instructions, taking into account the working conditions and the work to be
performed. Use of the power tool for operations different from those intended could
result in a hazardous situation.
▶Keep handles and grasping surfaces dry, clean and free from oil and grease.
Slippery handles and grasping surfaces do not allow for safe handling and control of
the tool in unexpected situations.
Service
▶Have your power tool serviced by a qualified repair person using only identical
replacement parts. This will ensure that the safety of the power tool is maintained.
2.2 Additional safety instructions for wall saws
▶Operate power tool by insulated grasping surfaces, when performing an oper-
ation where the cutting accessory may contact hidden wiring or its own cord.
A cutting accessory contacting a "live" wire may make exposed metal parts of the
power tool "live" and could give the operator an electric shock.
▶Wear ear protectors when diamond sawing. Exposure to noise can cause hearing
loss.
▶When sawing through the workpiece, ensure to protect persons and the work
area on the other side. The diamond wheel may protrude through the workpiece.
▶Never leave the wall saw unattended during operation. This reduces the risk of
the diamond wheel jamming, which could cause loss of control or damage to the wall
saw.

8 English 2328079 *2328079*
▶Ensure that the method of securing the track guiding system to the workpiece
is capable of holding and restraining the machine during use. If the workpiece
is weak or porous, the anchor(s) can pull out, causing the track guiding system to
release from the workpiece.
▶If the diamond wheel becomes jammed, stop applying feed force and turn off
the tool. Investigate and take corrective action to eliminate the cause of the
diamond wheel jamming. Attempting to continue operation with a stalled diamond
wheel can lead to loss of control or damage to the wall saw.
▶Before starting, make sure that the AC supply voltage, AC supply frequency and fuse
rating correspond to the specification given on the type identification plate.
▶Check the machine’s electric supply cable at regular intervals and have it replaced by
a qualified electrical specialist if found to be damaged.
▶Check extension cords at regular intervals and replace them if found to be damaged.
▶If the electric supply cable to the saw is damaged while working, do not touch the
supply cable or the saw. Switch the wall saw off at the on/off switch or press the
EMERGENCY STOP button and unplug the supply cord from the power outlet.
▶Use only extension cables of a type approved for the application and with conductors
of adequate gauge.
▶Do not work with rolled-up extension cables. A rolled-up cable may cause a drop in
power and may result in the cable overheating.
▶Disconnect the power cable before beginning cleaning and maintenance work or in
the event of an interruption between periods of operation.
▶Drilling and sawing work on buildings and other structures may influence the statics of
the structure, especially when steel reinforcing bars and/or load-bearing components
are cut through. Approval must always be obtained from the site engineer or site
management before beginning drilling and sawing work.
▶Make sure that the workplace is adequately ventilated. Exposure to dust at a poorly
ventilated workplace may present a health risk.
▶Install suitable supports to ensure that the part cut out does not move. Blocks slipping
or falling when cut free could cause serious injury and/or damage.
▶Install suitable supports to ensure that the structure retains its stability while cutting
work is in progress and also after removal of the part cut away.
▶In cooperation with the site engineer or architect, check to ensure that no gas, water,
electricity or other supply lines are located in the cutting area. Supply lines of these
kinds present a serious risk of accident if damaged during the course of the work.
External metal parts of the machine could become live if, for example, an electric
supply cable is damaged.
▶Avoid skin contact with drilling and sawing slurry. In the event of contact with the
eyes, rinse immediately with clean water and consult a doctor if necessary.
▶Dust produced by grinding, sanding, cutting and drilling can contain dangerous
chemicals. Some examples are: lead or lead-based paints; brick, concrete and other
masonry products, natural stone and other products containing silicates; certain types
of wood, such as oak, beech and chemically treated wood; asbestos or materials
that contain asbestos. Determine the exposure of the operator and bystanders by
means of the hazard classification of the materials to be worked. Implement the
necessary measures to restrict exposure to a safe level, for example by the use of
a dust collection system or by the wearing of suitable respiratory protection. The
general measures for reducing exposure include:
▶working in an area that is well ventilated,
▶avoidance of prolonged contact with dust,

*2328079* 2328079 English 9
▶directing dust away from the face and body,
▶wearing protective clothing and washing exposed areas of the skin with water and
soap.
▶When working in dusty conditions, use a suitable dust removal system whenever
possible. Dust from materials such as concrete, masonry and stone containing quartz,
as well as minerals and metals, may present health risks. Contact with or inhalation
of the dust may cause allergic reactions and/or respiratory or other diseases to the
operator or bystanders.
▶Always lead cables and hoses flat on the ground or floor away from the machine. This
will help to reduce the risk of tripping while working.
▶Keep cables and hoses away from rotating parts.
▶Make sure that the cooling water used is drained away or collected (vacuum) in a
suitably controlled manner. Water that’s allowed to flow away or spray around in an
uncontrolled manner can lead to damage or accidents. Also remember that water
could drain away into internal, hidden cavities.
▶Don’t work from a ladder.

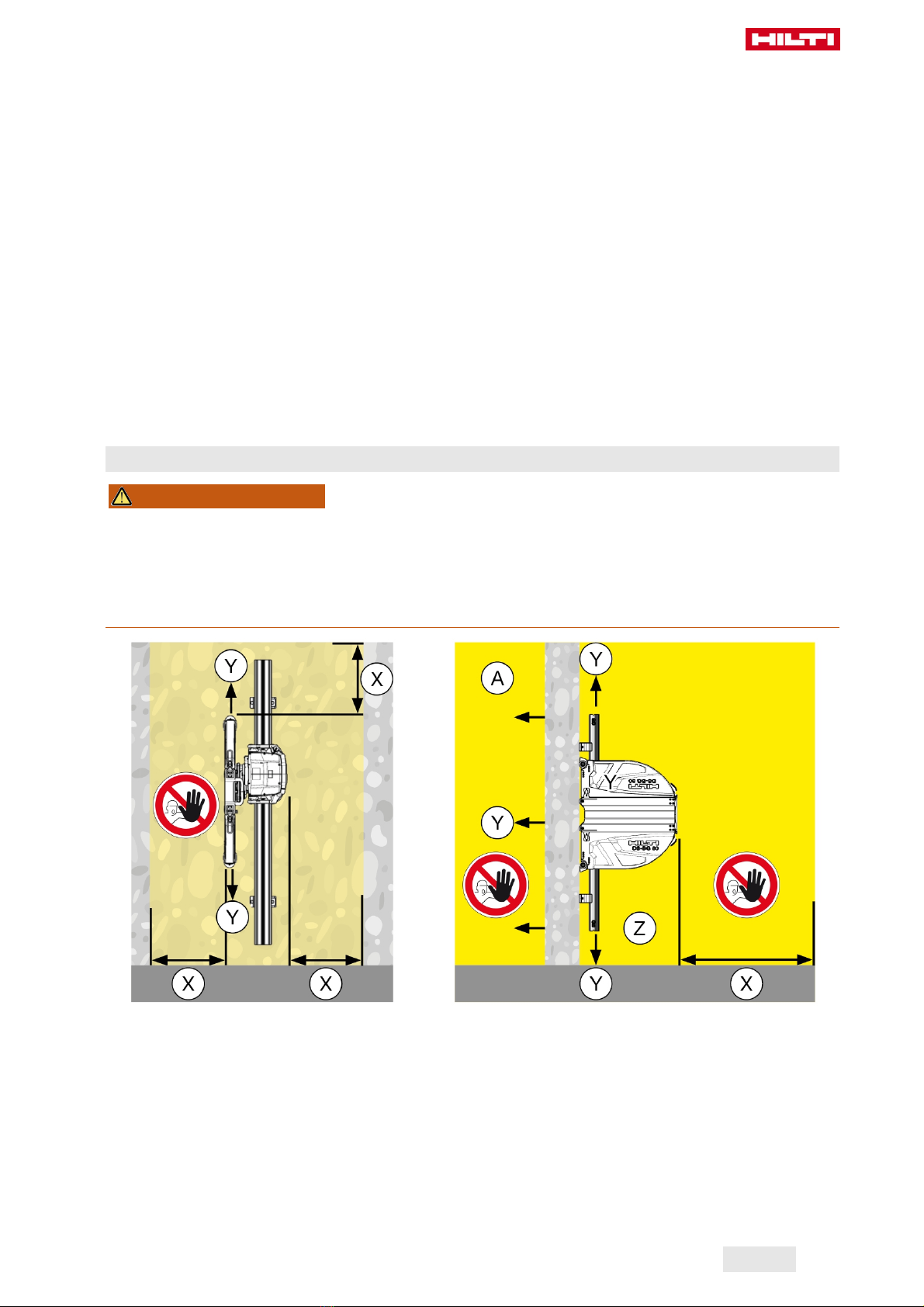

2.3 Safety measures at the danger areas
WARNING
A risk is presented by moving parts, by falling objects or debris that may fly off!
Falling or flying objects could cause serious injury.
▶Make sure that the area is cordoned off and that warnings to third parties are displayed.
▶Make sure that no one is present in the area immediately beneath the workplace while
work is in progress.

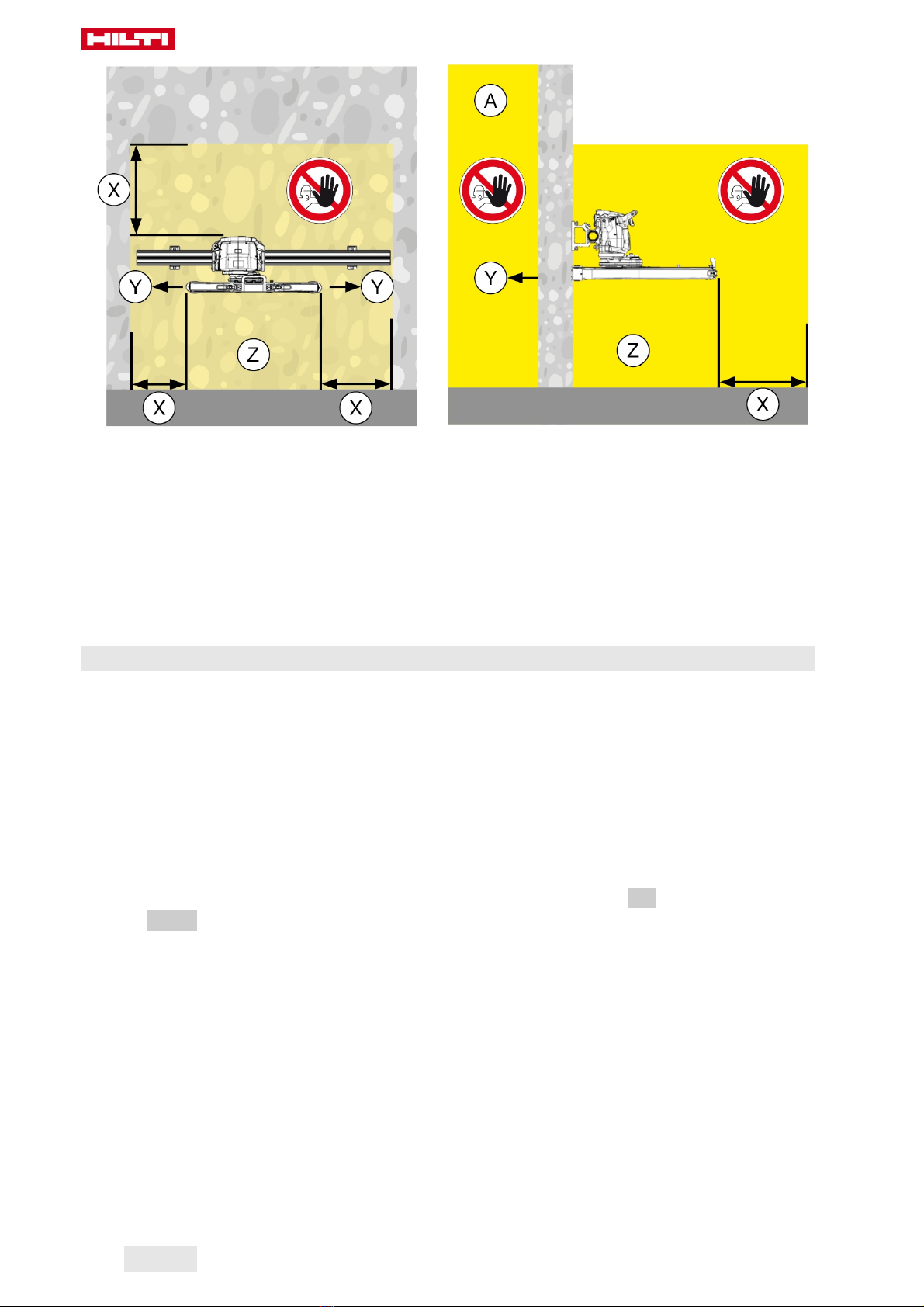

View: Vertical cut in the wall
X Keep a safe distance of at least
1.5 m away from all moving parts.
Y Never stand in line with the rotating
saw blade.
Z Never stand below the working
area
A Never stand on the other side of the
working area.
Secure the working area. Make sure that persons cannot be injured and property cannot
be damaged by falling, flying or moving parts.

10 English 2328079 *2328079*
View: Horizontal cut in the wall
X Keep a safe distance of at least
1.5 m away from all moving parts.
Y Never stand in line with the rotating
saw blade.
Z Never stand below the working
area
A Never stand on the other side of the
working area.
Safety measures must also be implemented in the area not directly visible to the operator,
i.e. at the rear of objects being cut.
Never loiter in a position directly below the equipment.
2.4 Safety during operation
▶Check the flange and saw blade for damage and degrease the blade holder each time
before putting the saw into operation.
▶Begin work with the saw only when the track supports are securely and rigidly
fastened to a solid surface and when the wall saw system has been correctly installed
(all screws tightened securely, the saw head locked securely on the track and the end
stops correctly installed).
▶Use only suitable fastening materials of adequate dimensions to fasten the track
supports and to secure the parts of the object being cut.
▶As a basic rule, never stand directly in line with the rotating saw blade.
▶Always use the appropriate, correctly fitting blade guard (type BG for normal cutting,
type BGFT for flush cutting). For dry cutting, use the blade guard for dry cutting with
dust extractor.
▶When making corner cuts that require use of a partly open blade guard, operate the
machine from the side at which the blade guard is closed, i.e. from the protected side.
When necessary, the operator must implement suitable additional safety measures.
▶Before entering the danger area, switch the wall saw off at the on/off switch or press
the EMERGENCY STOP button. Persons may enter the danger area only after the
blade drive unit has been switched off and the blade has come to a standstill.
▶Adhere to the permissible drive unit parameters and recommended guide values for
blade rotation speed and advance speed while sawing.
▶Use only saw blades that comply with the requirements of EN 13236. Observe the
information on the diameter of the arbor hole and the maximum saw blade disc
thickness in the section headed Technical data. Mount the blades the right way

*2328079* 2328079 English 11
round (observe correct direction of rotation). Use of saw blades of a size outside
the specified diameter range is prohibited!
▶Always wear working gloves when touching the saw blade. The saw blade is sharp
and can get hot.
▶Stay alert at all times while working. Monitor the progress of the sawing operation and
keep an eye on the cooling water system and the area surrounding the workplace. Do
not operate the machine if your full attention is not on the job.
2.5 Safety during transport
▶Transport only tracks of length up to max. 1.5 m on the transport trolley. The higher
center of gravity of tracks longer than 1.5 m would increase the risk of the transport
trolley tipping over.
▶Use the transport trolley only to transport the saw system and its specified accessories.
Do not use the trolley to transport other items or materials.
▶Before transporting, make sure that all removable items of equipment are securely
fastened to the transport trolley or locked in position.
▶Avoid lifting and carrying heavy objects. Use suitable lifting equipment and means of
transport and share heavy loads between several people as necessary.
▶Use the grips provided for transportation. Keep the grips dry, clean and free from oil
and grease.
▶Bear in mind that the transport trolley can topple. Stand the transport trolley only on a
solid, level surface.
▶Secure the saw system and its components to prevent inadvertent movement or falling
over during transportation.
▶Bear in mind that only tested and approved lifting gear correctly secured to the points
provided for the purpose may be used for crane-lifting the transport trolley.
▶Never loiter beneath a load suspended by a crane or lifting equipment.

12 English 2328079 *2328079*
3 Description

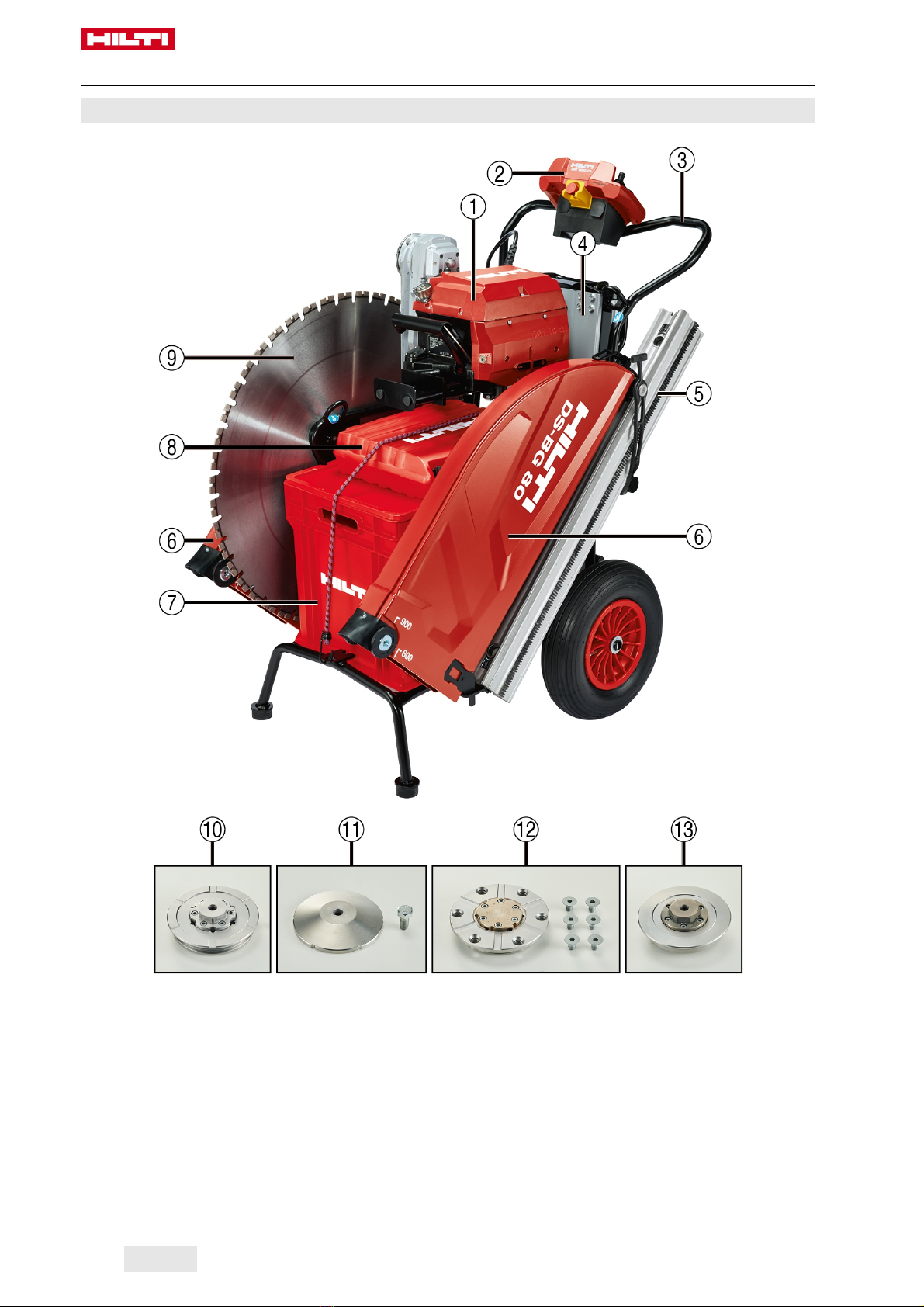

3.1 Product overview
@Saw head
;Remote control unit
=Transport trolley
%Blade guard center section
&Guide track
(Blade guard side section
)Accessories box
+Toolbox
§Saw blade
/Inner flange (saw blade: normal
cutting)
:Outer flange (saw blade: normal
cutting and dry cutting)
with clamping screw M12×25 10.9

*2328079* 2328079 English 13
∙Inner flange (saw blade: flush cut-
ting)
with countersunk-head screws (6
of)
$Inner flange (saw blade: dry cutting)
3.2 Intended use
The product described is a water-cooled, electrically powered wall saw with wireless
remote control. It is designed for cutting lightly to medium-heavily reinforced concrete as
well as stone or masonry structures using diamond-tipped saw blades with a diameter of
between 600 and 1200 mm.
In addition to these operating instructions, the operating instructions for the remote
control unit must also be observed.
• Diamond-tipped saw blades with a diameter up to 1200 mm must be approved for a
cutting speed of at least 63 m/s.
• Use only clean tap water as a dust-binding agent and to cool the blade and the motor.
• The product may be operated only when connected to an electric supply and water
supply that provide an AC supply voltage, electric current rating, AC frequency, fuse
rating and water pressure in compliance with the technical specifications given on the
rating plate or in these operating instructions.
• Overhead work is permissible only when additional safety measures are implemented.
No-one is permitted underneath the saw when overhead work is undertaken.
• Before carrying out work, consult your Hilti sales adviser.
• Up to a maximum saw blade diameter of 650 mm, with the accessories for dry cutting
the saw can also be used for dry-cutting masonry and lightly reinforced concrete.
3.3 Possible misuse
• Do not use saw blades with a diameter greater than 1200 mm.
• Work in the correct speed range.
• Do not use the saw to cut materials which, when being worked on, can give off
hazardous and/or flammable dust or vapors.
• Work only with guide tracks connected by means of the track connector designed for
the purpose.
3.4 Items supplied DST 10-CA
Other system products approved for use with this product can be found at your
local Hilti Store or at: www.hilti.group
Qty. Designation Qty. Designation
1× Saw head 1× Saw head operating instruc-
tions
1× Remote control unit 1× Remote control unit operating
instructions
1× Tool set 1× Transport trolley
1× Tapered connector 1× Transport box
4× Rail supports 1× blade guard DSBG80
(up to Ø 900 mm/34 in)

14 English 2328079 *2328079*
Qty. Designation Qty. Designation
3× eccentric pin 1× flush-cutting flange
1× Standard flange
3.5 Accessories
Accessories for the rail system
Item number Designation Description
284808 DS-R100-L guide rail Saw head guide, long
100 cm
284809 DS-R200-L guide rail Saw head guide, long
200 cm
284810 DS-R230-L guide rail Saw head guide, long
230 cm
371703 DS-ES-L end stop Safety stop for saw head
207137 DS-CP-ML Rail clamp Fastening rails
284814 DS-RF-L rail support Fastening rails
284816 DS-RFP-L rail support For cutting at an angle or on stairs
Accessories for the blade guard for normal cutting
Item number Designation Description
238000 DS-BG65 saw blade guard Blade guard, saw blades up to Ø
≤ 650 mm
2051935 DST-BG80 saw blade
guard, small
Blade guard, saw blades up to Ø
600 mm … 800 mm
238002 DS-BG80 middle section Blade guard, saw blades up to Ø
600 mm … 900 mm
238003 DS-BG80 side section, set Blade guard, saw blades up to Ø
600 mm … 900 mm
Accessories for the flush-cutting blade guard
Item number Designation Description
2135201 DS-BGFT80 middle section Saw blade guard for flush cutting,
Ø
600 mm … 900 mm
2135202 DS-BGFT80 side section,
set
Saw blade guard for flush cutting,
Ø
600 mm … 900 mm
2135203 DS-BGFT120 middle sec-
tion
Saw blade guard for flush cutting
1,000 mm … 1,200 mm
2135204 DS-BGFT120 side section,
set
Saw blade guard for flush cutting
1,000 mm … 1,200 mm
Accessories for flanges
Item number Designation Description
2328063 DST-FCF 60-110 flush-cutting flange
2330150 DST-FCF 1 3/8''/4 Flush-cutting flange (USA version)

*2328079* 2328079 English 15
Item number Designation Description
2330128 DST-CF 60 6kt -45 Normal-cutting flange
2330129 DST-CF 1 3/8'' Normal-cutting flange (USA ver-
sion)
221343 Hex screw M12×25 10.9 Clamping screw (inner flange,
normal cut)
Accessories for dry cutting
Item number Designation Description
2328064 DST-CF 60 6kt -45 Dry-cutting flange
2330151 DST-CF 1 3/8" 6kt Dry-cutting flange (USA version)
2330152 DS BG65 dry Blade guard (dry cutting)
2330153 Dust removal hood (set)
1.1-2.0
Dry-cutting set
4 Technical data
4.1 Saw head
Rated values guaranteed at an ambient temperature of max. 18 °C and at an altitude
of max. 2000 m above sea level.
Weight in accordance with EPTA-
Procedure 01
33.7 kg
Rated speed 118 /min … 940 /min
Rated voltage 380 V … 400 V
Performance is reduced with an AC
supply voltage of < 370 V.
AC frequency 50 Hz … 60 Hz
Mains connection (phase requirements) 3~ + PE
Rated current 16 A
Mains fuse rating 16 A
Generator power requirements ≥ 20 kVA
Leakage current ≤ 10 mA
Storage temperature −25 ℃ … 63 ℃
Application temperature, ambient tempera-
ture
−15 ℃ … 45 ℃
At temperatures below zero, allow
the machine to warm up slowly be-
fore subjecting to load and drain
(blow out) the water from the cooling
circuit after use (a pump is supplied
for this purpose).
Use preheated water.
Cooling water flow rate > 2 ℓ/min
Cooling water temperature 4 ℃ … 25 ℃
Cooling water pressure 2 bar … 6 bar

16 English 2328079 *2328079*
Protection class in accordance with IEC
60529
IP 65
Frequency 2,400 MHz … 2,483.5 MHz
Maximum emitted transmission power 1.7 dBm
4.2 Saw blade
Permissible saw blade diameter 600 mm … 1,200 mm
Maximum blade diameter for guide cut 800 mm
Maximum cutting depth 530 mm
Arbor hole diameter 60 mm
Maximum saw blade disc thickness 5 mm
4.3 Transport trolley
Maximum load 180 kg
Dimensions (L×W×H) 1,100 mm × 690 mm × 1,180 mm
Weight, loaded 100 kg
Tyre pressure 2.1 bar
4.4 Noise information in accordance with EN 15027
The sound pressure and vibration values given in these instructions have been measured
in accordance with a standardized test and may be used to compare one power tool with
another.
Sound emissions in operation can vary up to 10 dB(A) from the stated measured values,
depending on the type of diamond saw blade used and the operating conditions. Adapt
ear protection and other noise-control measures to the specific operating conditions.
The noise pressure level can be reduced by approx. 10 dB(A) when noise-reducing
(silent) saw blades are used.
DST 10-CA
Sound power level (LWA)114.5 dB(A)
Sound pressure level (LpA)96.9 dB(A)
Sound level uncertainty (KpA) (EN 15027) 3 dB(A)
5 Planning
5.1 Cutting sequence
▶Make dividing cuts to adjust the maximum size and weight of the concrete blocks
to the prevailing conditions (i.e. the lifting capacity of the crane or the maximum
permissible floor loading capacity and size of doors).
A rational cutting sequence can be achieved by appropriate spacing of the track
supports.
