Hinkley MARIN 903160FMM-NDD User manual

60" MARIN™
CEILING FAN INSTRUCTION MANUAL
INDOOR / OUTDOOR LED FAN
LED WIFI
DC
DC MOTOR
PAIR WITH HINKLEY APP
HINKLEY
DOWNLOAD ON APP STORE or GOOGLE PLAY
CONTROL

SO WE’RE HERE IF YOU HAVE A QUESTION, NEED SOME
HELP OR WANT TO CHAT ABOUT OUR PRODUCTS. SEND
SUGGESTIONS OUR WAY TOO—WE’RE ALWAYS LOOKING TO
MAKE YOUR EXPERIENCE WITH HINKLEY A POSITIVE ONE.
This manual contains complete instructions for the
installation and operation of this fan. It has been
designed to make the installation process as easy as
possible. If you are unfamiliar or uncomfortable with
wiring, please contact a qualified electrician. If you
need additional assistance or have any questions,
please reach out to us.
For warranty information, visit hinkley.com.
> [e-mail]
> 800.HINKLEY
> LET’S SEE THAT HINKLEY STYLE @HINKLEY
#HINKLEYSTYLE
WE WANT YOU TO LOVE YOUR NEW FAN

WARNING:
Read and follow these instructions carefully and be mindful of all warnings shown throughout.
©2020 Hinkley Lighting, Inc.|hinkley.com |01
TABLE OF CONTENTS
02 GENERAL INSTALLATION & OPERATING
INSTRUCTIONS
03 IMPORTANT SAFETY PRECAUTIONS
03 TOOLS & MATERIALS REQUIRED
04 UNPACKING YOUR FAN
05 PREPARATION
05 INSTALLING THE HANGING BRACKET
06 HANGING THE FAN
08 ELECTRICAL CONNECTIONS
FINISHING THE INSTALLATION
09
INSTALLING THE BLADES10
INSTALLING THE MONTING PLATE
10
11 INSTALLING THE LED ASSEMBLY AND GLASS SHADE
12

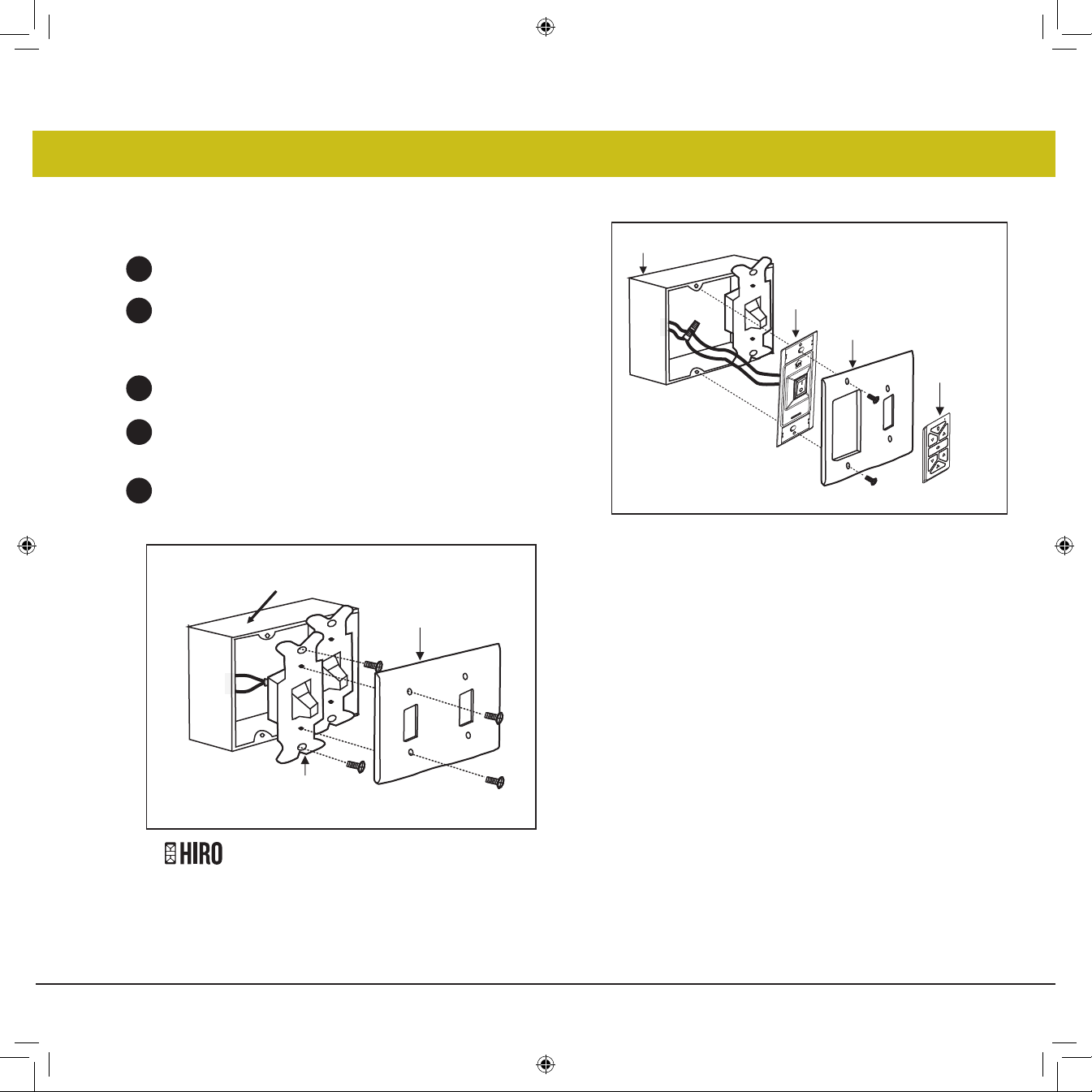

INSTALLING THE WALL CONTROL
INSTALLING THE FAN WITHOUT THE LIGHT KIT (OPTIONAL)
13
15
17
17
18
18
19
OPERATION
CARE AND CLEANING
TROUBLESHOOTING
ENERGY GUIDE
SPECIFICATIONS
HINKLEY APP / WIFI

GENERAL INSTALLATION & OPERATION INSTRUCTIONS
02 |hinkley.com
1
2
3
4
5
6
7
8
9
10
11
12
13
14
To ensure the success of the installation, be sure to read the instructions and review the diagrams thoroughly before beginning.
To avoid possible electric shock, be sure electricity is turned off at the main power box before wiring. All electrical connections
must be made in accordance with local codes, ordinances and/or the National Electric Code. If you are unfamiliar with the
methods of installing electrical wiring and products, secure the services of a qualified and licensed electrician as well as
someone who can check the strength of the supportive ceiling members and make the proper installation(s) and connections.
WARNING: To reduce the risk of fire, electric shock, or other personal injury, mount fan only on an outlet box or supporting system
marked acceptable for fan support of 35 lbs (15.9 kg) or less and use mounting screws provided with the outlet box. Most outlet
boxes commonly used for the support of lighting fixtures are not acceptable for fan support and may need to be replaced.
Consult a qualified electrician if in doubt.
Make sure that your installation site will not allow rotating fan blades to come in contact with any object. Blades should be at least
7 feet from floor.
Blades should be attached after motor housing is hung and in place. Fan motor housing should be kept in the carton until ready
to be installed to protect its finish. If you are installing more than one ceiling fan, make sure that you do not mix fan blade sets, as
each blade is part of a weighted set.
After making electrical connections, spliced conductors should be turned upward and pushed carefully up into outlet box. The
wires should be spread apart with the common conductor and the grounding conductor on one side of the outlet box, and the
"HOT" wires on the other side.
Electrical diagrams are for reference only. Light kits that are not packed with the fan must be UL listed and should be installed
per the light kit's installation instructions.
After fan is completely installed, check to make sure that all connections are secure to prevent fan from falling and/or causing
damage or injury.
The fan can be made to work immediately after installation - the bearings are adequately charged with grease so that, under
normal conditions, further lubrication should not be necessary for the life of the fan.
To operate the reverse function on this fan, press the reverse button while the fan is running.
CAUTION: Do not ingest battery - Chemical bum hazard. Keep new and used batteries away from children.
The remote control supplied with a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe
internal bums in just 2 hours and can lead to death.
If the battery compartment does not close securely, stop using the product and keep it away from children.
If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

IMPORTANT SAFETY PRECAUTIONS

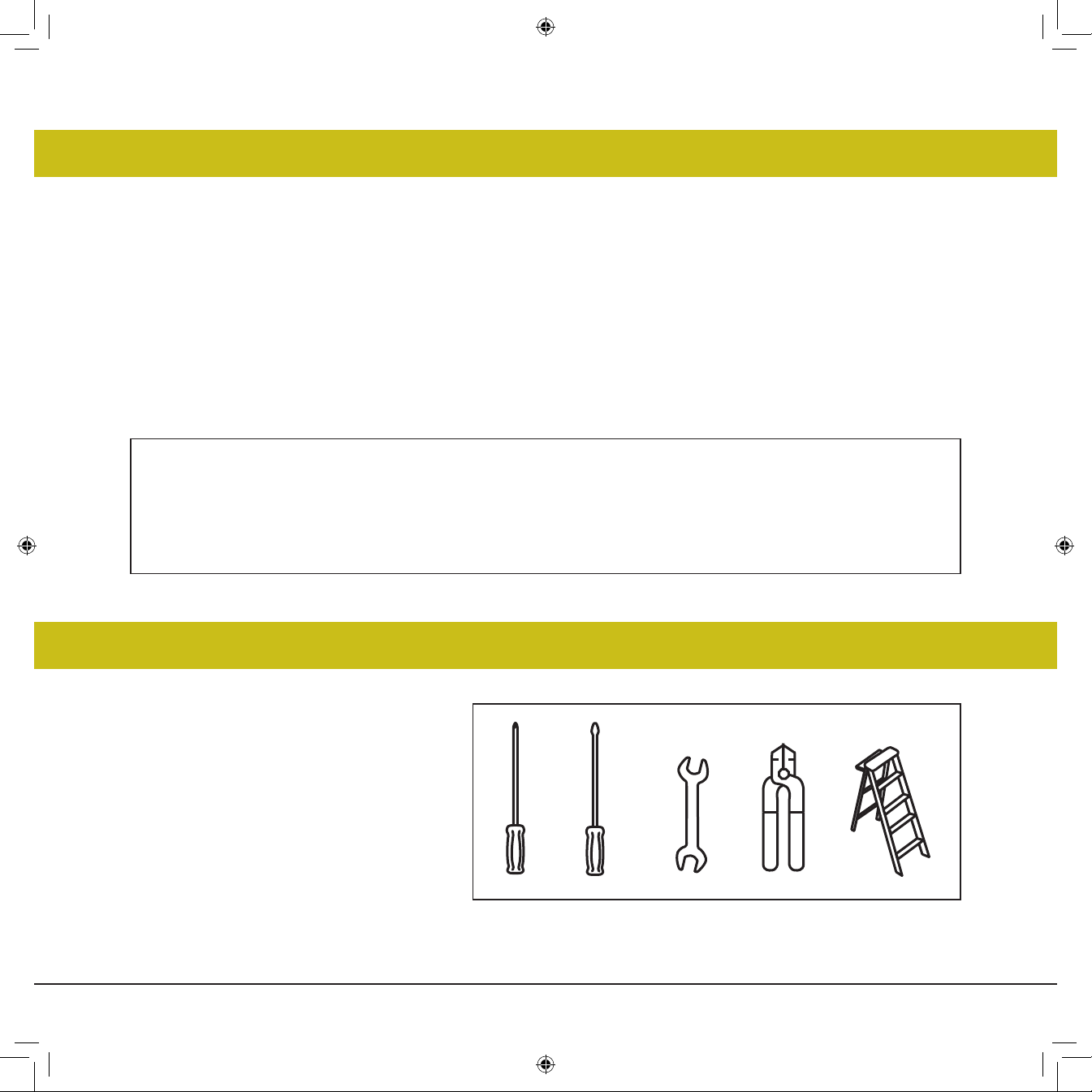

TOOLS & MATERIALS REQUIRED
WARNINGS:
• PHILLIPS SCREWDRIVER
• FLAT SCREWDRIVER
• WRENCH OR PLIERS
• WIRE CUTTER
• STEPLADDER
• WIRING SUPPLIES AS REQUIRED BY
ELECTRICAL CODE
NOTE:
The important precautions, safeguards and instructions appearing in this manual are not meant to cover all possible conditions
and situations that may occur. It must be understood that common sense, caution and carefulness are factors which cannot be
built into this product. These factors must be supplied by the person(s) installing, caring for and operating the unit.
©2020 Hinkley Lighting, Inc.|hinkley.com |03
• Disconnect power by removing fuse or turning off circuit breaker before installing the fan and/or optional lighting.
• Support directly from building structure.
• To reduce the risk of fire, electric shock, or personal injury, mount to outlet box marked "acceptable for fan support" and use mounting
screws provided with the outlet box. Most outlet boxes commonly used for the support of lighting fixtures are not acceptable for fan
support and may need to be replaced. Consult a qualified electrician if in doubt.
• Do not use an incandescent light dimmer. Do not use this fan with any transformer type fan speed control device.
• To reduce the risk of personal injury, do not bend the blade arms when installing them, balancing the blades or cleaning the fan. Do not
insert any objects(s) between rotating fan blades.

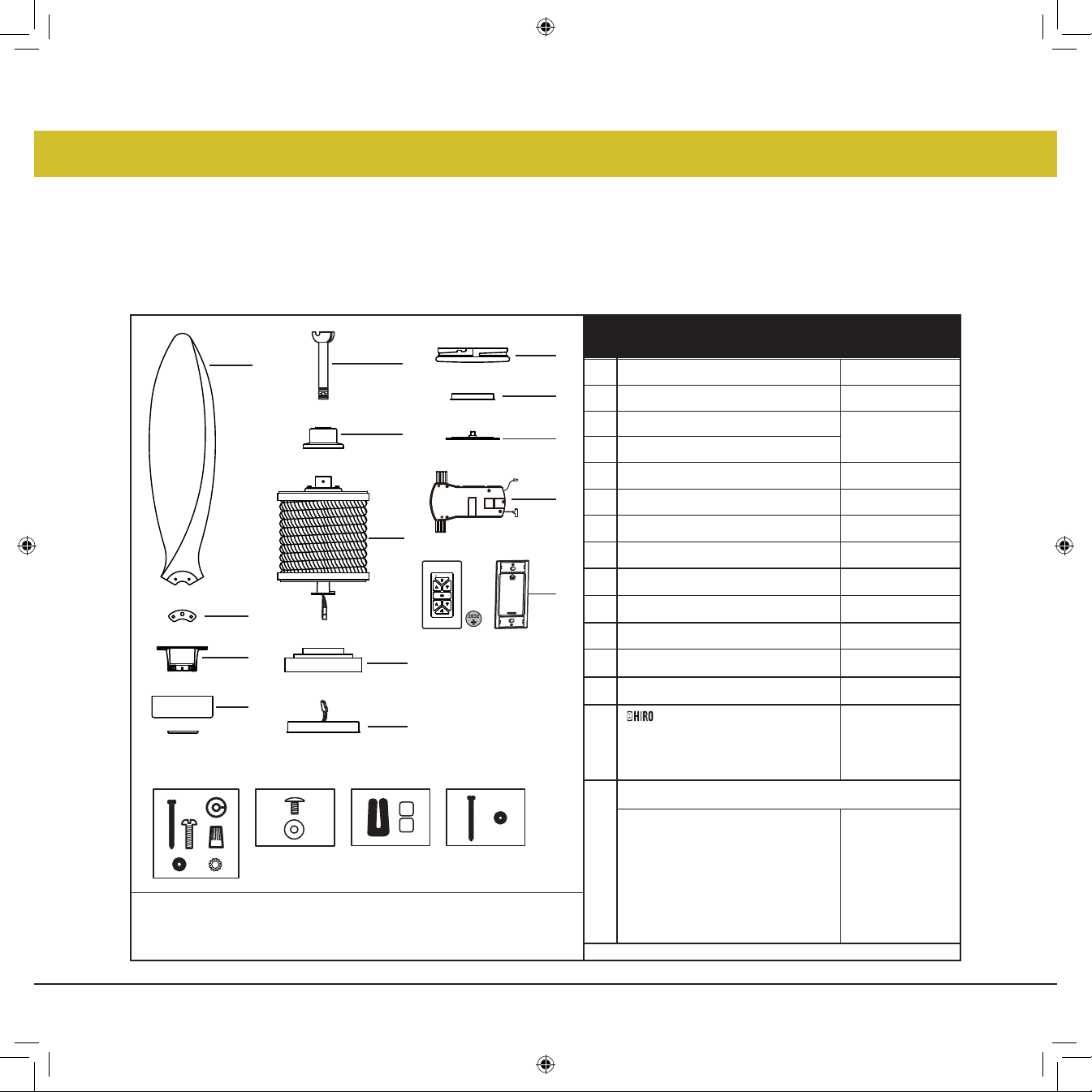

UNPACKING YOUR FAN
UNPACK YOUR FAN AND CHECK THE CONTENTS.
NOTE: Design of parts shown above may look slightly di erent for
your specific model of fan.
04 |hinkley.com
1
2
8
9
10
3
• Do not discard the carton. If warranty replacement or repair is ever necessary, the fan should be returned in original packing. Remove all
parts and hardware. Do not lay motor housing on its side, or the decorative housing may shift, be bent or damaged.
• Examine all parts. You should have the following:
4
PACKAGE CONTENT
1 Blade Set of 3
Blade Support Plates2
Hanging Bracket
3
Ceiling Canopy and Trim Ring
4
5
6
7
8
9
10
12
13
14
15
Downrod Asm.
Yoke Cover
Metal Cover (for no light use)
Fan Housing with Rope Assembly
Adapter Plate A
XX=FAN FINISH
5
6
7
11
12
13
14
15
LED Assembly 16W
Adapter Plate B (for no light use)
Glass Shade
Bracket Mounting Hardware
(wood screws, screws, lock
washers, star washers, flat washers,
wire nuts),
Blade to Motor Screws
w/Fiber Washers,
Balance Kit,
Safety cable hardware
(wood screw, flat washer)
11
Hardware Bag
Receiver Incl. 5 Wire Nuts
BL903160Fxx
DR94014Fxx
YC900752Fxx
RH903160Fxx
E903160LED
GL903160OPET
CWT903160
MH903160Fxx
CA900752Fxx
x
x
x
x
Cradle A, Wall Plate, Face Plate,
2 Mounting Screws,
Wall Control w/2032 Battery,
Cradle B (for flat wall use only)
+
980014FWH-R

PREPARATION
INSTALLING THE HANGING BRACKET
PREPARATION:
Parts identification on assembled fan.
©2020 Hinkley Lighting, Inc.|hinkley.com |05
Ceiling Fan
Outlet Box
Hanger
Bracket
Outlet Box
Screw
Flat Washer
Lock Washer
Fig. 1
Verify you have all parts before beginning
the installation. Check foam insert closely for
missing parts. Remove motor from packing.
To avoid damage to finish, assemble motor
on soft padded surface or use the original
foam inset in motor box.
DO NOT LAY MOTOR HOUSING ON ITS SIDE
AS THIS COULD RESULT IN SHIFTING OF
MOTOR IN DECORATIVE ENCLOSURE.
CAUTION: To avoid possible electrical shock, be sure electricity is turned off
at the main power box before wiring. All wiring must be in accordance with
National and Local Electrical Codes and the ceiling fan must be grounded as
a precaution against possible electric shock.
1
2
3
4
Locate ceiling joist where fan is to be mounted, being sure location
agrees with the requirements in the minimum clearance section of this
guide. Wood joists must be sound and of adequate size to support 35
pounds (See page 2, items 3 and 4).
If not already present, mount a UL listed outlet box marked "suitable for
fan support" following the instructions provided with the outlet box. The
outlet box must be able to support a minimum of 35 pounds.
Remove canopy from hanger bracket. Remove twist-lock trim ring by
rotaing counter-clockwise. Remove canopy screw that does not have
key slot in canopy. Loosen screw with key slot and remove canopy.
Attach hanging bracket to outlet box using screws provided with the
outlet box.
Downrod
Blade
Yoke cover
Canopy
Motor Housing
LED Light Kit

HANGING THE FAN
1
2
3
4
5
06 |hinkley.com
Fig. 1
Fig. 2
Downrod
Cross pin
Hanger
ball Set screw
Downrod
Hook-up
(3) Wires
Mounting Collar
Downrod Pin
Security Screws
Cotter Pin
Top of
Fan Body

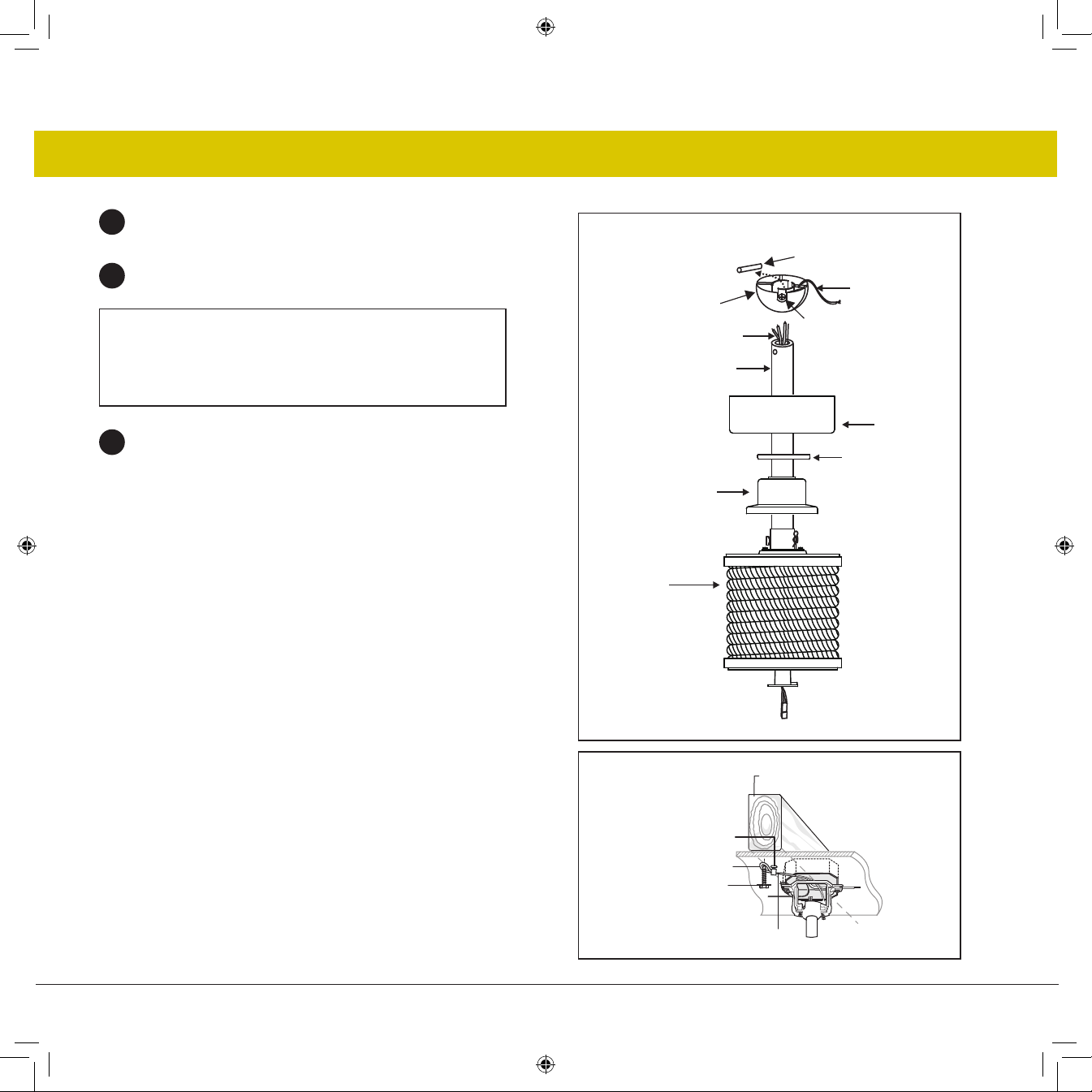

Remove ball from downrod by loosening set screw in the side
of the ball. Slide ball down and remove ball pin; remove ball.
(Fig. 1)
Carefully support fan body (motor) in its styrofoam packing with
the mounting collar (where the wires come out) facing upward.
Loosen the two security set screws and remove the downrod
pin and retaining clip from the coupling on top of the motor
assembly. (Fig. 2)
Carefully feed the electrical lead wires and safety cable from
the fan through the downrod. Thread downrod into coupler
until holes align. Insert downrod pin through holes in mounting
collar and downrod; clip cotter pin through small hole in end of
downrod pin to hold downrod in place.
Tighten security set screws against downrod using a large flat
blade screwdriver to ensure a tight fit against downrod.
Tighten nuts against mounting collar.
Safety Cable

07
©2020 Hinkley Lighting, Inc.|hinkley.com
Fig. 3
Fig. 4
Attach the wood screw and the flat washer to the ceiling joist as
shown (do not fully tighten). Slide the cable clamp onto the
safety cable from the fan.Loop the safety cable around the
wood screwthat was just attached to ceiling joist. Feed the end
of the cable into the clamp and pull as much cable through as
possible. Firmly tighten screw in the clamp. Cut o excess cable.
INSTALLATION OF SAFETY CABLE SUPPORT
Safety Cable Clamp
Safety Cable
Wood Ceiling Joist
Safety Cable Loop
Wood Screw
And Washer
NOTE:
Fan has 6 feet of hook-up wire in case you are using
a long extension downrod.
1
2
3
Slip the yoke cover, trim ring and canopy onto the downrod.
(Fig. 3)
Slide the hanger ball onto the downrod, insert the cross pin
through the downrod and tighten. Tighten the set screw.
Lift ball/downrod/fan into hanger bracket opening.
NOTE: The tab opposite hanger bracket opening should fit
in slot on ball. (Fig. 4)
Ground Wire
Top of
Fan Body
Hook-up (3) Wires
Yoke Cover
Downrod
Canopy
Hanger ball
Set screw
Trim Ring
Cross pin

08 |hinkley.com

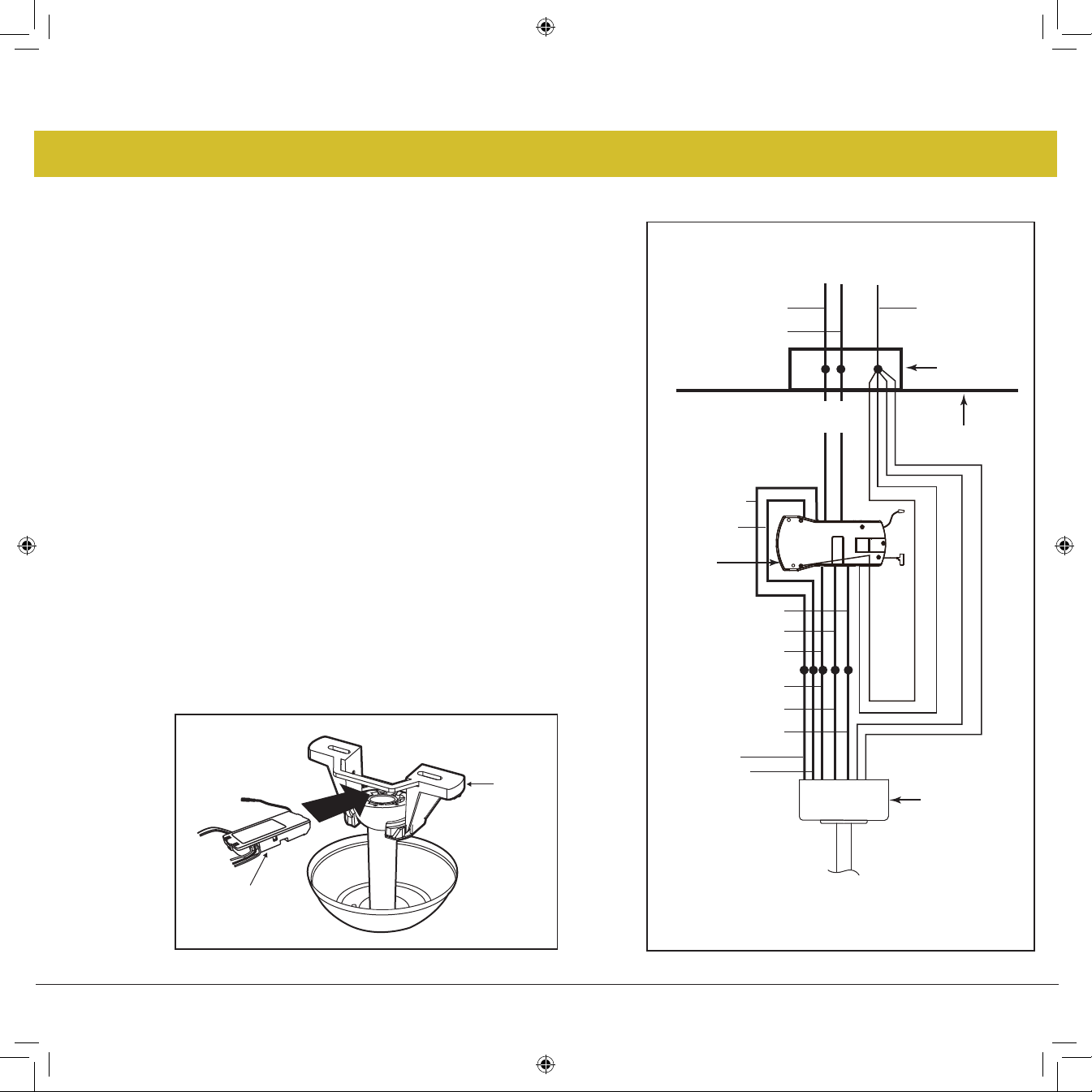

ELECTRICAL CONNECTIONS
Fig. 2
YELLOW / GRN (hanger bracket)
Receiver
Fan
Outlet box
Ceiling
WH (AC IN)
GROUND
WH
BLK
BLK (AC IN)
YELLOW / GRN
YELLOW / GRN
WHITE
(For light)
RED
RED
YELLOW
YELLOW
GRAY
BLACK
WHITE
GRAY
BLUE (For light)
YELLOW / GRN (downrod)
REMEMBER -Turn off the power! NOTE - Control must be installed within 30 feet of fan.
WARNINGS: Check to see that all connections are tight, including ground, and that no
bare wire is visible at the wire nuts, except for the ground wire.
CAUTION: To reduce the risk of electric shock, this fan must be installed with an
isolating wall control/switch.
1.
Insert the receiver into the ceiling mounting bracket with the flat side of the
receiver facing the ceiling. (Fig. 1) For best performance, make sure the
Black Antenna and WIFI Antenna, on the end of the receiver, remains
extended and not tangled with any of the electrical wires.
2. Make wire connections from the fan to the receiver unit. For this
step use the bundle of 5 wires on the receiver. (Fig. 2)
Connect the YELLOW fan wire to the YELLOW receiver wire.
Connect the GRAY fan wire to the GRAY receiver wire.
Connect the RED fan neutral wire to the RED receiver neutral wire.
Connect the WHITE neutral light kit lead from the fan to WHITE receiver lead
marked “ For Light”.
Connect the BLACK light kit lead from the fan to BLUE receiver lead marked
“For Light”.
Wire colors out of the fan are black/white for the light kit. Light kit leads from
the controller/receiver are blue/white.
3. Connect the wiring from the ceiling to the receiver unit. (Use the 2 wire
bundle on the receiver.) Secure with supplied wire nuts.
Connect the BLACK building supply wire to the BLACK receiver wire.
Connect the WHITE receiver neutral wire to the WHITE building neutral wire.
Connect the COPPER building ground wire to the 4 YELLOW/GREEN ground
wires from the fan and receiver.
Fig. 1
Receiver
Hanger
bracket

©2020 Hinkley Lighting, Inc.|hinkley.com |09
FINISHING THE INSTALLATION
1
2
3
1
2
Tuck connections neatly into ceiling outlet box.
Slide the canopy up to mounting bracket and place the
key hole on the trim ring the screw on the mounting
bracket, turn canopy until it locks in place at the narrow
section of the key holes.
Align the circular hole on canopy with the remaining
hole on the mounting bracket, secure by tightening the
two set screws.
NOTE: Adjust the canopy screws as necessary until the
canopy and trim ring are snug.
Canopy
Trim Ring
Screws
WARNING:
Make sure the hook on the hanging bracket properly sits in the groove in the hanger ball before
attaching the canopy to the bracket by turning the housing until it drops into place.
Ceiling Fan
Outlet Box
Hanger
Bracket Groove

10 |hinkley.com

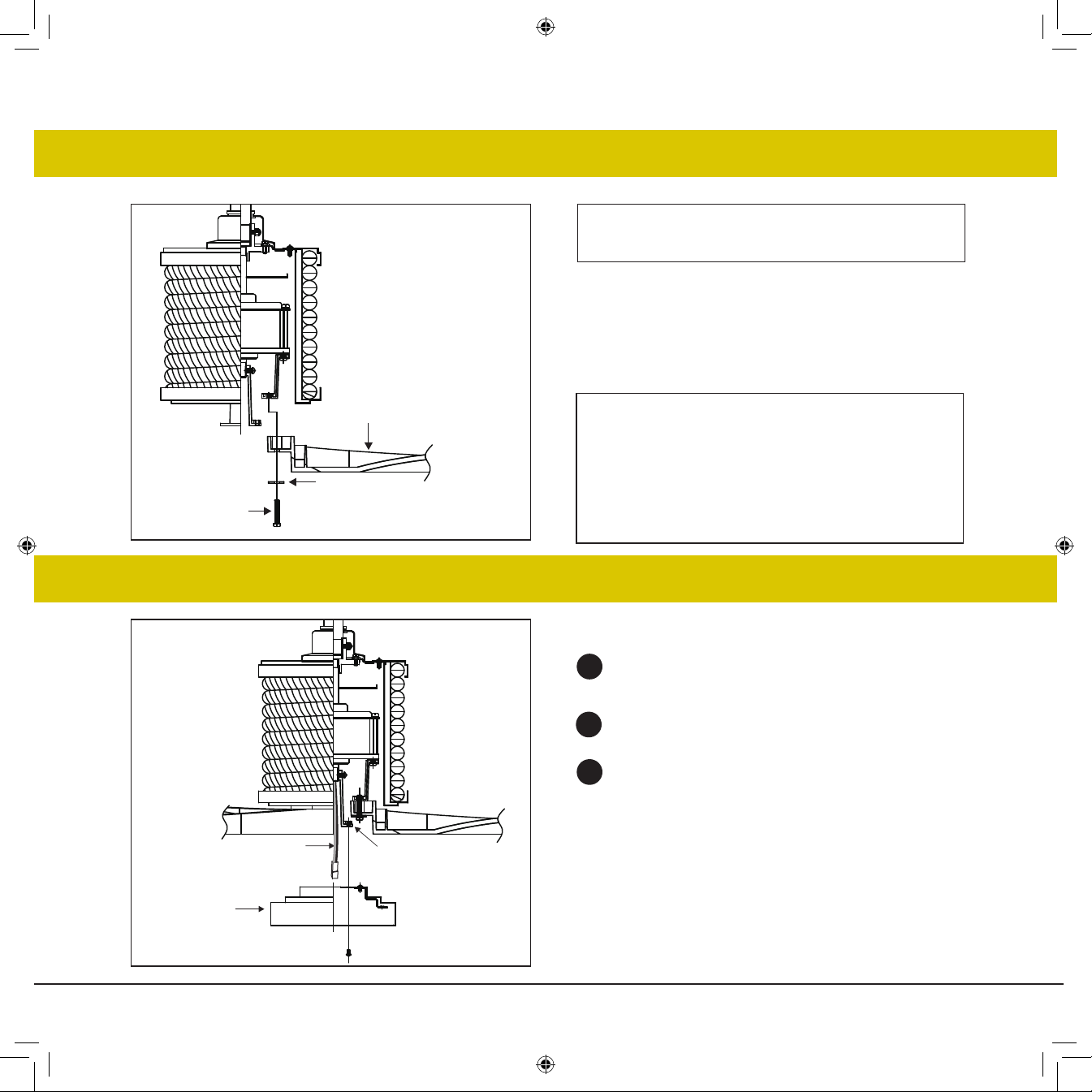

INSTALLING THEMONTING PLATE
INSTALLING THE BLADES
1
2
3
NOTE: Be sure the power is off before installing.
Remove one of the three screws on the mounting hub
located on the fan motor. Loosen the other 2 screws. (Do
not remove) (Fig. 1)
Pass the light wires through the center hole of the adapter
plate A.
Place the key holes on the adapter plate A over the 2
screws previously loosened, turn the adapter plate until it
locks in place at the narrow section of the key holes.
Secure by tightening the 2 screws previously loosened
and the one previously removed.
Fig. 1
Blades
Blade
support
plates
Screws
Mounting Hub
(bottom of motor)
Adapter
plate A
Light Wires
CAUTION: Remove the six rubber packing mounts from the fan
motor assembly and discard prior to attaching the blades.
Fasten blade to motor with provided blade mounting screws
and blade support plates. Repeat procedure for remaining
blades. Make sure screws are TIGHT! Loose motor screws can
contribute to unnecessary hum during operation.
NOTE:
Cordless power screwdrivers are NOT recommended,
as they usually strip the heads of the screws and
usually will not fully compress the lock washers on
the motor screws. Use a large flat blade screwdriver
for final tightening to fully compress the washers. This
will help ensure proper alignment of the blades and
noise-free, wobble-free running.
NOTE: Remove any rubber supports that are installed for
shipping.

©2020 Hinkley Lighting, Inc.|hinkley.com |11
INSTALLING THE LED ASSEMBLY AND GLASS SHADE
1
2
3
4
5
5
NOTE: Be sure the power is off before installing.
Remove one of the three screws on the adapter plate located
on the fan motor. Loosen the other 2 screws. (Do not remove)
(Fig. 2)
While holding the LED assembly under your fan, make the
polarized plug connections: (Fig. 2)
- Red to white
- Black to black
Tuck connections neatly into adapter plate. Place the key
holes on the LED assembly over the 2 screws previously
loosened, turn the LED assembly until it locks in place at the
narrow section of the key holes. Secure by tightening the 2
screws previously loosened and the one previously removed.
Raise the glass shade against the LED assembly and turn
clockwise until snug, DO NOT OVERTIGHTEN.
Restore power and your LED assembly is ready for operation.
Fig. 2
LED
assembly
Wire connectors
Glass shade
Screws

12 |hinkley.com

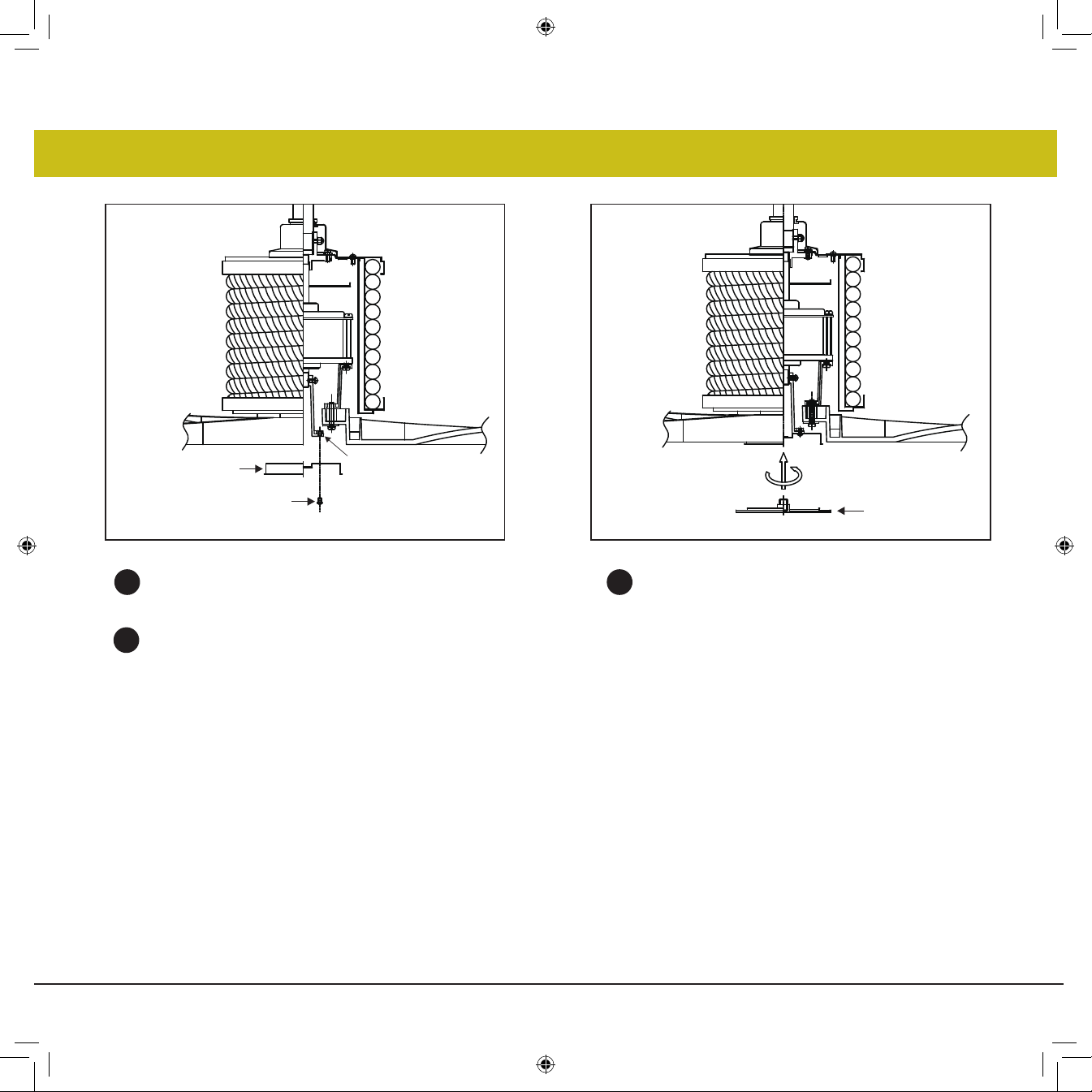

INSTALLING THE FAN WITHOUT THE LIGHT KIT (OPTIONAL)
1
2
Fig. 1
Screws
Adapter Plate B
Fig. 2
Metal Cover
Remove one of the three screws on the mounting hub
located on the fan motor. Loosen the other 2 screws. (Do
not remove) (Fig. 1)
Place the key holes on the adapter plate B over the 2
screws previously loosened, turn the adapter plate until it
locks in place at the narrow section of the key holes.
Secure by tightening the 2 screws previously loosened
and the one previously removed.
1Secure the metal cover to the adapter plate B.
Mounting Hub
(bottom of motor)

INSTALLING THE WALL CONTROL
©2020 Hinkley Lighting, Inc.|hinkley.com |13
Fig. 1
Fig. 2
REMEMBER to turn off the power before you begin.
NOTE - Secures to any surface or application: flat wall, single gang
box, multi gang box.
1
2
3
4
Outlet box
Option 1. Flat Surface Installation
Select a desired location. Use the wall plate to mark the
location of the mounting holes. Plastic wall anchors or
mounting screws are needed for this application. (Fig. 1)
Seat the cradle B into the wall plate. Secure the wall plate to
the wall using the provided hardware.
Snap the face plate cover onto the wall bracket.
Remote transmitter will be held in place with built in magnets.
Remove the existing wall plate and the old switch from the wall outlet
box.
Seat the cradle A into the wall plate. (Fig. 2)
Connect the black lead wires from the switch in the cradle A to the
black wires in the switch box. Hot input wire to one of the cradle A
switch leads. Power lead to the fan is connected to the remaining
switch lead.
Connect the wall plate / cradle A assembly to the wall outlet box
using the supplied hardware.
Snap the face plate cover onto the wall bracket.
Remote transmitter will be held in place with built in magnets.
1
2
3
4
5
6
Option 2. For single gang box
Transmitter
Transmitter
Face plate
Face plate
Wall plate
Wall plate
Cradle B
Cradle A
Wall
Plastic
anchor
HIRO Control System

Fig. 3
Remove the existing wall plate and old switch from the wall
outlet box. (Fig. 3)
Connect the black lead wires from the switch in the cradle A
to the black wires in the switch box. Hot input wire to one of
the cradle switch leads. Power lead to the fan is connected
to the remaining switch lead. (Fig. 4)
Attach the cradle A to the wall switch box using the supplied
hardware.
Attach the multi-gang faceplate to the switch set in the wall
outlet box. Cradle A of Hinkley switch will fit in any standard
decora face plate.
Remote transmitter will be held in place with built in magnets.
1
2
3
4
5
Option 3. Multi Gang Wall Switch Box Installation
Fig. 4
Outlet box
Face plate
Switch
Outlet box
Transmitter
Face plate
Cradle A
HIRO Control System
14 |hinkley.com

OPERATION
Your DC brushless motor is equipped with an
automatically learned type remote control.
There is no frequency switches on the receiver
or transmitter. The fan can start to use once the
pairing process is done.
Remove the panel from the transmitter and then
install one 2032 battery (included). You need to
use a coin to open or close the battery cover.
To prevent damage to transmitter, remove the
battery if not use for long periods of time (Fig. 1)
Fig. 1
Fig. 2
Signal light
ON
OFF
1
2
3
4
5
button:
Press this button and release instantly to
turn on or off the light.
button:
Press and hold to dim or brighten lights
to the desired level and release.
button:
Press this button to set fan wind direction
up or down.
button:
Press button for turn on and setting 1-6
fan speed.
button:
Press this button to turn the fan off.
Signal light (Fig. 2)
6
WARNING: Chemical Burn Hazard. Keep
batteries away from children.
This product contains a lithium button/coin cell
battery. If a new or used lithium button/coin cell
battery is swallowed or enters the body, it can
cause severe internal burns and can lead to
death in as little as 2 hours. Always completely
secure the battery compartment. If the battery
compartment does not close securely, stop
using the product, remove the batteries, and
keep it away from children. IF you think
batteries might have been swallowed or placed
inside any part of the body, seek immediate
medical attention.
The batteries shall be disposed of properly,
including keeping them away from children;
Even used cells may cause injury.
HIRO Control System
©2020 Hinkley Lighting, Inc.|hinkley.com |15
Pairing Process
NOTE: If installing/pairing more than
one fan in an area, the power must be
disconnected from all fans except the one
fan being paired.
With the fan’s power off, restore power to the
fan. Press and hold “ ” button for about 5
seconds and release. If optional light kit is
installed, the light kit will flash three times and
the motor spin up for 10 seconds on low speed.
The fan has completed the pairing process with
the wall control and is ready for use.
NOTE: A single fan can be controlled with as
many as 3 wall controls in one room. Every
control will need to repeat the pairing process
based on instructions above and all controls
must be within 30 feet of the fan.

1
2
3
Fig. 3 Fig. 4
SUMMER MODE
(COUNTERCLOCKWISE DIRECTION)
WINTER MODE
(CLOCKWISE DIRECTION)
Summer Mode and Winter Mode Operation
IMPORTANT: To prevent damage or cause injury, be sure that fan is switched to off and blades have stopped moving completely
before attempting to change direction of rotation.
Summer Mode (forward):
A DOWNWARD airflow creates a cooling effect as shown in Figure 3. This allows you to set your air conditioner on a warmer setting
without affecting your comfort.
Winter Mode (Reverse):
An UPWARD airflow moves warmer air off the ceiling area as shown in Figure 4. This allows you to set your heating unit on a cooler
setting without affecting your comfort.
16 |hinkley.com

CARE AND CLEANING
TROUBLESHOOTING
PROBLEM SOLUTION
Periodically it may be necessary to re-tighten blade to blade arm screws or blade arm to motor screws to prevent clicking or humming sound
during operation. This is especially true in climates with broad temperature and humidity ranges.
When dusting the blades, you must support the blade to prevent bending - no pressure should be applied to the blades. If you experience any
flaws in the operation of your fan, please check the following points.
Fan Will
Not Start
Fan Sounds
Noisy
Fan Wobbles
Remote Control
Malfunction.
1. Check main and branch circuit breakers and/or fuses.
2. Check line wire connections to fan housing wiring. Make sure forward/reverse switch is set to one or the other
position, not stuck in between.
3. Check to make sure the dip switches from the transmitter and receiver are set to the same frequency.
1. Check and make sure that all screws in motor housing are snug (but not over tight).
2. Check that the screws securing blade arms to the motor are tight.
3. Check that wire connectors in switch housing are not rattling against each other or the interior wall of the switch
housing.
4. Check that all glassware is finger tight and that bulb(s) are well held in the sockets, if a light kit is used.
5. Check that the canopy is firmly attached to hanging bracket and not vibrating against ceiling.
1. Check that all blades are firmly screwed into blade arms. Check that all blade arms are firmly secure to the motor.
2. Check to make sure that light kit (if present) is firmly attached to switch housing and that all glassware and shades
are fastened properly. Wobble can also result from even the smallest deviations in distance from blade tip to blade
tip.
3. If measurements from blade tip to blade tip are not equal, loosen screws connecting blade to blade arm one at a
time and adjust blade(s) so that distances are equal.
4. Interchanging adjacent blades may redistribute mass and result in smoother operation. Blade arms can be bent
slightly to restore same pitch to all blades if a blade is different than the other blades when viewed edge on.
5. Most wobble can be traced to a loose electrical box or mounting bracket. Make sure these are tight and the ball is
completely seated in the bracket.
6. Use the enclosed Blade Balancing Kit if the blade wobble is still noticeable.
WARNING: To reduce the risk of personal injury, do not bend the blade arm while installing, balancing the blades, or
cleaning the fan. Do not insert foreign objects between rotating fan blades.
1. Do not connect the fan with a wall mounted variable speed control(s).
2. Make sure the dip switches are set correctly.
CAUTION:
Switch off power supply before carrying out any of these checks.
©2020 Hinkley Lighting, Inc.|hinkley.com |17

ENERGY GUIDE SPECIFICATIONS
AVERAGE PERFORMANCE AND ENERGY INFORMATION
ftc.gov/energy
• The higher the airflow, the
more air the fan will move
• Airflow Efficiency: 273 Cubic
Feet Per Minute Per Watt
Airflow
4,601
Cubic Feet Per Minute
• Based on 12 cents per kWh and 6.4 hours use per day
• Your cost depends on rates
• Energy Use: 17 Watts
and use
$
3
$
34
Cost Range of Similar Models (19” – 84”)
$5
Estimated
Yearly Energy Cost
All estimates based on typical use, excluding lights
Airflow Shown Is a Weighted Average of High and Low Cubic Feet per Minute Based on Downrod
6324 2648
26.6 2.9
238 919
PERFORMANCE
SPECIFICATIONS
STANDARD
HIGH SPEED LOW SPEED
Airflow (CFM)
Energy Use (Watts)
Airflow Efficiency (CFM/W)
Energy Costs (Yearly)
Amps 0.0 0.0
RPMs 00
$5 $1
18 |hinkley.com
