HISAKA UX Series User manual

Plate Heat Exchanger
2 Operation and Maintenance Manual
Thank you for purchasing a Hisaka Plate Heat Exchanger.
Manuals for the HISAKAPlate Heat Exchanger consist of the following seven related documents.
1. Installation Manual, 2. Operation and Maintenance Manual, 3. Gasketting Manual (Total 10 Models), 4. Plate
Cleaning Manual, 5. "Slit-In" Type Gasketting Manual, 6. Mixed Gasket Materials Manual, and 7. Strainer
Maintenance Manual.
These documents are available at our website (http://www.hisaka.co.jp/english).
Drawings (Plate Arrangement Drawing and Assembly Drawing) of supplied model are to be supplied with the
equipment.
Use as directed in these Manuals for safe and proper operation and maintenance.
Keep these Manuals in hand.
All description details, including appearance and specifications, presented in this manual are subject to change for
improvement without prior notice. For the latest information, please refer to our website, if necessary.

Introduction
<Plate Heat Exchanger>
Plate Heat Exchanger (hereinafter “PHE”) performs heat exchanging by transferring heat between hot and cold fluids
flowing alternately through heat transfer plates, which are thin metal sheets having fine corrugated patterns.
<Use of Equipment>
To prevent injury to persons, do not use the equipment for anything other than its intended purpose and specification. Also,
installation and maintenance shall be carried out according to these Manuals.
<Trained Operators>
Operation, maintenance/inspection, or installation of the equipment shall be performed by personnel/operators who have
undergone training regarding safety and danger prevention drills.
Work in high places shall be performed by personnel/operators who have undergone training regarding safety and danger
prevention drills.
<Export Regulations on the Equipment>
According to the Export Control released by Japanese Government (METI), export of the equipment may be subject to
export regulation under the Foreign Exchange and Foreign Trade Act. In case of exporting the equipment or component
parts of equipment from Japan, reselling, relocating or re-exporting from an original installation site out of Japan, please
contact our company in advance.
<Disposal of the Equipment>
At the end of use, the equipment shall be disposed or recycled according to relevant, local regulations. Besides the
equipment itself, any hazardous residues from the process liquid must be considered and dealt with in a proper manner.
<Use of this Installation Manual>
Read this manual thoroughly and understand the precautions regarding the safety of the equipment and its functions before
handling the equipment.
This manual is created for a person who fully understands the language it is written in. If a person, who is not able to
understand the language written herein, will handle the equipment, please provide safety instructions to the
personnel/operators.
PHE supplied may differ from the drawings and pictures in these Manuals depending on the optional parts if any. Also, for
the purpose of explanation, the drawings and pictures in these Manuals may omit the details, accessories, or the like.
Changing the contents of these Manuals, in part or in whole, or using them for anything other than its intended purpose is
prohibited.
<Disclaimer>
HISAKAaccepts no liability for any failures in the function or performance of the equipment caused by use of any other than
genuine parts.
HISAKA accepts no liability for any injuries or damage borne by the user, caused by use of any other than genuine parts..

HISAKA Plate Heat Exchanger
Operation and Maintenance Manual
Table of Contents
1Safety Precautions P1, 2
2Names of Components P3
3Components Details P4
4Nameplate P5
5Accessories P5
6Consumables P5
7Model Description P5
8Tests Before Commissioning Operation P6
9Operation P7
10 Shutdown P7
11 Long-term Storage/Preservation P8
12 Maintenance P8 to 15
13 Troubleshooting P15, 16
14 Plate Arrangement Drawing P18
15 Assembly Drawing P19
16 Exploded View P20 to 23
17 Inquiries P24 to 26

P1
1 Safety Precautions
Read through this manual carefully before use, and use PHE properly.
If you have any questions, please inquire with our company.
Precautions are categorized using the following symbols.
WARNING This symbol indicates content where mishandling could result in death or severe injury.
CAUTION This symbol indicates content where mishandling could result in injury or property damage.
NOTE This symbol indicates important matters and/or useful information.
Meanings of Symbols
Indicates items that are "prohibited (something that you must
NOT do)". Indicates items that are "mandatory (something that you must do)".
WARNING
Do NOT use a piping gasket to the rubber covering nozzle of PHE.
Sealing performance could be decreased and it could be a cause of
leaking. In case of metal covering nozzle, piping gasket is required.
Keep fire-fighting equipment when handling flammable media.
If the flammable media ignites during operation or maintenance, it can
lead to a major accident.
In general, do NOT perform pneumatic test for medium and large
size PHE. For small size PHE, do not perform pneumatic test at
the same pressure as hydrostatic test pressure.
When compressed air or nitrogen for pneumatic test is leaked, it is very
dangerous since there would be an impact caused by volume expansion
in addition to such test pressure.
In general, do NOT perform pneumatic test in excess of 0.75 MPaG.
Install a protective cover on PHE when handling dangerous media,
which is high temperature, high pressure, strong acid, or a strong
alkaline.
If a dangerous media leaks and is splashed, it may lead to a serious
accident.
Do NOT loosen the thermometer, pressure gauge, tightening bolts
and nuts, and/or any other accessories during operation and/or
PHE pressurized.
It may cause burns or injury if fluid is blown out from PHE/pipes.
Make sure that the operation is stopped, the internal pressure is
"0", and the fluid temperature has sufficiently dropped before
disassembling the PHE
If fluid splashes from the PHE during disassembly, it may cause burns or
lacerations.
Do NOT use damaged tightening bolts, such as improper rust or
cracks.
When the tightening bolts breaks during operation or disassembly, it is
dangerous not only broken pieces are scattered, but also fluid may
splash from PHE.
When removing gasket, carry out in proper location with good
ventilation.
The gasket should be adhered with Hisaka’s “S-1", "F-2" contains an
organic solvent. Breathing the volatile ingredients for a long time may
cause symptoms such as headache, dizziness, and nausea. If these
symptoms occur, remove person to fresh air. If signs/symptoms develop,
get medical attention.
Do NOT use tightening bolts with loosed bolt head.
If the swaged bolt head loosens and comes off the bolt, it could burst at
high speed. It may cause a serious accident for any person or property.
Wear protective equipment such as protective goggles, a mask,
rubber gloves, and protective clothing if handling a dangerous
fluid such as a strong acid or strong alkaline.
Eye Contact: Flush eyes with large amounts of water. If signs/symptoms
persist, get medical attention.
Skin Contact: Remove contaminated clothing and shoes. Immediately
flush skin with large amounts of water. Get medical
attention. Wash contaminated clothing and clean shoes before reuse.
Inhalation: Remove person to fresh air. If signs/symptoms develop, get
medical attention.
If Swallowed: Do not induce vomiting unless instructed to do so by
medical personnel. Give victim two glasses of water. Never
give anything by mouth to an unconscious person. Get medical
attention.
Do NOT incinerate the gasket.
Incinerating gaskets releases a toxic gas and is very dangerous.
Any unnecessary gaskets should be disposed as industrial waste in
accordance with international, national, prefectural, and municipal
regulations.
Also, gaskets should be disposed under the local jurisdiction.

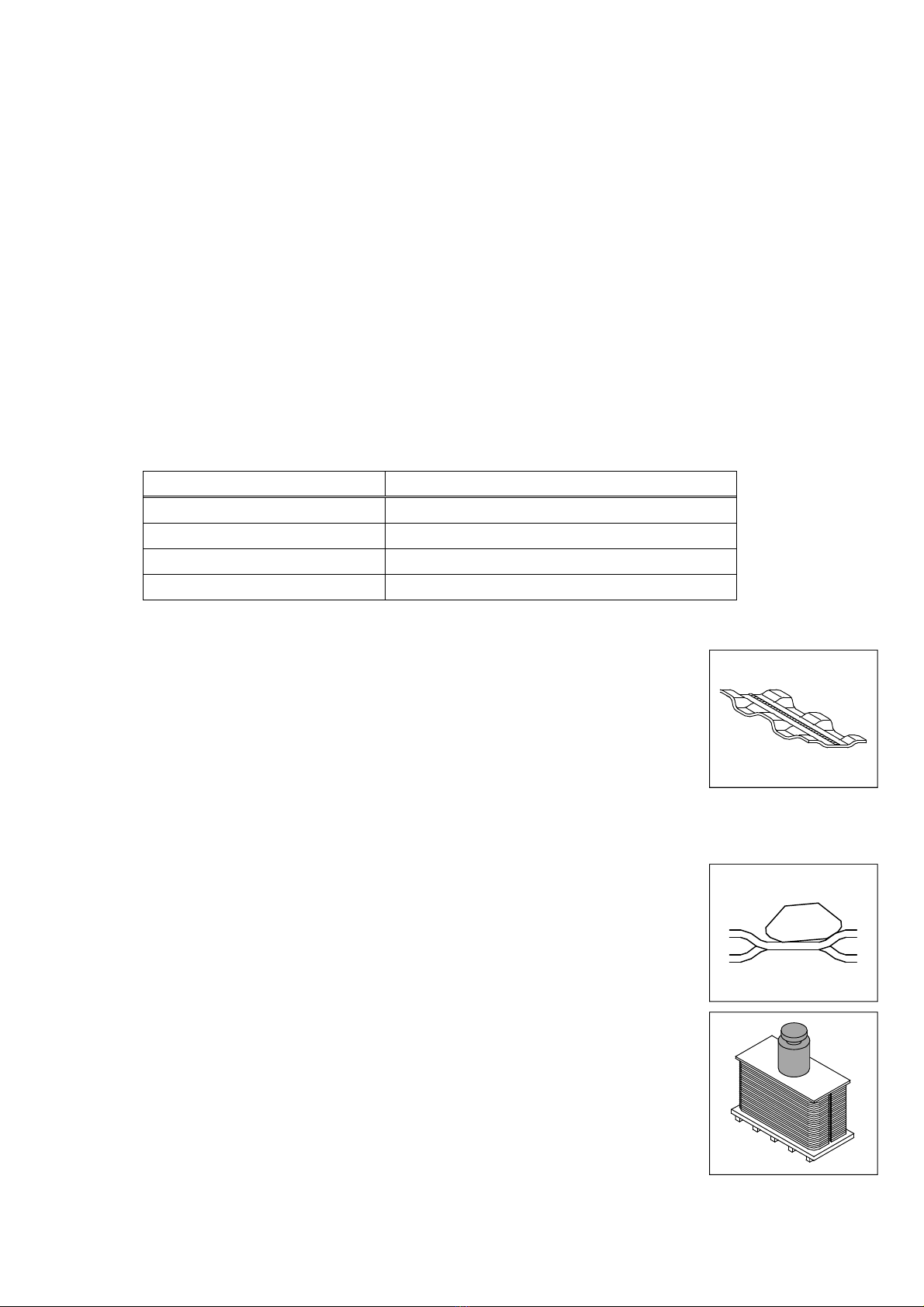

Do NOT handle the heat transfer plates in any place with strong
wind.
Under strong wind, the heat transfer plates it could fly, cut, injury, and
bruise.

P2
CAUTION
Do NOT touch the side of plate pack and heat transfer plate edge.
The edge of a heat transfer plate is very sharp and may cut you.
Be sure to wear cut-resistant gloves whenever touching heat transfer
plate.
Do NOT freeze.
If freezing occurs in PHE, the heat transfer plates may be damaged.
Drain out completely to avoid freezing in case of preservation in cold
areas. In warm areas, if storing the equipment for a long time, store it
with liquid at full capacity.
Do NOT place objects on plate pack.
It may cause deformation of heat transfer plate.
Falling object may cause injury during operation.
If using a pump with specifications in excess of the PHE's design
pressure, install a safety device on the pump's delivery side or the
PHE's inlet or outlet.
Even if not required by applicable code and regulation, a safety device is
necessary to protect the equipment.
Do NOT make heat transfer plate edge deform by contacting with
surrounding object.
Deformation of the heat transfer plate may cause damage on plate
gasket and result in leakage.
Secure working space around PHE.
Adequate piping design is required, taking into account the working
space for disassembly and tightening device.
Do NOT shorten guide bar by cutting.
It makes disassembling of the PHE impossible. Perform maintenance of PHE that handle dangerous fluids, such as a strong acid or strong alkaline, in an environment that has drain
water treatment equipment.
Waste media in accordance with laws, codes and regulations. Be careful
not to drain liquid into a river or ocean area.
If untreated liquid leaks, take measures in accordance with the "Material
Safety Data Sheet (MSDS)" for the treatment liquid you used.
In general, do NOT remove stud bolt of connection.
It may cause damage on the threads.
Stud bolt is to be removed very carefully not to make any damage on the
threads of both stud bolt and its hole at your own risk, only when it is
absolutely necessary.
Do NOT weld or attach any piping support onto the frame, guide
bar, and/or guide bar support.
Welding causes thermal damage on plate gaskets and attached parts
may interrupt handling when disassembling.
In case of inner strainer is inserted PHE, remove it at the time of the
back wash.
It may cause damage on the inner strainer.
Do NOT enter debris or foreign materials into PHE.
Install a strainer on upstream to prevent clogging in PHE.
When flushing pipes for commissioning operation, install a temporary
strainer or provide bypass on upstream PHE in order to prevent debris
or foreign materials into PHE.
Remove the smell of gaskets and/or adhesive by hot water cleaning
inner of PHE in order to prevent the fluid from absorbing these
smells.
Fluid may absorb the smell of plate gaskets and/or adhesive when
PHE is newly installed or plate gaskets are replaced.
To avoid above, clean the inner of PHE using hot water and remove the
smell. In case of applying F-2 adhesive for food product use, cleaning
with 80℃hot water and 8 hours is recommended as a minimum.
Do NOT start and stop the pump frequently (in a short time).
During commissioning, pay attention to time duration of pump start/stop,
or there would be leakage due to difficulty of gasket restoration caused
by temperature and pressure variation. After stopping, min. 3 minutes is
recommended to restart.
Open and close the valve slowly so as not to create a sudden pressure
fluctuation.
Do NOT operate in excess of the design conditions (temperature,
flow rate, pressure, etc.).
It may cause deformation of the heat transfer plates or leakage. Also,
the required performance may not be achieved.
Do NOT apply impact pressure and instantaneous pressure
fluctuation.
Do not apply impact pressure and instantaneous pressure fluctuation to
PHE, such as from starting-up of pump, sudden close of valve, or by
steam hammer occurred. Deformation, cracks, or leaks in the heat
transfer plates are possible if long time repeated pressure pulsation
within few seconds
Do NOT apply instantaneous negative pressure.
Drawdown may occur if instantaneous negative pressure is applied to
the PHE by pump stop or valve closing, or heat transfer plates
deformation may also.

P3

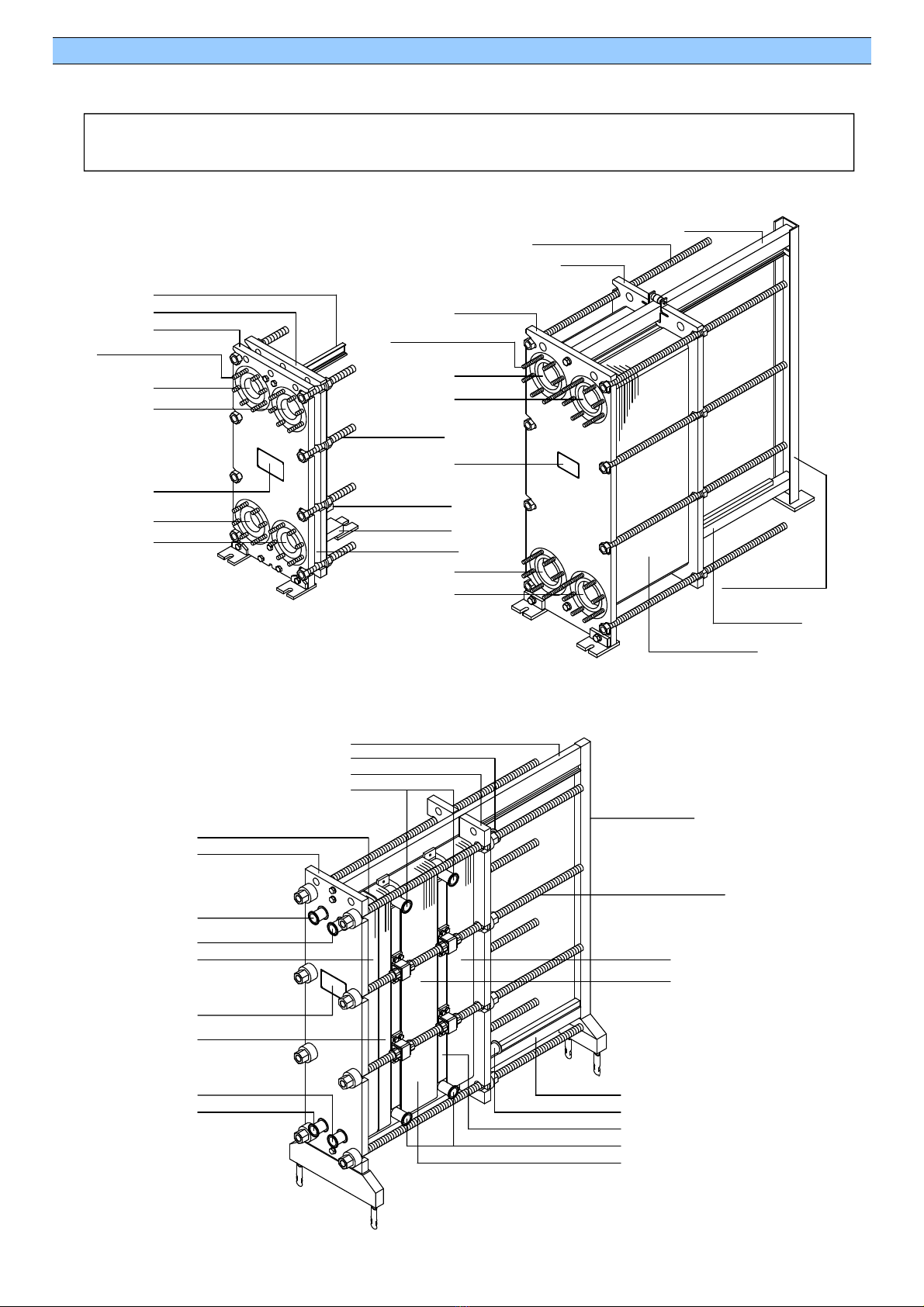

2 Names of Components
PHE consists of the following parts.
Heat transfer plates
Upper guide bar
E-Frame
S-Frame
Stud bolt and nut
S-nozzle
S-nozzle
Name plate
S-nozzle
S-nozzle
Tightening bolts
and nuts
Lower guide bar
Frame support
Heat transfer plates
S-Frame
Stud bolt and nut
S-nozzle
S-nozzle
Name plate
S-nozzle
S-nozzle
E-Frame
Tightening bolts and nuts Upper guide bar
Lower guide bar
Guide bar support
●
●
●
●
Upper guide bar
E-nozzle
E-Frame
C-nozzle
L-Frame
S-Frame
S-nozzle
S-nozzle
S-nozzle
S-nozzle
<SectionⅠ>
Nameplate
<SectionⅡ>
Guide bar support
Tightening bolts and nuts
<SectionⅣ>
<SectionⅢ>
Lower guide bar
E-nozzle
C-nozzle
C-Frame
Heat transfer plates
[NOTE]
Refer to the "Plate Arrangement Drawing" for equipment specifications.
Fig. 2-1 J Type Heat Exchange
r
Fig. 2-3 BP2CL Type Heat Exchange
r
Fig. 2-2 P Type Heat Exchange
r

P4

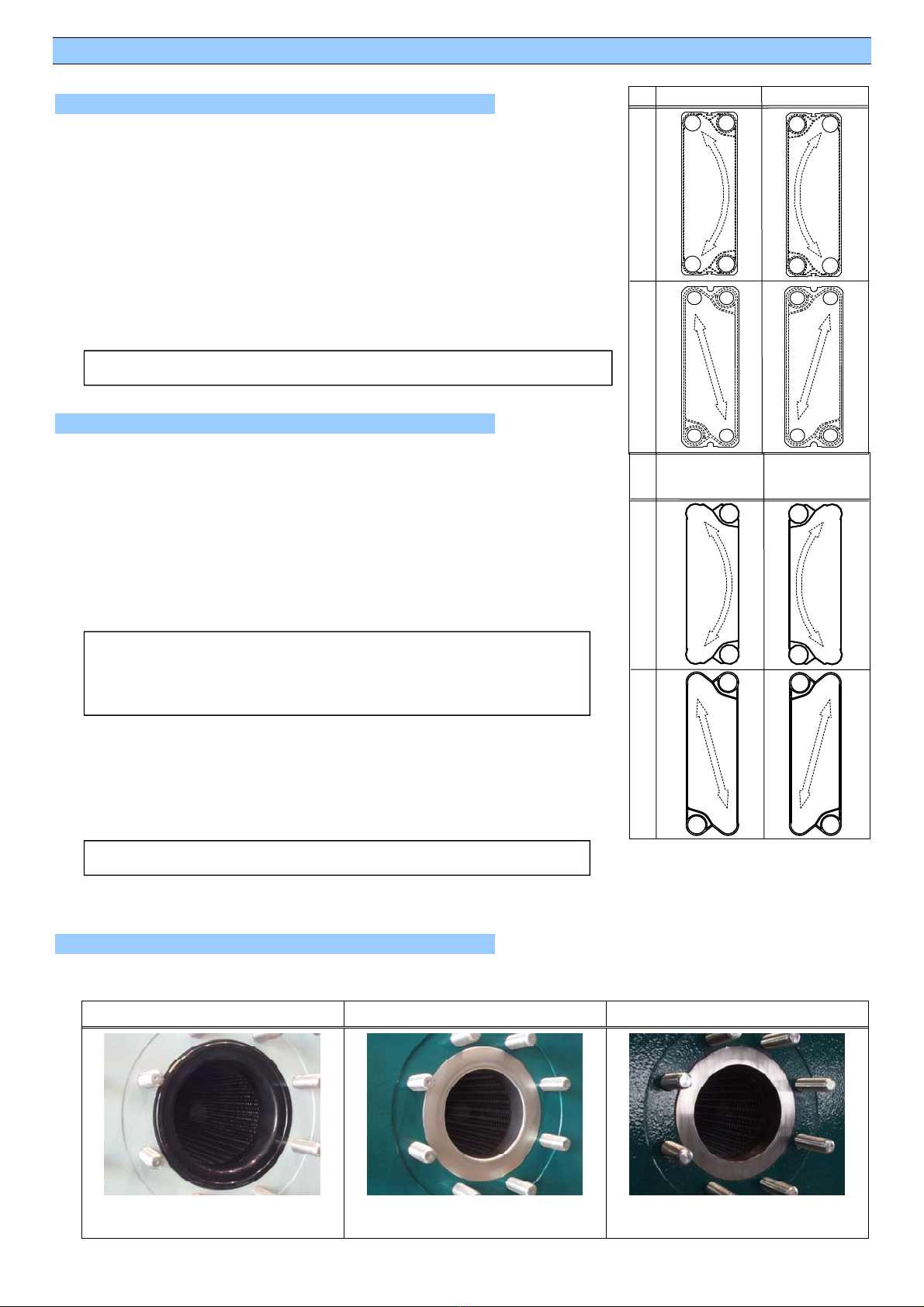

3 Components Details
The heat transfer plates comprise of the following three types.
D-Plate (First heat transfer plate between the S, L, C, and E-Frames)
E-Plate (Last heat transfer plate between the S, L, C, and E-Frames)
Channel plates (Heat transfer plates except for the D-Plate and E-Plate between
the S, L, C, and E-Frames)
A-Plates are fliped upside down to be used as B-Plates.
The opposite is the same.(Excluding some models)
We have a lineup of the following materials for heat transfer plates.
The plate gaskets comprise of the following four types.
D-Gasket (Installed to the D-Plate port hole)
E-Gasket (Installed to the E-Plate port hole)
Channel gaskets (Gaskets installed to the front surfaces of heat transfer plates
other than the D-Plate)
Distance piece (String gasket that fills the gasket groove on the D-Plate or
E-Plate)
"A-Plate channel gaskets" are fliped upside down for Trapezoidal flow or fliped
horizontal and upside down for Diagonal flow to be used as "B-Plate channel gaskets".
The opposite is the same.
We have a lineup of the following materials for gaskets.
"A-", "AG-", or "AN-" in front of the gasket material indicates "Slit-In" type.
Following figures are standard products for connection.
Other types of connections are available as you want.
N TN KN
Fig. 3-1. Rubber covering type
Fig. 3-2. Metal covering type
(Bended product)
Fig. 3-3. Metal covering type
(Welded product)
3-1 Heat Transfer Plate
3-2 Plate Gasket
3-3 Connection
Stainless steel, Titanium, Titanium alloy, Nickel alloy, and so on
[NOTE]
These are not mounted on some types depending on the heat transfer plate
model and whether the plate is with or without passage holes.
NBR, EPDM, Silicon, FPM, PTFE encapsulated, and so on
A-Plate
Trapezoidal flow
B-Plate
Flow
Flow
Flow
Flow
Diagonal flow
B-Plate
gasket
Flow
Flow
Flow
Flow
A-Plate
gasket
Trapezoidal flow
Diagonal flow

P5

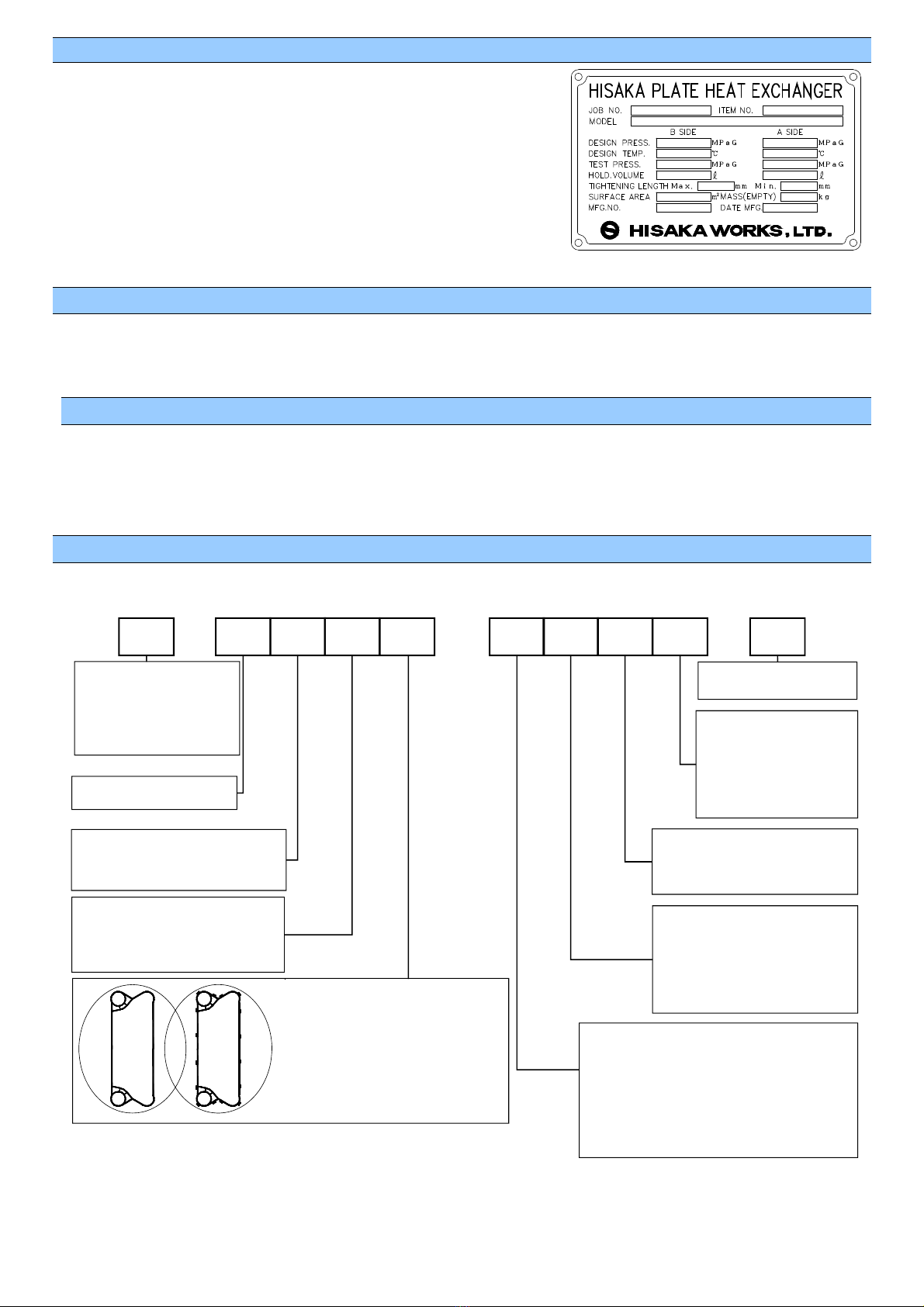

4 Nameplate
The figure on the right is manufacturer’s standard nameplate installed on a
Hisaka PHE.
When inquiring, notify us of the "MFG. NO." and "MODEL (TYPE)"
described on the nameplate.
TIGHTENING LENGTH Max. on the nameplate may differ from that of
Assembly Drawing. The former is the actual dimension at delivery, while
the later is only the design dimension. When reassembling after replacing
plate gaskets or cleaning, follow the values on the nameplate.
5 Accessories
Any accessories, like a ratchet spanner, anchor bolt, thermometer, pressure gauge, etc., for HISAKA PHE are to be supplied as
option upon request.
6 Consumables
Not all heat transfer plates are durable parts. Heat transfer plates to be used under corrosive and/or erosive environment
shall be considered as consumables. (Refer to: "12-3-1. Heat Transfer Plate Replacement")
Plate gaskets are consumables. Replace them periodically. (Refer to: "12-3-2. Replacement of Plate Gasket")
7 Model Description
The model description for HISAKA PHE indicates the following details.
Plate thickness
- 5: 0.5mm
- 6: 0.6mm
- 8: 0.8mm
- 0: 1.0mm
Chevron angle o
f
heat transfer
pattern
- 1 to 6: Mono arrangement
- 7 to 9: Mixed arrangement
Size of heat transfer plate
- 0 (small) to 16 (large)
Heat transfer plate model
- UX
- LX
- SX
- RX
Etc.
RX 1 4 6 A TN H J R 24
-
Connection
- None: Projected nozzle with flange, ferrule,
etc.
- N: Rubber covering
- TN: Bended metal covering
- KN: Welded metal covering
Stainless steel covers
- B: Exclusive for food machiner
y
use
Indicates the class of the frame's
resistance to pressure
- None or E: For low pressure
- U: For high pressure
- H: For middle pressure
- S: For ultra-high pressure
Etc.
Indicates special
specifications.
- R: Saturated steam
heating
- L: With a divider
- C: With a channel frame
Etc.
Indicates the number of
heat transfer plates.
Indicates the frame model.
- J: Exclusive for small size / less
plates
- P: Universal except for the above
- -
ＡＢ無
Plate type
- None: Glued
- A: Slit-in (Glueless)
- B: Slit-in with gasket glued
* Either of the left figures is applicable
except for some models.
- D: Diagonal flow plate (Refer to P4)
None
Fig. 4-1. Nameplate (sample)

P6
8 Tests Before Commissioning Operation
After installation, commissioning operation of the PHE is to follow the conditions below.
Check the following nine items.
If all of the items are not satisfied, do not operate the equipment and inform your supervisor or safety manager.
Install safety apparatus compliant with various standards or regulations to the PHE installed line.
Confirm that the nozzle orientation in the "Plate Arrangement Drawing" and "Assembly Drawing".
Provide venting on both side of the PHE to facilitate the removal of air from the system.
Do not apply valve and piping loads to the nozzles. Use pipe supports not to load on the S-, C-, and E-Frames.
However, support structures are not installed in the maintenance space, or a removable support structure is used.
Ensure that flushing is completed in order to prevent welding spatter, debris and/or foreign materials into PHE.
Confirm that the tightening length is correct.
Tightening length on the Assembly Drawing may differ from actual length. Refer the tightening length in the nameplate which
describes the actual dimension at the delivery and after maintenance.
Confirm that all nuts for tightening bolt are not loose. Confirm that all nuts for S-,E-nozzle are not loose.
Fulfill the fluid for both hot and cold side. Confirm all air is out and liquid will flow out of the vent. Ensure that start the
operation with fulfilled condition, when non-fulfilled condition of PHE, it may result the following;
- pump overload
- heat transfer plates may be deformed and cracked, leaked due to impact pressure
There is no leak between the heat transfer plates, piping connections, or other locations.
PHE has been performed pressure-leak test before delivery. In case of retest at site, follow below instructions.
Also, in case of pressure /leak test for whole system including up/down stream equipment, follow below instructions.
In case of hydrostatic test
Pressurize hot and cold side independently and/or both sides at the same time. Actual test pressure shall not exceed the
specified test pressure. Over test pressure could result in heat transfer plate/frame deformation and/or leaking. The test
pressure is referred to Plate Arrangement Drawing.
In case of pneumatic test
Pressurize hot and cold side independently and/or both sides at the same time. Keep distance from PHE during the test.
When compressed air or nitrogen for pneumatic test is leaked, it is very dangerous since there would be an impact caused
by volume expansion in addition to such test pressure. The test pressure is referred to Plate Arrangement Drawing.
Initial flushing for piping shall be performed after piping before operation in order to prevent welding slag and/or leavings, such
as tool or dust cloth, come into PHE chamber. Generally, the methods of flushing are;
- Removing PHE from the piping
- Applying the temporary strainer for the upstream piping
In case of removing PHE from the piping, do not remove studded bolt on PHE frame. In case of applying temporary straighter,
refer to “1 Installation Manual, Table 8-1 Recommended strainer hole size” and select the adequate strainer hole size. Apply the
strainer with external reinforcement such as punching metal because screen without reinforcement can be damaged easily.
8-1 System Test, Piping Test, Equipment Test
8-2 Pressure/Leak Test for PHE and System Pressure Test
8-3 Initial Flushing for Piping

P7
9 Operation
The procedure for start-up depends on your use. Reconfirm your use and follow its procedure.
General Starting Operation (No burnt or No frozen fluid)
- Fullfill PHE chamber with media after all air is
expelled for both sides. - Flow heating side media. - Flow heated side media.
Starting operation in case of possibility of burn by using hot water
- Fullfill PHE chamber with media after all air is
expelled for both sides. - Flow heated side
media. - Flow heating side media.
Starting operation in case of possibility of burn by using saturation vapor.
- Fullfill PHE chamber with media after all air is
expelled for heated sides.
- Drain media from heating side.
- Flow heated side
media. - Flow heating side media.
Starting operation in case of freezing by using chilled water
- Fullfill PHE chamber with media after all air is
expelled for both sides. - Flo
w
cooled side
media. - Flow cooling side media.
[CAUTION]: Do NOT apply impact pressure.
Do not apply impact pressure to PHE, such as from starting-up of pump, sudden close of valve, or by steam hammer
occurred. Deformation, cracks, or leaks in the heat transfer plates are possible if long time repeated pressure pulsation
within few seconds
10 Shutdown
The procedure for shutdown depends on your use. Reconfirm your use and follow its procedure.
General shutting down (No burnt or No frozen fluid)
- Shut off heated side
media. - Shut off heating side media. - Hold until next start-up.
Shutting down in case of possibility of burn by using hot water
- Shut off heating
side media. - Shut off heated side media after
being less than burning temperature
of the media.
- Hold until next start-up.
Shutting down in case of possibility of burn by using saturation vapor.
- Shut off heating
side media. - Shut off heated side media. - Discharge drain steam completely after shutting down.
[CAUTION]: Check the NO steam leaking.
Surely check that NO steam is leaking after shutdown of PHE.
Steam might leaks slightly, even if steam valve may seem to be firmly closed.
Shutting down in case of freezing by using chilled water
- Shut off cooling side
media. - Shut off cooled side media. - Control the system to prevent freezing at shutting down.
- Drain at least one medium if there is a risk of freezing
after shutting down.
[CAUTION]: Do NOT operate vacuum pressure to PHE.
Provide safety device such as vacuum breaker to prevent deformation/cracking/leaking of heat transfer plate.
Media could contract the volume due to temperature decrease of media as a result PHE chamber could work into
vacuum pressure after shutting down of high temperature operation.

P8
Maintenance
space
Maintenance space
Maintenance space
11 Long-term Storage/Preservation
If the unit has been used and long-term storage is required, PHE is to be placed in storage as below table. The storage
conditions are depending on your application and the environment.
Environment/
A
pplication Storage Procedure
General use It must be completely drained and storage with empt
y
condition to avoid failures such as
alteration of any remaining liquid, corrosion in heat transfer plates, and damage to
components from freezing.
Seawater use It must be completely fulfilled and storage.
It is recommended to replace the seawater with clean water to prevent decay.
In case of long term storage with empty and dry condition, dried scale on the heat transfer
plates might not be able to cleaned.
Cold area use It must be completely drained and storage with empty condition If freezing occurs in PHE,
the heat transfer plates may be damaged.
Low temperature media use
Take care following four items when storing a spare gasket long term.
Do not place any items on it to avoid gasket deformation.
Store it in a black plastic bag or cardboard box to avoid ultraviolet exposure.
Store in a cool place avoiding direct sunlight and high temperature, high humidity.
Storage lifetime of new plate gasket is 3 years after the purchase. .
Take care following three items when storing a spare adhesive long term.
Store in a cool place avoiding direct sunlight and high temperature, high humidity.
Storage lifetime of new adhesive is 2 years after the purchase in case of general application “S-1” and food application
“F-2”.
Mix it well before use because the solvent and solids may separate due to long-term storage.
12 Maintenance
Periodic maintenance is recommended for long life use of PHE.
Do not hesitate to contact us for PHE total support, the "MARUGOTO PACK" maintenance.
Our excellent staffs, well-trained, carry out maintenance with their professional skills and techniques.
If the customer carries out maintenance by yourself, the below explanations: "12-1. Disassembly", "12-2. Cleaning", "12-3.
Maintenance", "12-4. Inspection", "12-5. Assembly", and "12-6. Leakage Detection" to be followed.
Disassembly preparation
(1) Record the tightening dimensions before disassembly in case of reusing plate gaskets.
Record of the tightening length is not required when using brand-new plate gaskets.
(2) Drain out media completely and make sure that no media and pressure is remaining from
the both chambers.
(3) For PHE with E-Nozzle and/or C-Nozzle, remove the primary and secondary connection
and ensure to keep maintenance space and moving space for E-Frame, C-Frame, and
heat transfer plates.
12-1 Disassembly
[NOTE]
The maintenance cycle is depending on your usage conditions. It is recommended to perform maintenance once per
year for brand-new PHE and estimate appropriate maintenance cycle based on the result thereof.

P9
(4) Apply lubricant the tightening bolts after cleaning all tightening bolt threads.
(5) Prepare the ratchet spanner or the automatic tightening device.
Disassembly work
Remove the tightening bolts and nuts as following steps by using a ratchet spanner or automatic tightening device.
The following procedures shows an example of PHE with 14 tightening bolts and nuts.
(6) Slowly loosen the tightening bolts in order from 1-2 to 13-14.
(7) After loosing tightening bolts/nuts, where the tightening bolt/nut can easily loose by using
bolts only 3,4,11 and 12, then remove all tightening bolts and nuts except for 3, 4, 11 and
12.
(8) Slowly loosen the tightening bolts in order from 3 - 4 - 11 - 12 - 3 and so on.
(9) After loosening the 3, 4, 11, 12 tightening bolts, remove them.
(10) Move the E-Frame to the guide bar support.
[NOTE]
If you have two sets of ratchet spanners and/or automatic tightening device,
slowly loosen two tightening bolts that are located diagonal, in order, 1 and
2, 3 and 4, to 11 and 12, 13 and 14,simultaneously
[NOTE]
Generally leave four tightening bolts and nuts, below the upper nozzles and
above the lower nozzles.
(These four tightening bolts generally are longer than the other tightening
bolts.)
[NOTE]
If you have two sets of ratchet spanners and/or automatic tightening device,
slowly loosen two tightening bolts that are located diagonal, in order, 3 and
4, 11 and 12, simultaneously.
[NOTE]
If the E-Plate and E-Frame are sticking each other, move back the E-Frame
slightly to separate E-Plate and E-Frame, and then move E-Frame to the
back end.

P10
12-2-1 Manual Cleaning
Cleaning preparation
Prepare a high-pressure washer or a soft brush, cleaning water, and dust cloths before cleaning the heat transfer plates.
Prepare a work/step platform for large PHE because heat transfer plate can clean with suspending on the upper guide bar.
Cover PHE with protective sheet to prevent the scattering of cleaning water.
Install a dust filter on the drain port to prevent clogging of the port by scale or dirt from heat transfer plates.
Cleaning method
Two method of cleaning the heat transfer plates are available.
Select a cleaning method depending on the PHE's installation condition and the capacity of effluent disposal.
Cleaning by heat transfer plates Removed
Remove the heat transfer plates from the PHE frame to clean. Place or pile
the heat transfer plates and clean both the front and back surfaces using a
high pressure washer or a soft brush, such as nylon.
Cleaning by heat transfer plates Suspended
Clean the heat transfer plates while they are still suspended from the upper
guide bar. Move the heat transfer plates one at a time to the S-Frame or
E-Frame direction and clean both the front and back surfaces of the heat
transfer plates using a high pressure washer or a soft brush, such as nylon.
[CAUTION] Do NOT use the heat transfer plates with a steel brush or steel wool.
If heat transfer plates are damaged by using a steel brush or steel wool, sealing performance could be decreased
and it could cause corrosion. Therefore, use a soft brush, such as nylon, so as not to damage the heat transfer
plates.
[CAUTION] Do NOT have the nozzle of the high pressure washer close to the PHE components.
High pressure water may peel the frame's coating or damage the heat transfer plate and plate gasket surfaces.
Therefore, keep the nozzle of the high pressure washer at least 100 mm away from the object being cleaned.
[CAUTION] Precaution for using a high pressure washer
Discharge pressure is 1 to 15 MPaG for the cleaning. Use water and a soft brush, such as nylon, for the scale
which is difficult to remove.
12-2-2 CIP - Cleaning In Place
Cleaning in place is the preferred cleaning method when especially cleaning liquid are processed in PHE unit. Appropriate
cleaning liquid could achieve a sufficient cleaning effect.
Please refer to "Plate Cleaning Manual" to select cleaning liquids and agents for PHE.
12-2 Cleaning
Fig. 12-1 Removal cleaning
Fig. 12-2 Suspended cleaning

P11
This type of hanger is set
on back (non-gasketted)
side.
2
3
1
1
4
3
This type of hanger is set
on front (gasketted) side.
(Except for YX mode)
12-3-1 Heat Transfer Plate Replacement
(1) Removing heat transfer plates
Replace any heat transfer plate with deformation, corrosion, or erosion to a brand-new one.
Please refer to “Plate Arrangement Drawing” and “Gasketting Manual” for heat transfer plate arrangement.
Rail type of upper guide bar (not round type)
- Slightly bend the bottom of the heat transfer plate.
- Slightly turn the heat transfer plate to the removing direction.
- Remove the lower hanger from the lower guide bar.
- Lift the heat transfer plate.
- Turn the heat transfer plate to the removing direction with a pivot point of upper
hanger.
- Remove the heat transfer plate from the upper guide bar rail.
Round type of upper guide bar (not rail type)
- Lift the heat transfer plate.
- Remove the hanger from the heat transfer plate.
- Turn the heat transfer plate to removing direction with a pivot point of upper guide bar
and remove.
(2) Hanging heat transfer plates
Rail type of upper guide bar (not round type)
- Hang the heat transfer plate's upper hanger on the upper guide bar rail.
- Turn the heat transfer plate to the inside direction with a pivot point of upper hanger
and install the lower hanger to the lower guide bar.
Round type of upper guide bar (not rail type)
- Install the upper hanger of the heat transfer plate on the upper guide bar.
- Turn the heat transfer plate to the inside direction with a pivot point of upper hanger
and install the lower hanger to the lower guide bar.
- Lift the heat transfer plate and hook the hanger.
- Hang the heat transfer plate on the upper guide bar.
12-3 Maintenance
[NOTE]
Following PHE models use round type guide bar and don’t have hangers.
Those models are held by upper and lower guide bars; UX-005, UX-01, RX-00,
and CX(W)-01,CX-10.
[NOTE]
Following PHE models use round type guide bar and don’t have hangers.
Those models are held by upper and lower guide bars; UX-005, UX-01, RX-00,
and CX(W)-01,CX-10.
2

P12
NG
5kg
12-3-2 Replacement of Plate Gasket
Replace a plate gasket if it has any wearing, cracks, swelling, carbonization, adhesion, or foaming.
For types of plate gaskets, refer to each model's "Gasketting Manual".
(1) Removing the plate gasket
1) Remove the used gasket.
Remove the used gasket with moderate force not to deform the heat transfer plate.
At this time, be careful not to damage the heat transfer plate.
2) Clean the plate gasket groove of heat transfer plate.
Use solvent on the market to wipe away any adhesive remaining in the heat transfer plate's gasket groove.
Remove dirt, dust, which is stuck on the heat transfer plate's gasket groove.
(2) Preparing to replace the plate gasket
1) If replacing plate gaskets, check and prepare the number of required gasket.
Visually check that there is no dirt, dust, which is stuck on the plate gasket's front and back surfaces. If there is
any visible scale on the front or back surface of the plate gasket, wipe it off using a clean dust cloth.
2) Prepare appropriate adhesive for the plate gasket material.
There are the following four types of adhesive. Use the adhesive HISAKA specified.
Types of adhesive Purpose of use
S-1 General use
F-2 For food products
Silicon type For silicon gaskets
Double-sided tape PTFE encapsulated gaskets, etc.
(3) Gasket adhesion.....Glued gaskets
1) Applying adhesive
Uniformly apply the specified adhesive to heat transfer plate's gasket groove.
Adhesion work should be done at a well-ventilated location because "S-1" and
"F-2" adhesives contain organic solvents. Work in improperly vented room is
prohibited.
Adjust the quantity of adhesive applied not to overflow the adhesive from the heat
transfer surface when the plate gasket is set on heat transfer plate.
2) Gasketting on heat transfer plate
Set plate gasket on heat transfer plate gasket groove.
At this time, be careful to prevent the gasket from run on to gasket groove wall.
The gasket expands during hot season and shrinks during cold season. When
gasketting, put the gasket in tight and or extend it.
3) Curing and pressing (Refer to P5 only if the plate gasket is type "B" or "None".)
Pile up gasketted heat transfer plate, place a weight (approx. 5kg) and a board
for curing. Perform curing time is 15 minutes and over.
Be careful not to fall over piled plates.
As recommendation, piled height is up to max. 1,000 mm.

P13
GOOD NG
or or
Heat transfer plate patterns

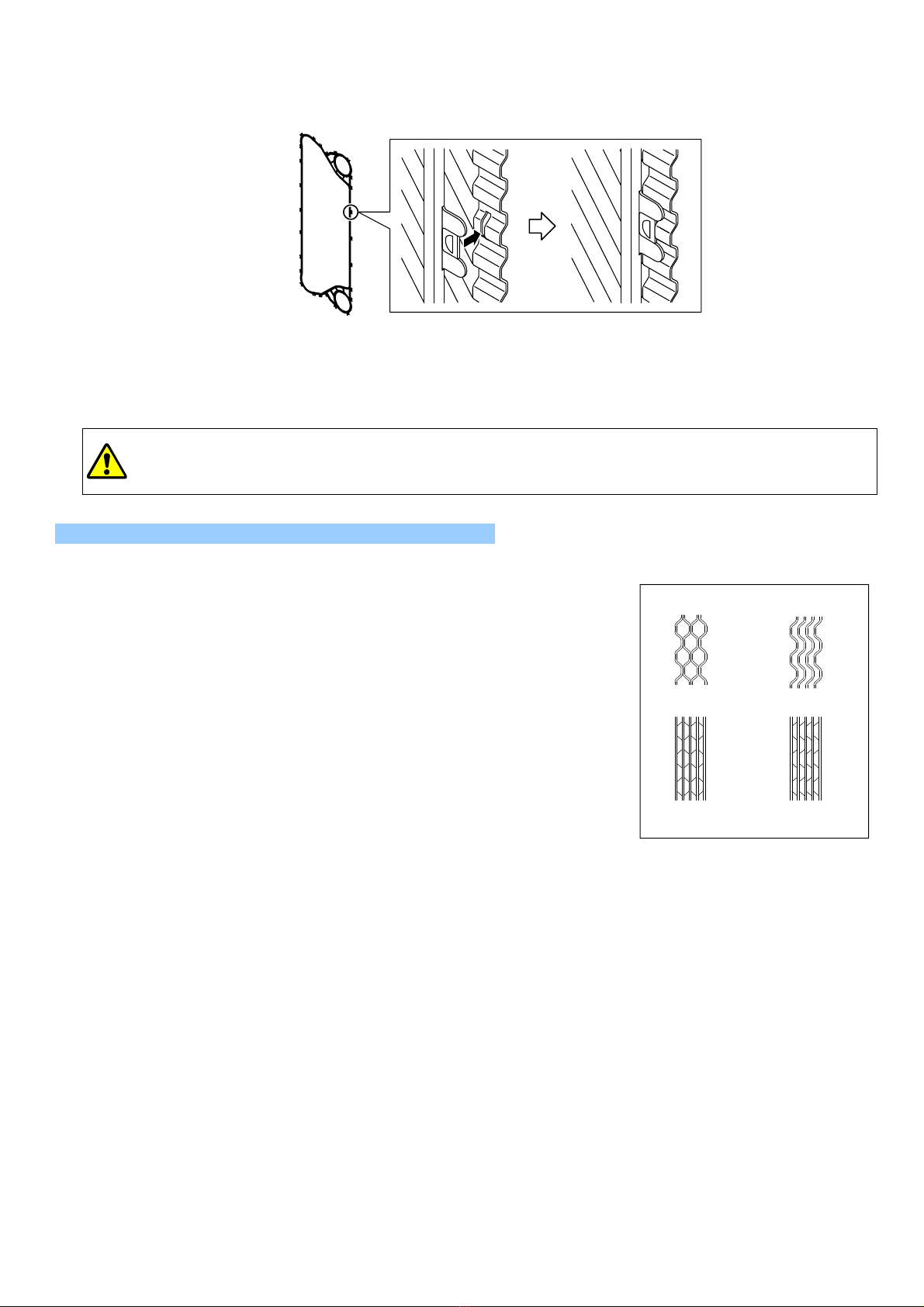

(4) Gasketting....."Slit-In" type plate gasket
1) Gasketting
Attach the plugging part of the gasket into the slit on the outside of plate gasket groove.
Be careful not to run on to gasket groove wall.
2) Gasket Bonding
Gaskets of D-Plate front side and E-Plate back side are not “slit-in” type. Apply adhesive to the gasket groove
and set D-Gasket(s) or E-Gasket(s).
Note: For only models which require gaskets of E-plate back side
[CAUTION]
Plate gasket has two sides. It is correct when stamp and color marking can be seen. (Some models are
exception.) Before gasketting, fix any twisting of gasket and check the front and back surfaces.
Be sure to perform the following inspections before assembling a Hisaka PHE.
Checking of heat transfer plate arrangement
– While moving all the heat transfer plates toward the S-Frame side or E-Frame
side one by one, check the heat transfer plate arrangement.
– For heat transfer plate arrangement, refer to the "Plate Arrangement Drawing”
and each model's "Gasketting Manual".
Furthermore, look at the arranged heat transfer plates from the side of PHE. If
the arrangement is incorrect, heat transfer plates with the same configuration will
be lined up.
Inspection of defects on the heat transfer plate two sides and plate gasket surface
– While moving the heat transfer plates toward the S-Frame side or E-Frame side one by one, visually check for foreign
material on the two sides of the heat transfer plate gasket groove and the plate gasket surface, and for defects such as
damage and/or corrosion.
If there is any foreign material on the two sides of the heat transfer plate gasket groove and/or the plate gasket surface,
remove it using a soft cloth such as a dust cloth.
If there is any visible damage, corrosion on the two sides of heat transfer plate or the plate gasket surface, replace it with
a brand-new one.
– At the same time, check that the plate gasket is free from peeling off the heat transfer plate.
If the gasket is peeling from plate groove, re-bonding only the peeling part.
– In case of “slit-in” type (plate gasket type "A"), only D-Plate front side and E-Plate back side are to be adhered. Use
Hisaka specified adhesive.
Damage inspection for the tightening bolts and nuts
– Visually inspect the surface of tightening bolts and nuts, and if there is any damage that may interfere with tightening,
such as scratches, dents, or rust, replace it with a brand-new one.
12-4 Inspection

P14
Tightening
length
Tightening
length
Tightening
length
Tightening
length
Tightening
length
Tightening
length
Assembly preparation
(1) Prepare the ratchet spanner or the automatic tightening device.
(2) Grease up the tightening bolts after cleaning all tightening bolt threads.
Assembly work
(1) Move all heat transfer plates that have been checked/inspected plate arrangement to
the S-Frame side, and move the E-Frame to the S-Frame side.
(2) Place the tightening bolts for position 3, 4, 11, and 12.
(3) Tighten the bolts to ensure the dimension in position 3, 4, 11 and 12 should be equal.
(4) Slowly tighten the bolts in order of 3411123and so on.
(5) Where 3, 4, 11, and 12 become hard to tight, place all tightening bolts and nuts in
position 1 to 14.
(6) Tightening length of 1 to 14 should be equal.
(7) Slowly tighten the tightening bolts in order of 1, 2, to 13, 14, to 1.
(8) Repeat step (7) until the tightening below-specified lengths.
In case that plate gaskets are not to be replaced: Tightening lengths recorded
before disassembly
In case that plate gaskets are to be replaced: Tightening Length Max. on the
nameplate
12-5 Assembly
[NOTE]
Place the tightening bolts and nuts in four positions, below the upper
nozzles and above the lower nozzles. (If there are long bolts and short bolts,
place the long bolts first.)
[NOTE]
If you have two sets of ratchet spanners and/or automatic tightening device,
slowly tighten two tightening bolts that are located diagonal, in order, 3 and
4, 11 and 12, simultaneously.
[NOTE]
If you have two sets of ratchet spanners and/or automatic tightening device,
slowly tighten two tightening bolts that are located diagonal, in order, 1 and 2
-> 13 and 14 -> 3 and 4 -> 11 and 12 -> … -> 5 and 6 -> 7 and 8,
simultaneously.
The difference between each tightening length shall be within 10mm.
Further, the difference shall decrease to 5mm, 3mm and 1mm from 10mm
when it gets harder to tighten up in order to prevent galling of the tightening
bolts and nuts.
[NOTE]
Tightening for the HISAKA PHE shall be managed by tightening lengths but not by torque counting by millimeters.
It is not a problem if there might be some different tightening torque between each tightening bolt position.
Tightening
length

P15
(1) Leakage detection shall be performed once assembly of PHE has been completed.
Check if any leakages appear at top, bottom and both sides of plate pack by carrying out hydrostatic test.
Testing pressure shall not exceed the design pressure.
(2) Maintain pressure for 10 minutes or longer. All works can be completed if no leakage.
In case of any leakage detected, mark on the leaking part and disassemble PHE again for visual check on the heat
transfer plate and gasket surface.
13 Troubleshooting
Symptom Possible cause(s) Remedy/ Solution
Heat transfer performance has
decreased. The heat transfer surfaces get fouled.
Disassemble the Heat Exchanger and make
the heat transfer plates clean.
Be sure to check if any pipes connected to
the inlet and outlet of PHE are clean.
The differential pressure increases
or the flow rate decreases.
Fouling on the heat transfer surface is
making the plate gap narrow.
The port holes and/or the heat transfer
surfaces are clogging.
Fluid is leaking to the outside from
between heat transfer plates.
Sealing performance has decreased
due to insufficient tightening.
After PHE internal pressure shall be
atmospheric pressure and tighten the plate
pack sufficiently.
However, do not tight shorter than the
minimum length.
Sealing performance has decreased
due to plate gasket deterioration. Disassemble PHE and replace any damaged plate gaskets to brand-new one.
Foreign material exists on the sealing
surface of plate gasket.
Disassemble PHE and wipe off the foreign
materials on the sealing surface of plate
gasket by using a dust cloth.
Gasket runs on to gasket groove wall. Disassemble PHE and reset the plate gasket.
The heat transfer plate arrangement is
incorrect. Disassemble PHE and heat transfer plate arrangement shall be corrected.
Heat transfer plate has crack and/or
pin-hole due to corrosion etc. Disassemble PHE and replace any damaged
heat transfer plate to brand-new one.
Heat transfer plate deforms.
Fluid is leaking to the outside from
between S-Frame and the D-Plate.
Sealing performance has decreased
due to insufficient tightening.
After PHE internal pressure shall be
atmospheric pressure and tighten the plate
pack sufficiently.
However, do not tight shorter than the
minimum length.
Sealing performance has decreased
due to D-plate gasket deterioration. Disassemble PHE and replace any damaged D-plate gaskets to brand-new one.
Foreign material exists on the sealing
surface of D-plate gasket.
Disassemble PHE and wipe off the foreign
materials on the sealing surface of D-plate
gasket by using a dust cloth.
D-plate gasket runs on to gasket
groove wall. Disassemble PHE and reset the D-plate gasket.
Heat transfer plate has crack and/or
pin-hole due to corrosion etc. Disassemble PHE and replace damaged D-plate to brand-new one.
12-6 Leakage Detection

P16
Symptom Possible cause(s) Remedy/ Solution
(Continued from the previous page)
Fluid is leaking to the outside from
between S-Frame and the D-Plate.
Metal covering nozzle has crack and/or
pin-hole due to corrosion etc. Replace a set of the S-Frames with a
brand-new one.
Inquire with our company whether the
welding part can be repaired/changed or
not.
Welding part of metal covering nozzle
has crack and/or pin-hole.
Rubber covering nozzle has crack.
Fluid is leaking to the outside from
between E-Frame and the E-Plate.
Sealing performance has decreased
due to insufficient tightening.
After PHE internal pressure shall be
atmospheric pressure and tighten the
plate pack sufficiently.
However, do not tight shorter than the
minimum length.
Sealing performance has decreased
due to E-plate gasket deterioration. (If
equipment has E-Nozzle)
Disassemble PHE and replace any
damaged E-plate gaskets to brand-new
one.
Foreign material exists on the sealing
surface of E-plate gasket. (If equipment
has E-Nozzle)
Disassemble PHE and wipe off the
foreign materials on the sealing surface
of E-plate gasket by using a dust cloth.
E-plate gasket runs on to gasket groove
wall. (If equipment has E-Nozzle)
Disassemble PHE and reset the E-plate
gasket.
Heat transfer plate has crack and/or
pin-hole due to corrosion etc. Disassemble PHE and replace
damaged E-plate to brand-new one.
Metal covering nozzle has crack and/or
pin-hole due to corrosion etc. (If
equipment has E-Nozzle) Replace a set of the E-Frames with a
brand-new one.
Inquire with our company whether the
welding part can be repaired/changed or
not.
Welding part of metal covering nozzle
has crack and/or pin-hole. (If equipment
has E-Nozzle)
Rubber covering nozzle has crack. (If
equipment has E-Nozzle)
The mixture of hot side media and cold
side media has occurred.
Heat transfer plate has crack and/or
pin-hole due to corrosion etc.
Disassemble PHE and replace any
damaged heat transfer plate to
brand-new one.

P17
MEMO
