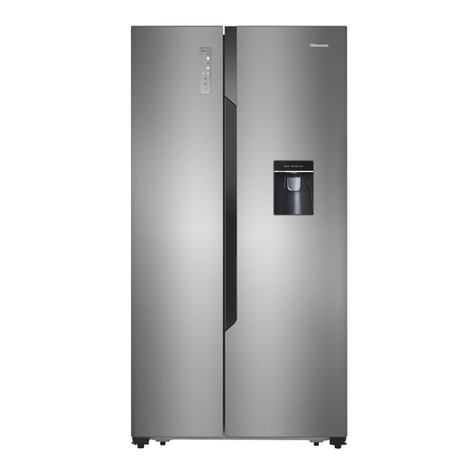

Hisense RS696N4IC1 Mounting instructions

RS696N4IB1
1
RS696N4II1
RS696N4IC1

Safety and warning information…........2
Installing your new appliance………....8
Description of the appliance….......….13
Display controls…………………...…..14
Using your appliance……………........18
Cleaning and care………………....... 22
Helpful hints and tips…………………24
Troubleshooting………………………26
Disposal of the appliance……………28
Contents
2
For your safety and correct usage before installing and first
using the appliance, read this user manual carefully, including
its hints and warnings. To avoid unnecessary mistakes and
accidents, it is important to make sure that all people using the
appliance are thoroughly familiar with its
operation and safety features. Save these instructions and be
sure that they remain with the appliance if it is moved or sold,
so that anyone using it throughout its life, will be properly
informed on its usage and safety notices.
For the safety of life and property, keep the precautions of
these user's instructions as the manufacturer is not
,
responsible for damages caused by omission.
Hisense Refrigerator
Safety for children and otherswho are vulnerable people
According to EN standard
According to IEC standard
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.

3
Hisense Refrigerator
Keep all packaging away from children as there is risk of
suffocation.
If you are discarding the appliance, pull the plug out of the
socket, cut the connection cable (as close to the appliance
as you can) and remove the door to prevent children playing
from suffering an electric shock or from closing themselves
inside it.
If this appliance, featuring a magnetic door seals, is to
replace an older appliance having a spring lock (latch) on the
door or lid, be sure to make the spring lock unusable before
you discard the old appliance. This will prevent it from
becoming a death trap for a child.
General safety
WARNING —This appliance is intended to be used in
household and similar applications such as
-staff kitchen areas in shops, offices and other working
environments;
-farm houses and by clients in hotels, motels and other
residential type environments;
-bed and breakfast type environments;
-catering and similar non-retail applications.
WARNING — Do not store explosive substances such as
aerosol cans with a flammable propellant in this appliance.
WARNING — If the supply cord is damaged, it must be
replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
WARNING — Keep ventilation openings, in the appliance
enclosure or in the built-in structure, clear of obstruction.
WARNING — Do not use mechanical devices or other
means to accelerate the defrosting process, other than those
recommended by the manufacturer.
WARNING — Do not damage the refrigerant circuit.
WARNING — Do not use electrical appliances inside the
food storage compartments of the appliance, unless they are
WARNING —Connect to potable water supply only.

4
Hisense Refrigerator
of the type recommended by the manufacturer.
WARNING — The refrigerant and insulation blowing gas are
flammable. When disposing of the appliance, do so only at
an authorized waste disposal centre. Do not expose to
flame.
WARNING —When positioning the appliance, ensure the
supply cord is not trapped or damaged.
WARNING —Do not locate multiple portable socket-outlets
Refrigerant
The refrigerant isobutene (R600a) is contained within the
refrigerant circuit of the appliance, a natural gas with a high
level of environmental compatibility, which is nevertheless
flammable. During transportation and installation of the
appliance, ensure that none of the components of the
refrigerant circuit becomes damaged.
The refrigerant (R600a) is flammable.
WARNING — Refrigerators contain refrigerant andgases in
the insulation. Refrigerant and gases must be disposed of
professionally as they may cause eye injuries or ignition.
Ensure that tubing of the refrigerant circuit is not damage
prior to proper disposal.
Replacing the illuminating lamps
WARNING—The illuminating lamps must not be replaced by
the user! If the illuminating lamps is damaged, contact the
customer helpline for assistance.
This warning is only for refrigerators that contain illuminating
lamps.
WARNING:risk of fire
If the refrigerant circuit should be damaged:
-Avoid opening flames and sources of ignition.
-Thoroughly ventilate the room in which the appliance is
situated.
or portable power supplies at the rear of the appliance.

5
Hisense Refrigerator
Daily use
Do not store flammable gass or liquids in the appliance,
There is a risk of an explosion.
Do not operate any electrical appliances in the appliance
(e.g.electric ice cream makers,mixers etc.).
When unplugging always pull the plug from the mains
socket,do not pull on the cable.
Do not place hot items near the plastic components of this
appliance.
Electrical safety
1.The power cord must not be lengthened.
2. Make sure that the power plug is not crushed or damaged.
A crushed or damaged power plug may overheat and cause a
fire.
3. Make sure that you can access the main plug of the
appliance.
4. Do not pull the main cable.
5. If the power plug socket is loose, do not insert the power
plug. There is a risk of electric shock or fire.
6.You must not operate the appliance without the interior
lighting lamp cover.
7.The fridge is only applied with power supply of single phase
alternating current of 220~240V/50Hz. If fluctuation of voltage
in the district of user is so large that the voltage exceeds the
above scope, for safety sake, be sure to apply A.C. Automatic
voltage regulator of more than 350W to the fridge. The fridge
must employ a special power socket instead of common one
with other electric appliances. Its plug must match the socket
with ground wire.
It is dangerous to alter the specifications or modify this
product in any way.
Any damage to the cord may cause a shortcircuit, fire, and/or
electric shock.

6
Hisense Refrigerator
Do not place food products directly against the air outlet on
the rear wall.
Store pre-packed frozen food in accordance with the frozen
food manufacture’s instructions.
The appliances manufactures storage recommendations
should be strictly adhered to.Refer to relrelevant instructions
for storage.
Do not place carbonated or fizzy drinks in the freeze
compartment as it creates pressure on the container,which
may cause it to explode,resulting in damage to the
appliance.
Frozen food can cause frost burns if consumed straight from
the freezer compartment.
Do not place the appliance in direct sunlight.
Keep buring candles,lamps and other items with naked
flames away from the appliance so that do not set the
appliance on fire.
The appliance is intended for keeping food stuff and/or
beverages in normal household as explained in this
instruction booklet The appliance is heavy.Care should be
taken when moving it.
Do not remove nor touch items from the freezer
compartment if your hands are damp/wet,as this could cause
skin abrasions or frost/freezer burns.
Never use the base,drawers, doors etc. to stand on or as
supports.
Frozen food must not be refrozen once it has been thawed
out.
Do not consume ice popsicles or ice cubes straight from
the freezer as this can cause freezer burn to the mouth
and lips.
To avoid items falling and causing injury or damage to
the appliance, do not overload the door racks or put too
much food in the crisper drawers.
caution!
Care and cleaning

7
Hisense Refrigerator
Adequate air circulation should be around the appliance,
lacking this leads to overheating. To achieve sufficient
ventilation, follow the instructions relevant to installation.
Wherever possible the back of the product should not be too
close to a wall to avoid touching or catching warm parts
(compressor, condenser) to prevent the risk of a fire, follow
the instructions relevant to installation.
The appliance must not be locate close to radiators or
cookers.
Make sure that the mains plug is accessible after the
installation of the appliance.
Service
Any electrical work required to do the servicing of the
appliance should be carried out by qualified electrician or
competent person.
This product must be serviced by an authorized Service
Center, and only genuine spare parts must be used.
1)If the appliance is Frost Free.
2)If the appliance contains freezer compartment.
Installation Important!
For electrical connection carefully, follow the instructions
given in this manual.
Unpack the appliance and check if there are damages on it.
Do not connect the appliance if it is damaged. Report
possible damages immediately to the place you bought it. In
this case retain packing.
It is advisable to wait at least four hours before connecting
the appliance to allow the oil to flow back in the compressor.
Before maintenance, switch off the appliance and disconnect
the mains plug from the mains socket.
Do not clean the appliance with metal objects, steam
cleaner, ethereal oils, organic solvents or abrasive
cleansers.
Do not use sharp objects to remove frost from the appliance.
Use a plastic scraper.

W1
130°
140°
D1
≥100
W
D
≥100
≥75
W2
Installing your new appliance
Before using the appliance for the first
time, you should be aware of the
following tips.
Ventilation of appliance
In order to improve efficiency of
the cooling system and save
energy, it is necessary to maintain
good ventilation around the appliance
for the dissipation of heat. For this
reason, sufficient clear space should
be available around the refrigerator.
Suggest: It is advisable for there to
be 50-70mm of space from the back to
the wall, at least 100mm from its top,
at least 100mm from its side to the
wall and a clear space upfront to allow
the freezer door to open 130°and
refrigerator door to open 140°. See
in follow diagrams. Please refer to the
diagrams below.
the
Relevant information (mm)
This appliance performs well in the
climate class from SN to T. It may not
work properly if being left at a
temperature above or below the
indicated range for a long period.
Note:
Stand your appliance in a dry place
to avoid high moisture damage.
Keep the appliance out of direct
sunlight, rain or frost. Stand the
appliance away from heat sources
such as stoves, fires or heaters.
WW1 W2 DD1
908 417.5 277 600 1142.5
8

adjusta e bottom f etbl e
adjusta e bottom f etbl e
Warning!
For proper installation, this refrigerator
must be placed on a level surface of
hard material that is the same height
as the rest of the flooring. This surface
should be strong enough to support a
fully loaded refrigerator.
The rollers, which are not castors,
should be only used for forward or
backward movement. Moving the
refrigerator sideways may damage
your floor and the rollers.
Leveling of appliance
For sufficient leveling and air
circulating in the lower rear section of
the appliance, the bottom feet may
need to be adjusted. Please use a
suitable spanner.
To allow the doors to self-close, tilt
back the top backwards at about
15mm or 0.5°by turning the
adjustable feet.
Whenever you want to move the
appliance, remember to turn the feet
back up, so that the appliance can roll
freely. Reinstall the appliance when
relocating.
0.5
15mm
Fixing the handle
Before you use the product, please
check the handle of the refrigerator. If
the handle is loose, you should fix it
with the hexangular screwdriver in the
clockwise direction, then it can be
used normally.
9

Installing the water lines and filter
Installing the water filter
Installing the filterthe water lines of
Note!
The water lines must be fully
inserted into the filter to prevent water
leaking.
Filter Holder Screw
To ,
follow the instructions of installing
steps below that referring to the
figures supplied.
install the water lines of the filter
Second,
mount the external filter. (Note: The
water filter should be mount on the
wall where it is convenient to be
replaced, and do not mount on the
wall behind the refrigerator.)
determine the location to
Third,
between the filter and the tap, and the
distance from the filter to the fridge.
Prepare lines as required lengths.
(Cut the proper lengths of water lines
which you determine to connect with
the filter inlet or outlet.)
determine the distance
Fourth, mount the filter holder onto
the wall by using a screwdriver and
attach the water filter.
Warning!
The water filter must be held upright
as shown in the figure above. It is
critical to connect the water inlet and
outlet hoses on the filter correctly.
Never mount the filter onto the
refrigerator. Coolant pipes might be
pierced.
Filter Holder
Filter
Inlet
Outlet
FLOW
First, take out the water filter and
water lines from the fridge room.
To , follow the
installing steps below.
fit the water filter
First, the 2 clips out, then pull out
the 2 stopper of the water filter.
take
Clip
Stopper
Stopper
Water Filter
It is recommended to have a
suitably qualified person to install the
product.
The line length should be less than
5m. If the water line is too long(>5m),
the ice and cold water content may be
affected due to insufficient water
pressure.
Cut the water line as required length
and avoid overbending the water
lines.
10

Clip
Connector
Water line Water line
The water lines must be connected
with the potable water only.
Note:
To operate properly, the ice maker
requires a water pressure of 207~689
Kpa.
Connect filter outlet line to the fridge
The outlet line of the water filter
should be connected with the inlet line
of the refrigerator by a Two-Way
Connector.
The water lines must be fully inserted
into the center of the connector to
prevent water leaking.
Insert the 2 clips in the install pack as
shown in the diagram, and then
confirm that each clip holds the line
firmly.
Connecting the filter inlet line to
the water supplier
Screw the adaptor onto a suitable 3/4”
BSP connector water outlet, and use
the spanner to tighten it. Fully insert
the water line into the check valve.
Then insert the clip in the install pack
as the figure shown below.
The initial dark discoloration of
water is normal.
After installed the filter, please open
the water valve to flush the filter for 5
minutes before use.
Third,
position as the figure shown below,
and confirm that each clip holds the
water line firmly.
insert the 2 clips in the proper
Clip
Water line
Water line
FLOW
Water line
Water Filter
Water line
Outlet
Inlet
Second, fully insert the water lines
into the Inlet and Outlet of the water
filter.
11
Clip
Connector
Filter inlet line
Water valve
Spanner
Check valve
FLOW
Water
The connector and the check valve is
provided as one part. You should use
the new connector incidentally but not
the old one you have.

Open the water valve to flush the
lines, and check leakage in the water
connectors. If any leak, please check
that if the lines are fully inserted
where the connector leaked. If not,
please install them again, and make
sure that the lines are fully inserted.
Warning!
After turning on the water valve,
make sure that there is no leakage at
all connection points of the water
lines. If there is a leakage, turn off the
valve immediately and tighten the
water connector or make the lines
fully inserted into the connector.
Note:
After connect the filter outlet line
with the refrigerator(as shown in the
diagram below), please dispense
several cups of water to flush the lines
before use.
The water lines should not be
pressed by heavy things and should
not bend too much.
FLOW
１２

View of the appliance
9
10
11
12
13
14
15
16
17
18
8
7
6
5
1
2
3
4
Description of the appliance
Note: Due to constant development of our products, your refrigerator may be
slightly different from this Instruction Manual, but its functions and usage
remain the same.
1. Freezer zone LED light
2. Ice-Maker Front Cover Assembly
3. Ice Bucket Assembly
4. Wind channel cover in freezer
5. Freezer shelf
6. Freezer door Rack
7. Freezer upper drawer
8. Freezer lower drawer
9. Left adjustable bottom feet
10. Fridge zone LED light
11. Adjustable odor equipment
12. Fridge door Rack
13. Wind channel cover in fridge
14. Fridge shelf
15. Bottle Rack
16. Fridge upper drawer
17. Fridge lower drawer
18. Right adjustable bottom feet
13

Use your appliance according to the following control guidelines, your product
has a control panel as shown in the diagram below.
When the appliance is powered on for
the first time, the backlighting of the
icons on the display panel starts
working. If no buttons have been
touched and the doors are closed, the
backlighting will turn off after 60
seconds.
Caution! When you set a
temperature, you set an average
temperature for the whole refrigerator
cabinet. Temperatures inside each
compartment may vary from the
temperatures displayed on the panel,
depending on how much food you
store and where you place it. High or
low room temperature may also affect
the actual temperature inside the
appliance.
The control panel consists of two
areas about temperature, and one
area about different modes.
Display controls
Super Freeze 3"Super Cool 3"Filter Reset 3"
Child Lock 3"
14

You can touch “Ice Off” button to
control the ice maker. When the Child
Lock is off, and the ice function is on,
you can touch the “Ice Off” icon to
close the ice maker, and the icon “ ”
will be illuminated. If you want to open
the ice maker, please touch the “Ice
Off” icon again, and the icon “ ” will
be off.
When the door of fridge or freezer is
open over 2 minutes, the door alarm
will come on. In case of alarm, “ ”
icon will be on and will be buzzing
sound. The buzzer will sound 3 times
per minute and will stop after 10
minutes. Also it can be stoped by
closing the door.
In case of alarm, “ ” icon will be on
and a buzzing sound will be heard.
Touch “Alarm” key to clear alarm then
the “ ” icon will turn off and the
buzzing will stop.
Press and hold “Alarm” for 3 seconds
to lock the all the Control Panel
including dispenser function. If
Control panel is locked, the icon “ ”
will be illuminated, and none of the
buttons on the Control panel work.
OFF
“Child Lock and Door Alarm”
This button serves two purposes:
To unlock the Control panel, please
press and hold “Alarm” for 3 seconds
again.
1.Child Lock
2.Door Alarm
To save energy, please avoid keeping
doors open for along time when
using refrigerator.
When Child Lock is off, and the doors
are open, you can turn alarm off by
touching “Alarm” .
“Ice Control”
This button controls the ice maker.
OFF
“Holiday”
If you are going to be away for a long
period of time such as a long holiday
or business trip, you can activate this
function by touching the “Holiday”
button, and the icon “ ” will be
illuminated.
When the holiday function is
activated, the temperature of the
fridge is automatically switched to
15℃ and the freezer to -18℃ to
minimize the energy consumption.
The fridge temperature seting
displays “—” and the freezer
compartment remains on.
When the holiday function is on, you
can switch off it by touching “Holiday”
again, and the icon “ ” will be off.
When the holiday function is on, the
ice maker will automatically turn off.
The refrigerator will retain the setting
when powered off.
Child Lock 3"
Note: Do not store any food in the
fridge during the “Holiday” time, or it
will quickly deteriorate.
Note: When the
close the ice maker not the dispenser.
“Ice Off” is on, it only
15

“Fridge temperature control”
You can touch the “Fridge” icon to
activate the mode to control the fridge
temperature. When you touch the
button continuously, the temperature
will be set the following sequence.in
If you want to decrease the time
needed to cool products in the Fridge,
please touch and hold this button for
3 seconds, the super cool icon “ ”
will be illuminated, the fridge
temperature setting displays 2℃.
Super cool automatically switches off
after 3 hours, and the refrigerator
temperature setting will revert back to
the previous setting.
When super cool function is on, you
can touch the “Fridge” to switch it off
and it will revert to previous
temperature setting. The fridge will
not retain the Super Cool function
when power off.
“Freezer temperature control”
Press and hold the “Freezer” button
for 3 seconds, the icon “ ”will be
illuminated, the freezer temperature
setting displays -24℃.
Super Freezer can quickly lower the
temperature and freeze your food
faster than usual. This can retain
more of the vitamins and nutrition in
fresh food and keep your food longer.
The super freeze option allows you to
freeze the maximum amount of
possible. We recommend that you let
the appliance operates for 6 hours
first. Super freeze automatically
switches off after 26 hours, and the
freezer temperature setting will revert
back to the previous setting.
When the super freeze function is on,
you can touch “Freezer” for to switch
off the Super Freeze function, and it
will revert to previous temperature
setting. And it will not retain the Super
Freeze function when power off.
“Dispenser control”
You can touch the “Freezer” button to
activate the mode to control the
freezer temperature. When you press
the button continuously, the
temperature will be set thein
When the freezer door is opened or
the Child Lock is on, the dispenser will
not work.
The Ice Type button includes “Cubed”
and “Crushed” options.
Super Cool 3"
Super Freeze 3"
Note: On the Super Cool function,
when you touch the “Holiday” or “Eco”
button, “Holiday” or “Eco” function will
be activated, and “Super Cool” mode
will be off.
Note: On the function,
when you touch the “Holiday” or “Eco”
button, “Holiday” or “Eco” function will
be activated, and “Super Freezer”
mode will be off.
Super Freezer
following sequence.
16

When the refrigerator is powered
on, all the icons of the control panel
will light up for 3 seconds, and a
buzzer sounds. The Child Lock is off.
And the temperature setting reverts
back to the previous setting.
You can touch this button to turn
Energy Saver mode on and off .
When you turn Energy Saver on, the
Energy Saver icon “ ” lights.
If Energy Saver is off
and the icon goes off.
The temperature of the fridge is
automatically switched to 8℃ and the
freezer to -15℃.
If you need water, please touch the
“Water” button, and the water icon
“ ” will light up. The mode is then
set.
When you touch the Ice Type button,
the cubed or crushed ice mode which
you choose will be activated, and the
Cubed “ ” or Crushed “ ” ice icon
lights up.
After the refrigerator has dispensed
about 1000 gallons of water(used the
water filter for about 6 months), the
filter icon “ ” will blink, and the
buzzer will sound 3 times, that remind
you need to replace the water filter.
“Changing the Water Filter”
“Energy Save”
Note!
The control panel will light up when
the door is open or you touch any
button.
The light will go off without touching
any button or the doors have been
closed for one minutes.
If you don’t need ice, turn the function
off to save on water and energy
consumption.(See Ice Off above.)
Filter Reset 3"
In general, you should change the
water filter every 6 months to ensure
the highest possible water quality.
Note!
If water is not dispensed or
dispensing slowly, you need to
replace the water filter because it may
become clogged.
Some areas have large amounts of
lime in their water, which causes the
water filter to clog more quickly.
First of all, you need to purchase a
new water filer. You can purchase the
new filter from the retailer where you
purchased your refrigerator or the
after-sales service system. Before that
please check that the new filter is the
same filter type as before that can be
correctly used in your refrigerator.
After you change a new water filter,
ensure to touch and hold the button
“Eco” for 3 seconds to reset the filter.
When you replace the water filter,
some water may leak from the filter
and lines. Please let the water flow in
a pan, and wipe up any leakage that
may have occurred.
You can the "Cubed" or
"Crushed" option to choose the t
of Ice to be dispensed. You can touch
the "Water" button to activate the
water mode.
press
ype
17

This section tells you how to use most
of the useful features. We recommend
that you read through them carefully
before using the appliance.
1. Adjust the door
When you found the doors are not at
the same level, you can use a
screwdriver to adjust the fridge door.
When the freezer door is higher than
the fridge door. First, you can use the
spanner to turn the bolt anticlockwise
on the lower hinge that can raise the
fridge door. Once in position use the
spanner to lock the nut.
When the freezer door is lower than
the fridge door. You should use the
spanner to turn the bolt clockwise to
make the fridge door go down. Once
in position lock in place.
2. Using your refrigerator compartment
The refrigerator compartment is
suitable for storage of vegetables and
fruit. Food inside should be packed to
store in order to avoid losing moisture
or flavor permeating into other foods.
Caution! Never close the refrigerator
door while the shelves, crisper and/or
telescopic slides are extended. It may
damage both them and the
refrigerator.
Glass shelves and Door racks
The refrigerator compartment is
provided with glass shelves
and several different door racks,
which are suitable for the storage of
eggs, canned liquid, bottled drinks
and packed food. They can be placed
a different heights according to your
need. But do not place too many
heavy things in racks. Before you lift
up the door shelf vertically, please
take the food out.
several
Note: All the door racks and shelves
can be taken out to be cleaned.
②nut
①bolt
③spanner
Using your appliance
Only the fridge door can be adjusted.
18

When you remove the shelves, gently
pull them forward until the shelf
comes clear of the shelf guides.
When you return the shelves, make
sure there is no obstacle behind and
gently push the shelf back into the
position.
Bottle rack
It is for storing bottled wine or drinks.
Note: Please use gently when you
removed the bottled wine or drinks.
The shelf can be taken out to be
cleared or you can adjust to save the
shelf space.
Drawers
These are suitable for storage of fruits
and vegetable. And it can be taken
out to be cleaned.
3. Using your freezer compartment
The freezer compartment is suitable
for storage of foods required to be
frozen, such as meat, fish, ice cream
and other perishable items.
Bottled or canned liquid are at risk of
exploding caused by volume
expansion and so should not be
stored in the freezer compartment.
4. Using the dispenser
You can choose the type of ice or
water by touching the “Cubed” or
“Crushed” or “Water” button.
When you choose ice type, push the
dispenser gently with your cup. Ice
will be released from the dispenser.
Make sure the cup is in line with the
dispenser, and the ice exactly fall into
the cup.
If you select Cubed Ice after using
the Crushed Ice feature, a small
amount of residual crushed ice might
fall into your cup.
Do not removing your
cup or glass from under the dispenser
after dispensing water or ice you
need. You should be wait for 2 or 3
seconds to prevent spills.
immediately
Do not pull the lever out as this could
damage or break the lever’s spring.
The dispensed water is cool, not icy
cold. When you want colder water with
ice, dispense ice to your glass first,
then fill with water from the dispenser.
Note:
Super Freeze 3"Super Cool 3"Filter Reset 3"
Child Lock 3"
Super Freeze 3"Super Cool 3"Filter Reset 3"
Child Lock 3"
19
Caution! Ensure that bottles are not
left in the freezer for longer than
needed as freezing may cause the
bottle break.
Do not dispense ice continually more
than one minute during normal use to
avoid the excessive temperature on
the ice crusher motor.

5. Using the Ice Bucket
If you want to remove the Ice Bucket:
Please hold the handle as shown in
the figure below. Then lift up and pull
the Ice Bucket out slowly to prevent
damage.
Note!
When the ice maker dumps ice into
the bucket, any sounds you hear are
part of normal operation.
If you do not dispense ice for a
long periods of time, Ice may clump
in the Ice Bucket. If this occurs,
please remove all the ice and empty
the bucket.
If ice doesn’t come out, please
check for any ice stuck in the chute
and remove it. Or pull out the Ice
Bucket and check for any ice cubes
clump, then remove them.
Ice chute
Ice Maker Cover
Ice Bucket
If you are going on a long vacation
or business trip and won’t be using
the ice dispensers for period of time,
please close the water valve to
prevent leaks.
①L the Ice Bucketift up
②Pull the Ice Bucket out slowly
Removing Steps:
B
B’
A
A’
When you put it back, please make
sure the two side(B&B’) of Ice Bucket
is wedged into the buckles(A&A’).
①
②
Installing Steps:
①
the two side(B&B’) of Ice Bucket
wedge into the buckles(A&A’).
②Pull the Ice Bucket down, and make
sure the Ice Bucket is held the bracket
firmly.
Push the Ice Bucket up, and make
①②
Pull out
A
B
A
B
Push up
20
If the refrigerator has been power-
off too long,the ice in the bucket will
melt ,and the water will flow out of the
refrigerator to the floor.To avoid
this,you should remove all the ice in
the bucket .
