QUICK SETUP GUIDE
Before using the TV, please read this guide thoroughly
and retain it for future reference. For more detailed
instructions, please see the User Manual.

1
Contents
Contents
Accessories List..............................................................................................................1
Installing the Stand.........................................................................................................2
TV Front..........................................................................................................................3
TV Rear ..........................................................................................................................4
Making Connections.......................................................................................................5
Remote Control ............................................................................................................10
Turning the TV on for the First Time.............................................................................12
Specifications ...............................................................................................................13
TV Base Stand Column Base
User Manual Quick Setup Guide Remote Control
AAA Batteries × 2 Screws
Accessories List
The following accessories are included with TV:
Quick Setup Guide
OK
VOLC
BACK EXIT
INPUT
SubtitleT.shift
EPGCH.List
CH
APP
Info
APP
Incorrect replacement of the battery may lead to the risk, including the
replacement of another similar or the same type. Do not expose batteries
to heat such as sun or fire or something like that.
The device should not be exposed to dripping and spraying and it cannot
be placed under objects filled with liquids.
Main plug is used as the disconnect device, the disconnect device shall
remain ready for operating.
NOTES
Excessive sound pressure from earphones and headphones can cause hearing loss.

2
Installing the Stand
Installing the Stand
CAUTION
Be sure to disconnect the A/C power cord before installing a stand or Wall-Mount
brackets.
The LED display is very fragile, and must be protected at all times when installing
the base stand. Be sure that no hard or sharp object, or anything that could scratch
or damage the LED display, comes into contact with it. DO NOT exert pressure on
the front of the TV at any time because the screen could crack.
Follow the illustrations and textual instructions below to complete the installa-
tion steps:
Product images are only for reference, actual product may vary in appearance.
NOTE
WALL-MOUNT BRACKET (not provided)
44
M6
9.5~11.5mm
2. Secure the Column base to the Base
stand with the 2 screws in accessary
tightly.
1. Carefully place your TV facedown on a soft, flat surface to prevent damage to
the TV or scratching to the screen.
3. Align the Base support with the screw
holes on the bottom of TV BACK, secure
the BASE support to the TV with the 2
screws in accessary tightly.
M4×10
M4×10
Base support
Column base
Base stand

3
TV Front
TV Front
NOTES
The Picture is Only for Reference.
It takes several seconds to power on the TV and load program. Do not rapidly turn
the TV off as it may cause the TV to work abnormally.
OK
TV Bottom Panel
TV Back View
Remote sensor
Power indicator
Item Description
Remote sensor
Receives remote signals from the remote control.
Do not put anything near the sensor, as its function may be
affected.
Power indicator The light is red in standby mode.
Select among the different input signal sources or put the TV
in standby mode, or you can turn on the TV when the TV in
standby mode.
Toggle the OK button left and right to adjust the volume.
Toggle the OK button up and down to select the channel.

4

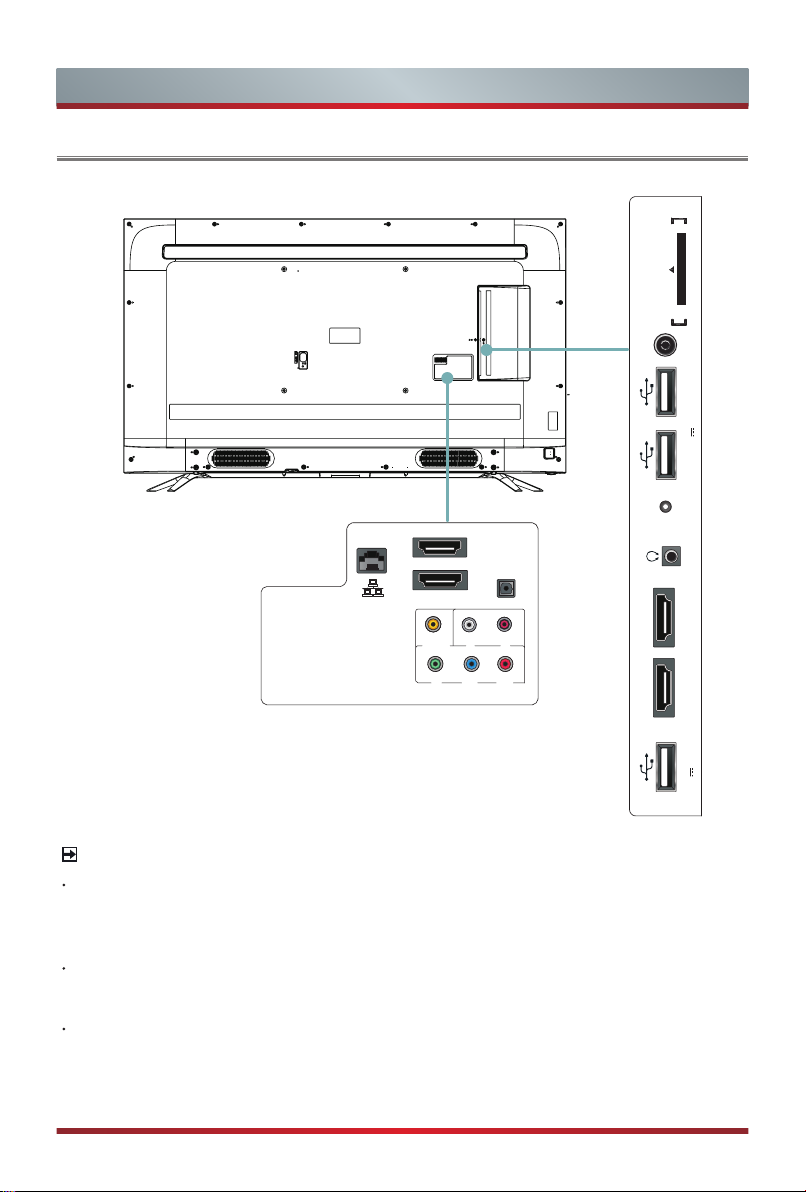

TV Rear
TV Rear
NOTES
Check the jacks for position and type before making any connections. Loose
connections can result in image or color problems. Make sure that all connections
are tight and secure.
The TV may not be compatible with all external devices. To check compatibility,
please refer to the user manual of external device.
Do not connect external equipment while TV's power cord is plugged in. It may
cause electric shock.
HDMI 2(ARC) HDMI 1(MHL)
HEADPHONE
USB 3
DC 5V 1A(MAX)
USB 2 USB 1
DC 5V 0.5A(MAX) ANT CARD FACE FRONT
SERVICE
COMMON INTERFACE
HDMI 3(2.0)
HDMI 4(2.0)
VIDEO
LR
COMPONENT IN
PR PB Y
LAN
DIGITAL
AUDIO OUT
AV IN

5
Making Connections
HDMI/COMP/AV
Connect a HDMI / Comp / AV cable from an external A/V equipment. No sound
connection is needed for HDMI to HDMI connection. If the signal resolution does not
match the specification table, you need to change the setting of device according to
the table. Please consult your device user manual for instruction.
·To select the HDMI / Component / AV
Press [Input] button, when the list of input Source appears, press [< / >] to select the
source [HDMI] / [COMPONENT] / [AV], then press [OK] to connect.
TV JACK Outdoor
Antenna
Antenna Cable (75Ω)
or ANT OUT
Cable
VHF/UHF Antenna
ANT Connect an outdoor VHF/UHF antenna or cable.
ANT
(not included)
COMMON INTERFACE
Insert the CI+ module for watching scrambled services like pay-tv channels or
some HD channels.
SMART CARD
CAM CARD
TV JACK
12
NOTES
Before you insert/remove the CI+ module, ensure that the TV is switched off.
Then insert the CI card into the CI+ module in accordance with the Service
Provider’s instructions.
Do not repeatedly insert or remove the Common Access Module as this may
damage the interface and cause a malfunction.
You must obtain a CI+ module and card from the service provider of the
channels you want to watch.
Insert the CI+ module with the SmartCard in the direction marked on the module
and SmartCard.
CI+ is not supported in some countries and regions; check with your authorized
dealer.

6

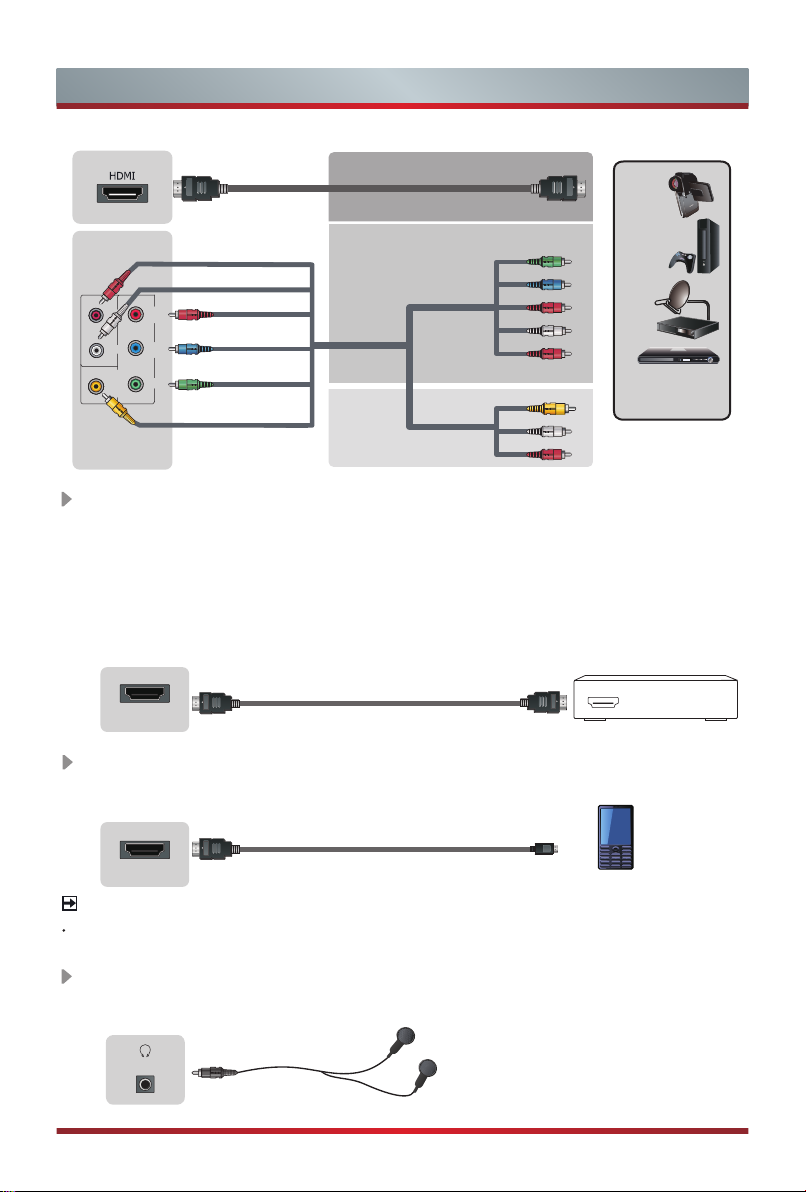

ARC Connect an HDMI cable from an external digital audio system.
ARC enables the TV to directly output the digital sound through an HDMI cable.
Please note that it works only when the TV is connected to the audio receiver that
supports the ARC (Audio Return Channel) function.
When this port is used as the ARC function, it can't be used as signal input at the
same time.
TV JACK
TV JACK
HDMI cable (not included)
MHL cable (not included)
HDMI 2/(ARC)
HDMI
Audio Amplier/Speaker
Making Connections
HDMI 1(MHL)
MHL-enabled Device
MHL Connect an MHL cable (not provided) from your MHL-enabled device, such
as a cell phone.
BEST(HDMI)
Video Effect:
BETTER
(COMP)
GOOD
(AV)
Video Camera/
Set-top Box/
Satellite Receiver
AV
Y
Pb
Pr
Component
L
R
Video
L
R
VIDEO
LR
PR
PB
Y
COMPONENT IN
HEADPHONE Connect Headphone for audio out of the TV.
The built-in speakers will be disabled once the headphone is connected.
TV JACK
Headphone (not included)
HEADPHONE
NOTE
HDMI 1 is special for MHL device. Some of nonstandard DVD players may not be supported.

7
Making Connections

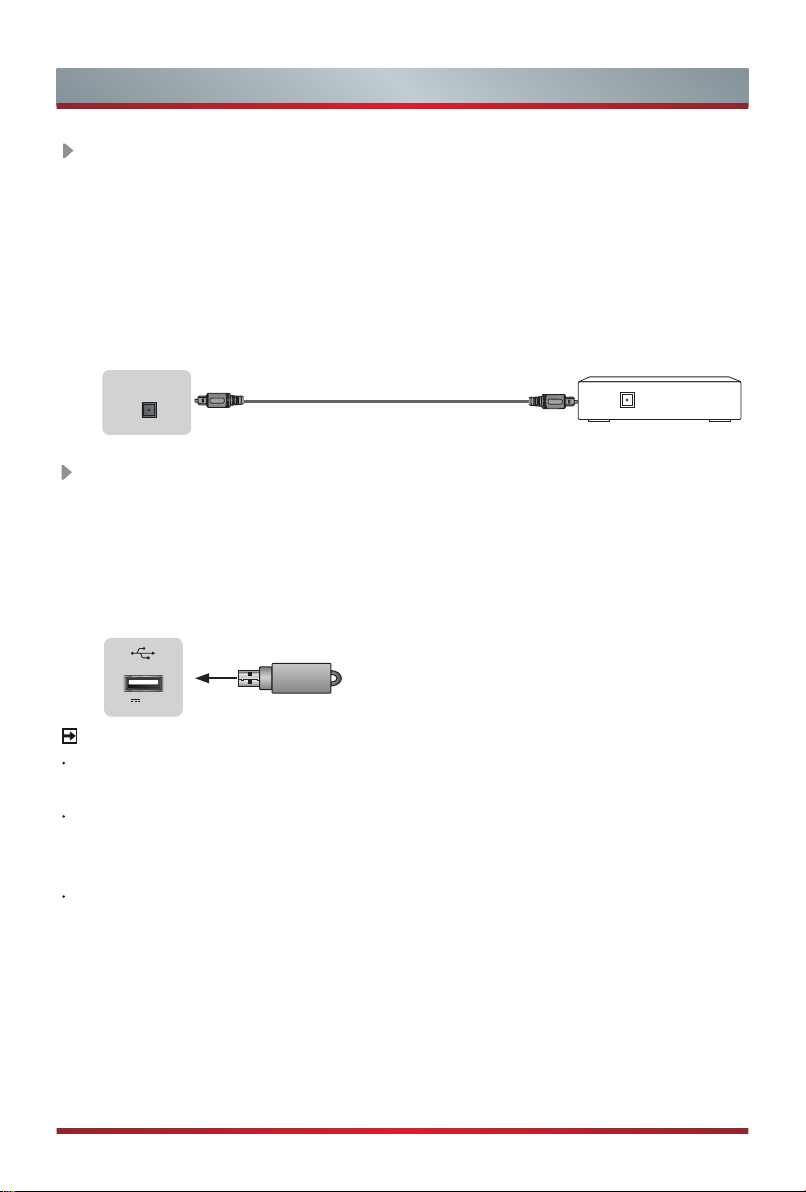

USB
Connect the USB1.1, USB2.0 and USB3.0 devices such as hard drives, USB sticks
and digital cameras for browsing photos, listening music and watching recorded
movies. You can record live TV program (refer to PVR in user Manual). At the same
time update is also an easy thing and will be done just by plugging the USB with
the updating files into the USB interface.
NOTES
When connecting a hard disk or a USB hub, always connect the mains adapter of
the connected device to the power supply.
If a USB 1.1 or USB2.0 device requires more than 500mA or 5V, the USB device
may not be supported. Max supported current for USB 3.0 device is 1A. Exceeding
the max supported current may result in damage or data loss.
If you want to store the video streaming of a DTV program, the transfer rate of the
USB storage device must not be less than 5MB/s.
TV JACK
USB
DC 5V 0.5A(MAX)
DIGITAL AUDIO OUT Connect an optical cable from an external digital audio
system
Optical S/PDIF is a type of digital audio interconnect cable used in consumer
audio equipment to output audio over reasonably short distances. The signal is
transmitted over a fibre optical cable.
Before connecting a digital audio system to the Optical jack, you should decrease
the volume of both the TV and the system to avoid that the volume suddenly
become bigger.
TV JACK
Optical cable (not included)
Audio Amplier/Speaker
DIGITAL
AUDIO OUT

8
Making Connections
LAN (Wired setup)
Connect your TV to your network by connecting the LAN port on the back of your
TV to an external modem or router using a LAN (Ethernet/Cat 5) cable. See the
illustration below.
·We recommend to use a modem or router that supports Dynamic Host
Configuration Protocol (DHCP). Modems and routers that support DHCP
automatically provide the IP address, subnet mask, gateway, and DNS, so you
don’t have to enter them manually. Most home networks already have DHCP.
Wireless setup
Connect your TV to your network wirelessly, you need a wireless router or modem.
See the illustration below.
·The TV’s built-in Wireless LAN Adapter supports the IEEE 802.11 ac/b/g/n
communication protocols. We recommend using IEEE 802.11ac router. Low
transfer rates for b/g/n may have the influence on the quality of streamed videos
and other media.
Wireless router with DHCP
LAN Cable
Wireless LAN Adapter
built-in TV set
TV JACK
Modem CableLAN CableLAN Cable
External Modem
(ADSL / VDSL / Cable TV)
IP Sharer (Router)
(with DHCP server)
LAN

9
Making Connections
NOTES
You must use the built-in Wireless LAN Adapter to use a wireless network because
the set doesn’t support external USB network adapter.
If the wireless router supports DHCP, your TV can connect more easily to the
wireless network.
If you apply a security system other than the systems listed below, it will not work with
the TV.
security system : WPA, WEP, WPA2.
In order to guarantee smooth network, the distance between router and TV is less
than 10 meters.
What is FreeviewPlus?
FreeviewPlus is a new television service delivered via broadband providng a state
of the art Electronic Program Guide (EPG) and seamless access to catch-up TV
across the free-to-air networks with the simple press of a button.
How does it work?
First ensure the TV is connected to internet and an antenna system. Then when
you’re watching TV, you’ll briefly see a prompt at the top left of the screen. Press
the ‘Green’ button on your remote to launch FreeviewPlus. More information about
FreeviewPlus can be found on http://www.freeview.com.au/
NOTE
FreeviewPlus service only available in Australia territories.

10
Remote Control
Mute and restore sound
Display the Electronic
Program Guide (DTV mode)
Display the channel
list on the screen
Display the current
program information
Exit the menu or exit
the application
Channel (up/down)
Returns to the
previous menu
Power Standby button:
Power on/ Standby
Volume (up/down)
Navigation buttons
(Up/Down/Left/Right)
Select a channel or input
numbers
Start Timeshift Display subtitles in the
Live TV
Quick Setup
Conrm button / Display
the on-screen keyboard
Fast access to the
all applications
Source selecting button
Special function buttons
OK
BACK EXIT
INPUT
Subtitle
T.shift
EPGCH.List
CH
Media content control
function buttons
Enter the Live TV screen Display the Home screen
Quick access buttons
to apps
APP
Info
VOL
APP

11
Installing Batteries in the Remote Control
NOTES
Product image is only for reference, actual product may vary in appearance.
Dispose of your batteries in a designated disposal area. Do not throw the batteries into a fire.
Do not mix battery types or combine used batteries with new ones.
Remove depleted batteries immediately to prevent battery acid from leaking into
the battery compartment.
If you do not intend to use the remote control for a long time, remove the batteries.
Batteries should not be exposed to excessive heat, such as sunshine, heat
registers, or fire.
Battery chemicals can cause a rash. If the batteries leak, clean the battery
compartment with a cloth. If chemicals touch your skin, wash immediately.
Remote Control Operation Range
1. Point the remote control at the TV within no more than 5 metres from the remote
control sensor on the TV and within 60° in front of the TV.
2. The operating distance may vary depending on the brightness of the room.
Remote Control
1. Slide the back cover to open the battery compartment of the remote control.
2. Insert two AAA size batteries. Make sure to match the ( + ) and ( - ) ends of the
batteries with the ( + ) and ( - ) ends indicated in the battery compartment.
3. Close the battery compartment cover.
1Gently push and slide 3Gently push and slide 2Insert the batteries
Remote sensor
Power indicator

12
Turning the TV on for the First Time
1. Connect the mains cable to the mains socket after you have completed all the
connections.
2. The first time you turn the TV on, it will go straight into the Installation Guide. It will
assist you to specify the Language, Location, Time Zone, Mode, EULA, Network
and Input.
3. Press the [ / / < / >] to navigate the menu and change the settings. Press the [OK]
button to confirm.
Turning the TV on for the First Time
Language Select your desired language to be displayed on the menu.
Location Select the location where you will operate the TV.
Time Zone Select your location time zone.
Next, navigate to the Forward arrow and press [OK] button.
Mode
Select Home Mode and then navigate to the Forward arrow to
press [OK] button.
Note: ‘Store mode’ should only be selected by Retailers who
plan to demonstrate the TV.
EULA Accept EULA
Help promote the TV user experience.
Network
If your TV does not automatically detect an Ethernet connection,
then select Wireless. When you’re done, select your network
from the list that displays and move to the next screen.
Input
Select how you receive your TV channels. Choose from one of
the following sources below and then move to the next screen.
• TV
• AV
• COMPONENT
• HDMI
Note: If you use an antenna to receive channels, then you must
complete the first-time setup menu in order to run a channel
scan.
Complete
Congratulations! Your TV is now ready to use.
Press [OK] on your remote if you are fine with the selections.
Otherwise, navigate to the back arrow on the screen to change
your selection.

13
Specifications
Features, appearance and specifications are subject to change without notice.
If you encountered difficulty when setting up your TV, we suggest you refer to the
troubleshooting tips in the User Manual.
Model Name 65K321UW
Dimension
Without
Stand(mm)
Width: 1458
Height: 854
Depth: 62
With Stand
(mm)
Width: 1458
Height: 898
Depth: 315
Weight
Without
Stand(kg) 30
With Stand
(kg) 31
Active Screen
Size(Diagonal) 65 inches
Screen resolution 3840×2160
Audio power 15W +15W
Power consumption Please refer to the rating label.
Power supply 100V - 240V 50Hz/60Hz
Receiving
systems
Analog PAL-D/K, B/G, I SECAM-D/K, B/G, L/L’
Digital DVB-T/T2, DVB-C
Environmental
conditions
Temperature: 5°C - 45°C
Humidity: 20% - 80% RH
Atmospheric pressure: 86 kPa - 106 kPa
Component Input
480 I / 60 Hz, 480 P / 60 Hz, 576 I /50 Hz, 576 P /50 Hz, 720 P /
50 Hz, 720 P / 60 Hz, 1080 I / 50 Hz, 1080 I / 60 Hz, 1080 P / 50
Hz, 1080 P / 60 Hz
HDMI Input
60 Hz (640×480, 800×600, 1024×768)
60 Hz (480 I, 480 P, 720 P, 1080 I, 1080 P)
50 Hz (576 I, 576 P, 720 P, 1080 I, 1080 P)
24 Hz 30 Hz (3840×2160 HDMI 1,2)
24 Hz 30 Hz 50 Hz 60 Hz (3840×2160 HDMI 3,4)
